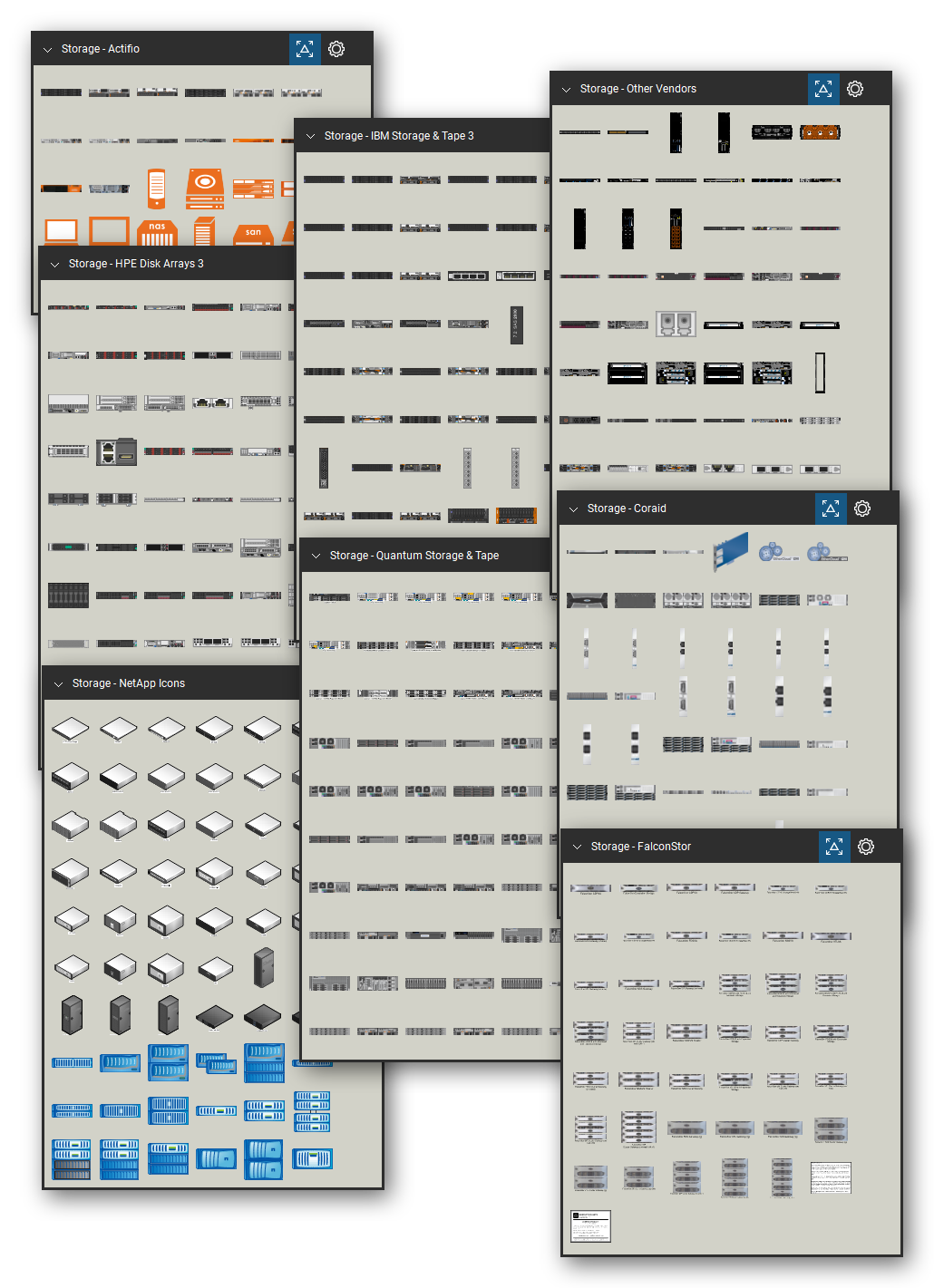

• Storage equipment library for Bluebeam Revu: 6,662 tools in 50 tool sets - disk arrays and shelves, NAS and SAN systems, hyperconverged nodes, tape libraries, and backup appliances. Collage of Tool Chest cards in Symbol view.

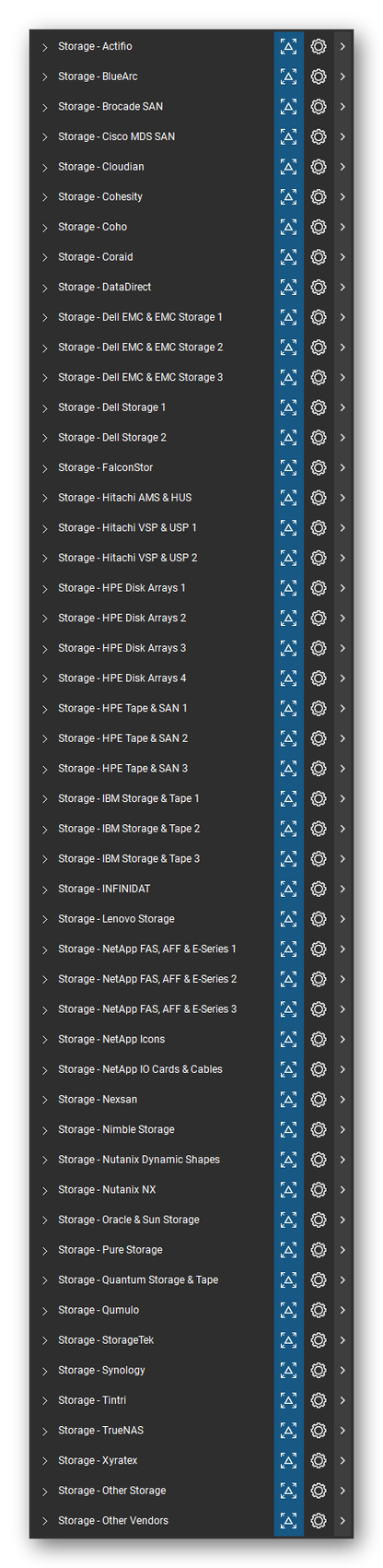

  • The Bluebeam Revu Tool Chest with the 50 tool sets of the Storage & Backup tool set loaded, closed to the set titles.
  • Storage & Backup tool set for Bluebeam Revu, Actifio set - 28 views of 25 devices, front and rear: v3700, v3700 Exp, DS3512, DS3512 Exp, M3 Node 1G, M3 Node 10G, FC Switch, M3 Battery Cache, M3 Node, M4 Node and 15 more. Tool Chest in Symbol view.
  • Storage & Backup tool set for Bluebeam Revu, Coraid set - 44 views of 35 devices, front and rear: ESM1500, ESM1500 front (no bezel), HBA icon, EtherCloud EM (Element Manager), EtherCloud GM (Global Manager), EX3260, EX3260 front (no bezel), EX3260-R2, EX3260-S2, SRX2800 and 25 more. Tool Chest in Symbol view.
  • Storage & Backup tool set for Bluebeam Revu, FalconStor set - 41 tools: CDPSA, Expansion Storage, CDPVS, CDP Gateway, CDPVS Storage Head SAS, CDPVS Storage Head FC, FDS Gateway (sm/med), NSSVS Storage Head SAS, FDSSA, NSSVS Storage Head FC and 31 more. Tool Chest in Symbol view.
  • Storage & Backup tool set for Bluebeam Revu, HPE Disk Arrays 3 set (tools 1-72 of 223) - 72 views of 60 devices, front and rear: DX360 Gen10 8SFF Appliance, DX360 Gen10 4LFF Appliance, DX360 Gen10 Appliance, DX380 Gen10 24SFF Appliance, DX380 Gen10 Appliance, DX560 Gen10 24SFF Appliance, DX560 Gen10 Appliance, DX2200 Gen10 12LFF Appliance, DX2600 Gen10 24SFF Appliance, DX2x00 Gen10 Appliance and 50 more. Tool Chest in Symbol view.
  • Storage & Backup tool set for Bluebeam Revu, IBM Storage & Tape 3 set (tools 1-72 of 219) - 72 views of 59 devices, front and rear: V3500 SFF, V3500 LFF, V3500, V3700 SFF, V3700 LFF, V3700, V3700 SFF Exp., V3700 LFF Exp., V3700 Exp., V5000 SFF and 49 more. Tool Chest in Symbol view.
  • Storage & Backup tool set for Bluebeam Revu, NetApp Icons set (tools 1-72 of 212) - 72 tools: ATTO FibreBridge, CN1601, CN1610, DE1600, DE5600, DE6600, DE6900, DS14mk2 AT, DS14mk2 FC, DS14mk4 FC and 62 more. Tool Chest in Symbol view.
  • Storage & Backup tool set for Bluebeam Revu, Quantum Storage & Tape set (tools 1-72 of 203) - 72 views of 60 devices, front, rear and side: Artico, Artico - Rear Configuration 0, Artico - Rear Configuration 1, Artico - Rear Configuration 2, Artico - Rear Configuration 3, Artico - Rear Configuration 4, Artico - Rear Configuration 5, DXi4700 G2 MD1400, DXi4700 G2 R730xd, DXi4700 G2 R730xd - Rear with FC and 50 more. Tool Chest in Symbol view.
  • Storage & Backup tool set for Bluebeam Revu, Other Vendors set (tools 1-72 of 160) - 72 views of 55 devices, front and rear: ActiveScale Management Switch, ActiveScale P100 Base, ActiveScale Storage Enclosure, ActiveScale Storage Node, ActiveScale System Interconnect, ActiveScale System Node, ActiveScale System Rack, ActiveScale X100, Avere FXT 5000 Front Bezel, Avere FXT 5000 and 45 more. Tool Chest in Symbol view.
  • Storage & Backup tool set for Bluebeam Revu, Actifio set (tools 1-20 of 28) - 20 views of 17 devices, front and rear: v3700, v3700 Exp, DS3512, DS3512 Exp, M3 Node 1G, M3 Node 10G, FC Switch, M3 Battery Cache, M3 Node, M4 Node and 7 more. Tool Chest in Detail view, one row per tool with its name.
  • Storage & Backup tool set for Bluebeam Revu, BlueArc set (tools 1-20 of 56) - 20 views of 19 devices, front and rear: Titan, Titan3, TitanII, SMU, 1U blank, 2U Blank, 3U Blank, 4U Blank, 5U Blank, FC Switch and 9 more. Tool Chest in Detail view, one row per tool with its name.
  • Storage & Backup tool set for Bluebeam Revu, Brocade SAN set (tools 1-20 of 96) - 20 tools: Brocade 800, Brocade 1600, 200E, 20X0, 22X0, Brocade 2400, Brocade 2800, Brocade 300, Brocade 3200, Brocade 3250 and 10 more. Tool Chest in Detail view, one row per tool with its name.
  • Storage & Backup tool set for Bluebeam Revu, Cisco MDS SAN set (tools 1-20 of 75) - 20 views of 15 devices, front and rear: MDS 9706, MDS 9710, MDS 9718, MDS 9700 48-Port 16Gbps FC Mdl, MDS 9700 48-Port 32Gbps FC Mdl, MDS 9700 24/10-Port SAN Ext. Mdl, MDS 9700 24-Port 40Gbps FCoE Mdl, MDS 9700 48-Port 10Gbps FCoE Mdl, MDS 9700 PSU, MDS 9700 PSU Blank and 5 more. Tool Chest in Detail view, one row per tool with its name.
  • Storage & Backup tool set for Bluebeam Revu, Cloudian set (tools 1-20 of 27) - 20 views of 14 devices, front and rear: HyperStore 4200, HyperStore 4100 front open, HyperStore 4100, HyperStore 1600S, HyperStore 1600, HyperStore Flash 1000, HyperStore 4U Bezel, HyperStore Xtreme front open, HyperStore Xtreme, HyperFile 1000 and 4 more. Tool Chest in Detail view, one row per tool with its name.
  • Storage & Backup tool set for Bluebeam Revu, Cohesity set (tools 1-20 of 31) - 20 views of 15 devices, front and rear: 2 x 16G FC PCIe, 2 x OCP 25 GbE, 2 x OCP 40 GbE, 4 x 10G RJ45 PCIe, 4 x 10G SFP+ PCIe, C2000, C2K Node Blank, C3000 Drives, C3000, C4000 and 5 more. Tool Chest in Detail view, one row per tool with its name.
  • Storage & Backup tool set for Bluebeam Revu, Coho set (tools 1-20 of 35) - 20 views of 16 devices, front and rear: DataStream Switch (48 Port), DataStream Switch (64 port), DataStream Switch-PSU (MRS), DataStream Switch-FAN (MRS), DataStream 800h 2U, DataStream 800h 2U - No Bezel, DataStream 800h 2U - No Bezel (CF) without, DataStream 800h Hard Drive (MFS), DataStream 800h Array-PSU (MRS), Micro Array for DS 800h (MRS) and 6 more. Tool Chest in Detail view, one row per tool with its name.
  • Storage & Backup tool set for Bluebeam Revu, Coraid set (tools 1-20 of 44) - 20 views of 17 devices, front and rear: ESM1500, ESM1500 front (no bezel), HBA icon, EtherCloud EM (Element Manager), EtherCloud GM (Global Manager), EX3260, EX3260 front (no bezel), EX3260-R2, EX3260-S2, SRX2800 and 7 more. Tool Chest in Detail view, one row per tool with its name.
  • Storage & Backup tool set for Bluebeam Revu, DataDirect set (tools 1-20 of 57) - 20 views of 14 devices, front, rear and top: AI200 with Bezel, AI7990 with Bezel, SS7000, SS7000 open, SS7000 with Bezel, SS8460, SS8460 open, SS8460 with Bezel, IME240 Bezel, IME240 and 4 more. Tool Chest in Detail view, one row per tool with its name.
  • Storage & Backup tool set for Bluebeam Revu, Dell EMC & EMC Storage 1 set (tools 1-20 of 208) - 20 views of 15 devices, front and rear: Dell EMC DD140, Dell EMC DD140 Open, Dell EMC DD610, Dell EMC DD610 7D Open, Dell EMC DD610 12D Open, Dell EMC DD630, Dell EMC DD630 7D Open, Dell EMC DD630 12D Open, Dell EMC DD670, Dell EMC DD670 Front Open and 5 more. Tool Chest in Detail view, one row per tool with its name.
  • Storage & Backup tool set for Bluebeam Revu, Dell EMC & EMC Storage 2 set (tools 1-20 of 176) - 20 views of 15 devices, front and rear: EMC Centera 3D Side Panel, EMC Centera, EMC Centera 32-Node Open, EMC Centera 4-Node Open, EMC Centera 4-Node Unit, EMC AX4-5 DPE, EMC AX4-5SC DPE, EMC AX4-5SC 2nd Ctrlr, EMC AX4-5i DPE, EMC AX4-5SCi DPE and 5 more. Tool Chest in Detail view, one row per tool with its name.
  • Storage & Backup tool set for Bluebeam Revu, Dell EMC & EMC Storage 3 set (tools 1-20 of 178) - 20 views of 15 devices, front and rear: EMC NL400, EMC NL400 1G, EMC NL400 10G, EMC X400, EMC X400 1G, EMC X400 10G, EMC X200-1G, EMC X200-10G, EMC S200-1G, EMC S200-10G and 5 more. Tool Chest in Detail view, one row per tool with its name.
  • Storage & Backup tool set for Bluebeam Revu, Dell Storage 1 set (tools 1-20 of 224) - 20 views of 13 devices, front and rear: SC NAS 1U, zNAS, Series 30 Ctrl, Series 40 Ctrl, 3U FC 3.5in, 3U FC 3.5in Drive, 2U SAS 3.5in, 2U SAS 3.5in Drive, 2U SAS 2.5in, 2U SAS 2.5in Drive and 3 more. Tool Chest in Detail view, one row per tool with its name.
  • Storage & Backup tool set for Bluebeam Revu, Dell Storage 2 set (tools 1-20 of 240) - 20 views of 12 devices, front and rear: DL2000, MD1000, MD3000, MD3000i, MD1120, MD1120 front open, DL2200, DL2200 Front Open, DL2300, DL2300 Front Open and 2 more. Tool Chest in Detail view, one row per tool with its name.
  • Storage & Backup tool set for Bluebeam Revu, FalconStor set (tools 1-20 of 41) - 20 tools: CDPSA, Expansion Storage, CDPVS, CDP Gateway, CDPVS Storage Head SAS, CDPVS Storage Head FC, FDS Gateway (sm/med), NSSVS Storage Head SAS, FDSSA, NSSVS Storage Head FC and 10 more. Tool Chest in Detail view, one row per tool with its name.
  • Storage & Backup tool set for Bluebeam Revu, Hitachi AMS & HUS set (tools 1-20 of 179) - 20 views of 17 devices, isometric: Lightning 9900V DKC, Lightning 9900V DKU, Lightning 9980V, Lightning 9900 DKC, Lightning 9900 DKU, Lightning 9960, Thunder 9200, Brocade 2800, Brocade 3800, Brocade 12000 and 7 more. Tool Chest in Detail view, one row per tool with its name.
  • Storage & Backup tool set for Bluebeam Revu, Hitachi VSP & USP 1 set (tools 1-20 of 211) - 20 views of 16 devices, front, rear and isometric: Hitachi 2HS10S PK ASSY(Z2), Hitachi 4HF32R PK ASSY(Z2), Hitachi 4ML16 4MS16(Z2) PK ASSY, Hitachi 2856835 FINAL(NF R9) ASSY N, Hitachi CBX+CTLHx2+4ML(4MS)x16, Hitachi CBX+CTLHx2+BN8G+84ML(4MS)x16, Hitachi CBX+CTLHx2+IO, Hitachi DKB PK ASSY(Z2), Hitachi DKBN PK ASSY(PMF50), D51B-2U_rear and 6 more. Tool Chest in Detail view, one row per tool with its name.
  • Storage & Backup tool set for Bluebeam Revu, Hitachi VSP & USP 2 set (tools 1-20 of 155) - 20 views of 19 devices, front and rear: Hitachi VSP E990 FILLER(R700)R2, Hitachi VSP E990 TOP ASSY(P2A DBN) (Front and 17 more. Tool Chest in Detail view, one row per tool with its name.
  • Storage & Backup tool set for Bluebeam Revu, HPE Disk Arrays 1 set (tools 1-20 of 233) - 20 views of 17 devices, front and rear: Alletra Storage MP 2U Chassis Bezel, Alletra Storage MP 2U Chassis, Alletra Storage MP 1xNVMe Drive, Alletra Storage MP 2xNVMe Drive, Alletra Storage MP 4xNVMe Drive, Alletra Storage MP 8xNVMe Drive, Alletra Storage MP 24xNVMe Drive, Alletra Storage MP 100GbE 2-Port HBA, Alletra Storage MP 64Gb 4-Port FC HBA and more. Tool Chest in Detail view, one row per tool with its name.
  • Storage & Backup tool set for Bluebeam Revu, HPE Disk Arrays 2 set (tools 1-20 of 207) - 20 views of 17 devices, front and rear: SFF Drive, LFF Drive, Primera 2U Bezel, Primera 4U Bezel, N9Z46A Primera 600 2-way Storage Base, N9Z47A Primera 600 4-way Storage Base, Primera PSU, Primera 630 Controller, Primera 650 Controller, Primera 670 Controller and 7 more. Tool Chest in Detail view, one row per tool with its name.
  • Storage & Backup tool set for Bluebeam Revu, HPE Disk Arrays 3 set (tools 1-20 of 223) - 20 tools: DX360 Gen10 8SFF Appliance, DX360 Gen10 4LFF Appliance, DX360 Gen10 Appliance, DX380 Gen10 24SFF Appliance, DX380 Gen10 Appliance, DX560 Gen10 24SFF Appliance, DX560 Gen10 Appliance, DX2200 Gen10 12LFF Appliance, DX2600 Gen10 24SFF Appliance, DX2x00 Gen10 Appliance and 10 more. Tool Chest in Detail view, one row per tool with its name.
  • Storage & Backup tool set for Bluebeam Revu, HPE Disk Arrays 4 set (tools 1-20 of 168) - 20 tools: 764W -48VDC Power Supply, 8000 SFF Drive, 8000 SFF 4xDrives, 8000 SFF 12xDrives, 8000 SFF 24xDrives, 8000 LFF Drive, 8450-4node Storage System, 8450-4node Empty Storage system, 8440-4node Storage System, 8440-4node Empty Storage system and 10 more. Tool Chest in Detail view, one row per tool with its name.
  • Storage & Backup tool set for Bluebeam Revu, HPE Tape & SAN 1 set (tools 1-20 of 168) - 20 views of 11 devices, front and rear: SAN B Series - Fibre SFP, SN2600B, StoreFabric SN6650B, SN3000B, SN3600B, SN4000B, SN6000B, SN6500B, SN6600B, SN6700B and 1 more. Tool Chest in Detail view, one row per tool with its name.
  • Storage & Backup tool set for Bluebeam Revu, HPE Tape & SAN 2 set (tools 1-20 of 221) - 20 tools: MSL 6060/6052, MSL 6030/6026, Rear MSL 6060/6052, Rear MSL 6030/6026, Tape Drive MSL 6xxx, SCSI Lib Controller, E1200 FC Router, E1200-160 FC Router, E1200-320 FC Router, PTM Controller and 10 more. Tool Chest in Detail view, one row per tool with its name.

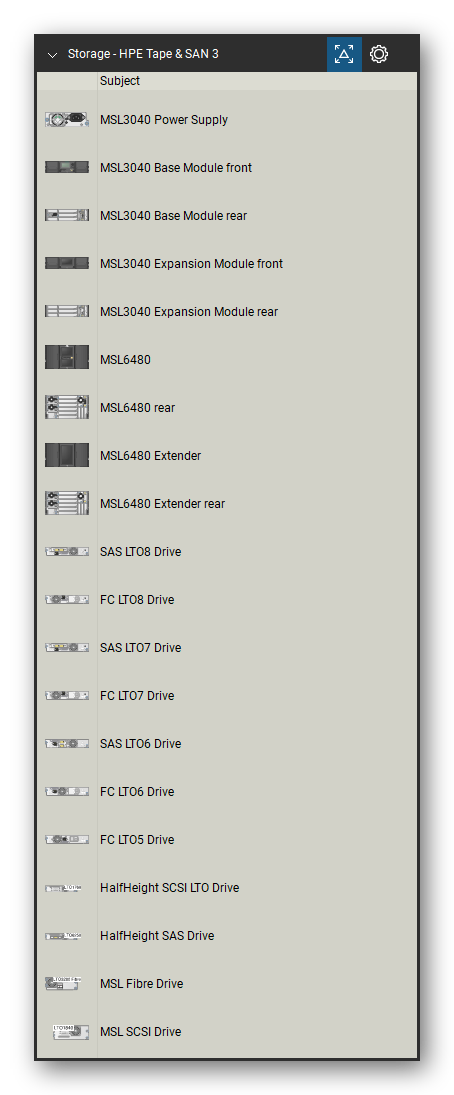

  • Storage & Backup tool set for Bluebeam Revu, HPE Tape & SAN 3 set (tools 1-20 of 206) - 20 views of 16 devices, front and rear: MSL3040 Power Supply, MSL3040 Base Module, MSL3040 Expansion Module, MSL6480, MSL6480 Extender, SAS LTO8 Drive, FC LTO8 Drive, SAS LTO7 Drive, FC LTO7 Drive, SAS LTO6 Drive and 6 more. Tool Chest in Detail view, one row per tool with its name.
  • Storage & Backup tool set for Bluebeam Revu, IBM Storage & Tape 1 set (tools 1-20 of 211) - 20 views of 15 devices, front and rear: 2076-x12, 2076-x24, 2076-xxx Expansion Enclosure, 2076-xxx Controller Enclosure, SFP+ Horiz., SFP+ Vertical, Fibre QSFP+, QSFP+ Vertical, A10 Accesser, C10 Controller and 5 more. Tool Chest in Detail view, one row per tool with its name.
  • Storage & Backup tool set for Bluebeam Revu, IBM Storage & Tape 2 set (tools 1-20 of 227) - 20 tools: Fibre QSFP+ Vertical, FlashSystem 710, FlashSystem 810, FlashSystem x10 Infiniband, FlashSystem x10 FC, FlashSystem 720, FlashSystem 820, FlashSystem x20 Infiniband, FlashSystem x20 FC, FlashSystem 840 and 10 more. Tool Chest in Detail view, one row per tool with its name.
  • Storage & Backup tool set for Bluebeam Revu, IBM Storage & Tape 3 set (tools 1-20 of 219) - 20 views of 19 devices, front and rear: V3500 SFF, V3500 LFF, V3500, V3700 SFF, V3700 LFF, V3700, V3700 SFF Exp., V3700 LFF Exp., V3700 Exp., V5000 SFF and 9 more. Tool Chest in Detail view, one row per tool with its name.
  • Storage & Backup tool set for Bluebeam Revu, INFINIDAT set (tools 1-20 of 32) - 20 views of 17 devices, front and top: F2X00, F2X00 (Copper), F2X00 (Fiber), InfiniBox (Door), F4X00, F4X00 (Copper), F4X00 (Fiber), F6X00, F6X00 (Copper), F6X00 (Fiber) and 7 more. Tool Chest in Detail view, one row per tool with its name.
  • Storage & Backup tool set for Bluebeam Revu, Lenovo Storage set (tools 1-20 of 150) - 20 views of 17 devices, front and rear: SFP+, S-Series 3.5in Disk, S-Series 2.5in Disk, D1212 3.5in, D1224 2.5in, D3284, DS2200 2.5in, DS2200 3.5in, DS2200 SAS, DS2200 FC iSCSI and 7 more. Tool Chest in Detail view, one row per tool with its name.
  • Storage & Backup tool set for Bluebeam Revu, NetApp FAS, AFF & E-Series 1 set (tools 1-20 of 193) - 20 views of 17 devices, front and rear: SFP Horiz., SFP Horiz. 2, QSFP, ASA C250, ASA C250 Front Open, ASA C400, ASA C400 Front Open, ASA C400 Ethernet, ASA C400 FC, ASA C400 Ethernet Controller and 7 more. Tool Chest in Detail view, one row per tool with its name.
  • Storage & Backup tool set for Bluebeam Revu, NetApp FAS, AFF & E-Series 2 set (tools 1-20 of 159) - 20 views of 17 devices, rear: FAS3210, FAS3240, FAS3270, FAS32xx front open, FAS3210 DC, FAS3240 +IOXM, FAS3240 DC, FAS3270 +IOXM, FAS3270 DC, FAS32xx rear empty and 7 more. Tool Chest in Detail view, one row per tool with its name.
  • Storage & Backup tool set for Bluebeam Revu, NetApp FAS, AFF & E-Series 3 set (tools 1-20 of 235) - 20 views of 15 devices, front and rear: Brocade G630, Brocade G630 Rear F2B, Brocade G630 Rear B2F, Brocade G610, Brocade G620, X6-4 Director, X6-4 Airflow Kit, X6-4 Director Rear (with Airflow Kit), X6-4 Director Front (with Airflow Kit), FC32-48 Port Blade (X6-4) and 5 more. Tool Chest in Detail view, one row per tool with its name.
  • Storage & Backup tool set for Bluebeam Revu, NetApp Icons set (tools 1-20 of 212) - 20 tools: ATTO FibreBridge, CN1601, CN1610, DE1600, DE5600, DE6600, DE6900, DS14mk2 AT, DS14mk2 FC, DS14mk4 FC and 10 more. Tool Chest in Detail view, one row per tool with its name.
  • Storage & Backup tool set for Bluebeam Revu, NetApp IO Cards & Cables set (tools 1-20 of 155) - 20 tools: X1038 vertical, X1039 vertical, X1049A vertical, X1107A vertical, Adapters FlexPod - X1117A vertical, X1130A vertical, X1131A vertical, X1139A vertical, X1140A vertical, X1142A vertical and 10 more. Tool Chest in Detail view, one row per tool with its name.
  • Storage & Backup tool set for Bluebeam Revu, Nexsan set (tools 1-20 of 41) - 20 views of 17 devices, front and rear: Assureon NXR-AXR, Assureon SX-SXR, Assureon SX-SXR Enterprise, Front view of E18/E32 RAID and Expansion, Rear view of E18P/E32F RAID systems showing, Rear view of E32F RAID system, showing 12, Rear view of E32F RAID system showing 4 host, Rear view of E18/E32 Expansion systems, Front view of E48/E60 RAID and Expansion and more. Tool Chest in Detail view, one row per tool with its name.
  • Storage & Backup tool set for Bluebeam Revu, Nimble Storage set (tools 1-20 of 25) - 20 views of 18 devices, rear and isometric: AllFlash Array Bezel, AllFlash Array open, AllFlash Array, AllFlash Expansion, Dual 10GbE SFP card, Dual 16Gb FC card, Dual 1GBaseT card, Dual 10GBaseT card, Dual SAS Card, CS Array Open and 8 more. Tool Chest in Detail view, one row per tool with its name.
  • Storage & Backup tool set for Bluebeam Revu, Nutanix Dynamic Shapes set (tools 1-20 of 180) - 20 tools: Cat6 Pri, Cat6 Alt, DAC Pri, DAC Alt, Fiber Pri, Fiber Alt, Cat6 Noscale Pri, Cat6 Noscale Alt, DAC Noscale Pri, DAC Noscale Alt and 10 more. Tool Chest in Detail view, one row per tool with its name.
  • Storage & Backup tool set for Bluebeam Revu, Nutanix NX set (tools 1-20 of 194) - 20 tools: File server, FTP server, Database server, Web server, Rack, Patch panel, Generic Router, 4U, LCD monitor, Shelf, Keyboard tray and 10 more. Tool Chest in Detail view, one row per tool with its name.
  • Storage & Backup tool set for Bluebeam Revu, Oracle & Sun Storage set (tools 1-20 of 221) - 20 views of 13 devices, front and rear: Oracle Sun Rack, Oracle 7110, Oracle 7310, Oracle 7310 Front Labels, Oracle 7310 Rear Labels, Oracle SAS2 Disk Shelf, Oracle 7410, Oracle 7410 Front Labels, Oracle 7410 Rear Labels, Oracle 7120 and 3 more. Tool Chest in Detail view, one row per tool with its name.
  • Storage & Backup tool set for Bluebeam Revu, Pure Storage set (tools 1-20 of 59) - 20 views of 17 devices, front and rear: FlashArray//C Bezel, FlashArray//C, FlashArray//C Direct Flash Module, FlashArray//C set of 4 Direct Flash Module, FlashArray//X Bezel, FlashArray//X, NVRAM Module, Set of 2 DFMs, Single DFM, Set of 4 DFMs and 7 more. Tool Chest in Detail view, one row per tool with its name.
  • Storage & Backup tool set for Bluebeam Revu, Quantum Storage & Tape set (tools 1-20 of 203) - 20 views of 17 devices, front and rear: Artico, Artico - Rear Configuration 0, Artico - Rear Configuration 1, Artico - Rear Configuration 2, Artico - Rear Configuration 3, Artico - Rear Configuration 4, Artico - Rear Configuration 5, DXi4700 G2 MD1400, DXi4700 G2 R730xd, DXi4700 G2 R730xd - Rear with FC and 7 more. Tool Chest in Detail view, one row per tool with its name.
  • Storage & Backup tool set for Bluebeam Revu, Qumulo set (tools 1-20 of 30) - 20 views of 14 devices, front, rear and top: C-Series 2U, C-Series 2U Drawer, HPE Apollo 4200, HPE Apollo 4200 front+ears, HPE Apollo 4200 back+labels, SFP+ Horiz. 2, K-Series, P-Series Bezel, P-Series, QC 208 front-ears and 4 more. Tool Chest in Detail view, one row per tool with its name.

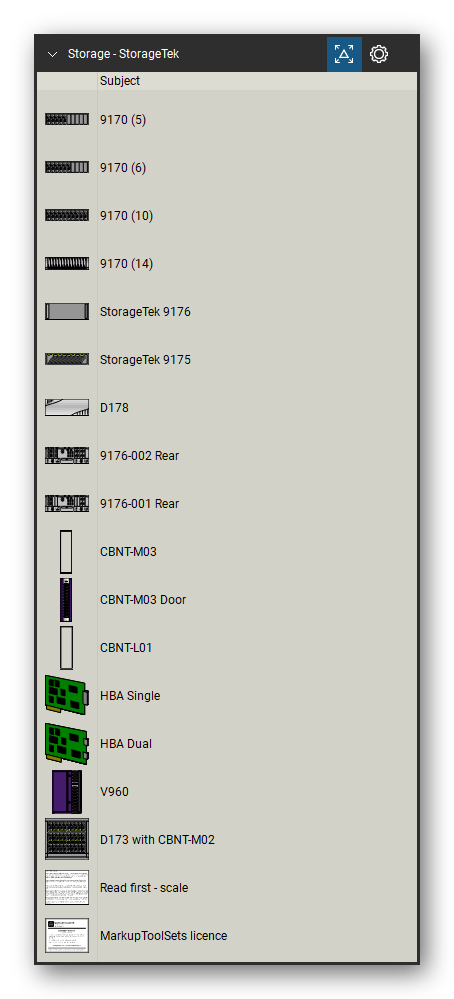

  • Storage & Backup tool set for Bluebeam Revu, StorageTek set - 16 tools: 9170 (5), 9170 (6), 9170 (10), 9170 (14), StorageTek 9176, StorageTek 9175, D178, 9176-002, 9176-001, CBNT-M03 and 6 more. Tool Chest in Detail view, one row per tool with its name.
  • Storage & Backup tool set for Bluebeam Revu, Synology set (tools 1-20 of 36) - 20 views of 10 devices, front and rear: DS1515+, RS217, RS820RP+, RS1619XS+, RS4017XS+, DS218+, DS718+, DS1618+, RS819 and DS120J. Tool Chest in Detail view, one row per tool with its name.

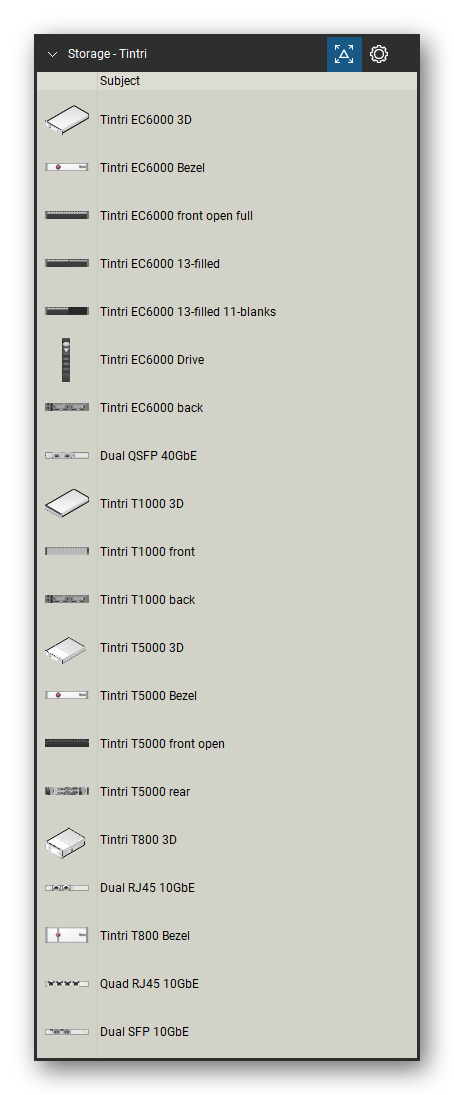

  • Storage & Backup tool set for Bluebeam Revu, Tintri set (tools 1-20 of 109) - 20 views of 16 devices, front, rear and isometric: Tintri EC6000, Tintri EC6000 Bezel, Tintri EC6000 front open full, Tintri EC6000 13-filled, Tintri EC6000 13-filled 11-blanks, Tintri EC6000 Drive, Dual QSFP 40GbE, Tintri T1000, Tintri T5000, Tintri T5000 Bezel and 6 more. Tool Chest in Detail view, one row per tool with its name.

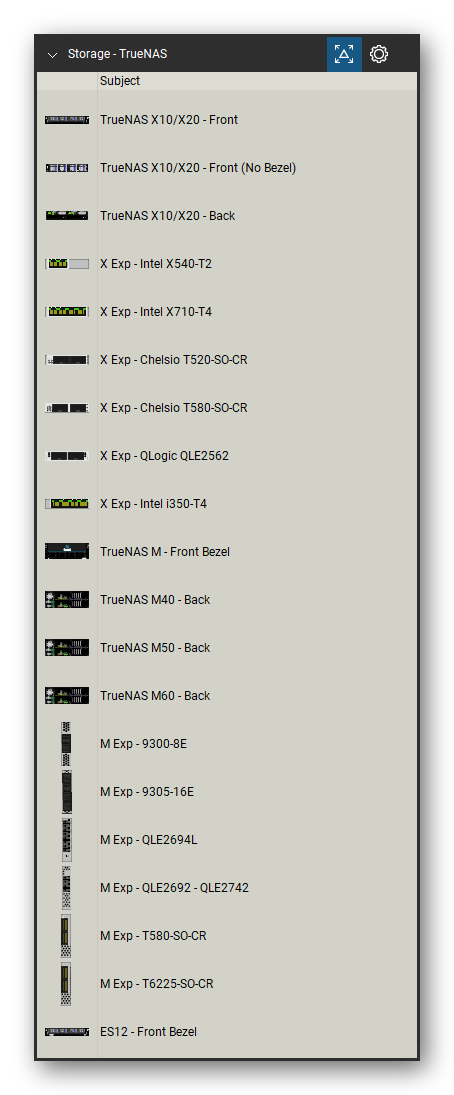

  • Storage & Backup tool set for Bluebeam Revu, TrueNAS set (tools 1-20 of 48) - 20 views of 19 devices, front and rear: TrueNAS X10/X20, TrueNAS X10/X20 - Front (No Bezel), X Exp - Intel X540-T2, X Exp - Intel X710-T4, X Exp - Chelsio T520-SO-CR, X Exp - Chelsio T580-SO-CR, X Exp - QLogic QLE2562, X Exp - Intel i350-T4, TrueNAS M - Front Bezel, TrueNAS M40 and 9 more. Tool Chest in Detail view, one row per tool with its name.

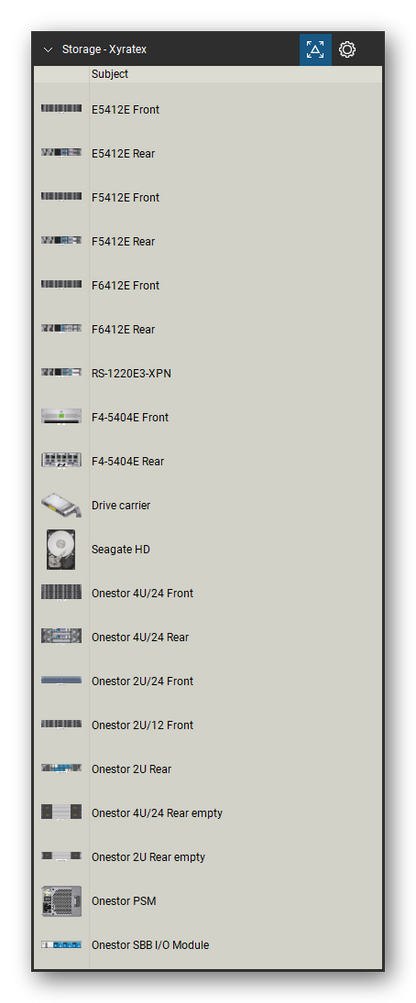

  • Storage & Backup tool set for Bluebeam Revu, Xyratex set (tools 1-20 of 29) - 20 views of 15 devices, front and rear: E5412E, F5412E, F6412E, RS-1220E3-XPN, F4-5404E, Drive carrier, Seagate HD, Onestor 4U/24, Onestor 2U/24, Onestor 2U/12 and 5 more. Tool Chest in Detail view, one row per tool with its name.
  • Storage & Backup tool set for Bluebeam Revu, Other Storage set (tools 1-20 of 31) - 20 views of 15 devices, front and rear: Scalar 24, Scalar 24 drive, Scalar 24 Net Card, SSA 9900, StorageScaler 6000 60slot Disk, 12slot Disk, Fibre QSFP, IB QDR 36, Direct QSFP, IB QDR 324 and 5 more. Tool Chest in Detail view, one row per tool with its name.
  • Storage & Backup tool set for Bluebeam Revu, Other Vendors set (tools 1-20 of 160) - 20 views of 13 devices, front and rear: ActiveScale Management Switch, ActiveScale P100 Base, ActiveScale Storage Enclosure, ActiveScale Storage Node, ActiveScale System Interconnect, ActiveScale System Node, ActiveScale System Rack, ActiveScale X100, Avere FXT 5000 Front Bezel, Avere FXT 5000 and 3 more. Tool Chest in Detail view, one row per tool with its name.
1 60

Storage & Backup Bluebeam Tool Set

Storage & Backup Bluebeam Tool Set

$219.99 USD
$294.99 USD $219.99 USD
Sale Sold out
Delivered immediately after checkout.

Tool set of disk arrays and shelves, NAS systems, SAN switches and directors, tape libraries and drives, and backup appliances for rack elevations and data center layouts. This tool set covers 50 categories with 6,662 symbols. Each device is a vector snapshot in the colors of its maker's artwork that places as a single markup, and is named with its model, so the tools list by name in the Tool Chest and placed equipment lists by name in the Markups List. Lettering that stands on a symbol is editable text.

Examples of symbols included:

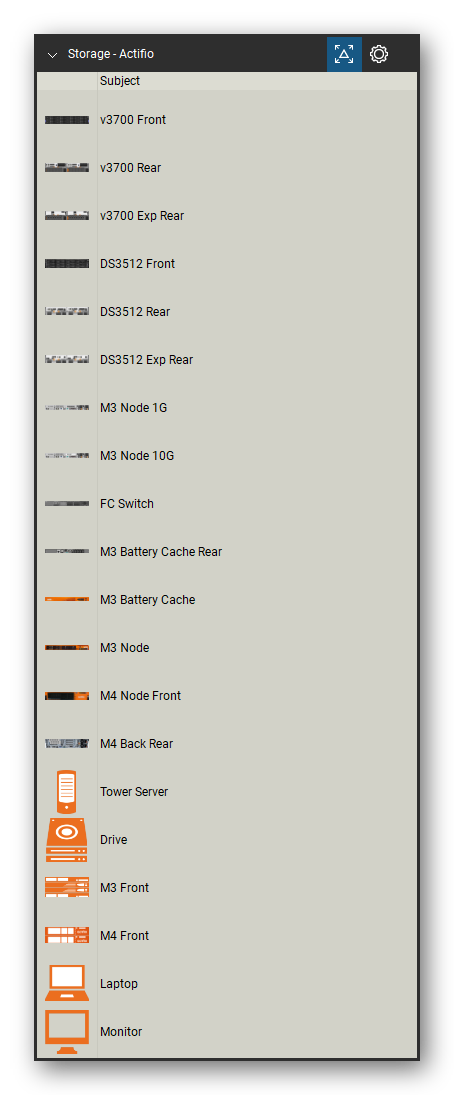

  • Actifio
    • M3 and M4 nodes with battery cache, v3700 and DS3512 arrays with their expansions
    • Sky Cluster appliance, server, NAS, SAN, switch, tape and drive icons

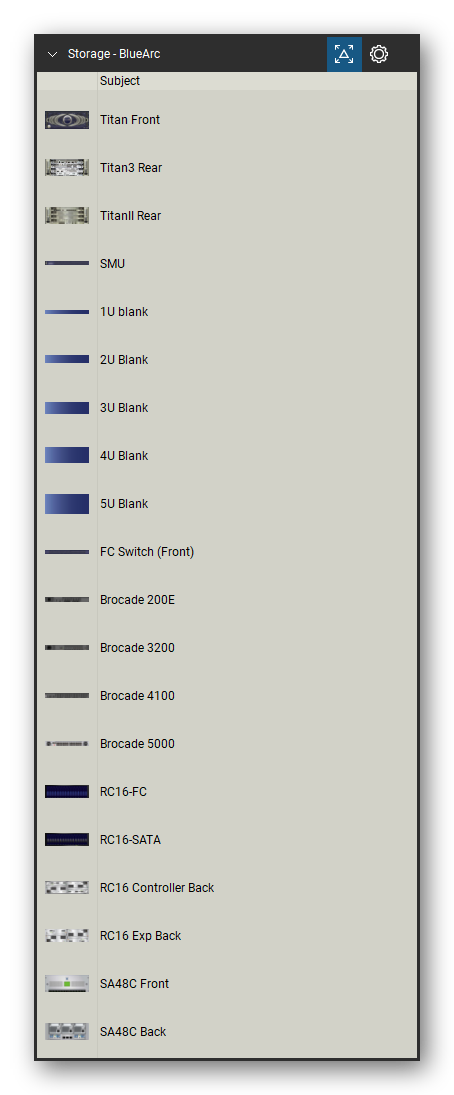

  • BlueArc
    • Titan, Titan3 and TitanII servers with NIM, FSA/X, FSB and SIM blades, Mercury 50 and 100, SMU
    • RC16, SA14, SA48C and FC14 storage, HDS AMS controller and disk shelf, Brocade 200E to 5000 switches

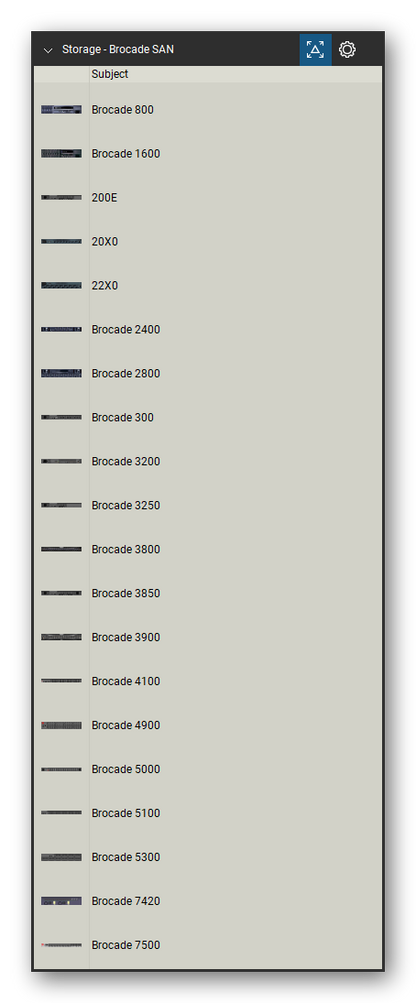

  • Brocade
    • Brocade 200E to 8000 and 3010 to 5410 switches, 12000, 24000 and 48000 directors with their port blades, DCX and DCX-4S, Encryption Switch
    • M1000 to M6140 and Mi10k, SANBox2-16Q, MDS 9020 to 9513, host, disk, JBOD, tape, gateway and appliance icons

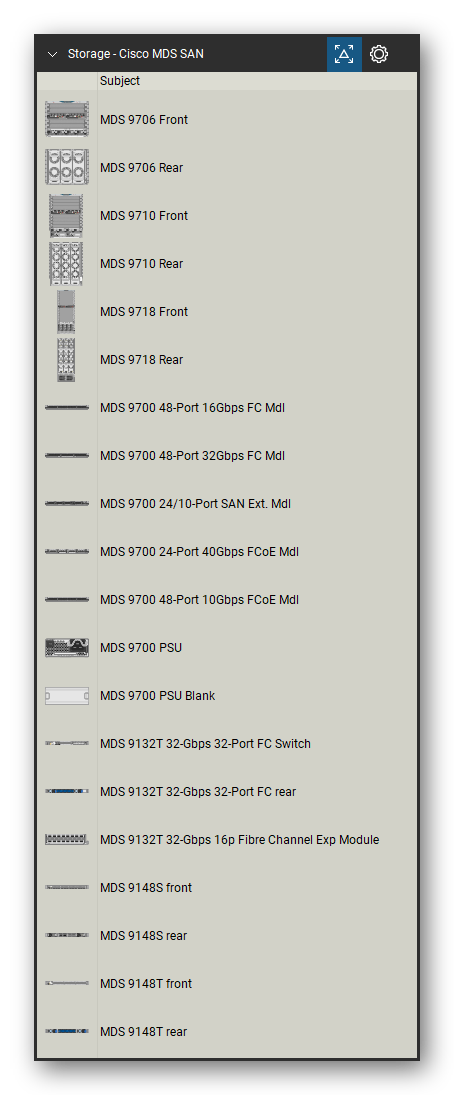

  • Cisco
    • MDS 9706, 9710 and 9718 directors with 16 and 32 Gbps FC and FCoE modules, MDS 9506, 9509 and 9513 with supervisor, fibre and IP modules
    • MDS 9020 to 9396T switches, 9216i, 9222i and 9250i multiservice switches, SFP, XFP and QSFP modules

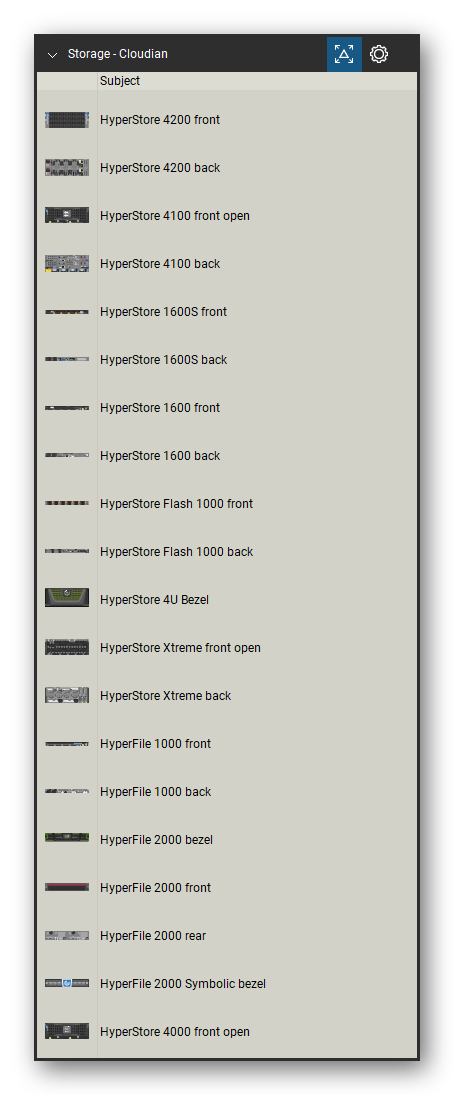

  • Cloudian
    • HyperStore 1500 to 4200, HyperStore Xtreme and Flash 1000, HyperFile 1000 and 2000, 10GbE, 25GbE and 100GbE add-in cards
  • Cohesity
    • C2000, C3000, C4000, C5000, C6000 and CX8000 nodes with their blanks, FC, OCP and 10G network cards
  • Coho
    • DataStream 800h, 1000h and 2000f with hard drives, SSDs, PCIe flash and micro arrays, DataStream 48- and 64-port switches

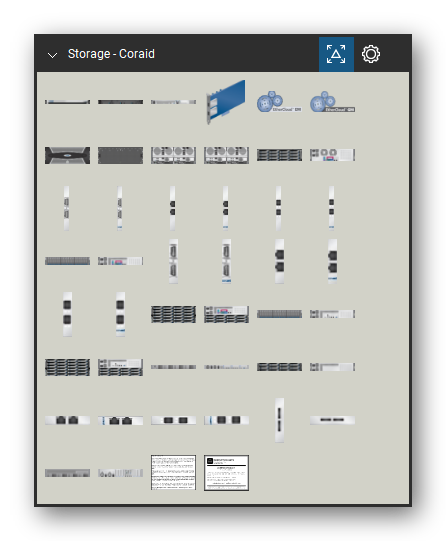

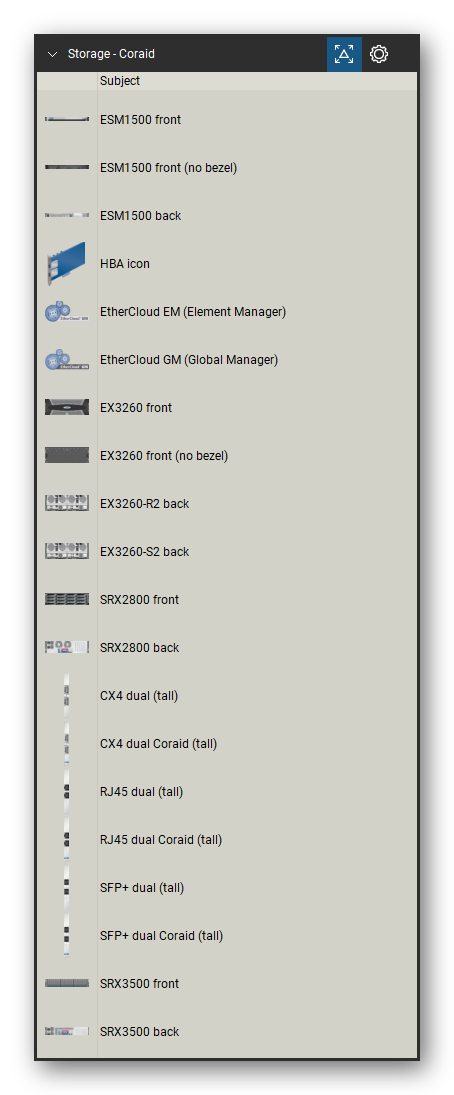

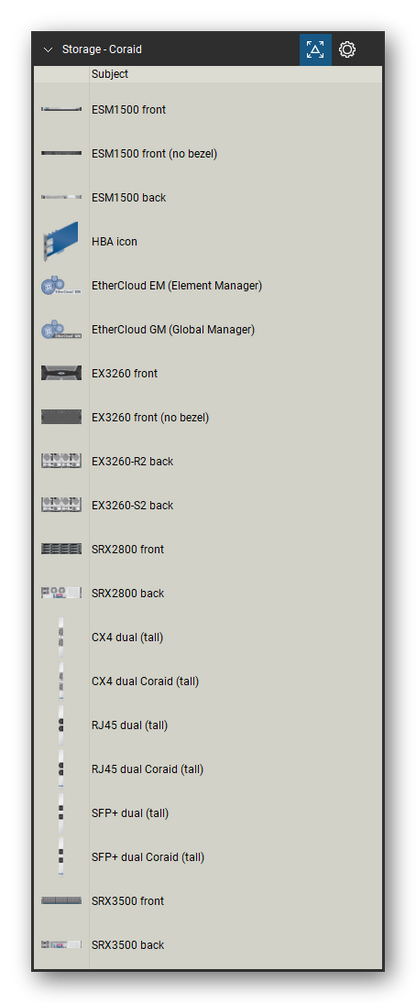

  • Coraid
    • SRX2800, SRX3500, SRX4200, SRX6200 and SRX6300, ZX3000 and ZX4000 with ZX Cache Enclosure, ESM1500, EX3260
    • CX4, RJ45, SFP+ and SAS dual cards
  • DataDirect
    • SFA7700, SFA7990, SFA12K, SFA18K and SFA200NV, AI200 and AI7990, IME240, WOS7000
    • SS7000, SS8460 and SS9012 enclosures, DirectMon server, SER20 and SER50, 42U to 50U racks

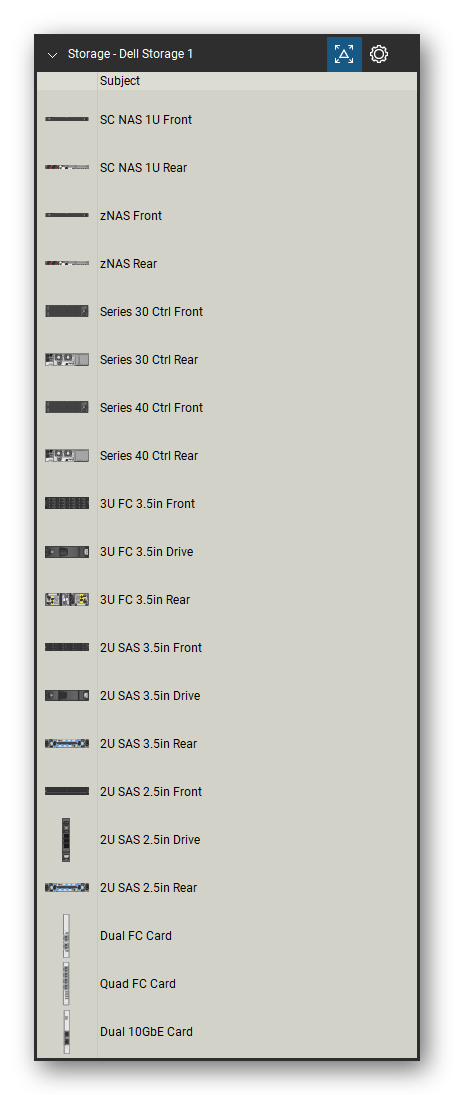

  • Dell and EMC

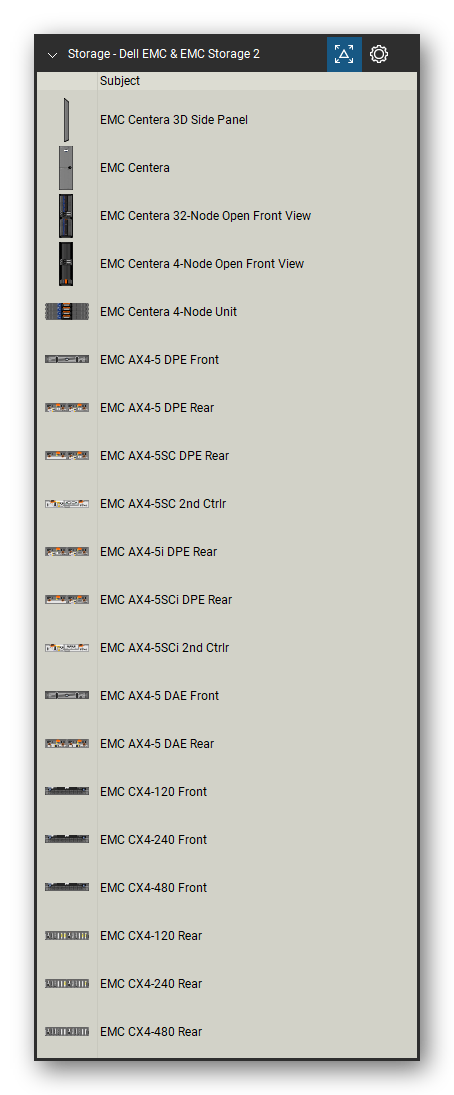

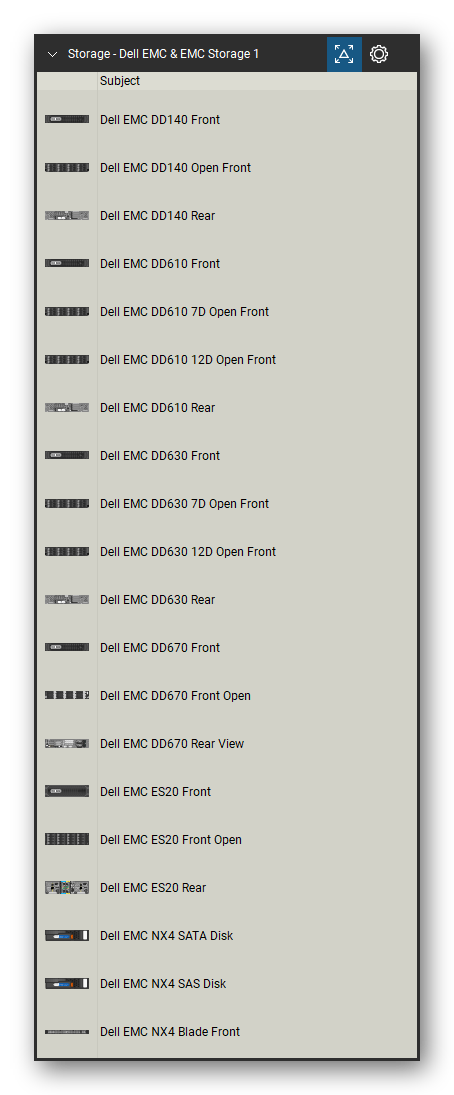

    • EMC CLARiiON CX200 to CX4-960 and AX100 to AX4-5 with DAE shelves, Celerra NS20 to NS80 and NSX, Centera, DD120 to DD890, Symmetrix 8230 to 8830, DMX800 to DMX-3, IQ 1920X to IQ 108NL, NL400, S200, X200 and X400 nodes
    • Dell EMC ME4012 and ME4024, SCv300 to SC7020F, AX100 to CX700, CX4 and NX4, DD140 to DD670, VxRail E, PV and S series, ML3 tape library
    • Dell SC100 to SC9000, SCv2000 to SCv2080 and PS4000E to PS6610 arrays, FS7500 to FS8600, MD1000 to MD3860, NX3000 to NX3610, DL1000 to DL4300 and DR4000 to DR6000, PowerVault 705N to 775N, TL1000 to TL4000 and ML6000 tape libraries
  • FalconStor
    • CDP, NSS, VTL, FDS and SIR appliances, gateways and cluster gateways, CDPVS and NSSVS storage heads with expansion storage
  • Hitachi
    • Lightning 9900, 9960 and 9980V, Thunder 9200 and 9500V, AMS200 to AMS2500 with their cards, HUS 110, 130 and 150 and HUS VM with their disk trays, WMS100
    • VSP 5000 to 5600, VSP E590, E790, E990 and E1090 with FEM and BEM modules and DB drive trays, VSP F350 to F1500 controller chassis and blades
    • USP and USP V cabinets, HNAS 4040 to 4100, HCP S10 and S30, HFS A220 to A270, drive and flash module trays

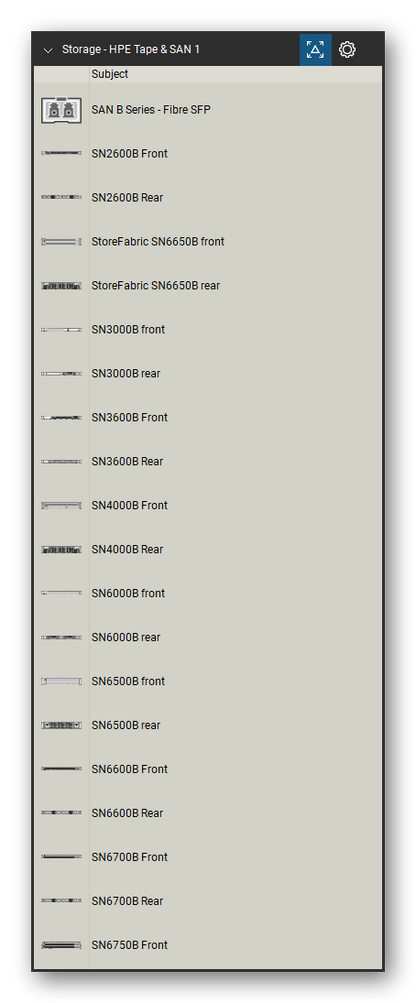

  • HPE

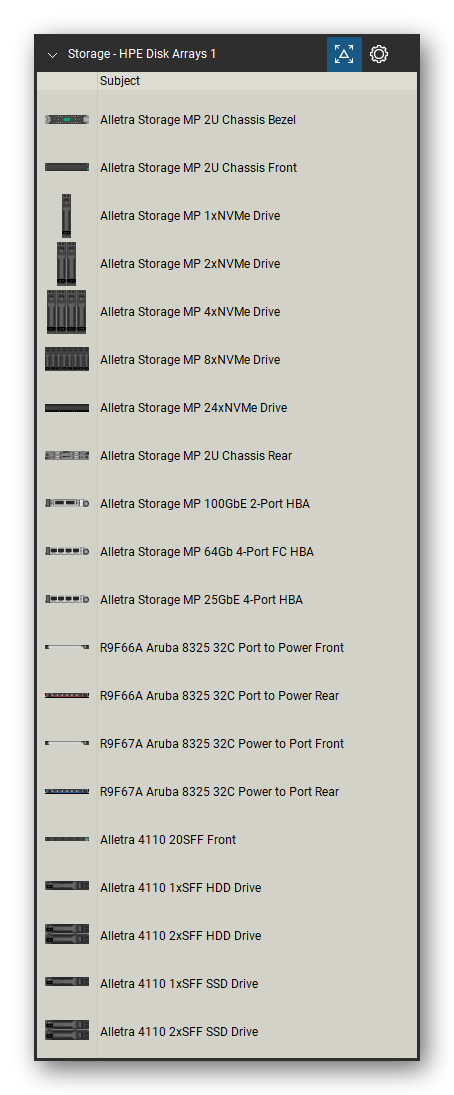

    • Alletra 2240 to 9080 and Storage MP, Primera 600, StoreServ 7000 to 20850, MSA 1040 to 2062 and P2000 G3, XP7 and XP8, Nimble AF and HF arrays, D2600 to D8000 disk enclosures
    • StoreOnce 3100 to 6600, StoreEasy 1430 to 5530, StoreAll and X9300 to X9730, StoreVirtual 4130 to 4730 and P4000, SimpliVity 170 to 380, Apollo 4200 and DX360 to DX4210 appliances
    • SN2600B to SN8700B and SN6610C to SN8500C switches and directors, SAN Switch 2/16 to 4/64 and 8-8 to 8-80, MPX200, MSL2024 to MSL6480, ESL and EML libraries, Ultrium, DLT, SDLT, DAT and RDX drives, TapeRack

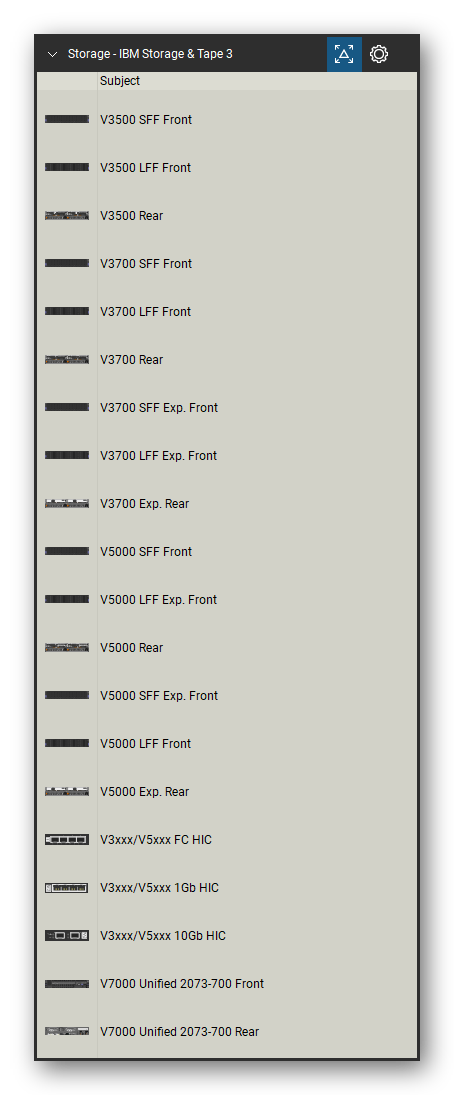

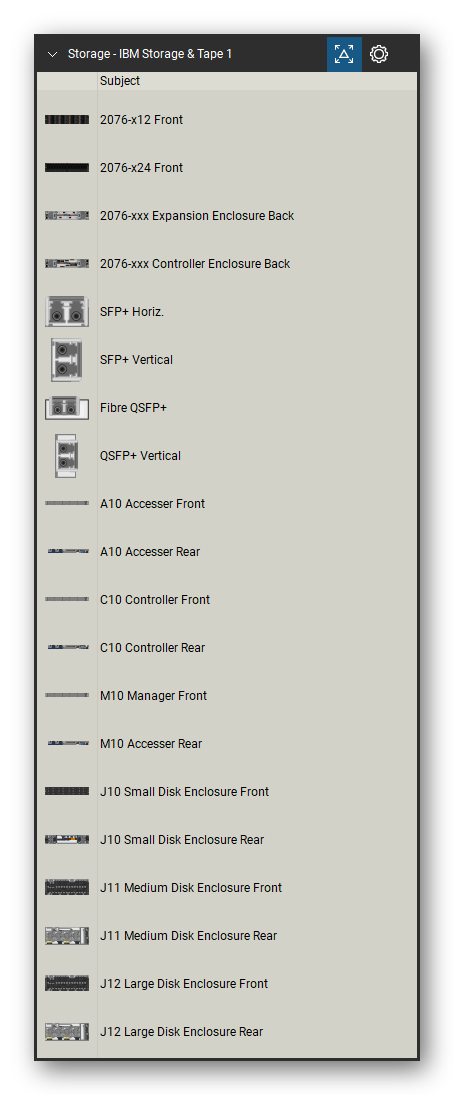

  • IBM

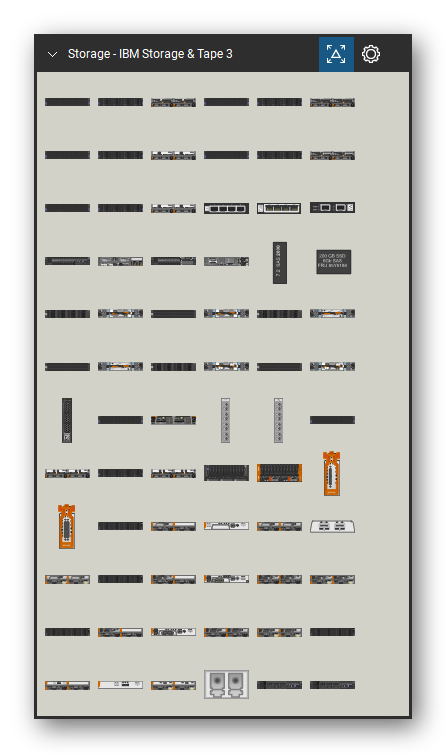

    • FlashSystem 710 to 9500, A9000 and V9000, V3500 to V7000, SVC 2145 nodes, DS3200 to DS8950F with their EXP expansions, DCS3700 and DCS3860, ESS 3000 to 3500, Spectrum Fusion HCI
    • N3300 to N7900 with EXN shelves, Slicestor, Accesser and J10 to J15 enclosures, SAN04B-R to SAN768C-6 switches and directors
    • TS2230 to TS4500 tape drives and libraries, TS7650 and TS7700 virtual tape servers
  • INFINIDAT
    • InfiniBox F2X00, F4X00 and F6X00 and F23xx to F63xx with copper and fiber rear views, patch panels
  • Lenovo

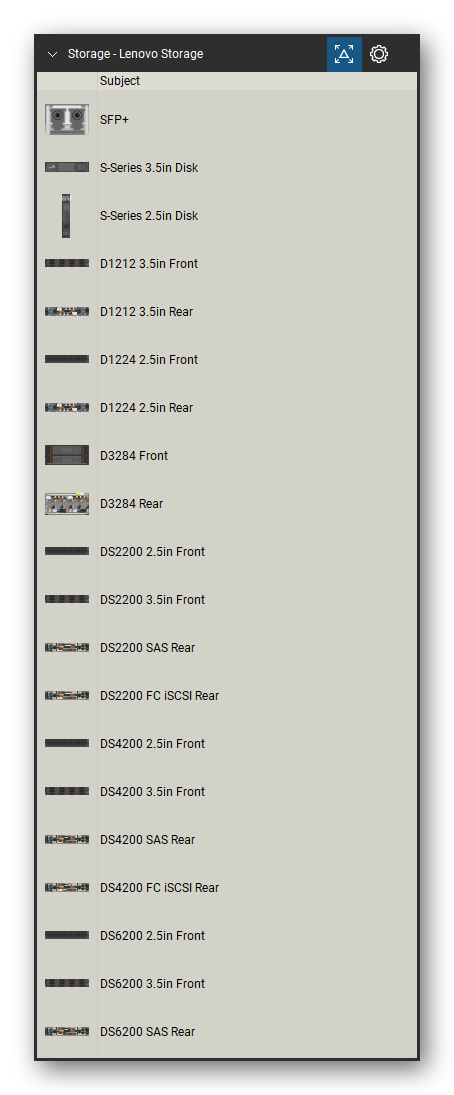

    • DE2000H to DE6000H and DE120S to DE600S, DM3000H to DM7100H, DS2200, DS4200 and DS6200, S2200 and S3200, V3700 V2 and V5030 with their expansions
    • DX8200C, DX8200D and DX8200N, D1212, D1224 and D3284 enclosures, E1012 and E1024, DB610S to DB800D switches
  • NetApp
    • FAS2720 to FAS9500 and FAS3210 to FAS6280, ASA A150 to A1K and C250 to C800, V3210 to V6290, E2600 to E7900 and DE1600 to DE6900, DS14 to DS4486 and NS224 shelves, StorageGRID SG110 to SG6160
    • Cisco Nexus, CN1601, CN1610, BES-53248 and SN2100 switches, Brocade G610 to X6-8 and Cisco MDS SAN switches, SAS bridges, X1038 to X92071A cards, cables and connectors
    • FAS, V-Series, NearStore, DataFort and StoreVault icons and 3D views, shelves, cabinets, tape libraries and generic server icons

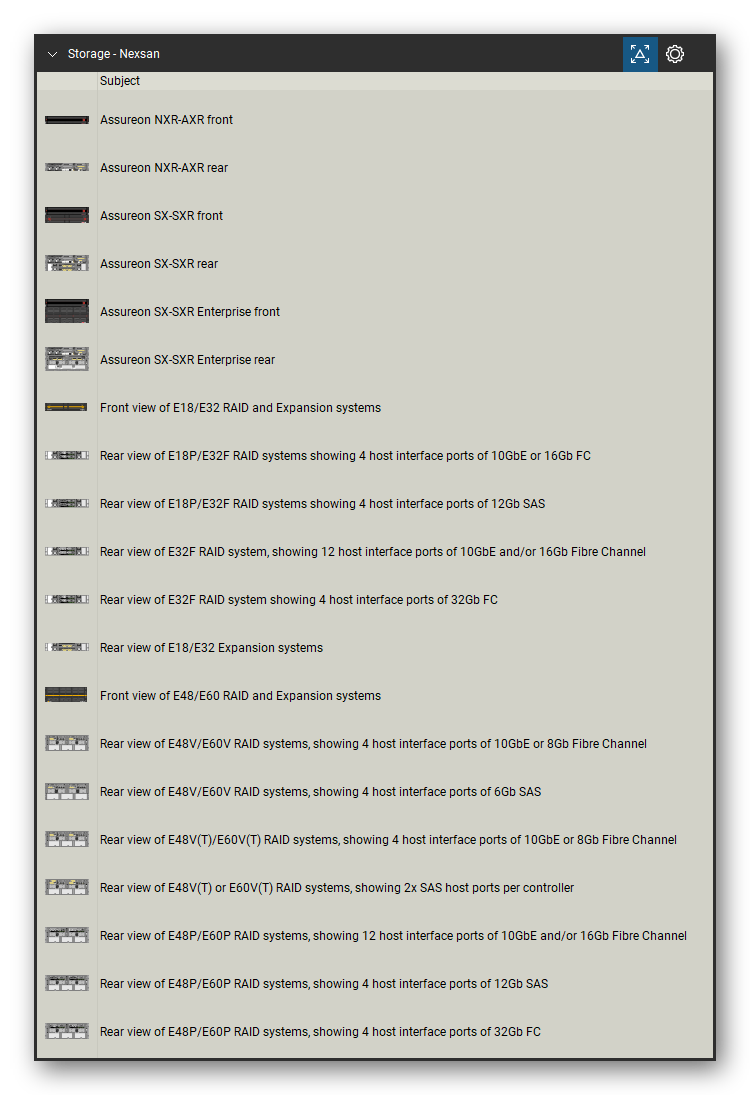

  • Nexsan
    • E18, E32, E48 and E60 RAID and expansion systems, BEAST and BEAST Elite, Unity 2200 to 6900, Assureon, US 224 to US 460

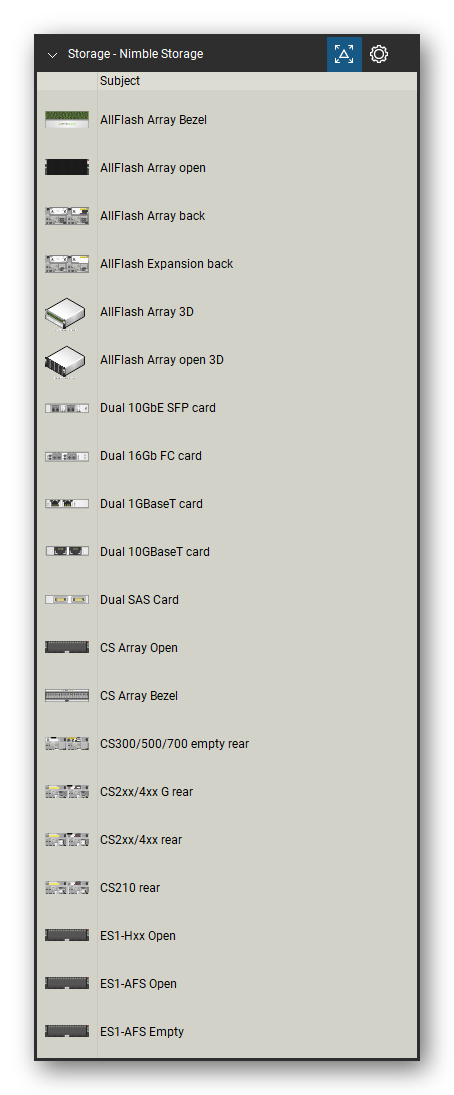

  • Nimble Storage
    • AllFlash arrays and expansions, CS210, CS2xx/4xx and CS300/500/700 arrays, ES1 shelves, 1GBaseT, 10GbE, 16Gb FC and SAS cards
  • Nutanix
    • NX-1065 to NX-8170 nodes from G4 to G9 with their drives, NX-3460-G4 and NX-7110, Dell XC730
    • NIC, GPU and AIOM cards, node filler plates, Cat6, DAC and fiber cables, 1U and 2U chassis

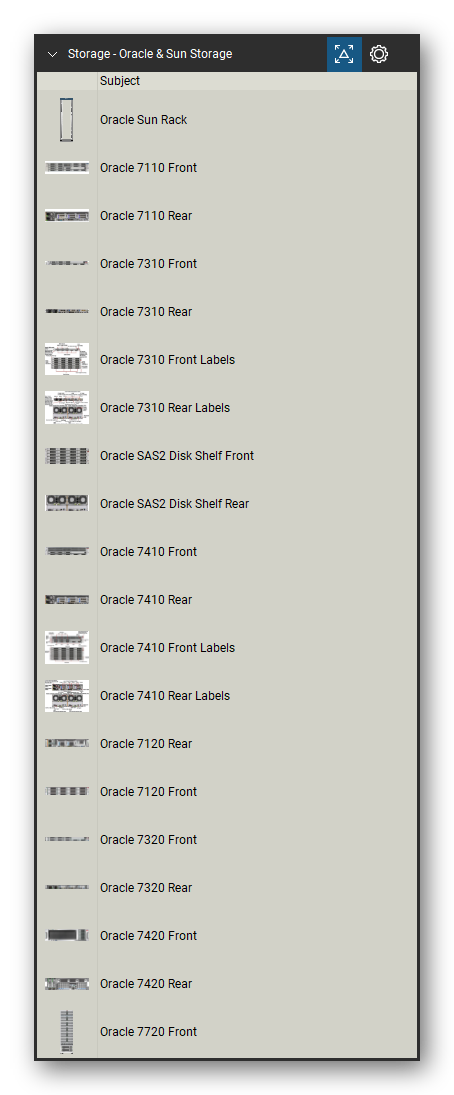

  • Oracle and Sun
    • ZFS 7120 to ZS9-2 controllers and appliance racks, DE2-24C to DE3-24P shelves, FS1, Axiom 600, 2530 to 6780 arrays, F5100, J4400
    • StorageTek SL24 to SL8500 libraries, VSM and VLE, Sun 7110 to 7410, 3120 to 3511, 5220 to 5800, 9985 and 9990, L180 and L1400, Project Blackbox

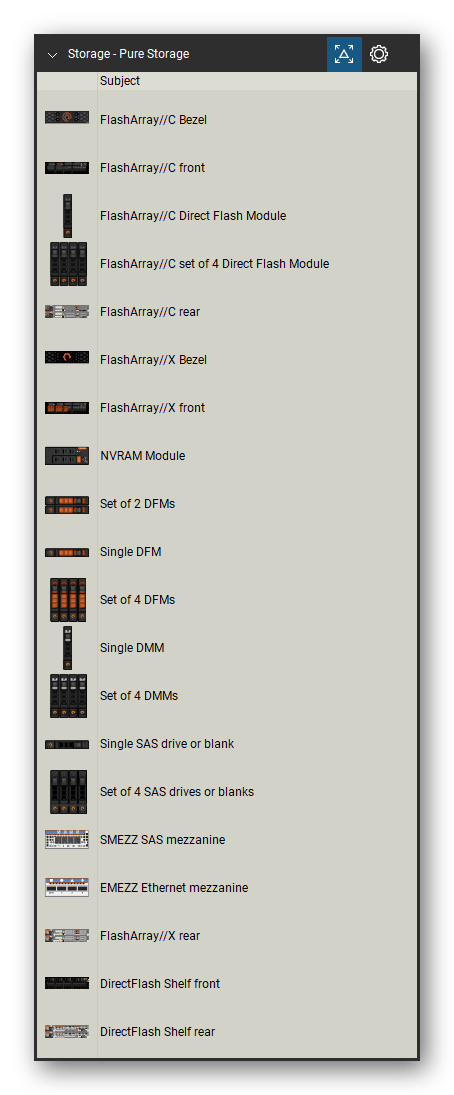

  • Pure Storage
    • FlashArray//C, FlashArray//X, FA M70 and FA405 to FA450 with DirectFlash modules and shelves, FlashBlade, FlashBlade E and FlashBlade S200 and S500 with their blades
  • Quantum
    • DXi4500 to DXi8500 and DXi V1000, Scalar i40 to i6000 with LTO4 to LTO6 drives, Scalar LTFS, Artico, vmPRO4000
    • StorNext G300 to QD6000 and M330 to M662, Lattus A10 to S60, QXS-5600, QX1200 and QX2400
  • Qumulo
    • C-Series, K-Series and P-Series, QC 24, QC 40 and QC 208 nodes, HPE Apollo 4200
  • StorageTek
    • 9175 and 9176, 9170, D173 and D178, V960, CBNT cabinets, HBA cards
  • Synology
    • DS120J to DS1817+ and RS217 to RS4017XS+, SA3400 and SA3600
  • Tintri
    • T540 to T5000, T800 to T880 and EC6000, T4000 hybrid and all-flash arrays
    • Tegile IntelliFlash HD, T3100 to T3800, ES and HA arrays with their cards
  • TrueNAS
    • TrueNAS X10/X20, M40 to M60 and R10 to R50, ES12 to ES102 shelves, Mini E, X, X+ and XL, expansion cards
  • Xyratex
    • OneStor 2U/12, 2U/24 and 4U/24, 6500R, E5412E, F5412E and F6412E, RS-1220E3-XPN, F4-5404E, TBird Stingray
  • Other vendors

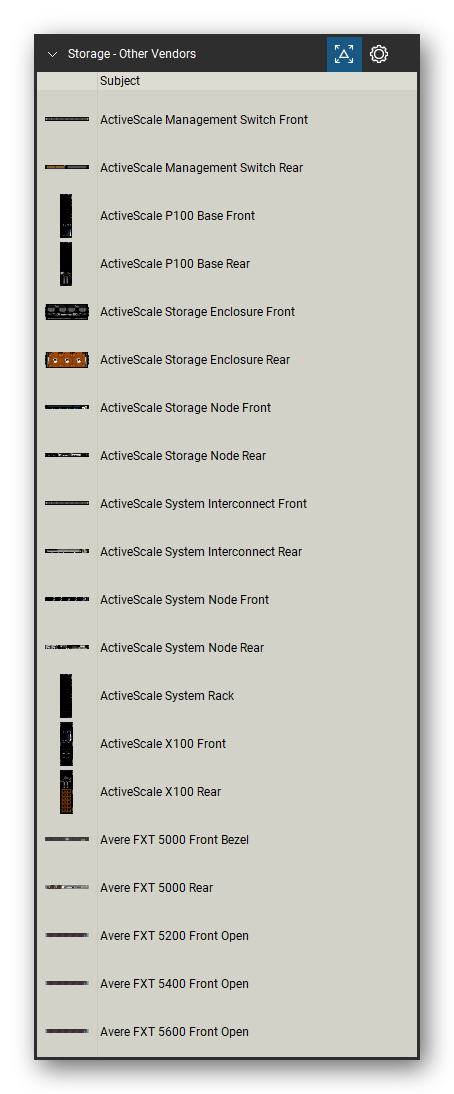

    • ActiveScale P100 and X100, Avere FXT 2550 to 5600, DataGravity DG1100 to DG2400, Datrium CN2100, DriveScale, ExaGrid, Fusion-io ioControl n5, Gridstore GS-2100 and GS-3000, HGST 4U60
    • Kaminario K-Node, NexGen N5, Penguin 5U84, QNAP 1 to 24 bay NAS, Quiver 1U Hybrid Gen2, Reduxio HX Series, Rubrik R3000 and R6000, X-IO ISE, YADRO
    • Scalar 24, SSA 9900, StorageScaler 6000, SANbox 1400 to 6142, IB QDR 36 to 648, QsNetII, Brocade 2250 to 6400 and StorageTek SN-6000 SAN symbols

Delivered as 8 Bluebeam Revu profiles (Actifio to Dell; Dell; FalconStor to HPE; HPE; HPE to IBM; IBM to NetApp; NetApp to Nexsan; Nimble to Other Vendors) that together load all 50 tool sets, plus the individual tool set files.

Actifio, ActiveScale, ADIC, Arista, Aruba, ATTO, Avere, BlueArc, Brocade, Chelsio, Cisco, Cloudian, Cohesity, Coho, Compaq, Coraid, DataDirect, DataGravity, Datrium, DDN, Dell, Dell EMC, DriveScale, EMC, ExaGrid, FalconStor, Fusion-io, Gridstore, HGST, Hitachi, HPE, IBM, INFINIDAT, Inrange, Intel, Kaminario, Lenovo, McDATA, Mellanox, NetApp, NETGEAR, NexGen, Nexsan, Nimble Storage, Nutanix, NVIDIA, Oracle, Penguin, Pure Storage, QLogic, QNAP, Quadrics, Quantum, Quiver, Qumulo, Reduxio, Rubrik, Seagate, SGI, StorageTek, Sun, Synology, Texas Memory Systems, Tintri, TrueNAS, Vixel, X-IO, Xyratex and YADRO are trademarks of their owners and are used only to identify the equipment the symbols show. MarkupToolSets is not affiliated with or endorsed by any of them.

View full details
