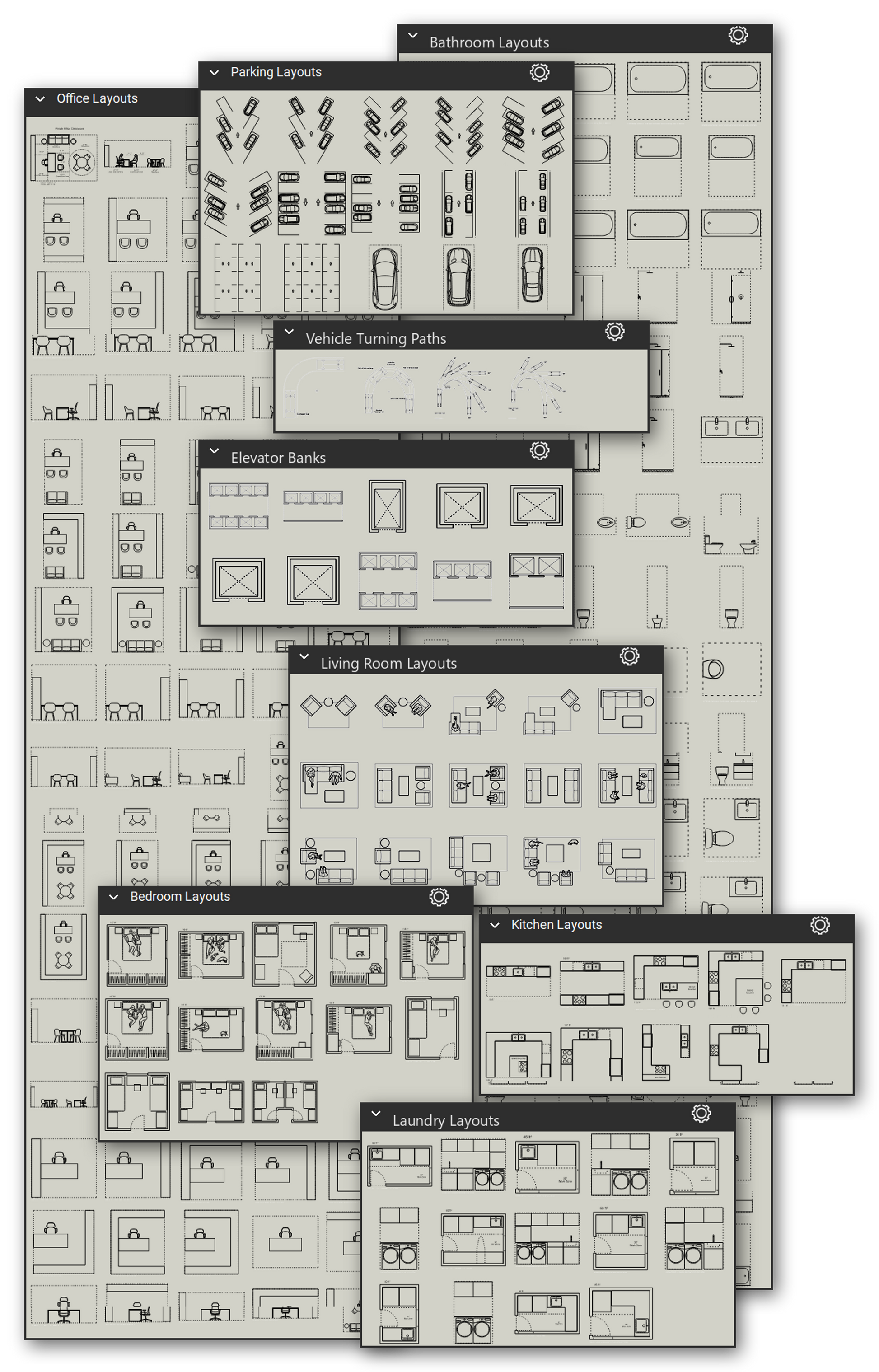

Architectural Layouts Bluebeam Revu Tool Set

Tool set of complete room and site layouts drawn to scale for architectural
and space-planning drawings. This tool set covers nine categories with over
3,900+ layouts, available in Bluebeam Revu. Every layout
is a fully editable native Bluebeam markup drawn at a constant
1/4" = 1'-0" scale — each one places as a single grouped markup that can be
stretched, recolored, and relabeled directly in Bluebeam, and is named with
its real-world size.

Layouts included:

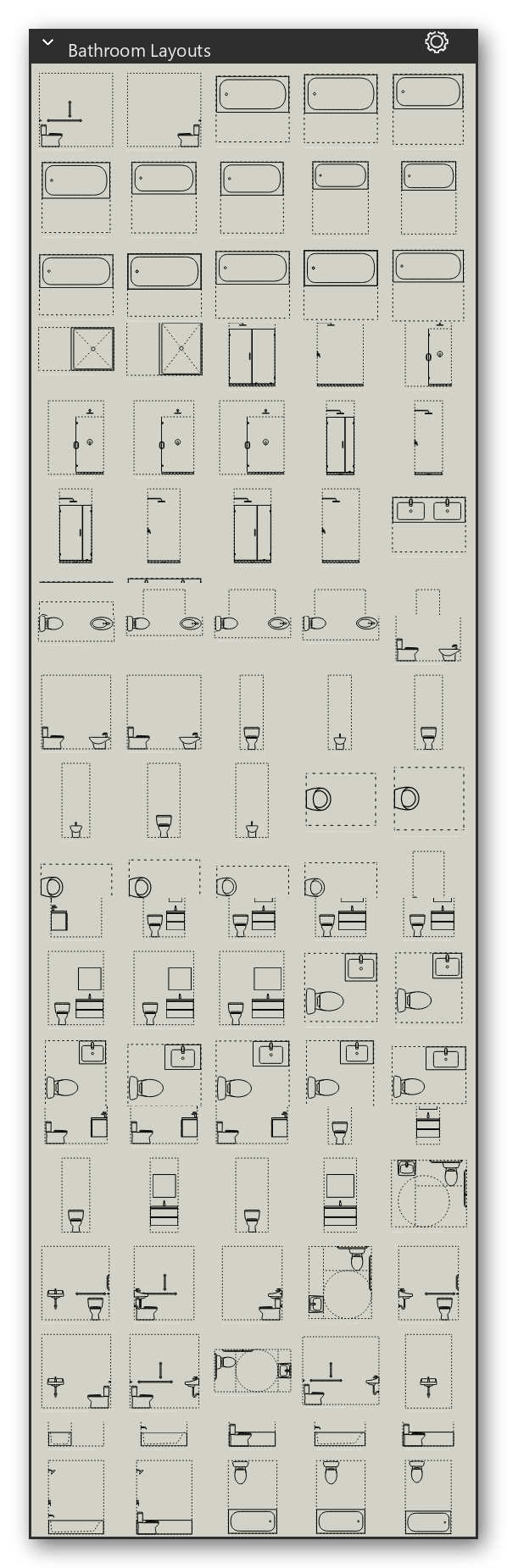

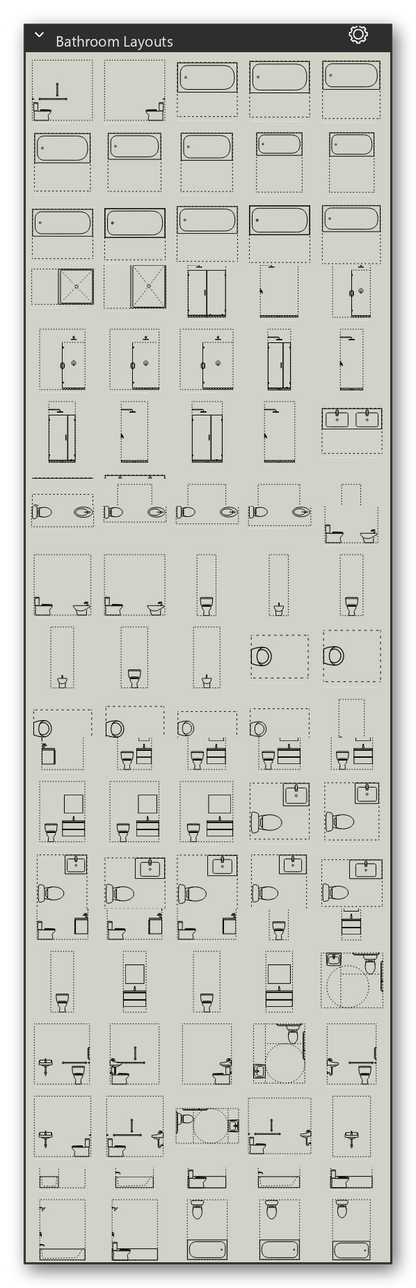

• Bathroom layouts
  - Quarter, half, three-quarter, full, and primary bath plans in every
    standard size
  - Fixture clearances for bathtubs, showers, toilets, vanities, and sinks
  - Accessible fixture layouts and turning clearances

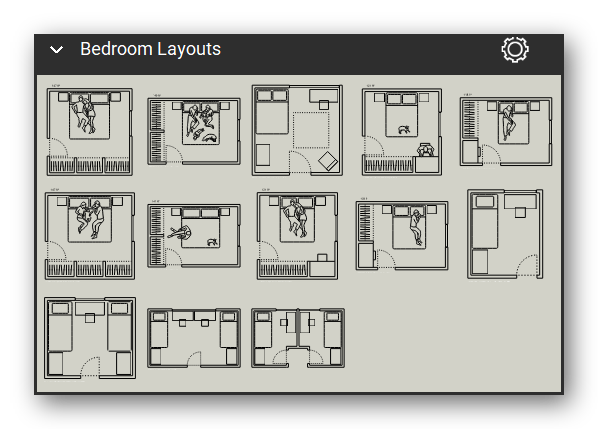

• Bedroom layouts
  - Bedroom plans for every standard bed size from twin to California king
  - Closet placement and circulation clearances

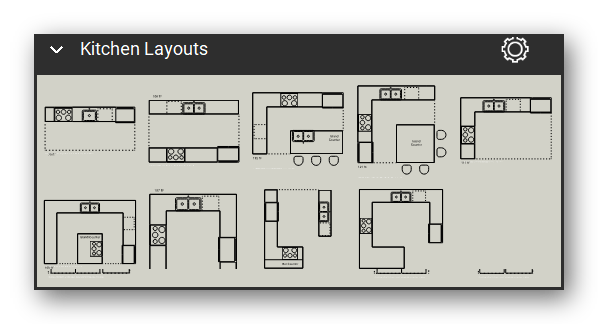

• Kitchen layouts
  - Galley, L-shape, U-shape, island, and peninsula plans
  - Counter and work-zone clearances

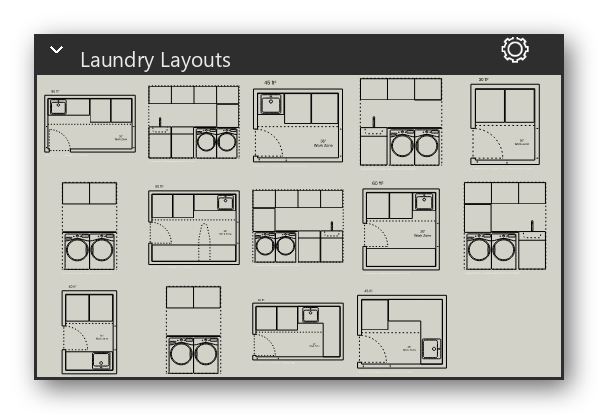

• Laundry room layouts
  - Laundry closet and full laundry room plans
  - Washer and dryer placement with work zones

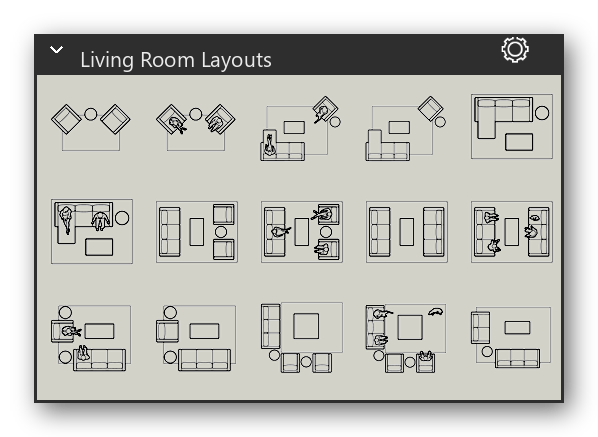

• Living room layouts
  - Sofa, armchair, and media arrangements for common room sizes

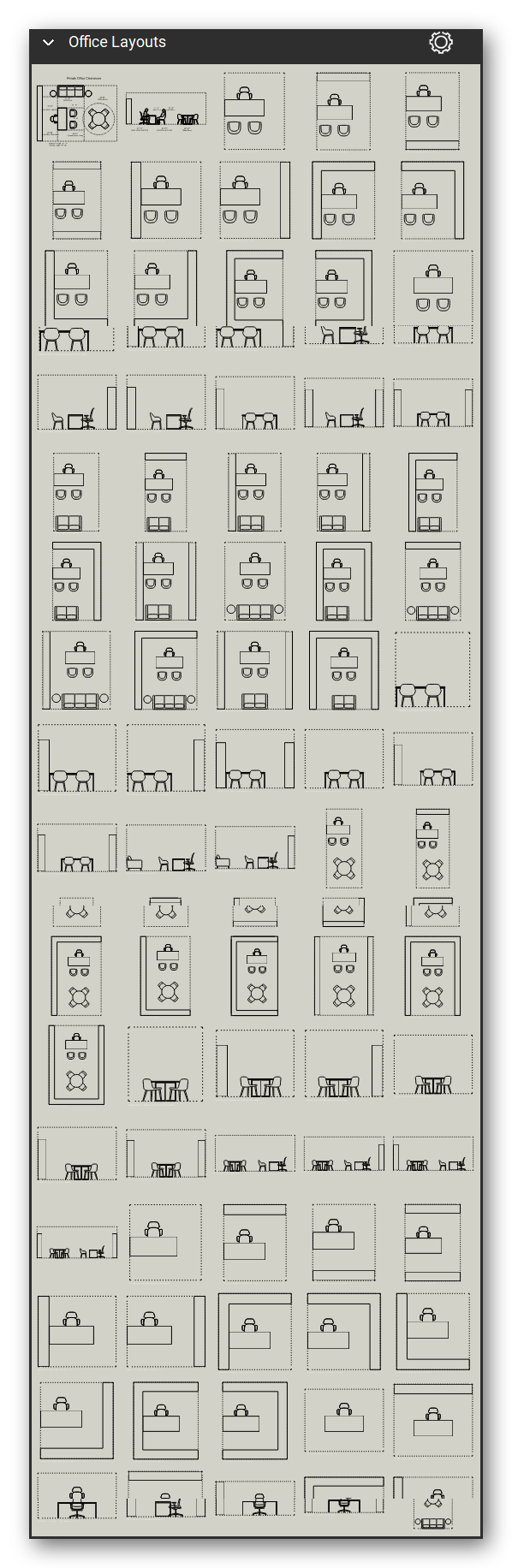

• Office layouts
  - Private and shared office plans with desk arrangements
  - Workstation clearances for desks, seating, and storage

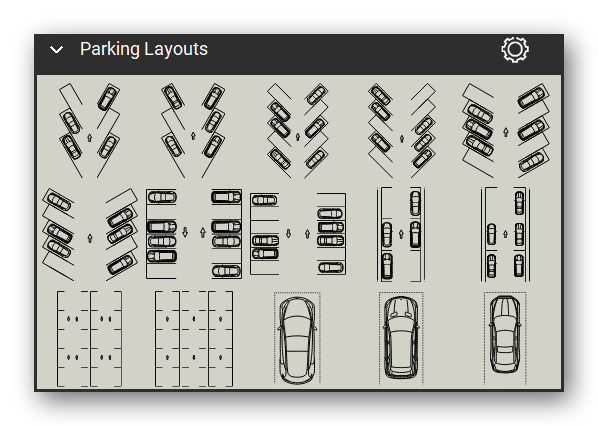

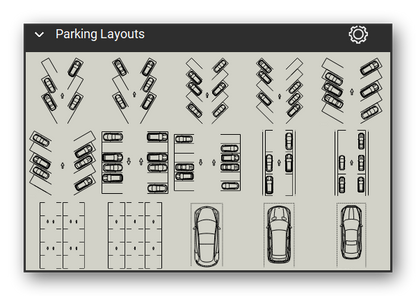

• Parking layouts
  - 30°, 45°, 60°, 90°, and parallel parking stalls with drive aisles
  - Individual car and stall blocks

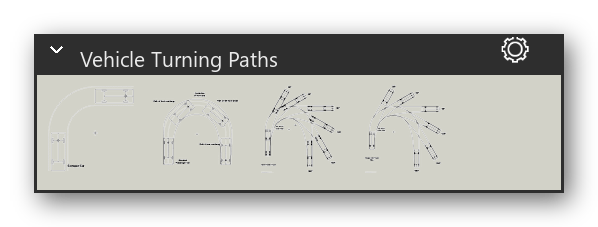

• Vehicle turning paths
  - Turning templates for passenger cars, compact cars, single-unit
    trucks/buses, and semi-trailer trucks

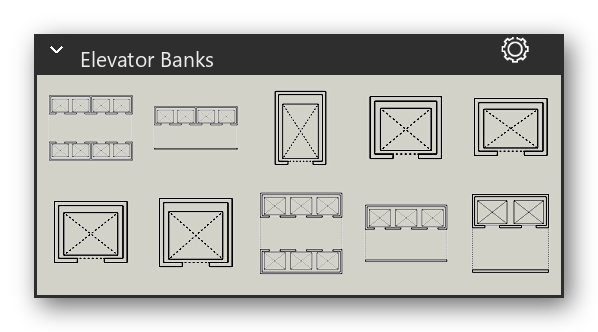

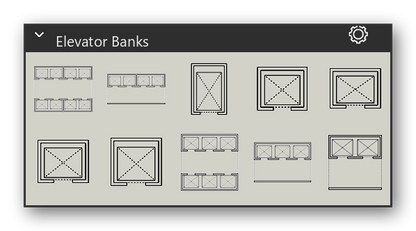

• Elevator banks
  - Elevator bank plans from one to eight lifts with standard cab sizes
