HVAC & Mechanical Takeoff & Estimating Bluebeam Tool Set

Watch the demo here:

➔ HVAC & Mechanical (Divisions 22 & 23) Takeoff & Estimating in Bluebeam Revu

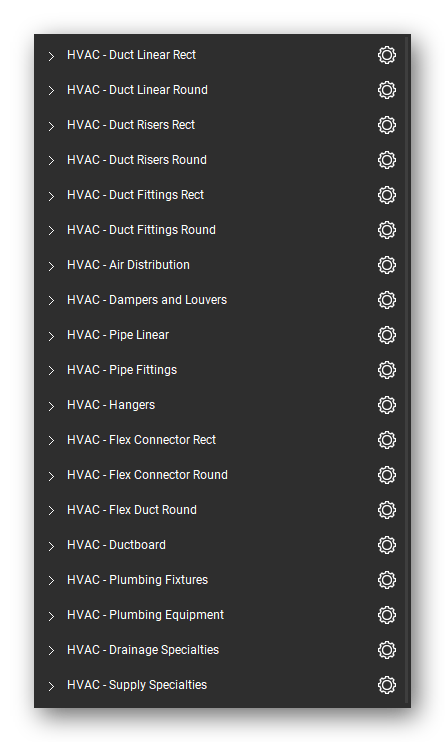

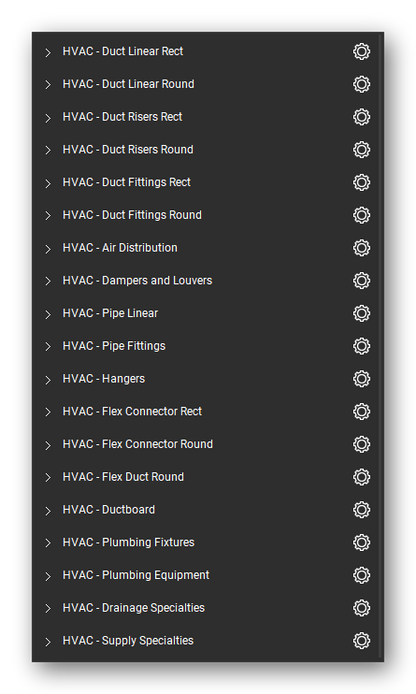

Takeoff & estimating tool set for HVAC ductwork, hydronic and domestic water piping, and plumbing, built for mechanical estimators, sheet-metal and piping contractors, and mechanical engineers. This tool set covers 19 tool sets and 2,150+ sized tools — 26 rectangular duct widths from 6 to 72 in, 29 round duct diameters from 4 to 60 in, and 14 pipe sizes from 1/2 to 12 in — every one a native Bluebeam polylength or count measurement that lands in the Markups List ready to export.

Every tool carries its trade, system, shape, material, gauge, pressure class, connector, seam, sealer and hanger type, and drops its own numbers into 101 custom columns: total length, segments, joints and hangers; sheet-metal area and weight at the tool's gauge from the SMACNA tables; cleats, corners, bolts, nuts, washers, gasket, sealant, rod, beam clamps and strut; pipe weight; material cost, hardware cost, shop hours and cost, field hours and cost, and total cost. You type at most the second duct dimension, a riser height, a rod drop, an elbow angle, or a quantity multiplier to repeat a typical floor. Material, labour and hardware rates sit in plain Number columns — set them once for the whole takeoff or overwrite any row — and no price, wage or hour is embedded in a formula. Every tool ships priced, with sourced defaults for duct, pipe, terminals, dampers, louvers and hardware and flagged budget figures where no public price exists, listed on the included project rate card; a calculation guide shows every formula and worked examples. Rectangular duct is priced by weight with TDC joint hardware per joint; round duct joins by coupling; pipe is priced by the foot as copper Type L to 2 in and steel Schedule 40 from 2-1/2 in, with hanger spacing to IMC and IPC. Delivered as a Revu profile that installs the tool sets, columns and layout in one import, plus the 19 tool set files and the column set on their own, in imperial and metric editions.

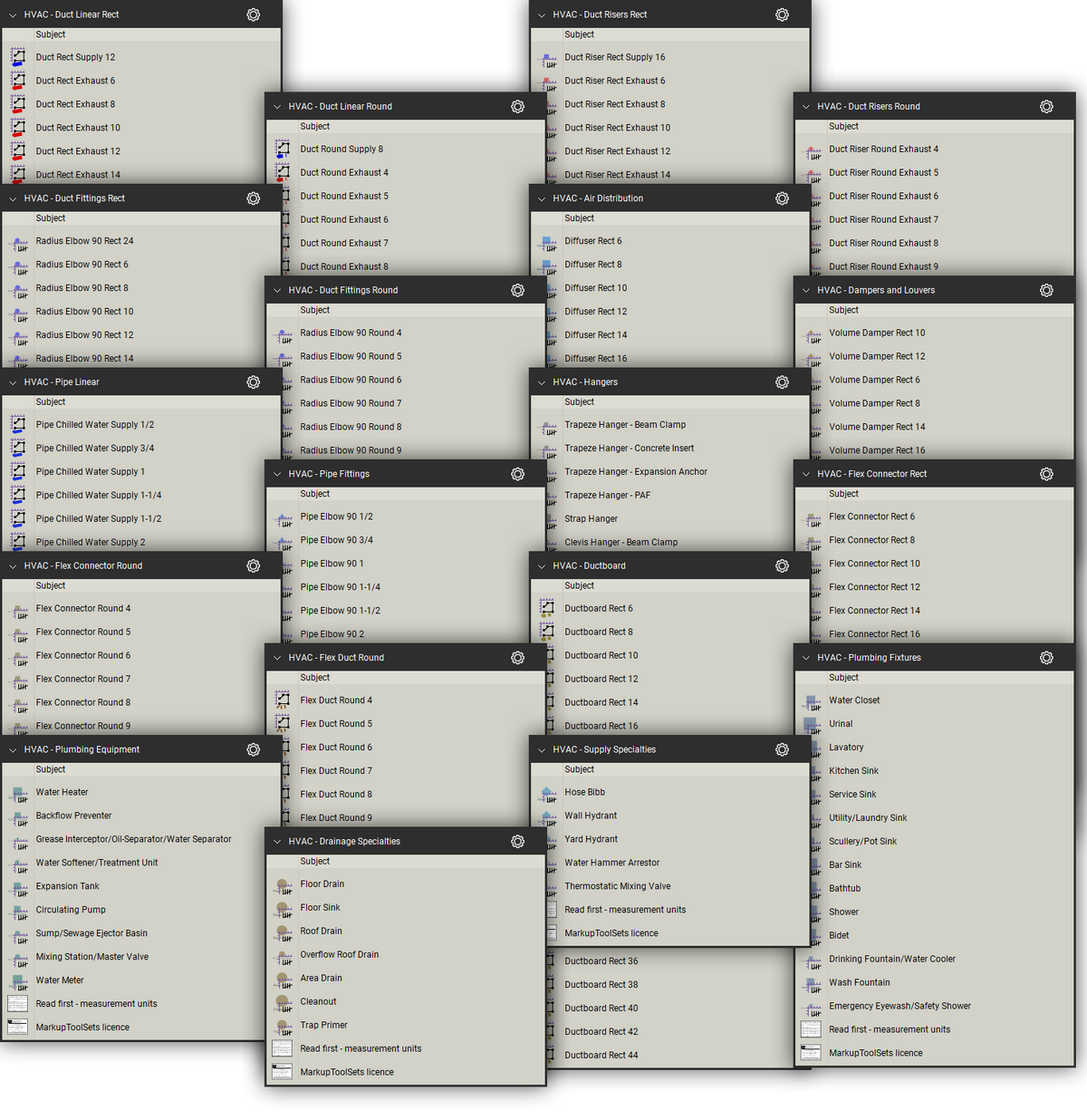

Examples of tools included:

Rectangular duct

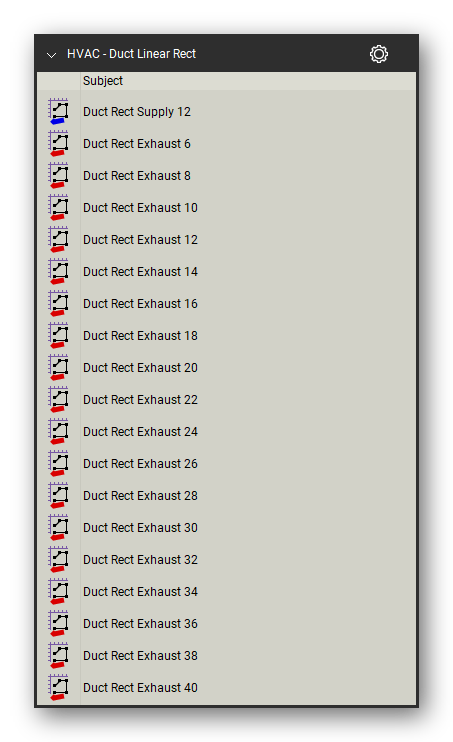

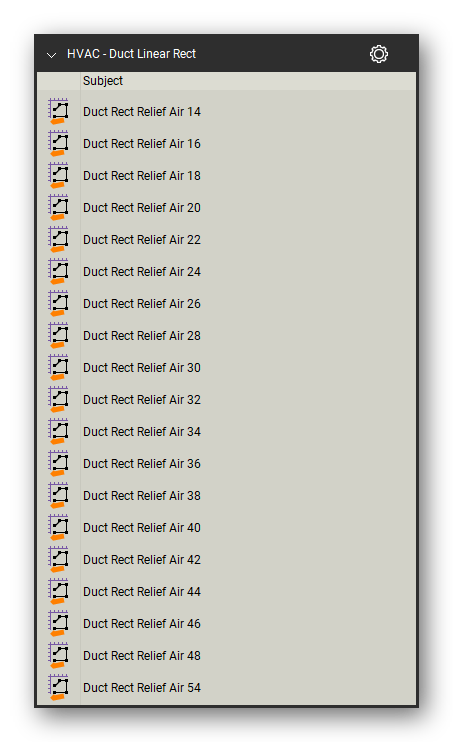

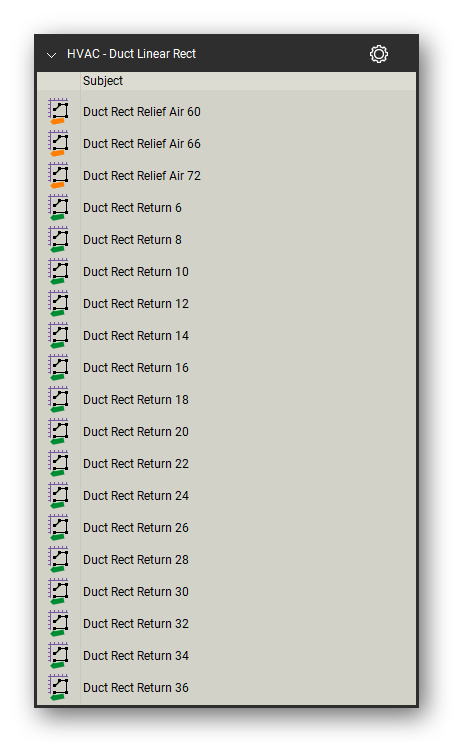

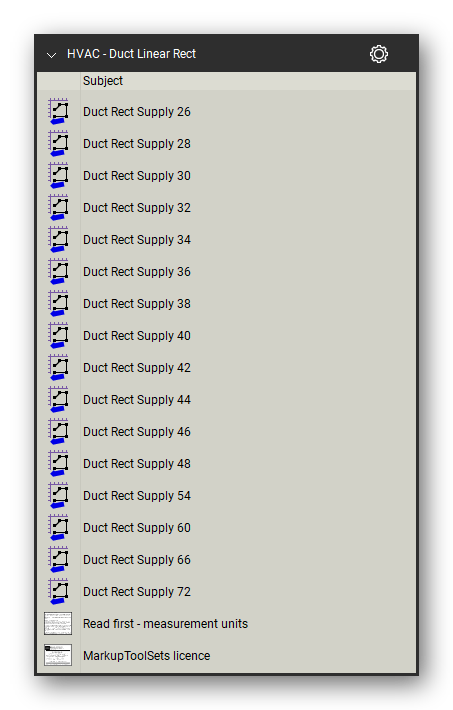

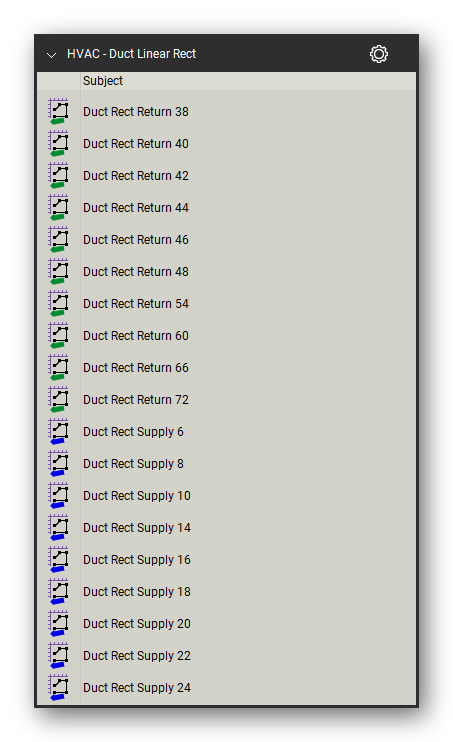

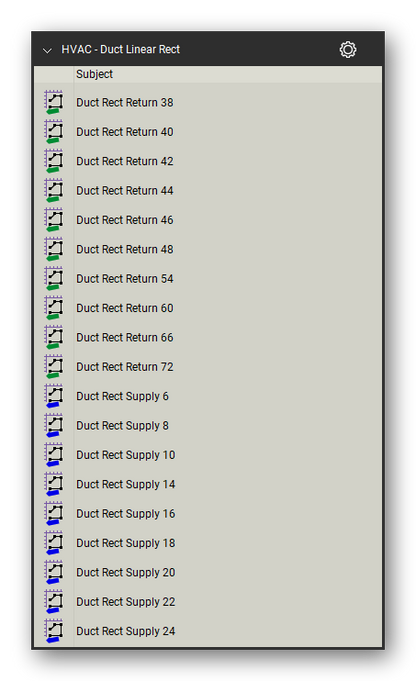

• Supply, return, exhaust, outside air and relief air runs in 26 widths from 6 to 72 in, sized on placement with the second dimension

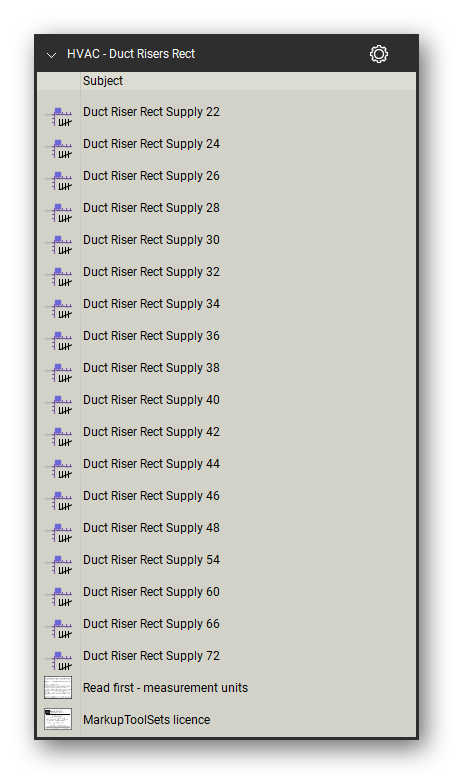

• Supply, return and exhaust risers counted with a typed height

Round duct

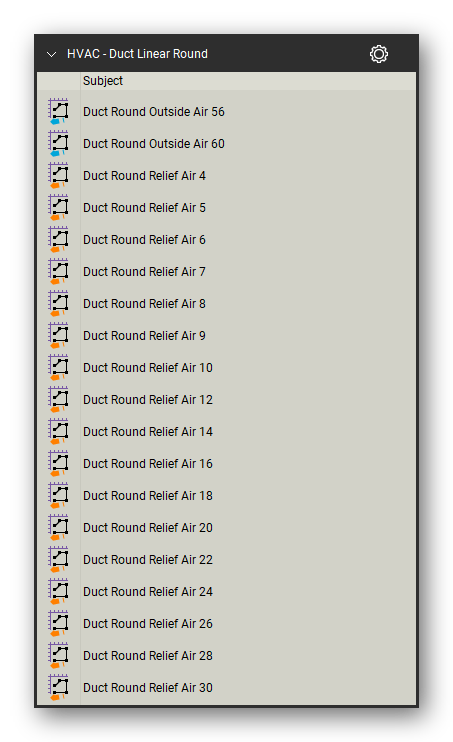

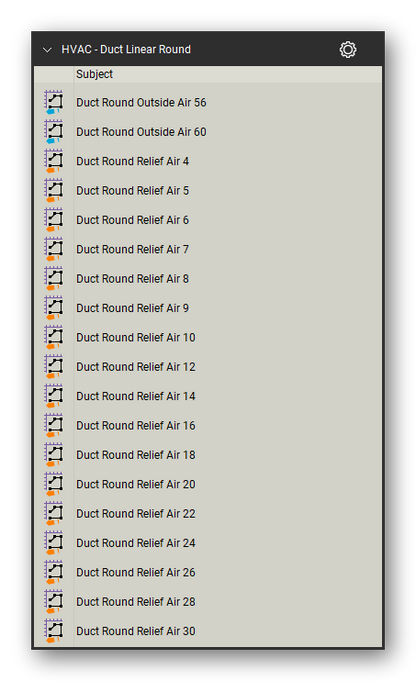

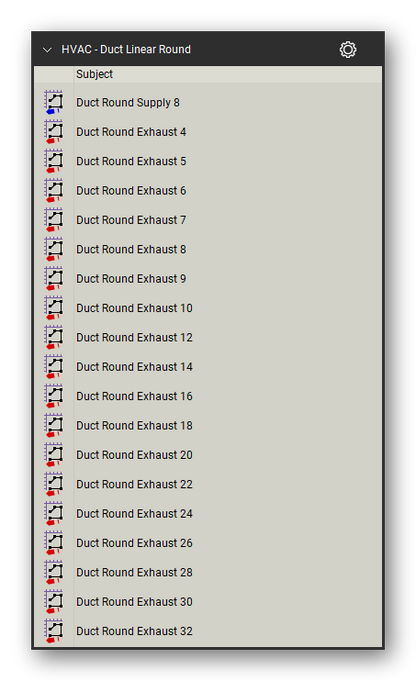

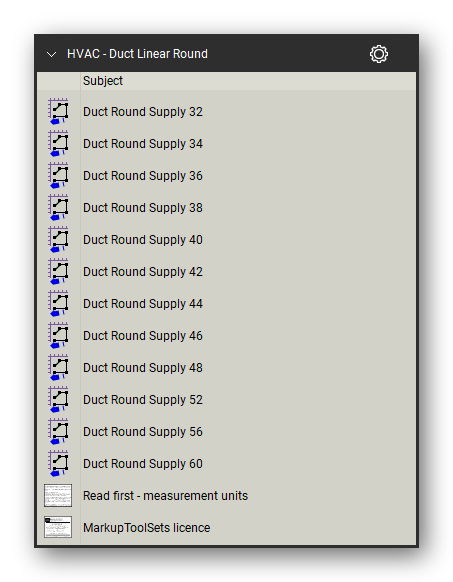

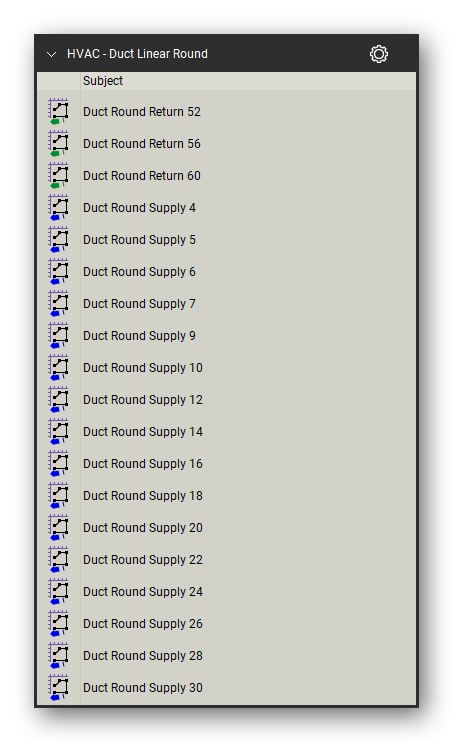

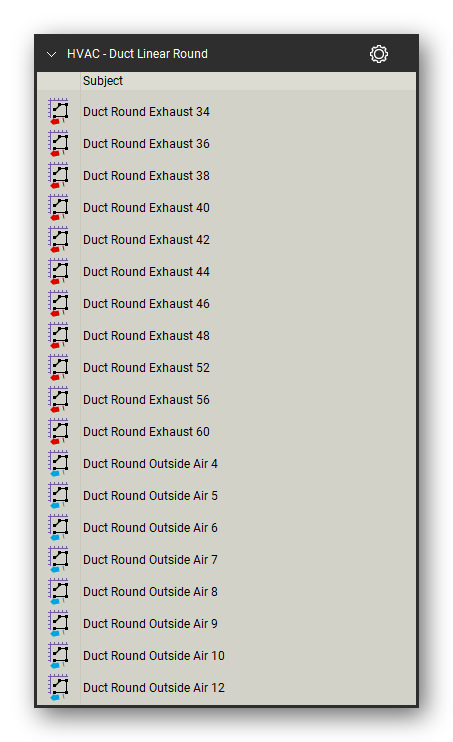

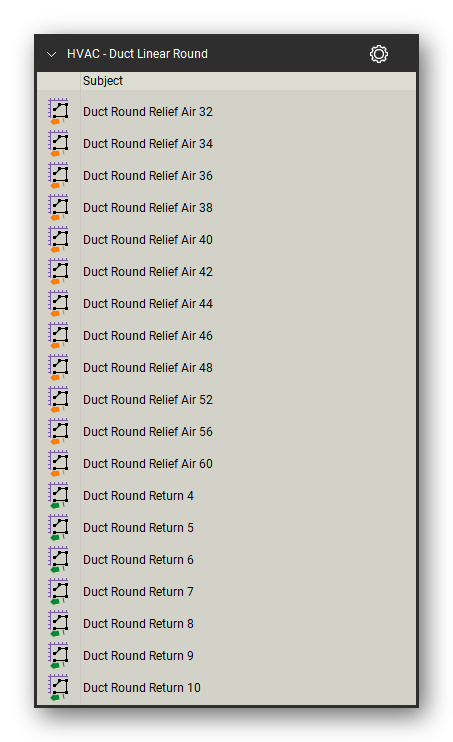

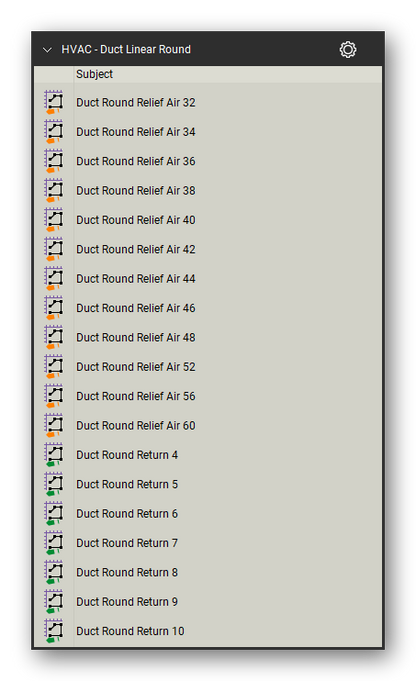

• Supply, return, exhaust, outside air and relief air runs in 29 diameters from 4 to 60 in

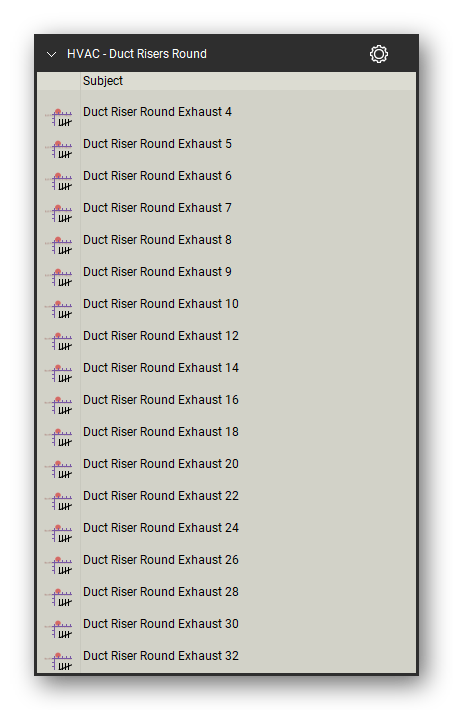

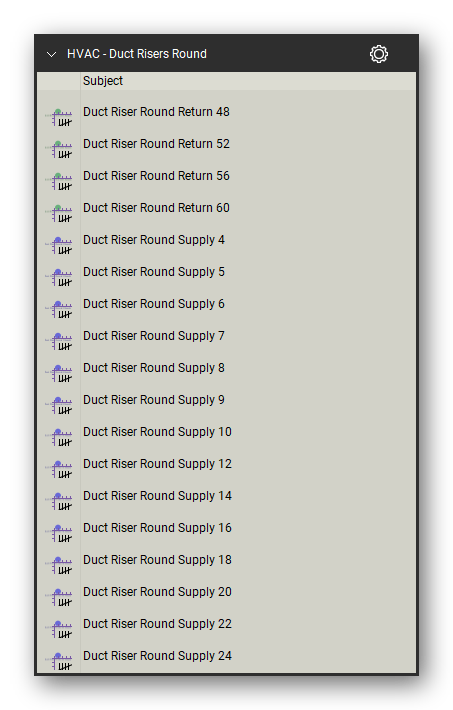

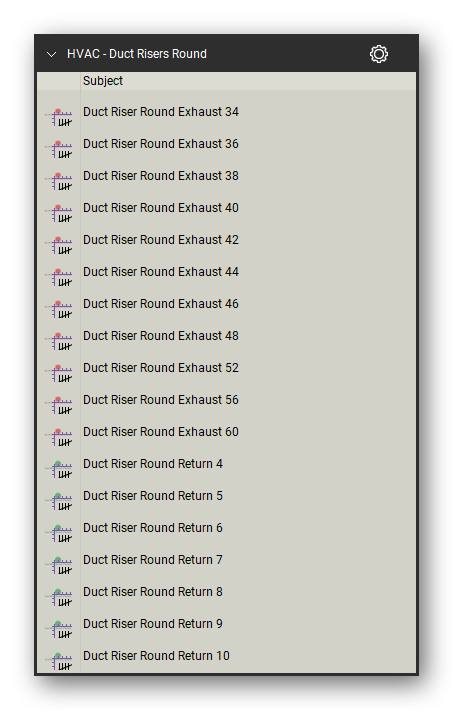

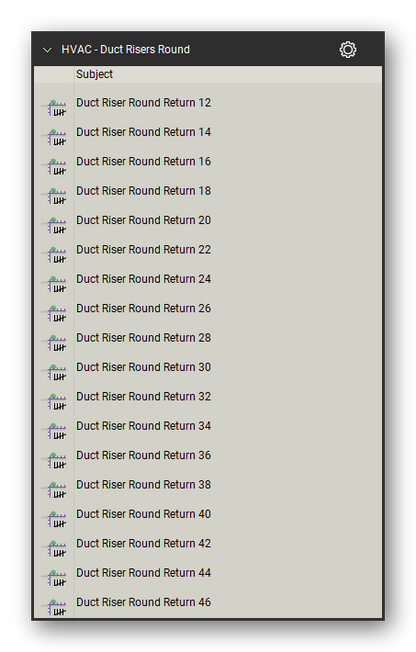

• Supply, return and exhaust risers

Rectangular duct fittings

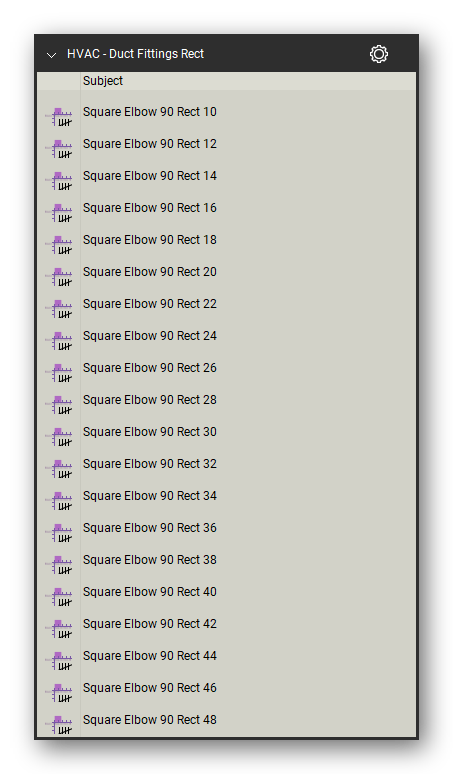

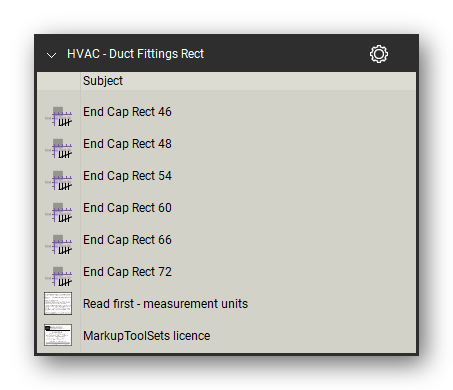

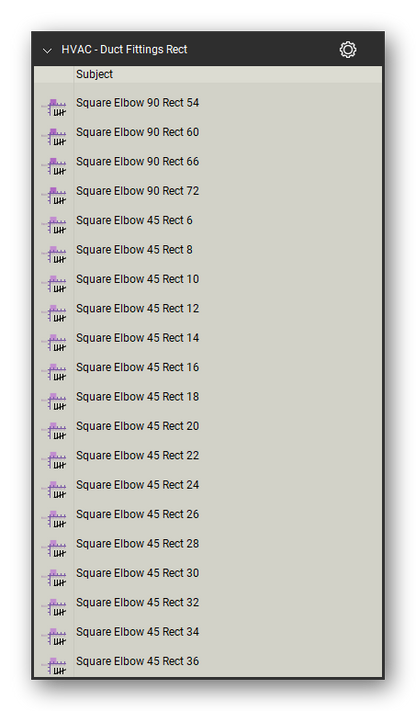

• 90, 45 and 30 degree radius elbows, 90 and 45 degree square elbows

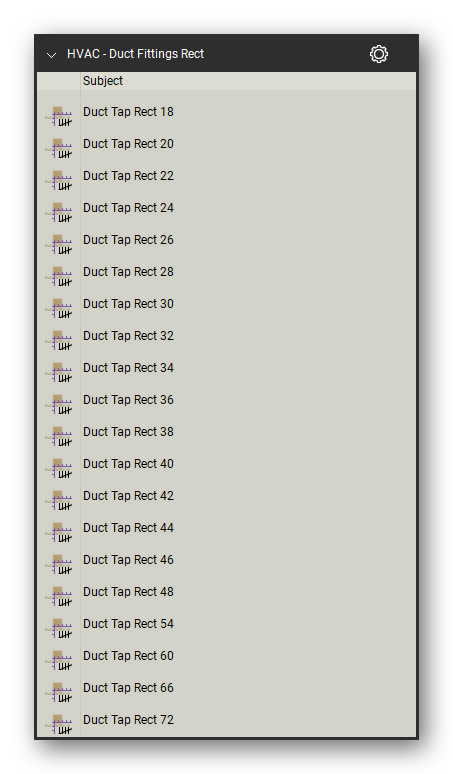

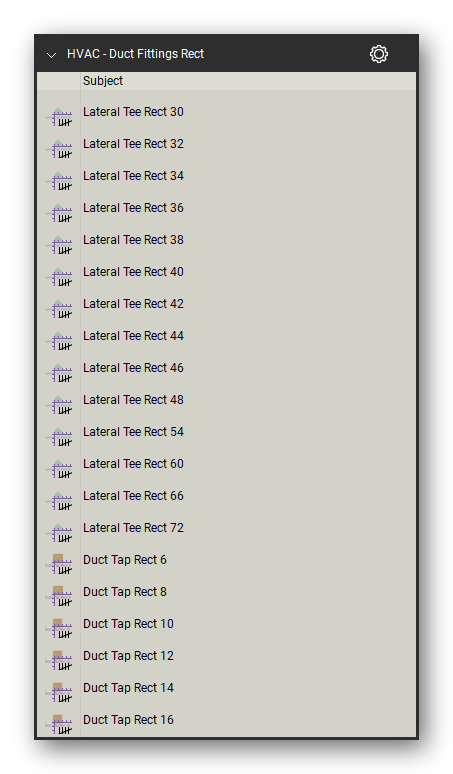

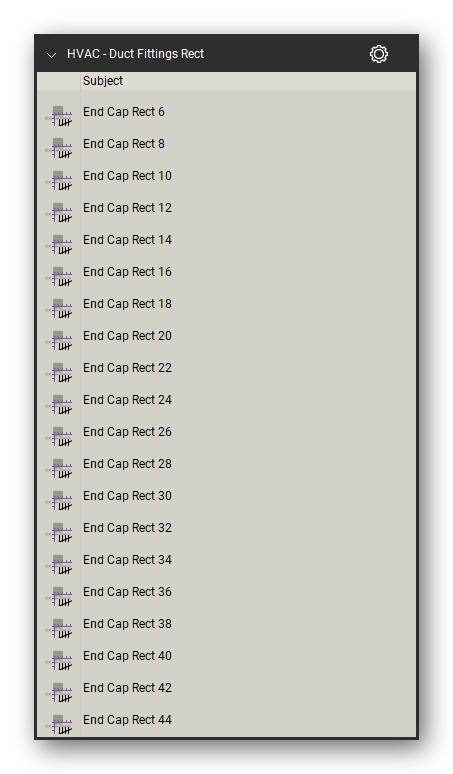

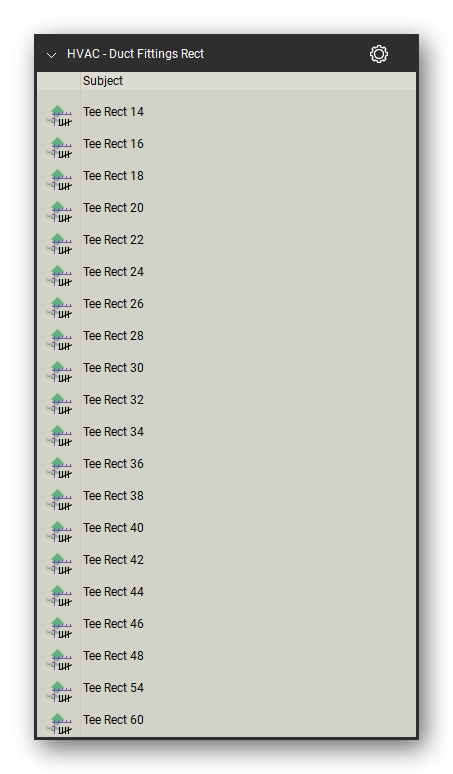

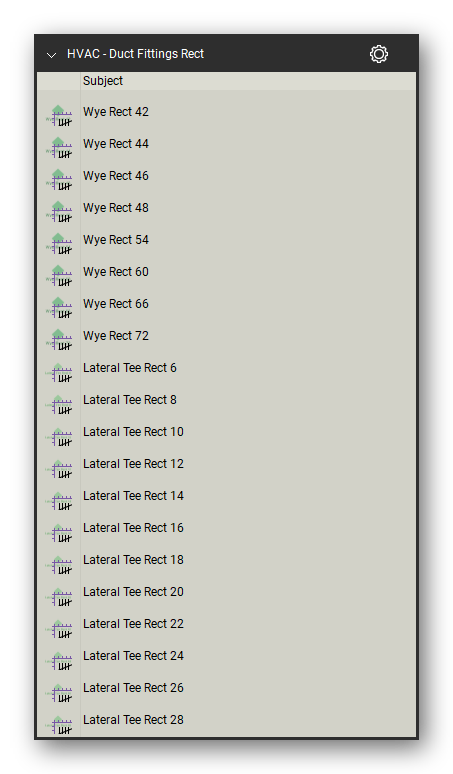

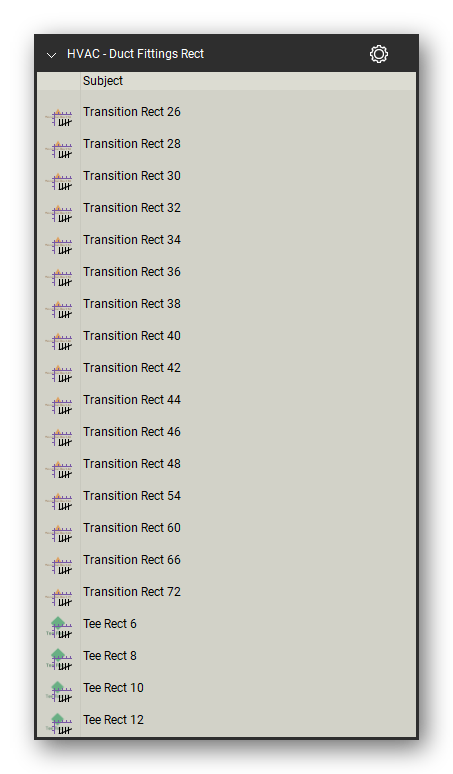

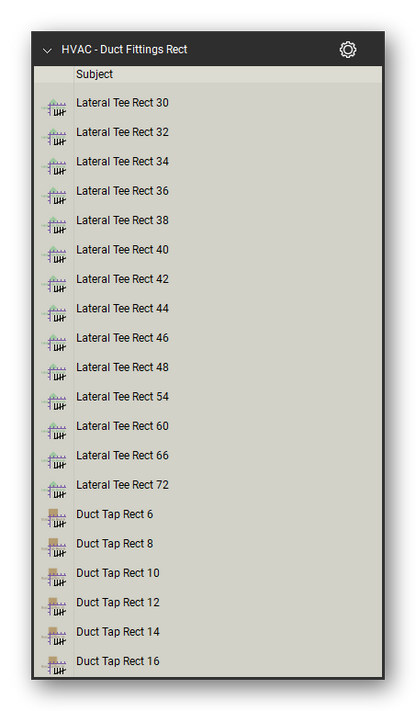

• Transitions, tees, wyes, lateral tees, duct taps and end caps in every width

Round duct fittings

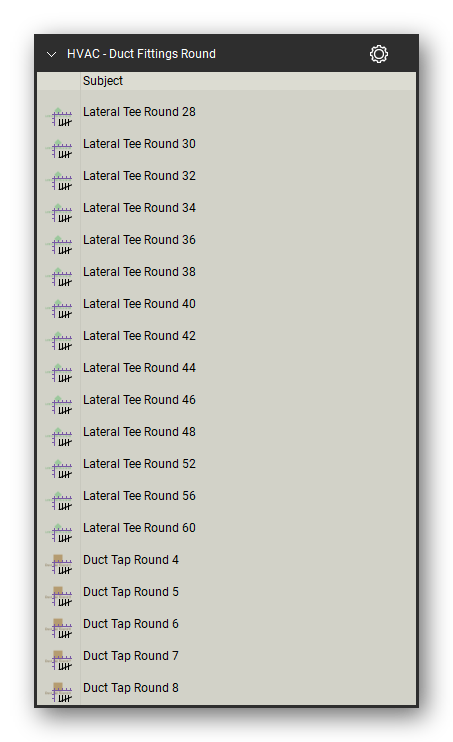

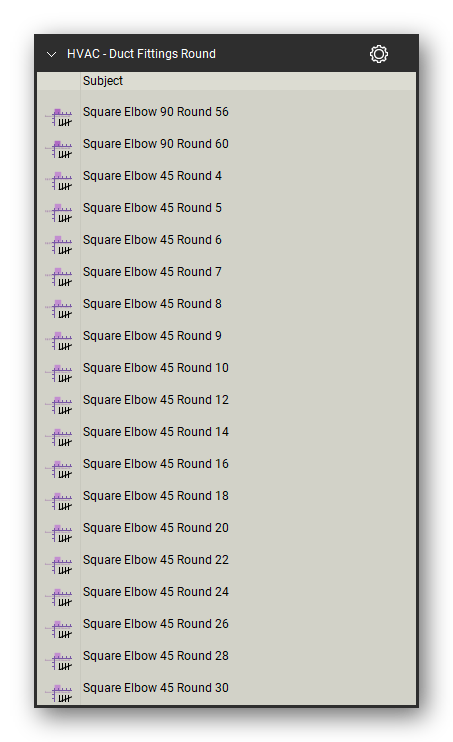

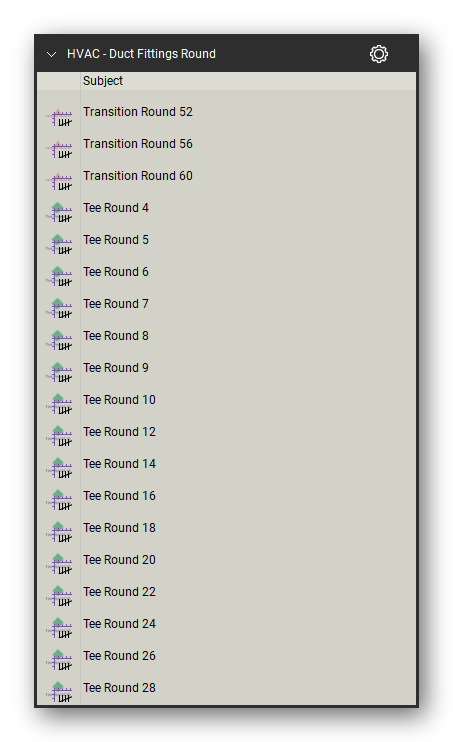

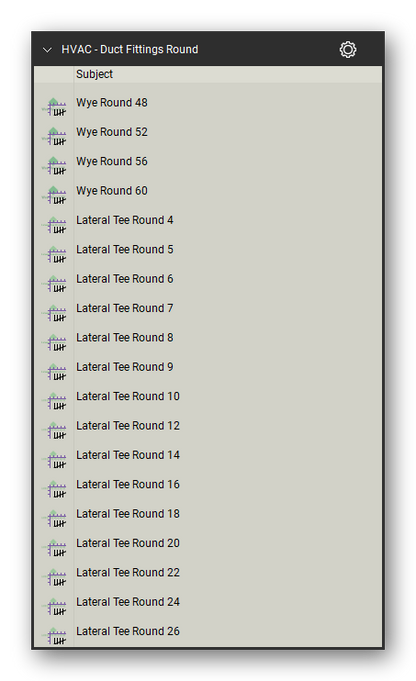

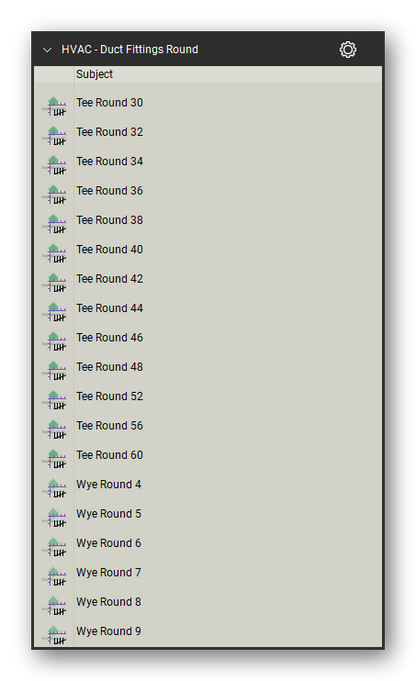

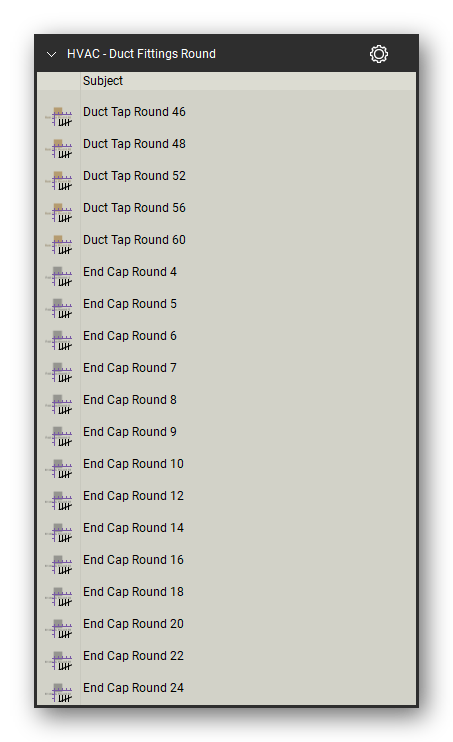

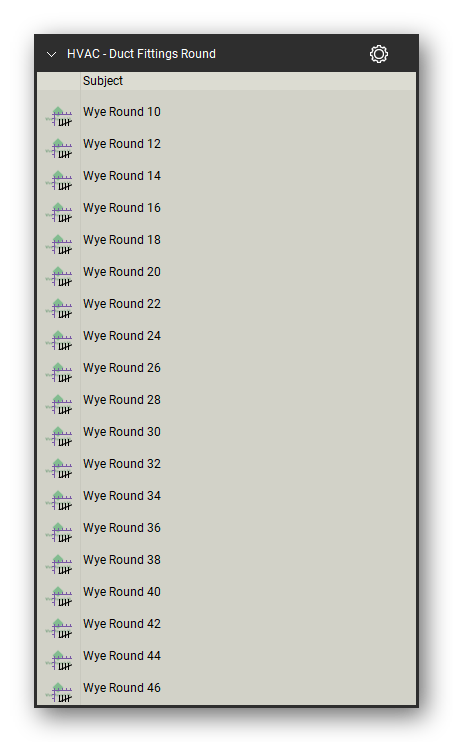

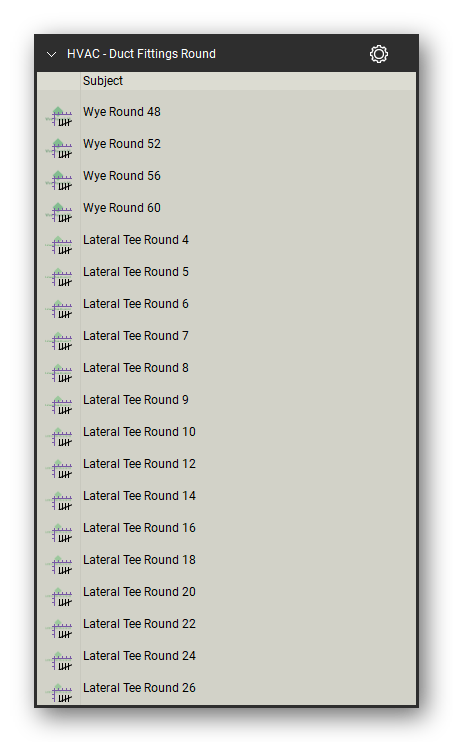

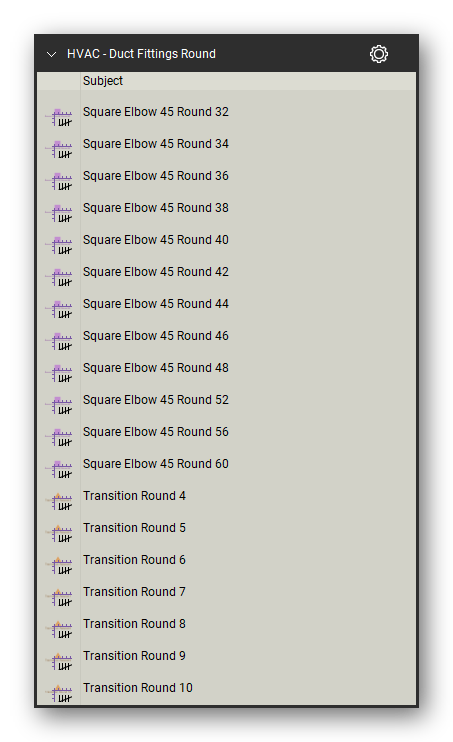

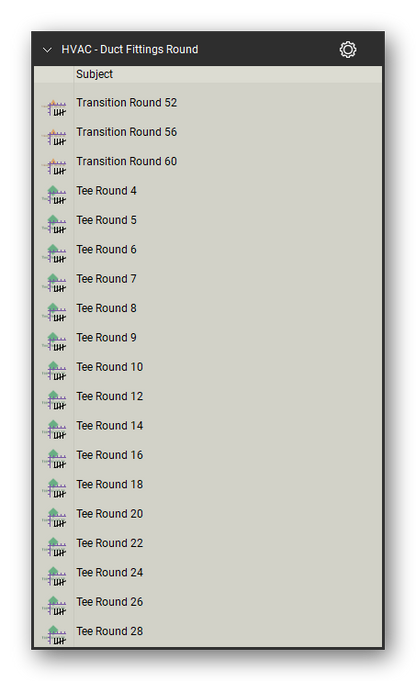

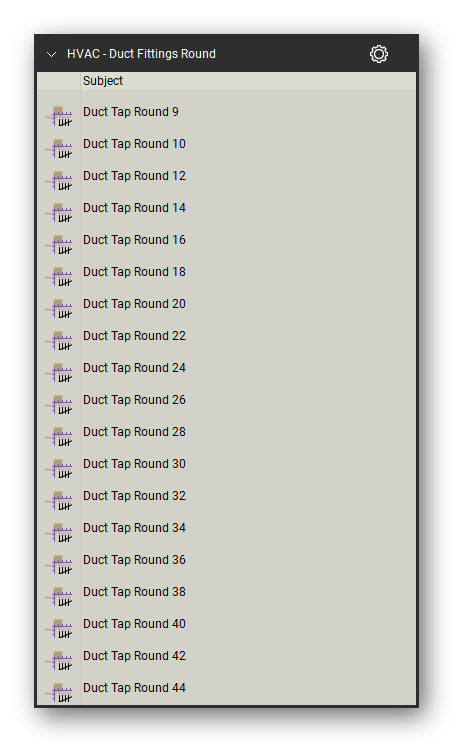

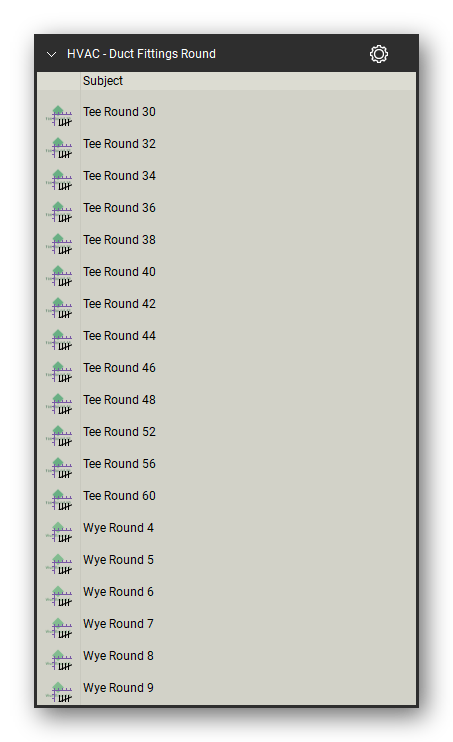

• The same eleven fitting types in every diameter

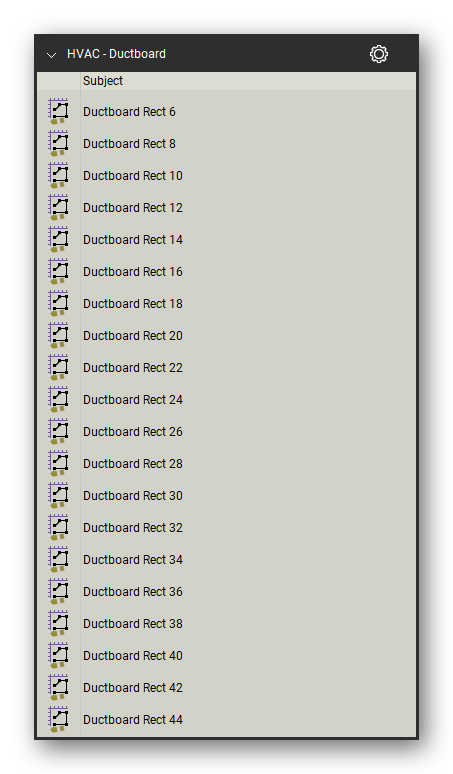

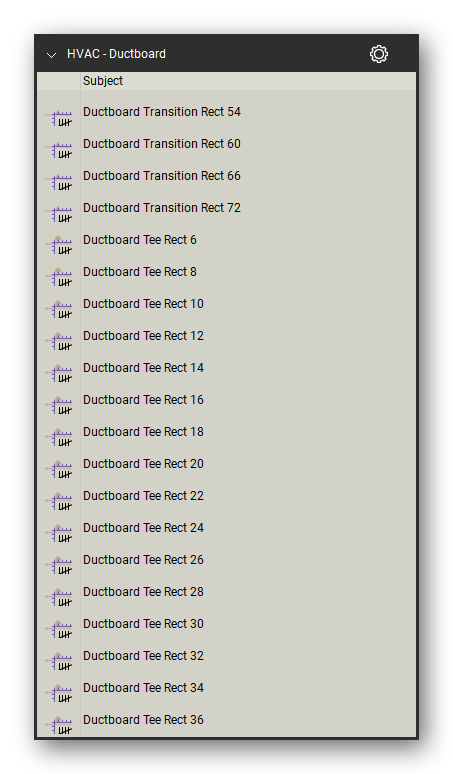

Ductboard

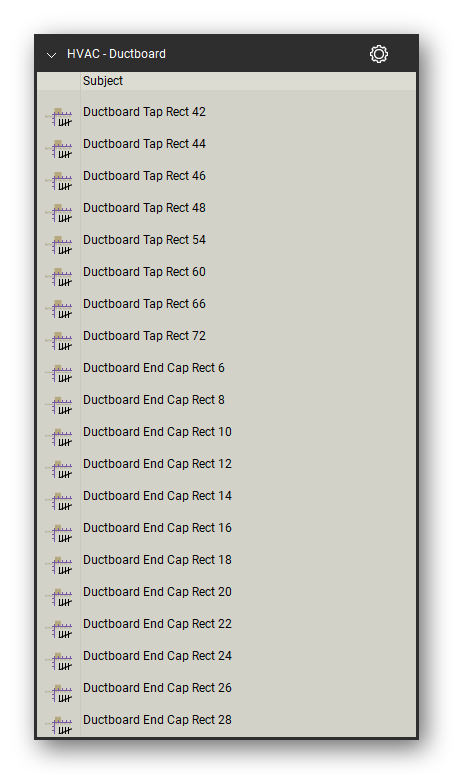

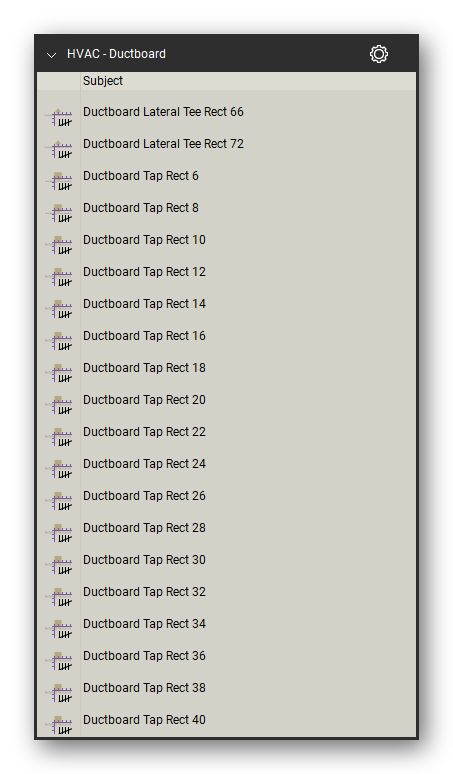

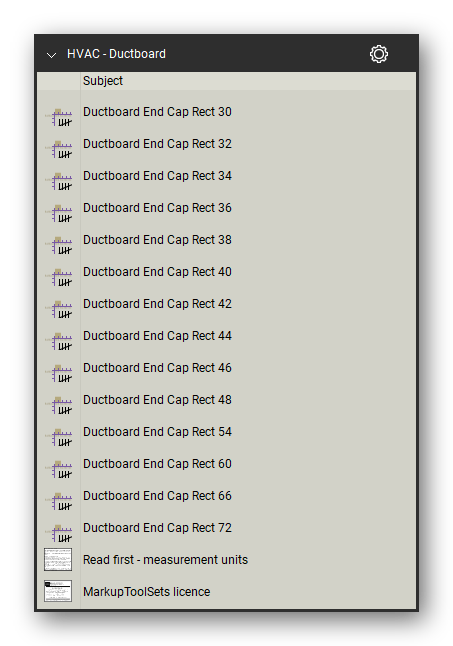

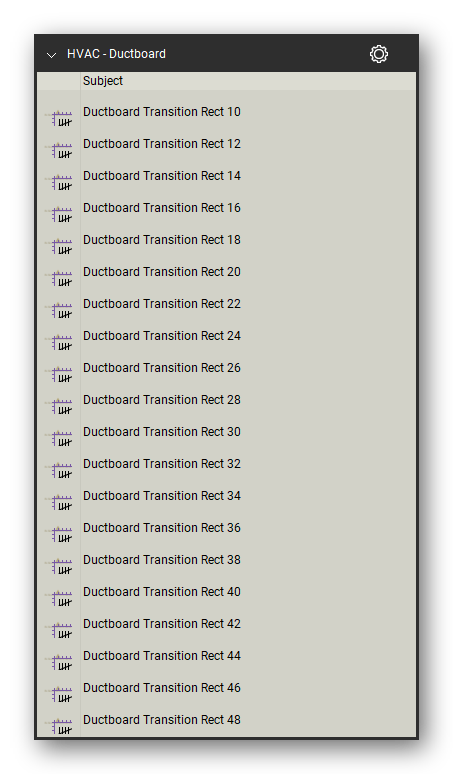

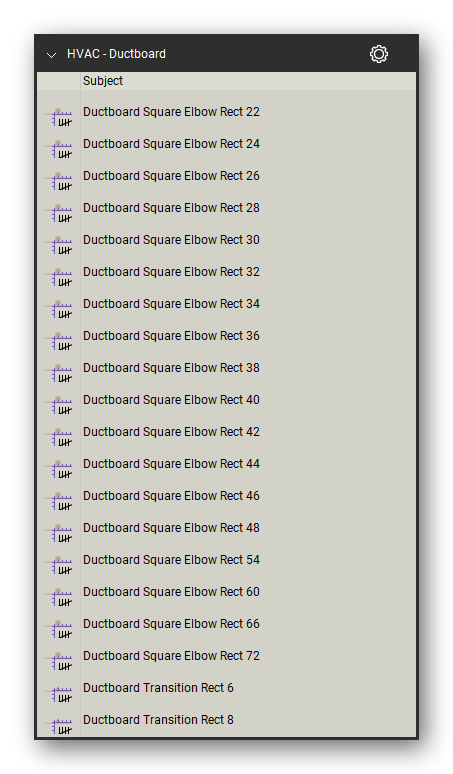

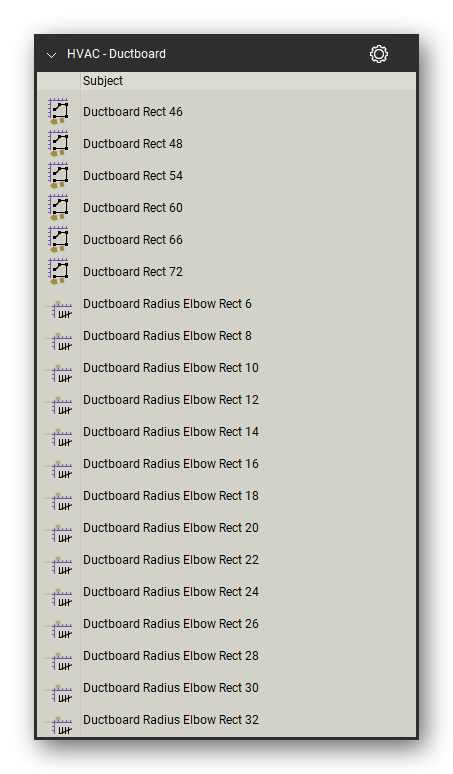

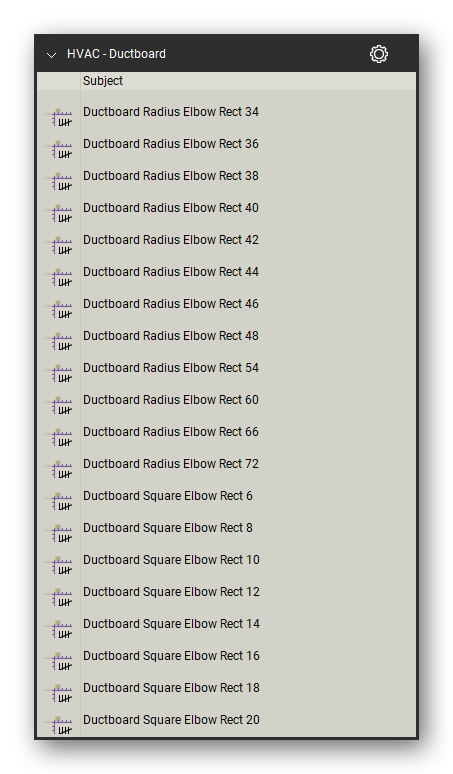

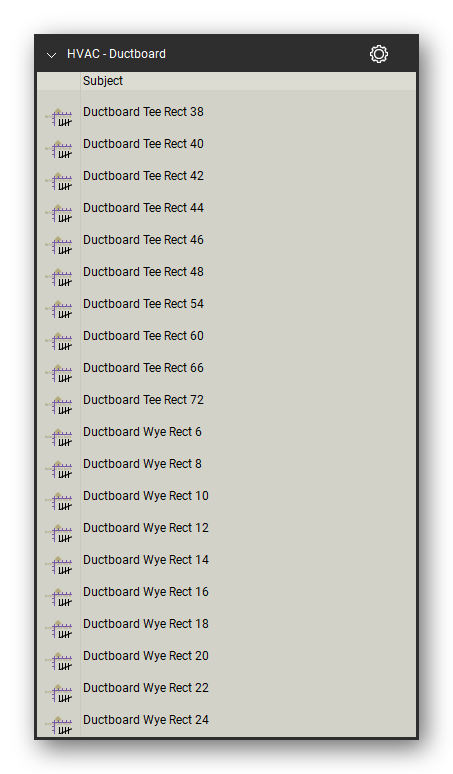

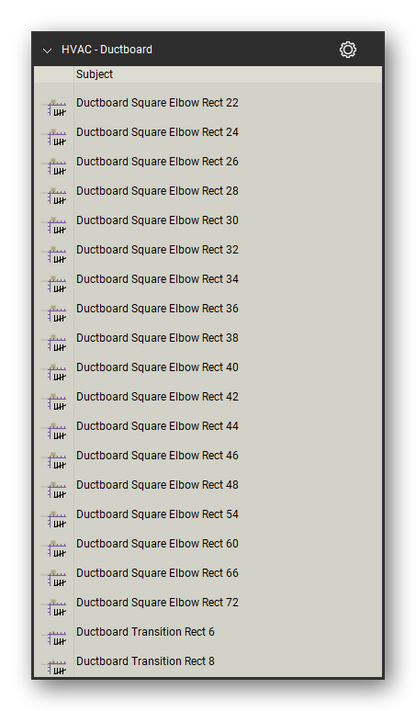

• Straight duct, radius and square elbows, transitions, tees, wyes, lateral tees, taps and end caps

Flex duct & connectors

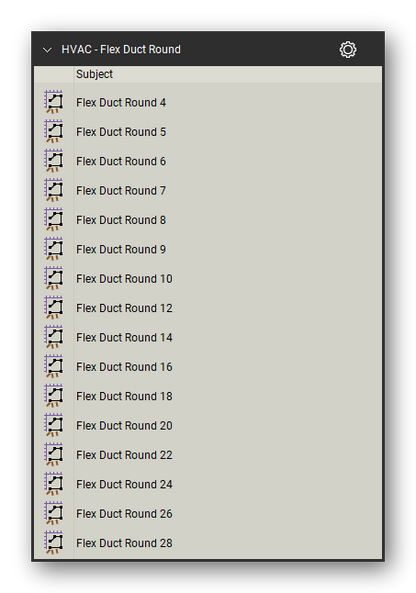

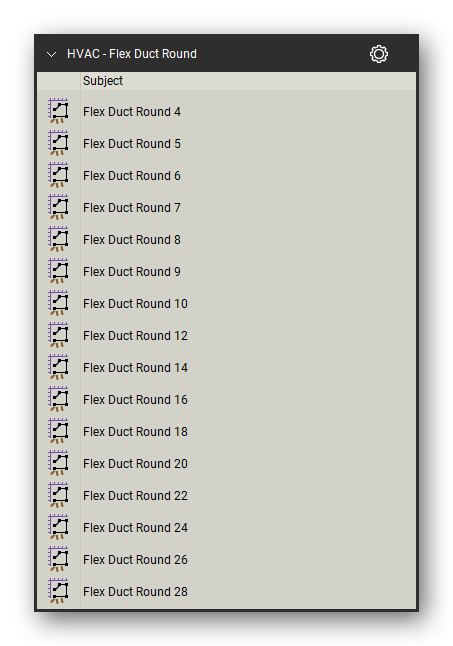

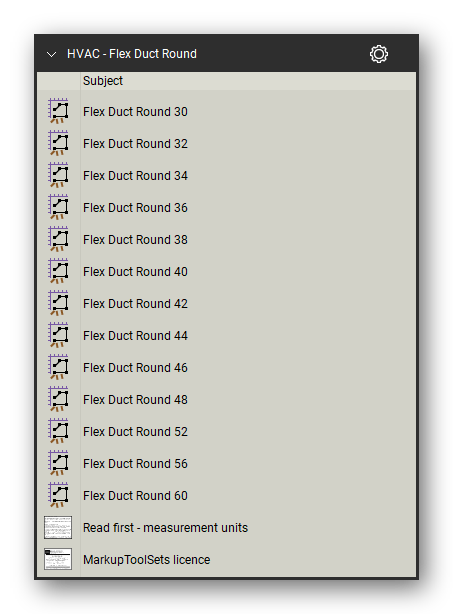

• Round flex duct in every diameter

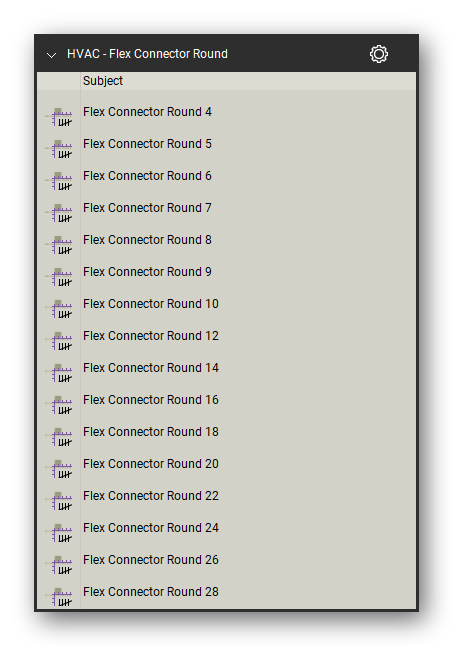

• Rectangular and round flex connectors

Air distribution

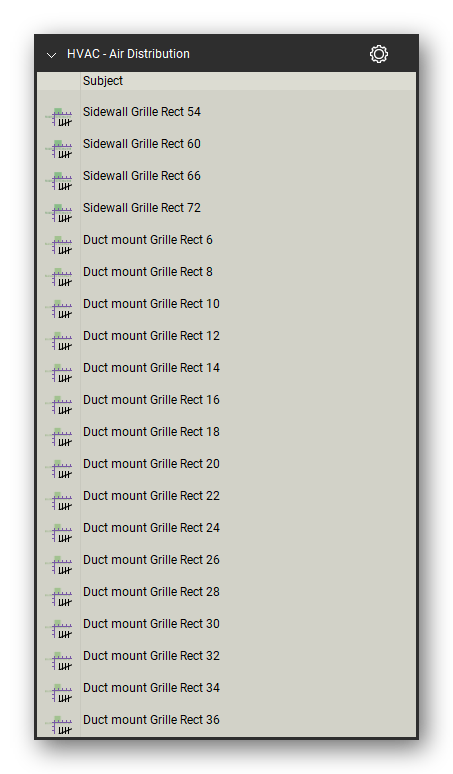

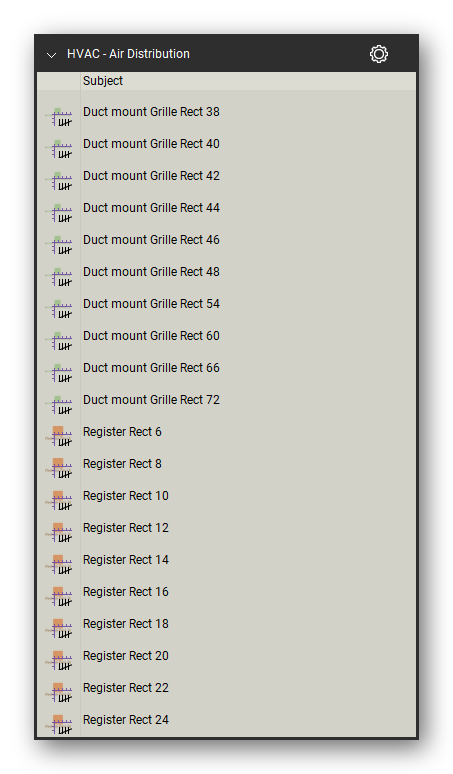

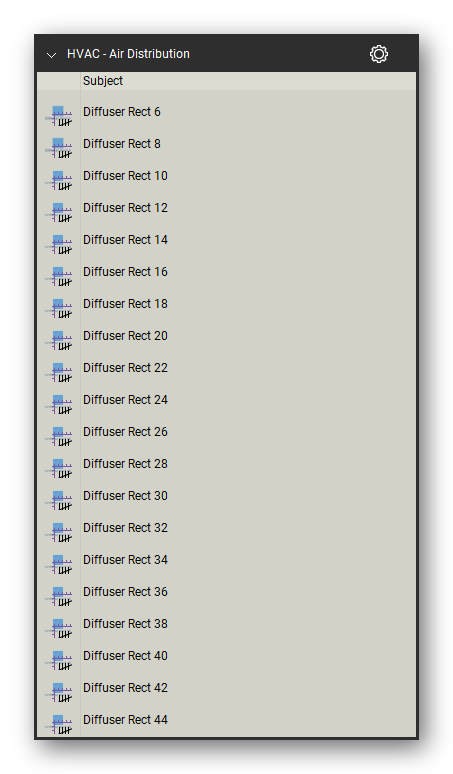

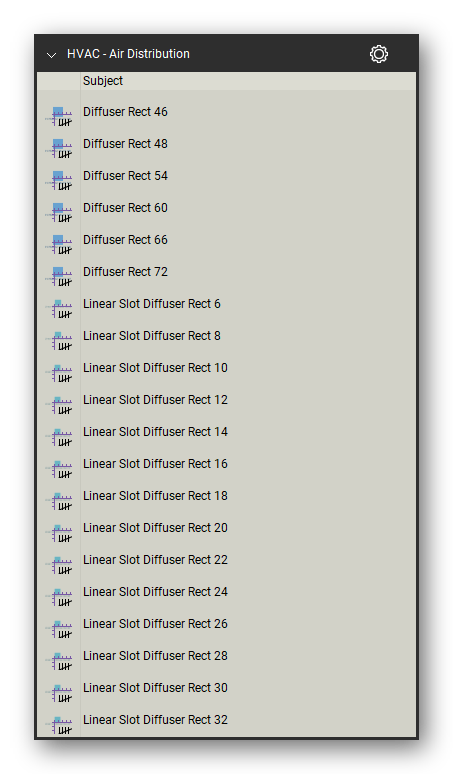

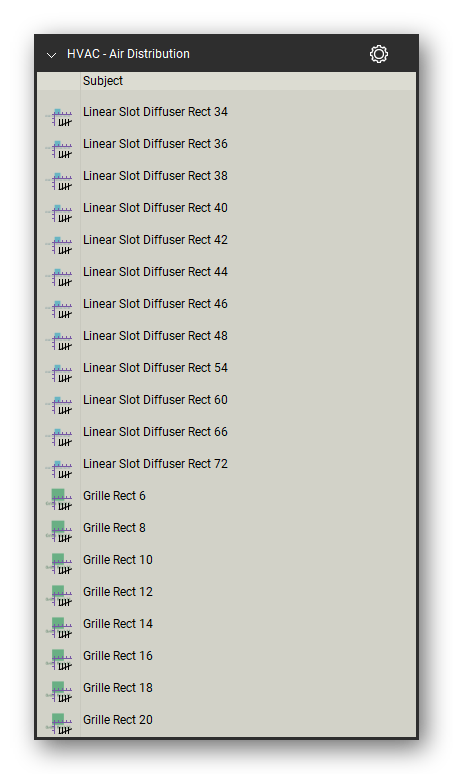

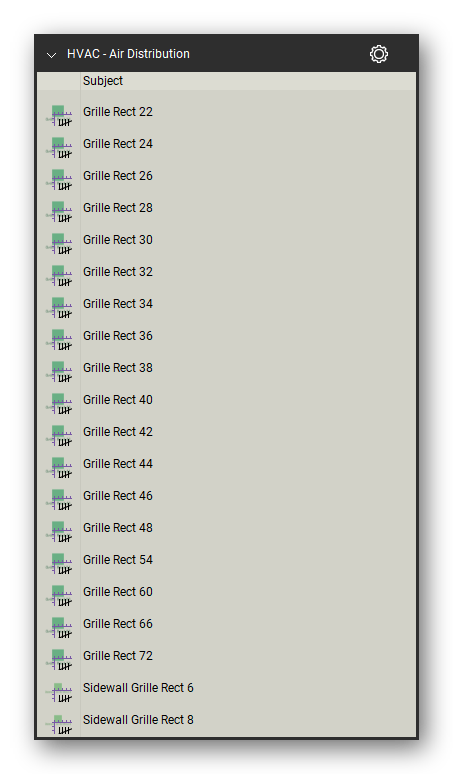

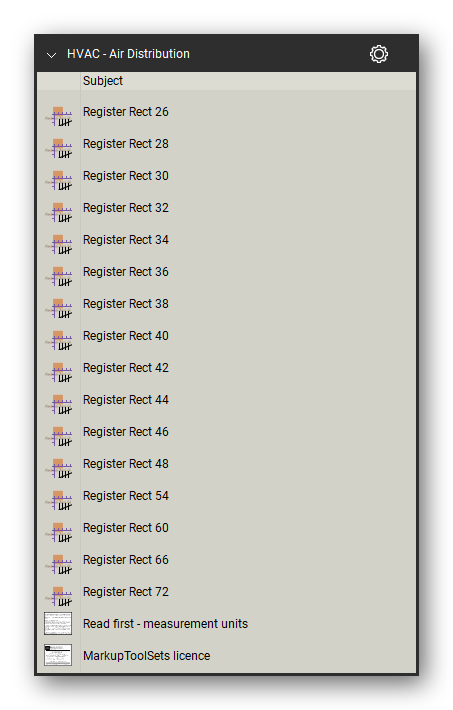

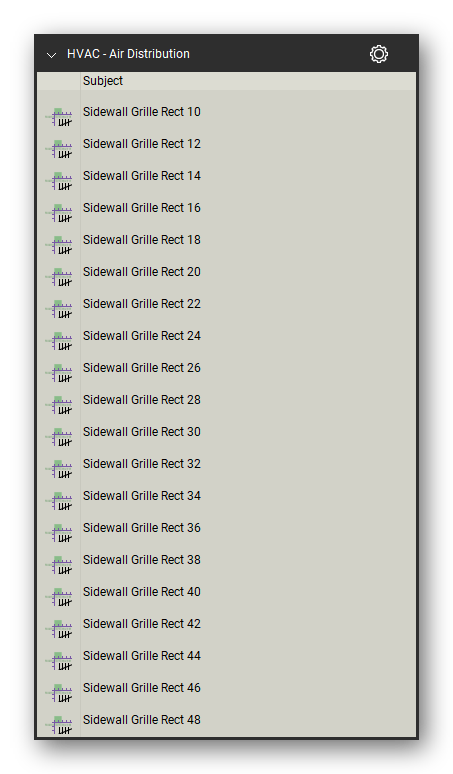

• Diffusers, linear slot diffusers, grilles, sidewall grilles, duct-mount grilles and registers by width

Dampers & louvers

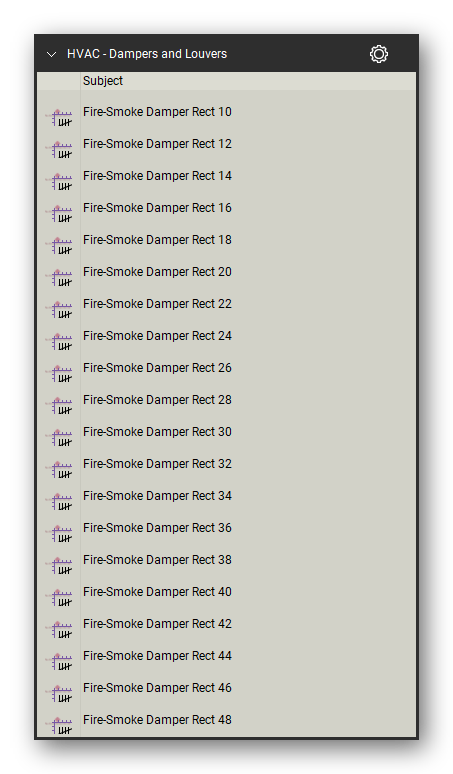

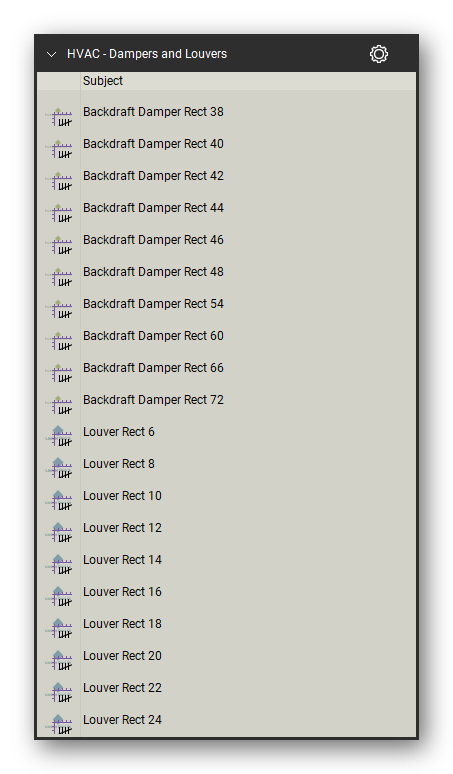

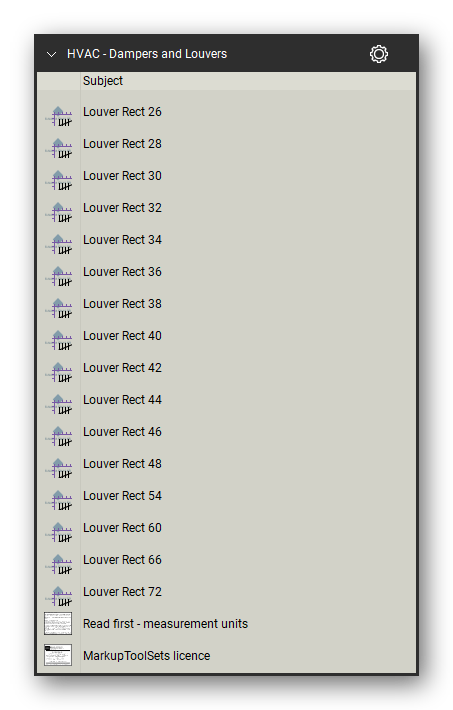

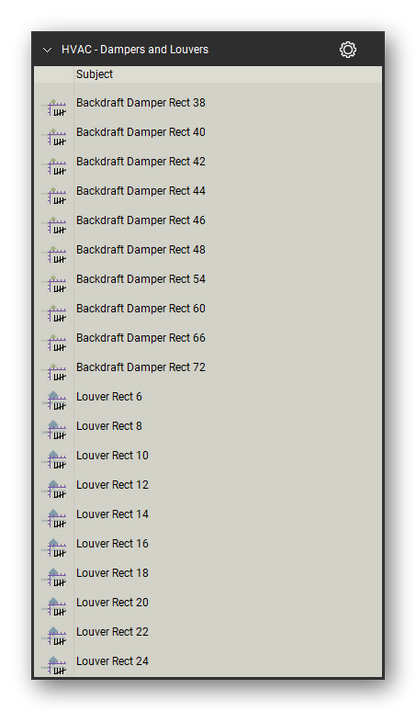

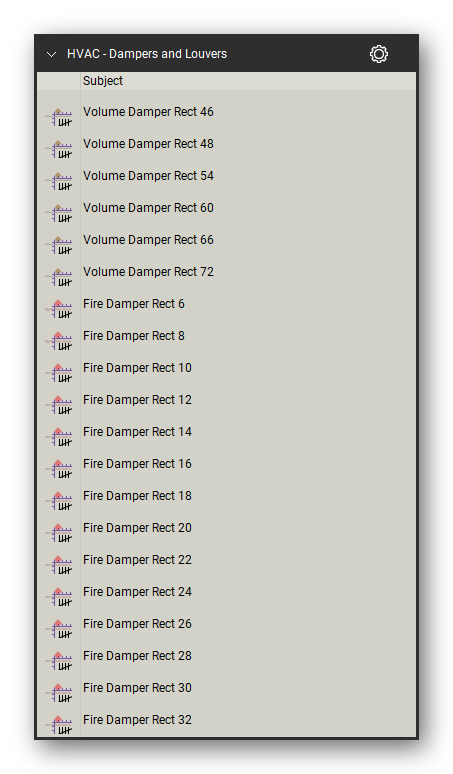

• Volume, fire, smoke, fire-smoke and backdraft dampers and louvers by width

Hangers

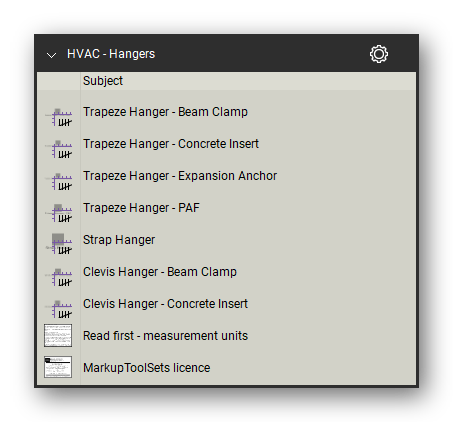

• Trapeze hangers on beam clamps, concrete inserts, expansion anchors and powder-actuated fasteners
• Strap hangers and clevis hangers on beam clamps and concrete inserts

Piping

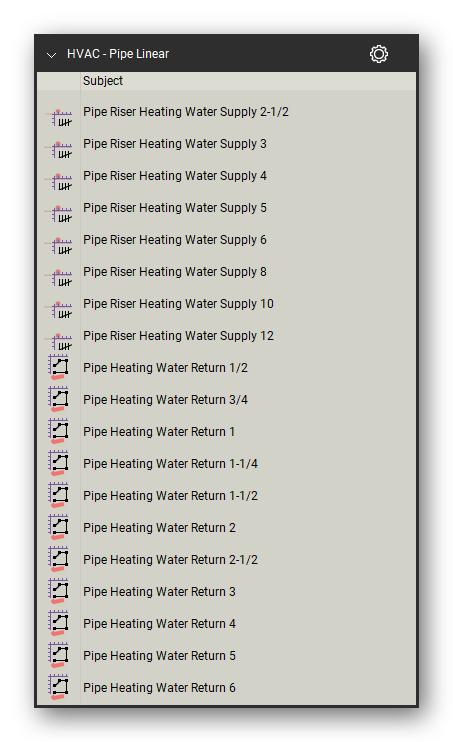

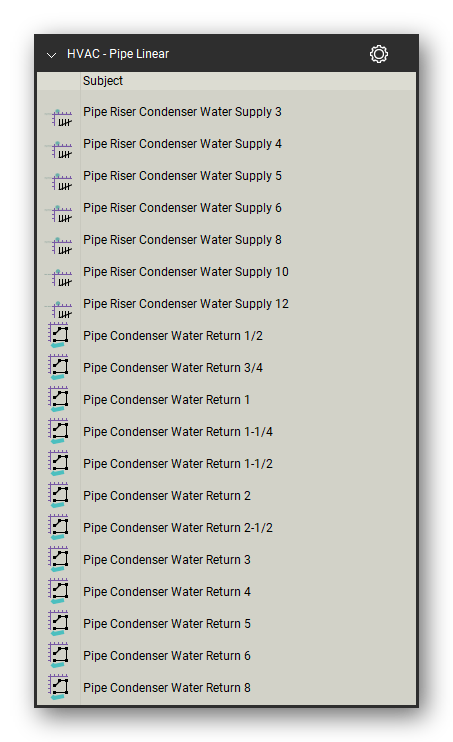

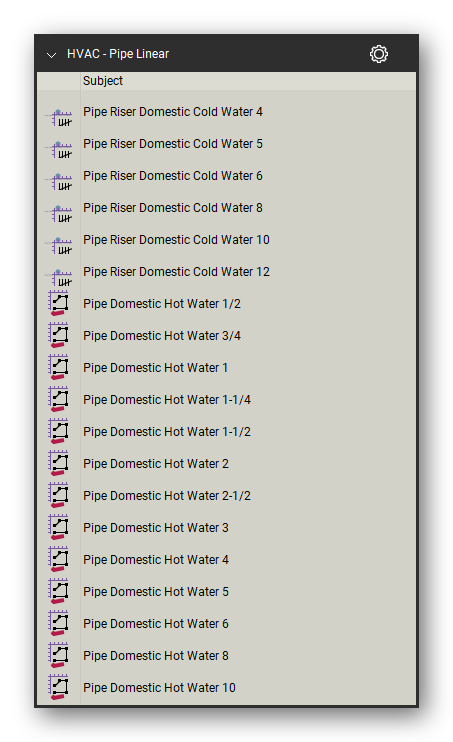

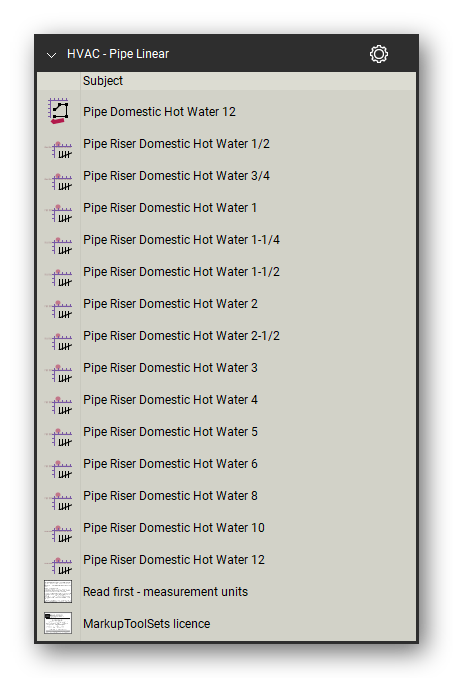

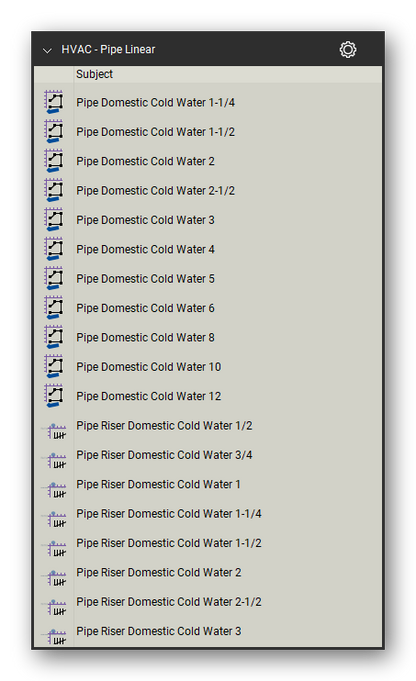

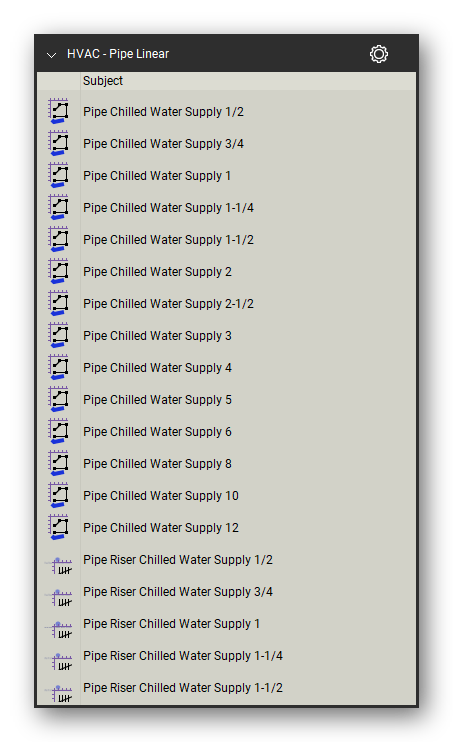

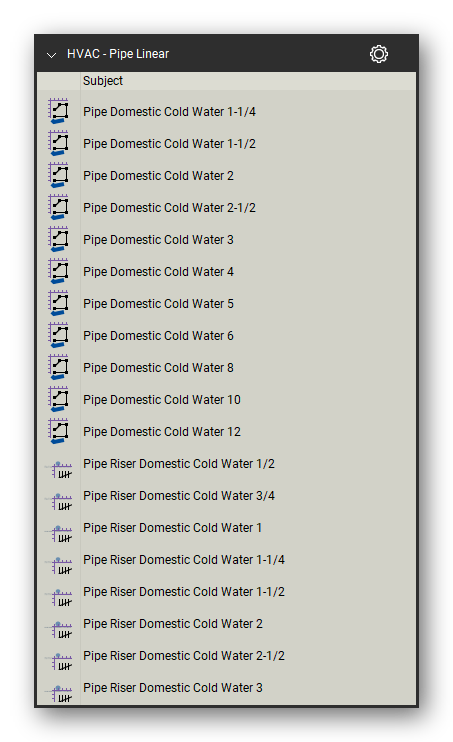

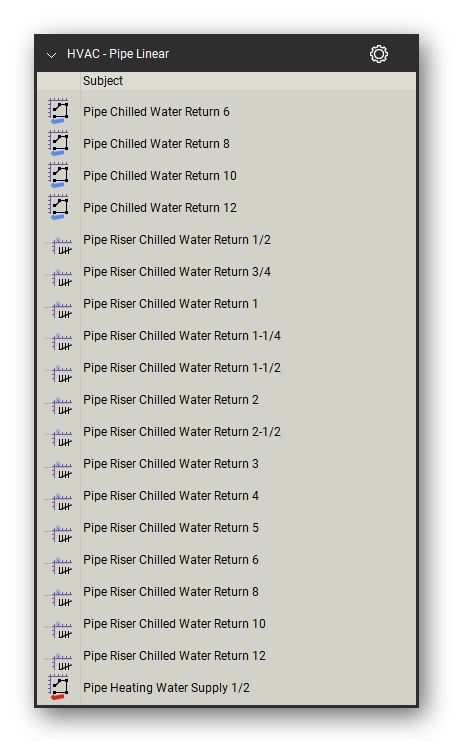

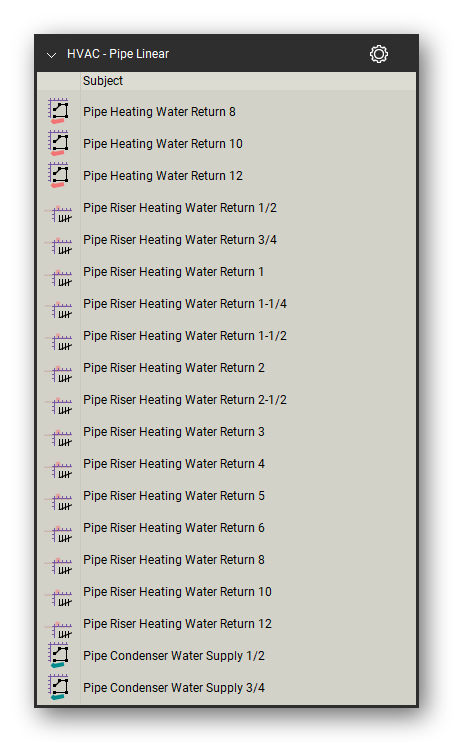

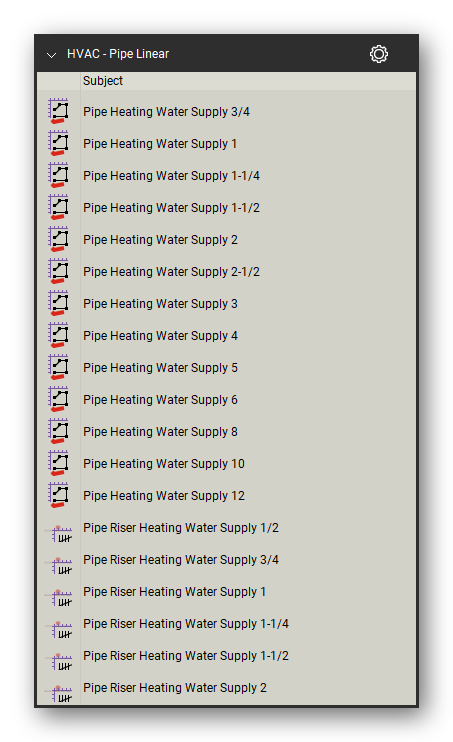

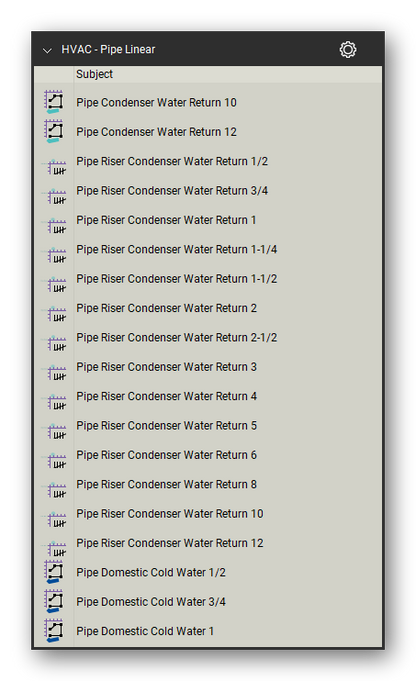

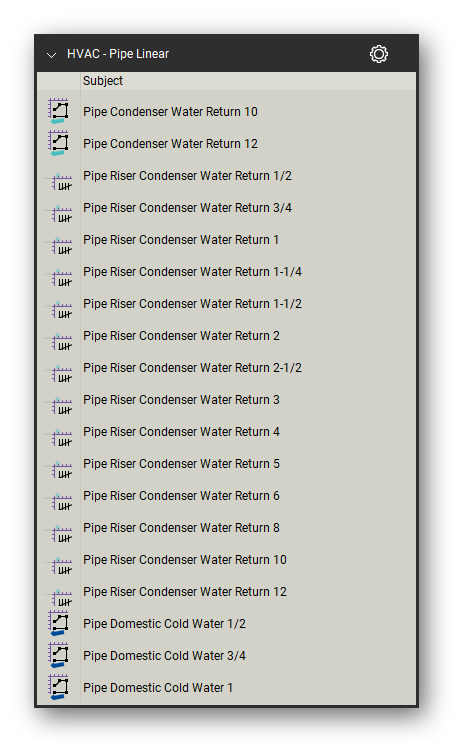

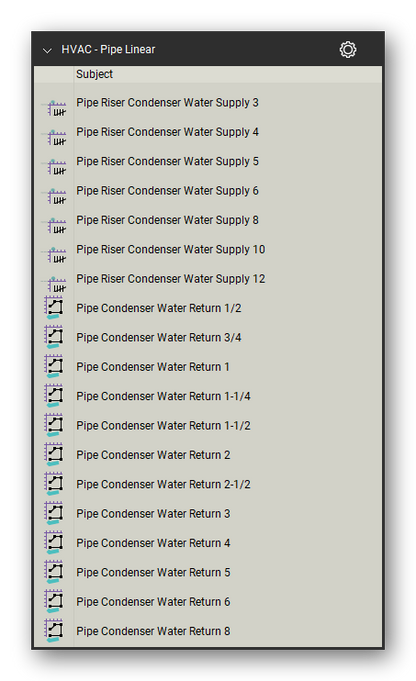

• Chilled water, heating water and condenser water supply and return, and domestic cold and hot water, each as a run and a riser, in 14 sizes from 1/2 to 12 in

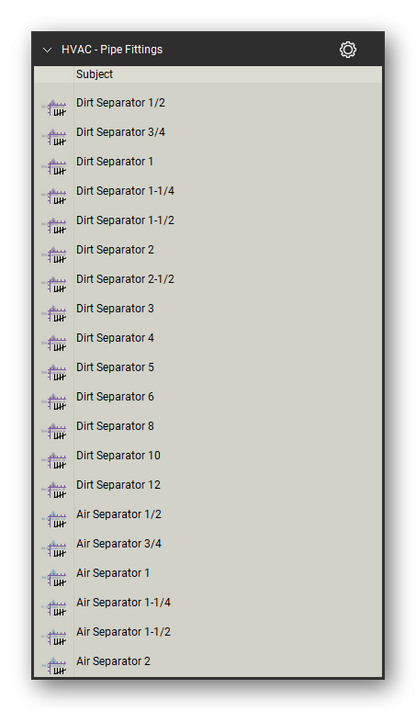

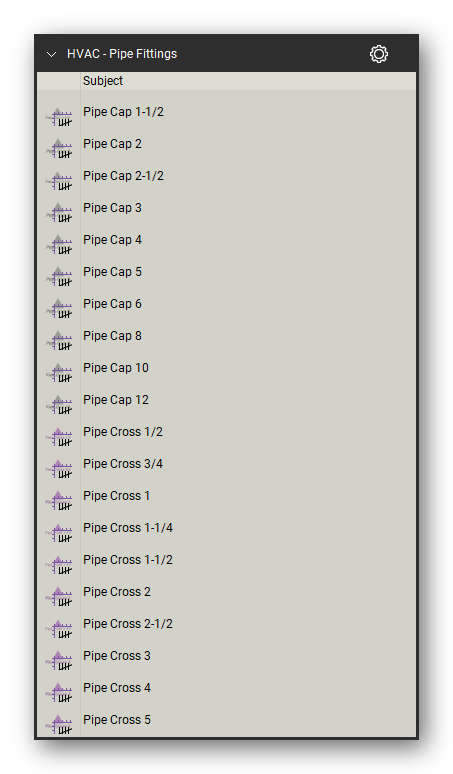

Pipe fittings, valves & specialties

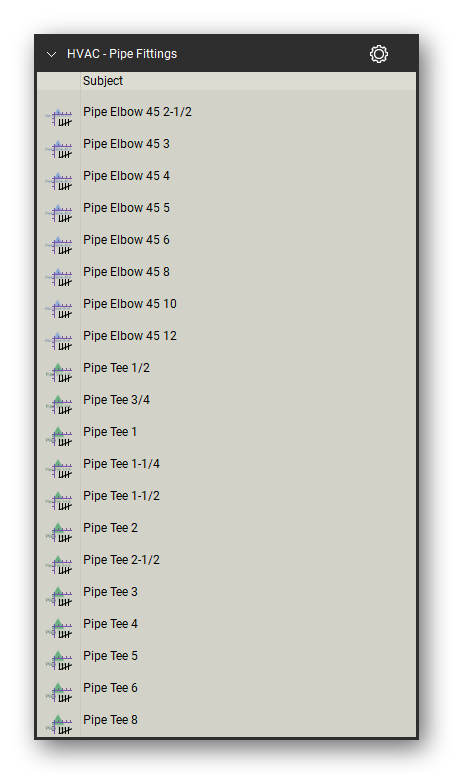

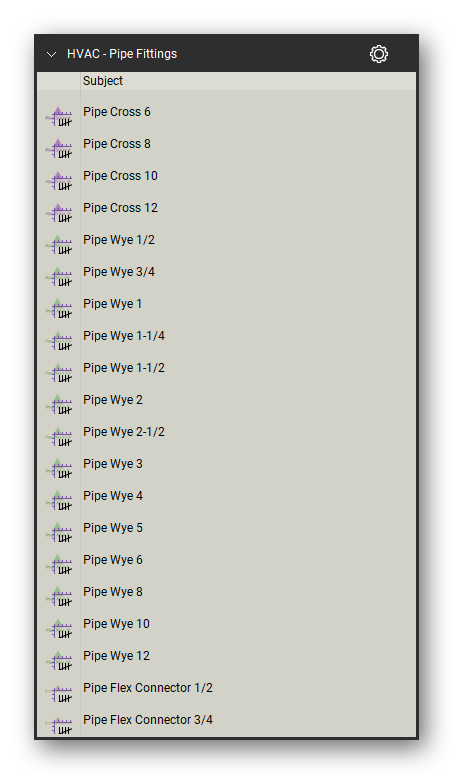

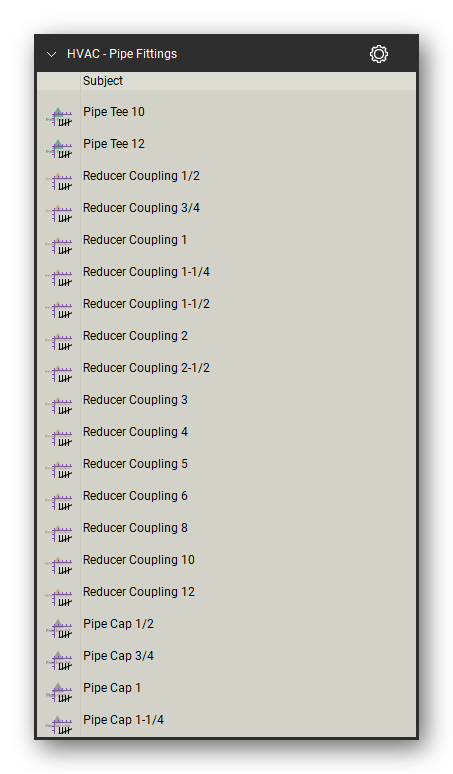

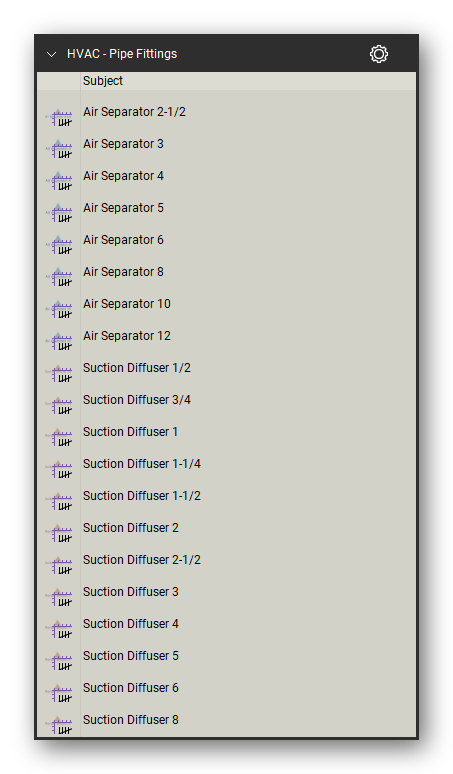

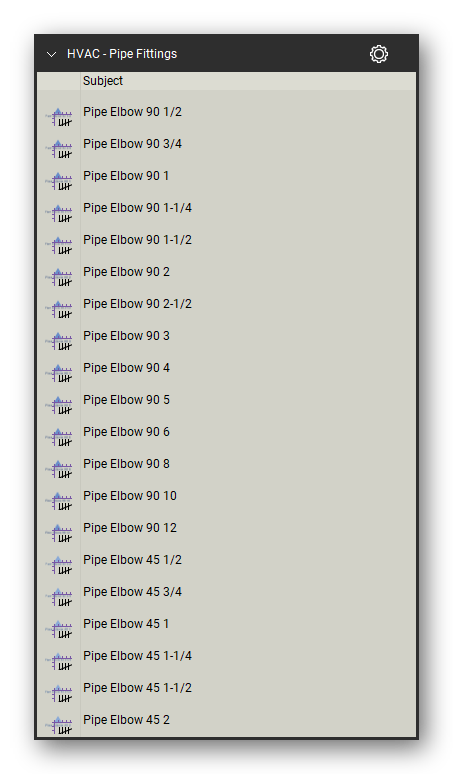

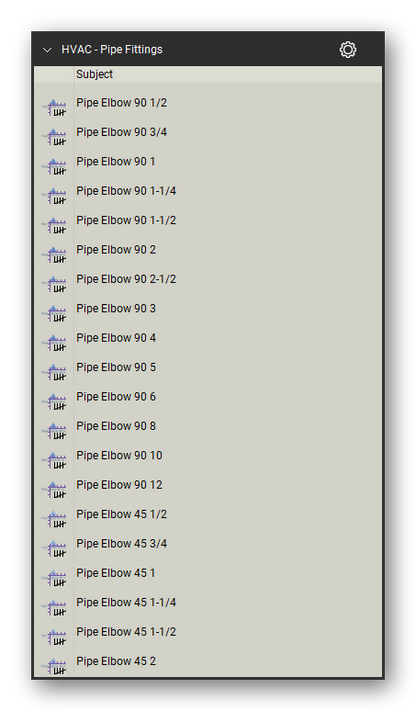

• 90 and 45 degree elbows, tees, reducer couplings, caps, crosses, wyes and flex connectors

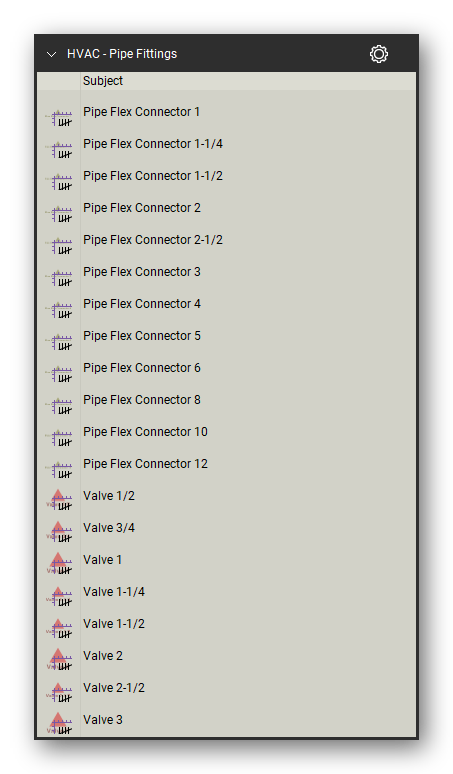

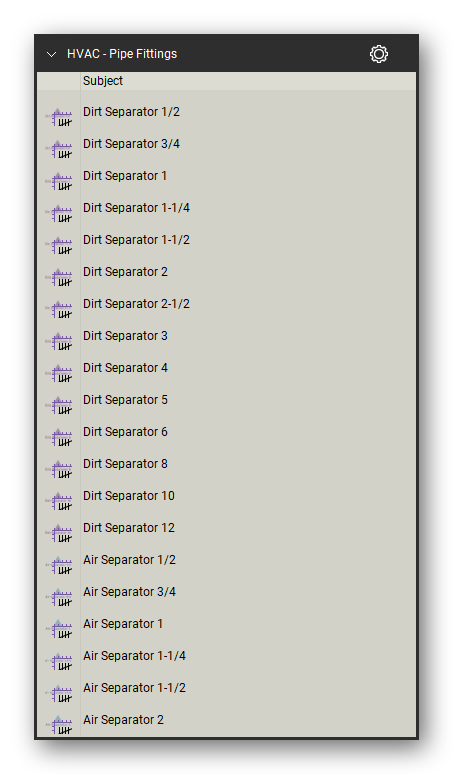

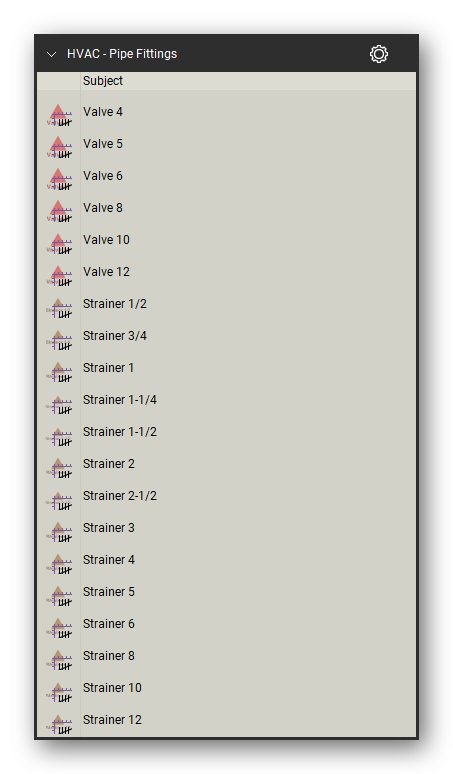

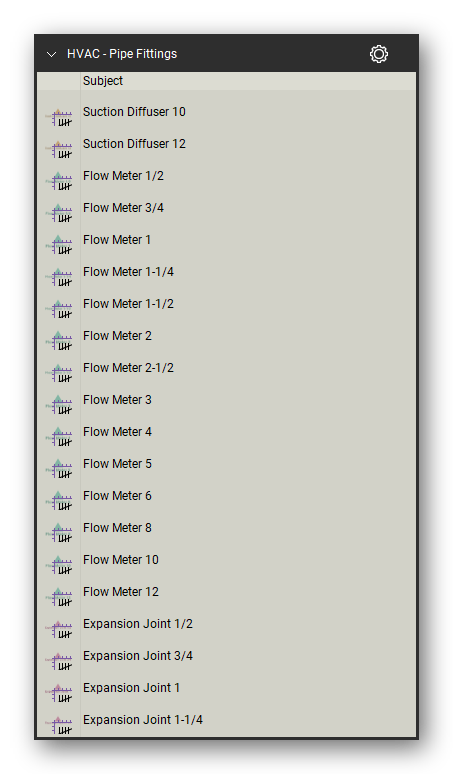

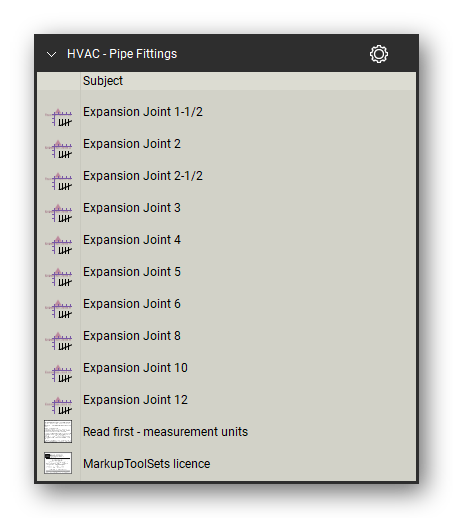

• Valves, strainers, dirt and air separators, suction diffusers, flow meters and expansion joints

Plumbing fixtures

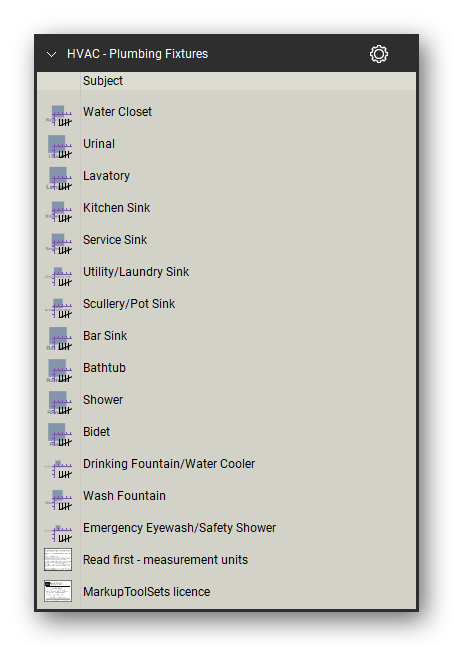

• Water closets, urinals, lavatories, kitchen, service, utility, scullery and bar sinks, bathtubs, showers, bidets, drinking fountains, wash fountains, and emergency eyewash and safety showers

Plumbing equipment

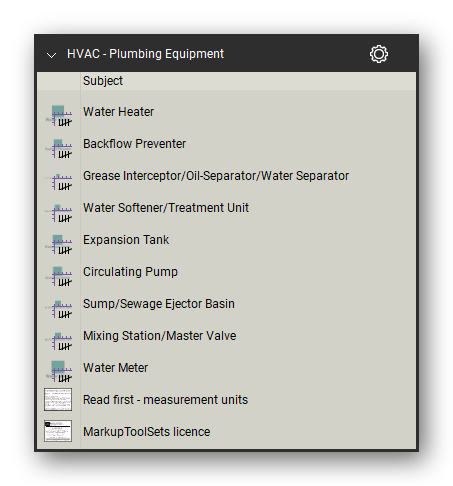

• Water heaters, backflow preventers, grease and oil interceptors, water softeners, expansion tanks, circulating pumps, sump and sewage ejector basins, mixing stations and water meters

Drainage & supply specialties

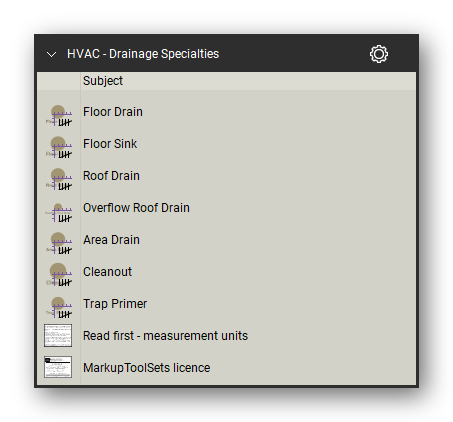

• Floor drains, floor sinks, roof and overflow roof drains, area drains, cleanouts and trap primers
• Hose bibbs, wall and yard hydrants, water hammer arrestors and thermostatic mixing valves
