Pipe Hangers and Supports Takeoff & Estimating Bluebeam Tool Set

Drawing/Takeoff & estimating tool set for the pipe hanger and support products in
the Cooper B-Line (Eaton) catalog, built for mechanical, plumbing, and fire
protection estimators, designers, and engineers. This tool set covers 13

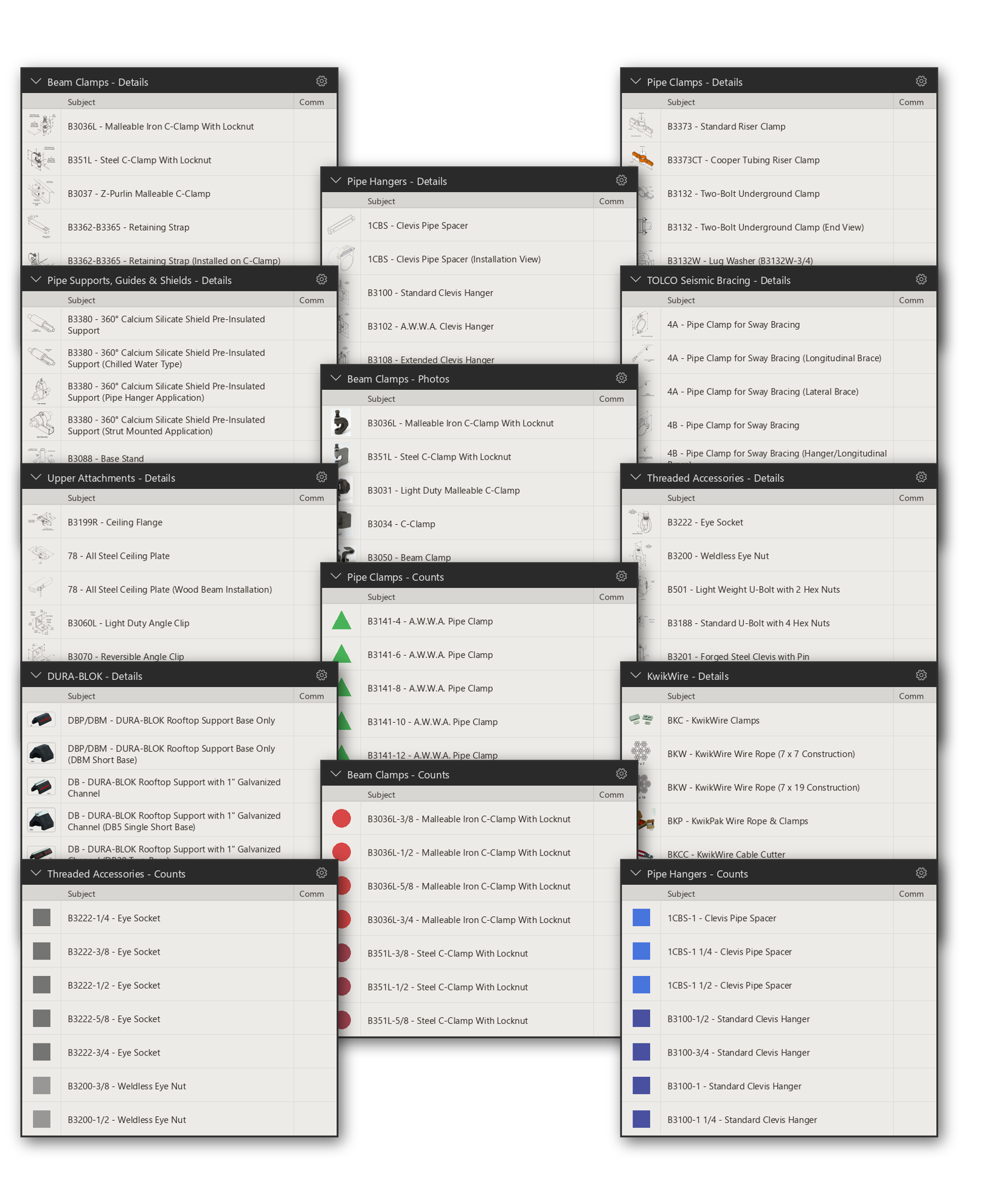

categories and 285 product types in three matched tool chests:

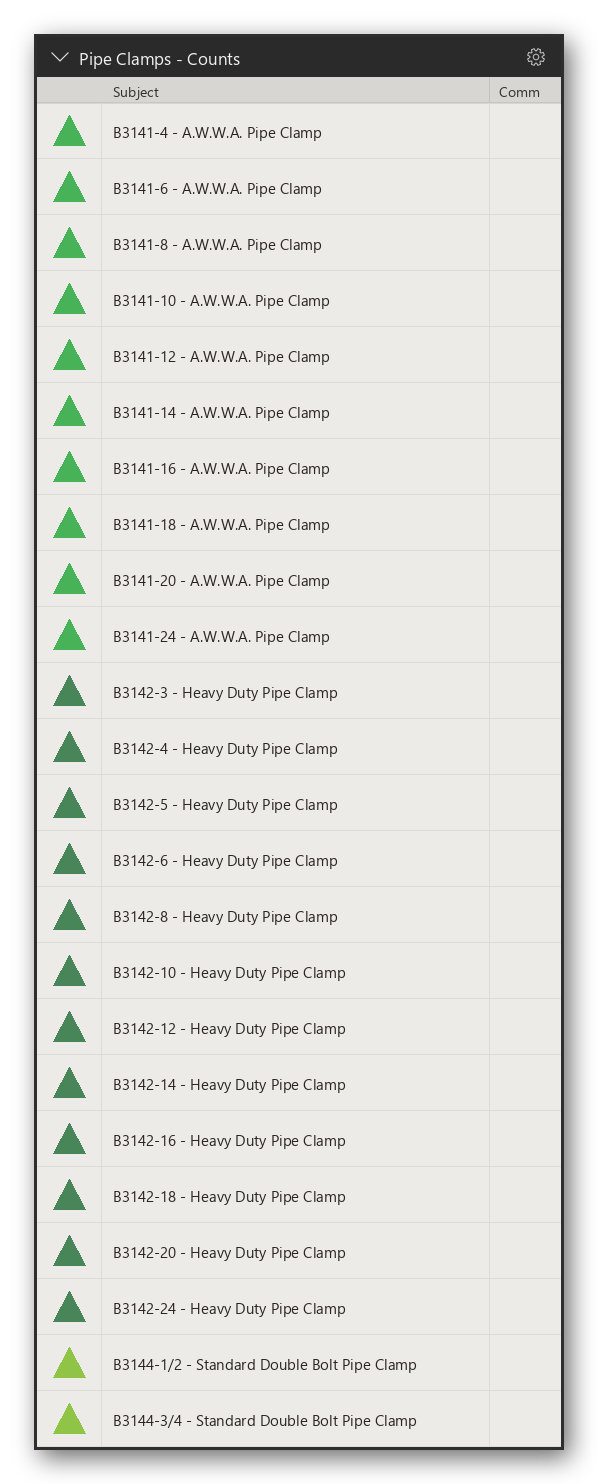

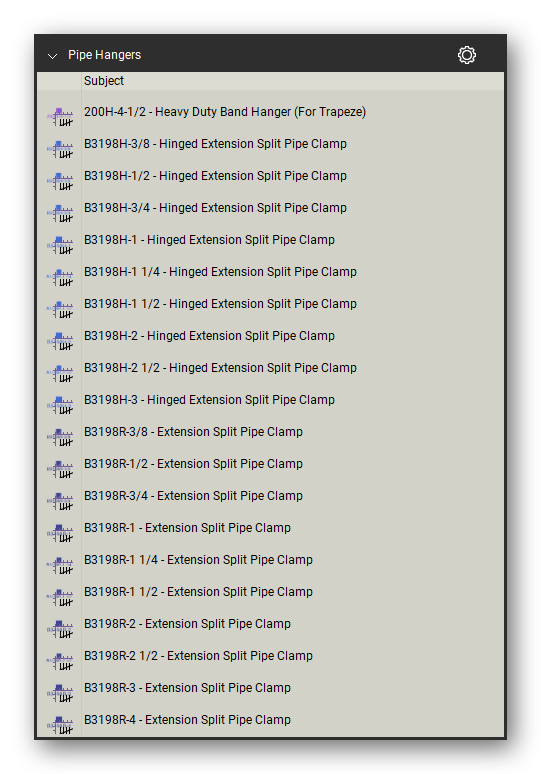

Count tools for takeoffs — 2,430 native Bluebeam count measurements,
  one for every part number in the catalog's tables, each labelled and
  named by its real Cooper B-Line or TOLCO part number so counts land in
  the Markups List and legends ready to total. One symbol shape per
  category and one colour per product family make takeoffs readable at a
  glance.

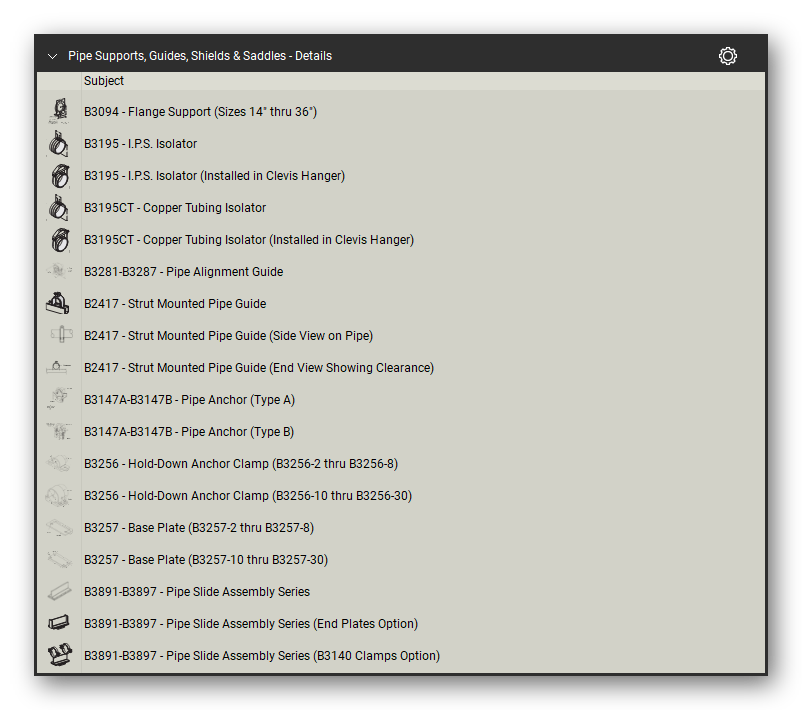

Product details — 490 dimensioned catalog drawings with transparent
  backgrounds and live, editable dimension callouts, one natively grouped
  markup per view, for hanger schedules, support details, and shop-drawing
  markups.

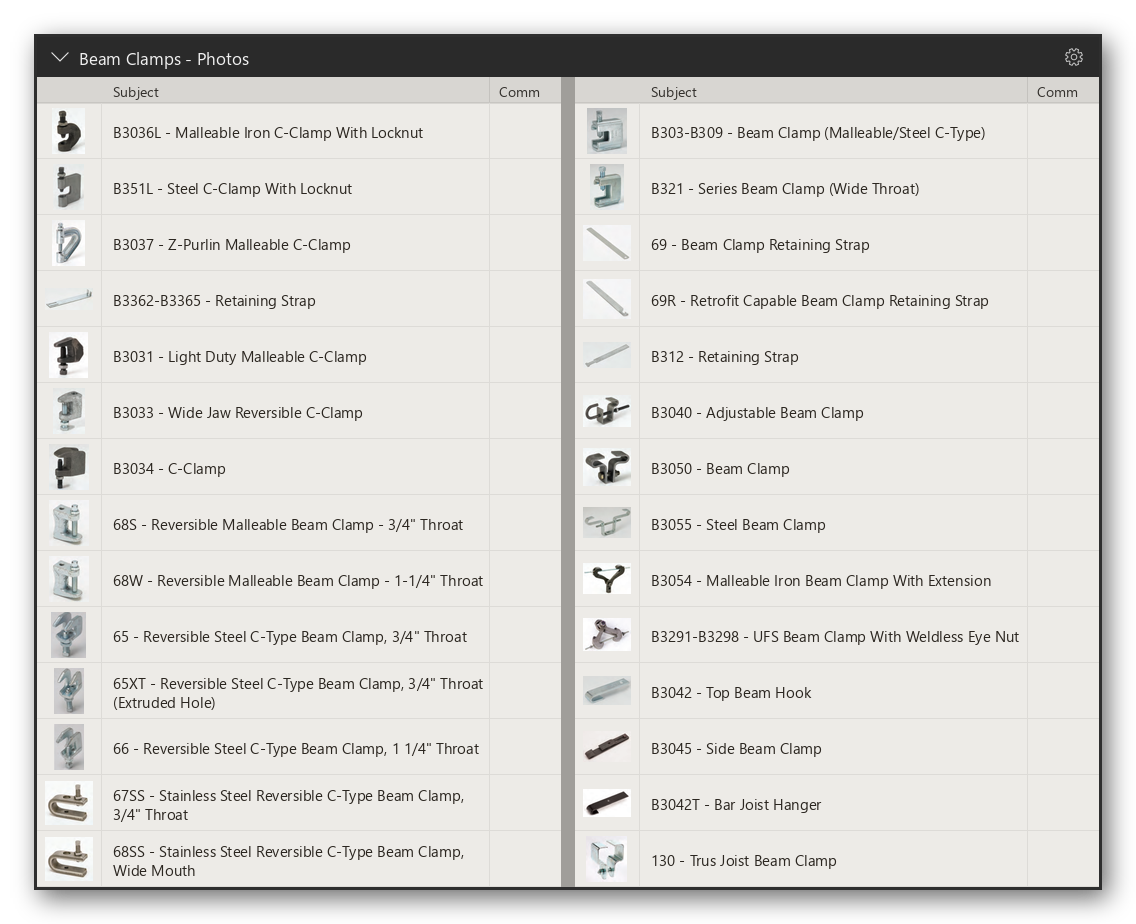

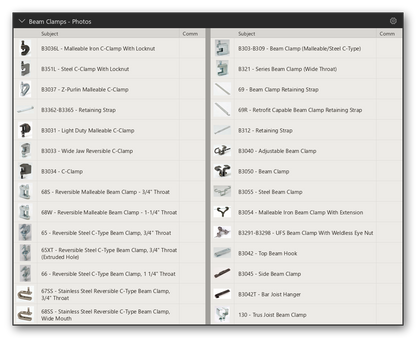

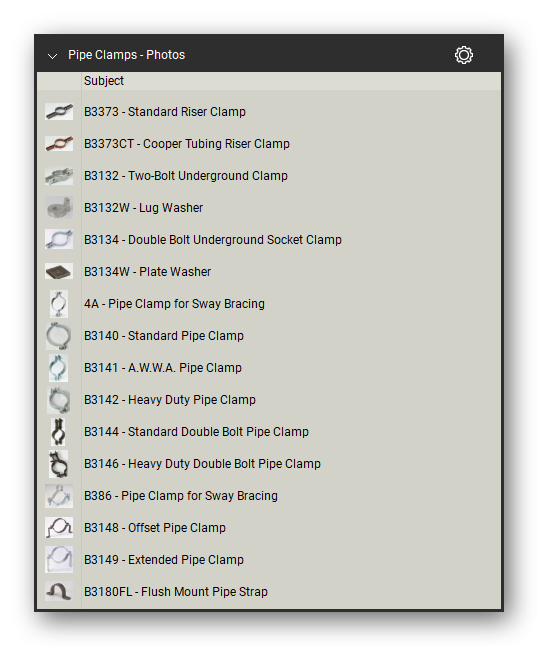

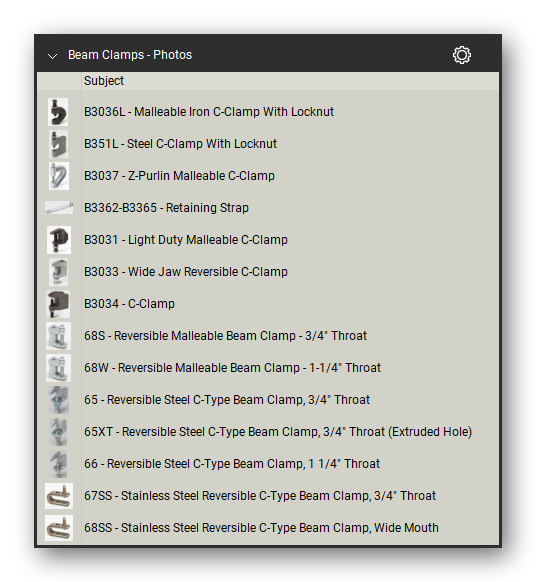

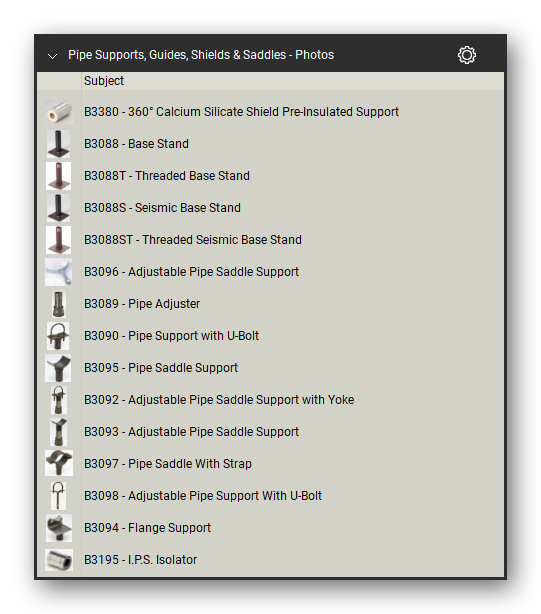

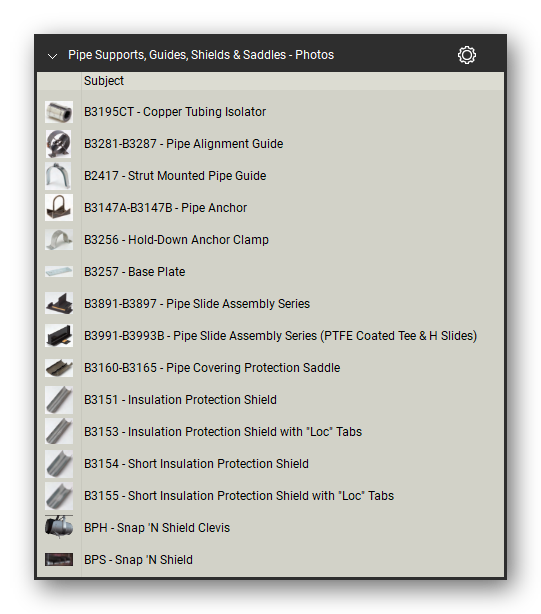

Product pictorials — 278 catalog photographs, one per product type,
  for keying real-world hardware on drawings, submittals, and field
  reports.

Every tool carries its material, finish, size range, and UL/FM/MSS
approvals on its source page, with the catalog page referenced.

Examples of tools included:

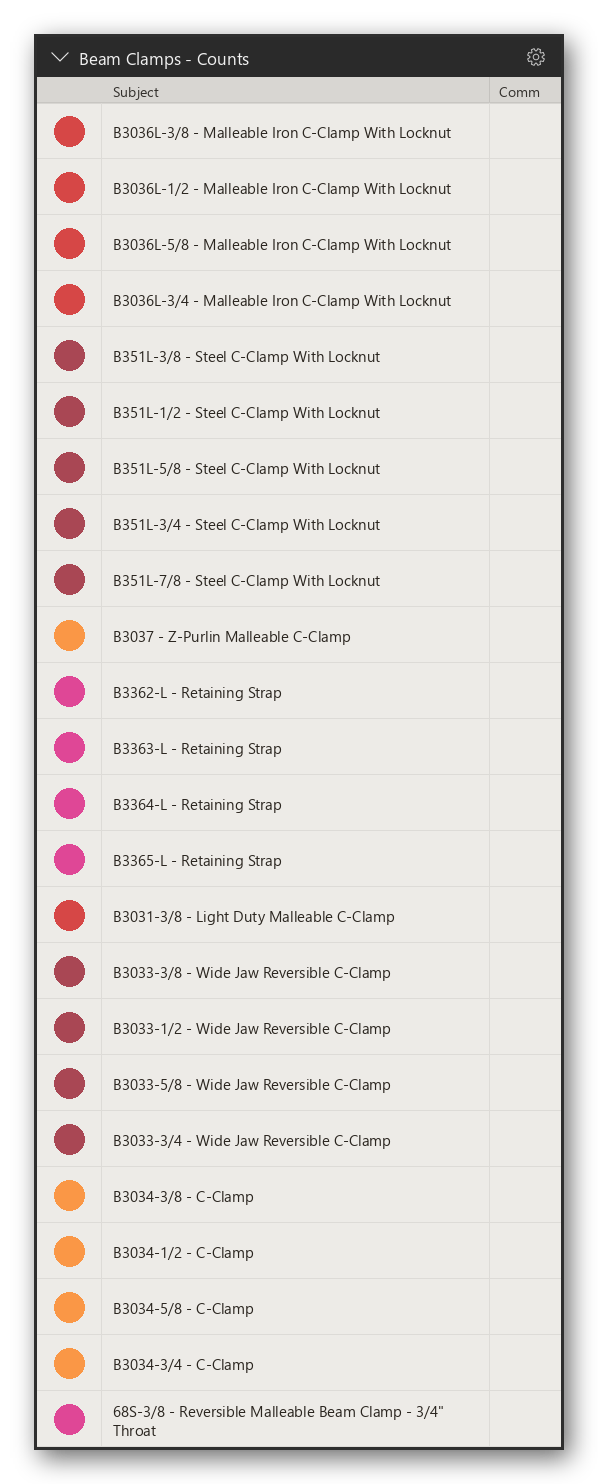

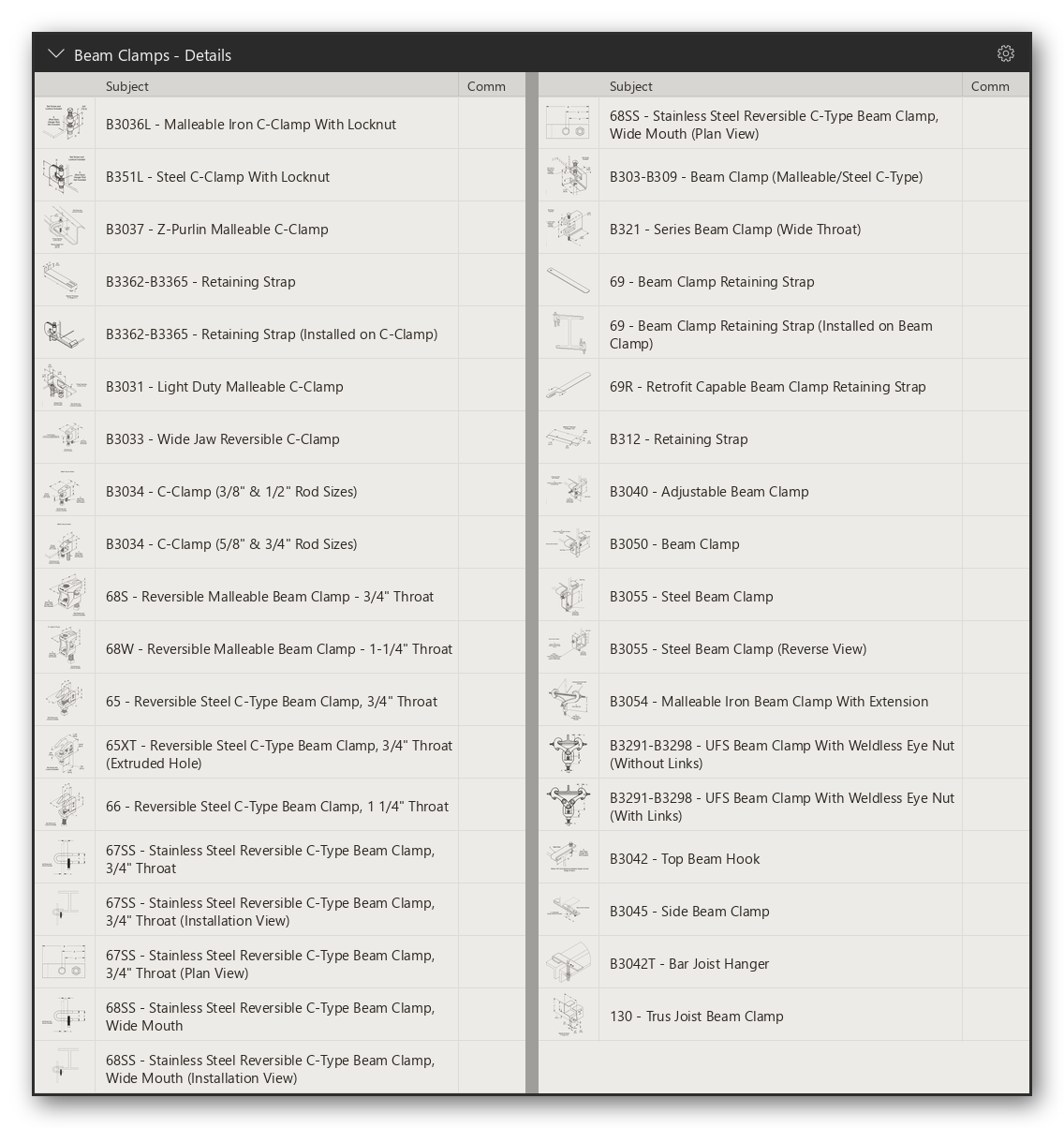

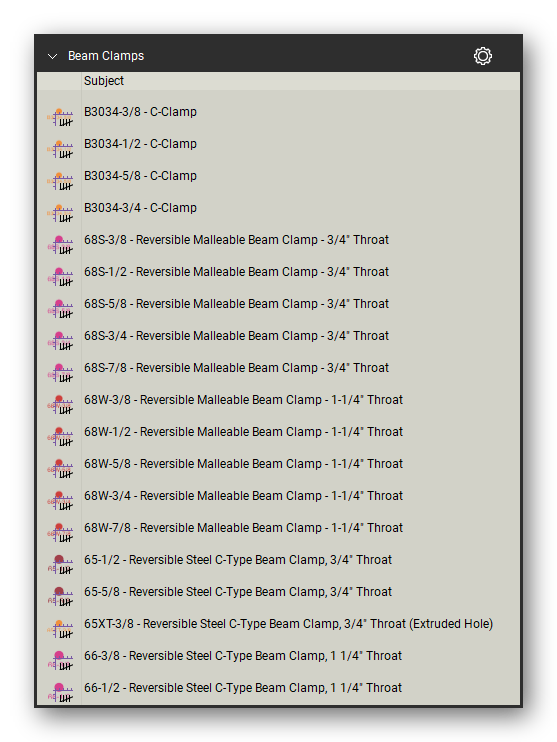

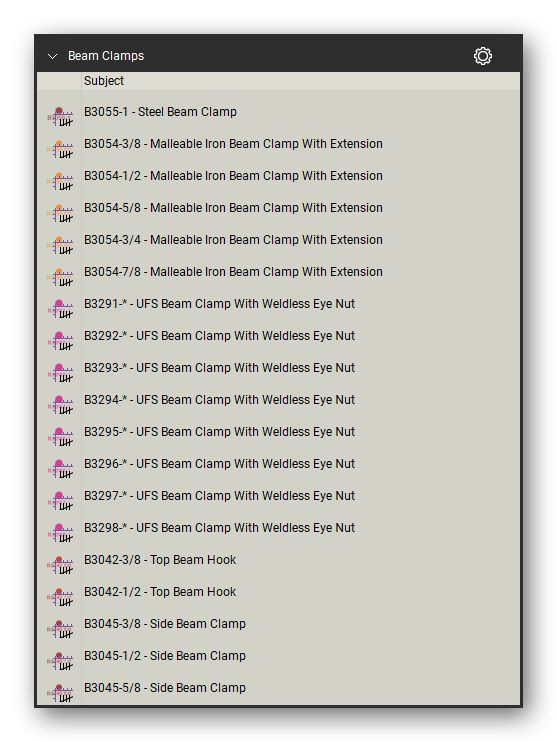

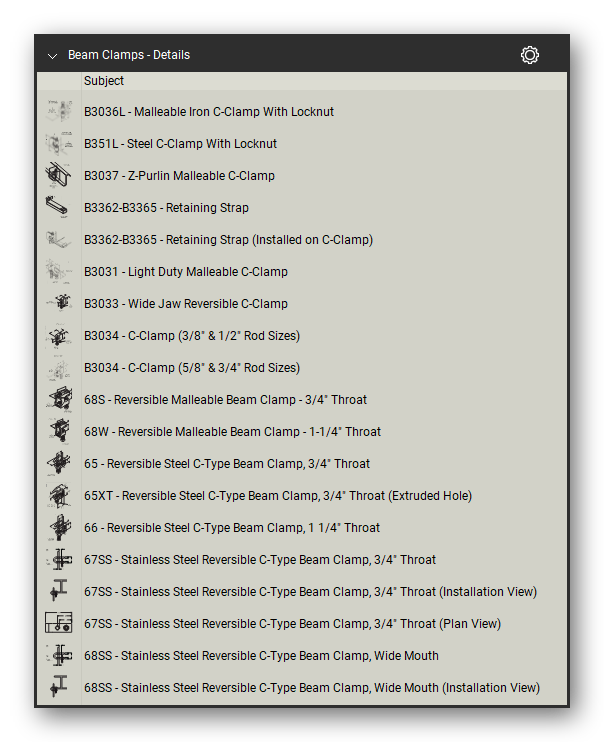

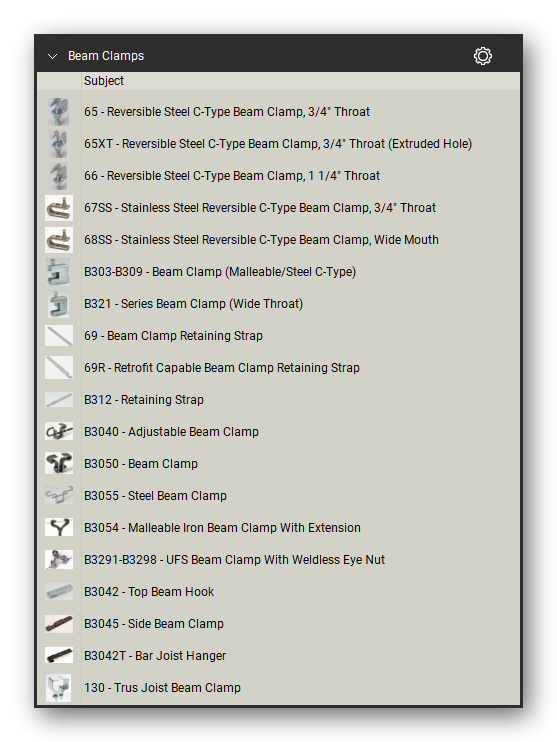

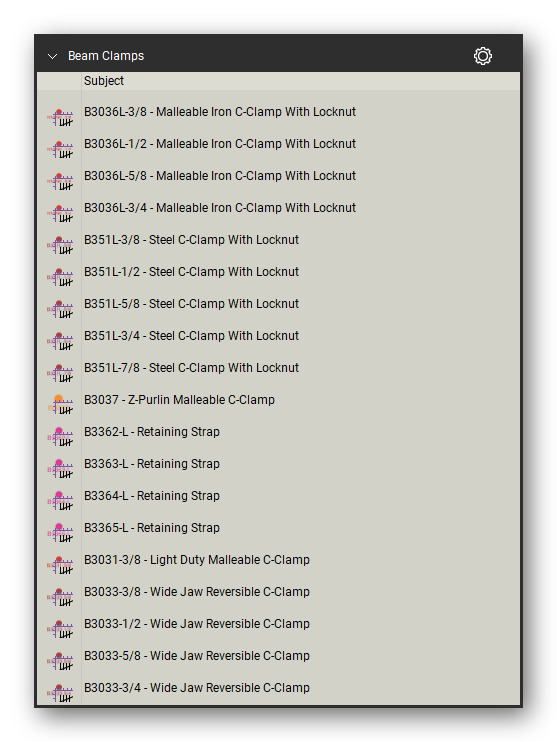

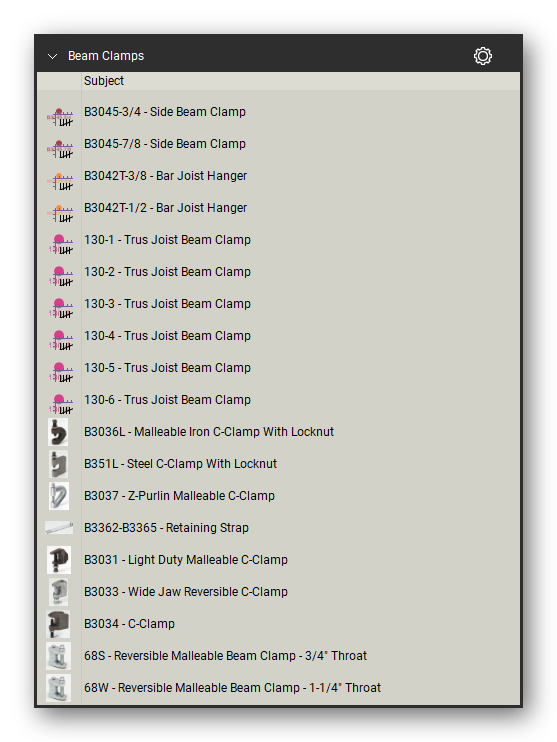

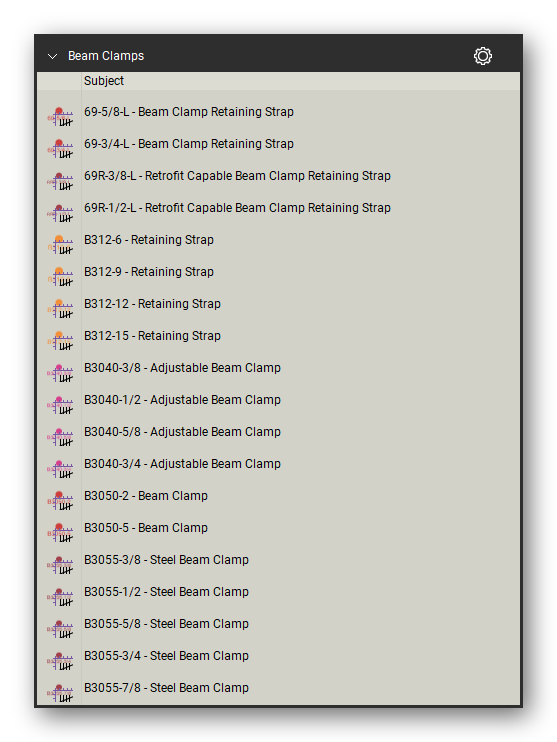

Beam clamps
- C-clamps, bottom, top, and reversible beam clamps with retaining straps
- Trus joist, bar joist, and Z-purlin clamps

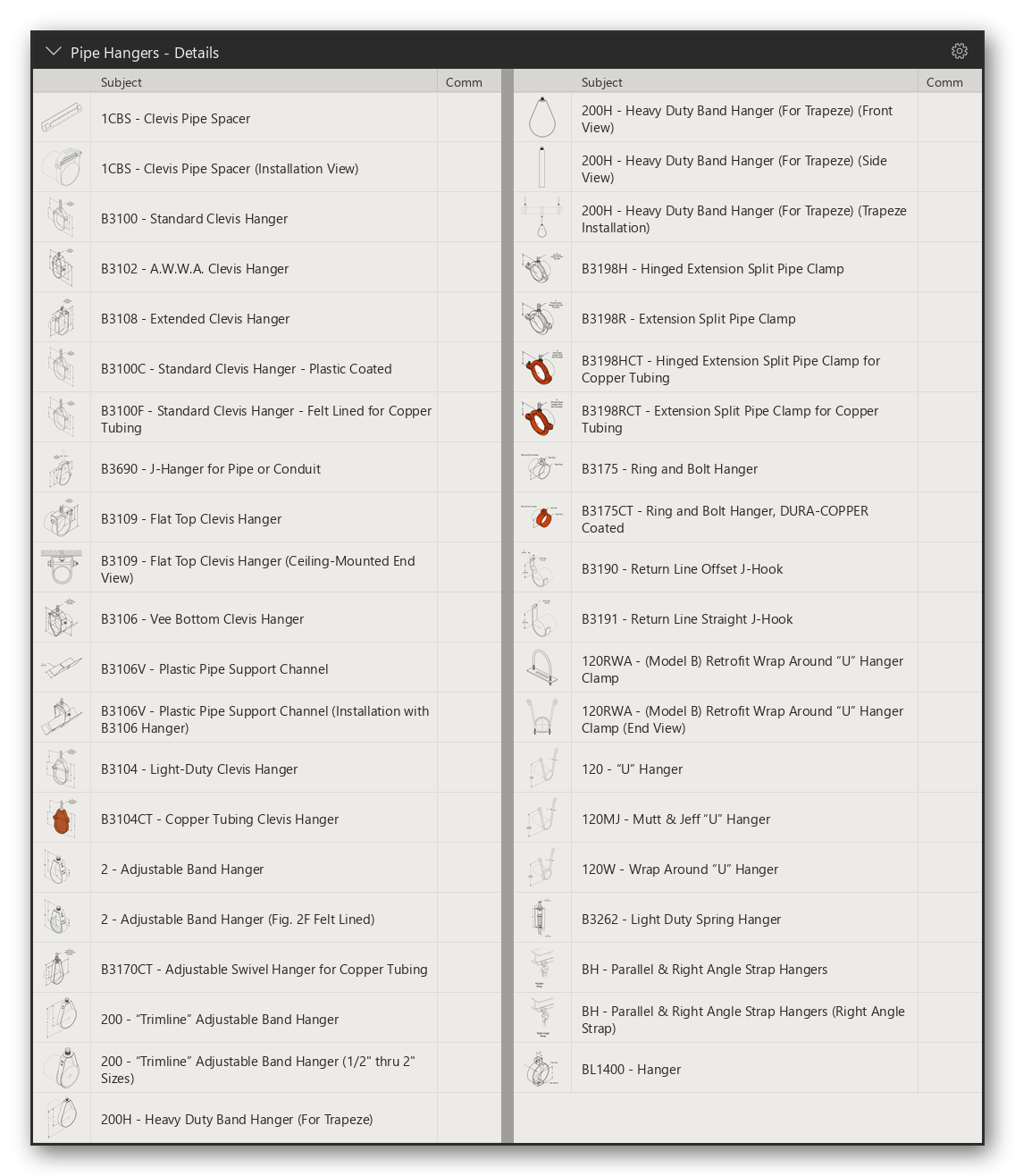

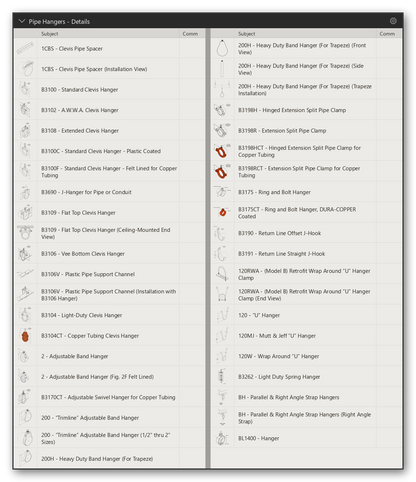

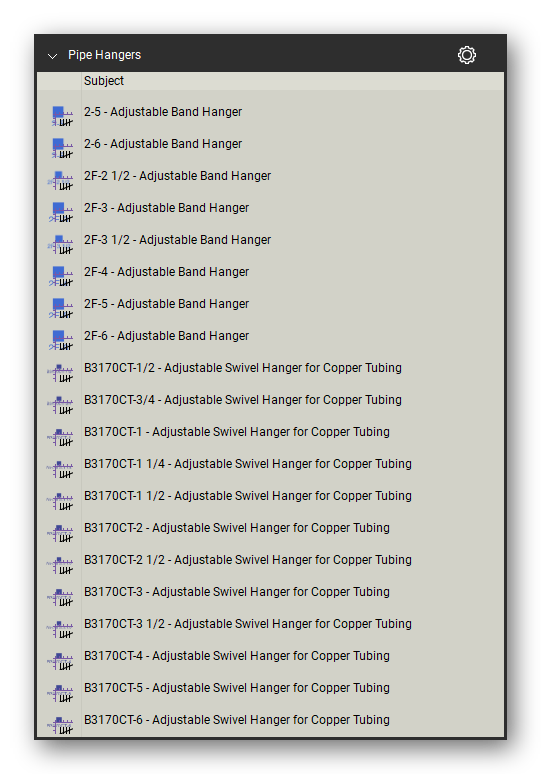

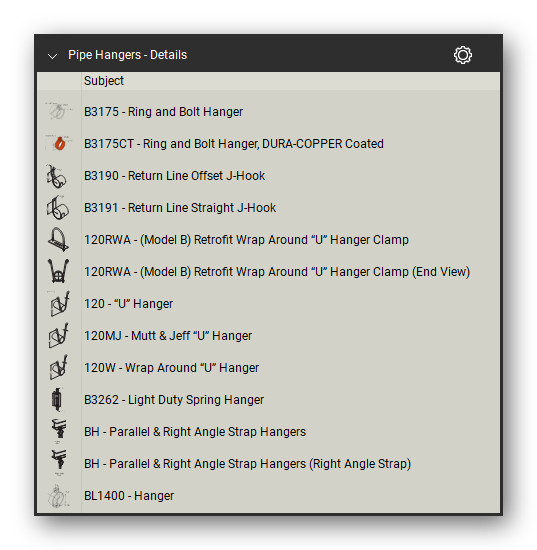

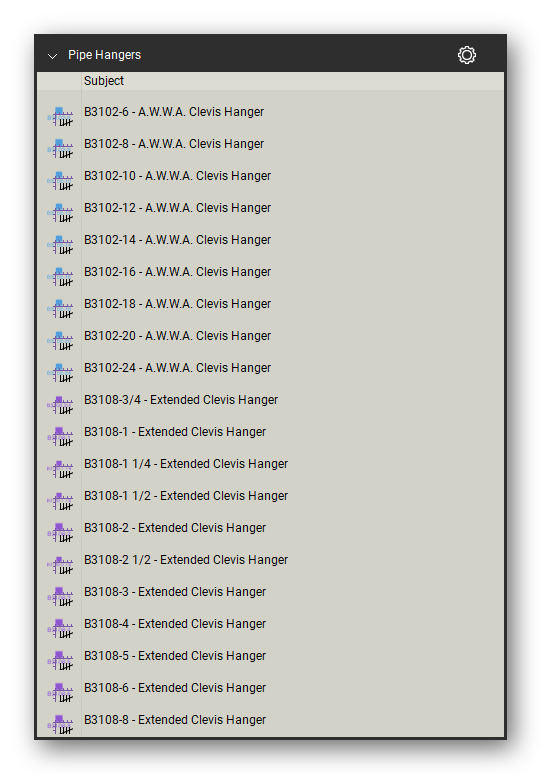

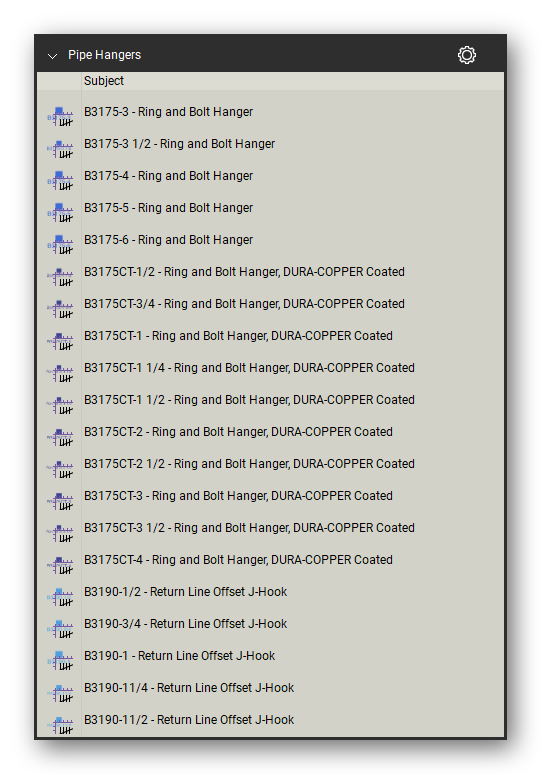

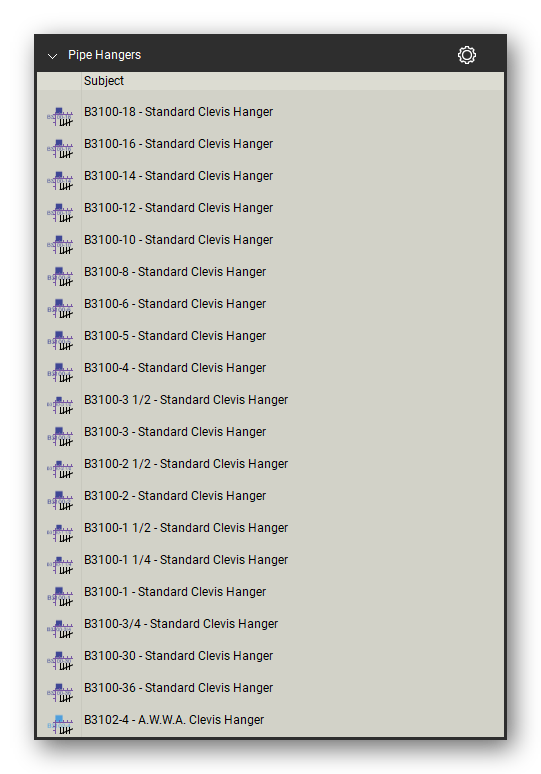

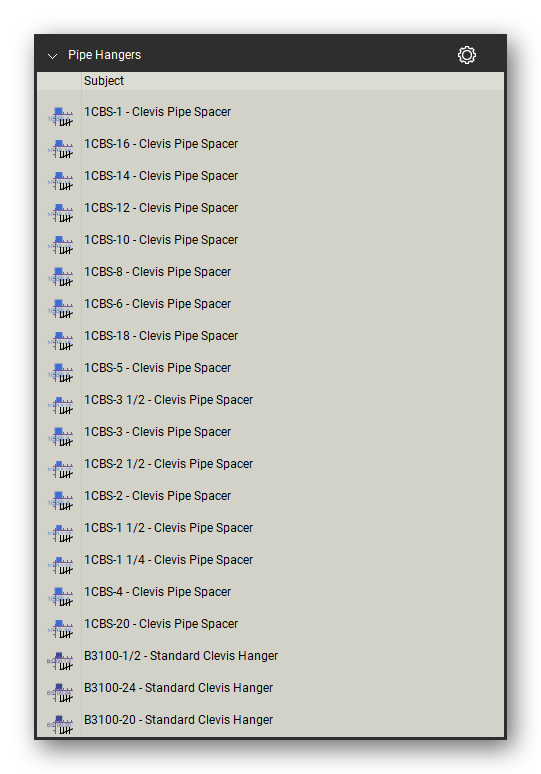

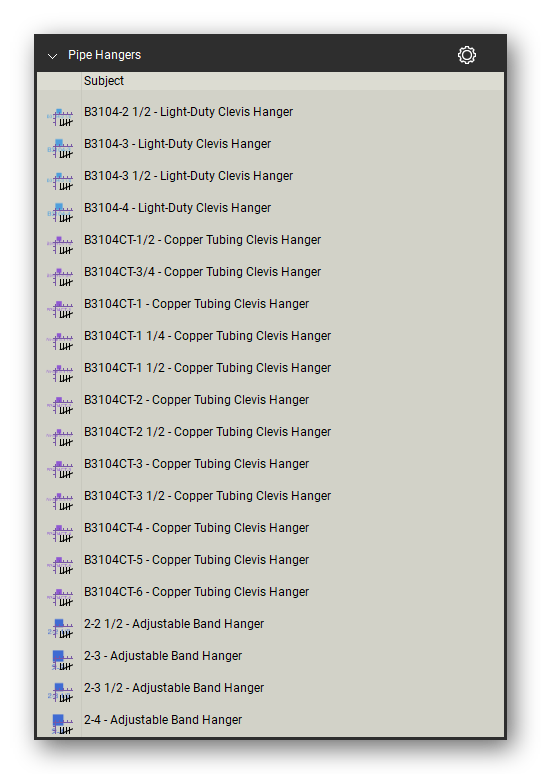

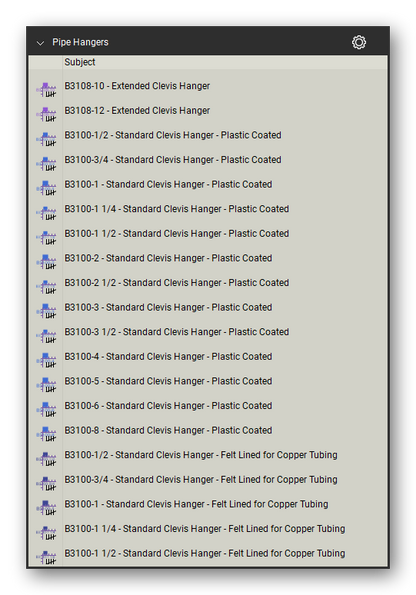

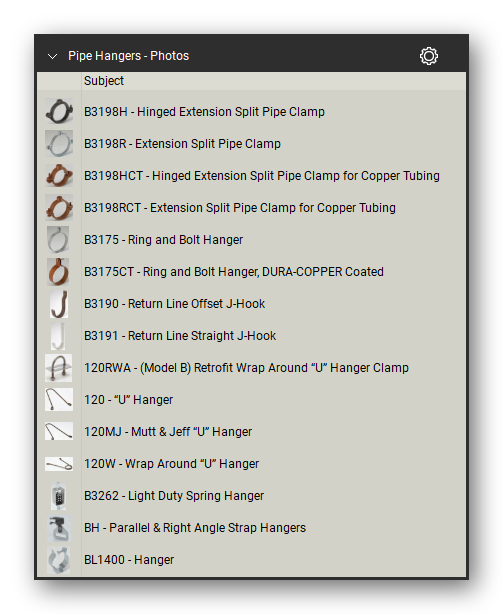

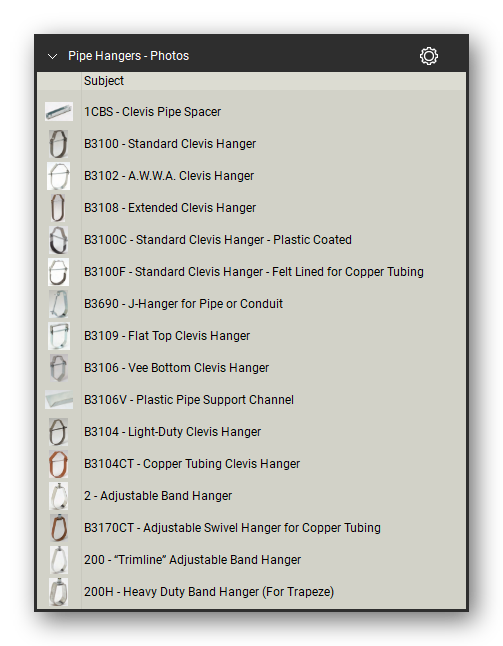

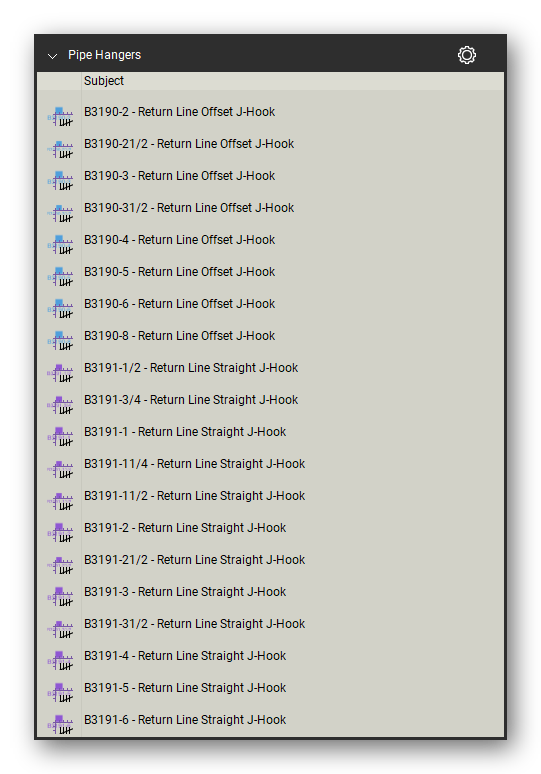

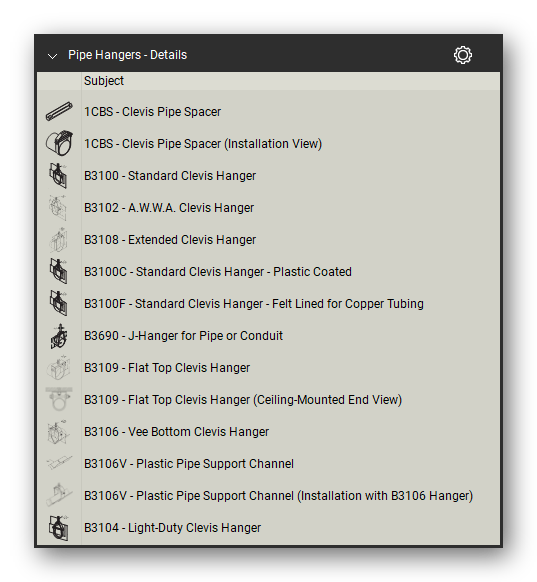

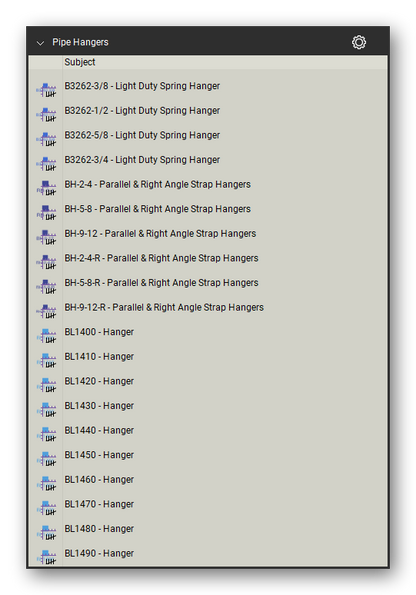

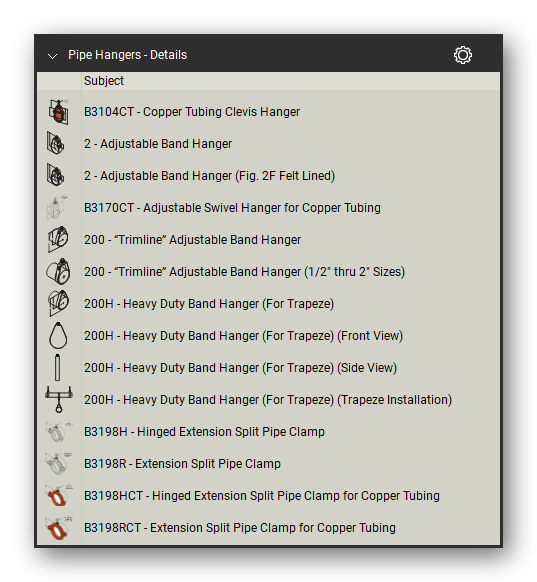

Pipe hangers

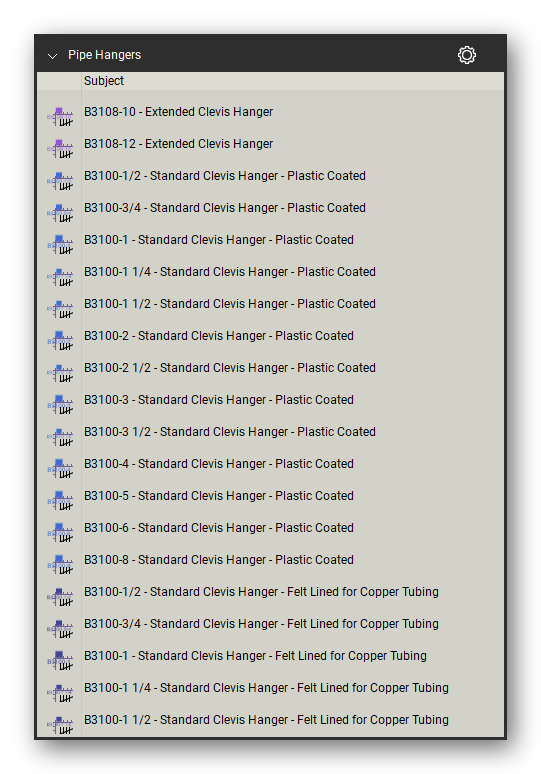

- Standard, felt-lined, and plastic-coated clevis hangers in every size
- Band hangers, split clamps, rings, J-hooks, wire and spring hangers

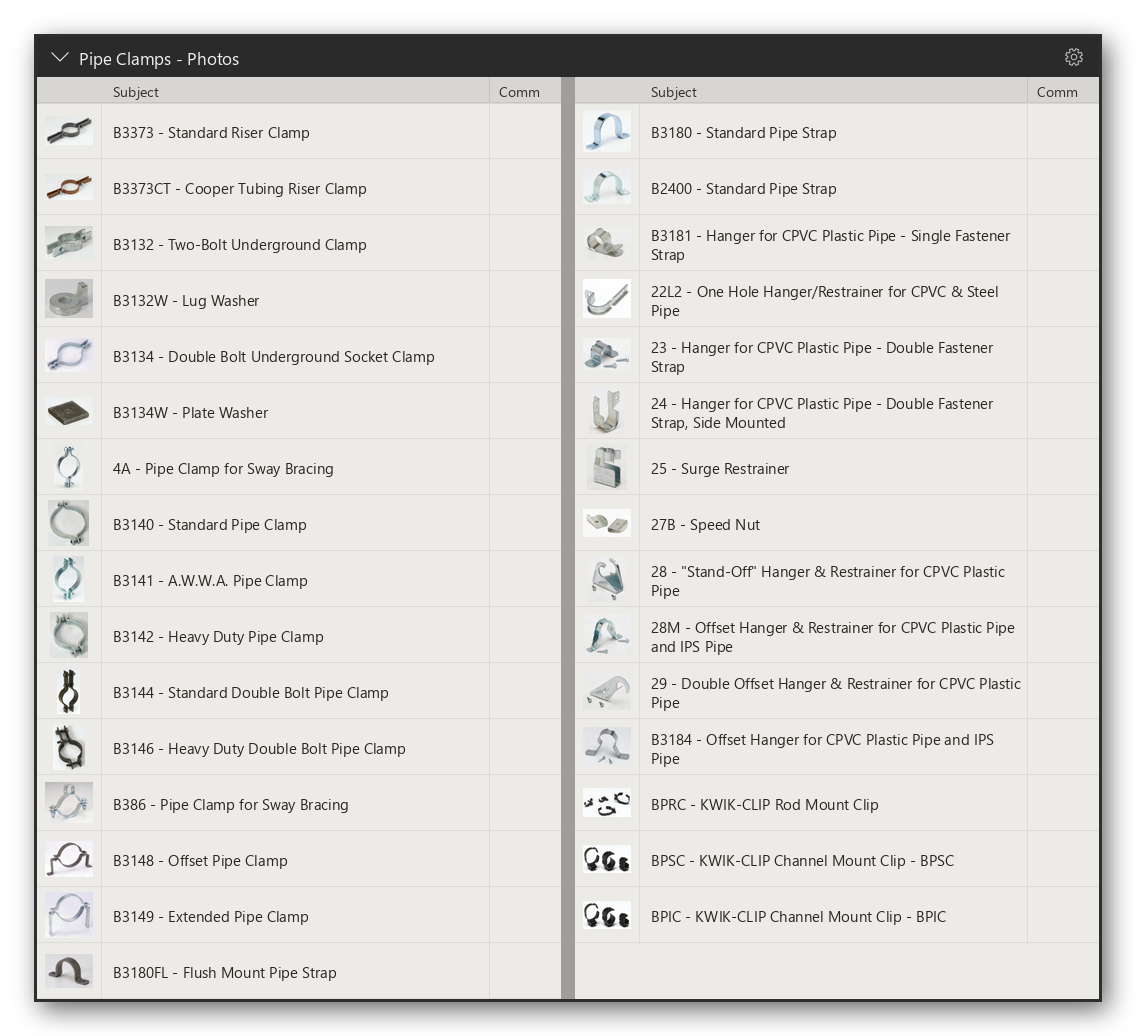

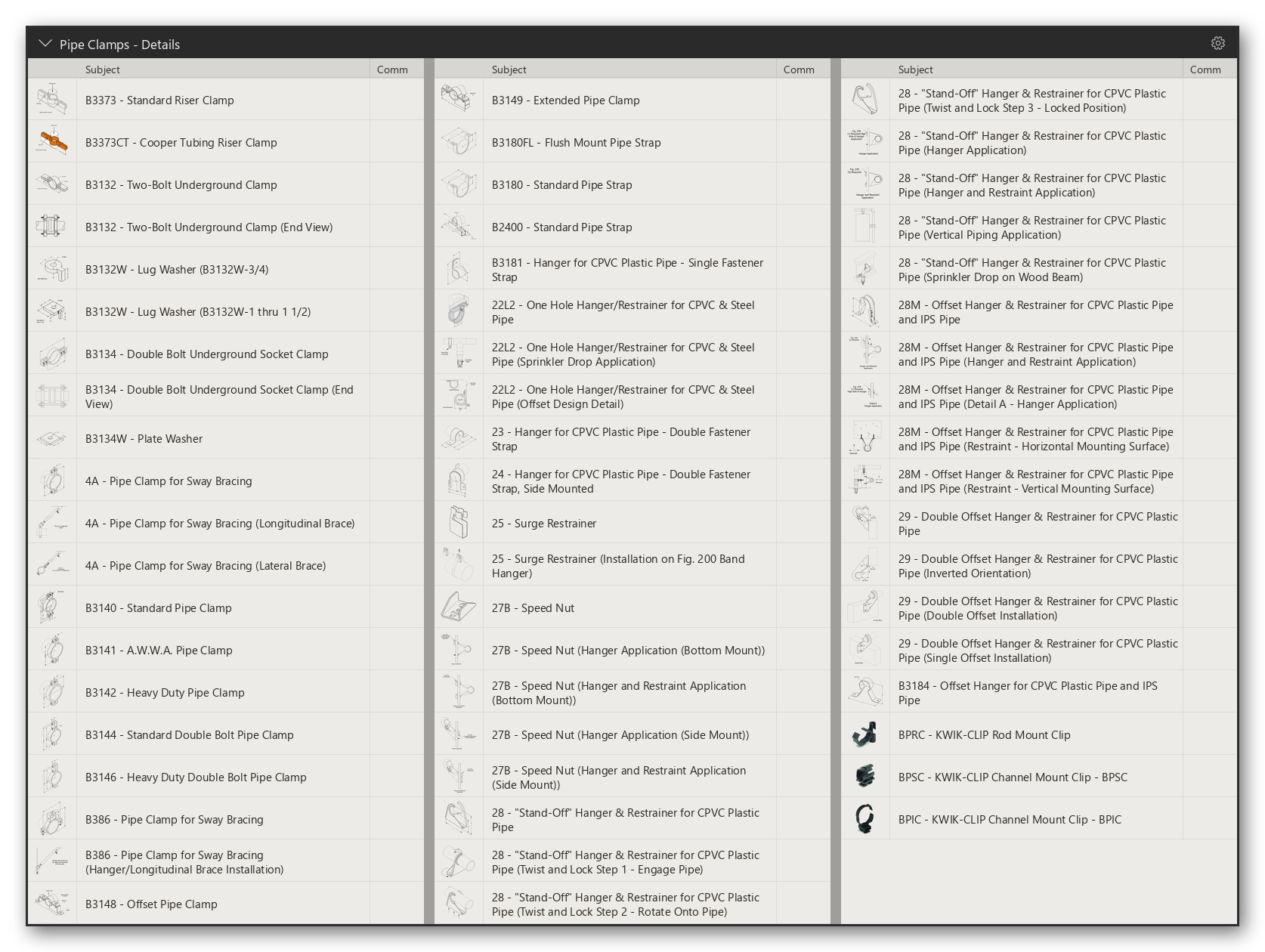

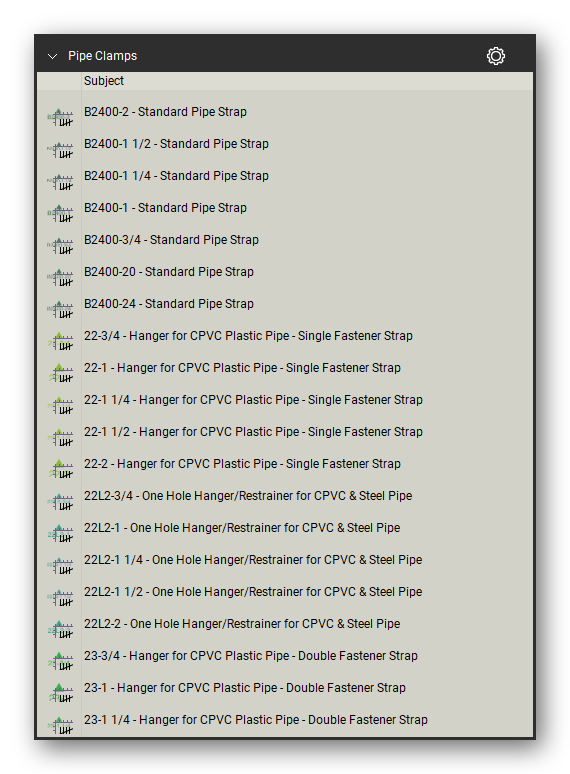

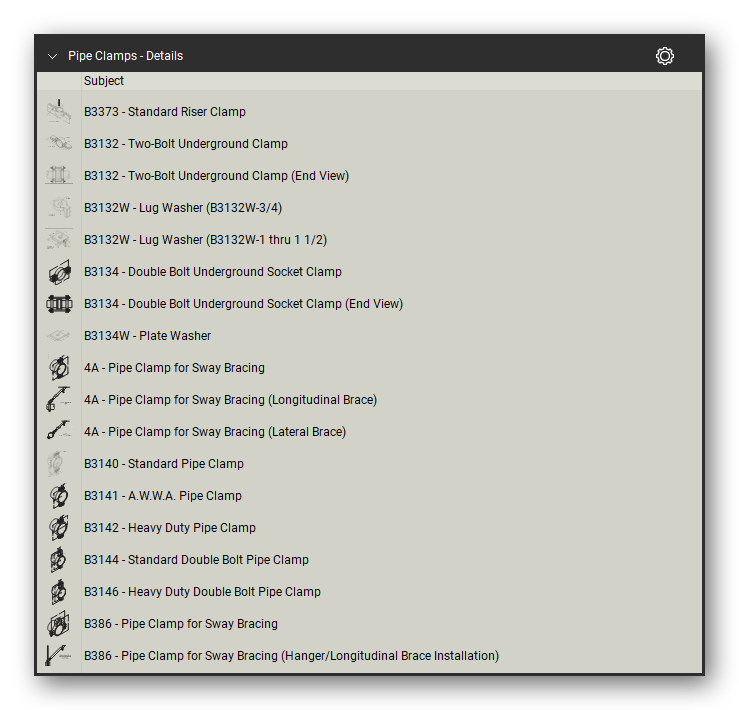

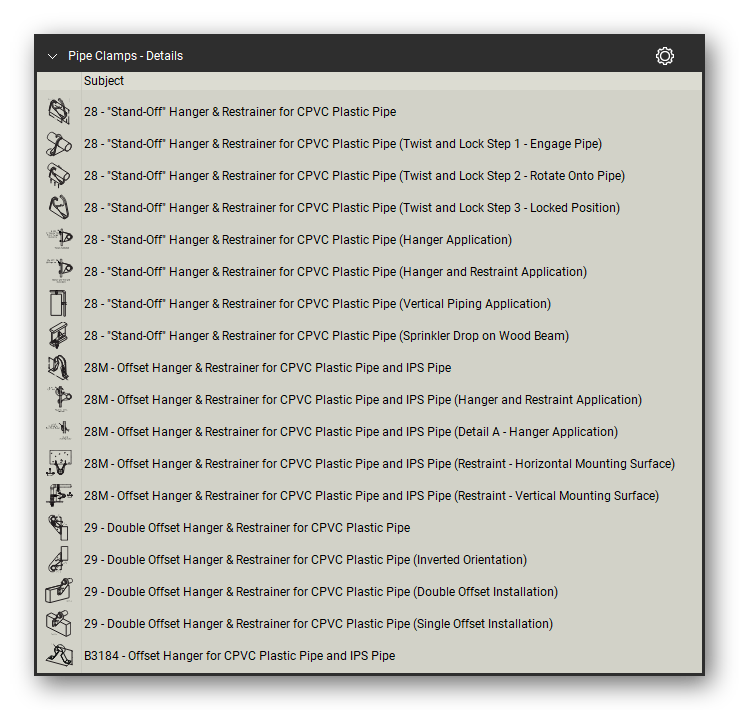

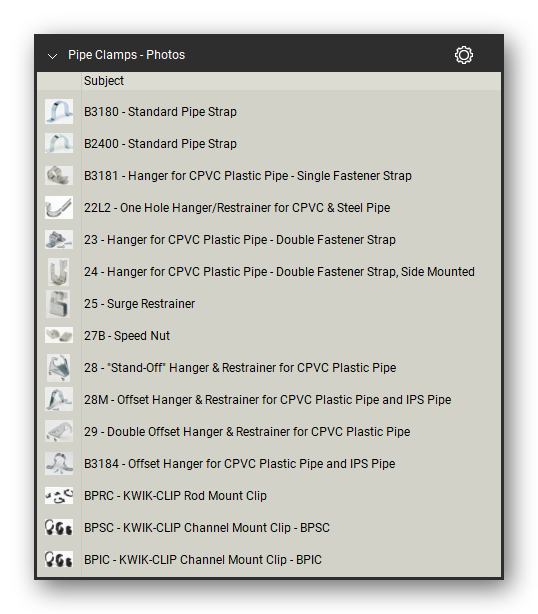

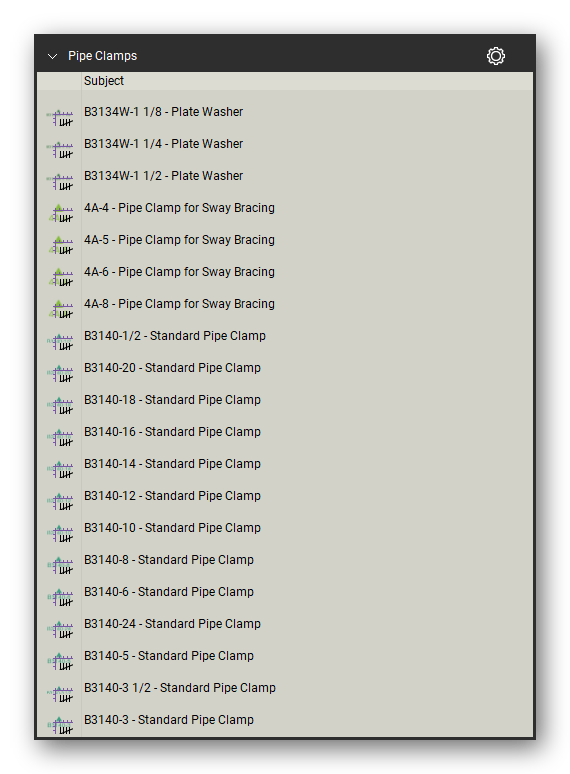

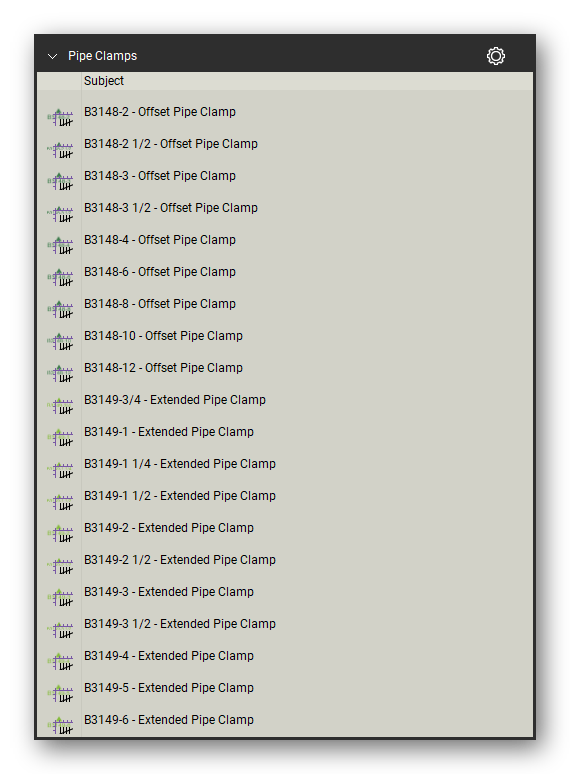

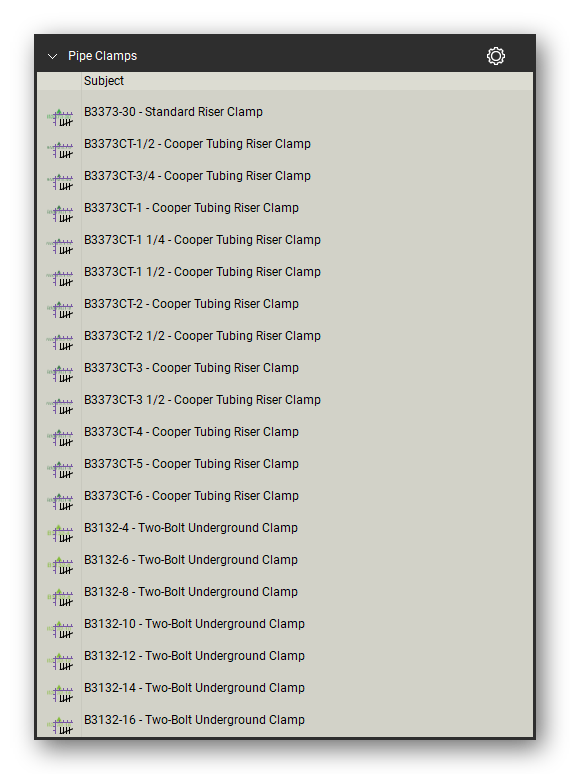

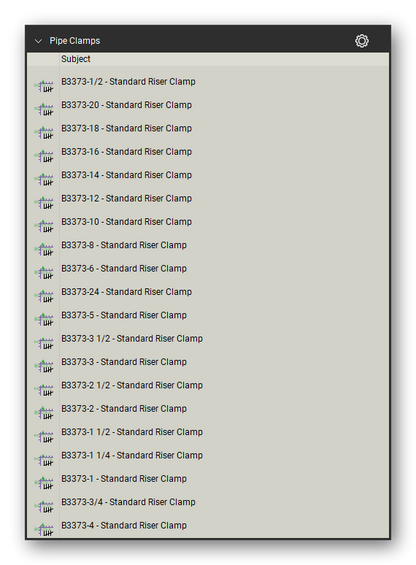

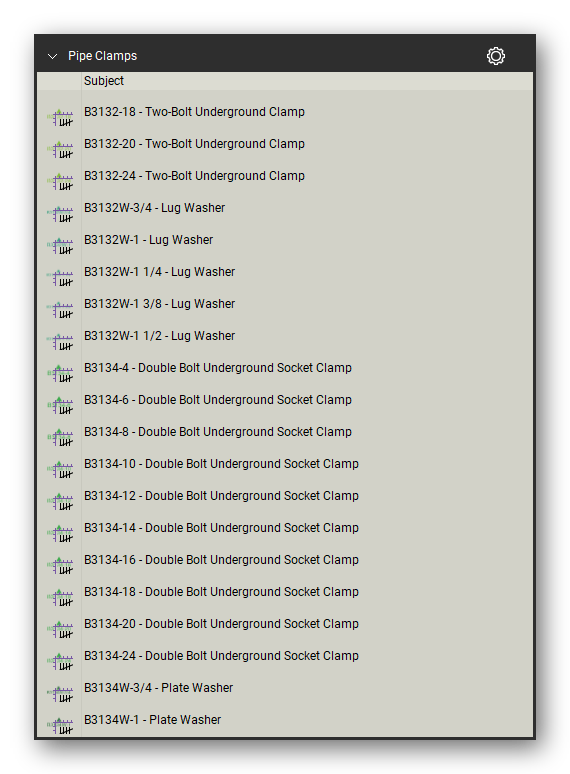

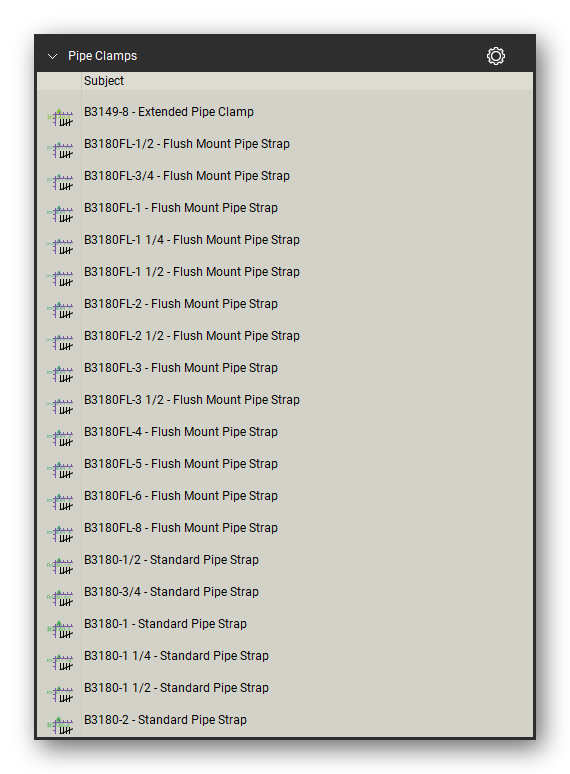

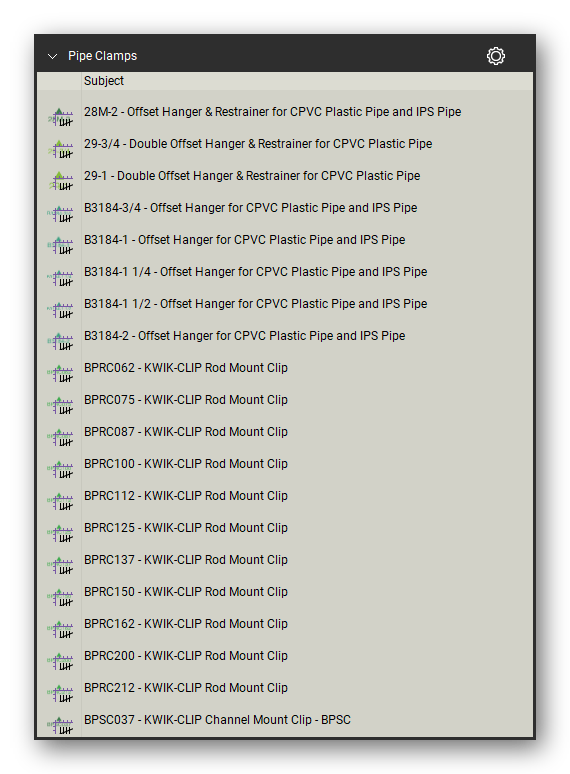

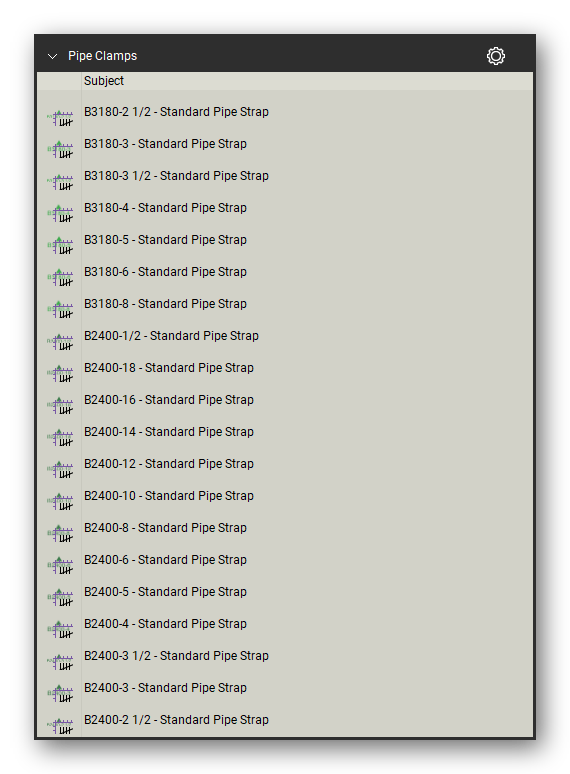

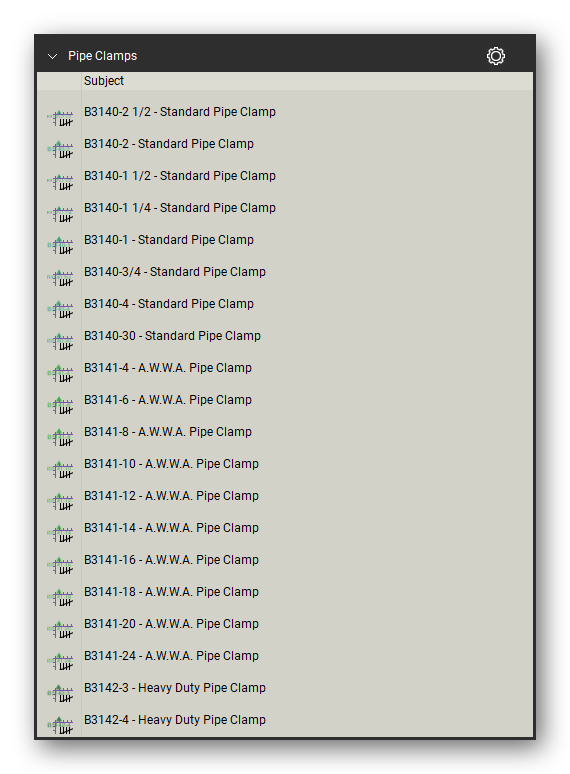

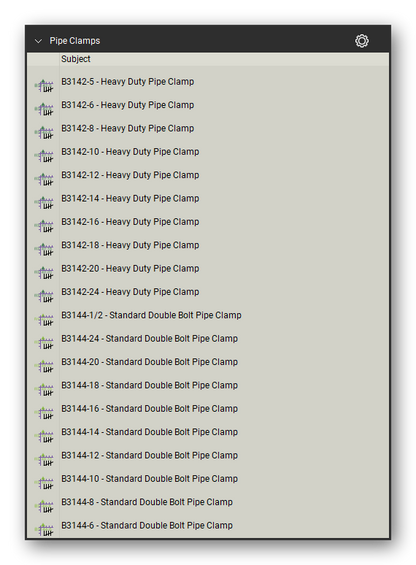

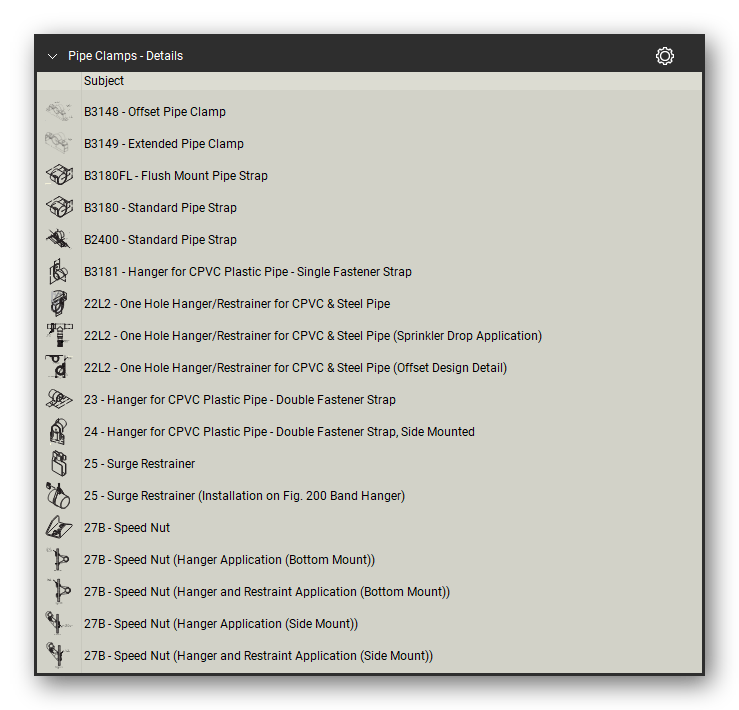

Pipe clamps
- Riser clamps, underground clamps, standard and double-bolt pipe clamps
- Pipe straps, CPVC hangers, and plastic KWIK-CLIP clips

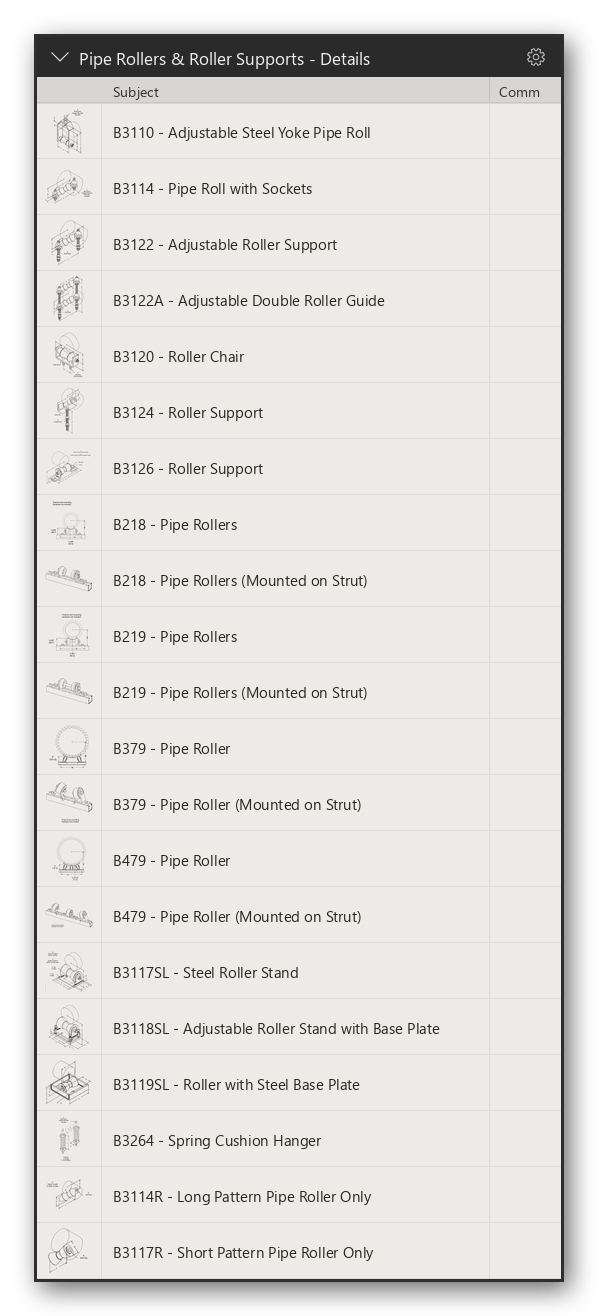

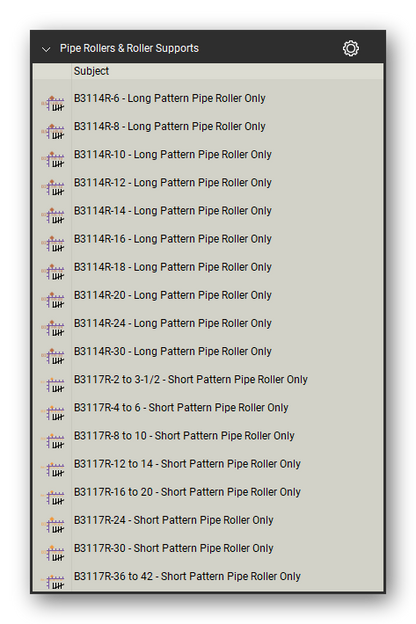

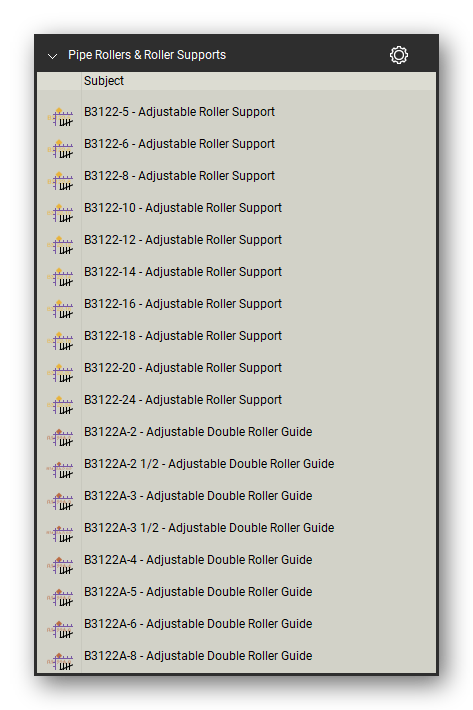

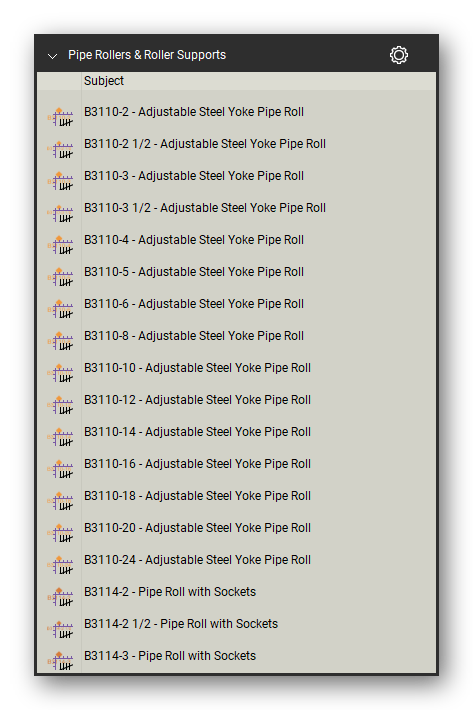

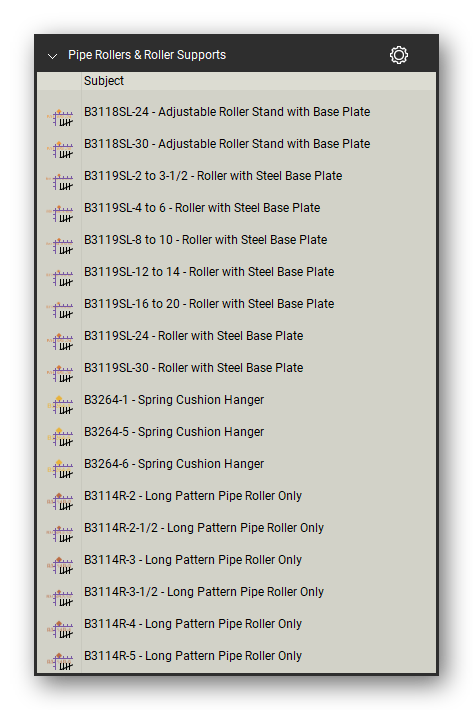

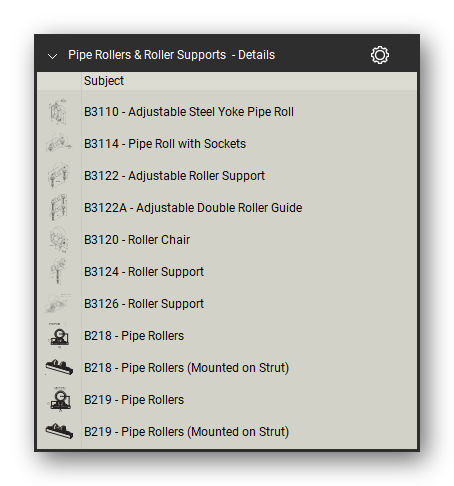

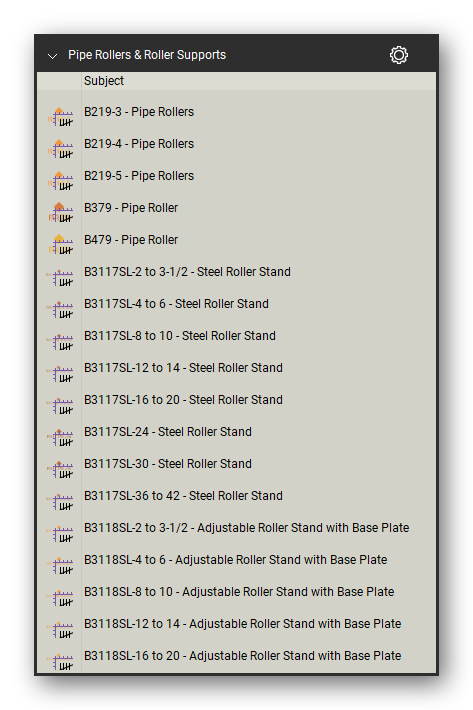

Pipe rollers & roller supports
- Roller hangers, adjustable roller supports, chairs, and stands

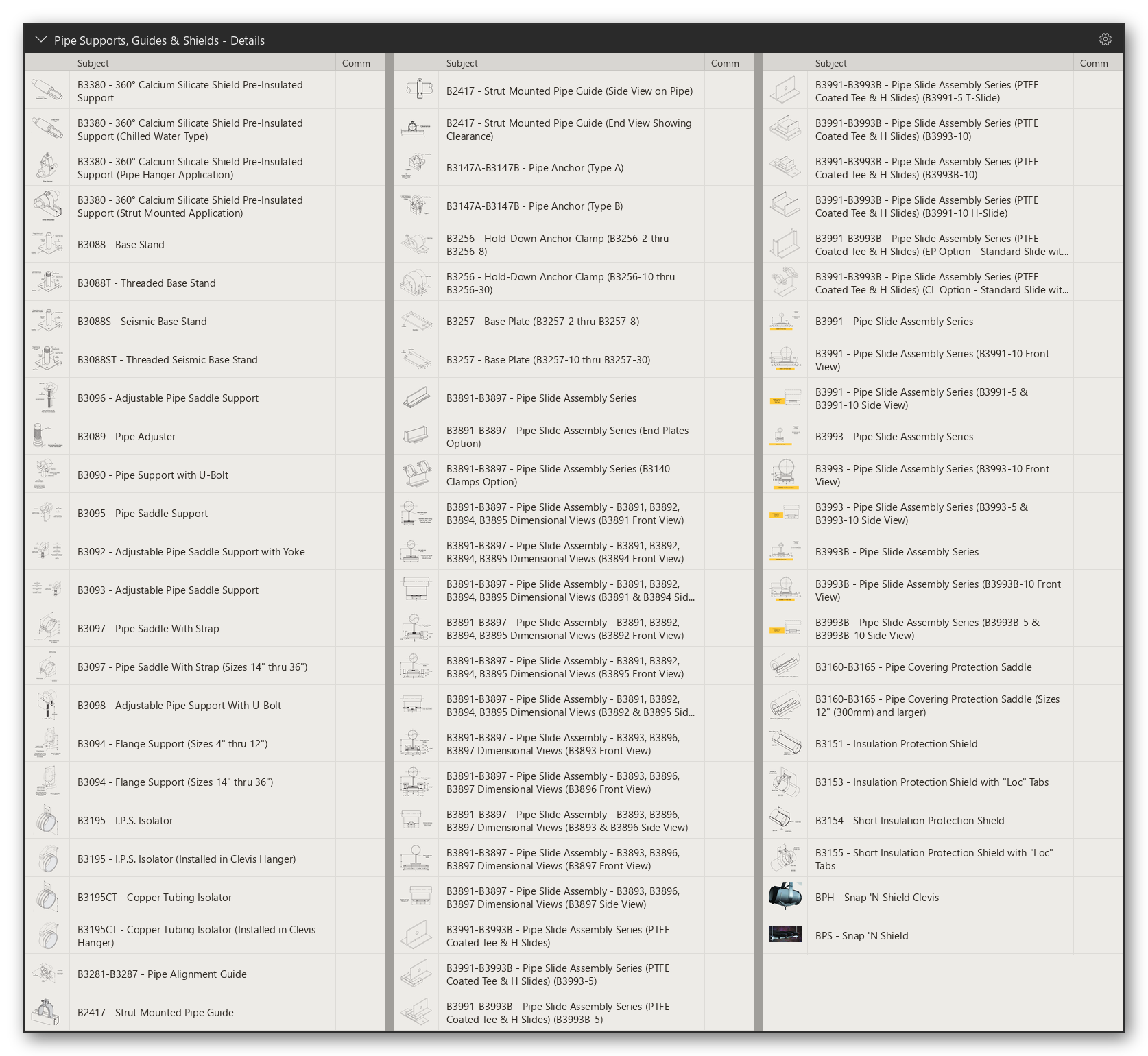

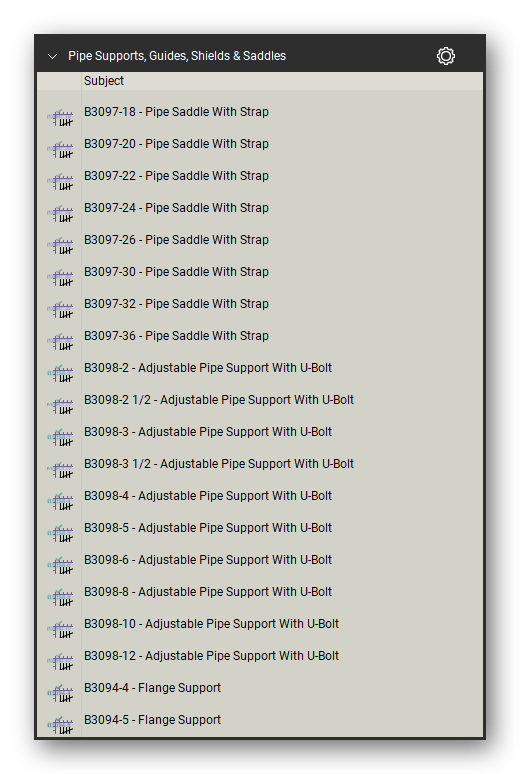

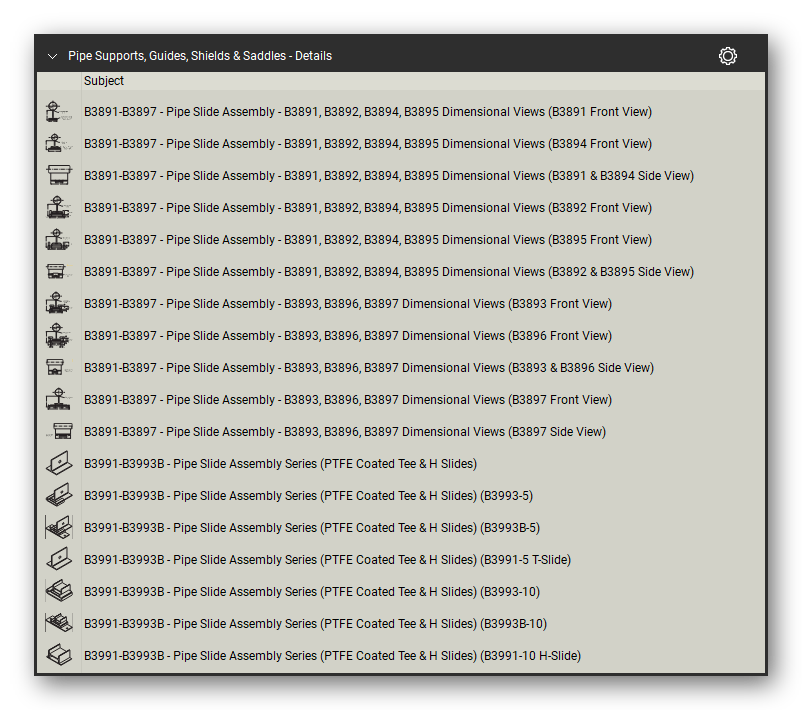

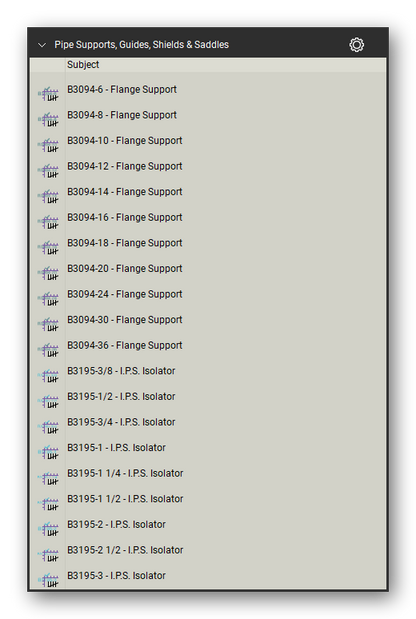

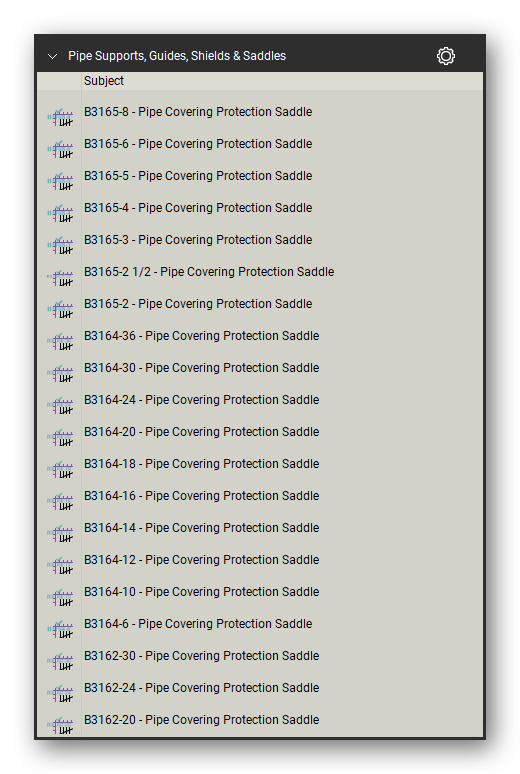

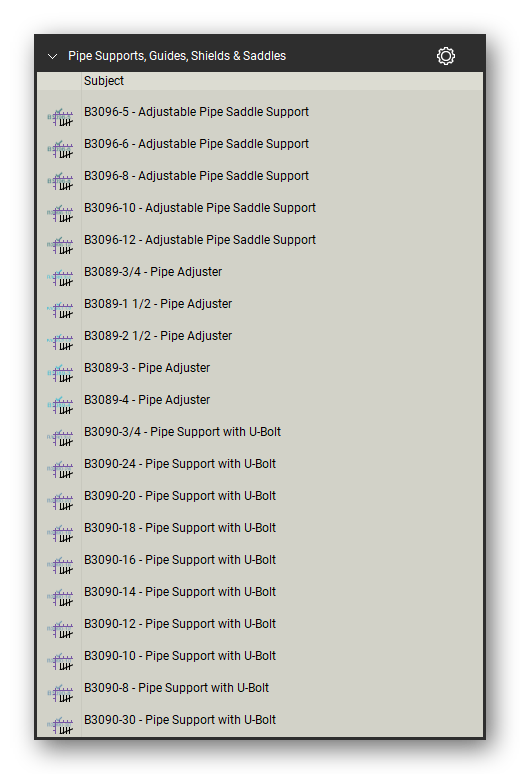

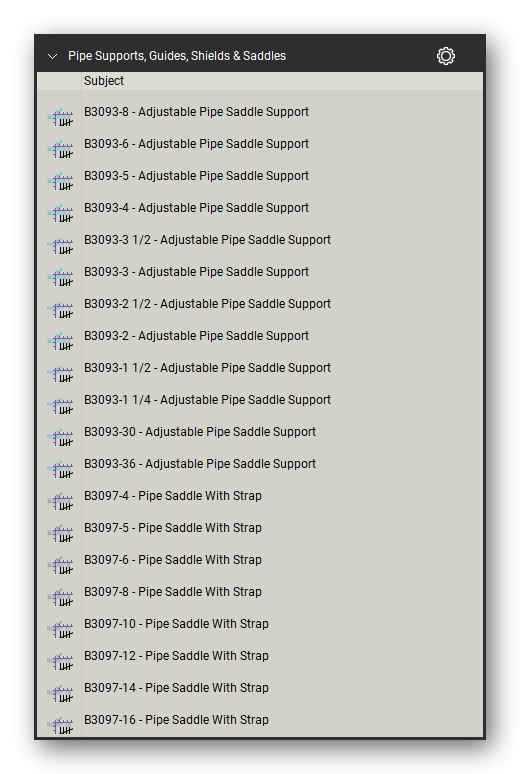

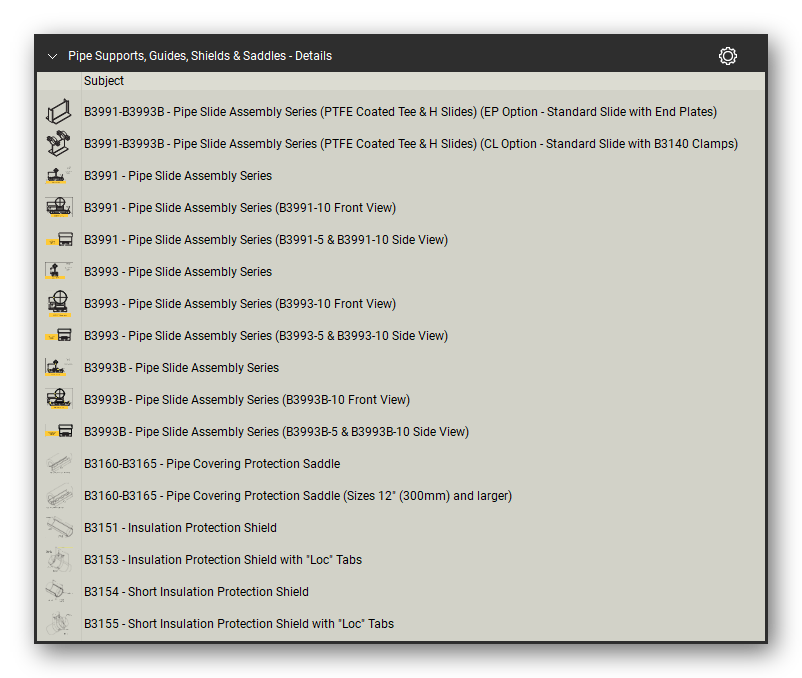

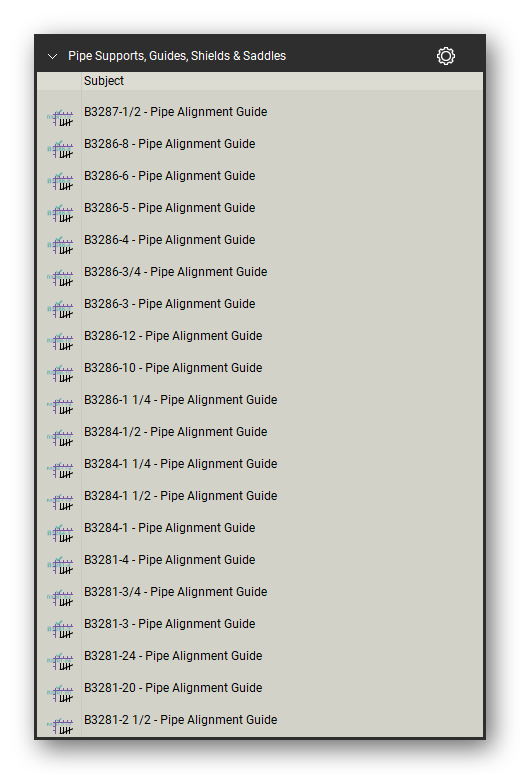

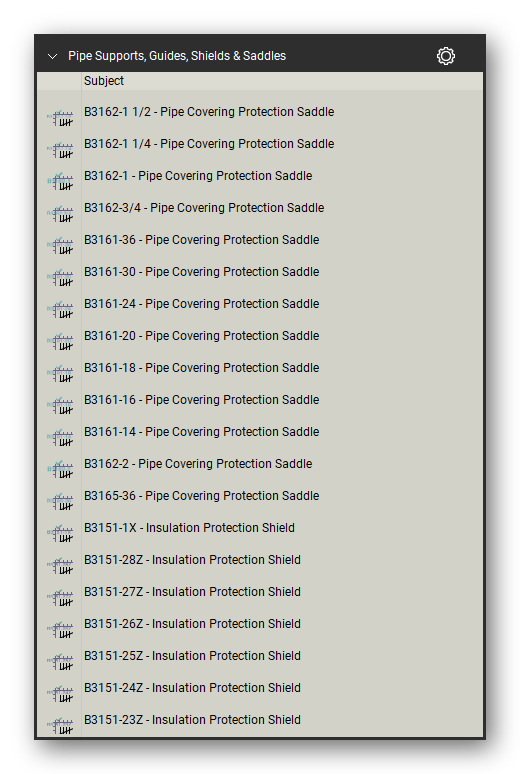

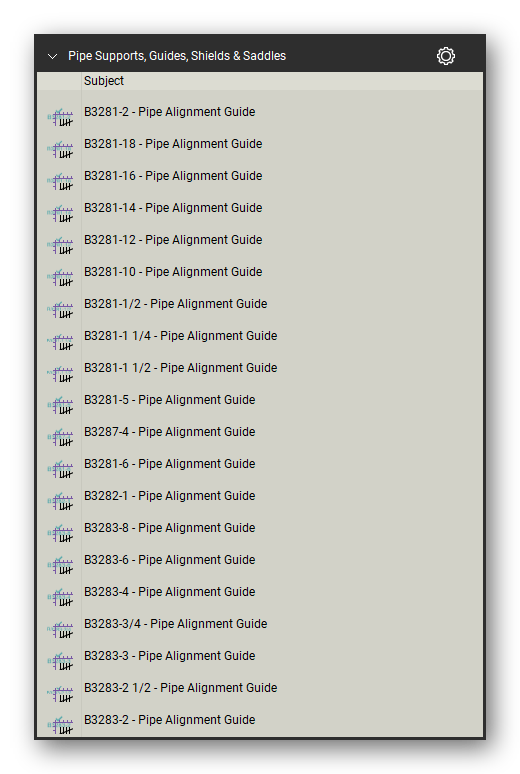

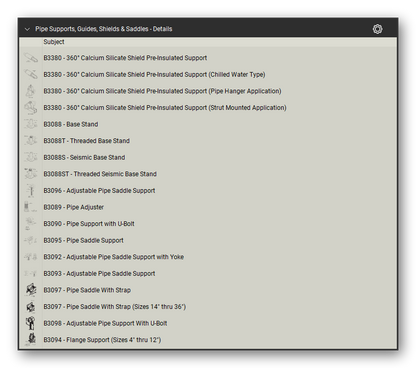

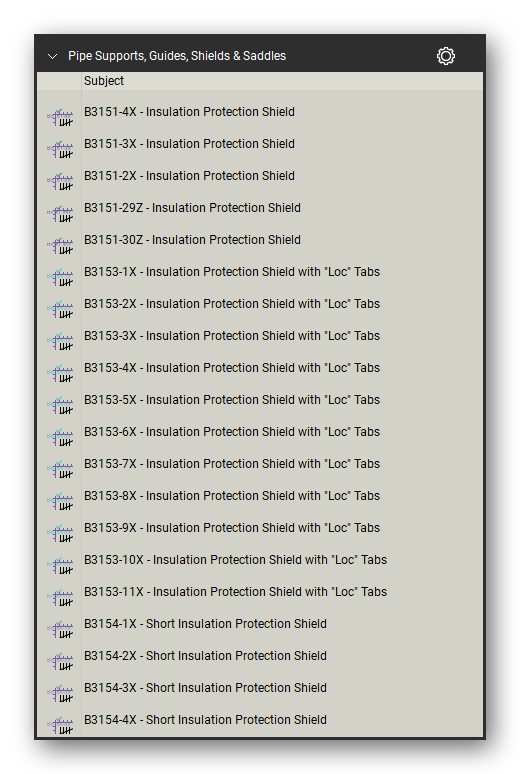

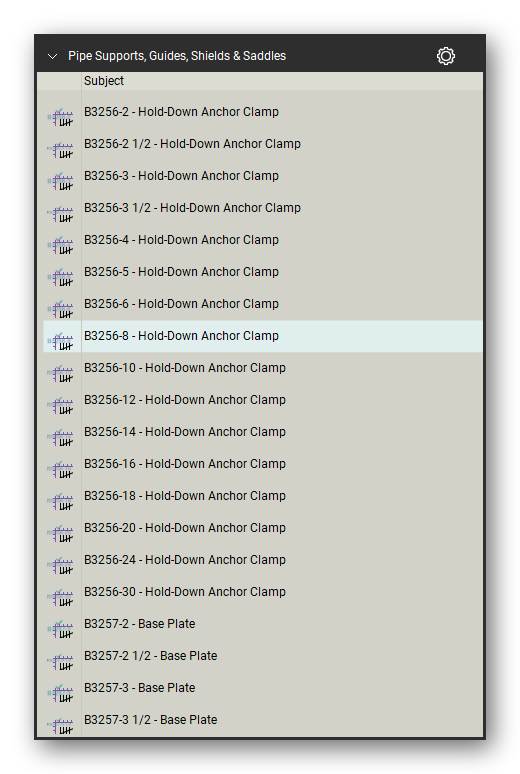

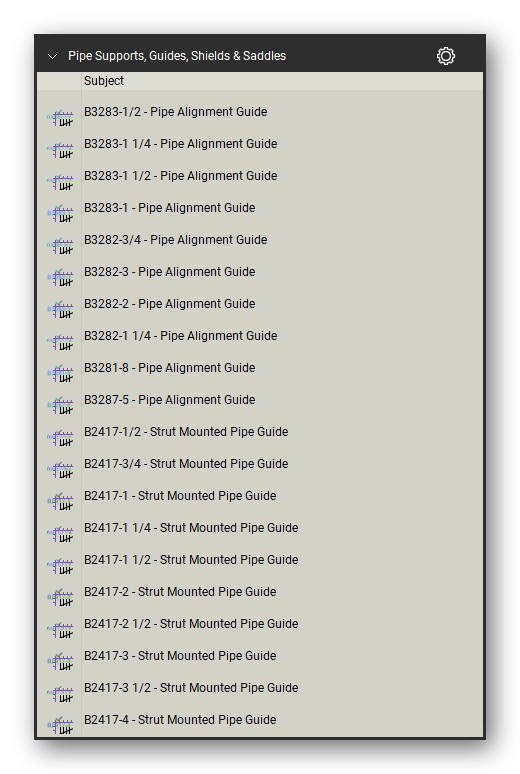

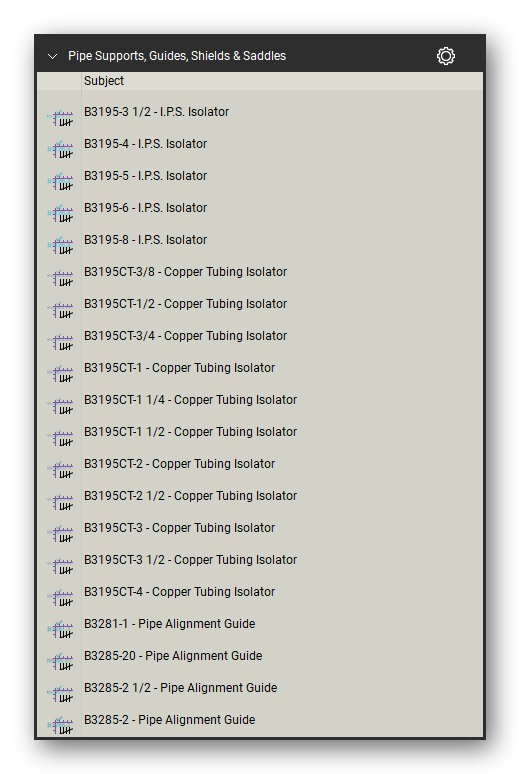

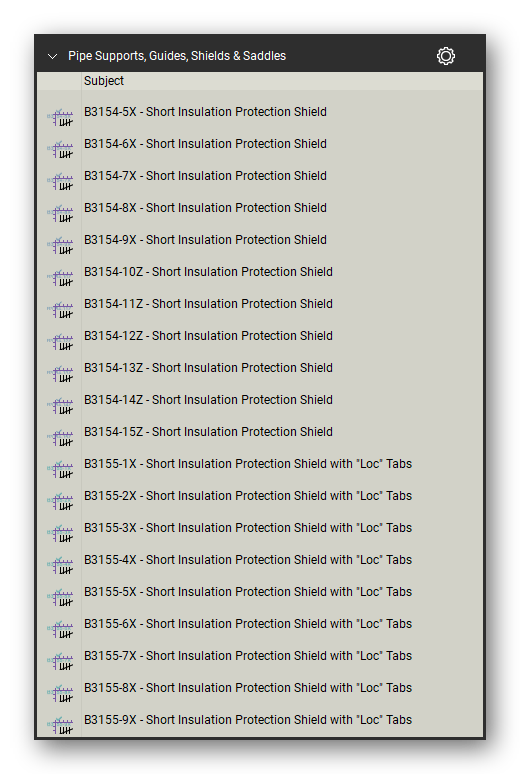

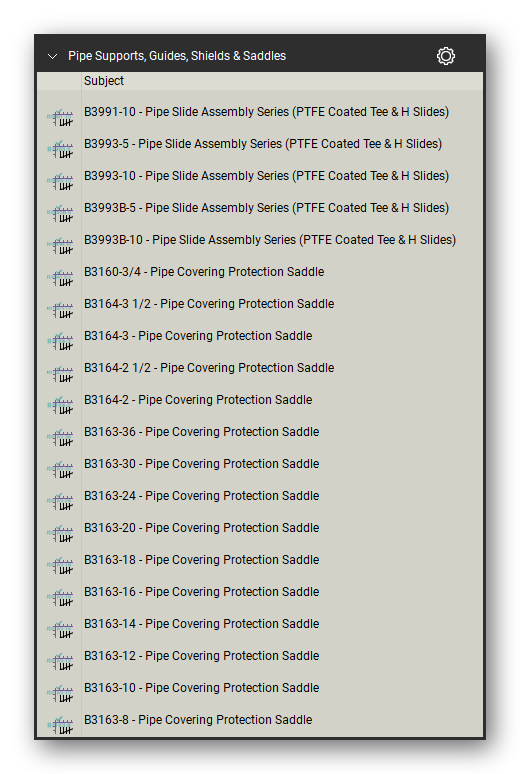

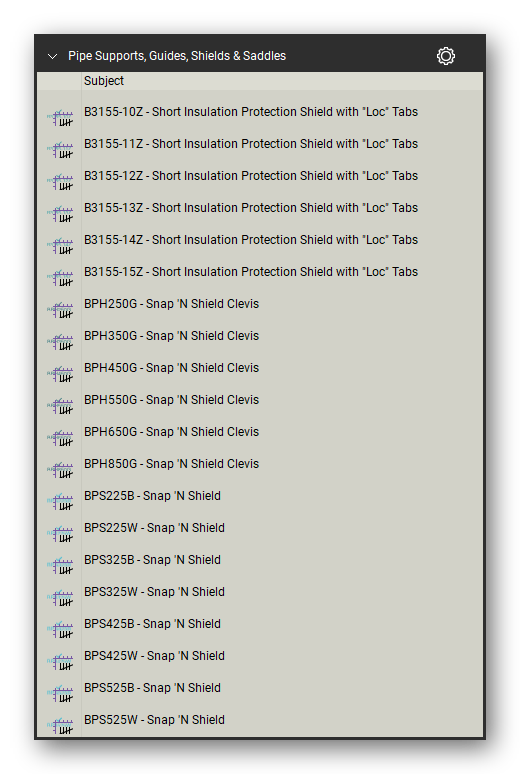

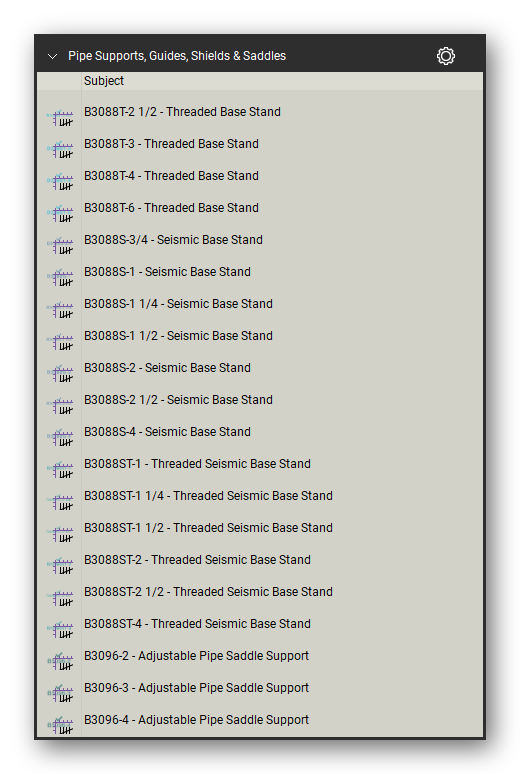

Pipe supports, guides, shields & saddles

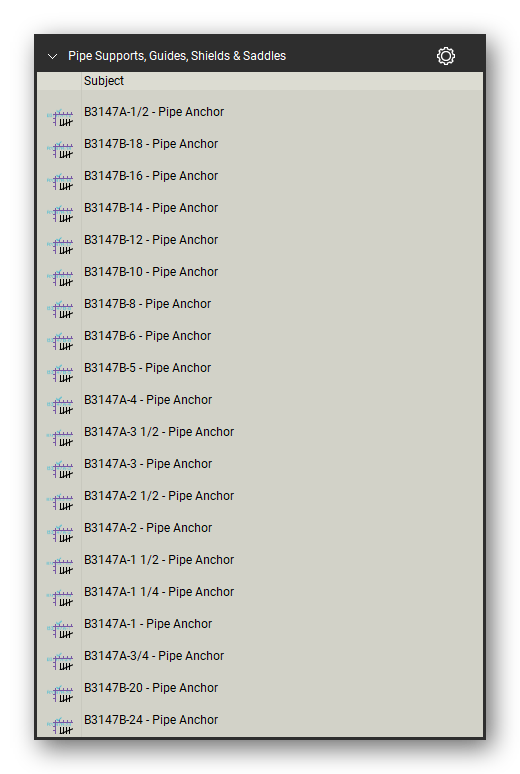

- Saddle supports, base stands, alignment guides, and anchors
- Insulation protection shields and PTFE pipe slides

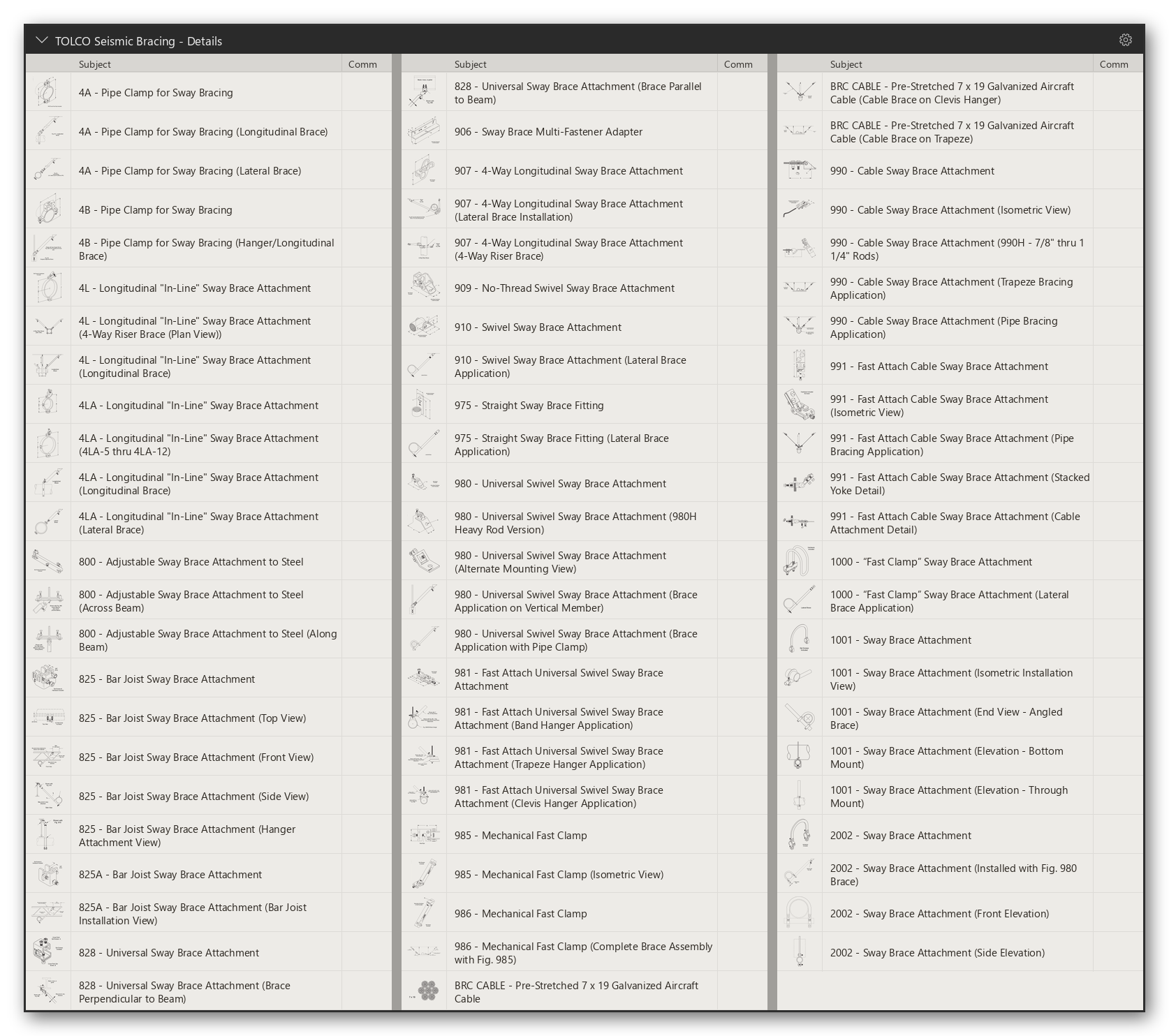

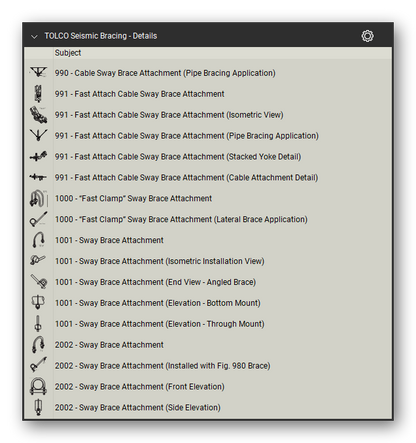

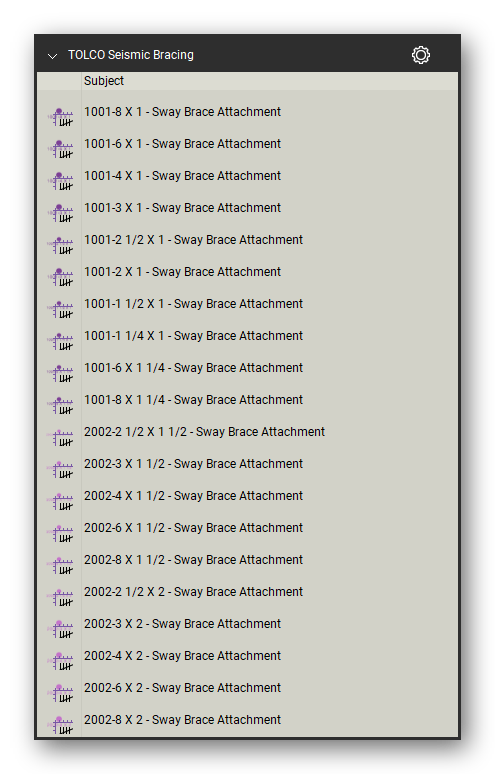

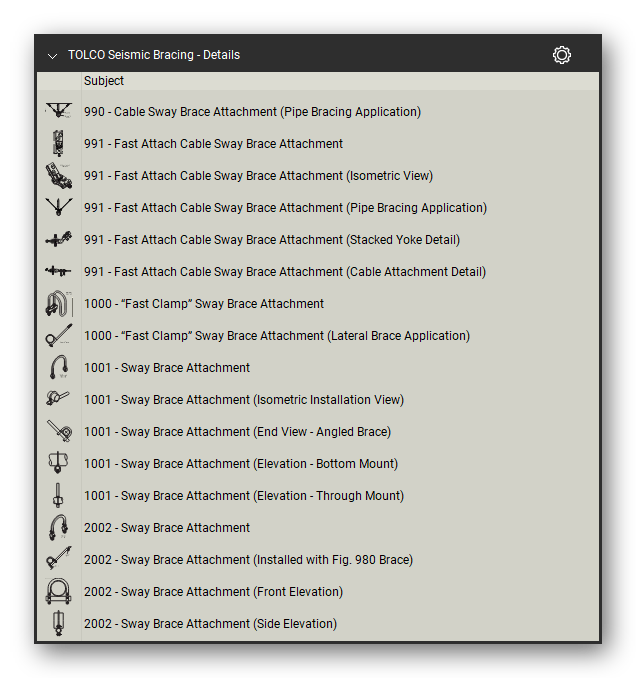

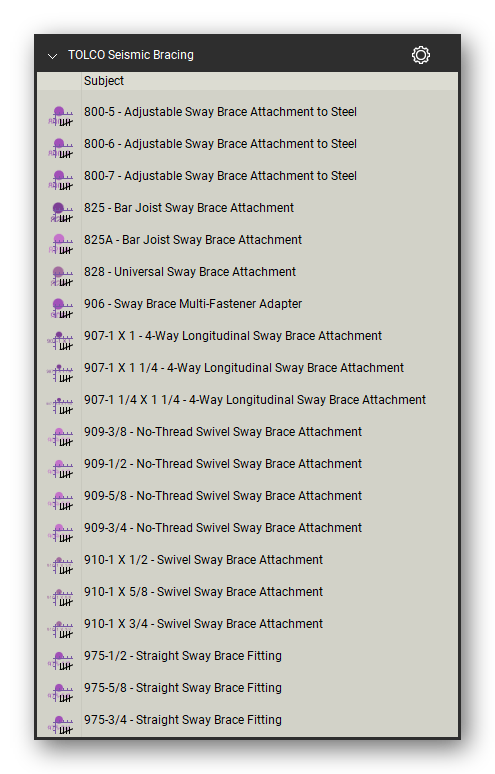

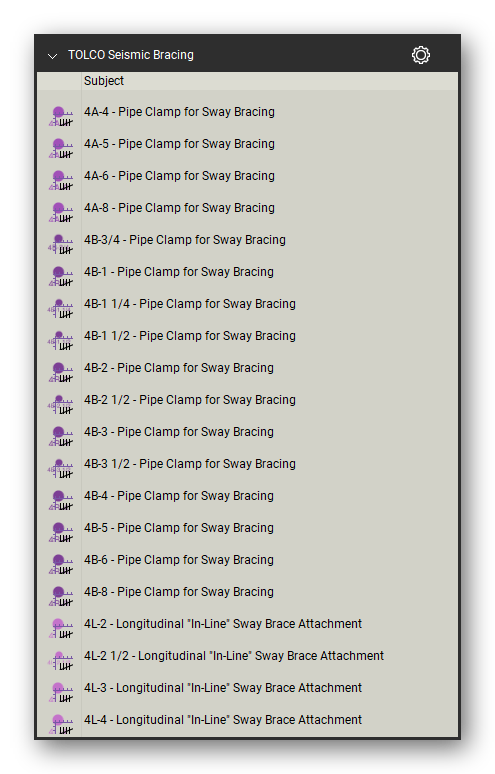

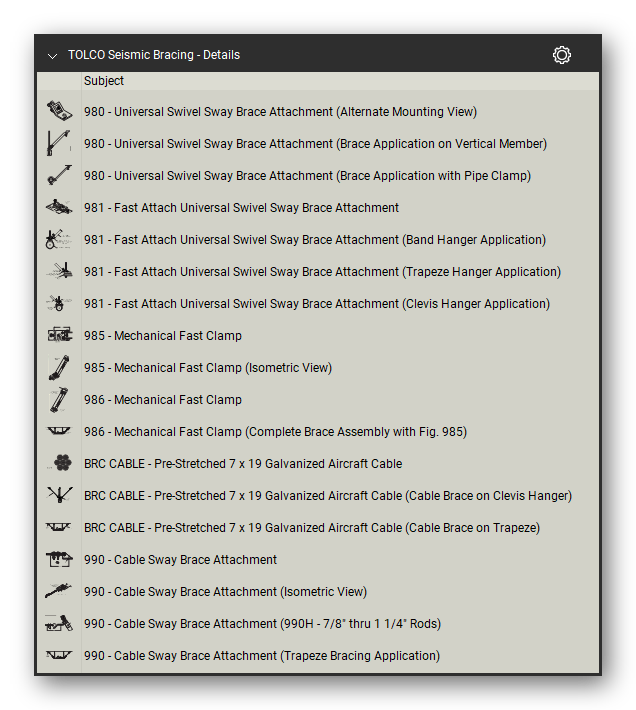

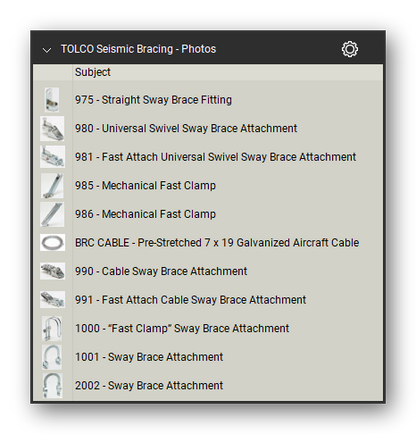

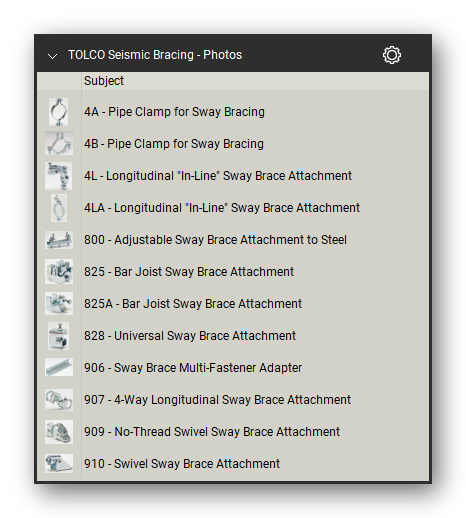

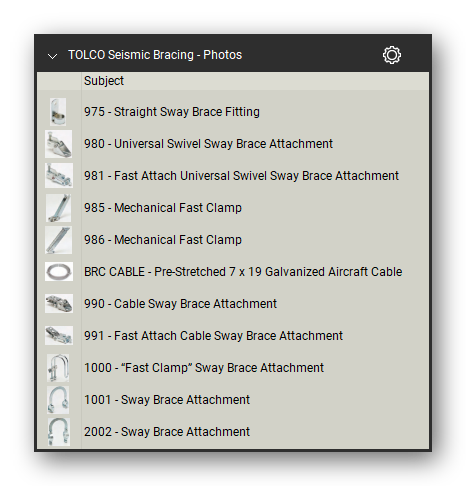

TOLCO seismic bracing
- Sway brace pipe clamps and attachments for lateral and longitudinal bracing
- Fast clamps, cable bracing, and main pipe attachments

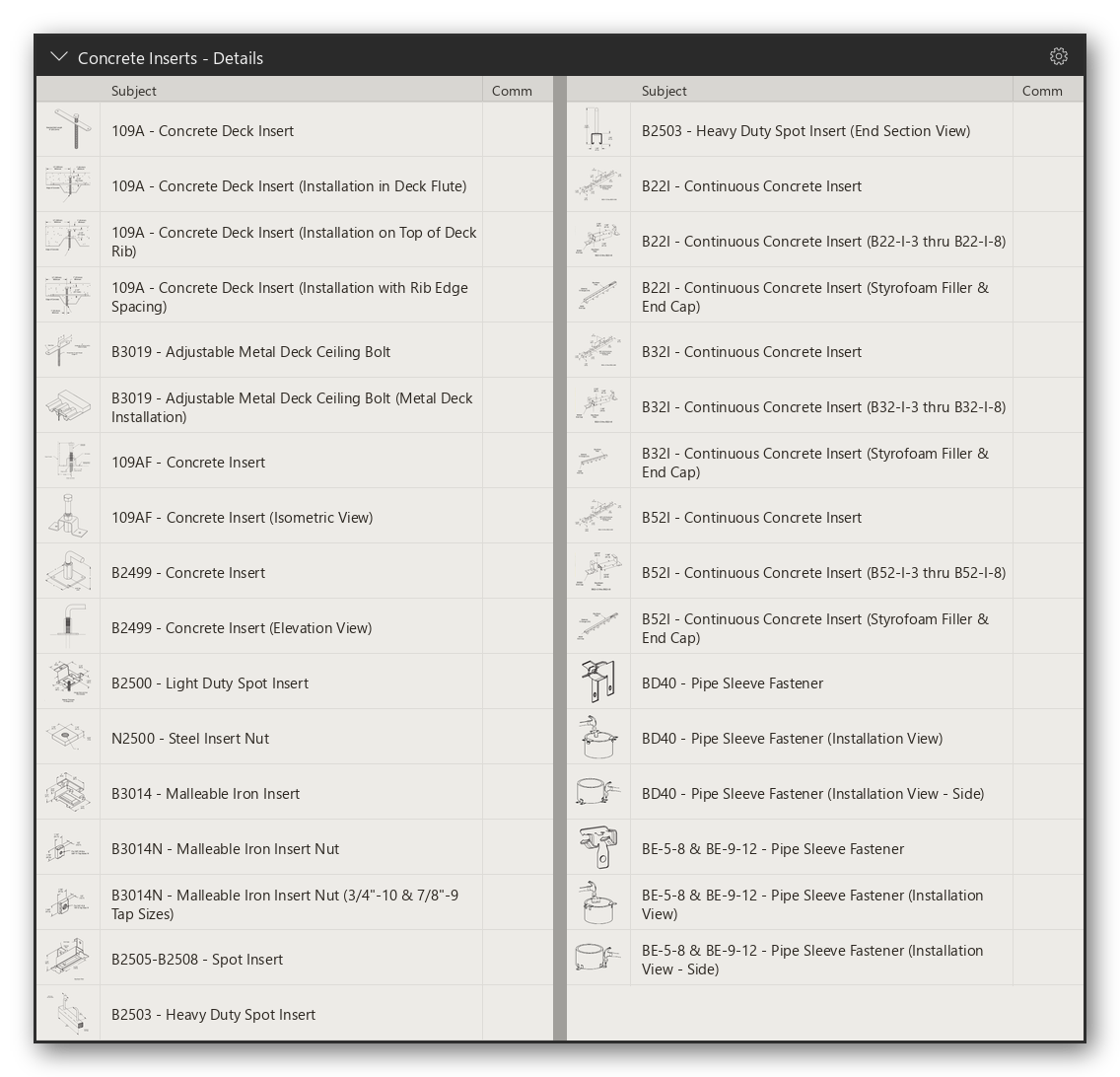

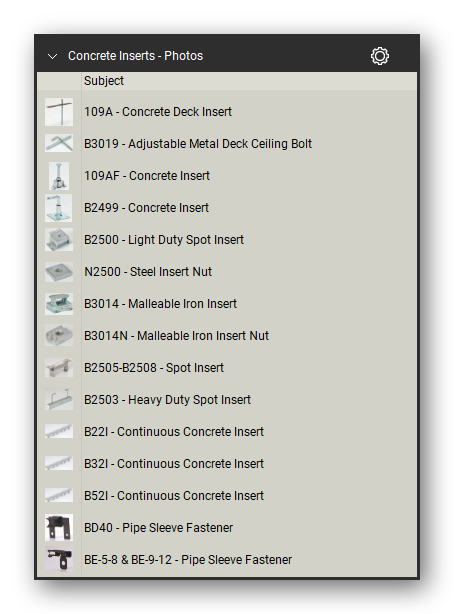

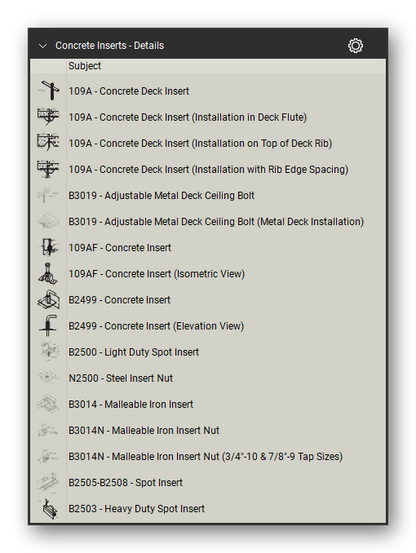

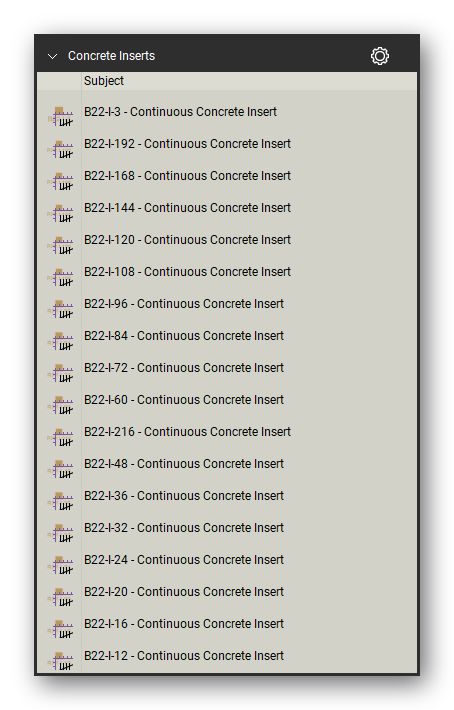

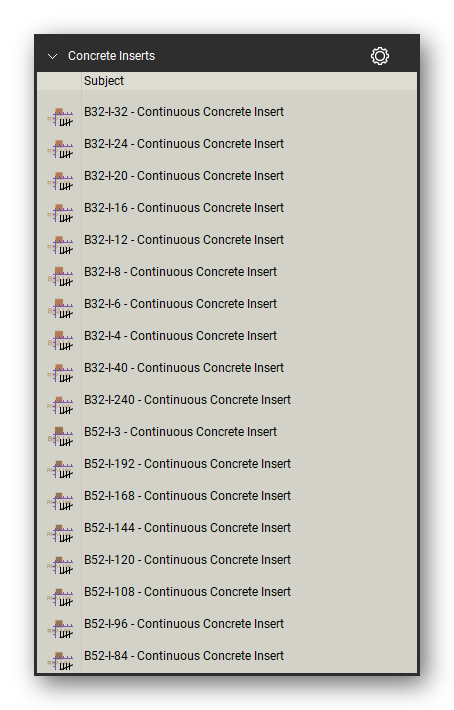

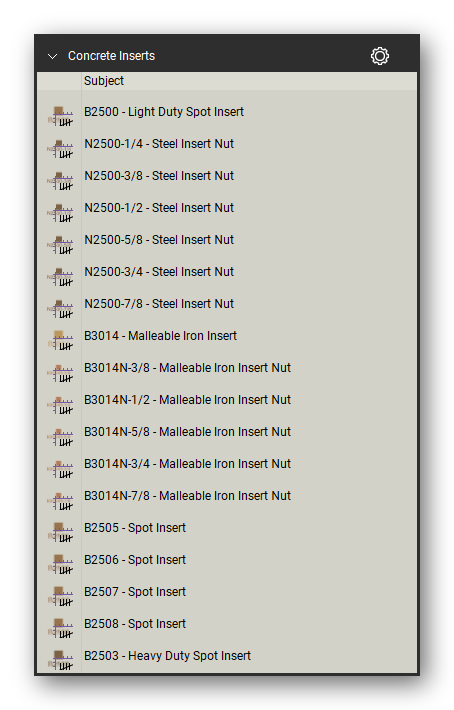

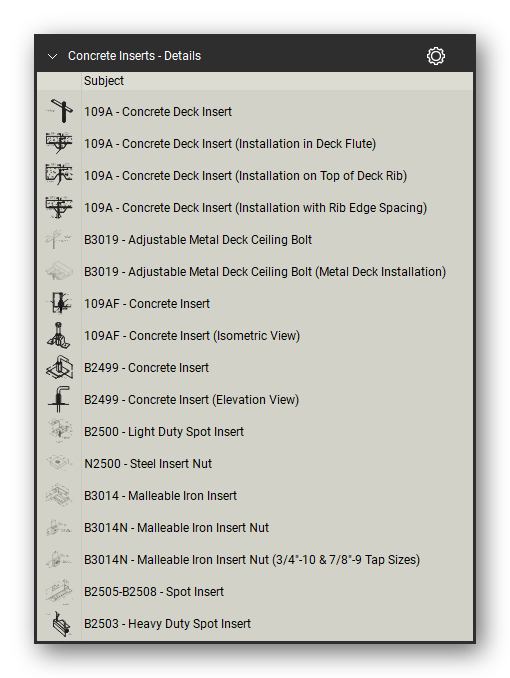

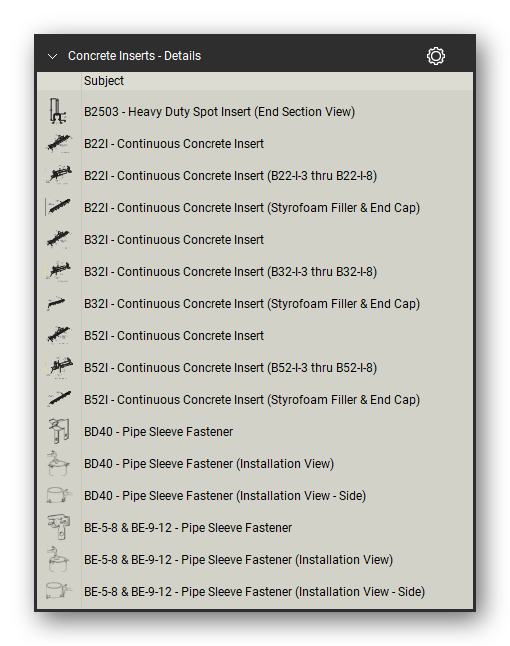

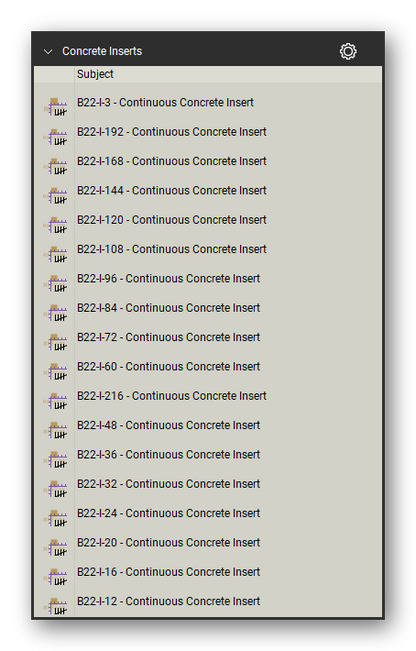

Concrete inserts
- Deck inserts, spot inserts, insert nuts, and continuous inserts

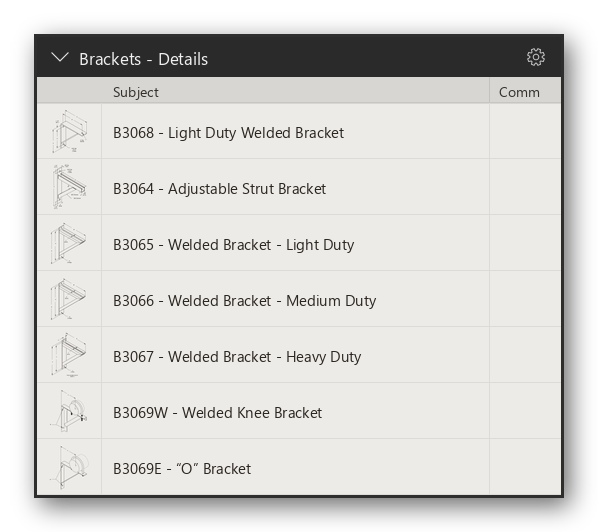

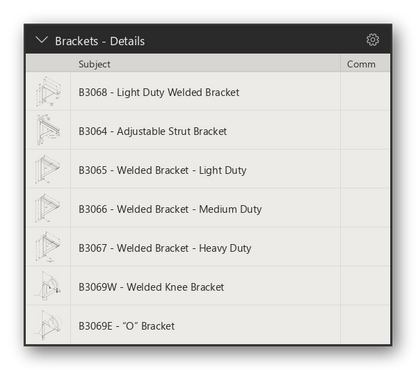

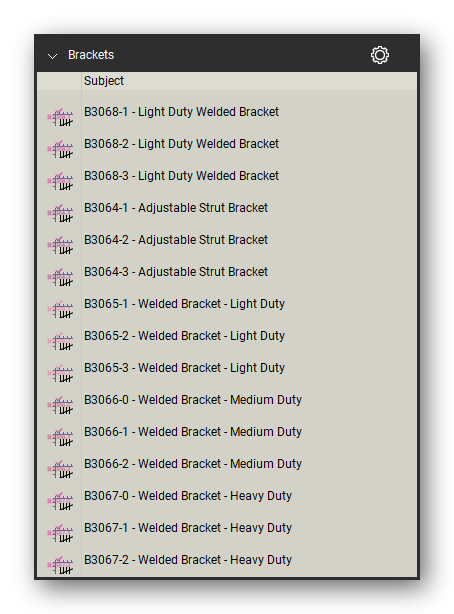

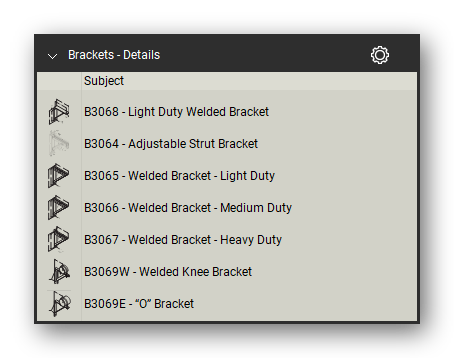

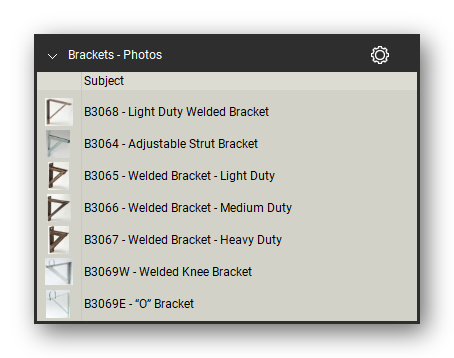

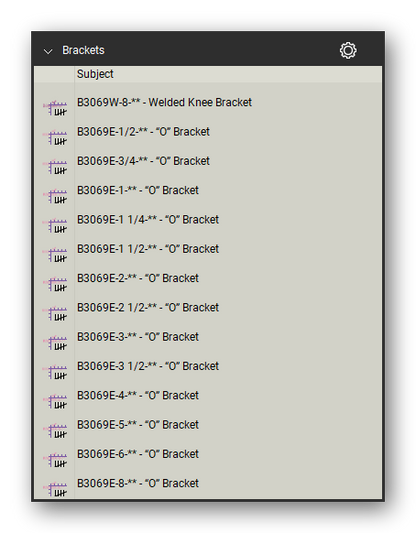

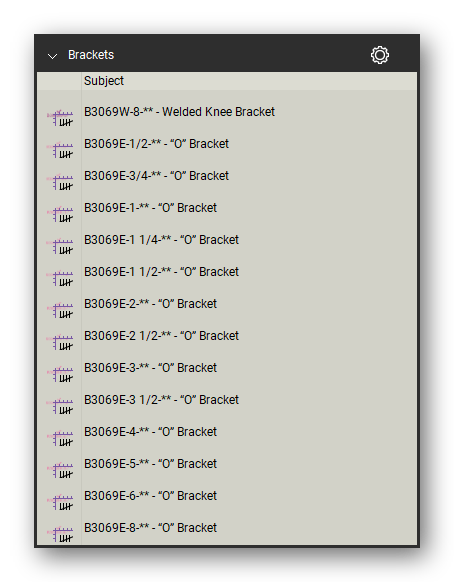

Brackets
- Light, medium, and heavy duty welded brackets and knee braces

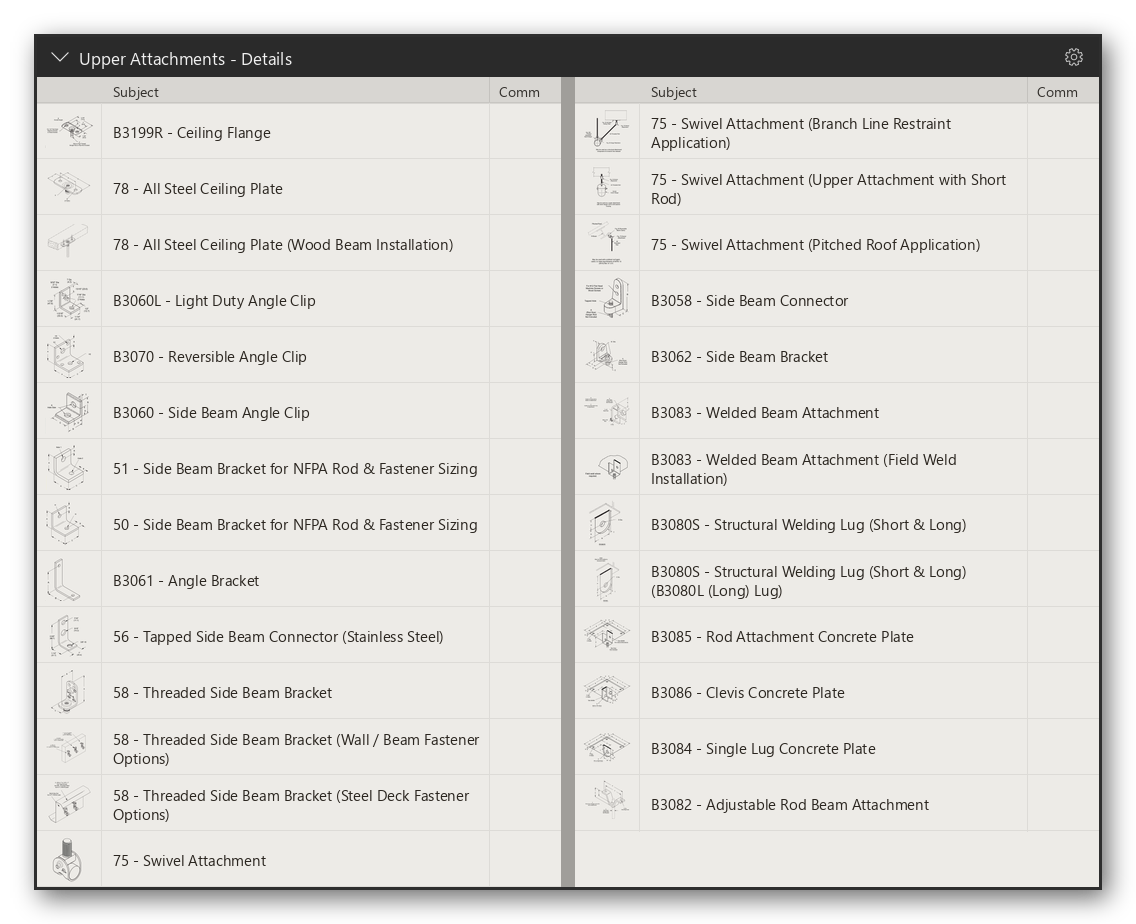

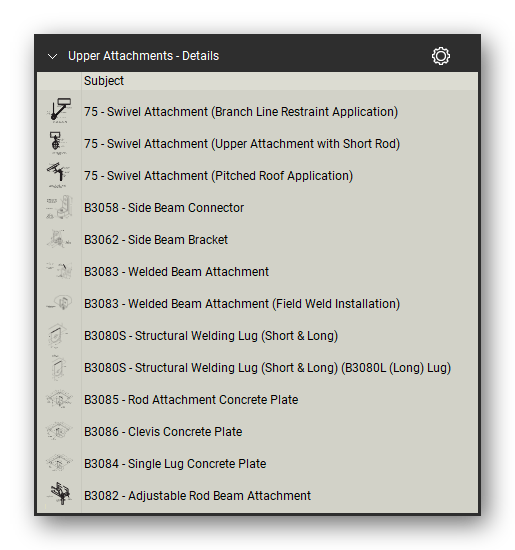

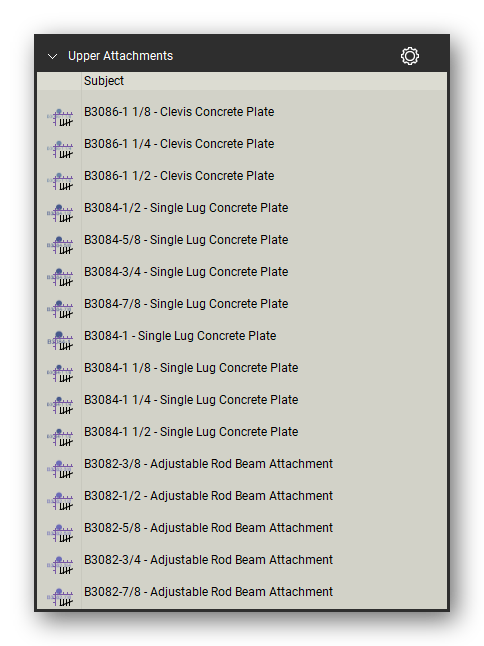

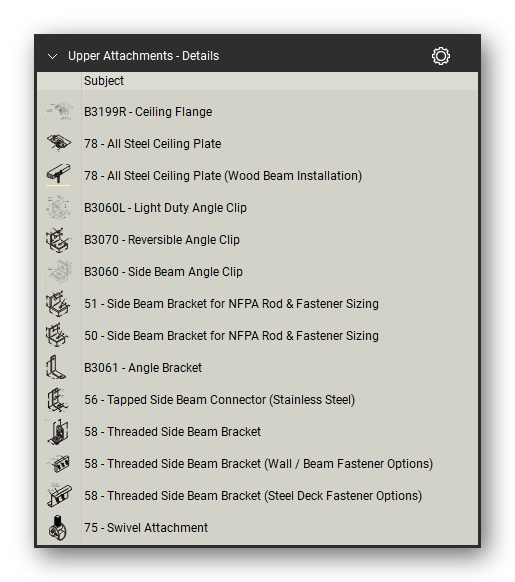

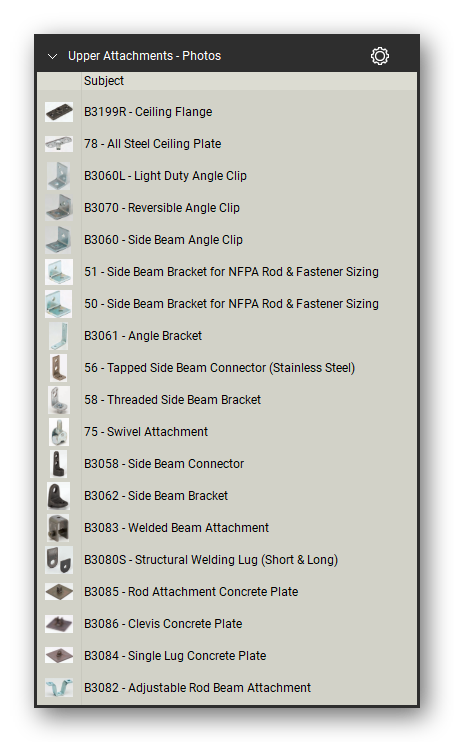

Upper attachments
- Ceiling flanges and plates, angle clips, side beam brackets, and swivels

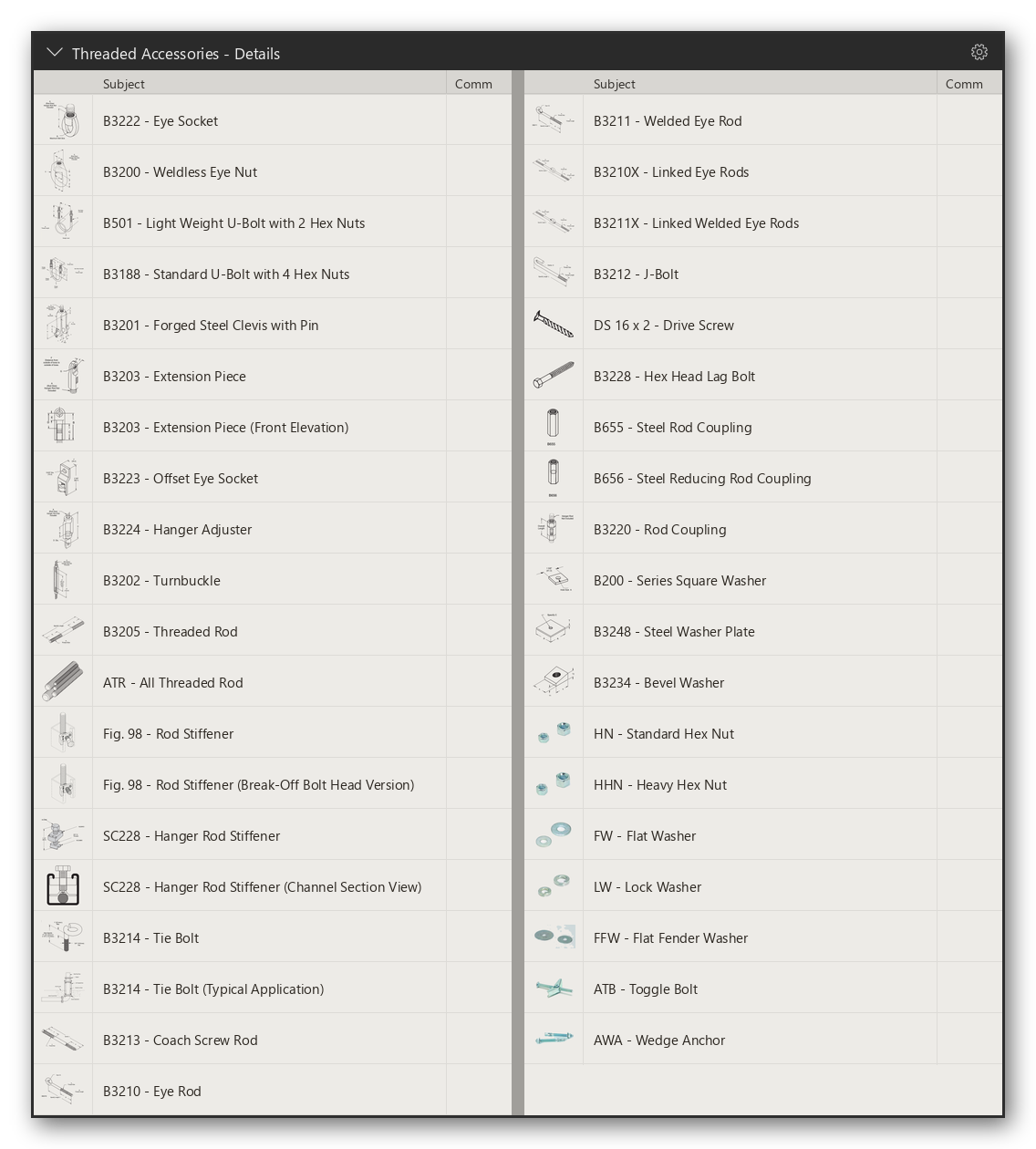

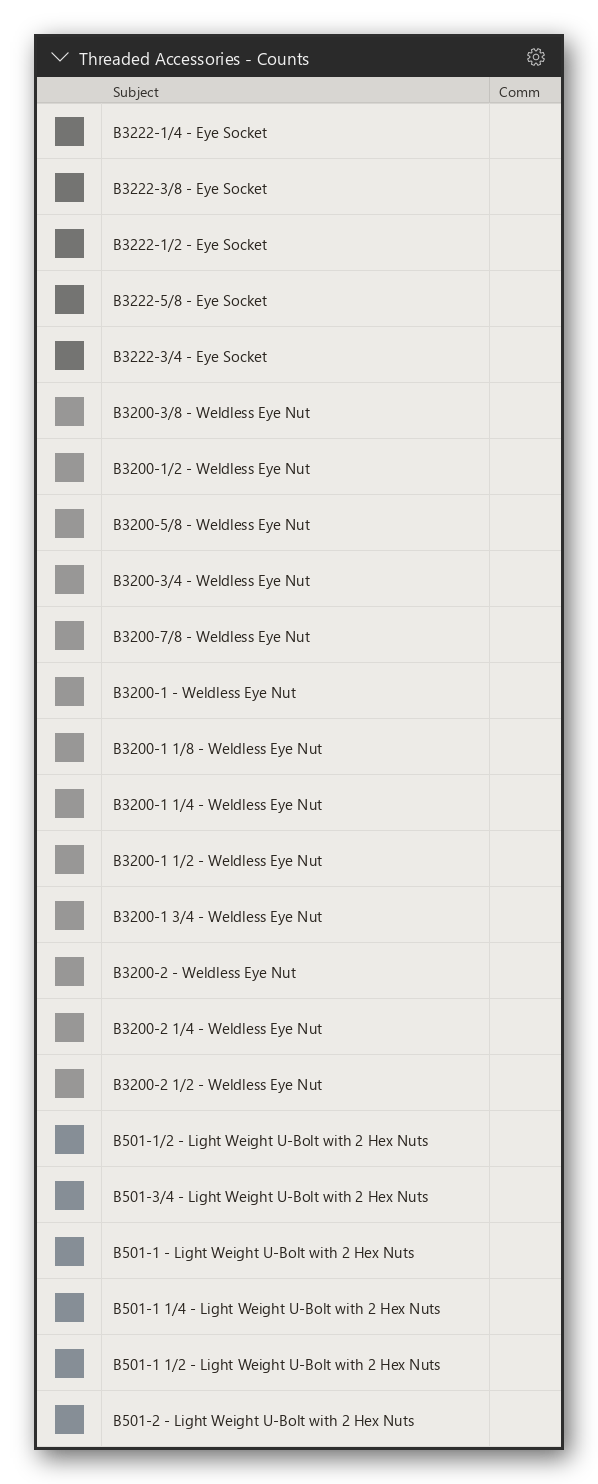

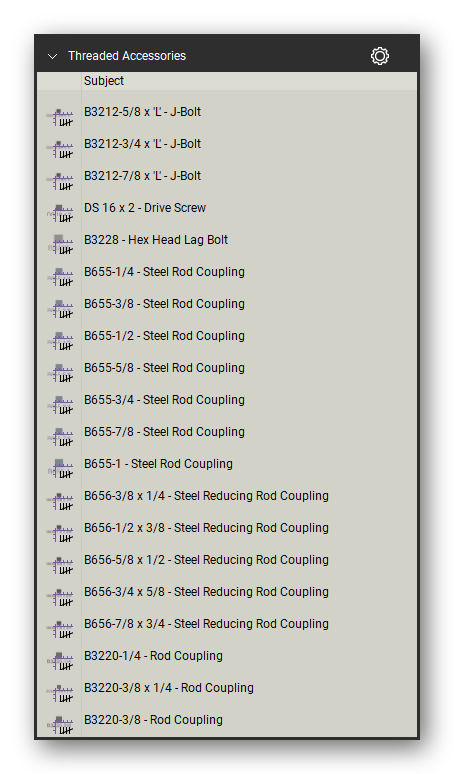

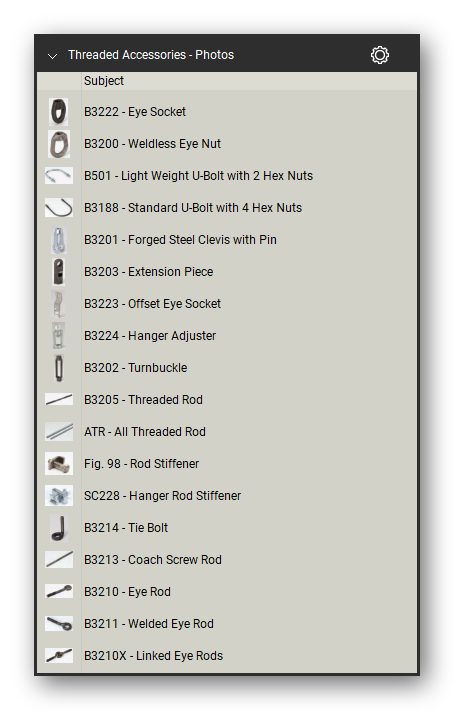

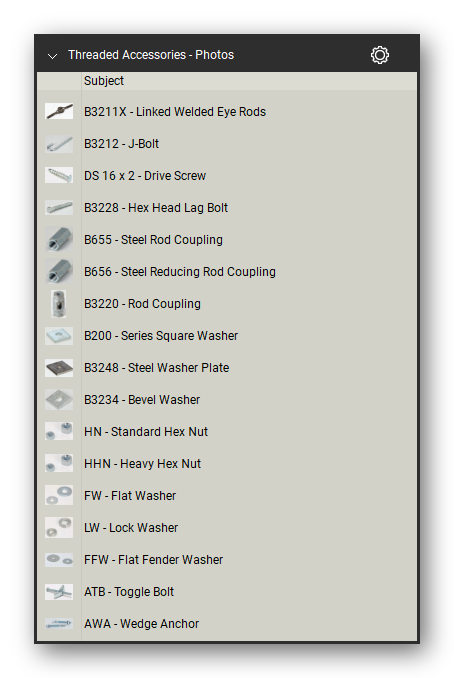

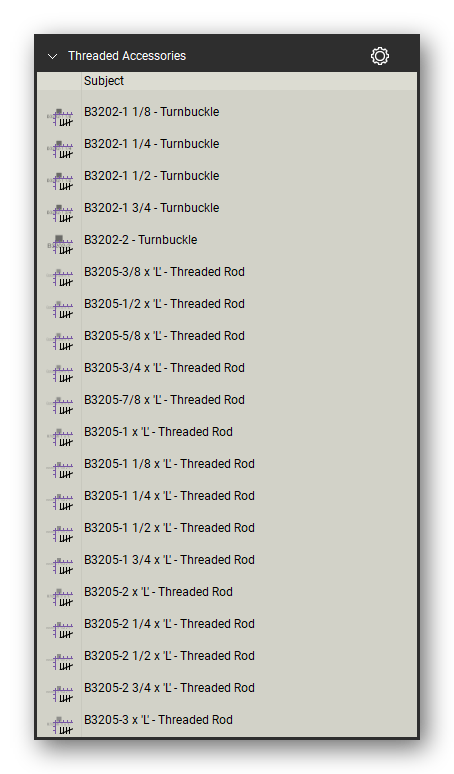

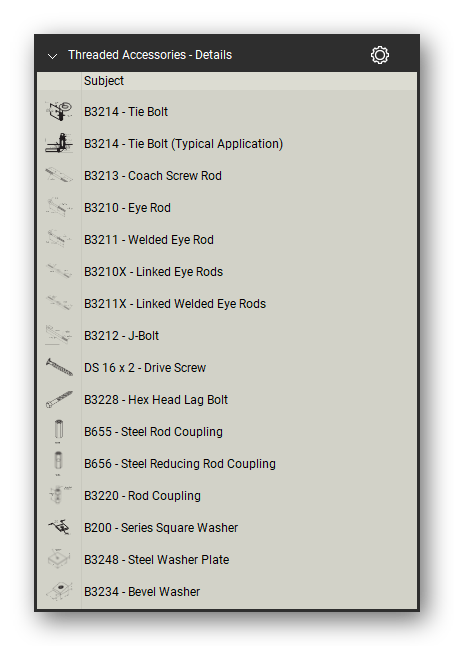

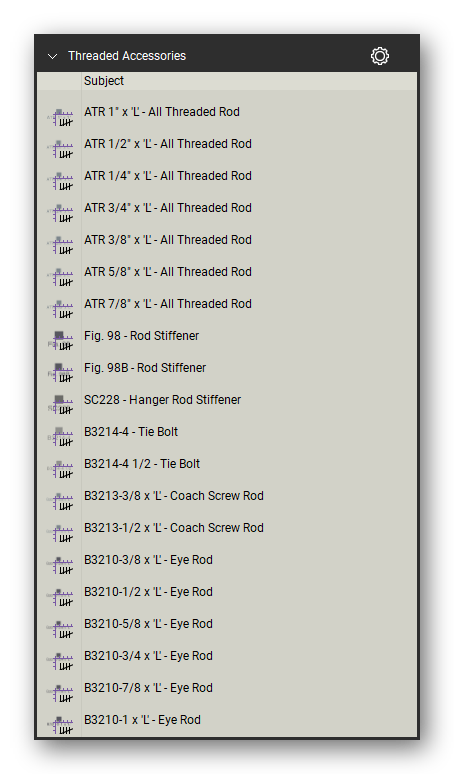

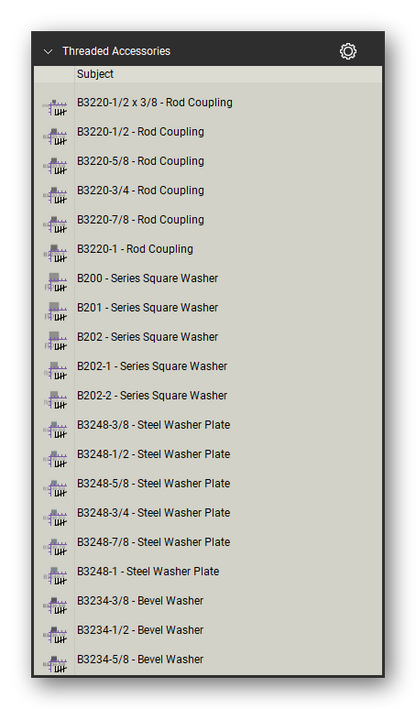

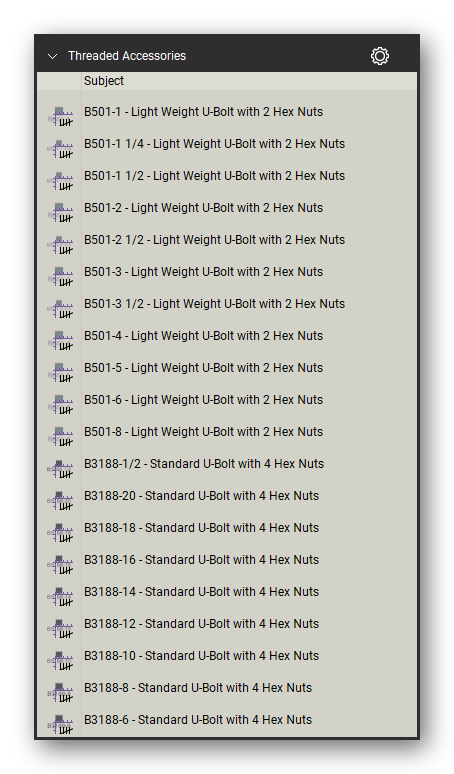

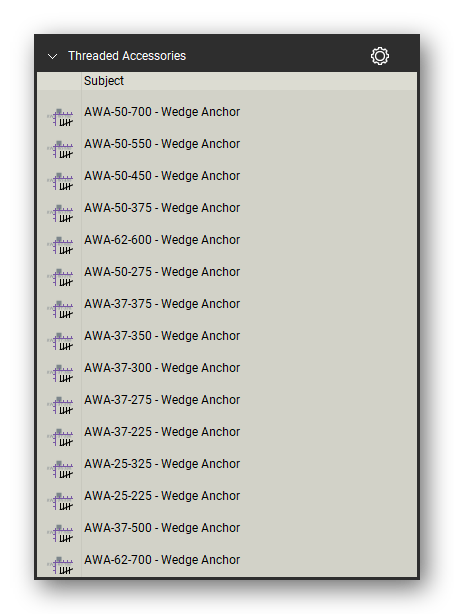

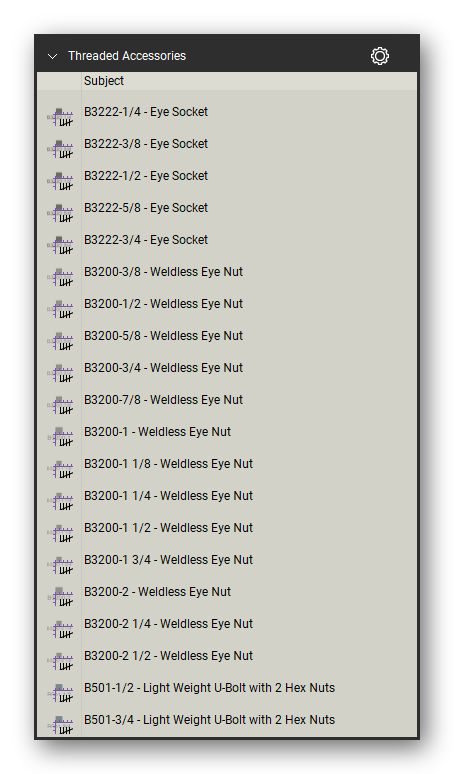

Threaded accessories
- Eye sockets and nuts, U-bolts, clevises, rods, couplings, and washers

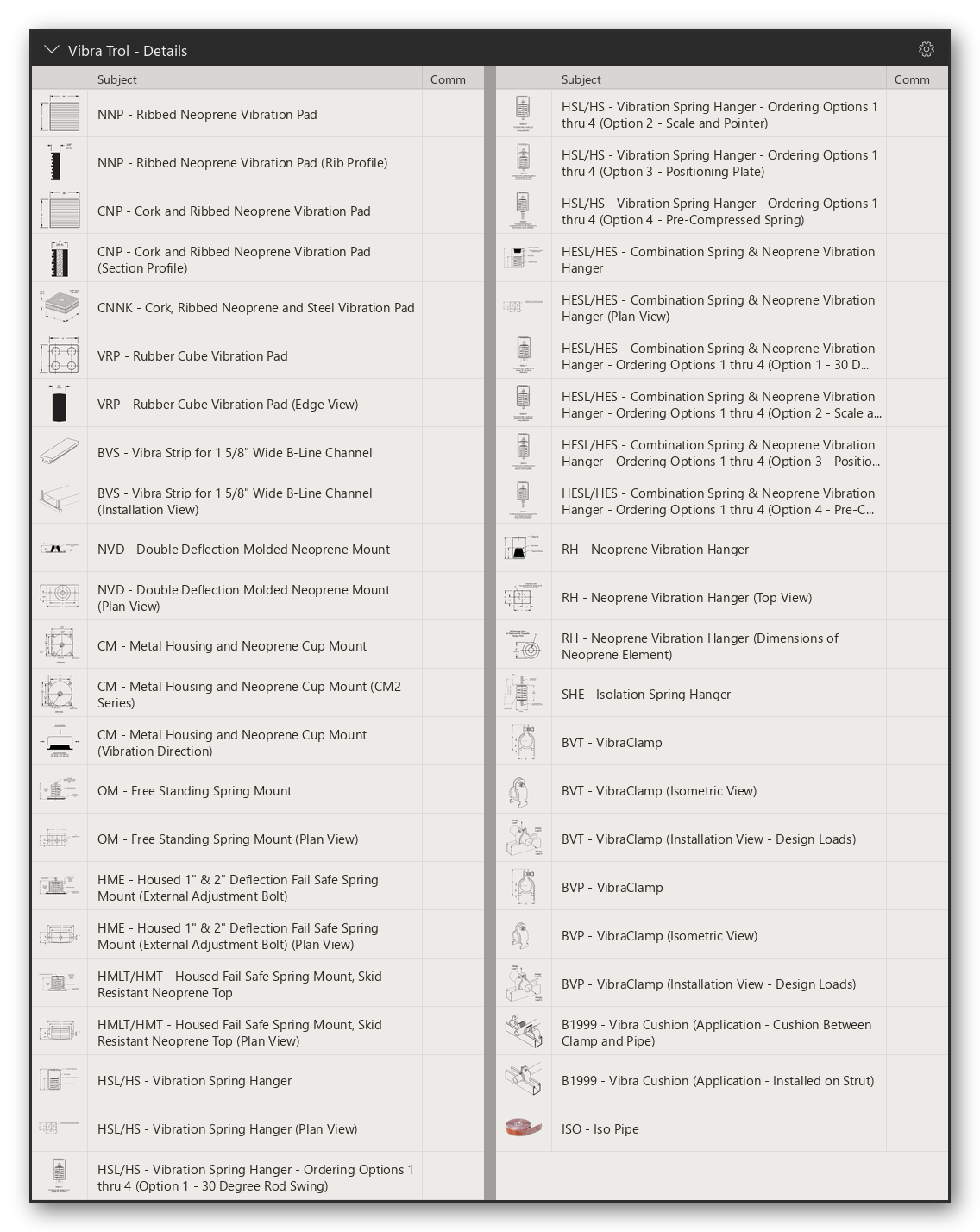

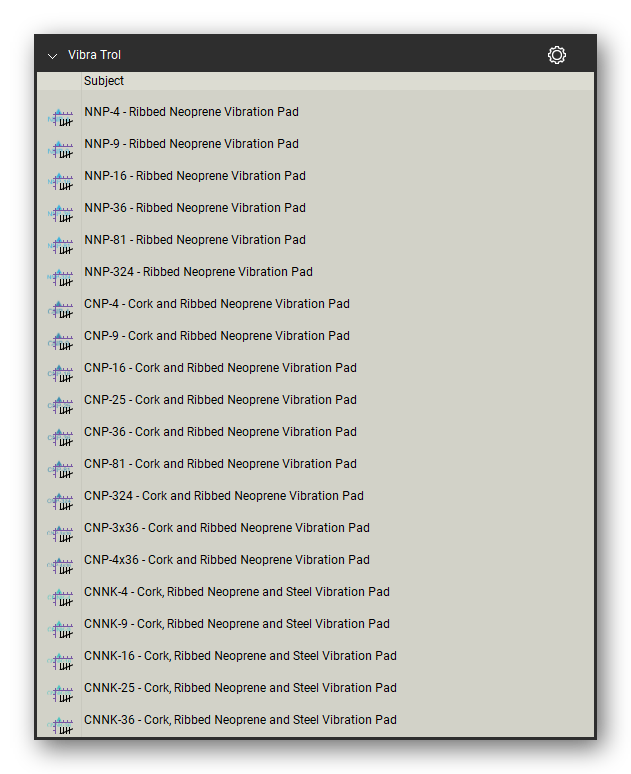

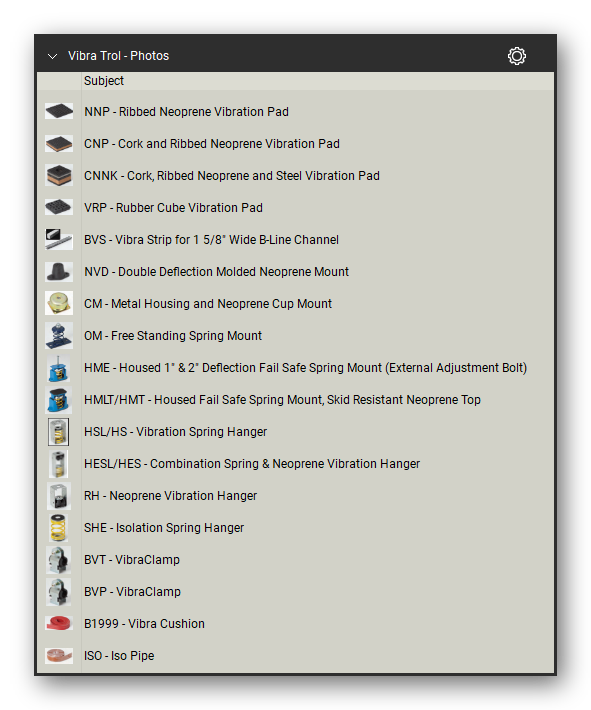

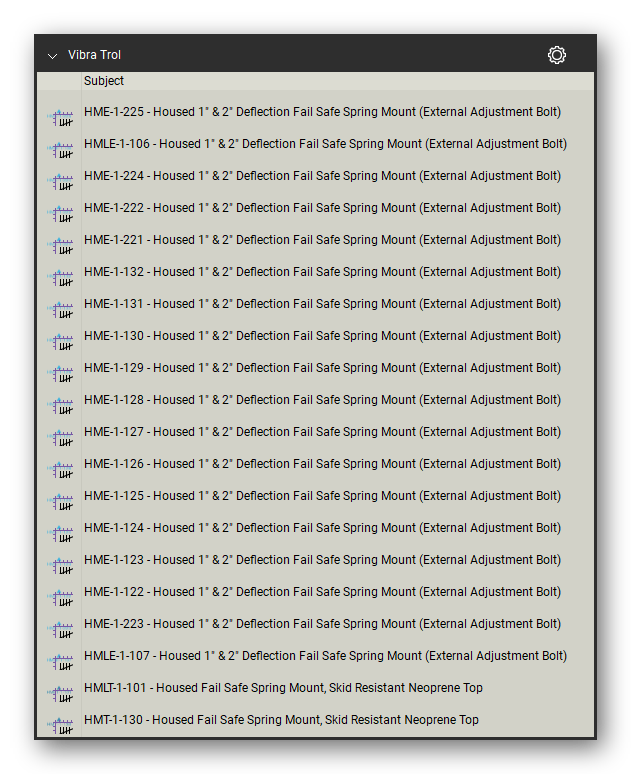

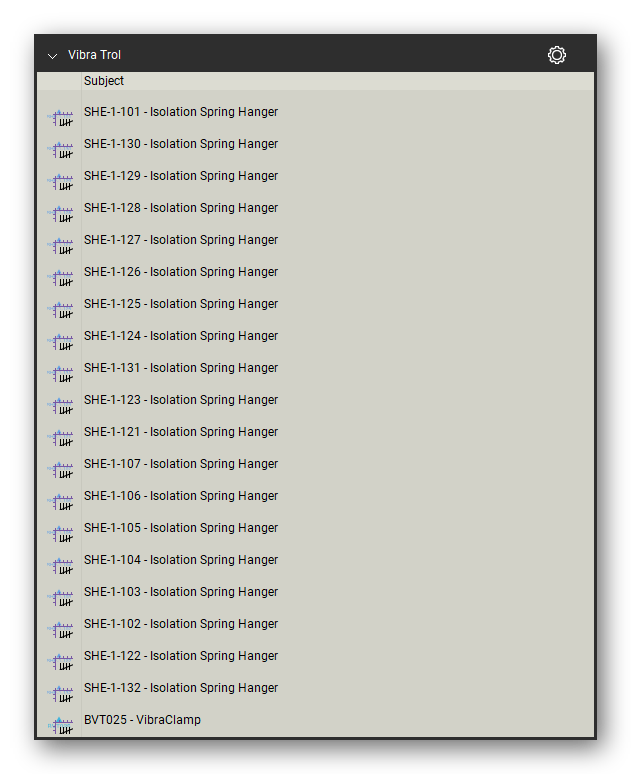

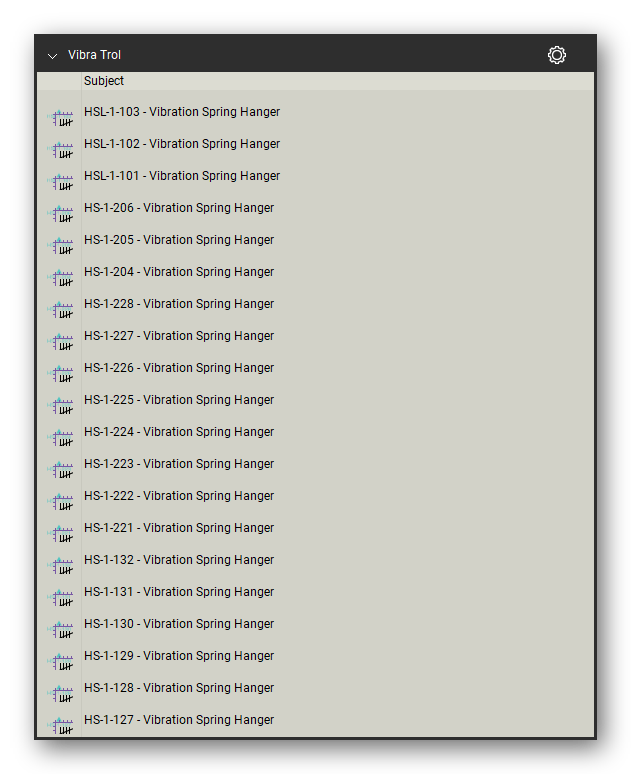

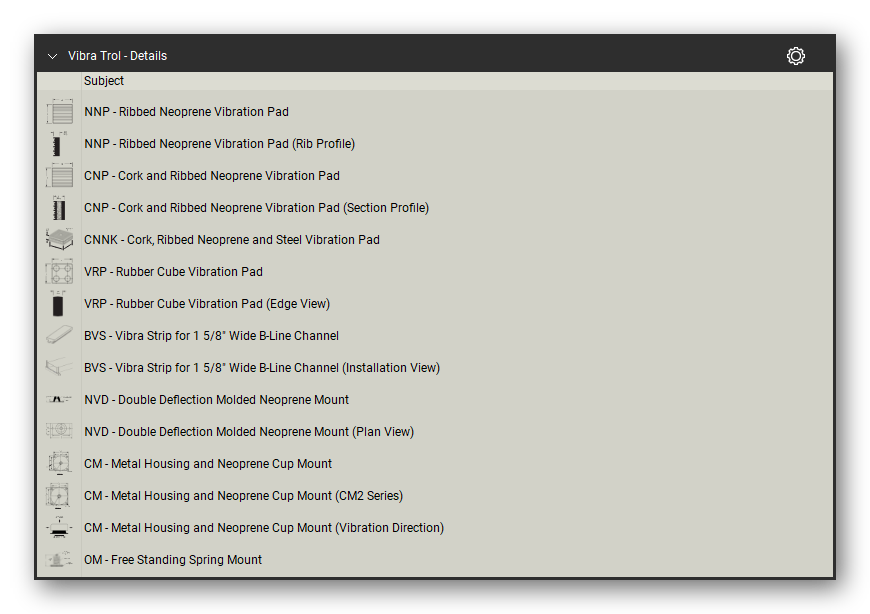

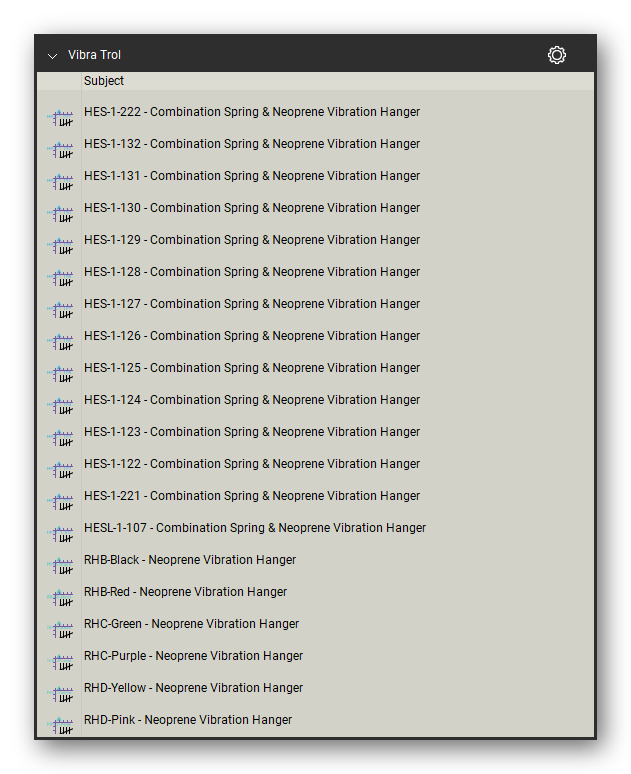

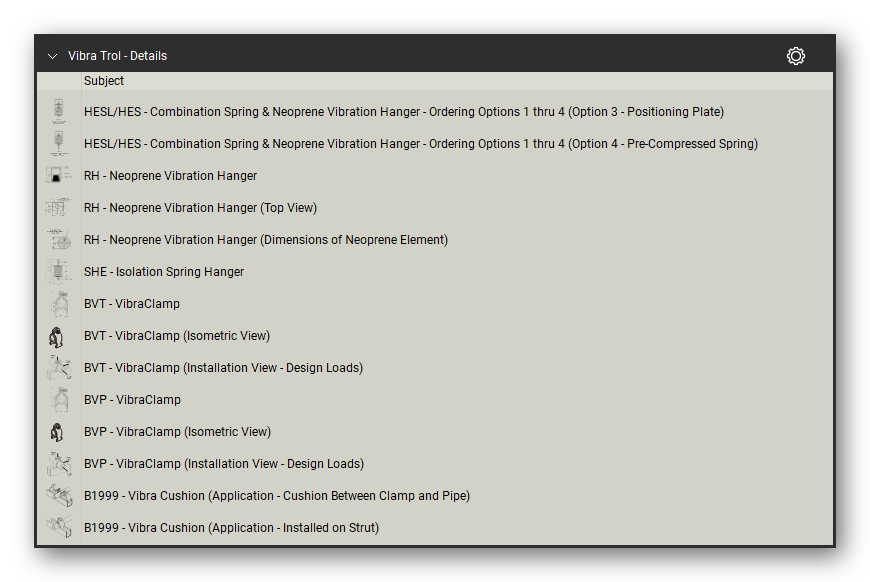

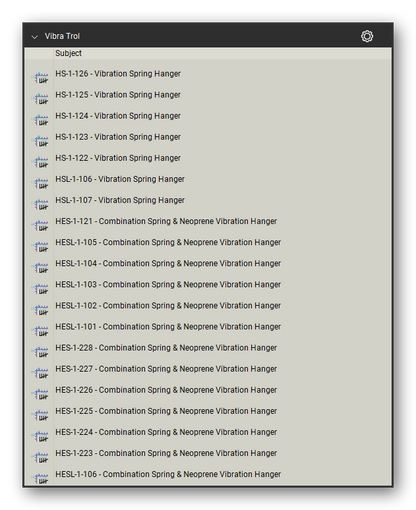

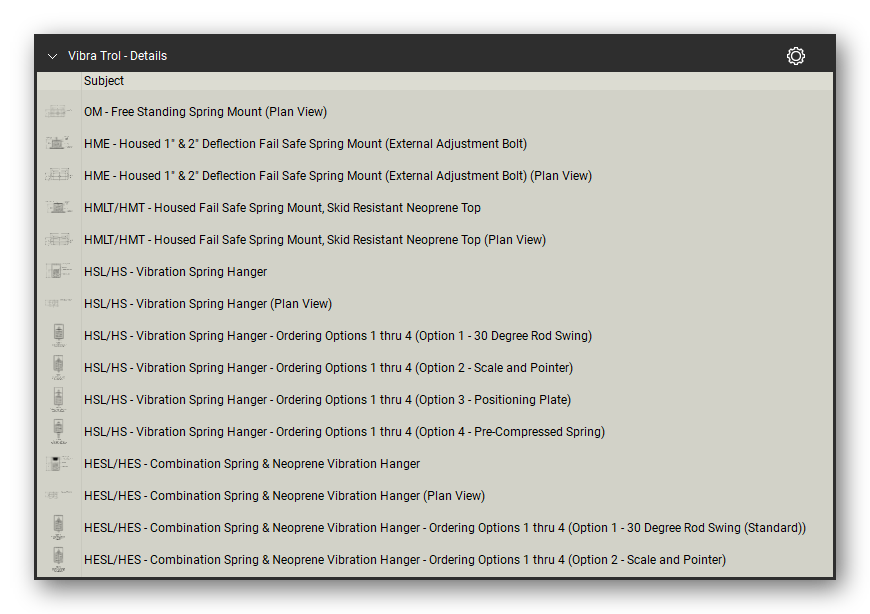

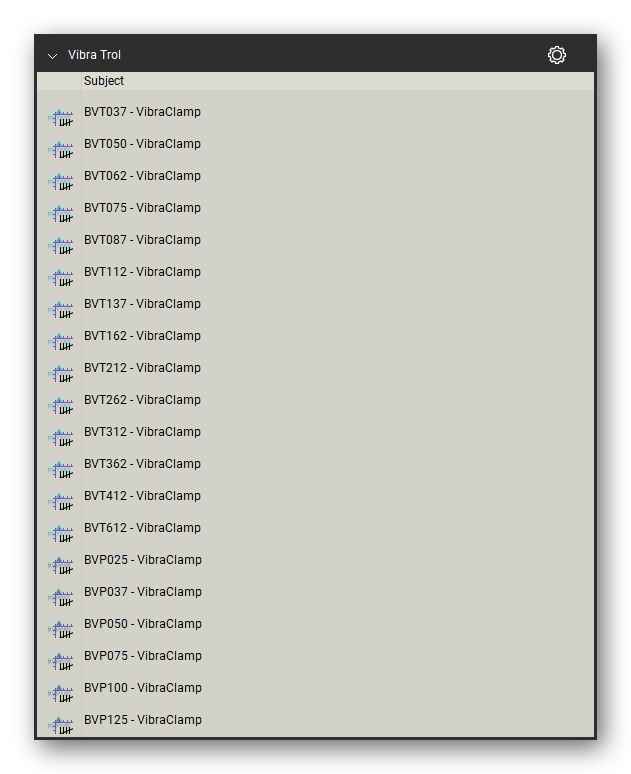

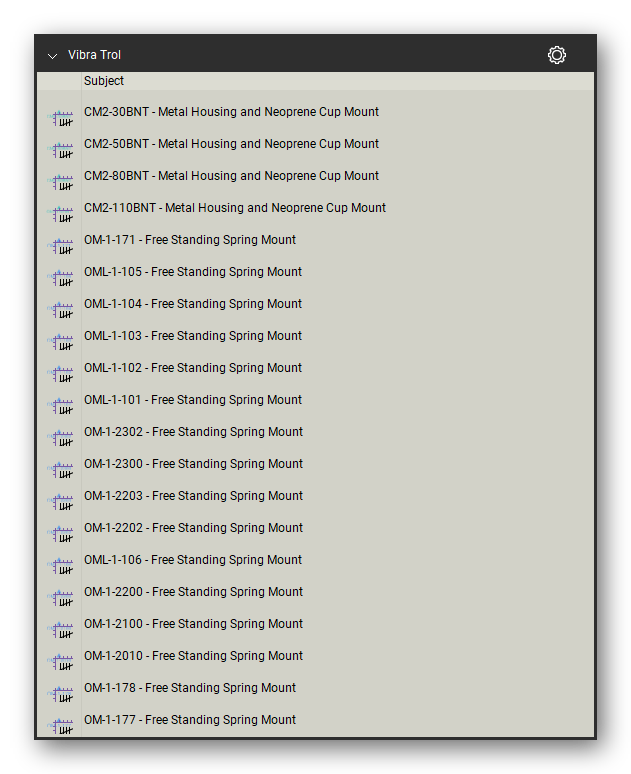

Vibra Trol vibration isolation
- Vibration pads, molded and cup mounts, spring mounts and hangers

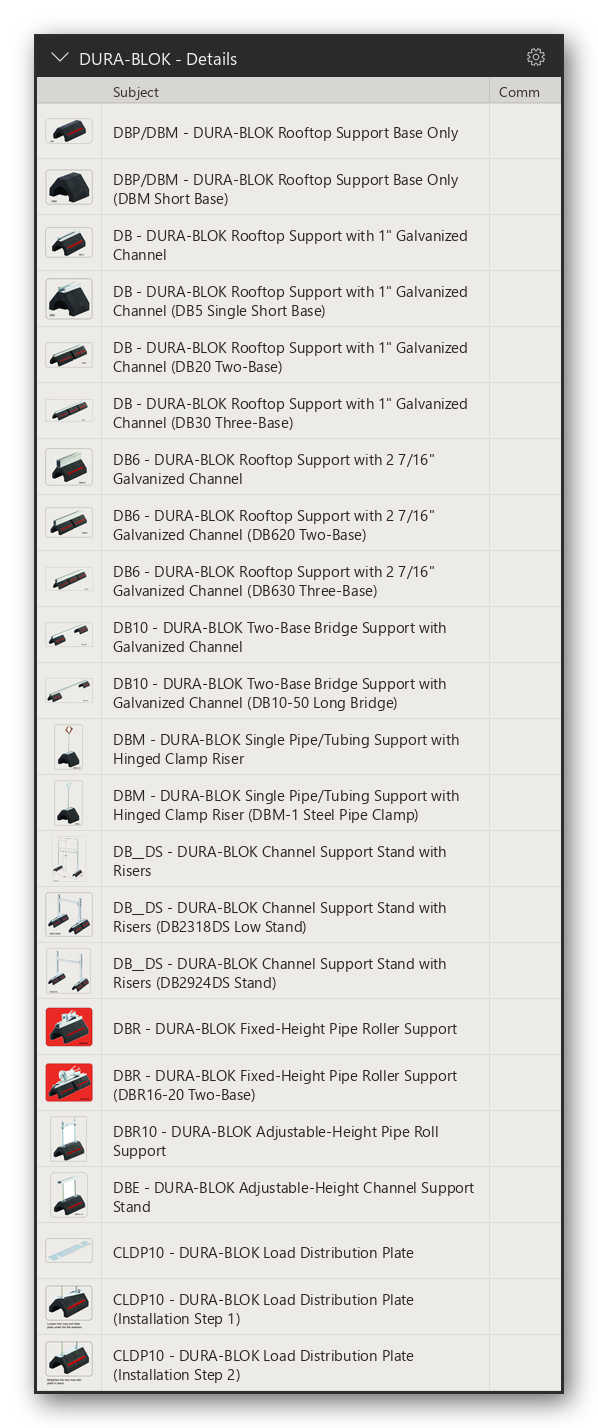

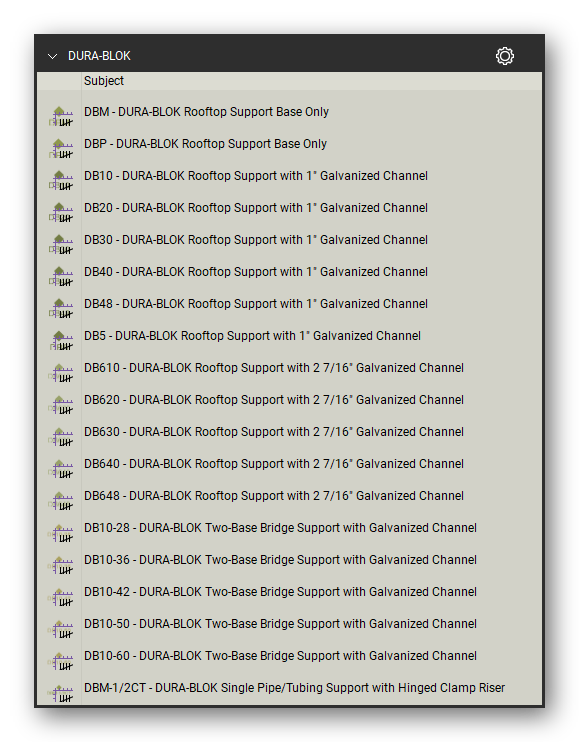

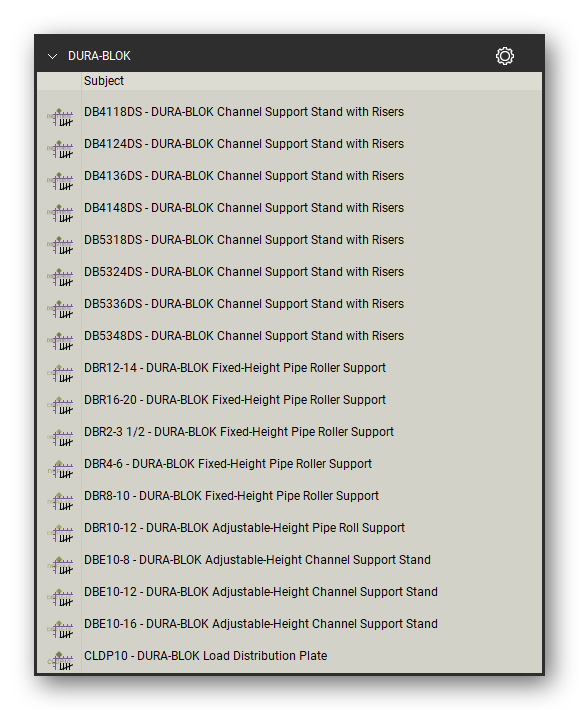

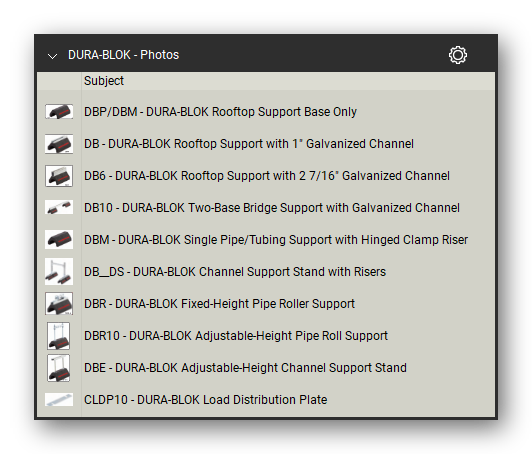

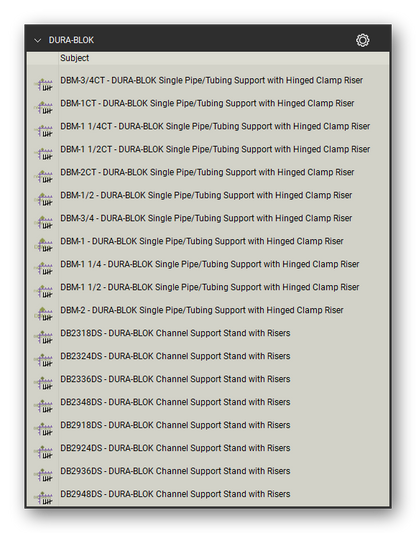

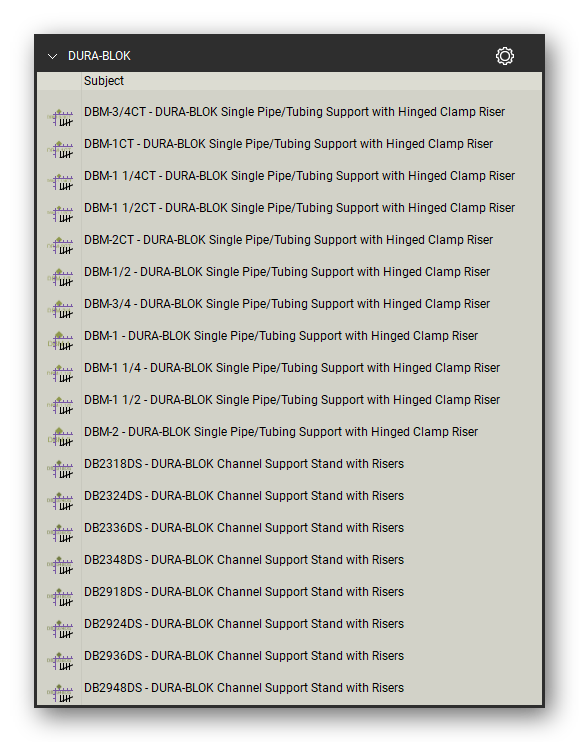

DURA-BLOK rooftop supports
- Rooftop support bases with channel, clamp risers, harnesses, and rollers

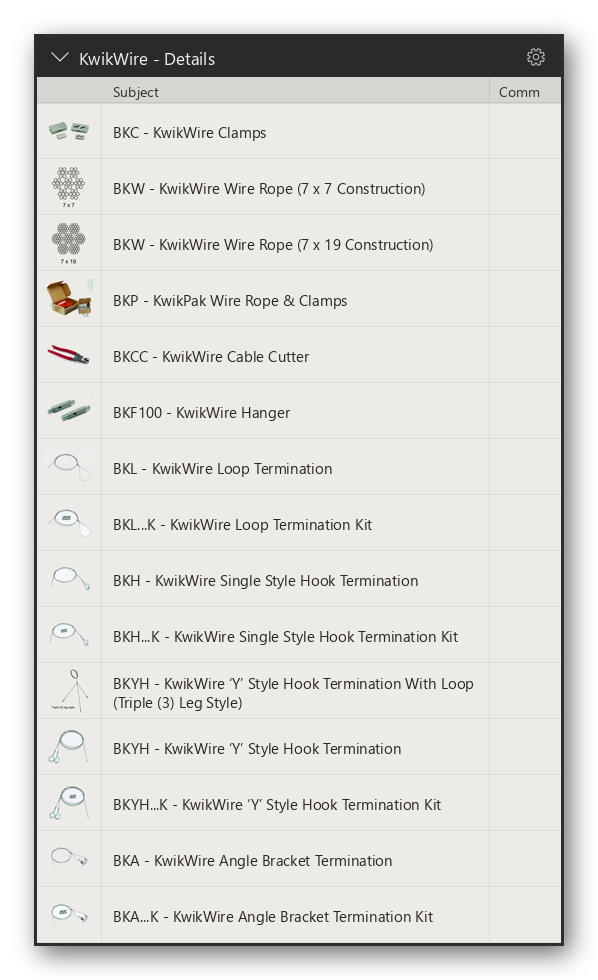

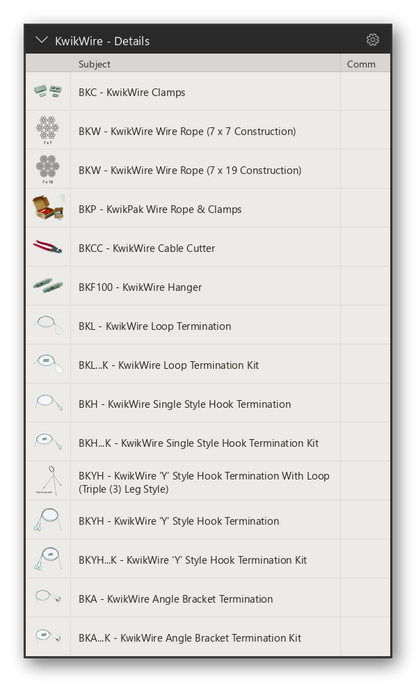

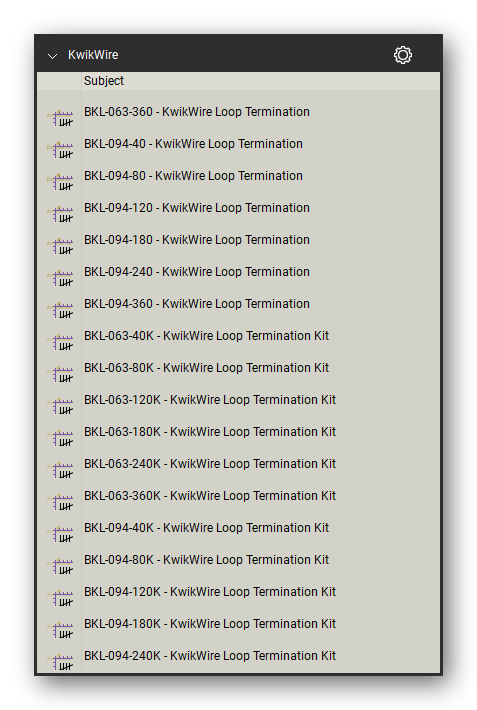

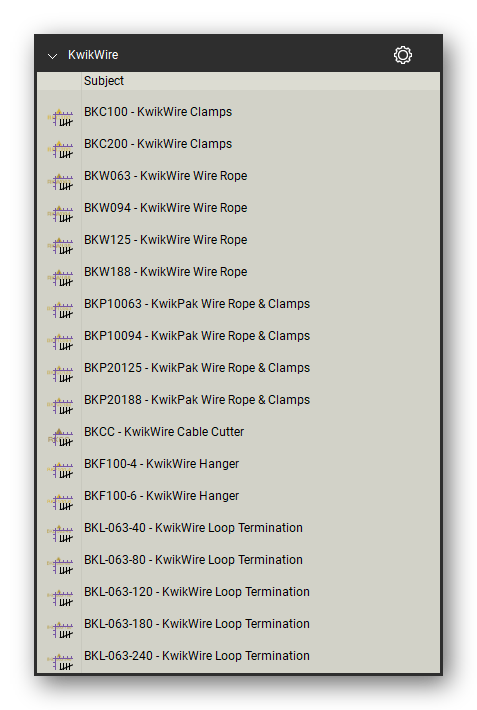

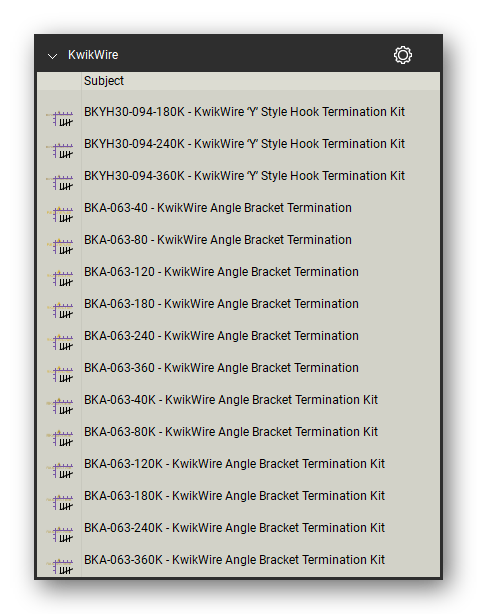

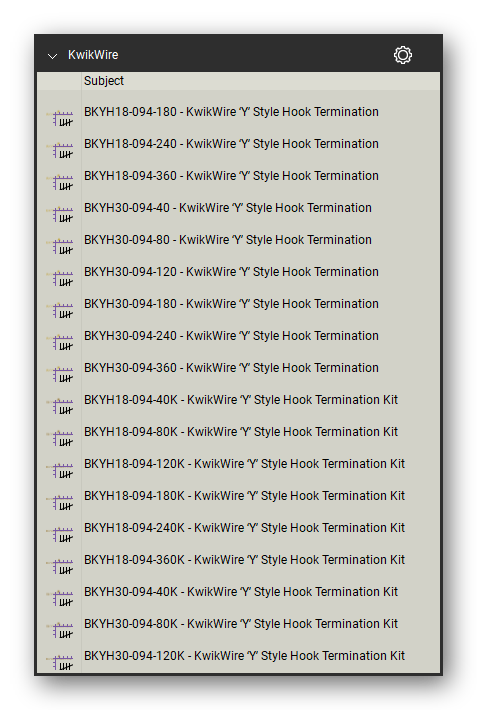

KwikWire cable hangers
- Wire rope, clamps, kits, and loop, hook, and bracket terminations
