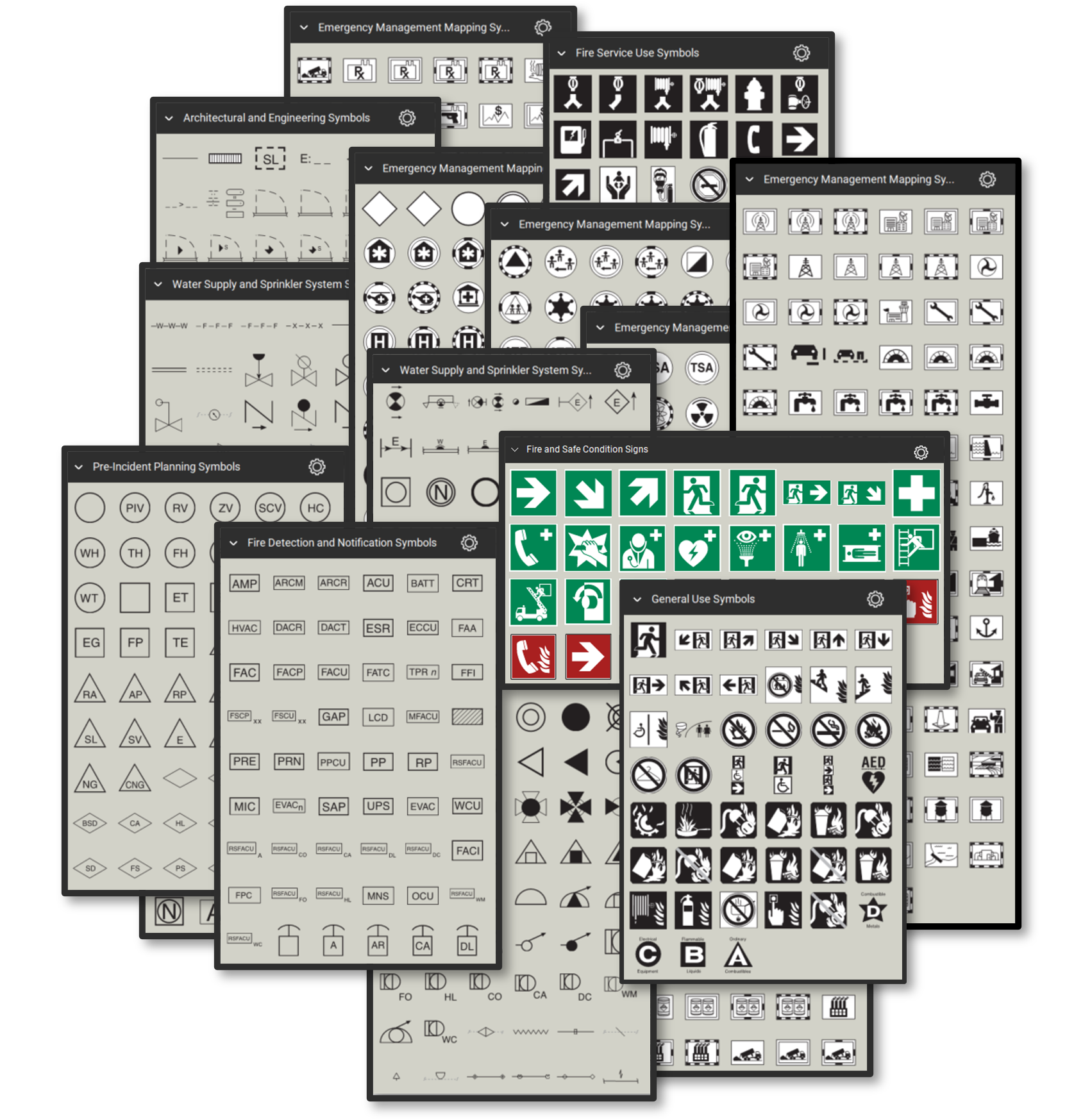

Fire Safety and Emergency Symbols Bluebeam Tool Set

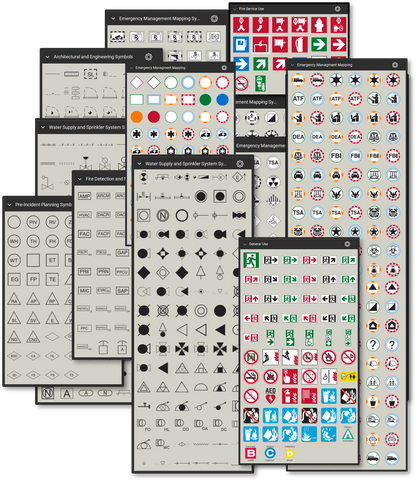

Tool set of standardized symbols used for fire safety, emergency, and associated hazards. This tool of set covers a wide variety of items with over 1100+ symbols. Each symbol's background color can be changed with ease directly in Bluebeam.

Examples of items addressed in the standards include:

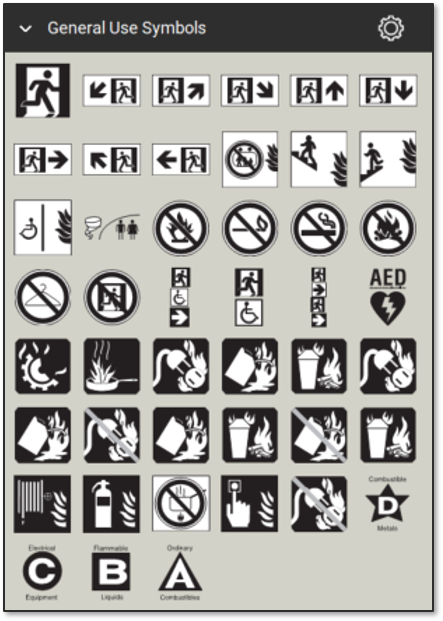

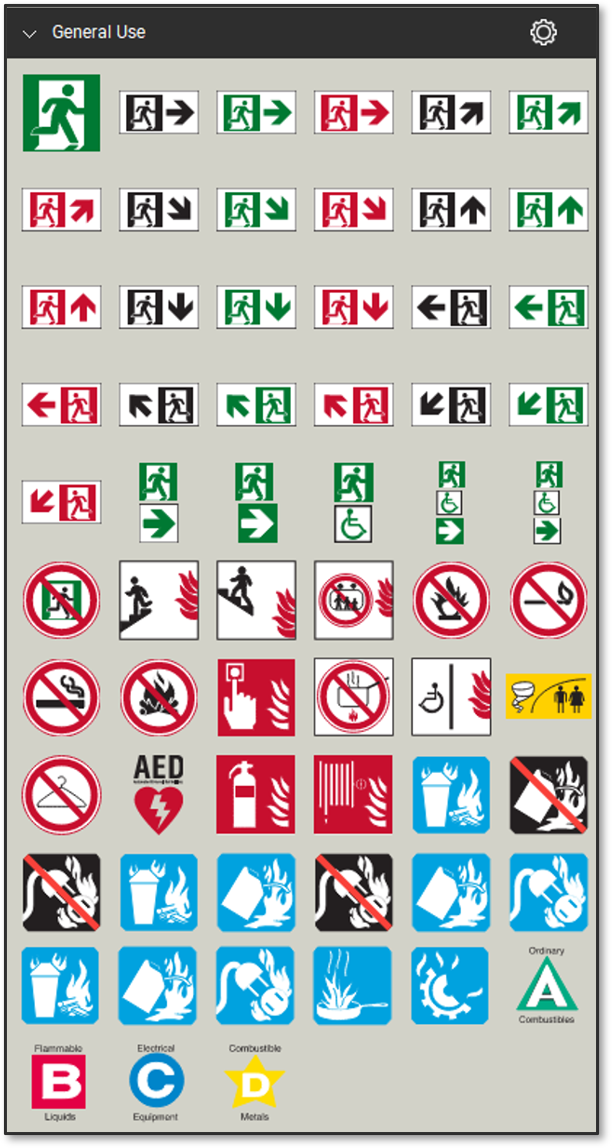

• General use symbols
  • Exit marking and means of egress marking

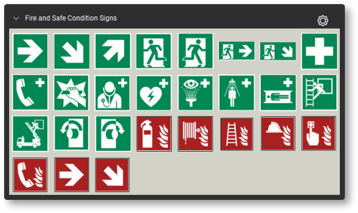

  • Signage to occupants such as no smoking, no cooking, no hangers
  • Identification of equipment such as AEDs, fire extinguishers, and standpipes

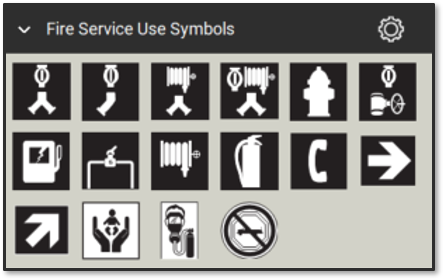

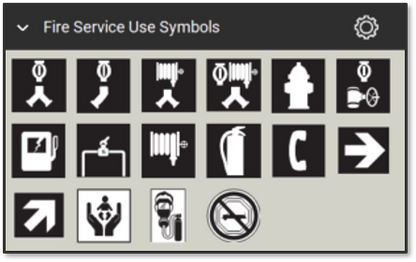

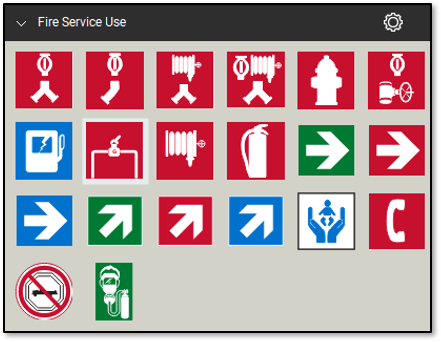

• Symbols for use by the fire service
  • Identifying equipment needed by the fire department such as gas shutoffs, fire department connections, standpipe connections, and fire hydrants

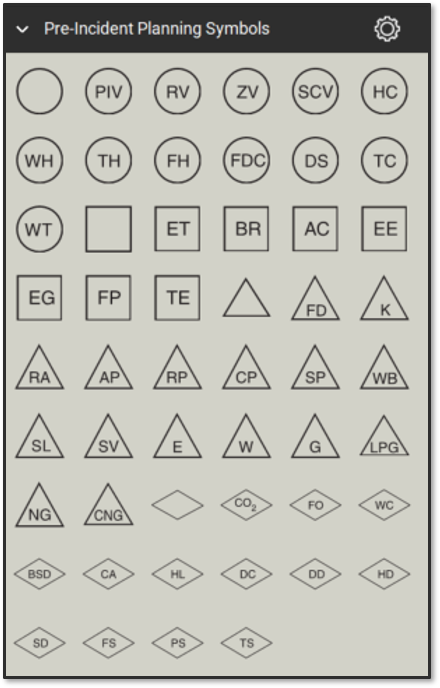

  • Symbols to be used in pre-incident planning

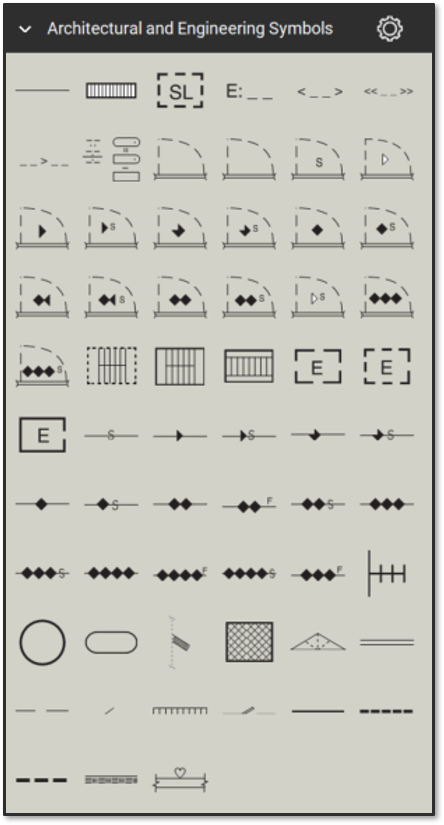

• Symbols for use in architectural and engineering drawings
  • Line types to use to identify wall type such as fire-rated walls
  • Symbols for floor and wall openings such as stairwells, shafts, elevators, and doorways as well as means to identify the protection, such as door ratings

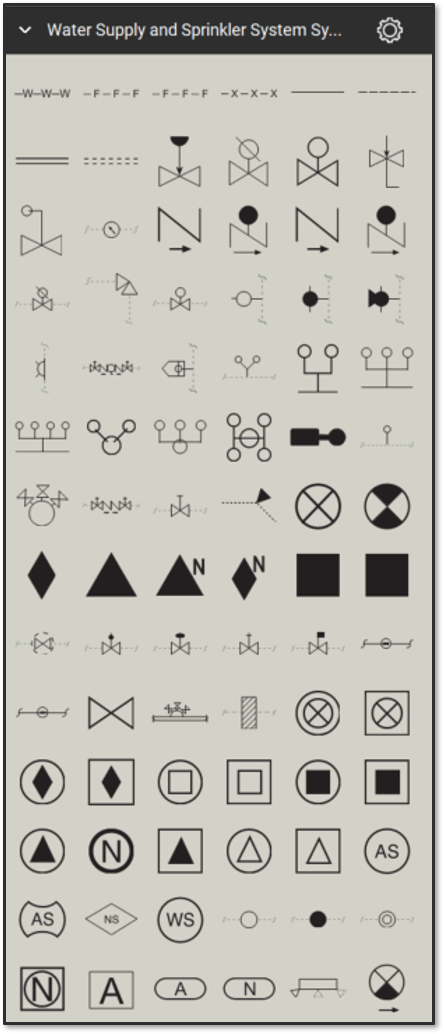

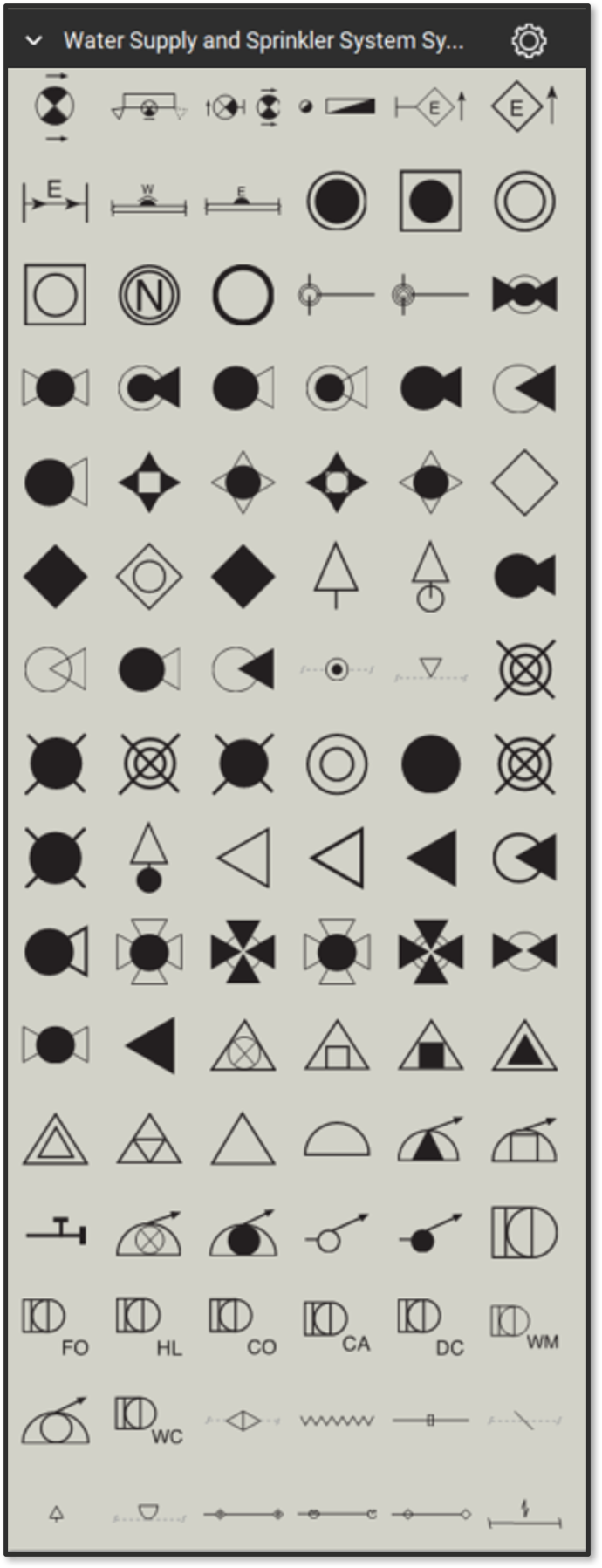

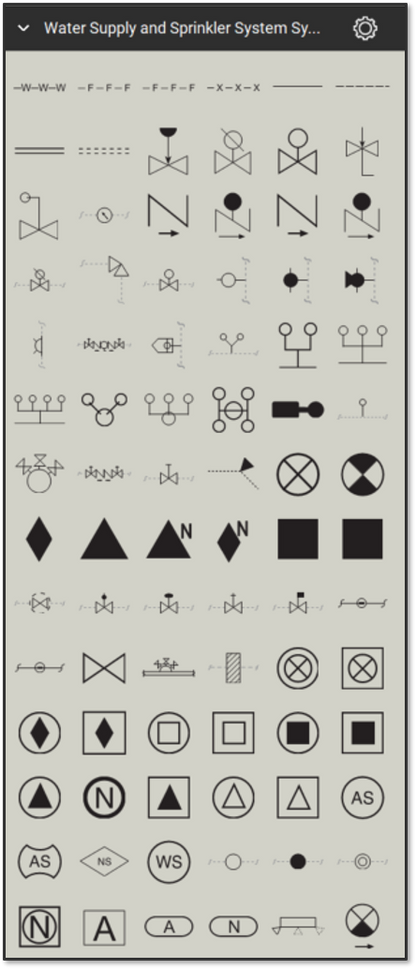

  • Symbols for water distribution systems
  • Symbols for fire extinguishing systems including sprinkler systems, fire pumps, and portable fire extinguishers

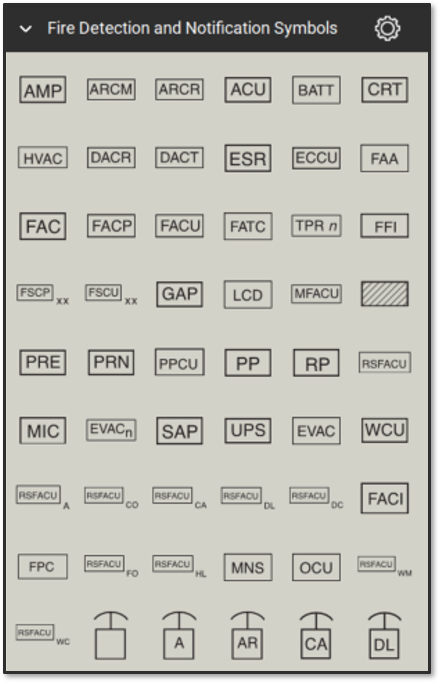

  • Symbols for fire alarm and signaling systems

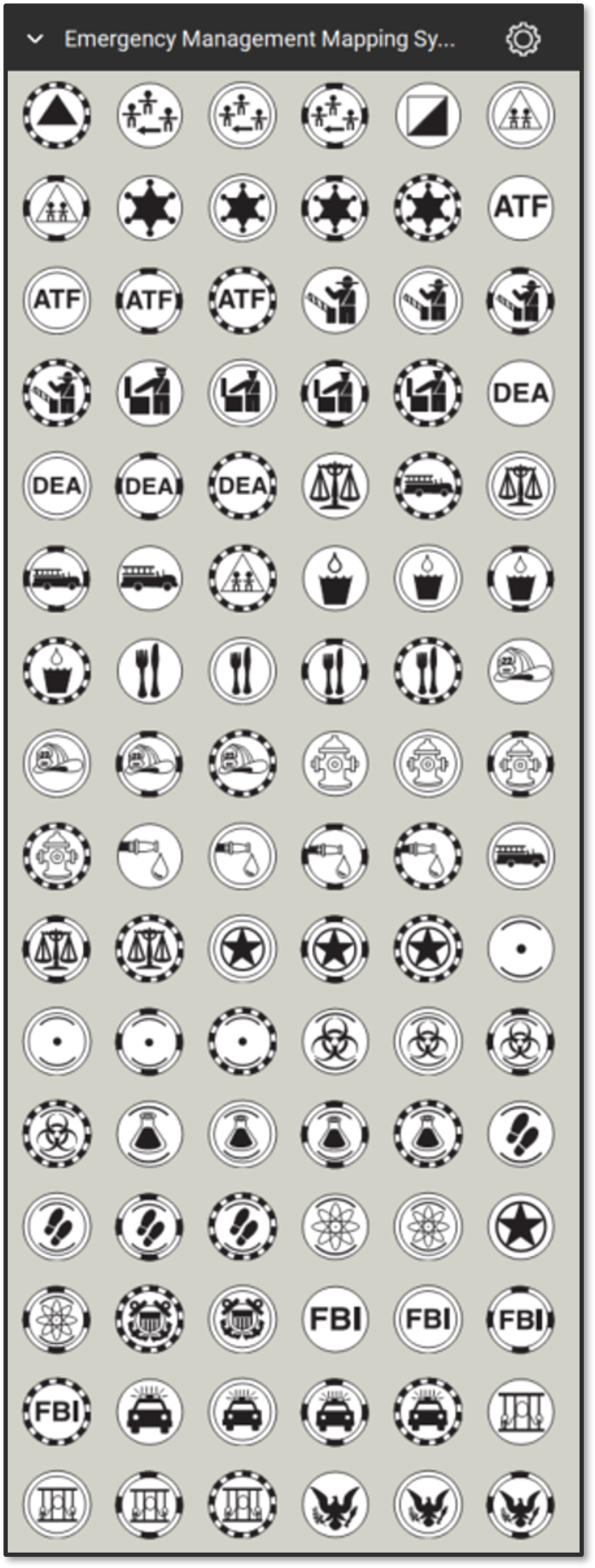

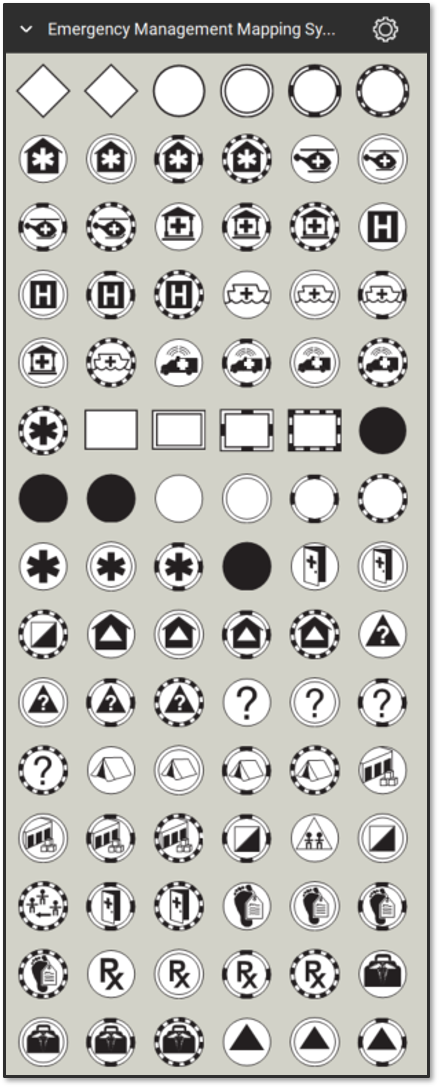

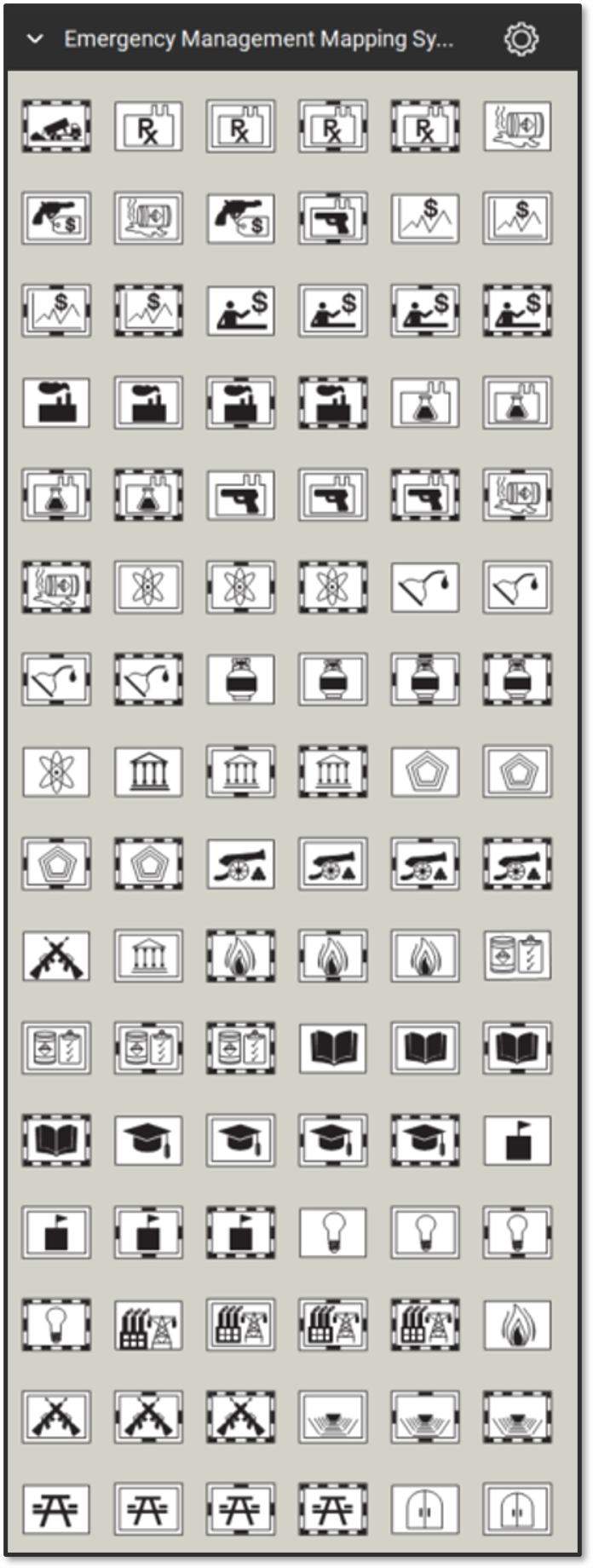

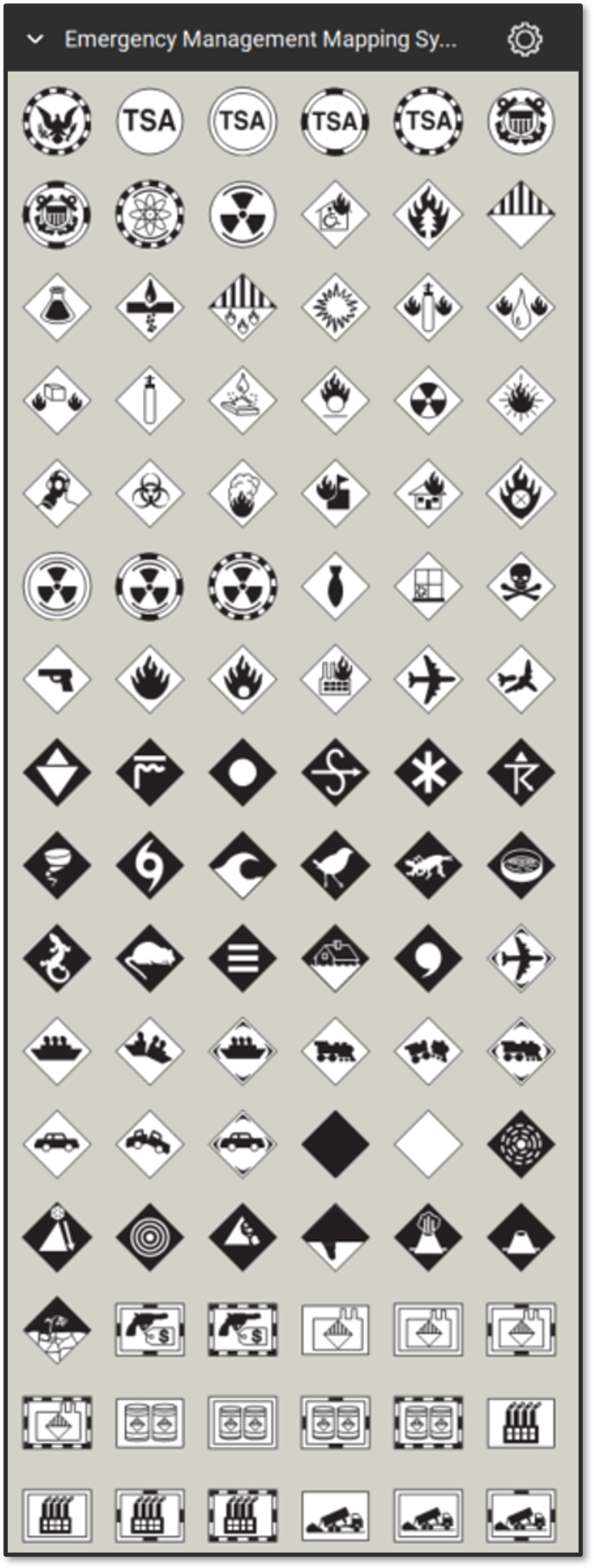

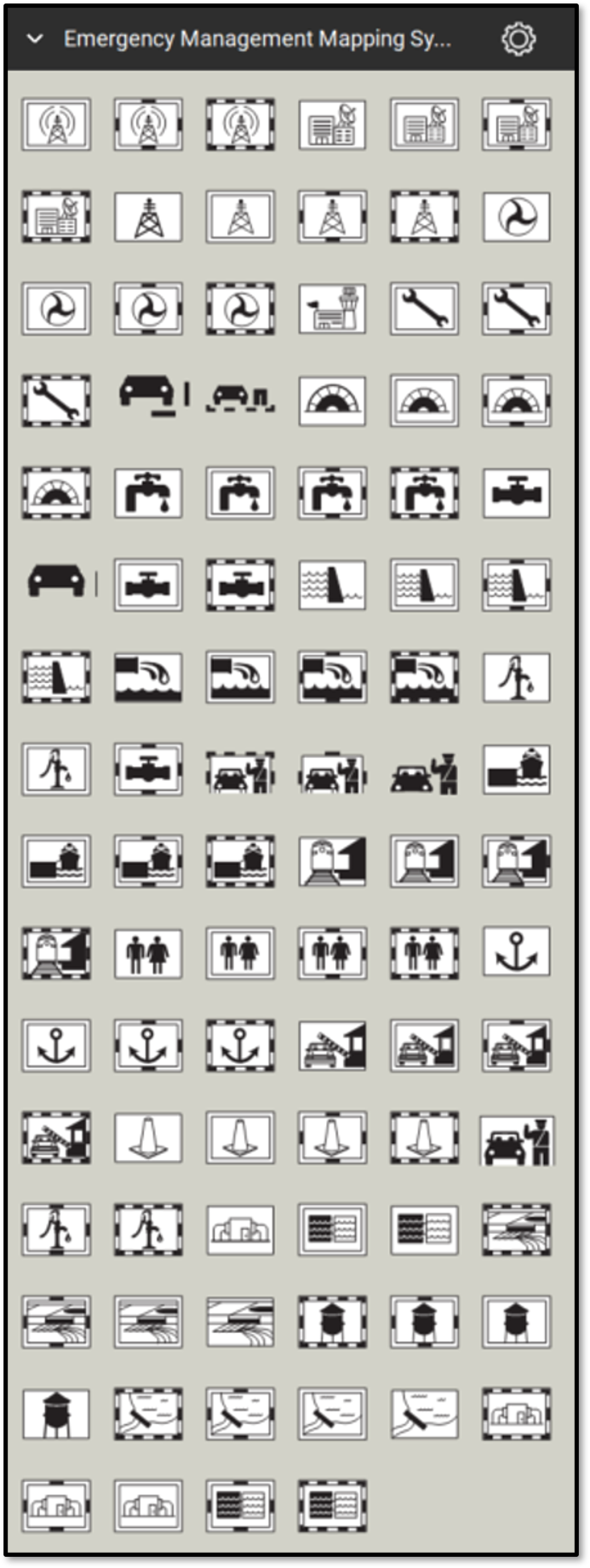

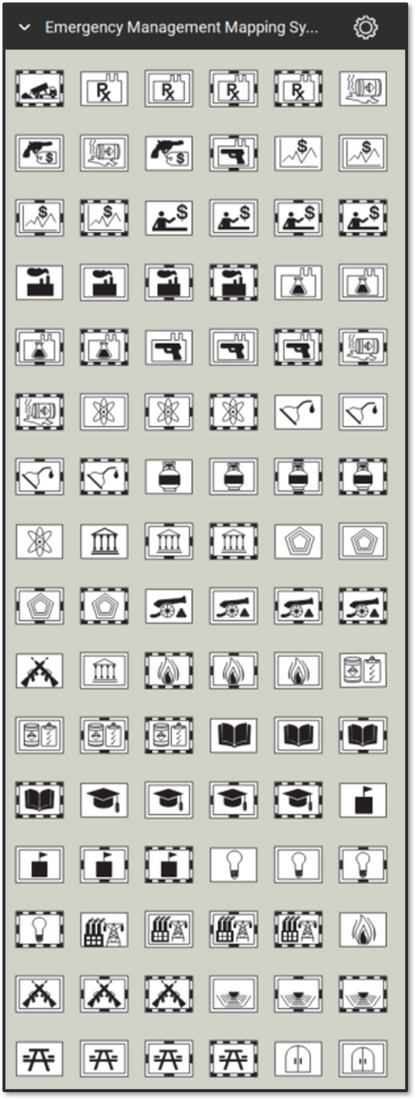

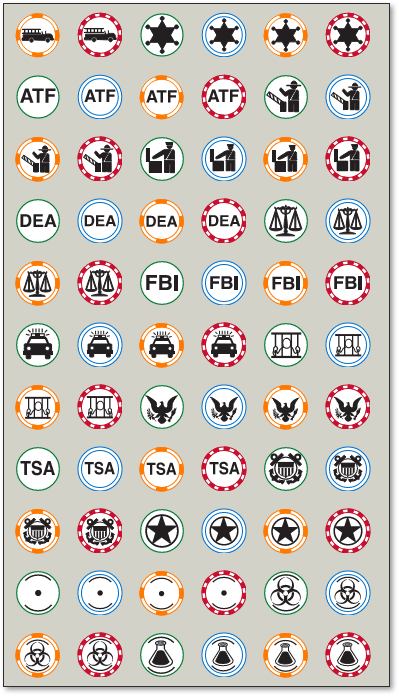

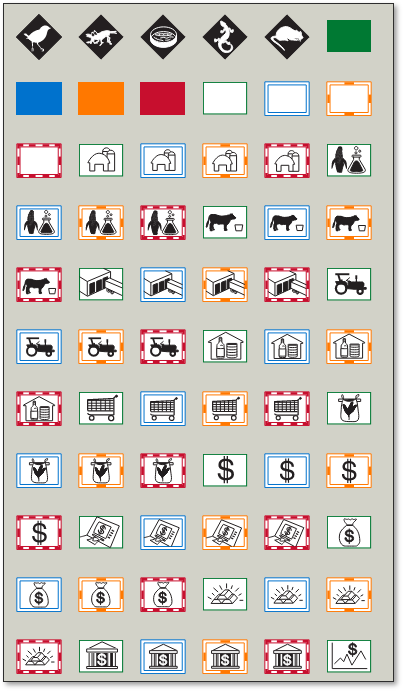

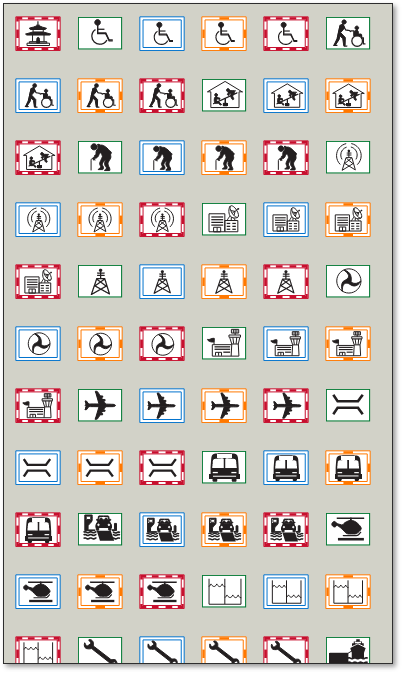

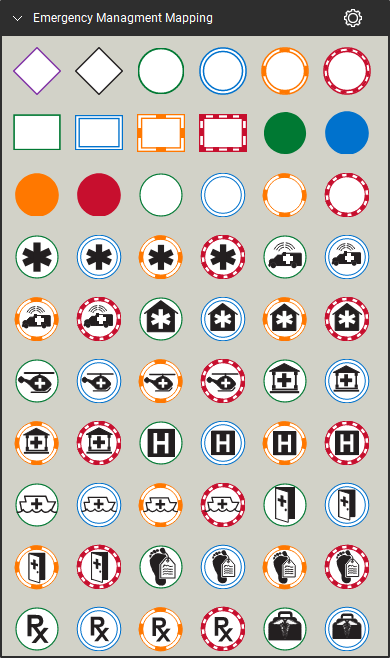

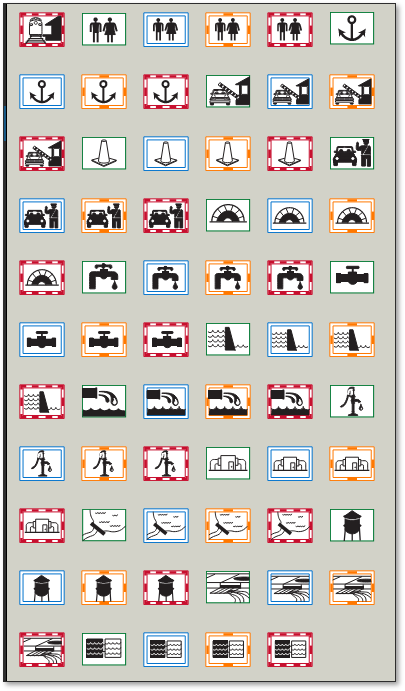

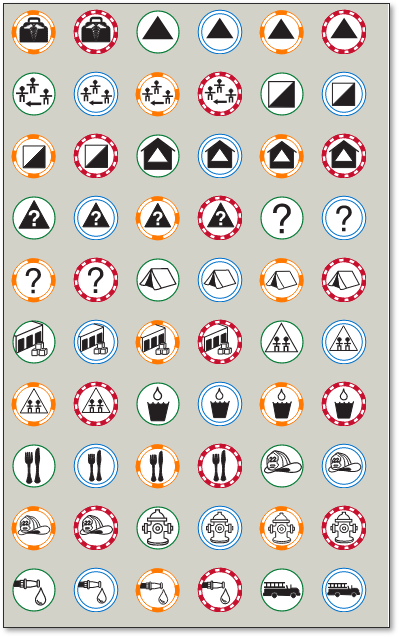

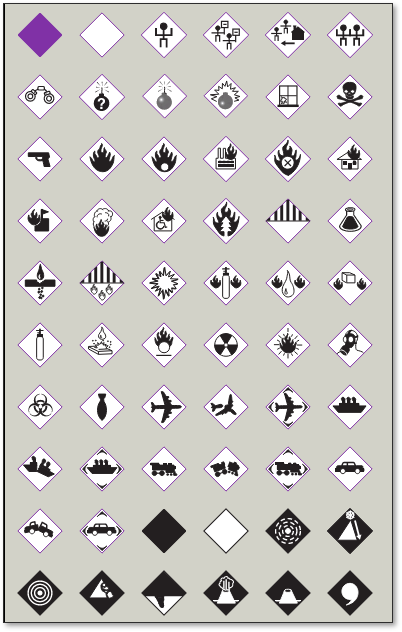

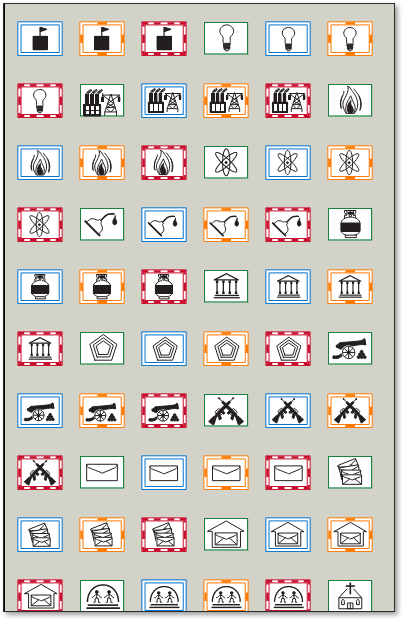

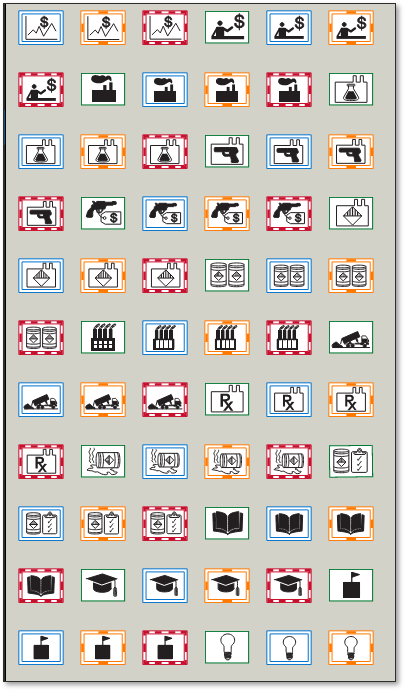

• Symbols used for emergency management
• Symbols to identify infrastructure, damage, operations, incidents, and natural events


• Symbols for emergency evacuation diagrams
• Symbols for the preparation of floor diagrams and plans, posted within a building, to show the egress evacuation paths and locations of equipment used during an emergency
