Framing & Structural Details Bluebeam Tool Set

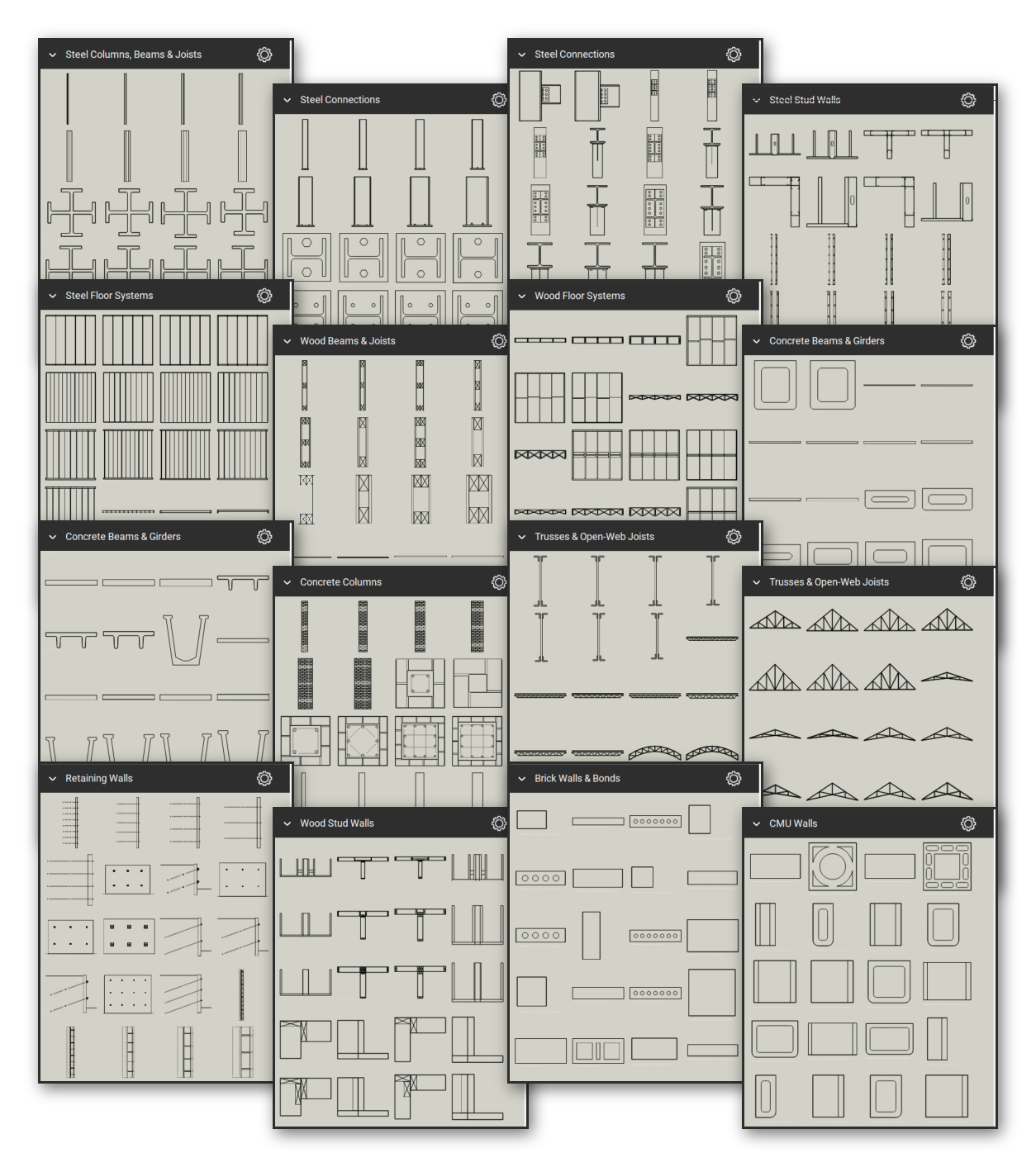

Tool set of framing, structural, and masonry details for structural and architectural drawings. This tool set covers sixteen categories with over 2,700+ markups. Every detail is a fully editable native Bluebeam markup — each one places as a single grouped markup that can be stretched, recolored, and relabeled directly in Bluebeam, with every view drawn separately so plans, elevations, and sections each place as their own tool.

Examples of details included:

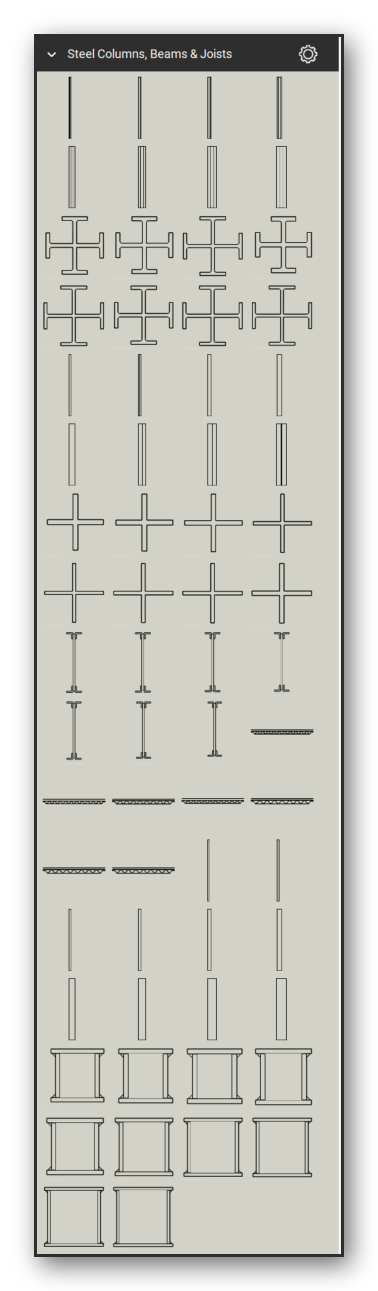

Steel Columns, Beams & Joists
- Welded box, cruciform, and bulb-plate columns and beams
- Open-web steel joists in plan, elevation, and section

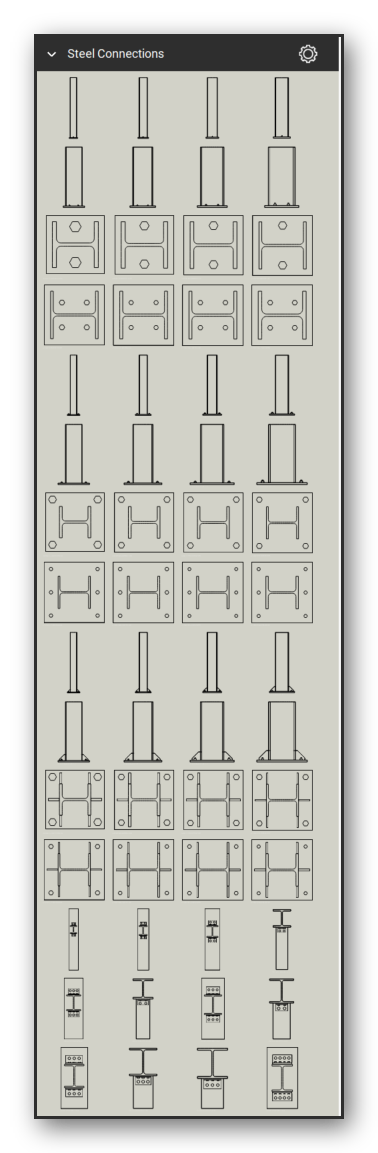

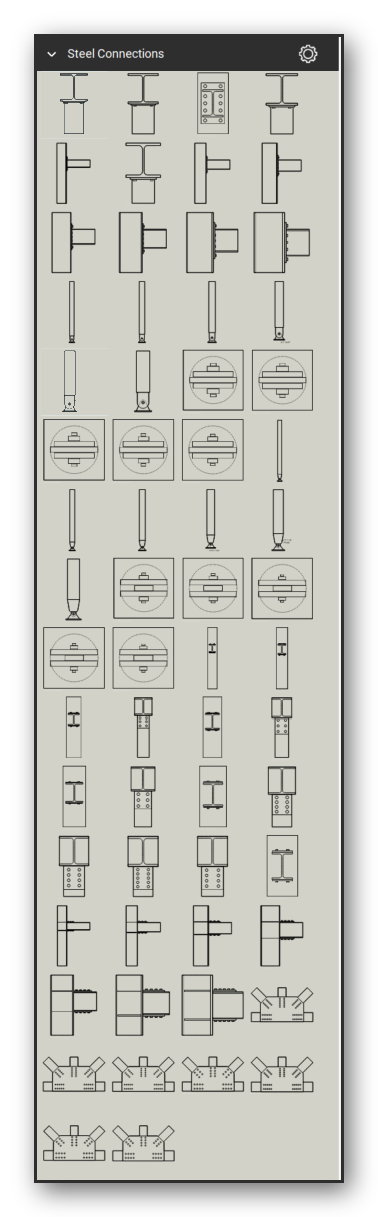

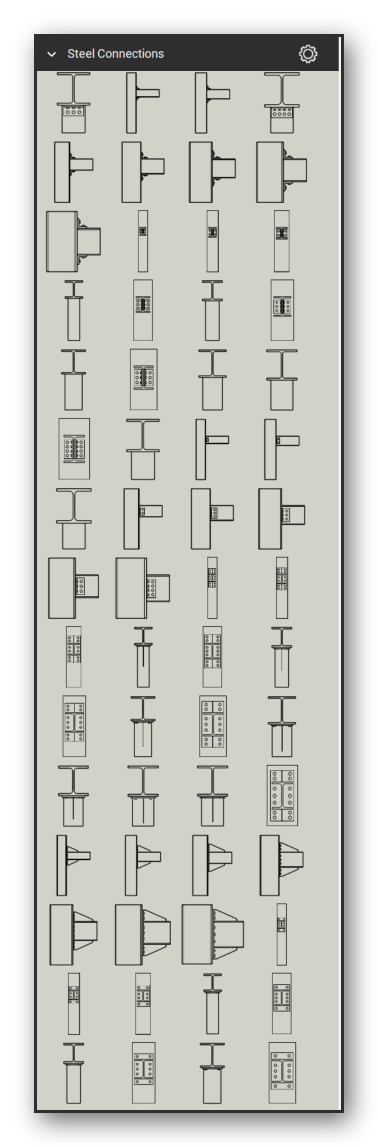

Steel Connections
- Base plates with inner bolts, outer bolts, and stiffeners
- End plate, cleat, gusset plate, and pin-hinge connections

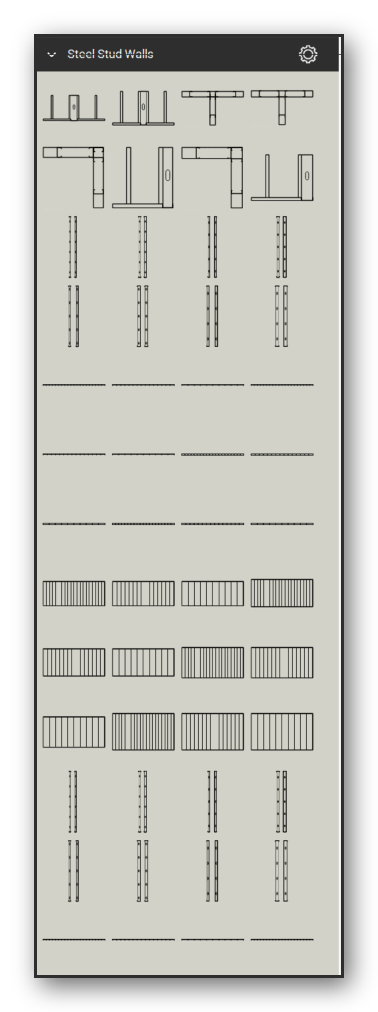

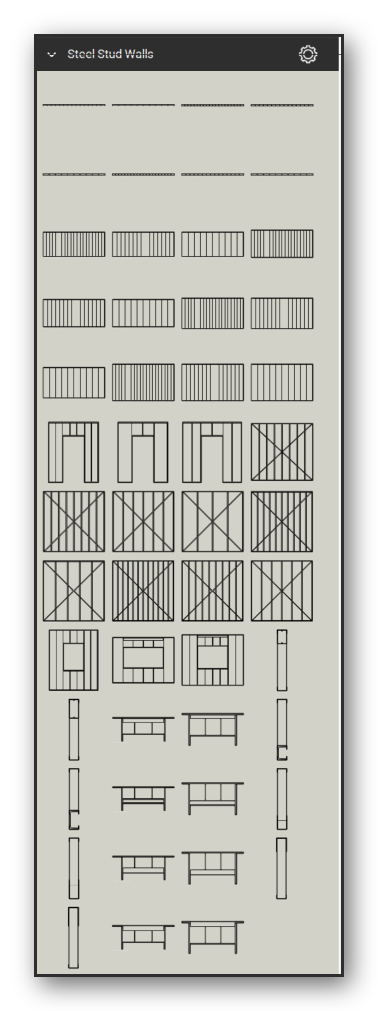

Steel Stud Walls
- C-stud and channel-stud framing with strap bracing
- Inside and outside corners, door and window openings, and headers

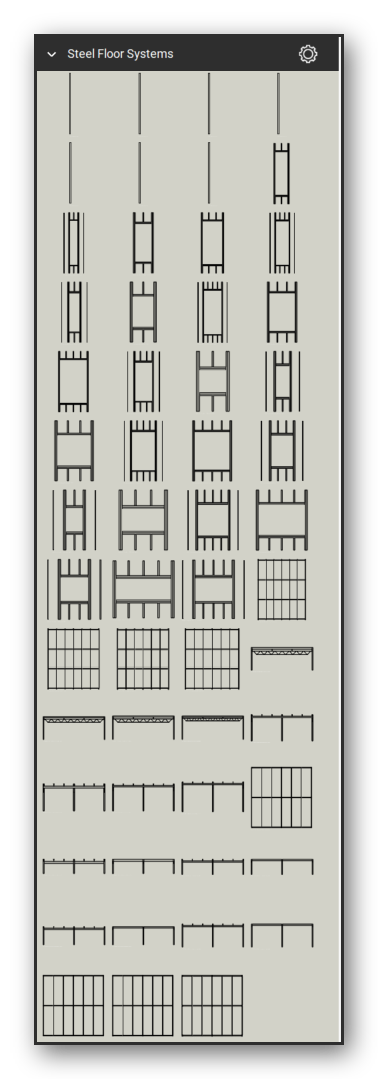

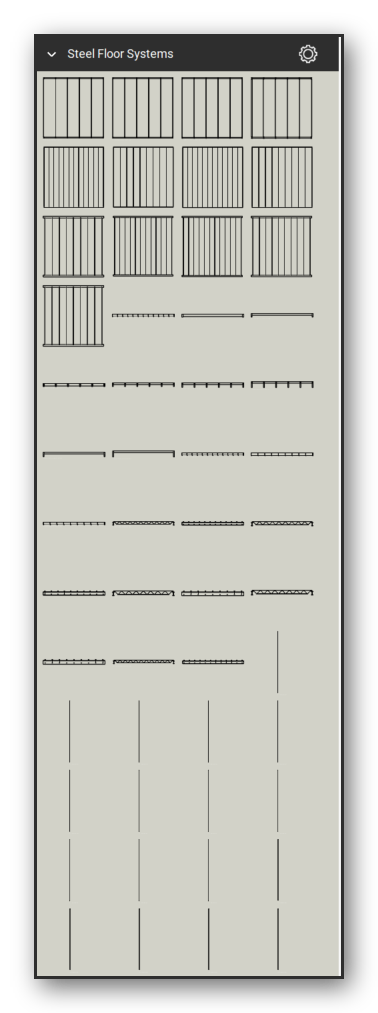

Steel Floor Systems
- One-way, two-way, and three-way floor framing plans
- I-beam, light-gauge joist, and open-web joist systems with framed
  openings

Wood Beams & Joists
- Box beams, cross-laminated timber, and I-joists in plan, elevation,
  and section

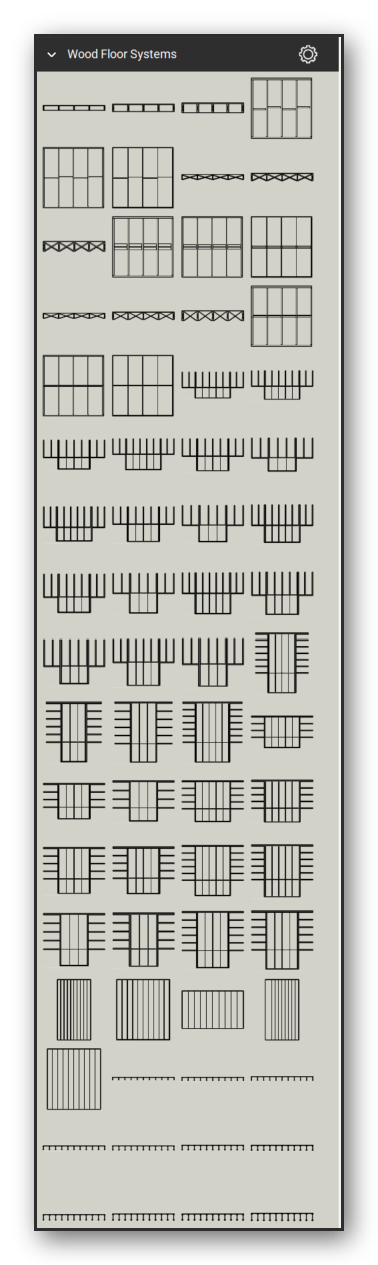

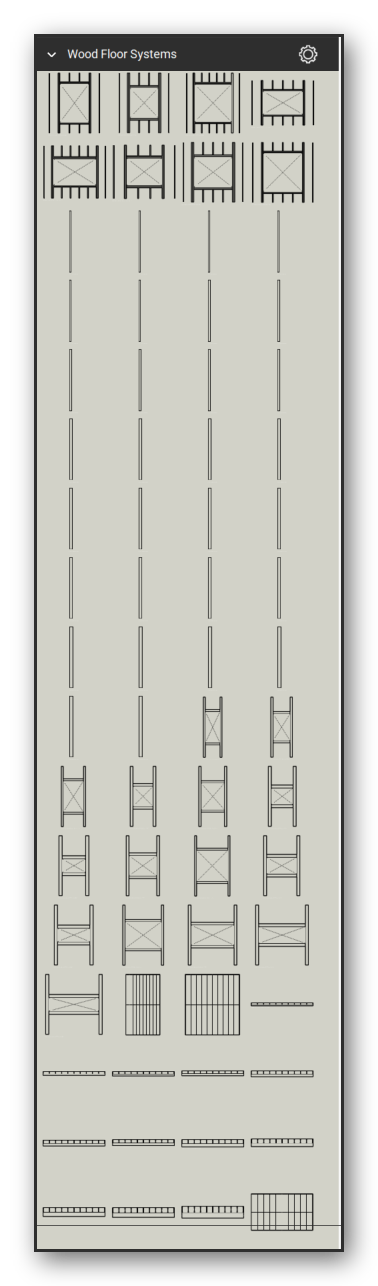

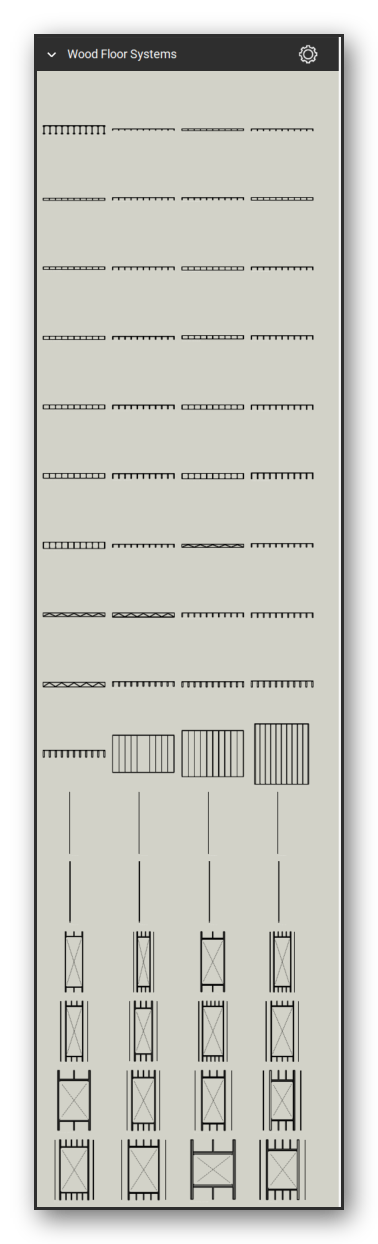

Wood Floor Systems
- Joist, I-beam, plank-and-beam, and open-web truss floors
- Block, cross, and metal bridging, cantilevers, and framed openings

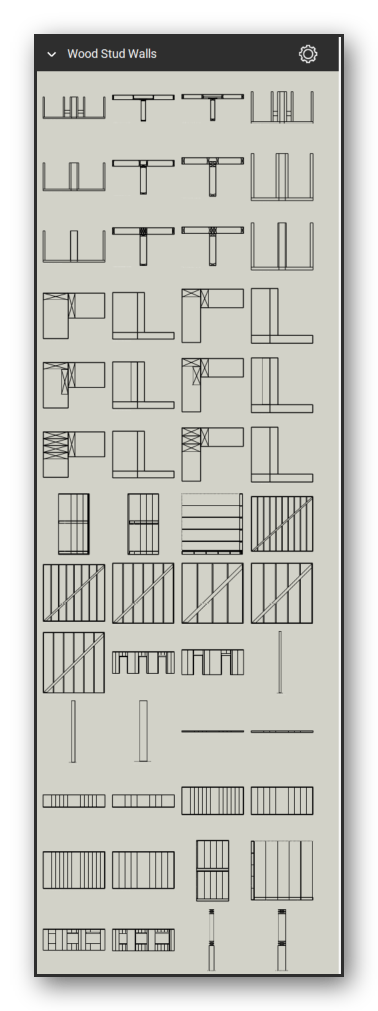

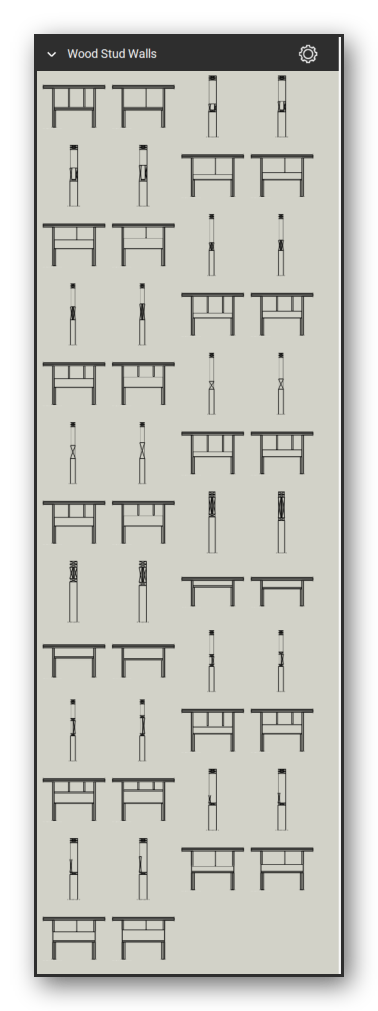

Wood Stud Walls
- Platform and balloon framing, partitions, and bracing
- Corner assemblies, door and window openings, and header types

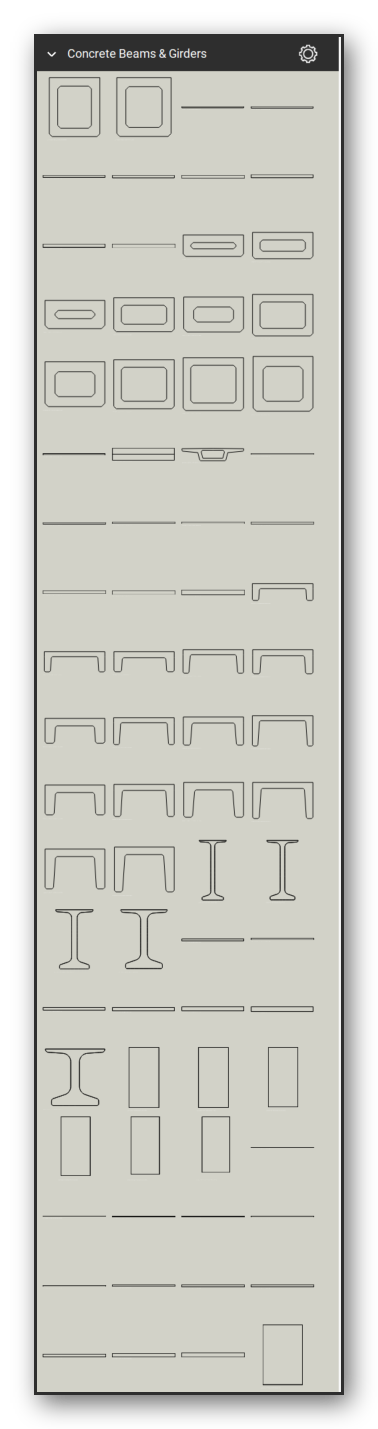

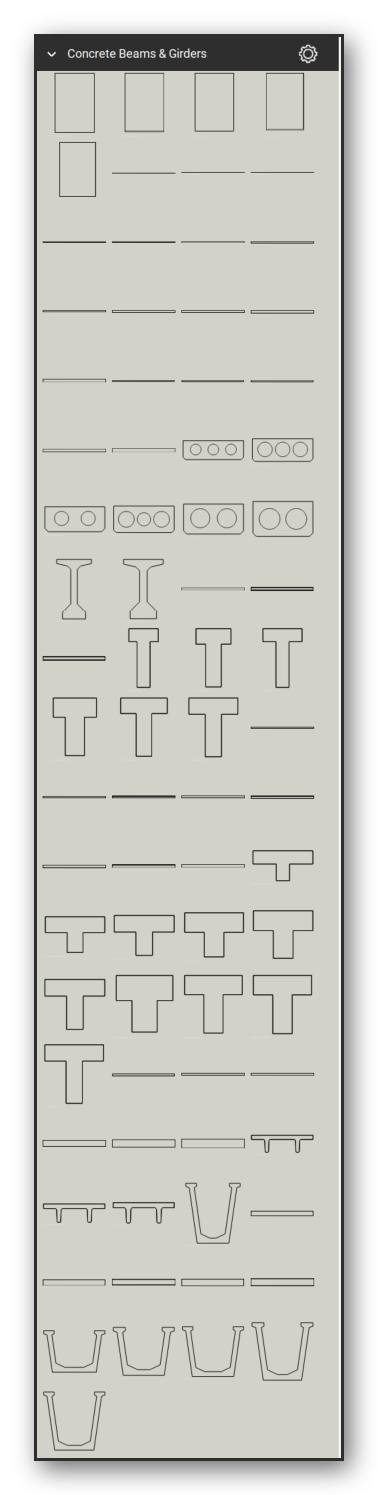

Concrete Beams & Girders
- Rectangular, T-section, box, channel, NU, and tub girder profiles
- Voided slab sections

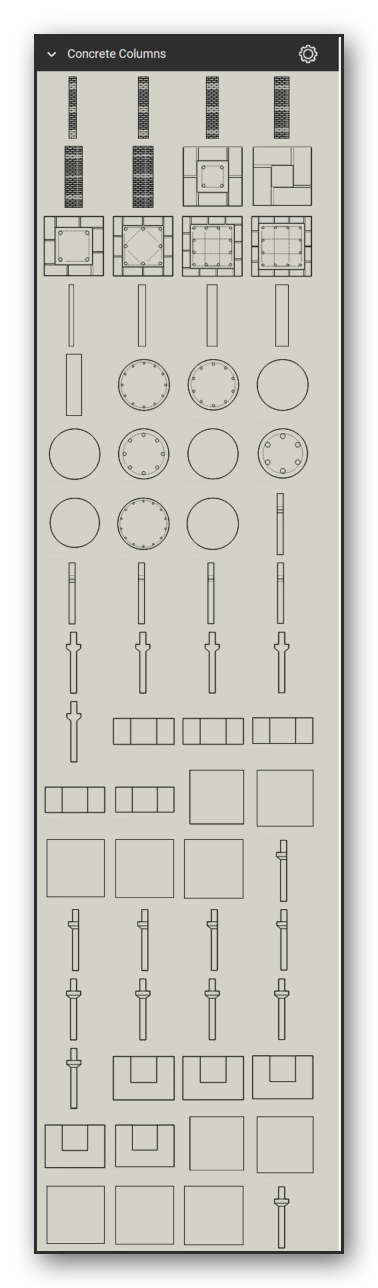

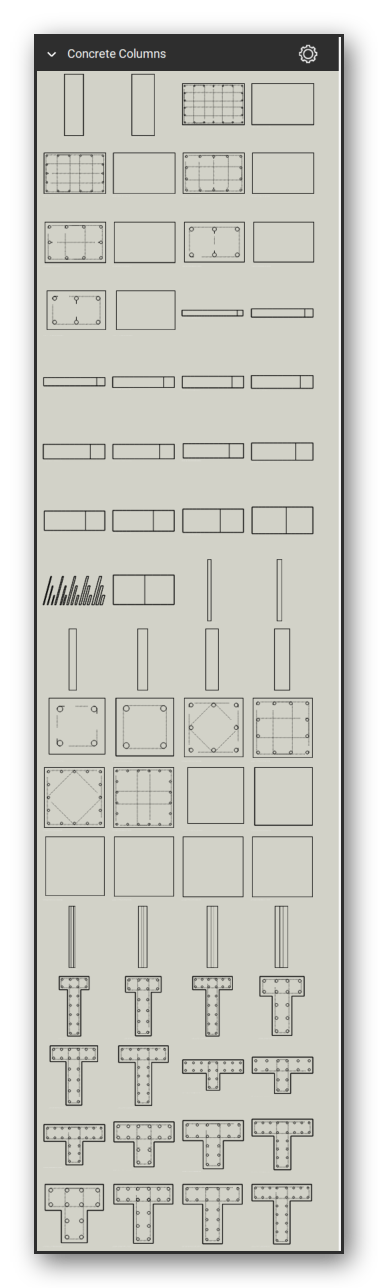

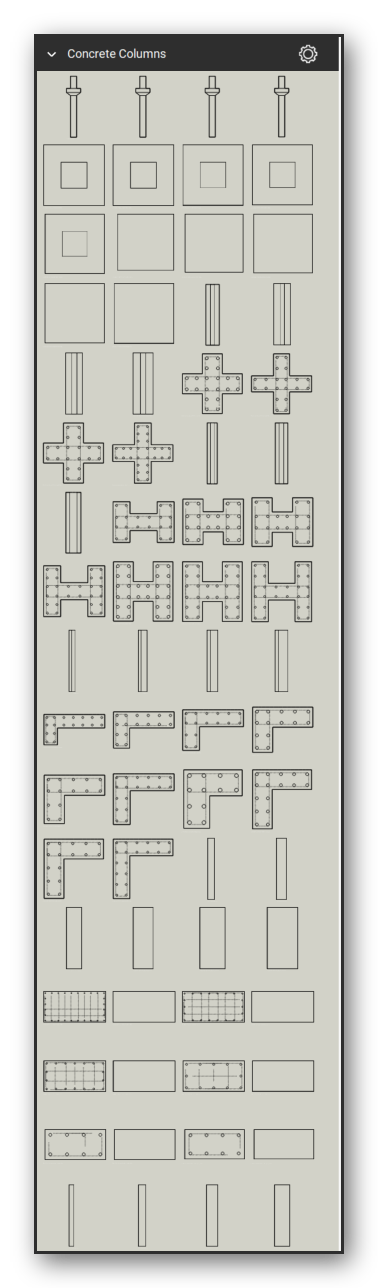

Concrete Columns
- Square, round, rectangular, L, T, I, and cruciform sections
- Corbel details and brick-faced columns

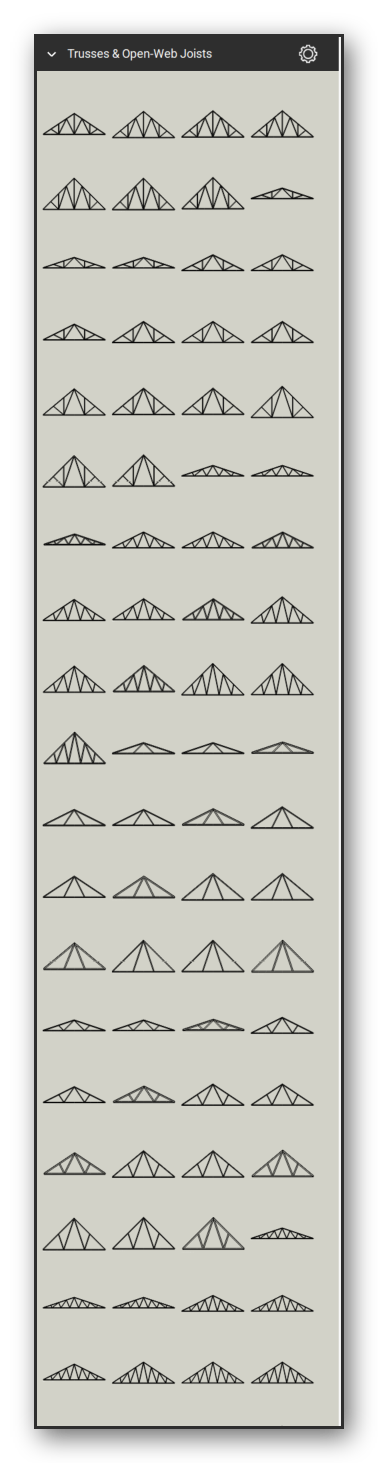

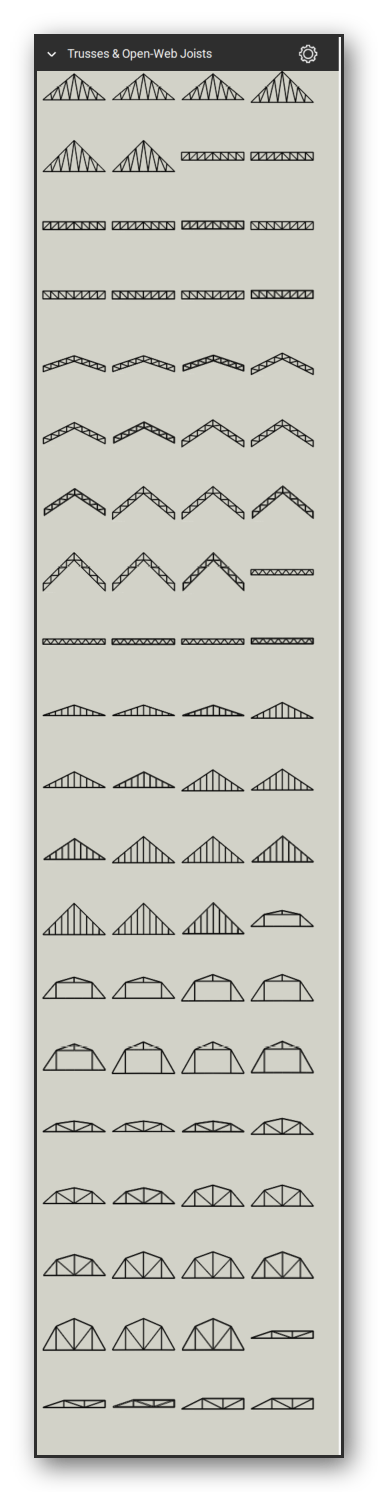

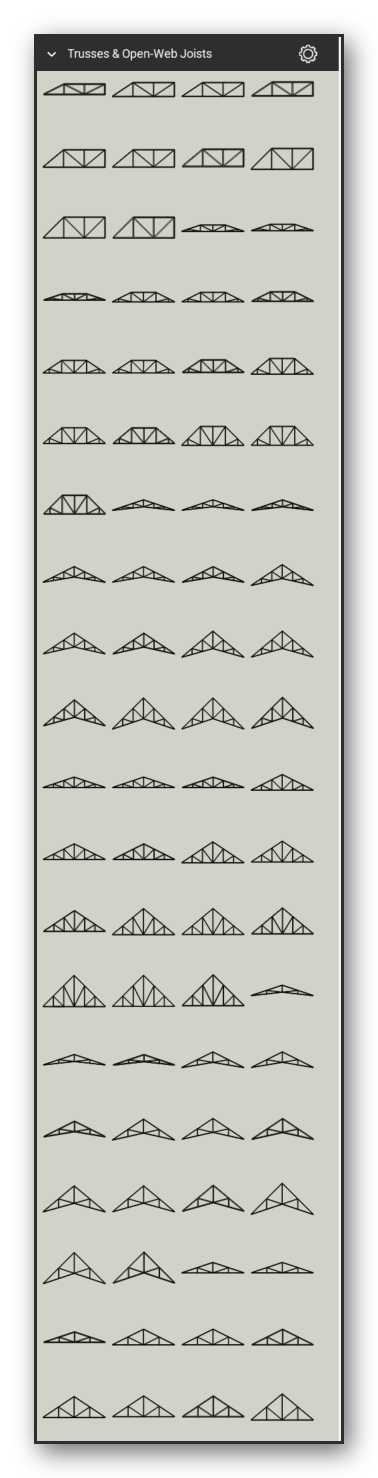

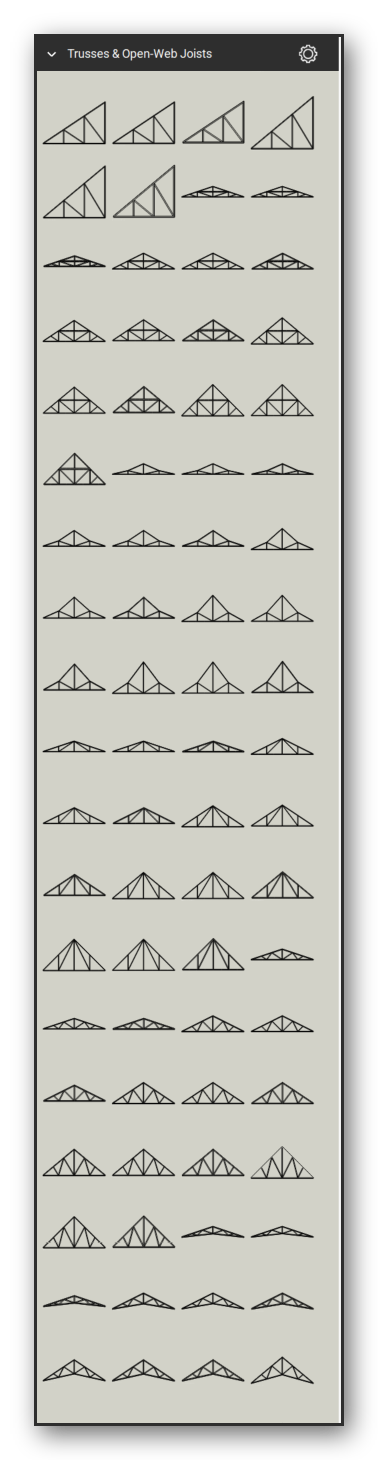

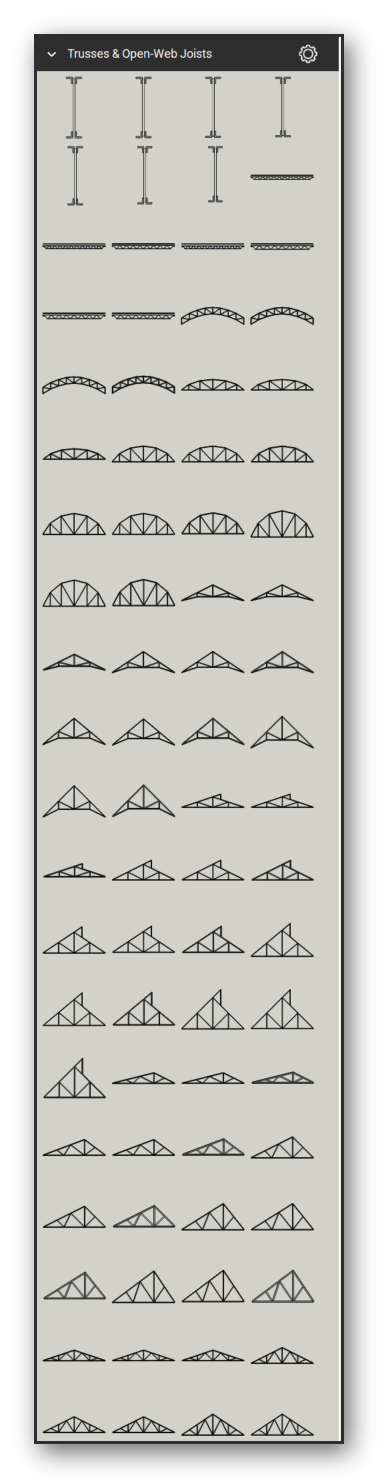

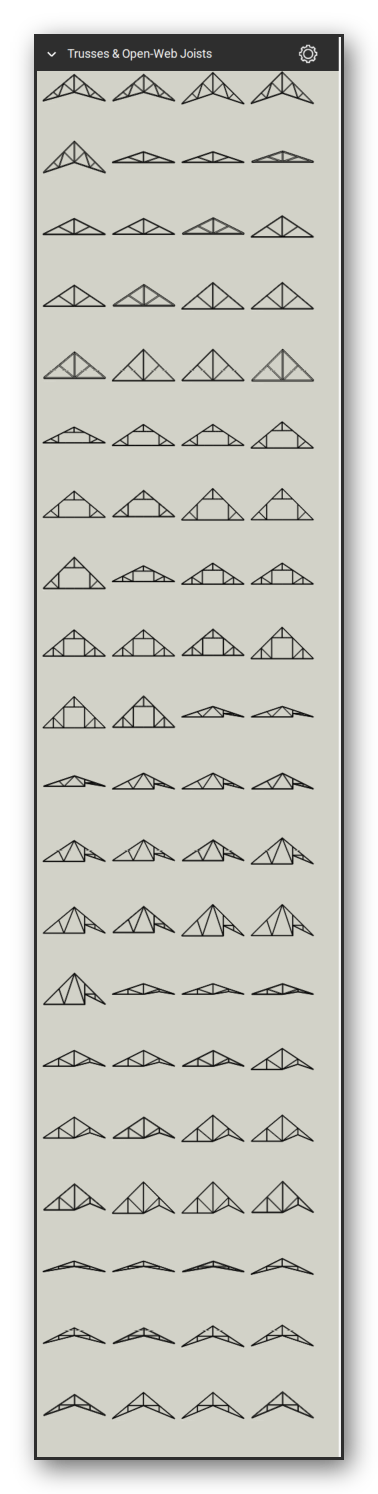

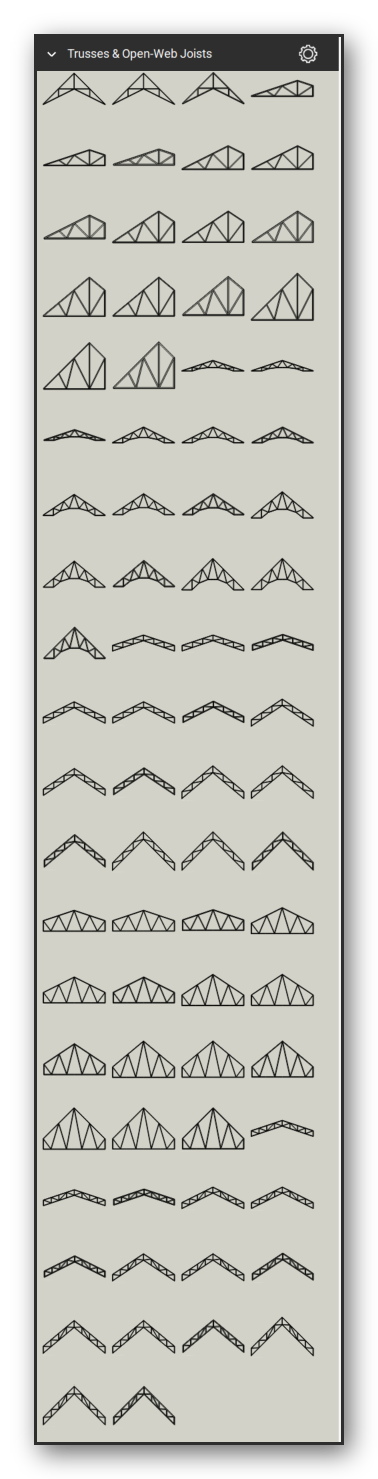

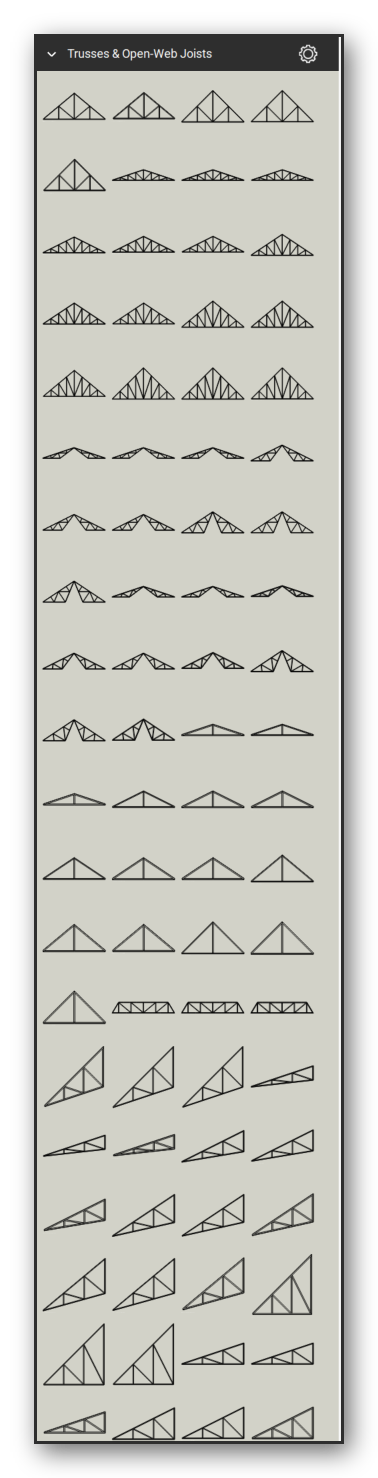

Trusses & Open-Web Joists
- 48 truss families including Fink, Howe, Pratt, Warren, fan, bowstring,
  and clerestory profiles
- Open-web steel joists with beam bearing details

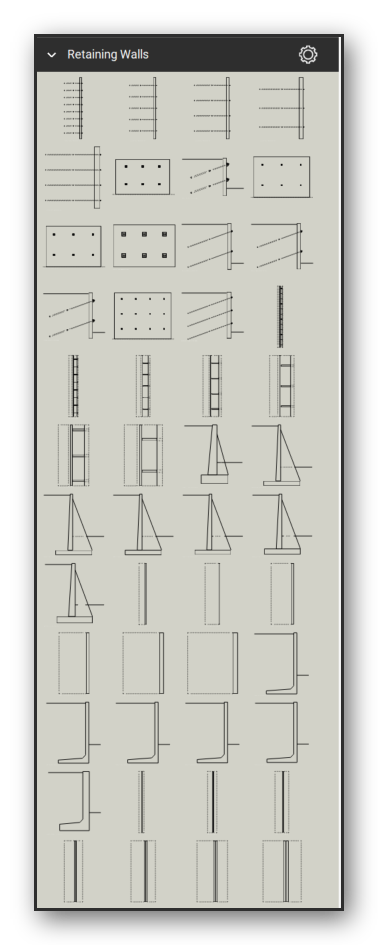

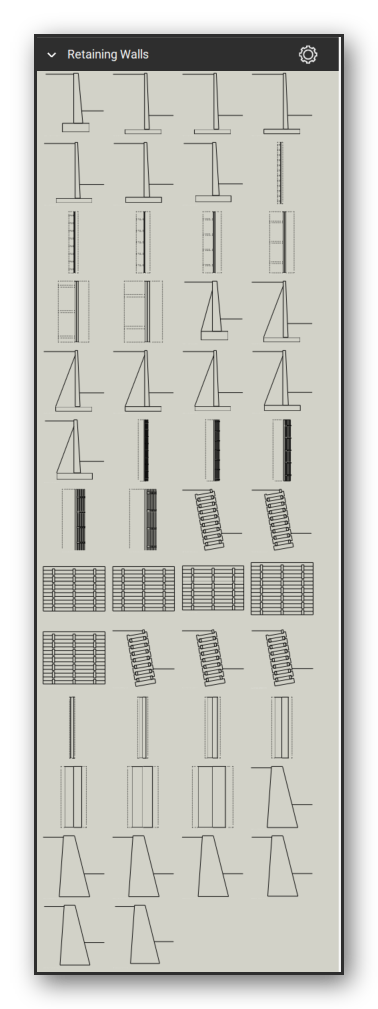

Retaining Walls
- Anchored, buttress, cantilever, counterfort, crib, and gravity walls

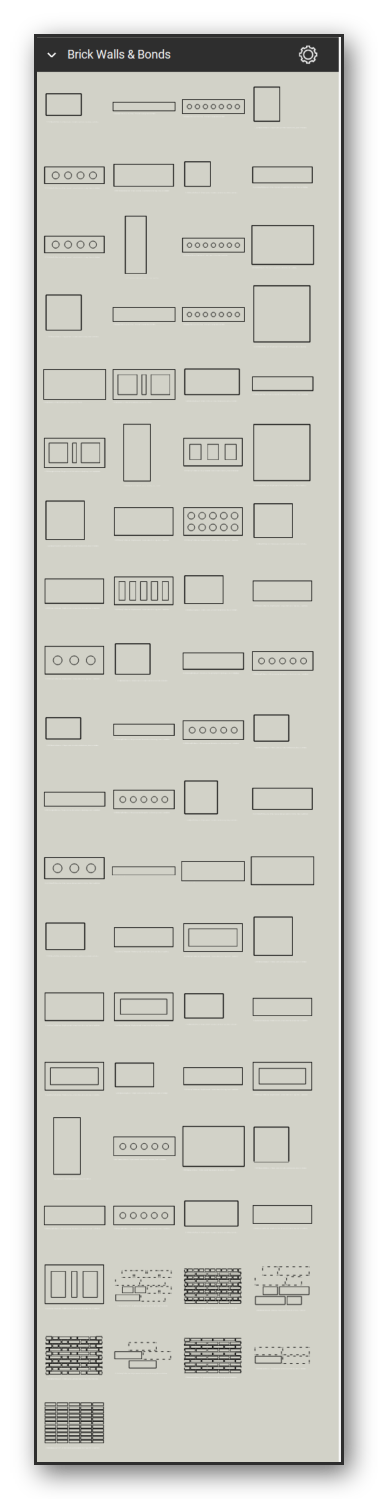

Brick Walls & Bonds
- Modular, Norman, Roman, queen, king, and international brick sizes
- Wall plans and bond details

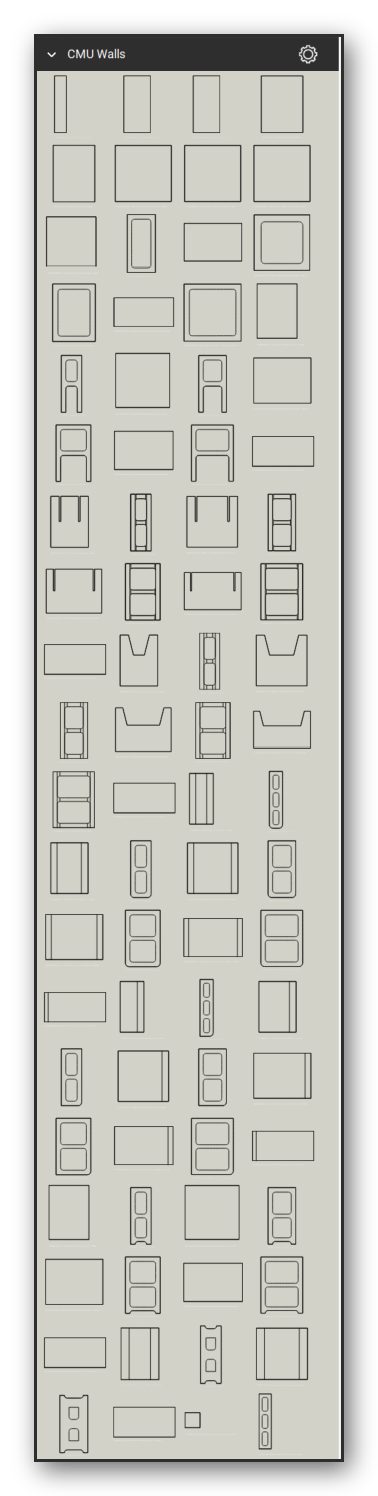

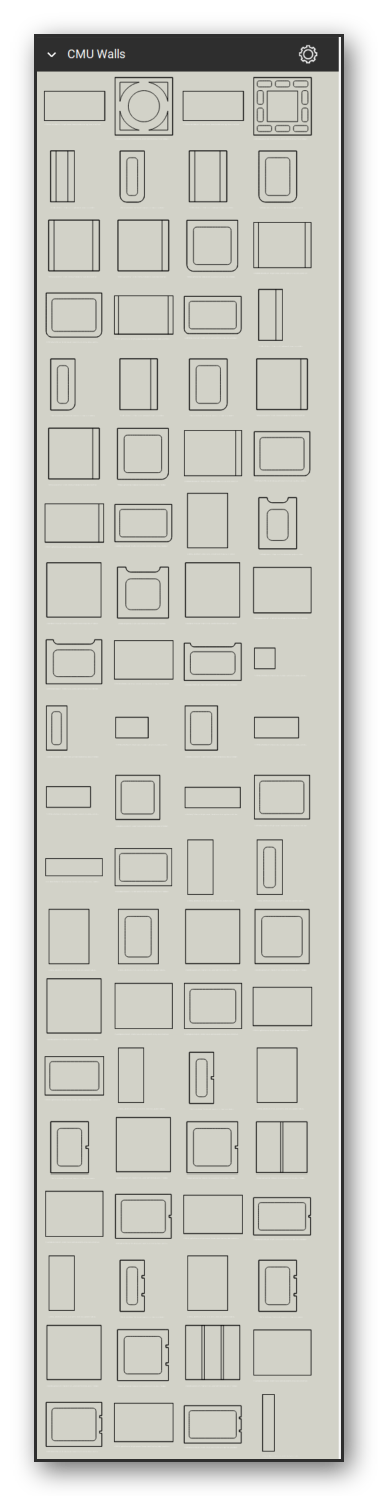

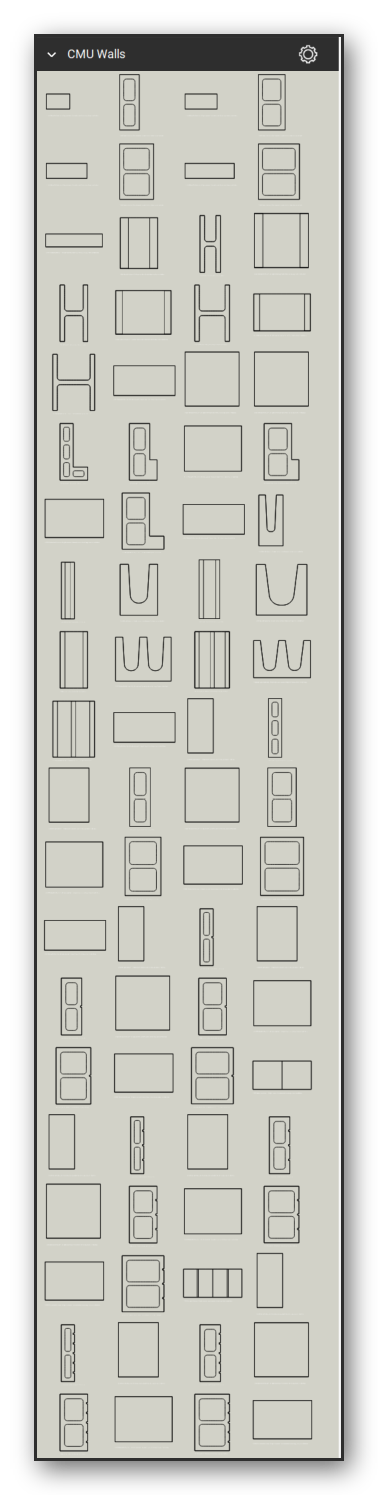

CMU Walls
- Regular, half, bond beam, bullnose, pilaster, and chimney block walls
  in plan and section

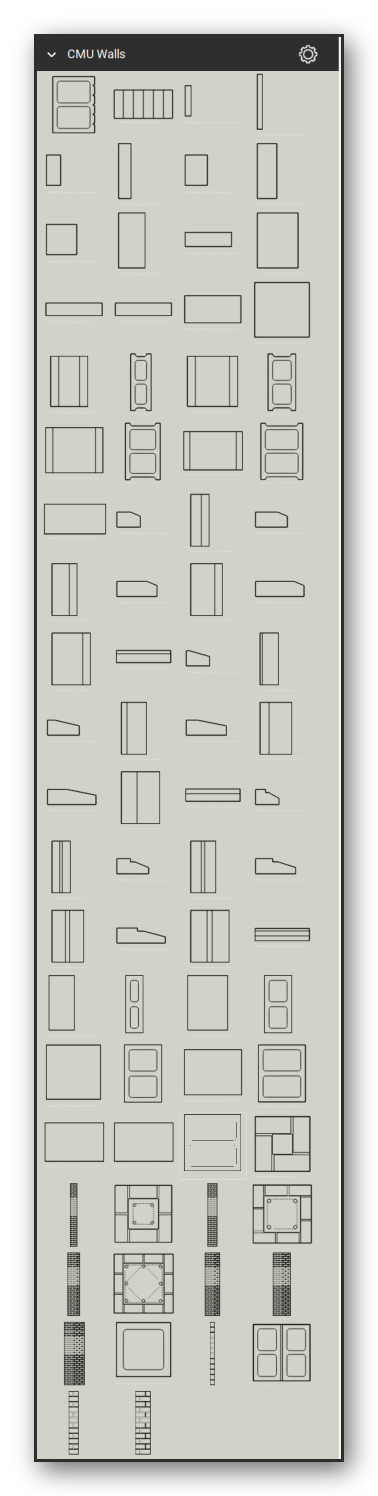

CMU Block Shapes
- Standard CMU unit shapes — regular, half, bond beam, bullnose, scored,
  A-block, pilaster, and chimney blocks

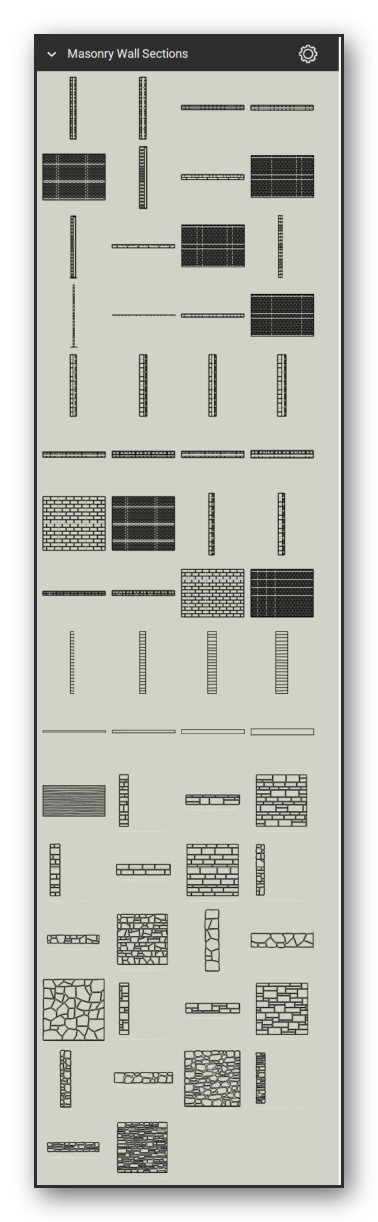

Masonry Wall Sections
- Solid, cavity, and composite brick walls, rammed earth, and stone
  masonry wall sections

Stone Patterns
- Coursed and random rubble, ashlar, and cyclopean patterns
