Doors, Windows & Walls Bluebeam Tool Set
Doors, Windows & Walls Bluebeam Tool Set
Couldn't load pickup availability

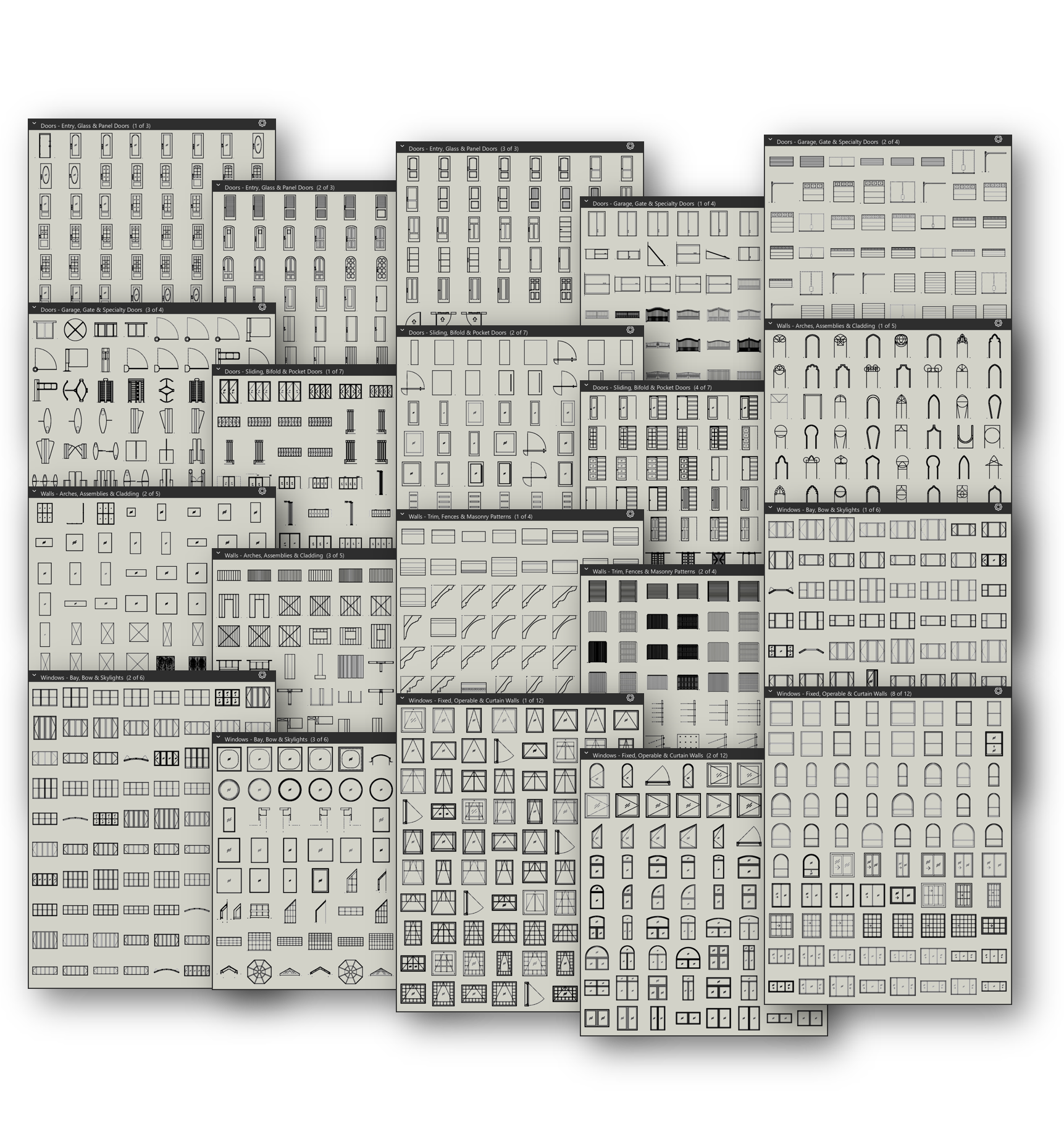

Tool set of scaled door, window and wall types for architectural drawings. This tool set covers three categories with over 6,600+ markups, available in both black and redline versions. Every markup is a fully editable native Bluebeam markup drawn to a stated architectural scale — each one places as a single grouped markup that can be stretched, recolored and relabeled directly in Bluebeam, and is named with its view type and real-world size. Markups are organized by view so all plan views are grouped together, followed by front elevations and side elevations.
Examples of items included:
-

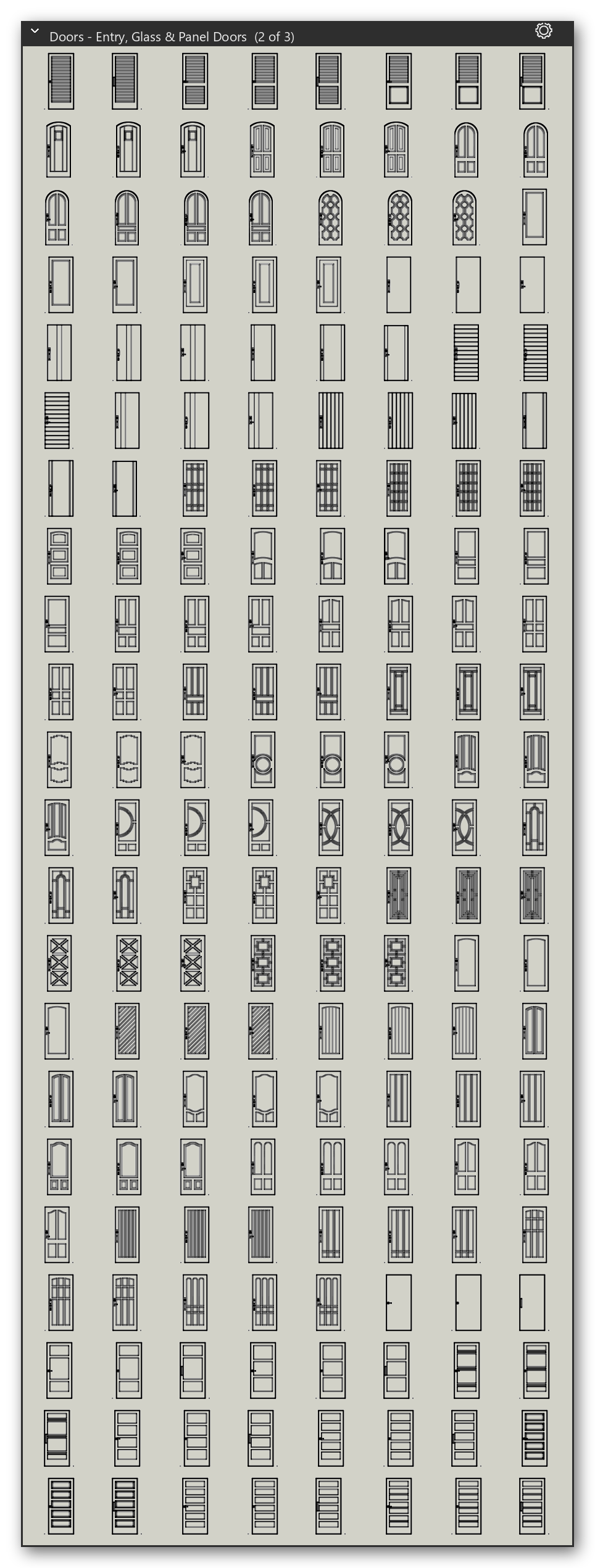

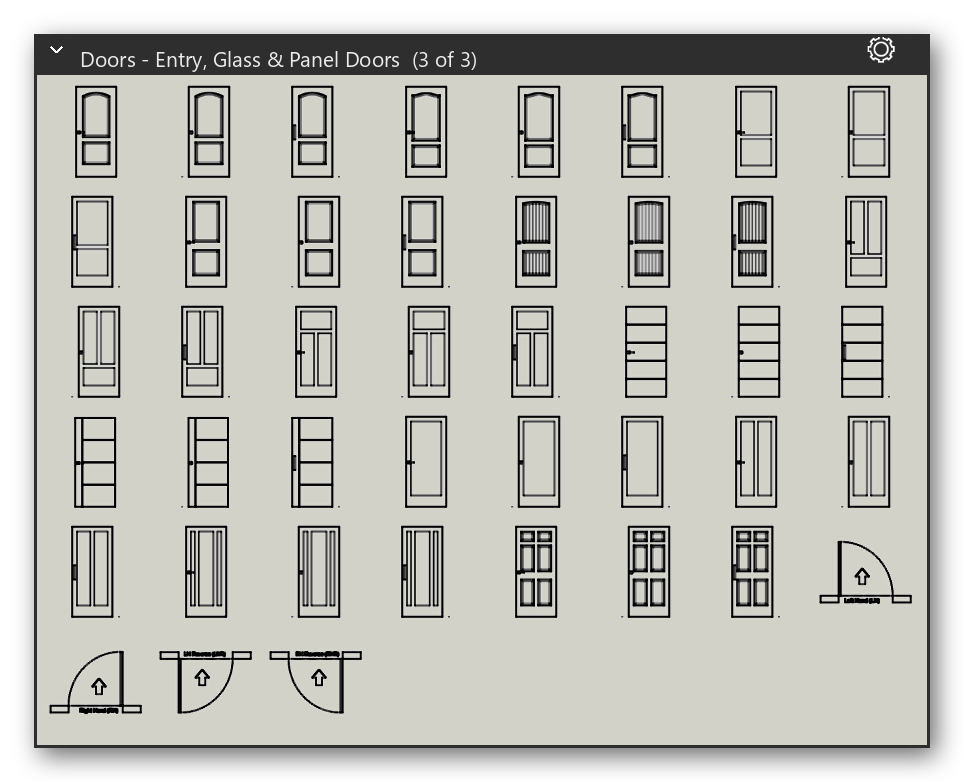

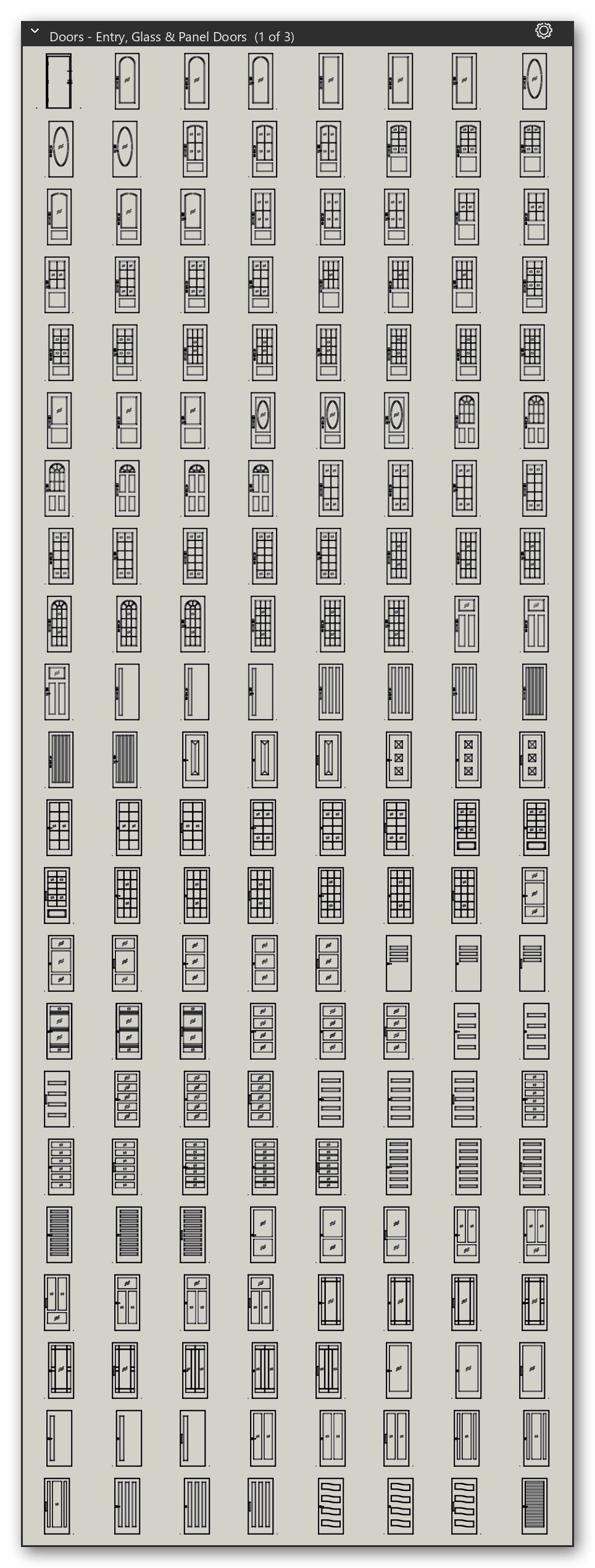

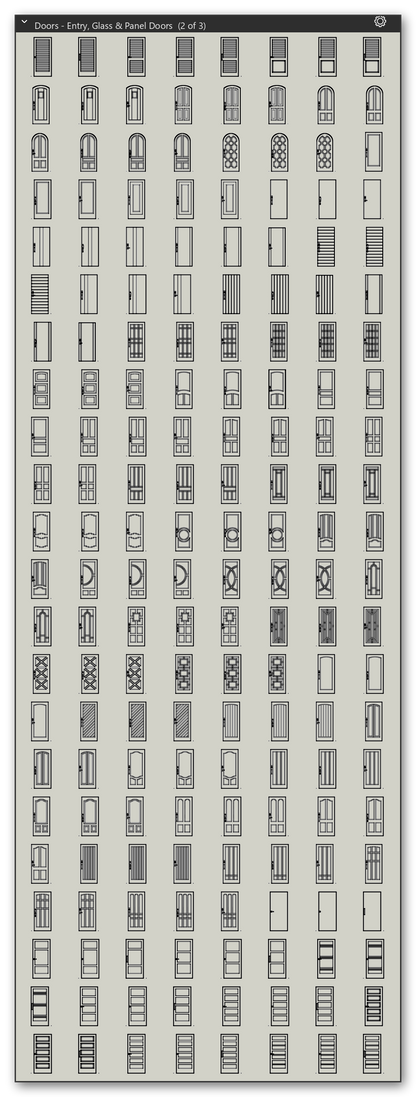

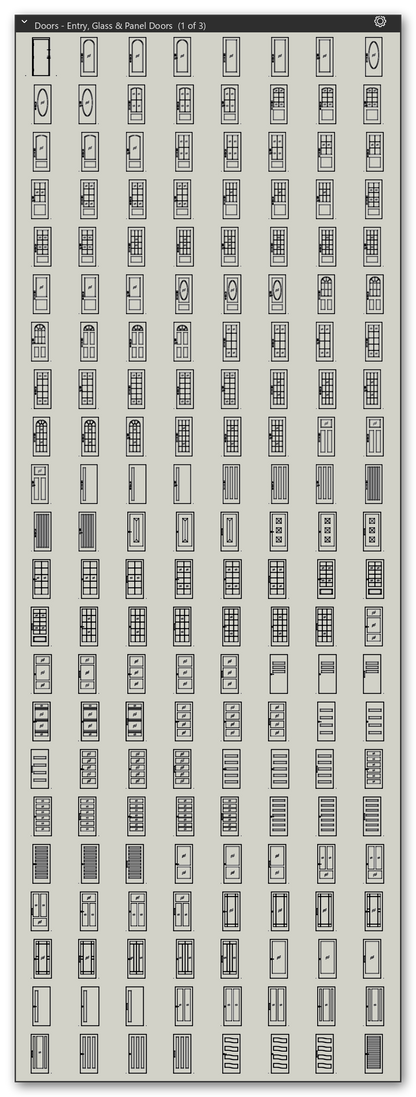

Entry, glass and panel doors
- Solid entry doors: flush, arched, panelled and beveled styles
- Glass and French doors, garden doors and louver doors
- Door hand conventions (LH, RH, LHR, RHR) and door hardware locations
-

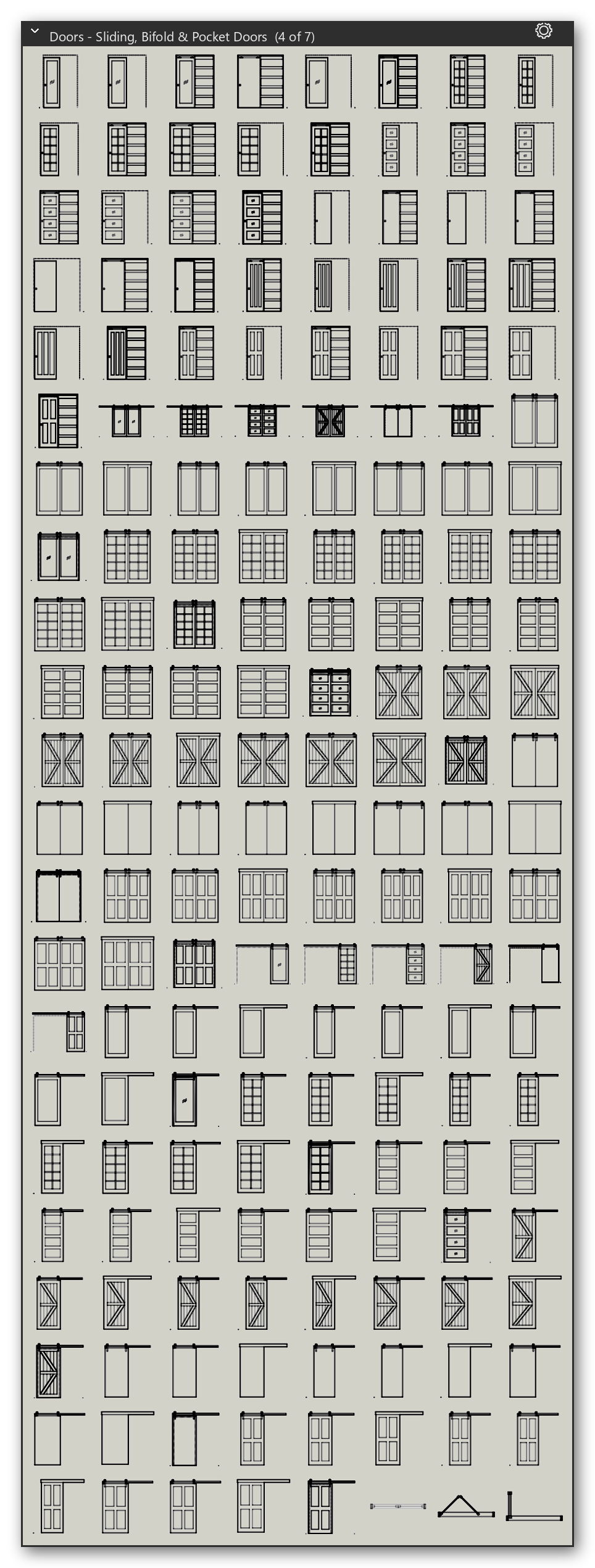

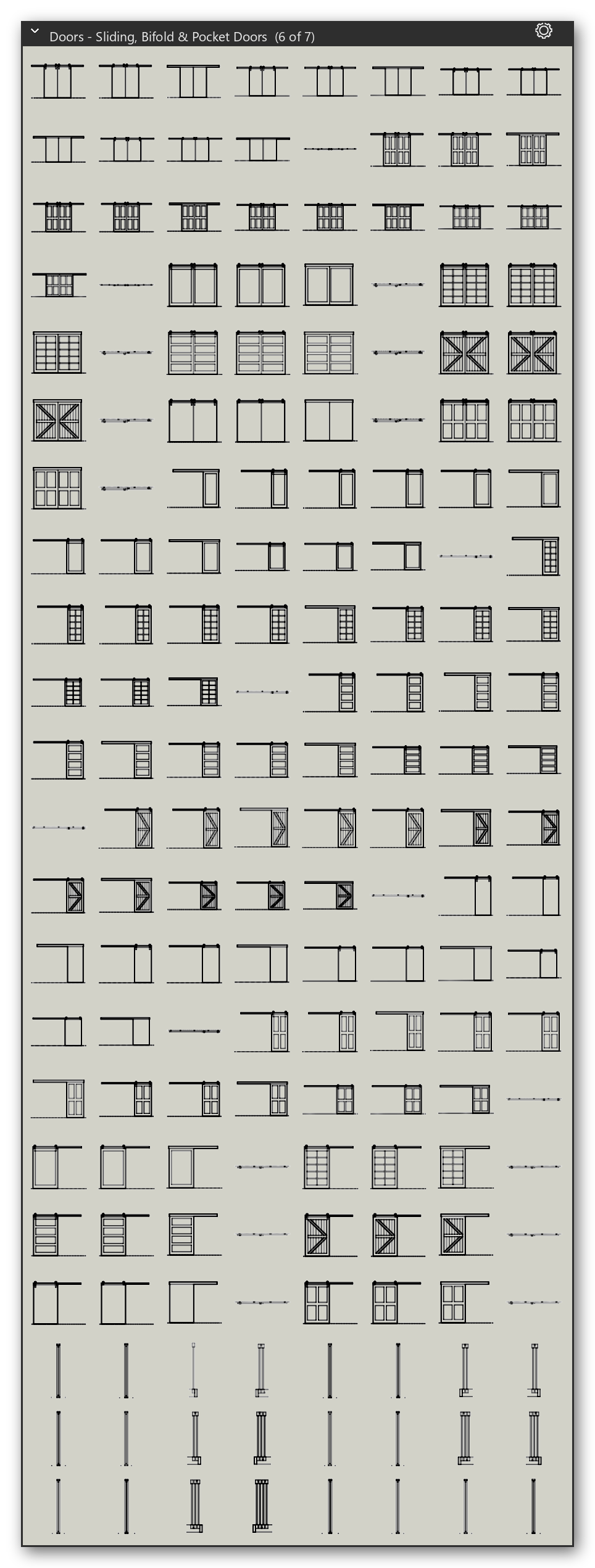

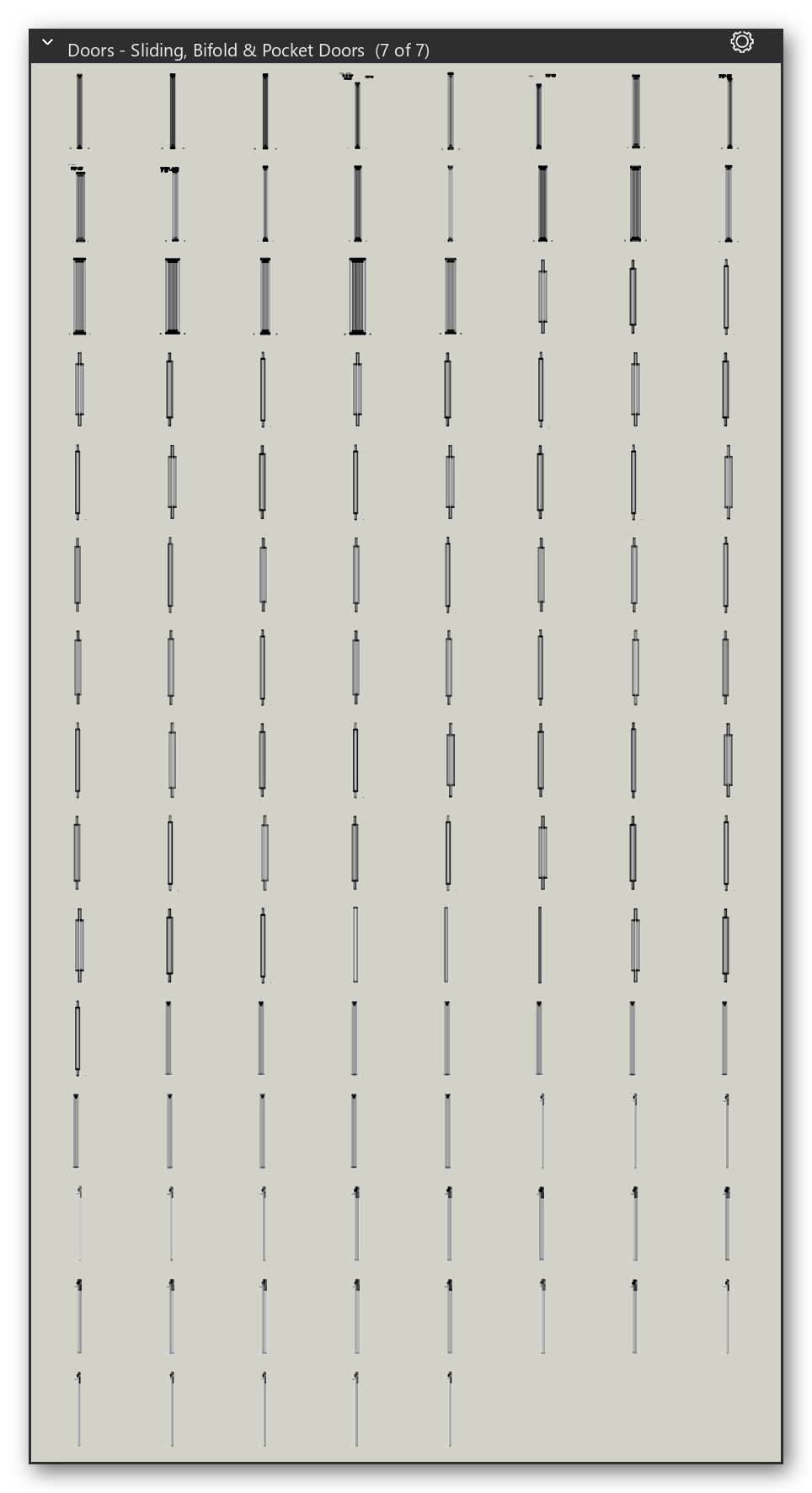

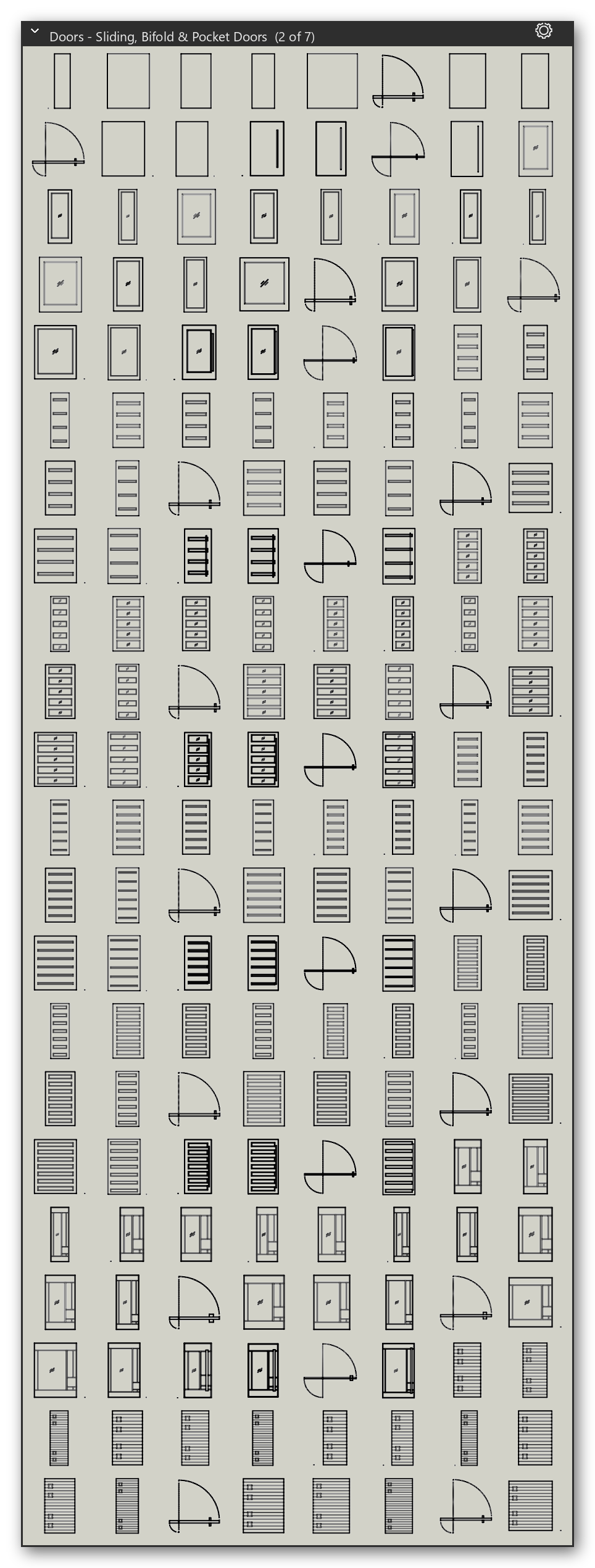

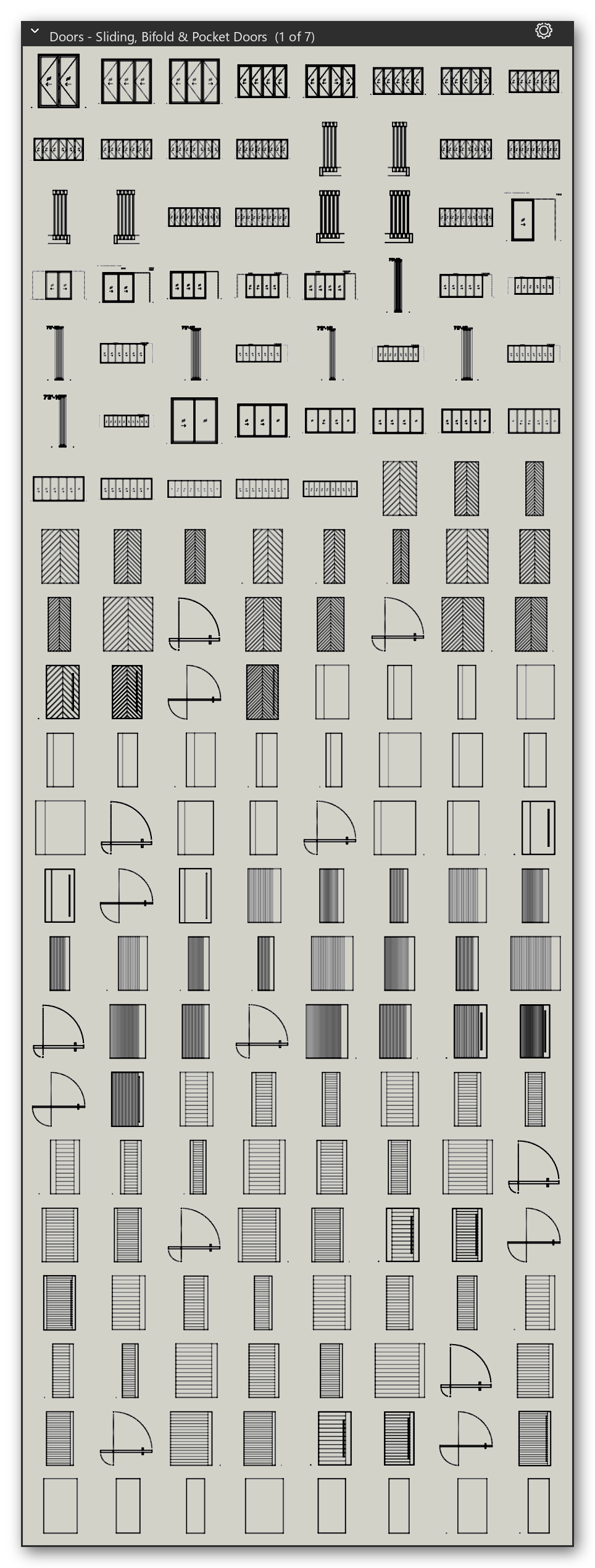

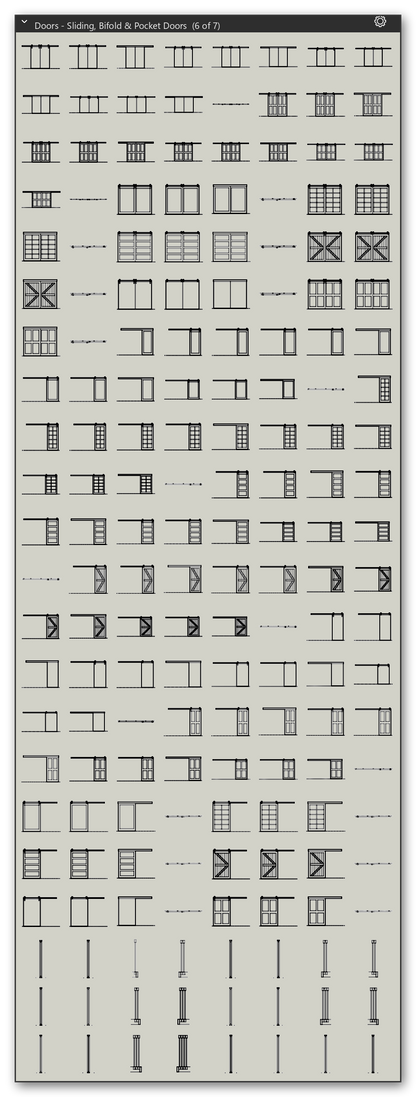

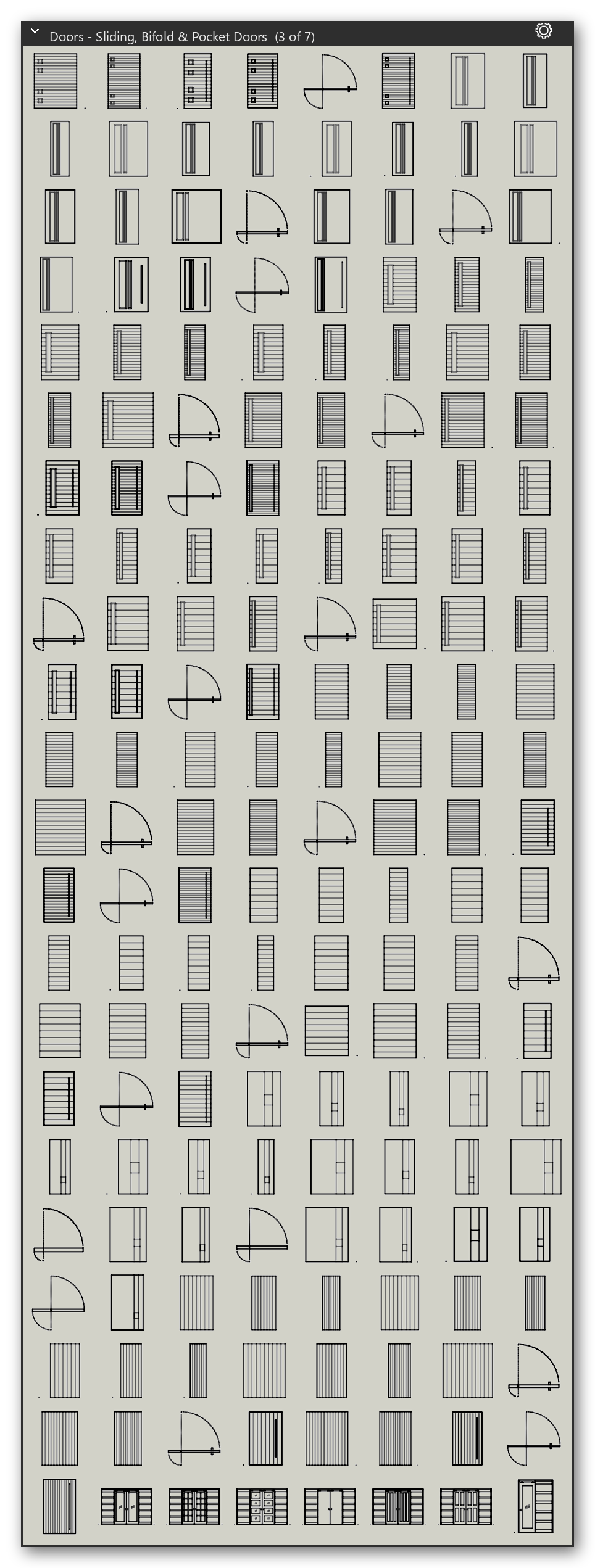

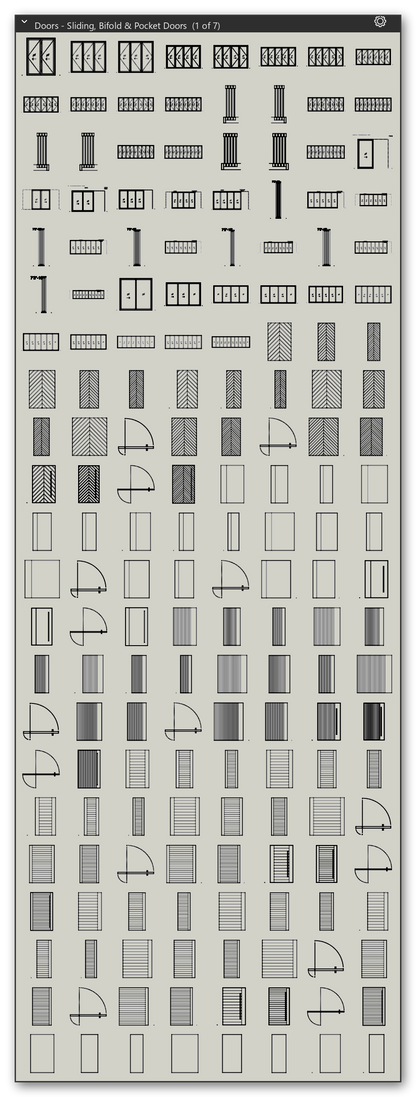

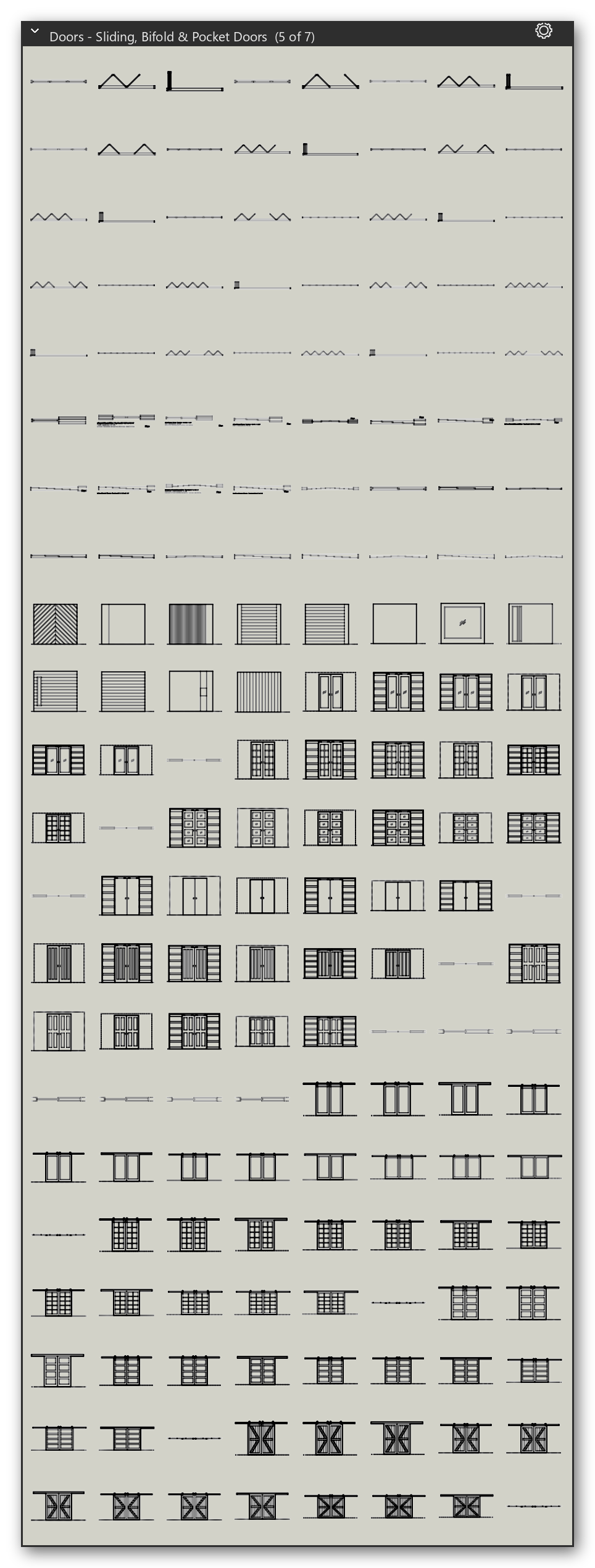

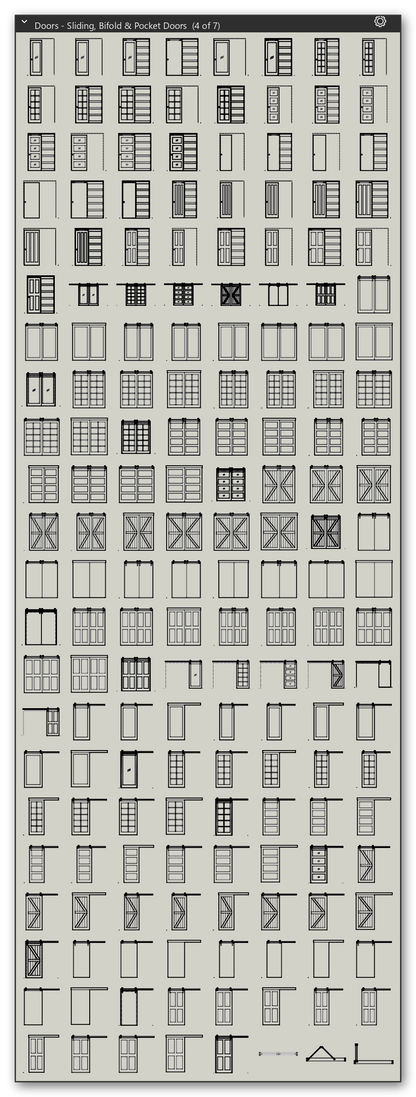

Sliding, bifold and pocket doors
- Multi-slide, sliding and surface barn doors in 1 to 10 panel widths
- Bifold and pivot doors, interior and exterior
- Pocket doors with single and double panel configurations
-

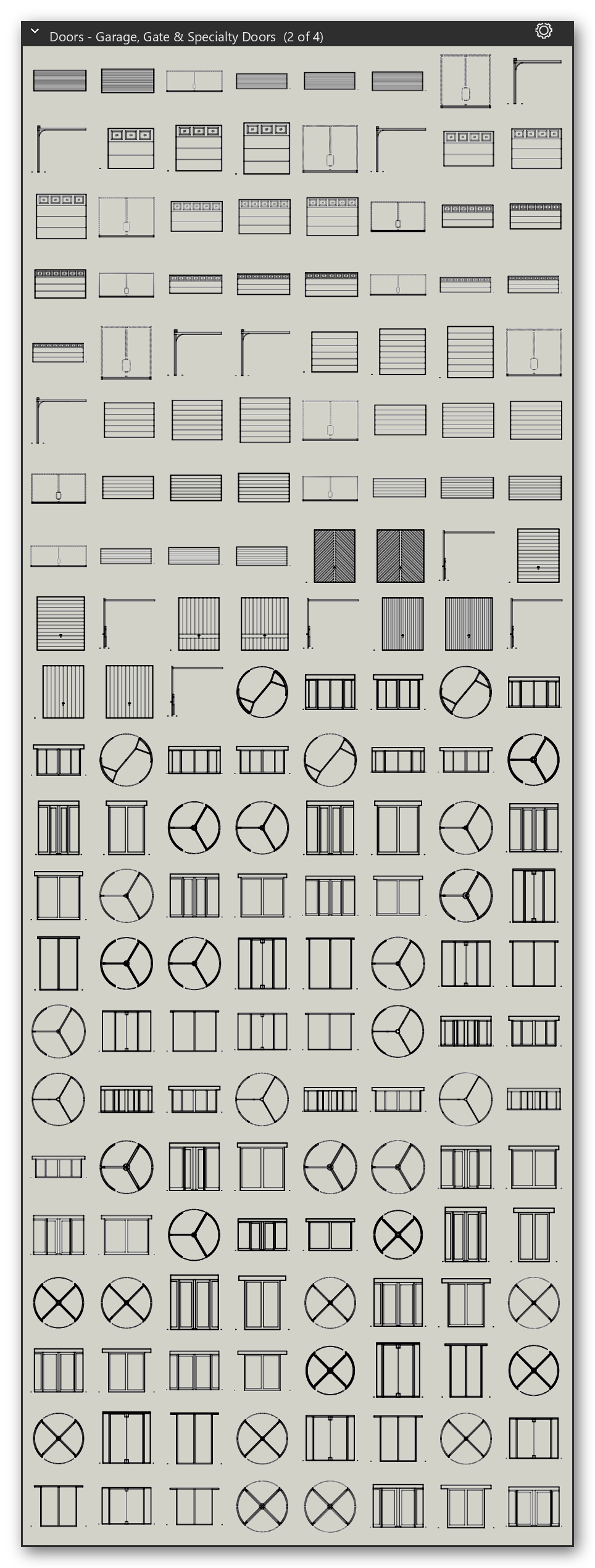

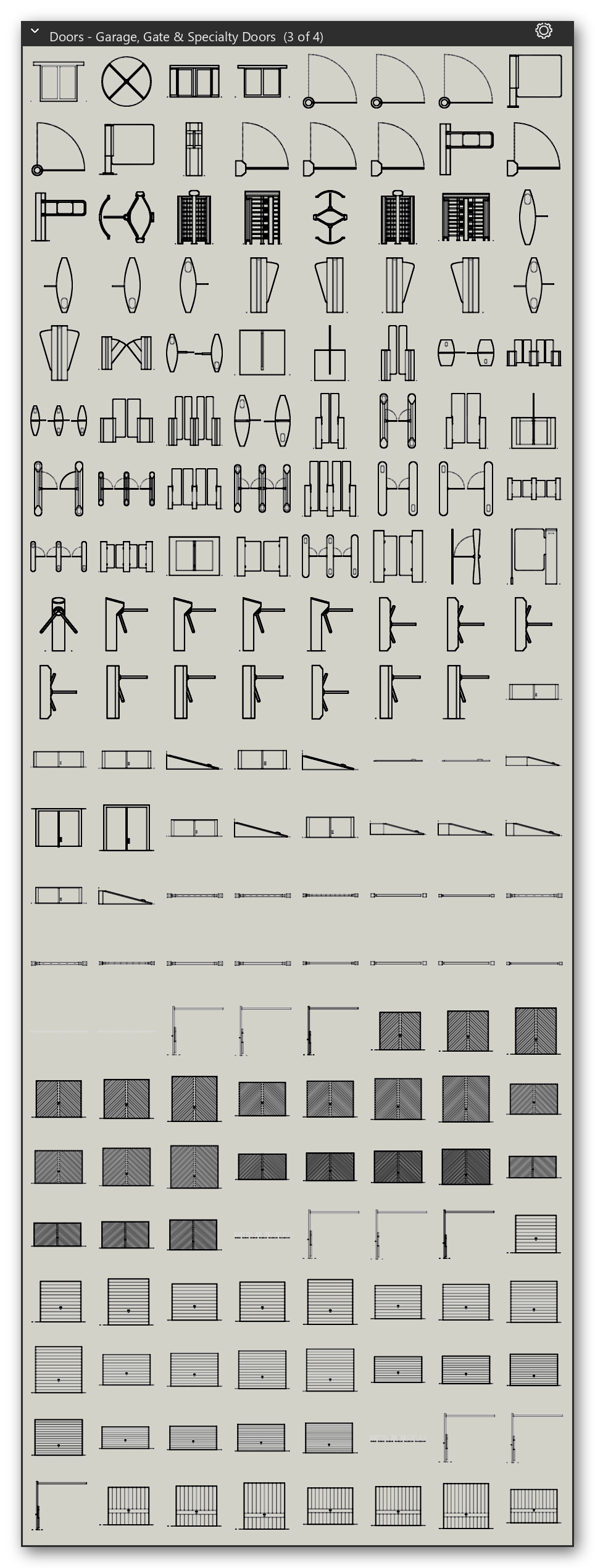

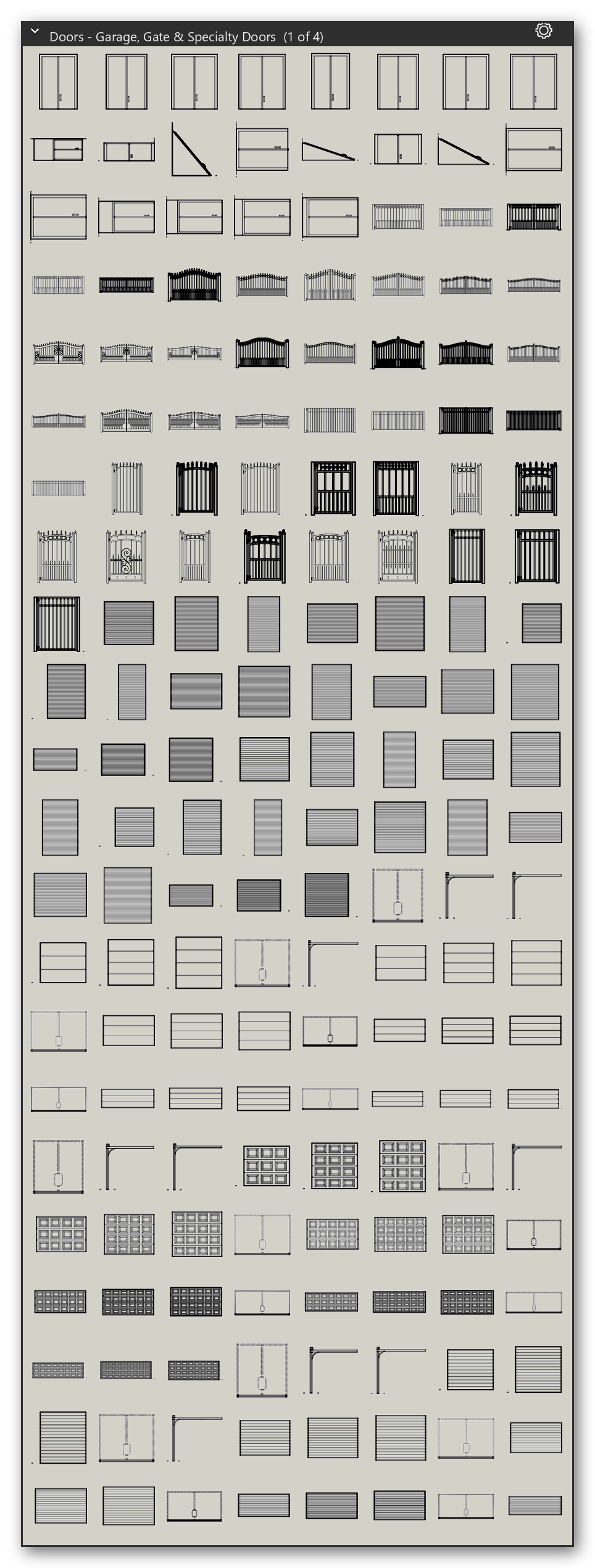

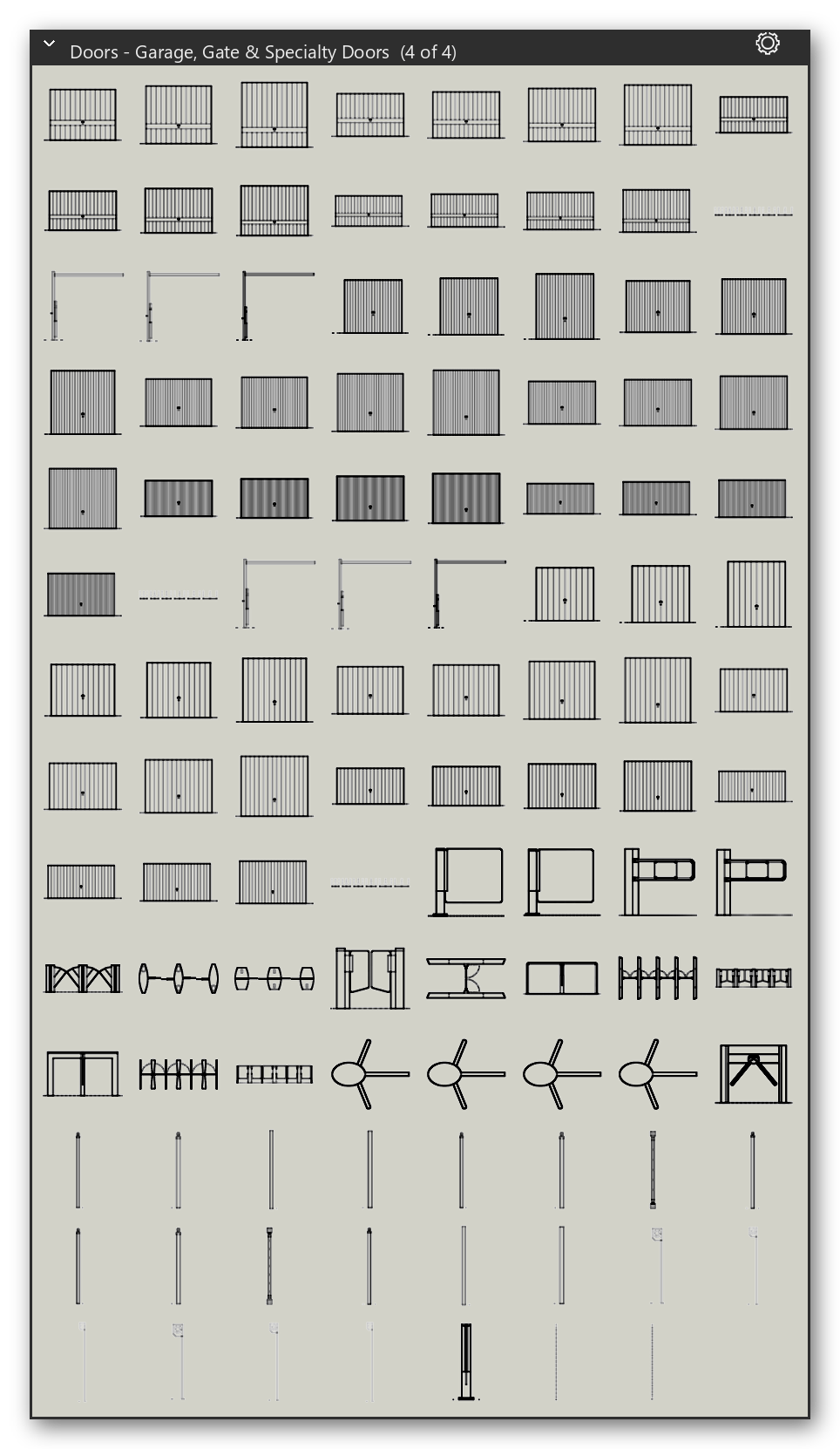

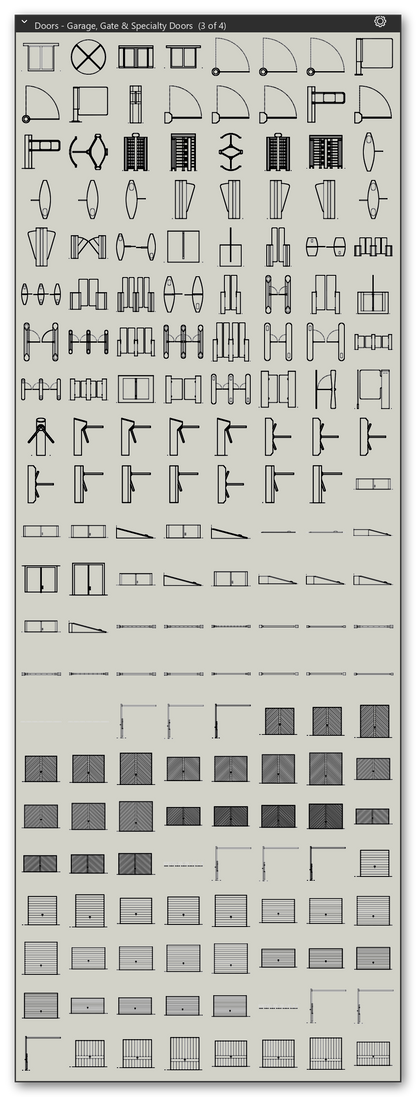

Garage, gate and specialty doors
- Overhead sectional and roll-up garage doors
- Driveway gates, garden gates and cellar doors
- Revolving doors and turnstiles
-

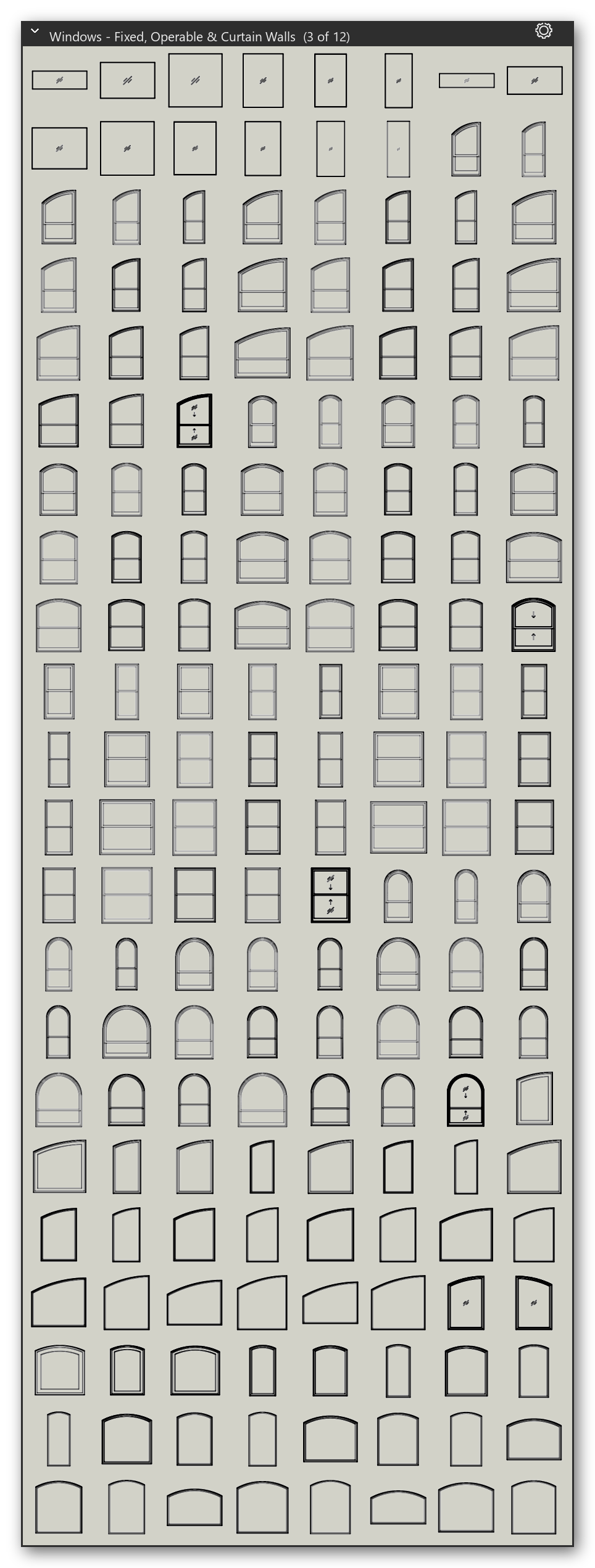

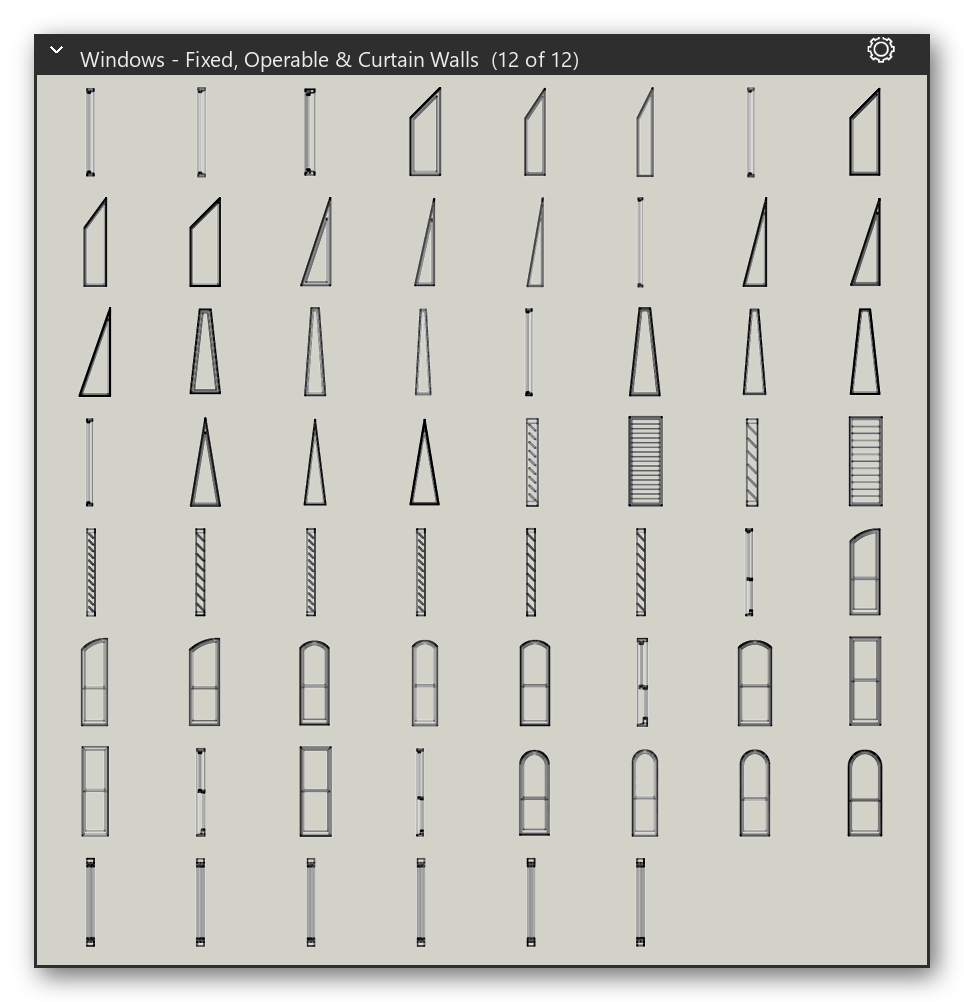

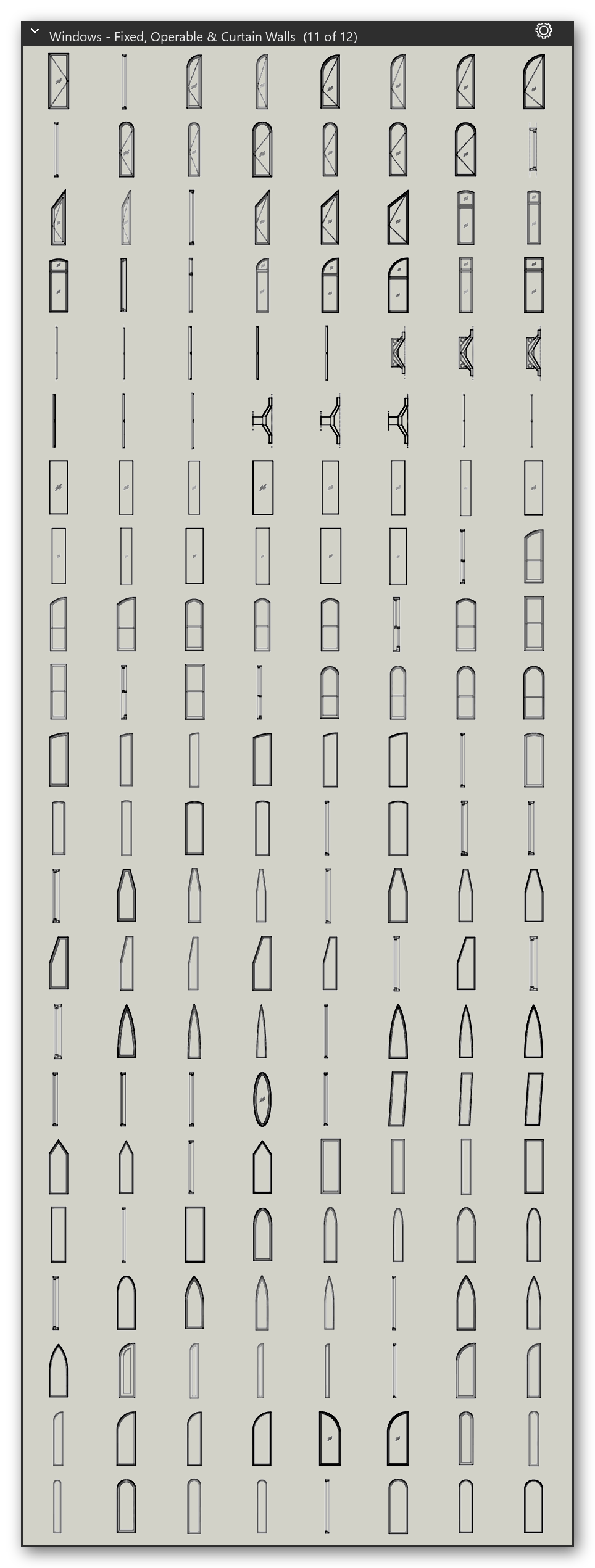

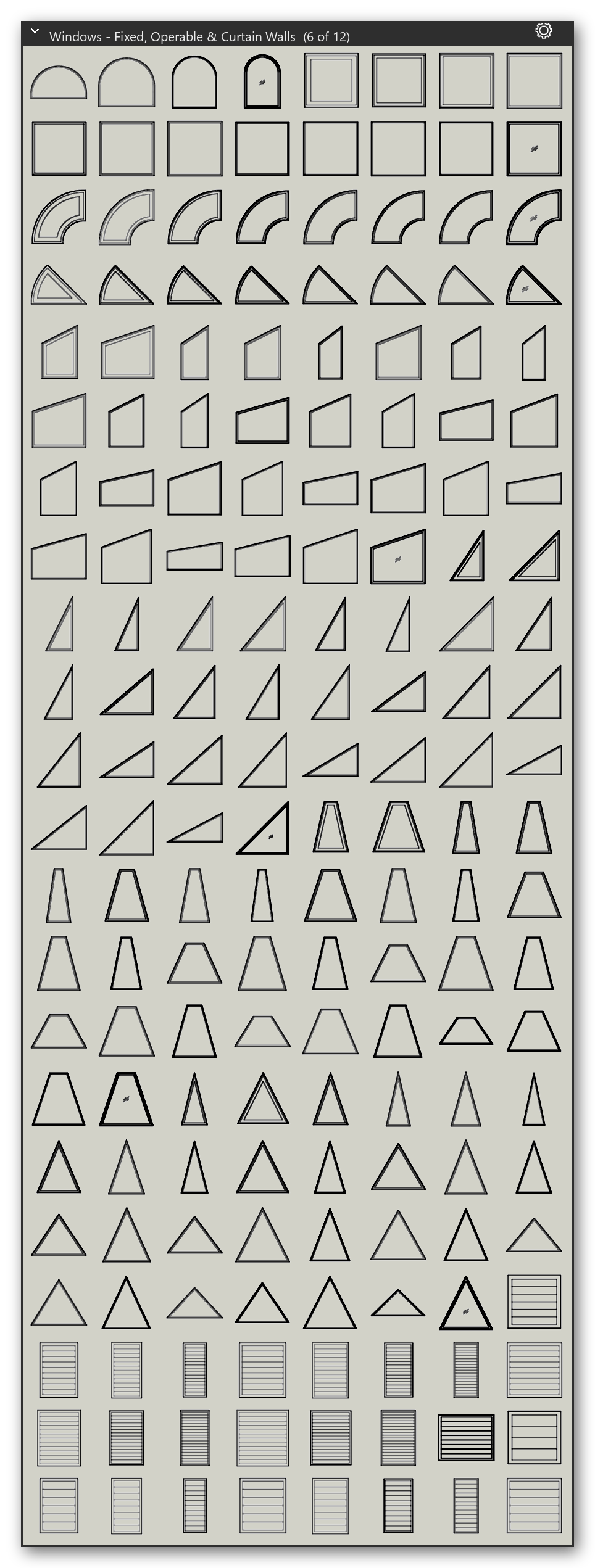

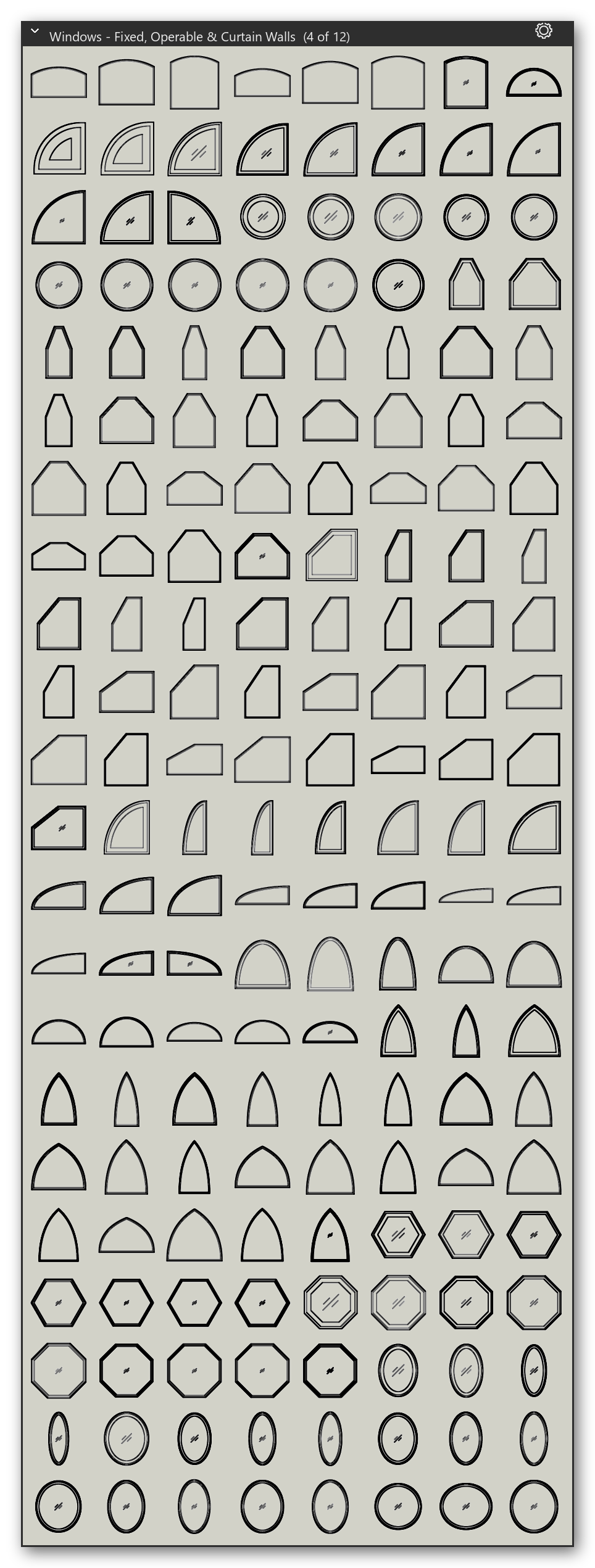

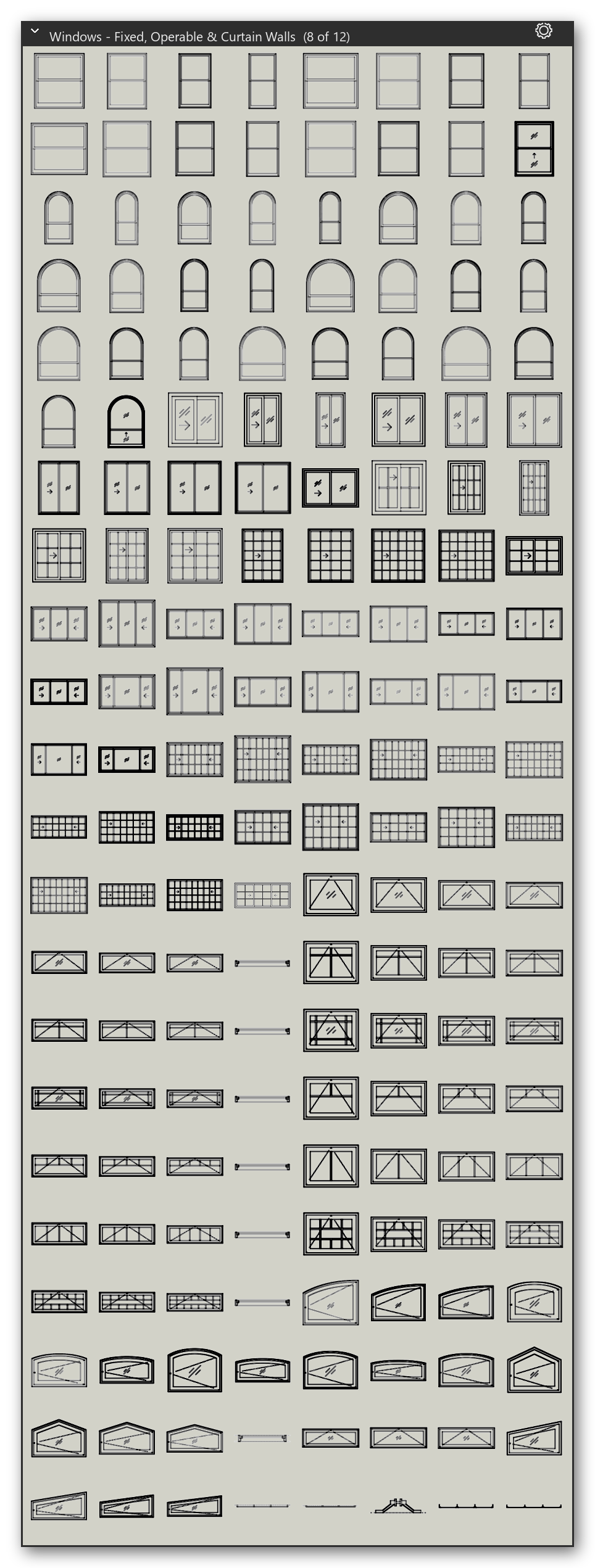

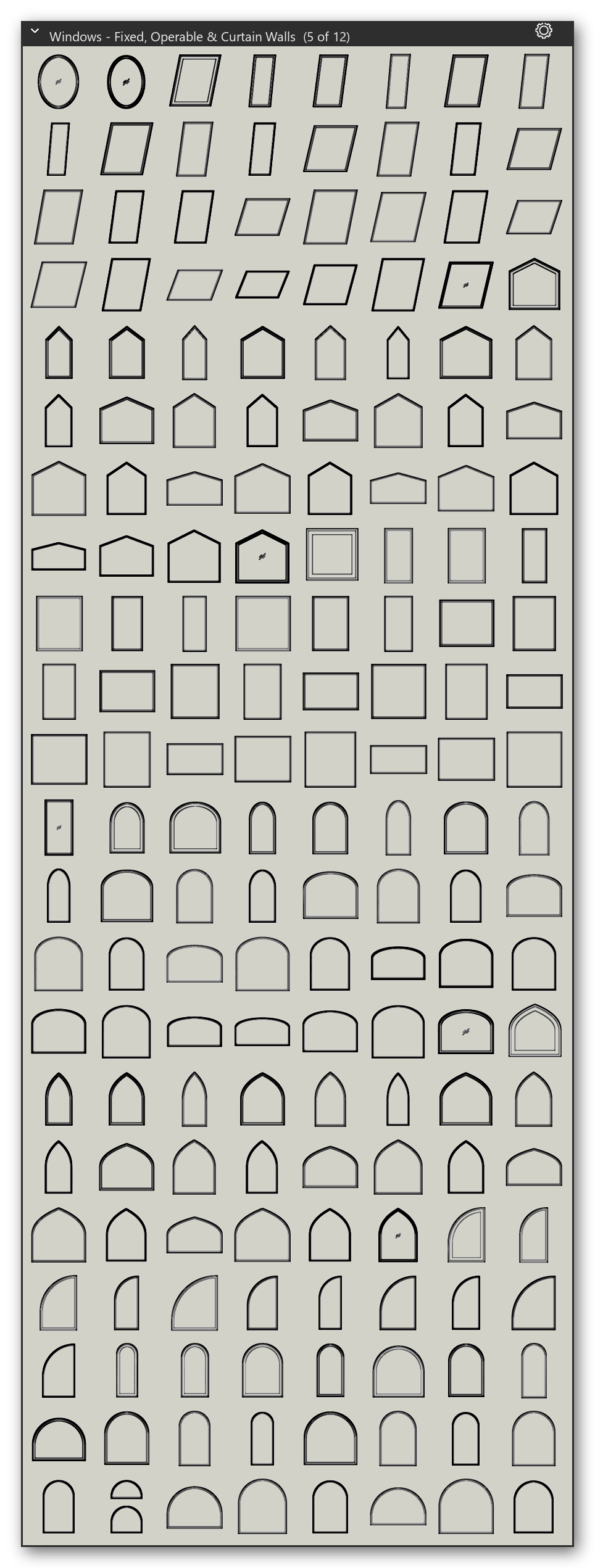

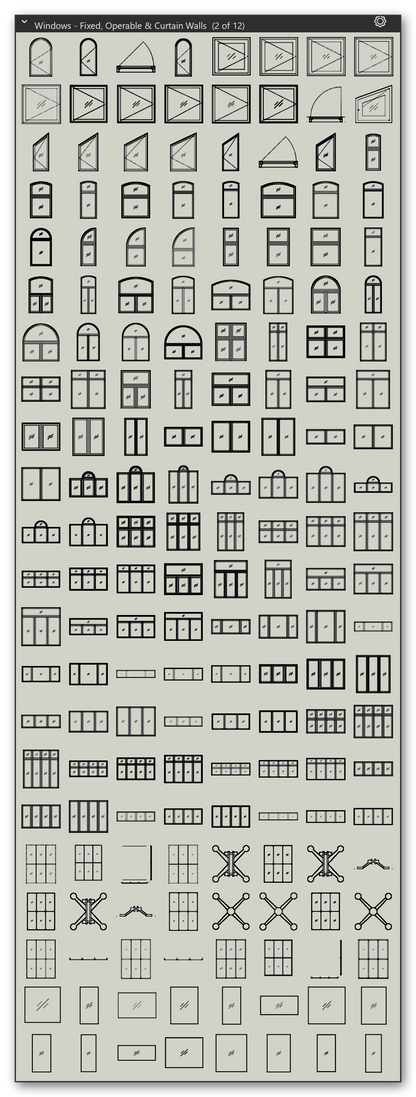

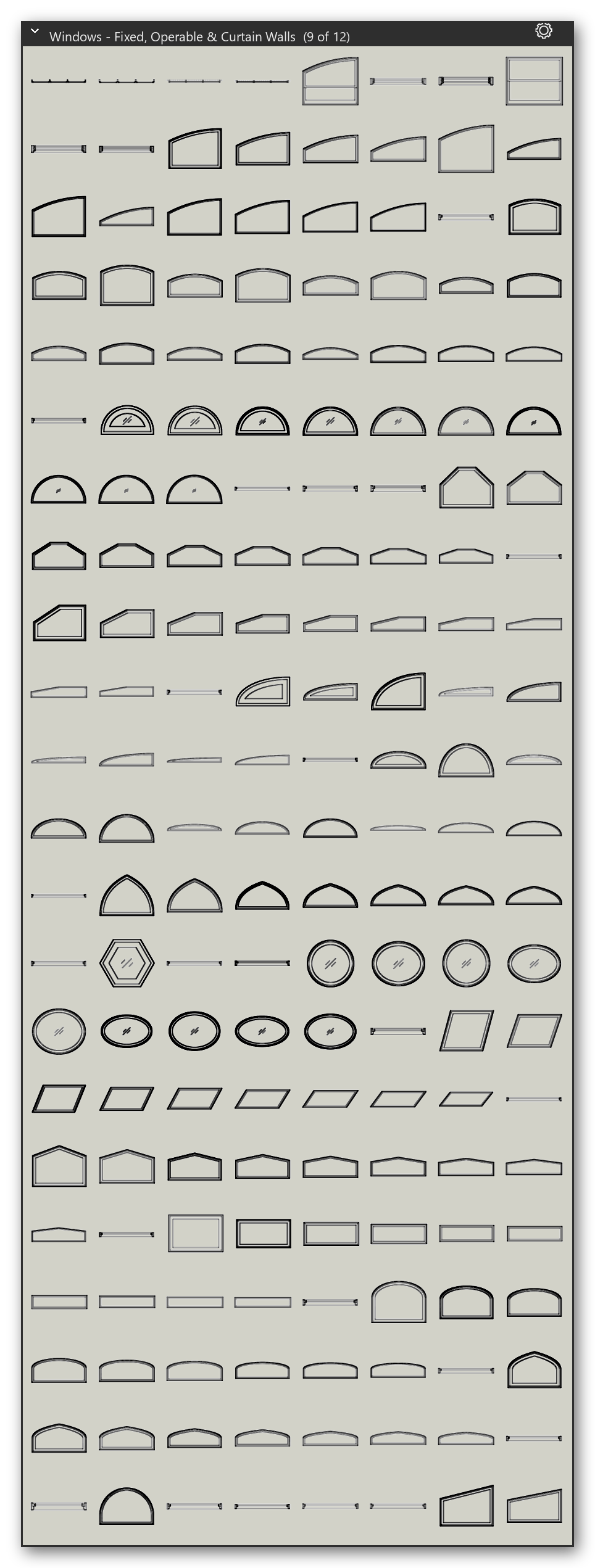

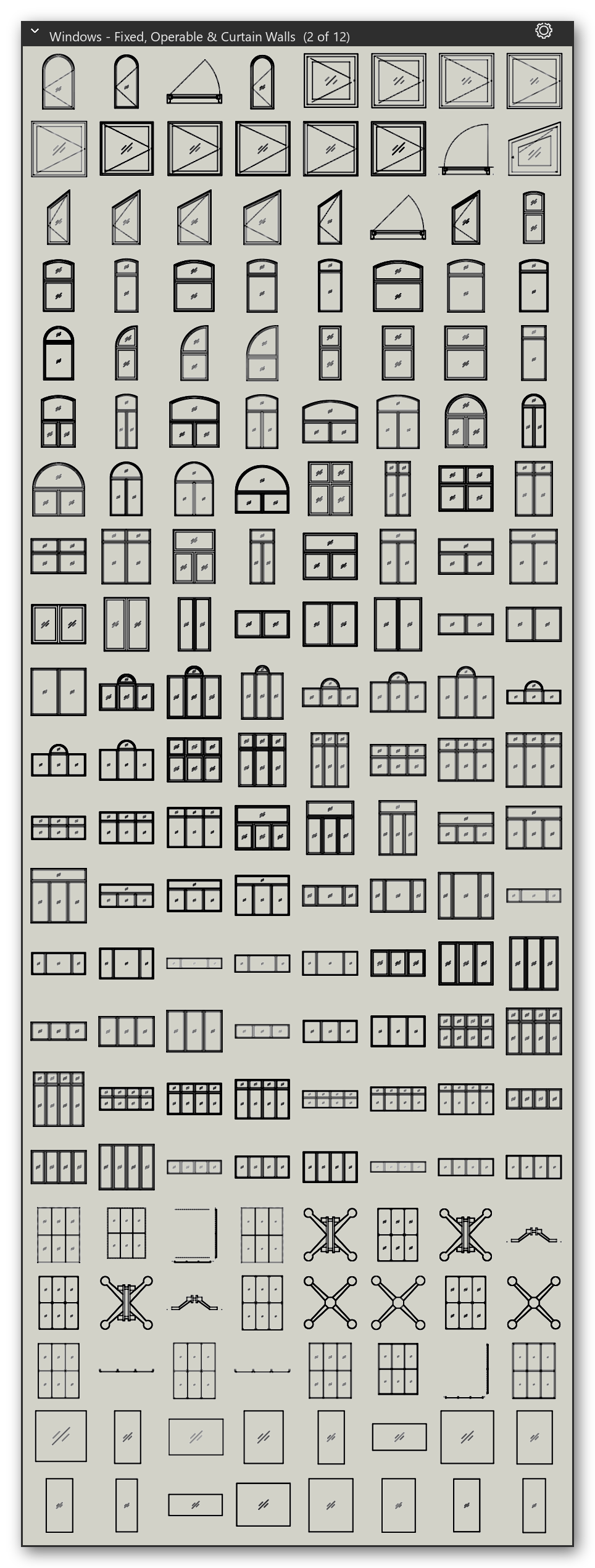

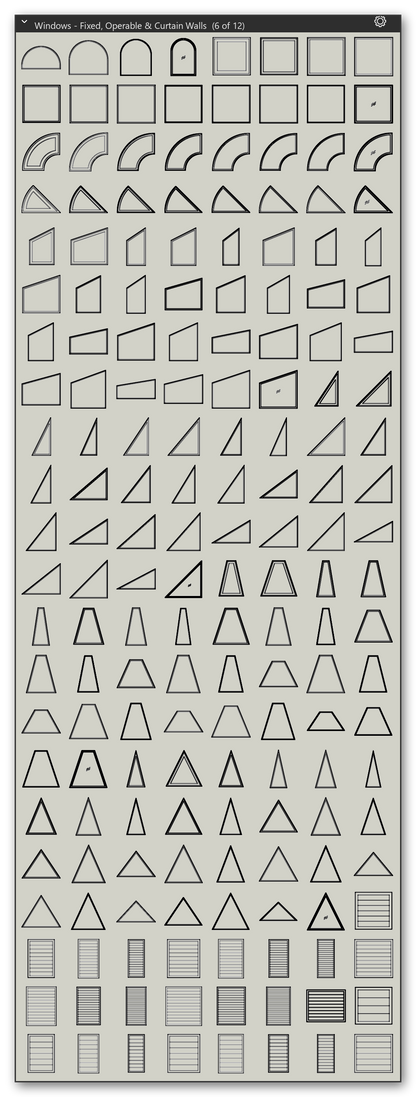

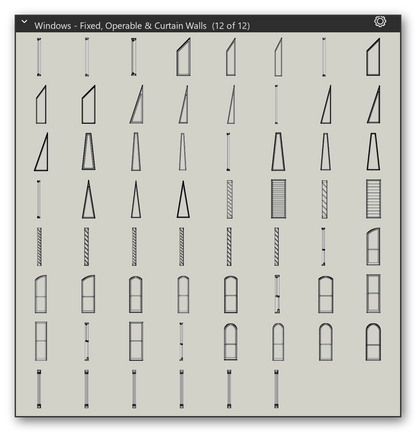

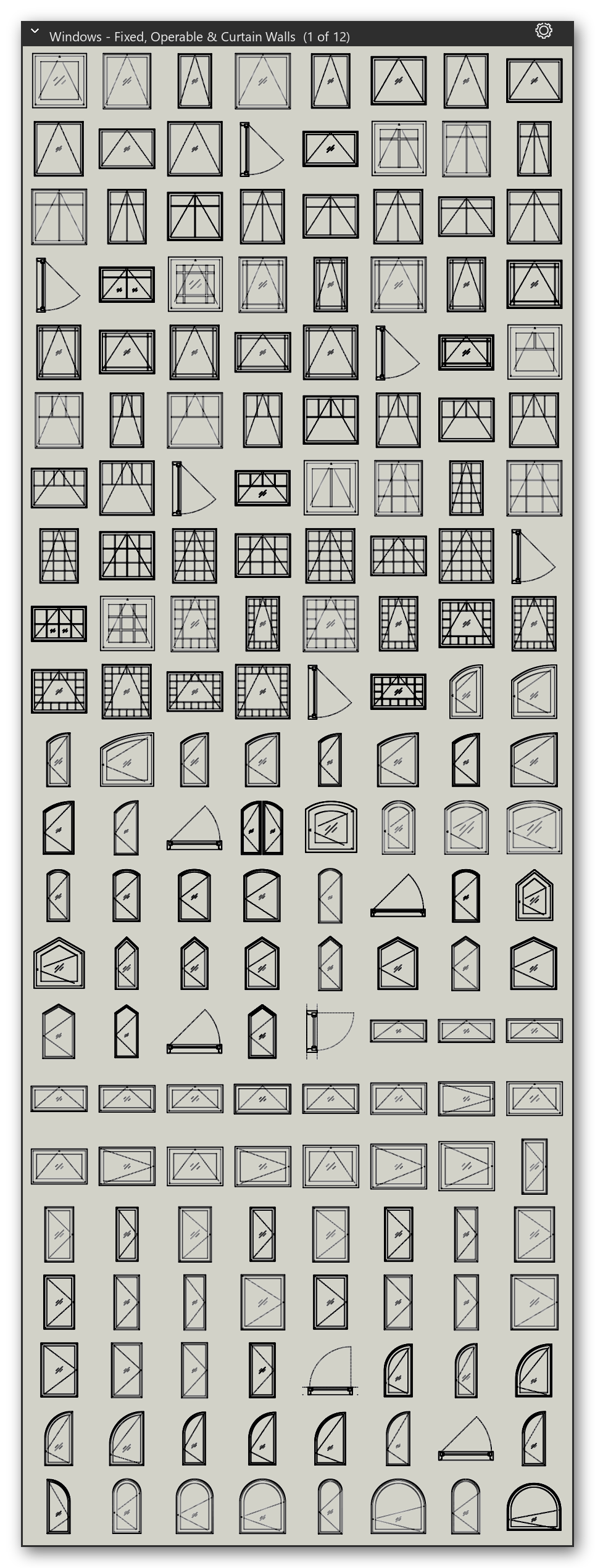

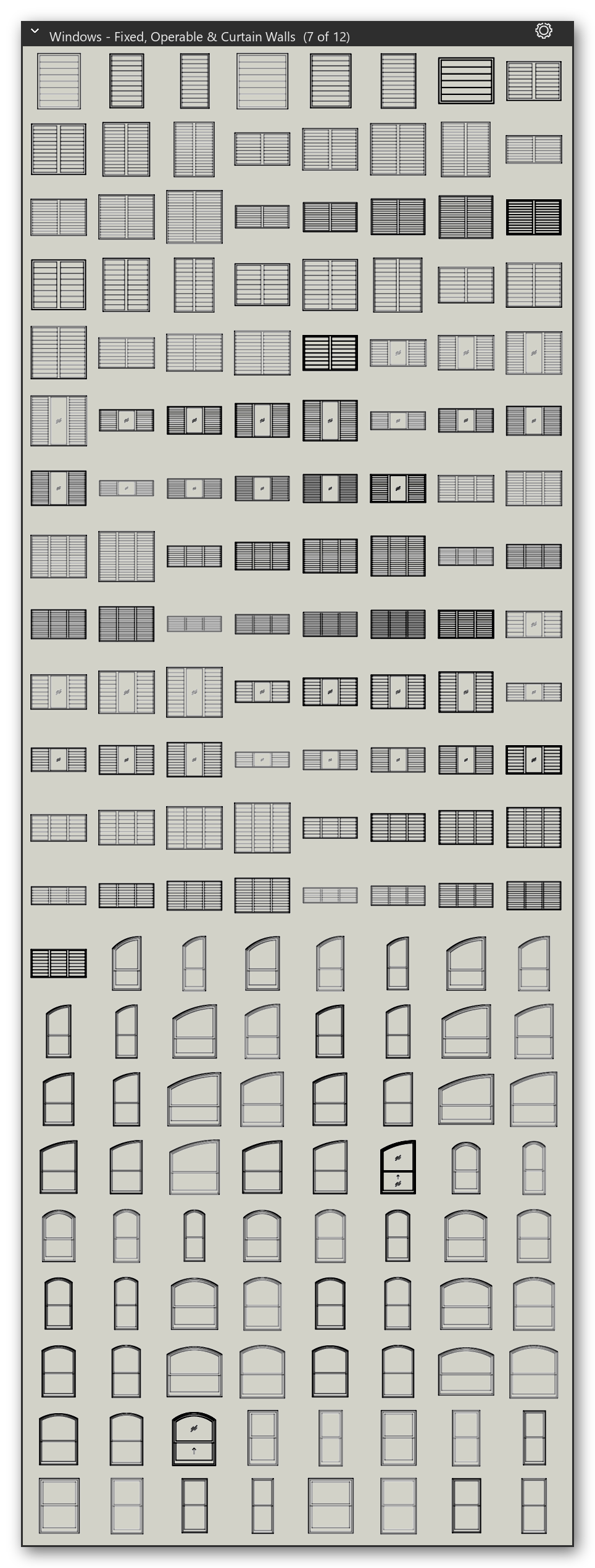

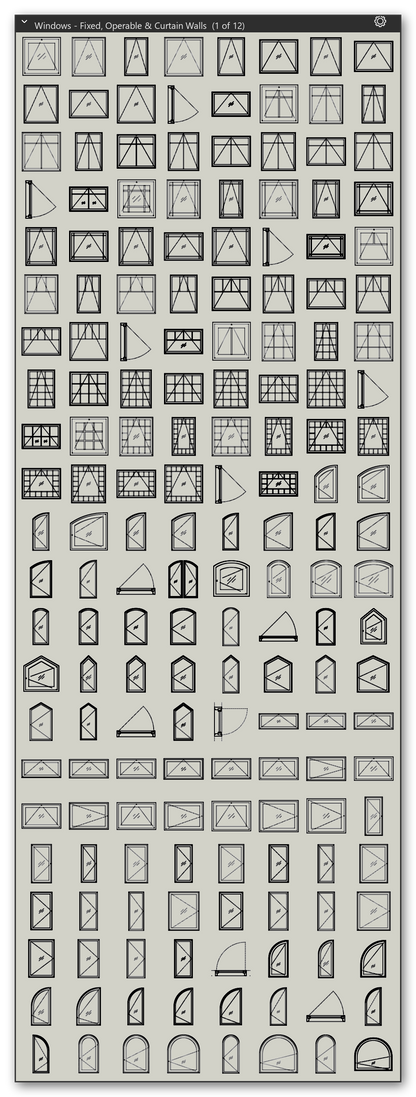

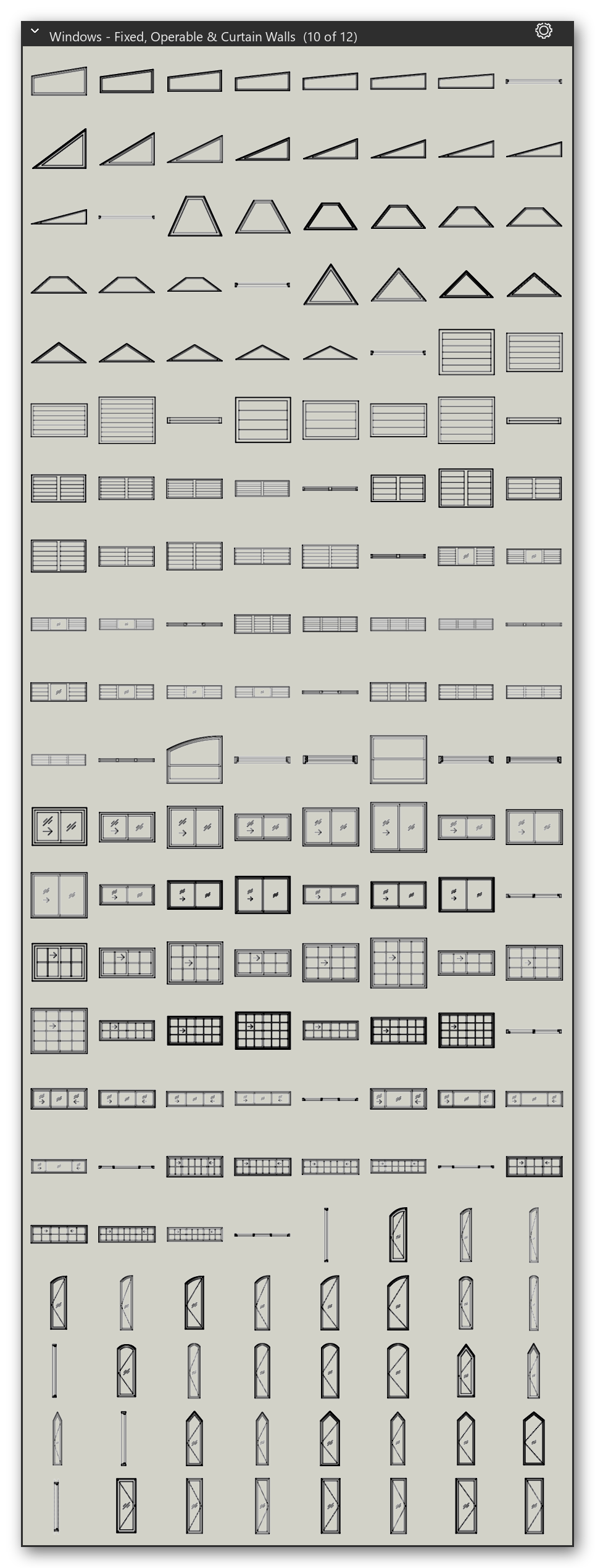

Fixed, operable windows and curtain walls
- Fixed windows and combination window assemblies
- Casement, awning, single-hung, double-hung, sliding and jalousie windows
- Glazed curtain wall systems with spider and fin connections
-

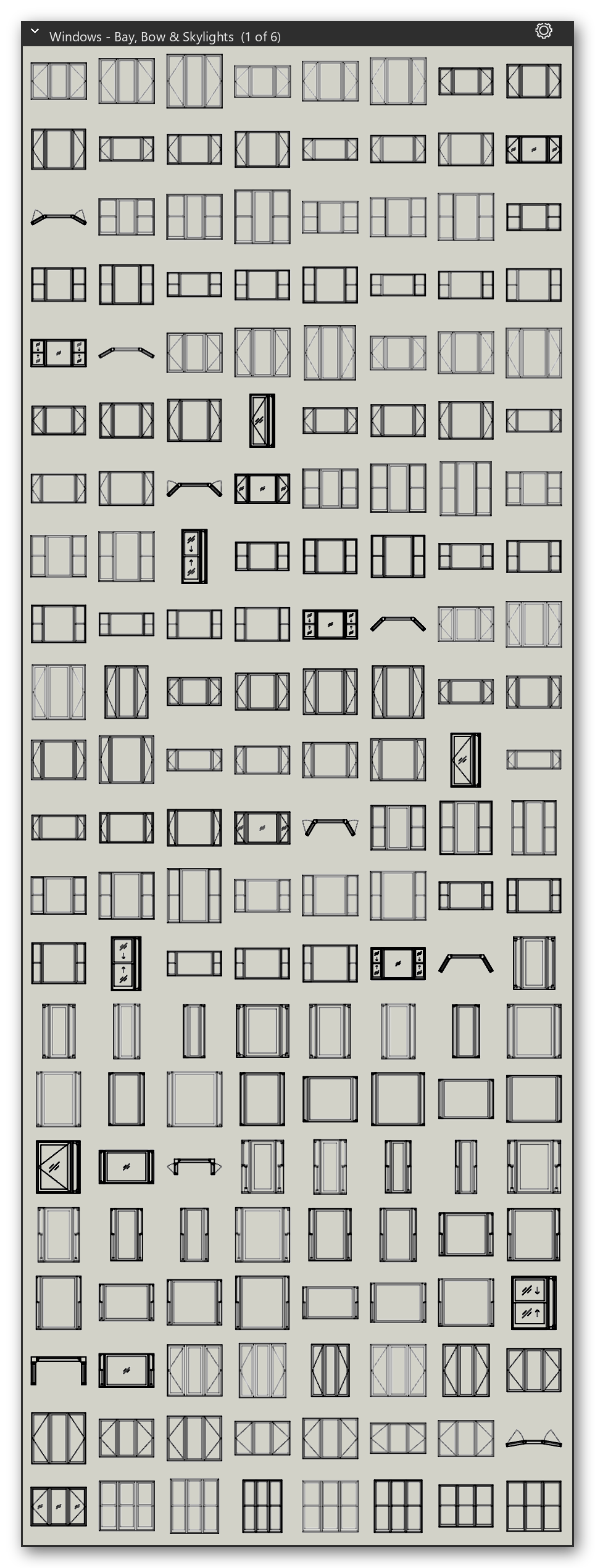

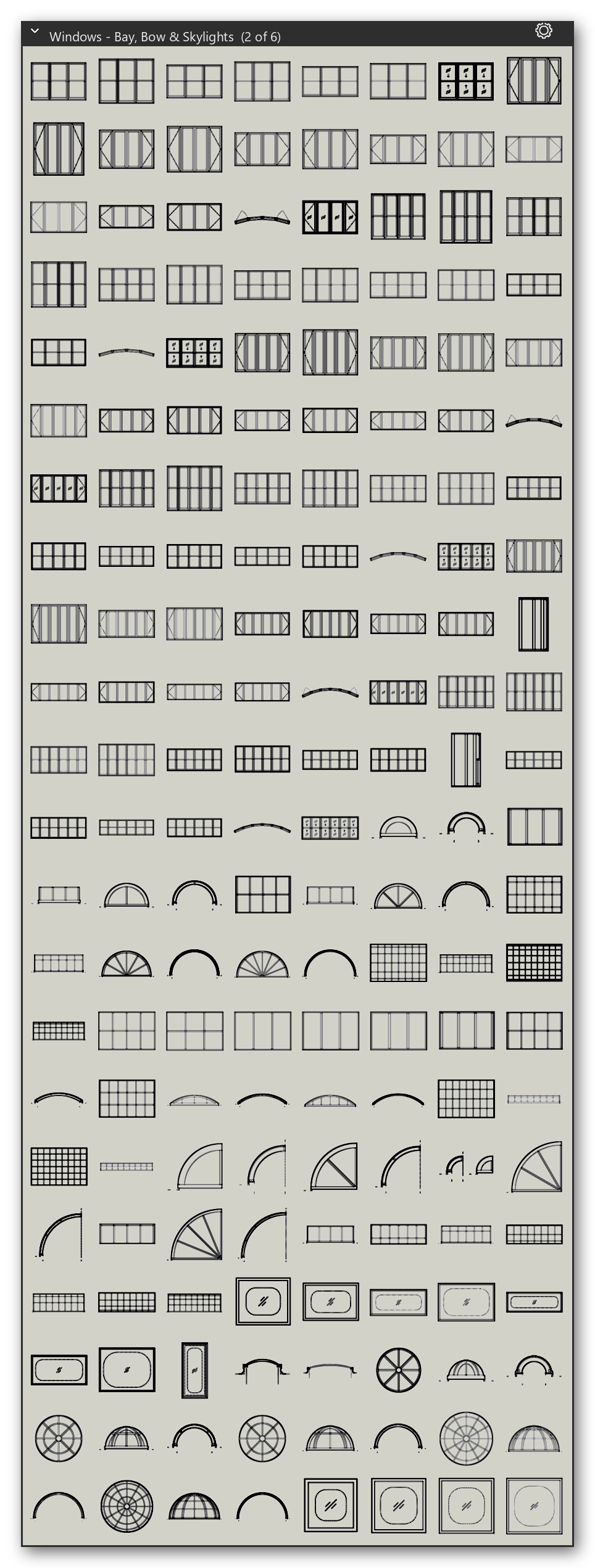

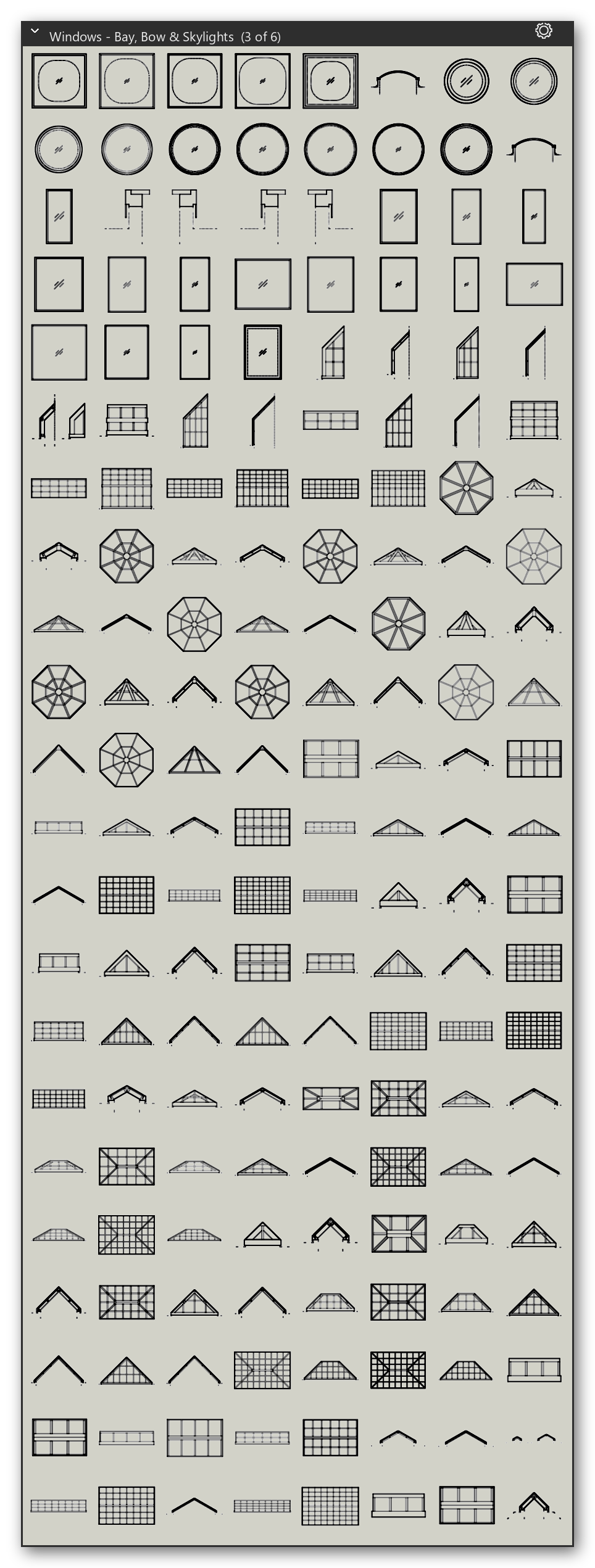

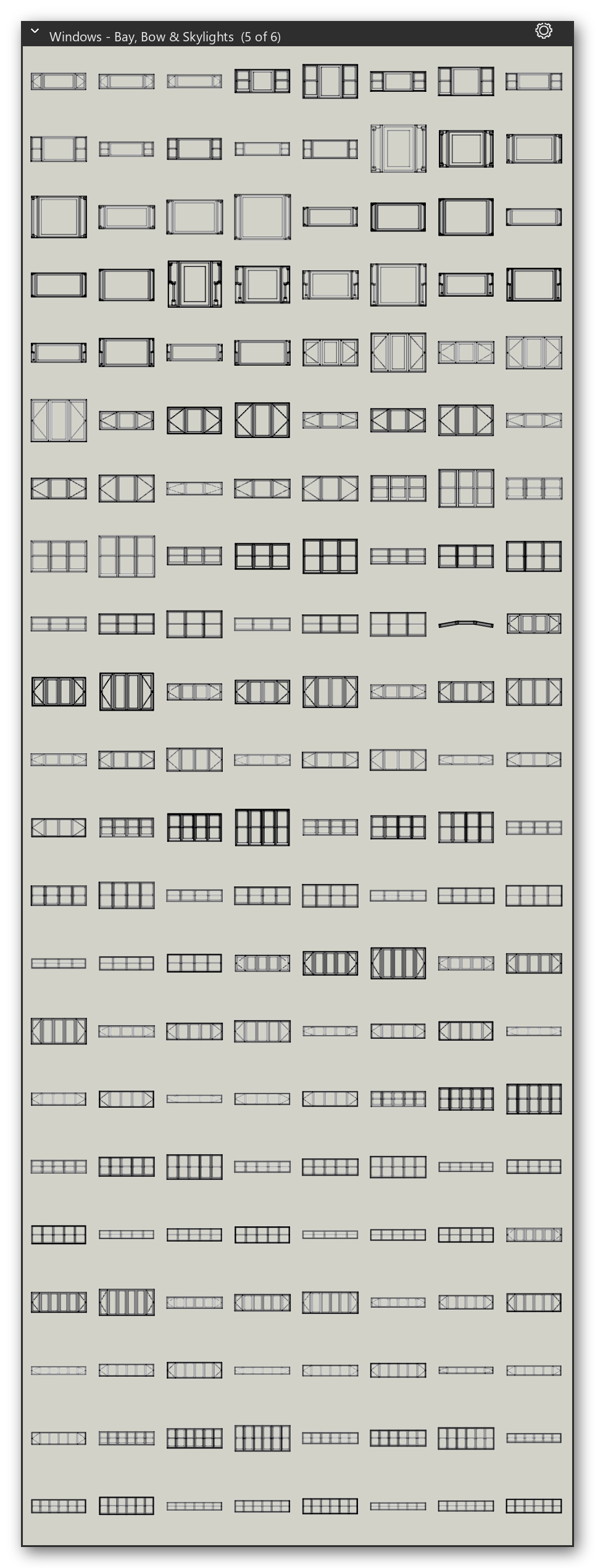

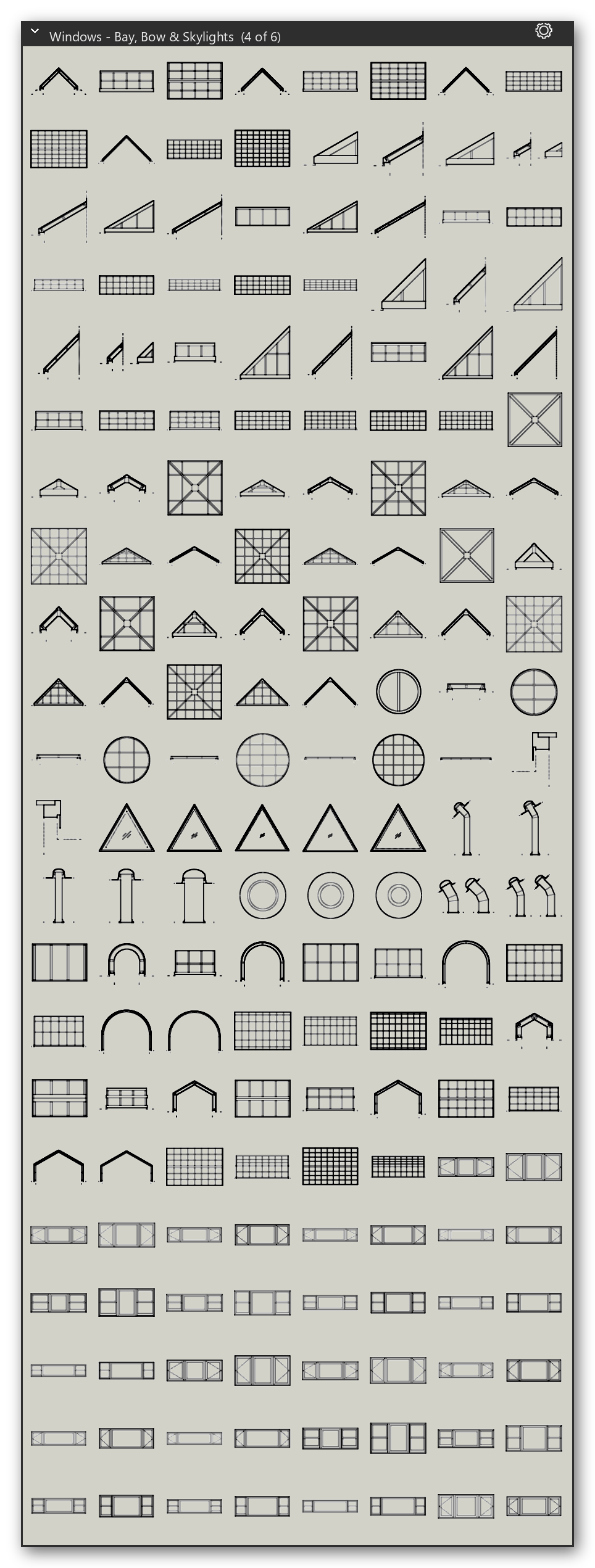

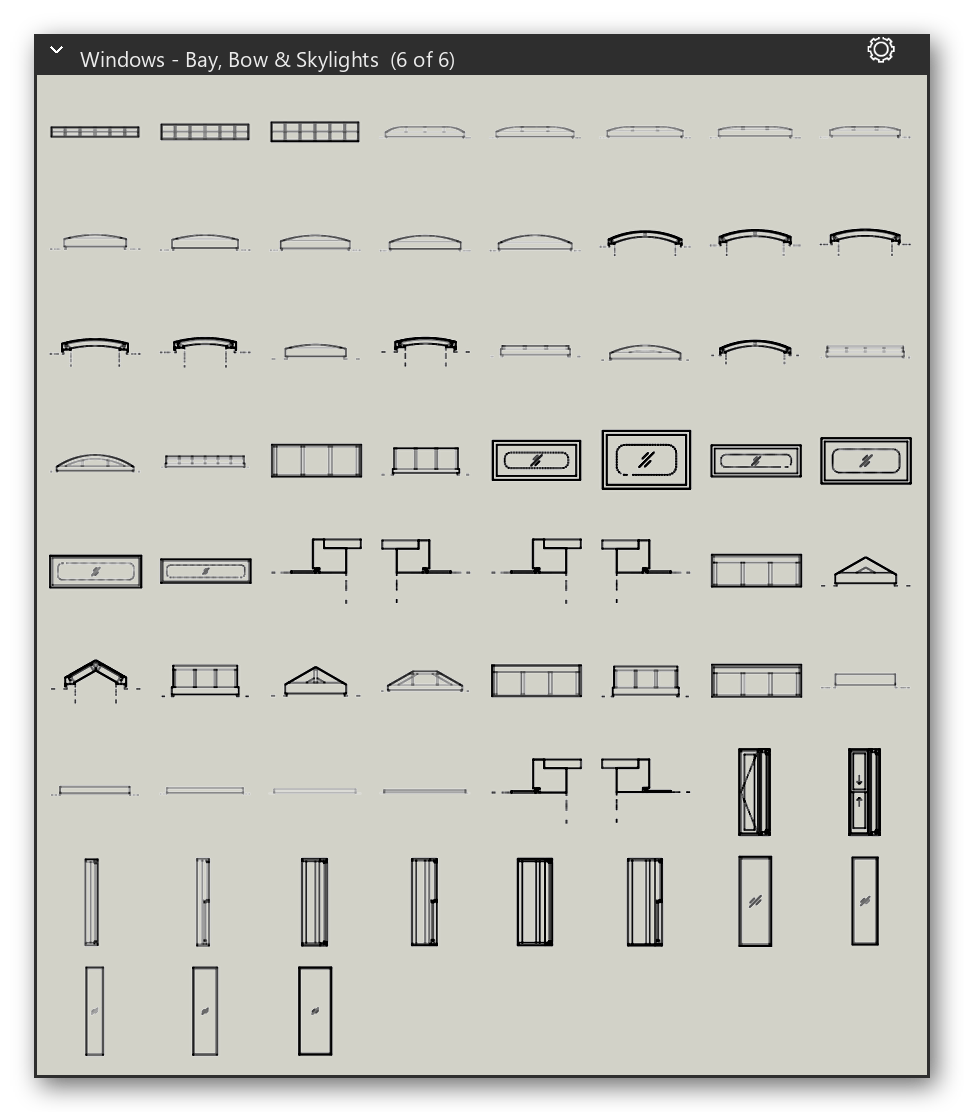

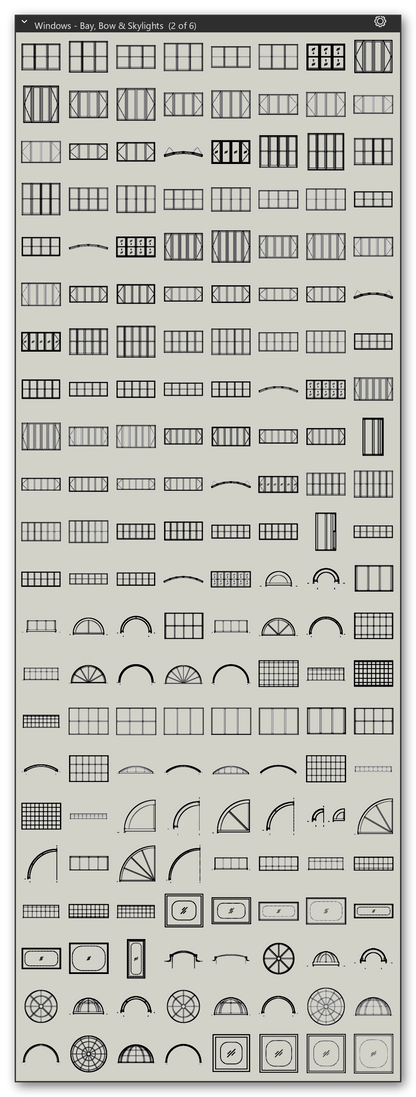

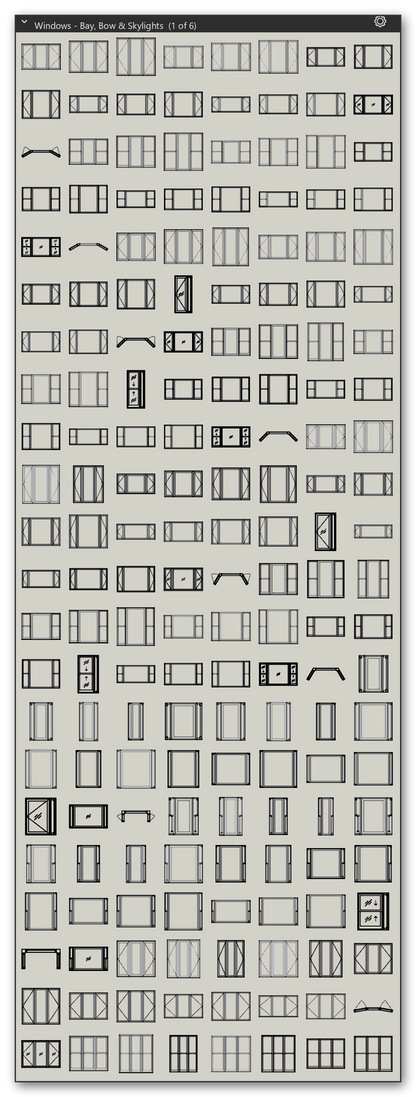

Bay, bow windows and skylights
- Bay and bow window assemblies in plan and elevation
- Skylights: pitched, dome, barrel, pyramid, octagon, tube and walkway
-

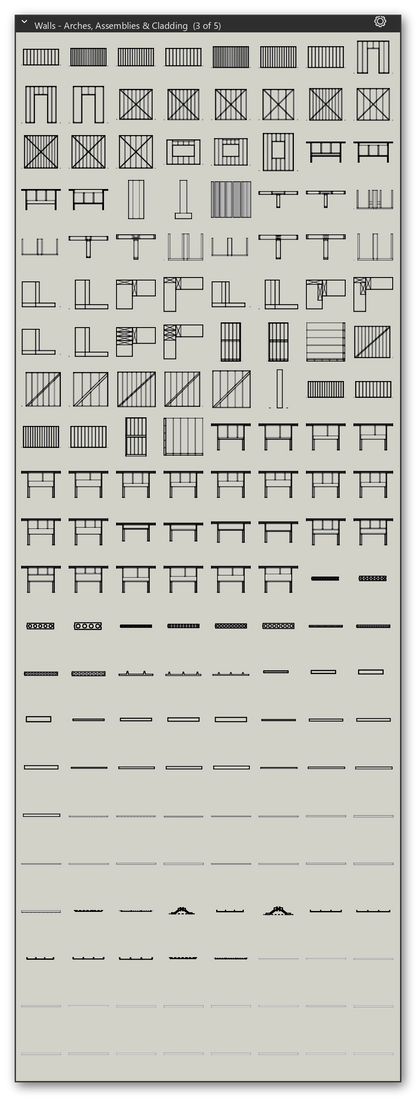

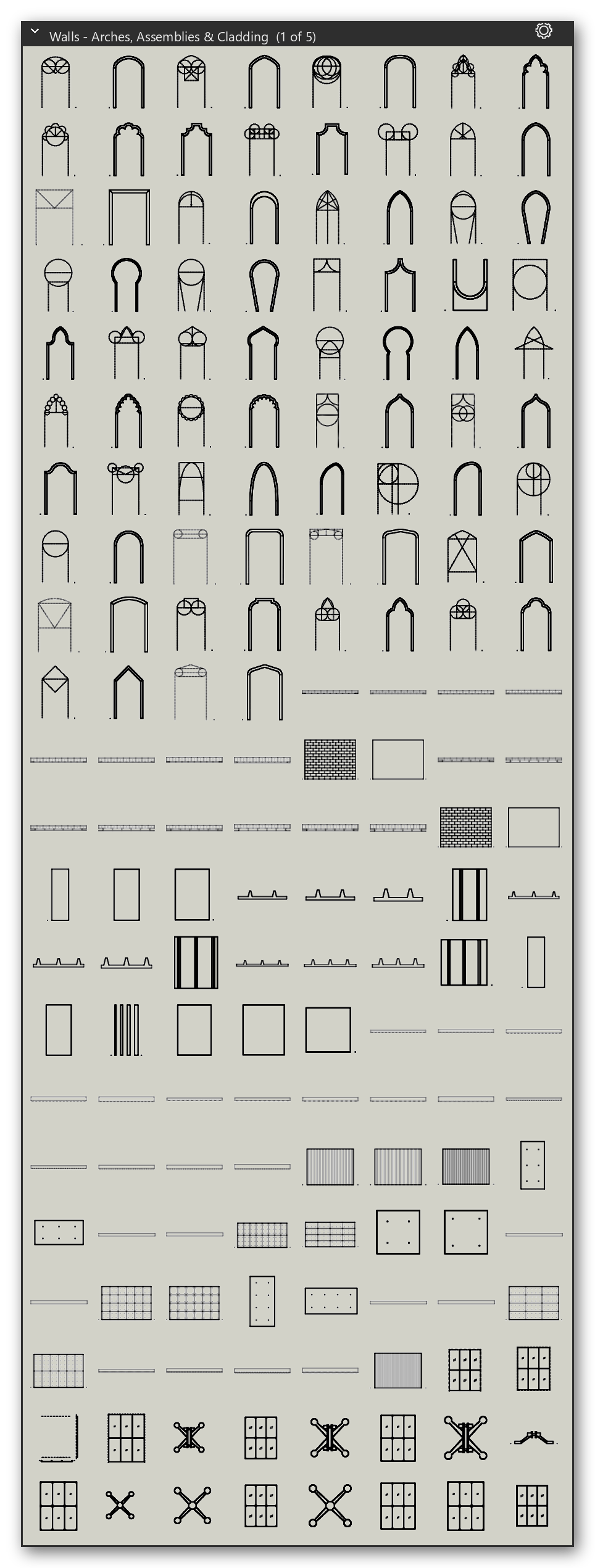

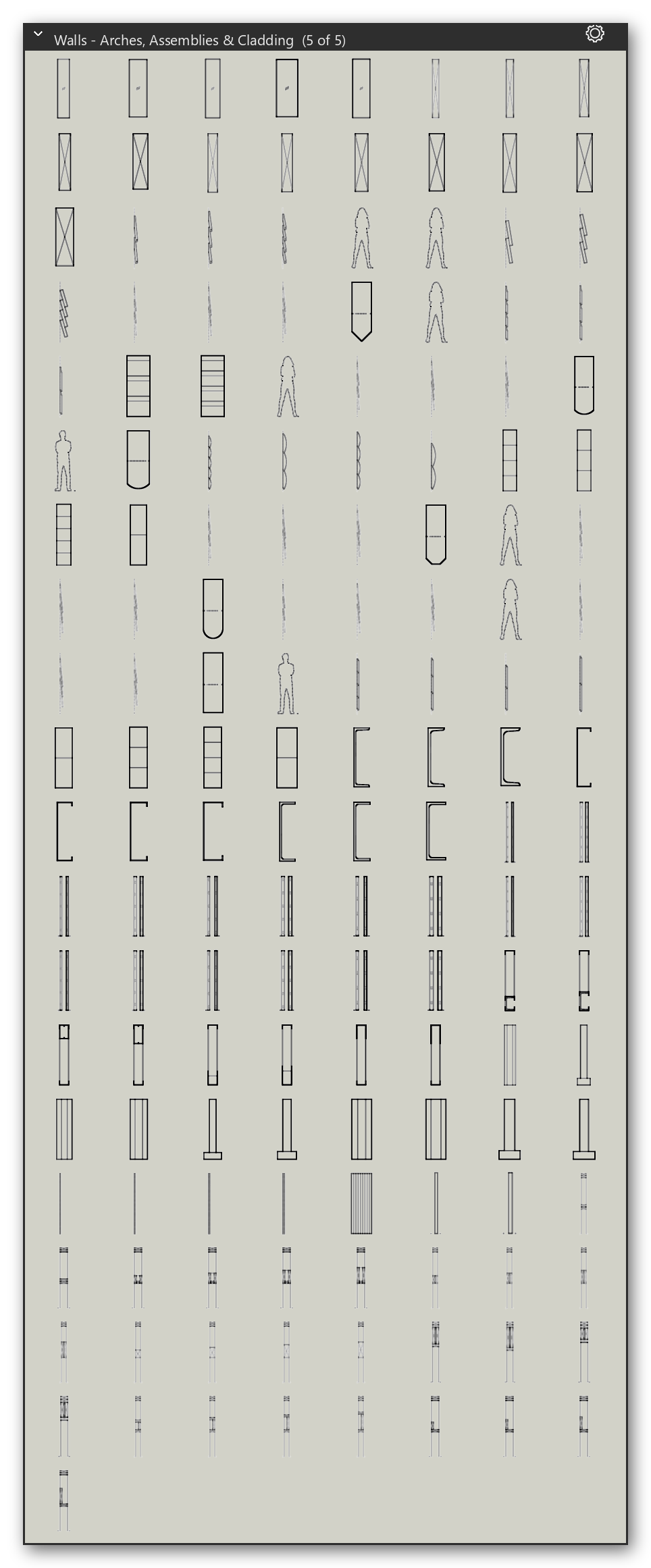

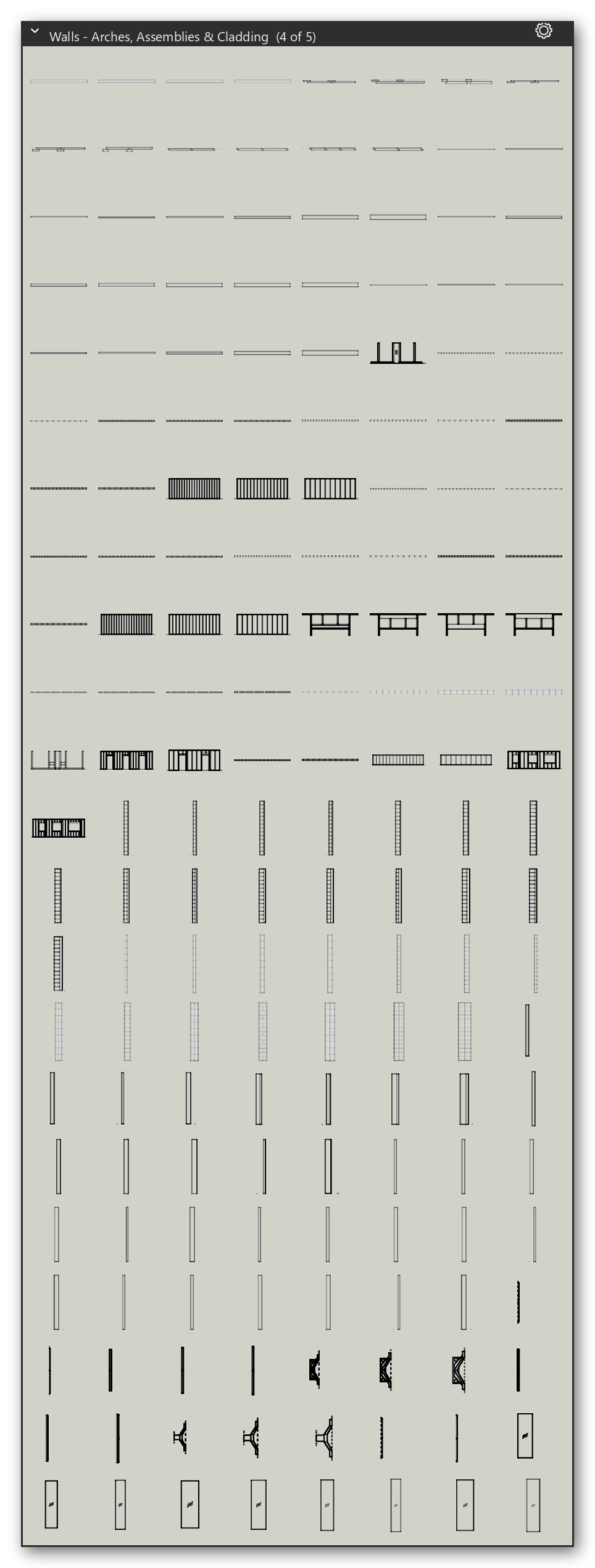

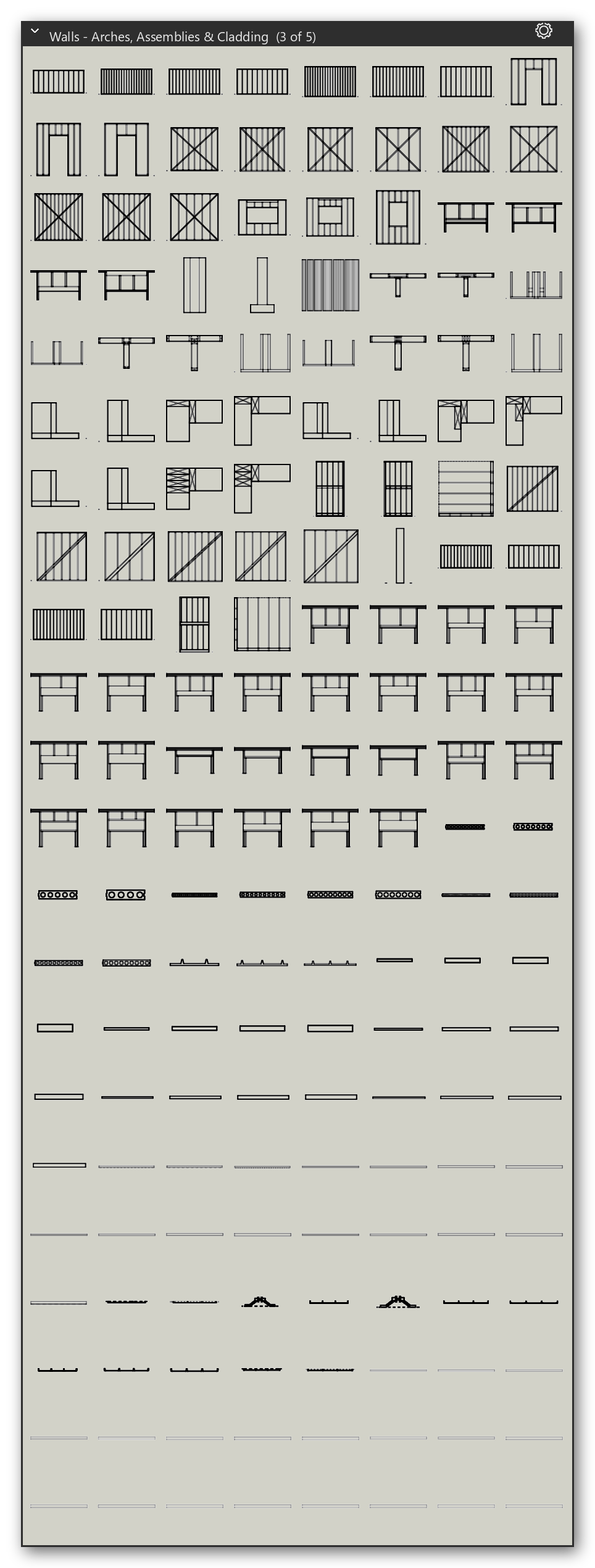

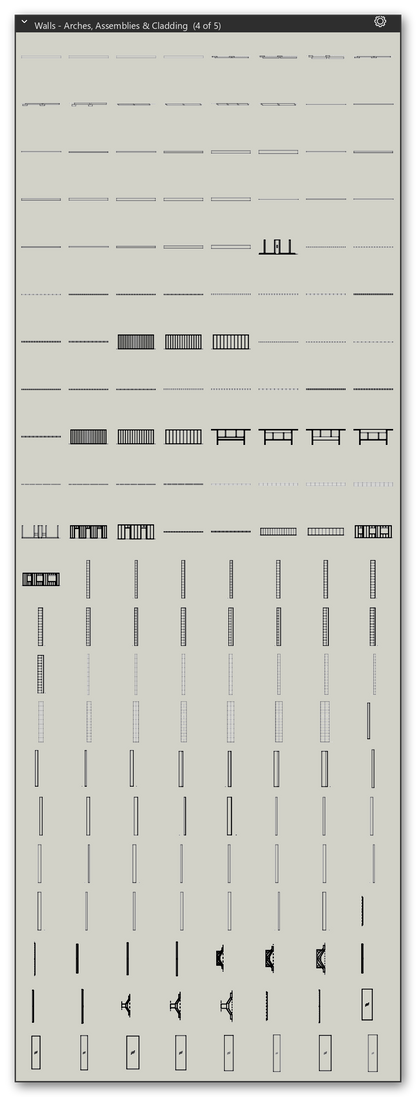

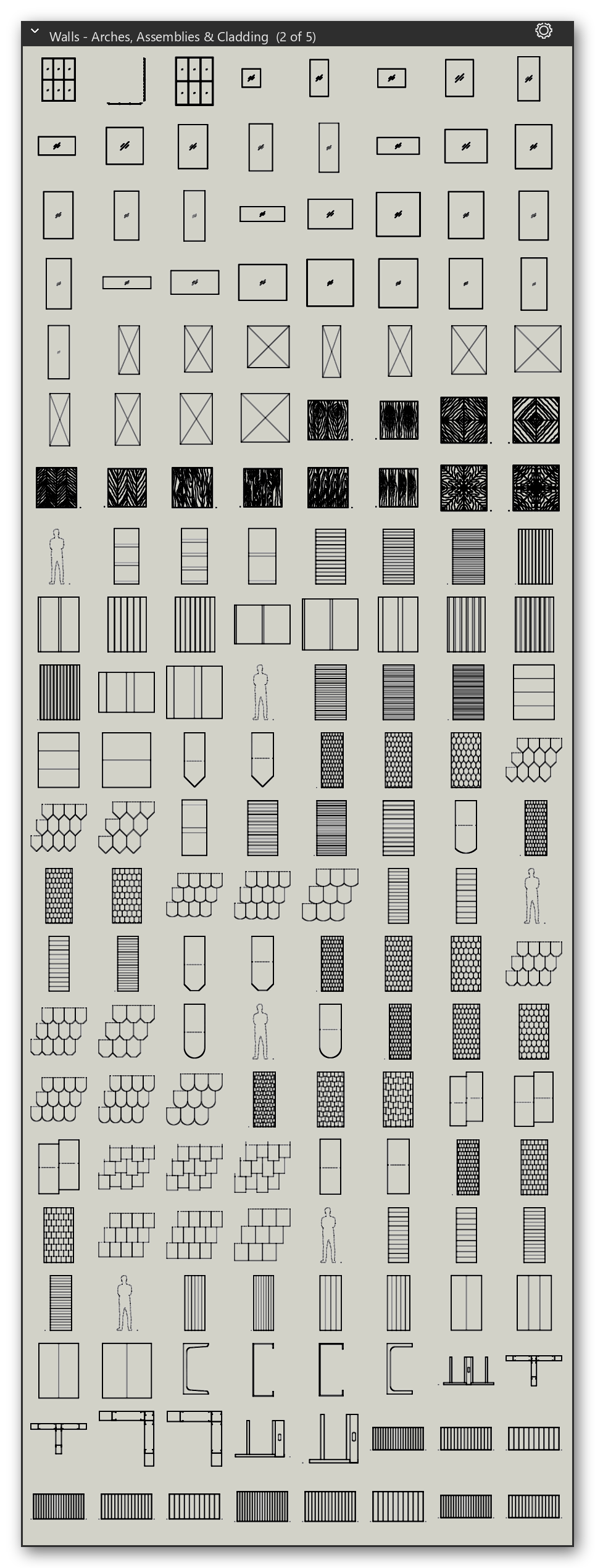

Wall arches, assemblies and cladding
- Arch types: 3, 4 and 5-centered, cinquefoil, draped and pointed
- Wood, steel and concrete wall assemblies and panel systems
- Plywood veneer matching and siding or cladding patterns
-

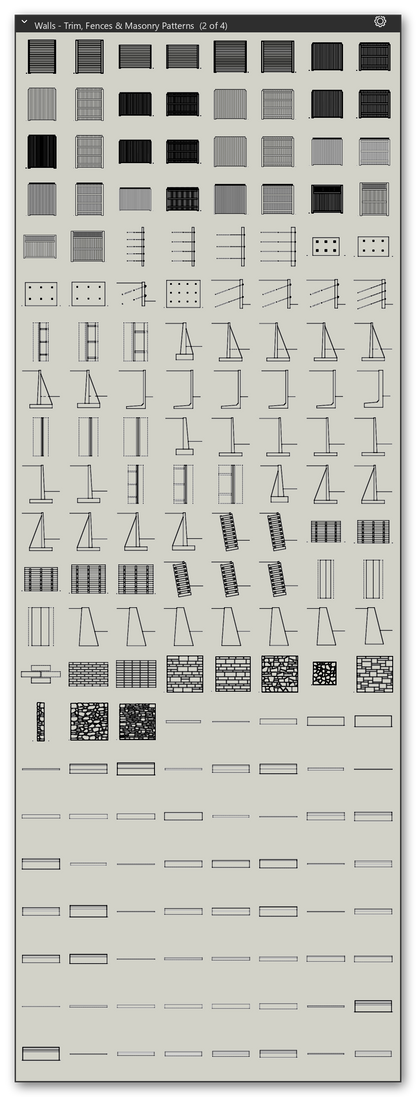

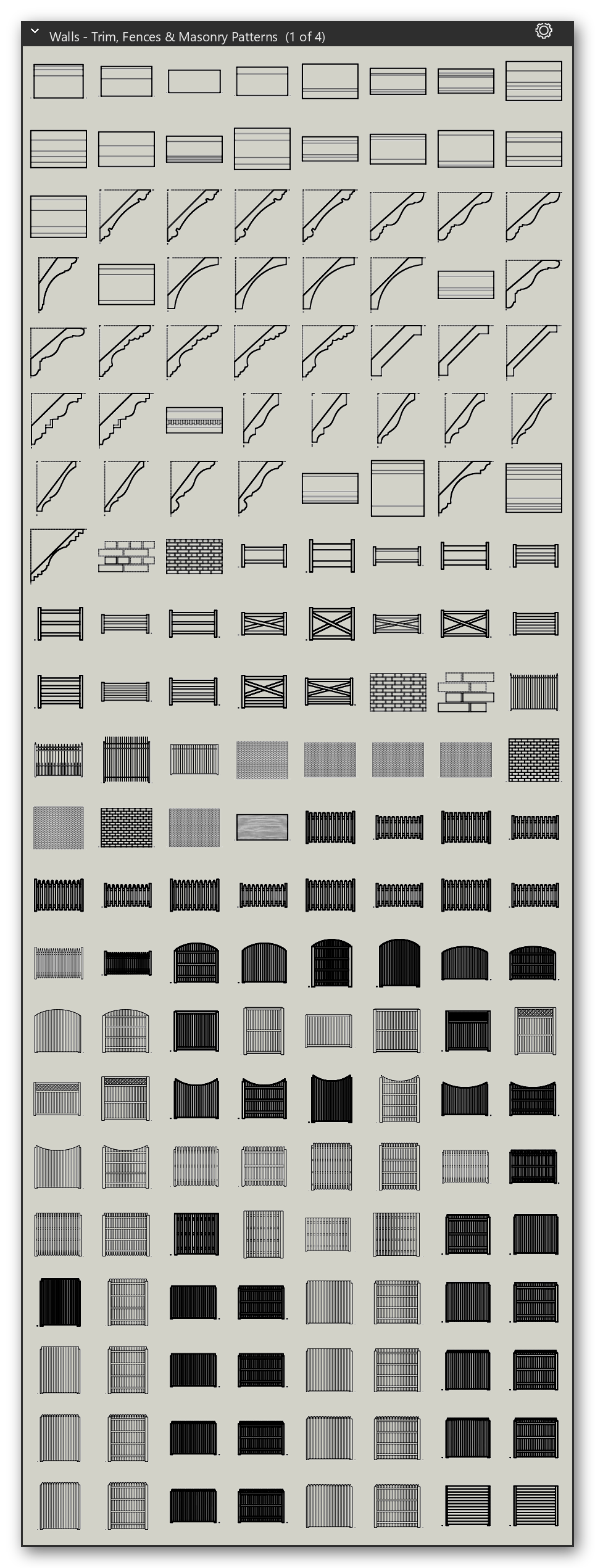

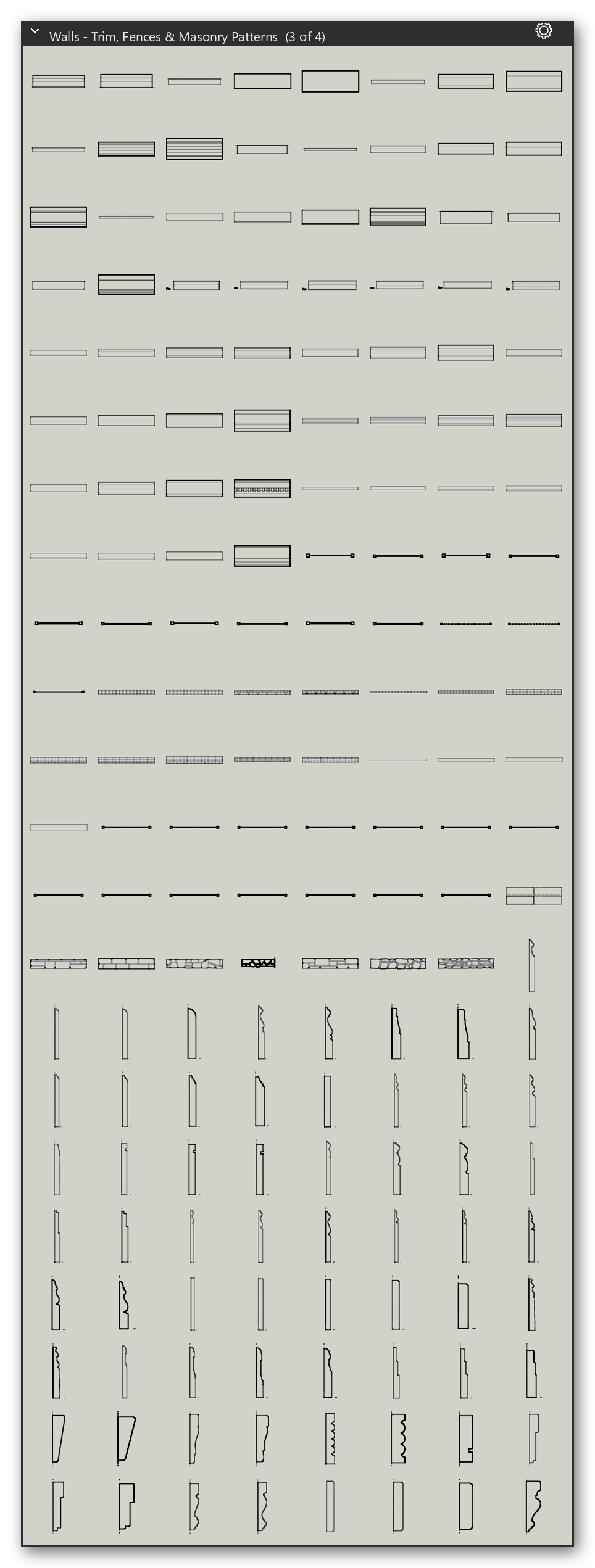

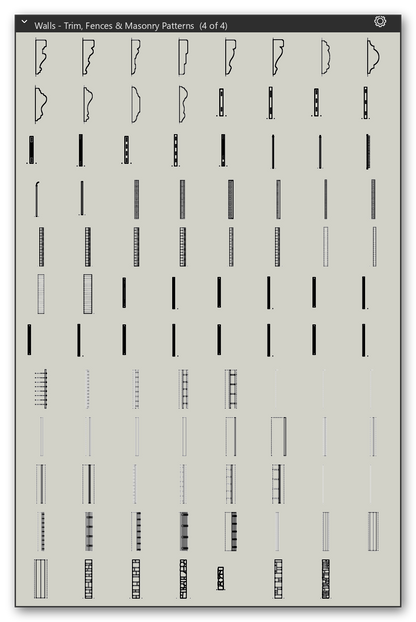

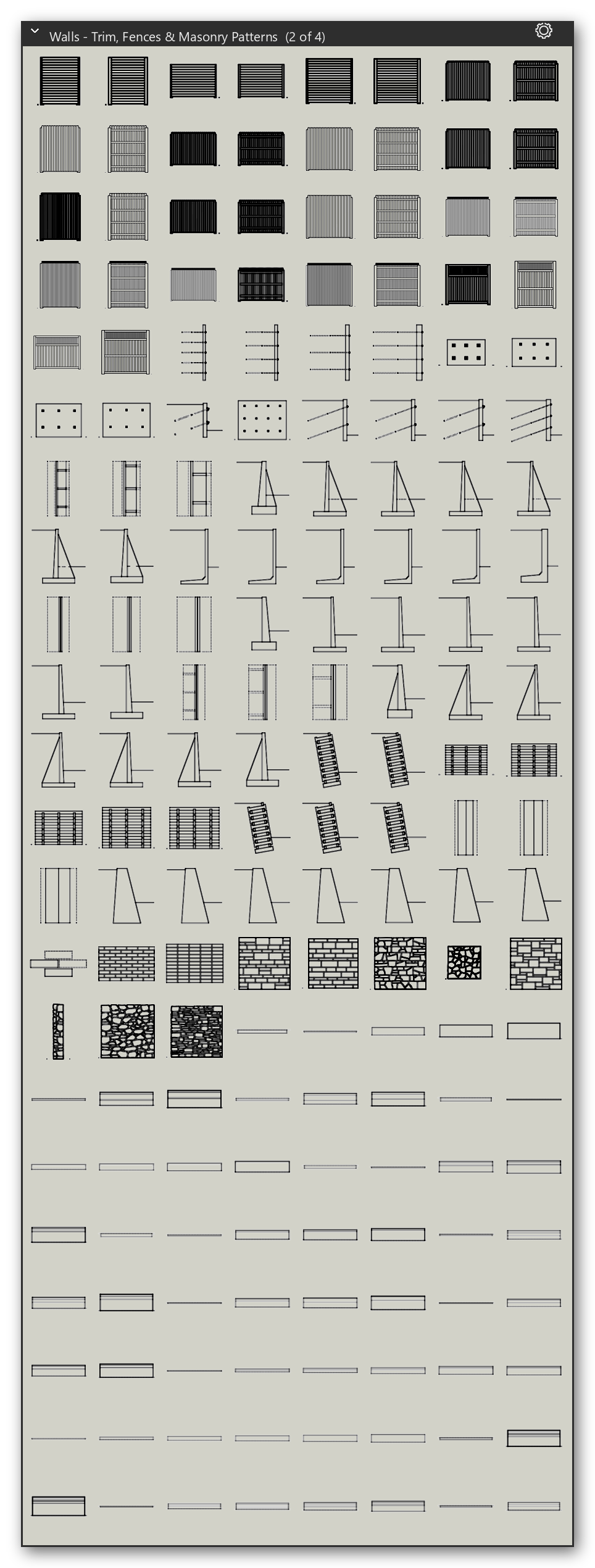

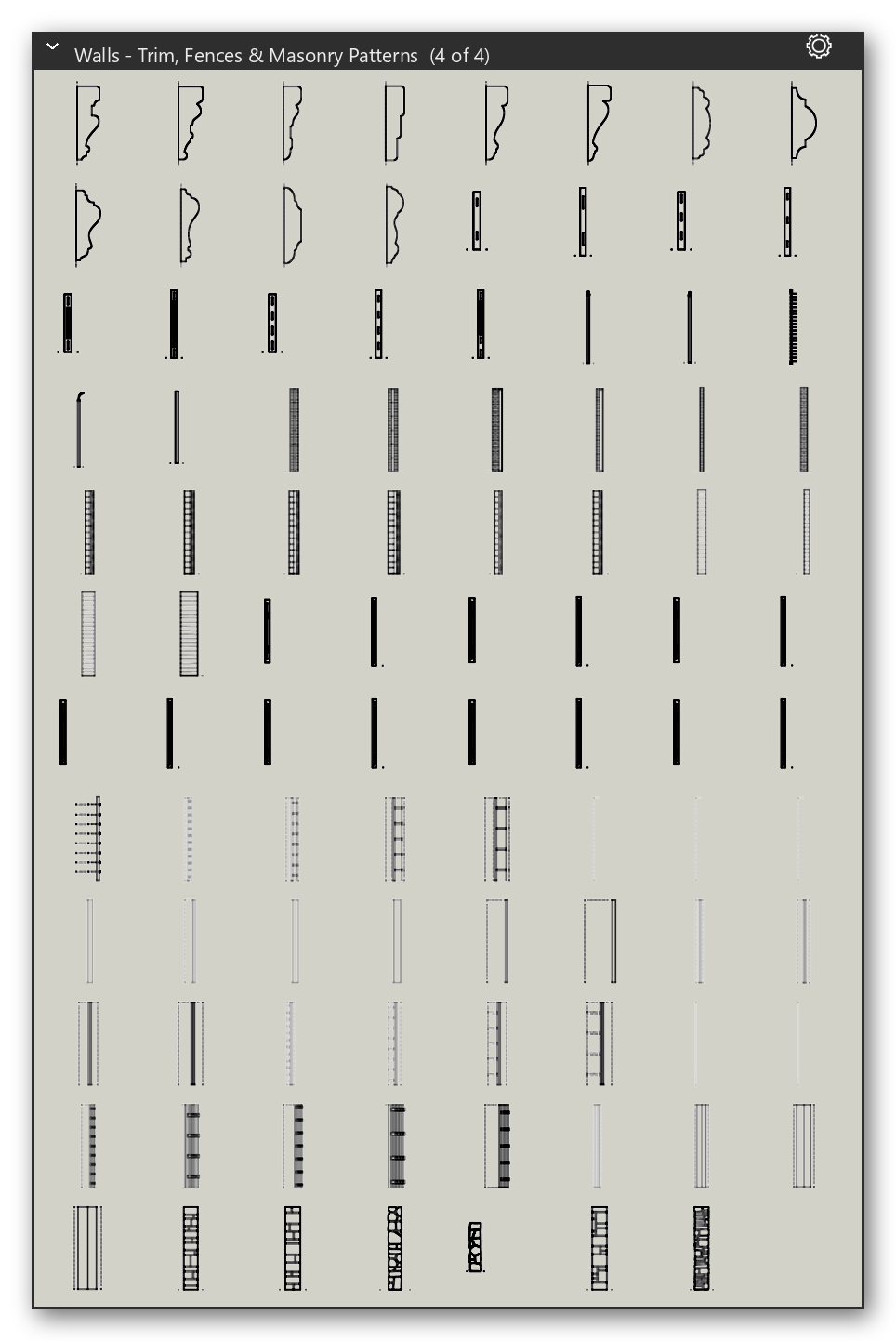

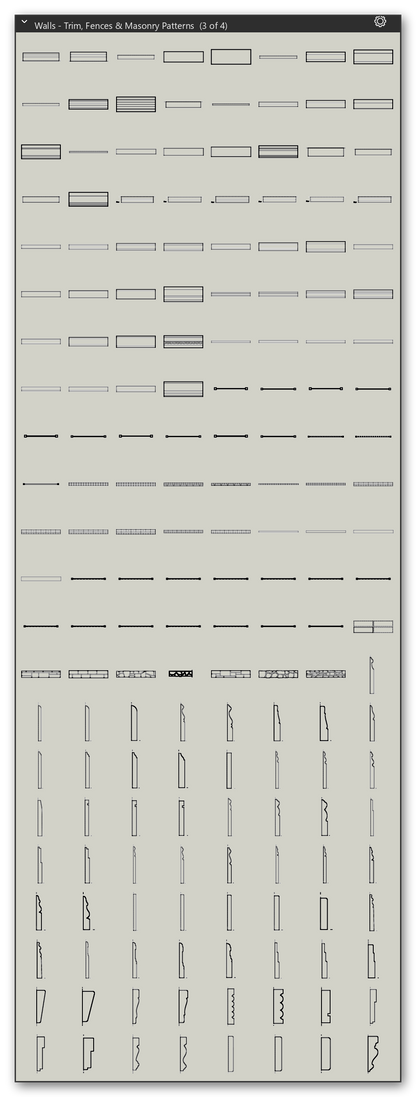

Wall trim, fences and masonry patterns
- Baseboard, crown, casing and chair rail profiles
- Privacy, picket, farm and wrought iron fences and gates
- Brick and masonry bond patterns and stone wall types
