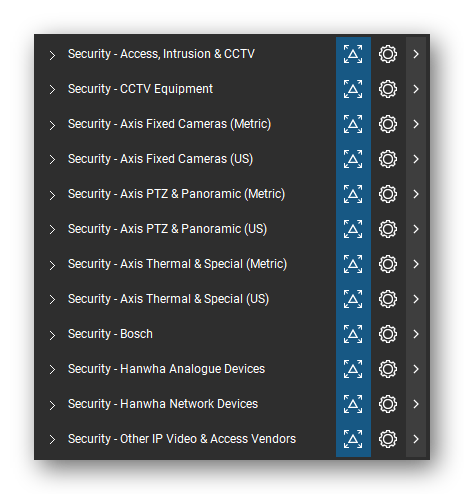

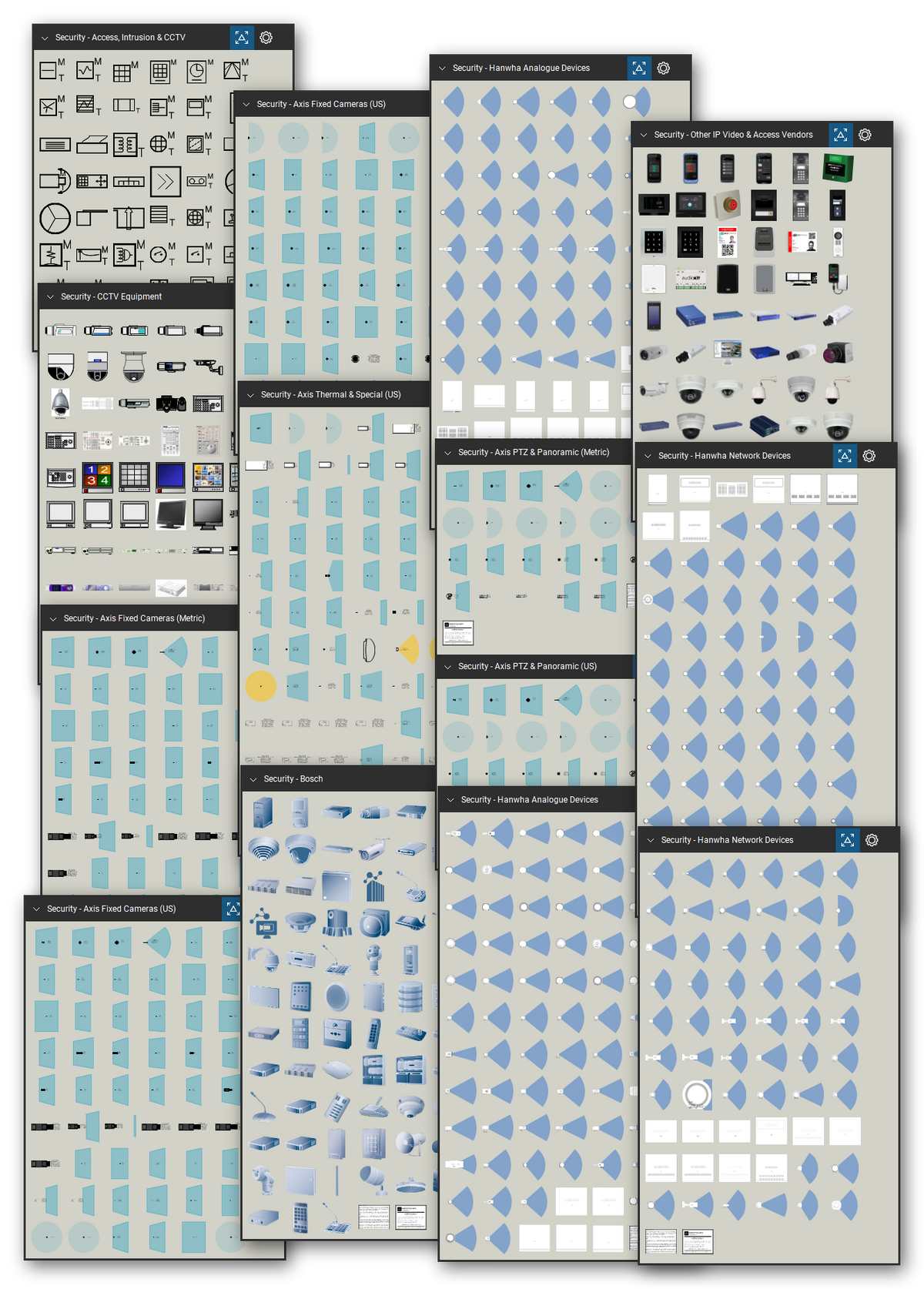

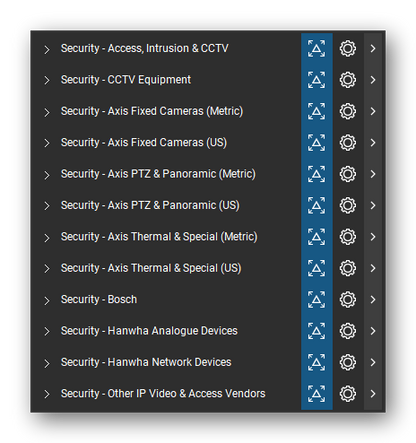

Tool set of security layout symbols for security device layouts, camera plans, and riser diagrams. This tool set covers 12 categories with 982 symbols. Each symbol is a vector snapshot in the colors of its maker's artwork that places as a single markup — it can be moved, resized, and rotated directly in Bluebeam — and is named with its model, so the tools list by name in the Tool Chest and placed devices list by name in the Markups List. Mounting and type tags, camera model, field-of-view and resolution notes that stand on a symbol are editable text.
Examples of symbols included:
-

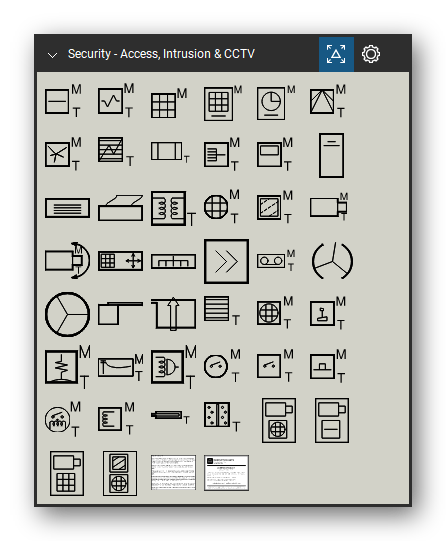

Access, intrusion and CCTV

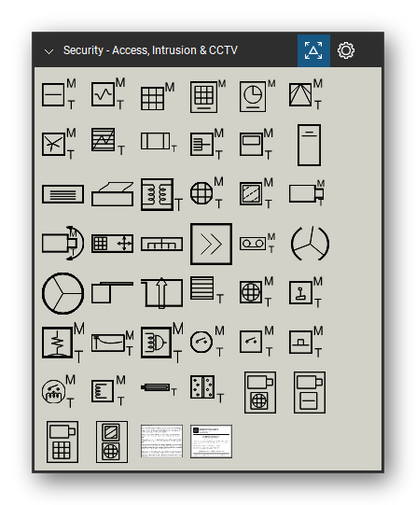

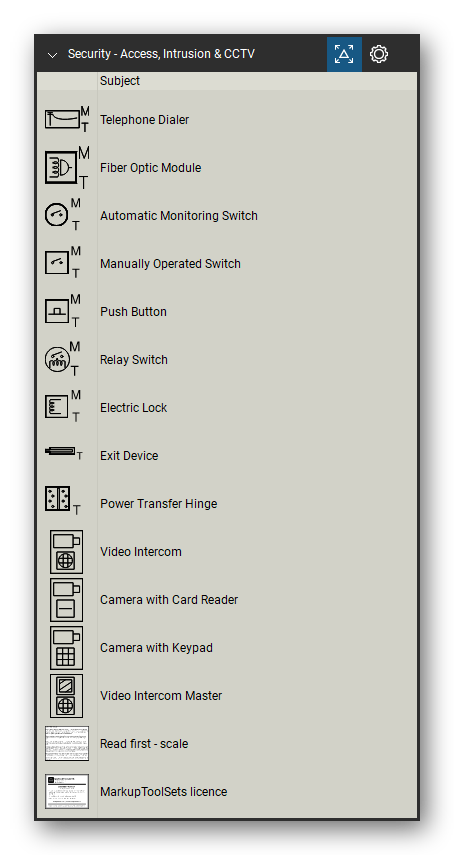

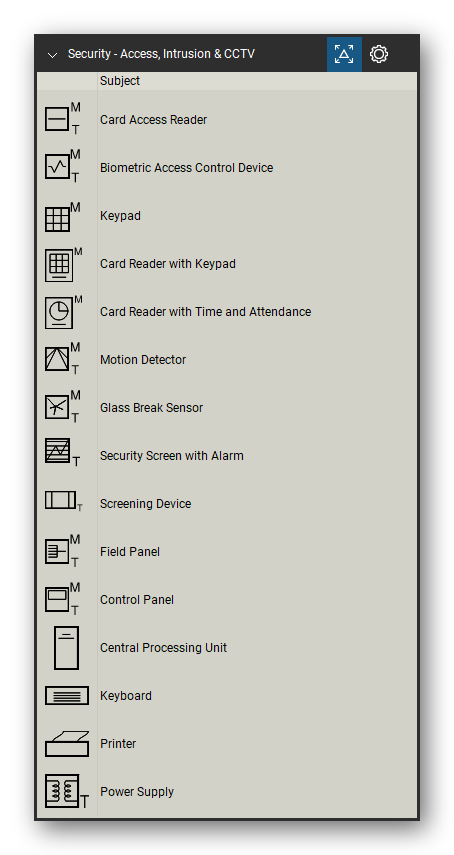

- Card access reader, biometric device, keypad, card reader with keypad or time and attendance, camera with card reader or keypad
- Motion detector, glass break sensor, security screens with alarm, screening device, vehicle loop detector, turnstile, revolving door, traffic arm
- Field and control panels, CPU, keyboard, printer, power supply, monitor, recorder, video multiplexer, video motion detection, video control keyboard
- Fixed and PTZ cameras, intercoms, video intercom and master, 2-way radio microphone, cellular transmitter, telephone dialer, fiber optic module
- Switches, push button, relay switch, electric lock, exit device, power transfer hinge
-

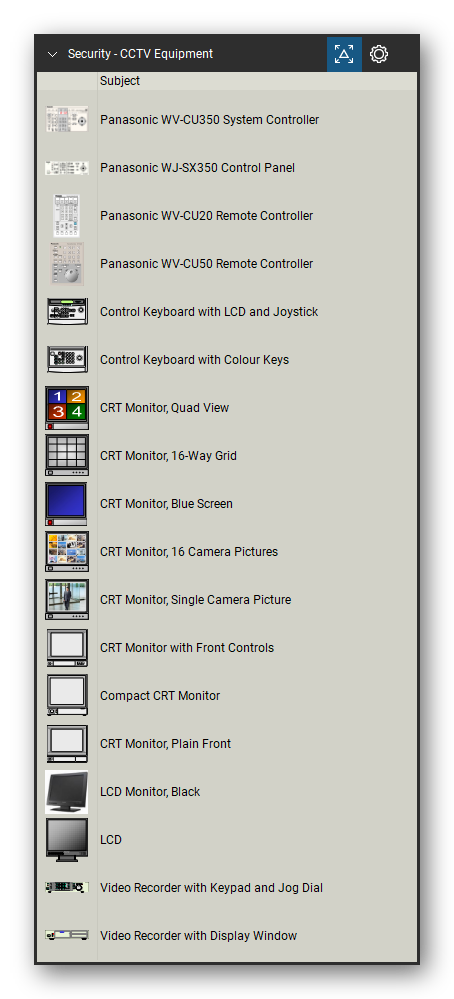

CCTV equipment

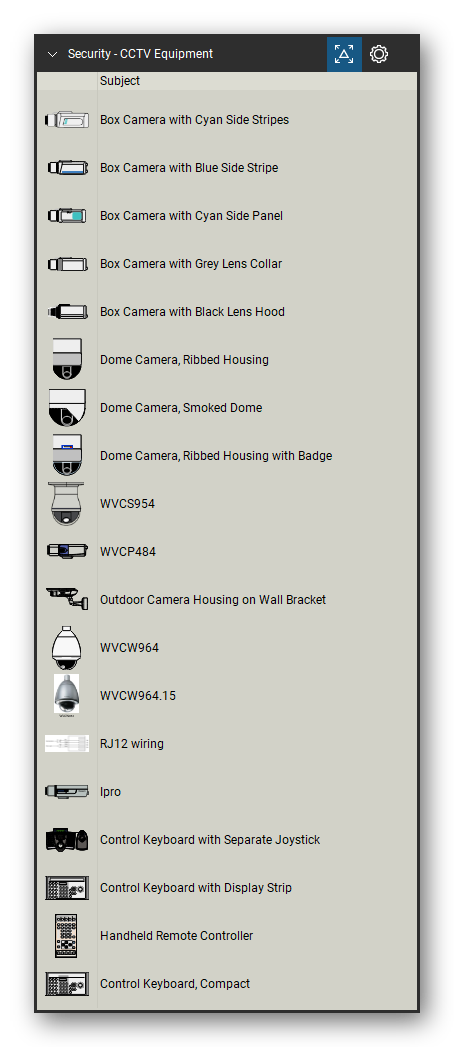

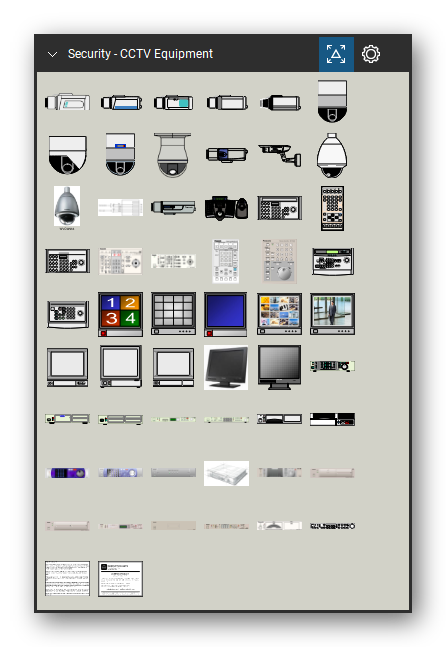

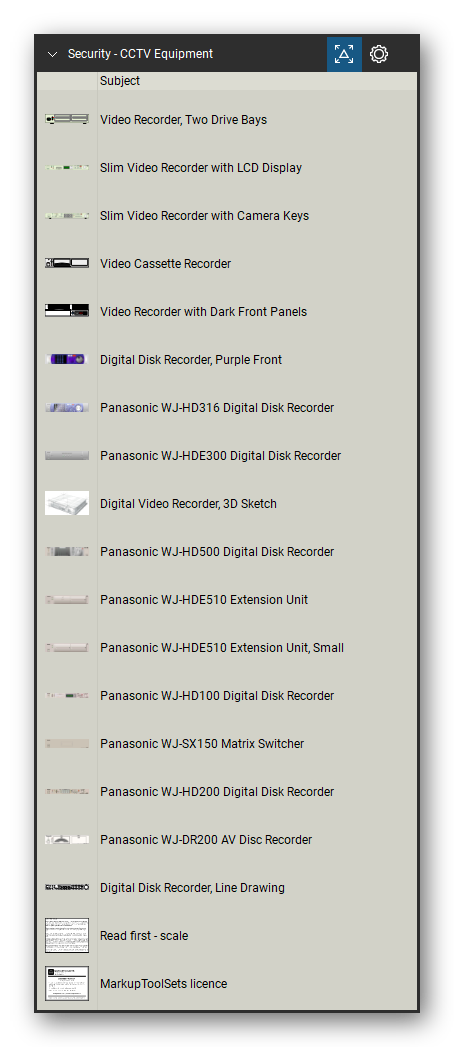

- Analog and IP cameras, controllers, monitors, an LCD, recorders, an RJ12 wiring block and the i-PRO WV-CS954, WV-CP484 and WV-CW964 cameras
-

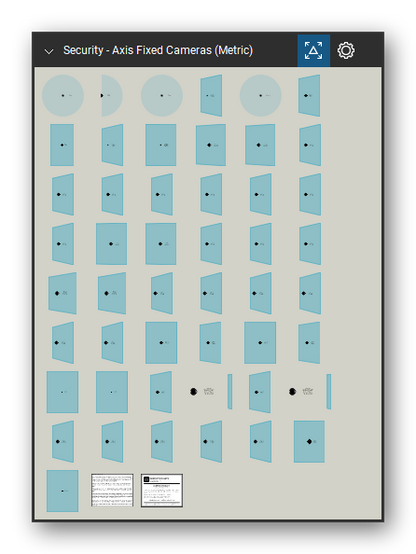

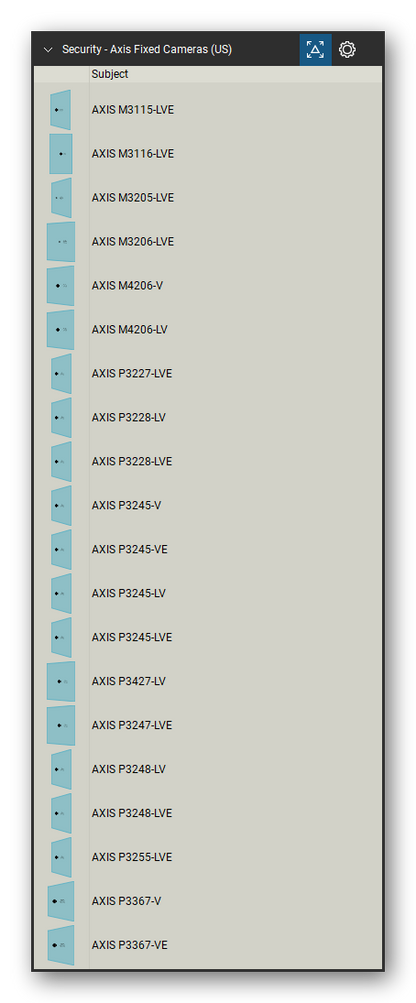

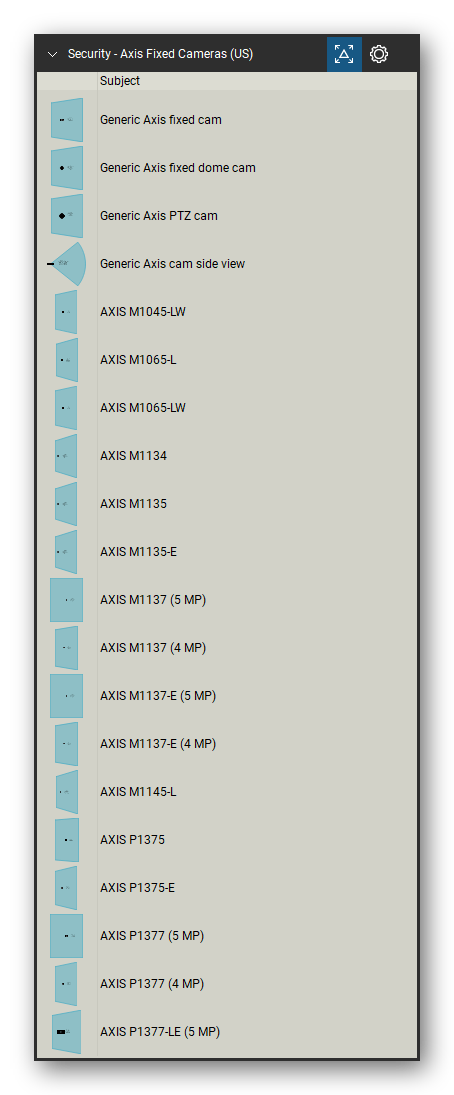

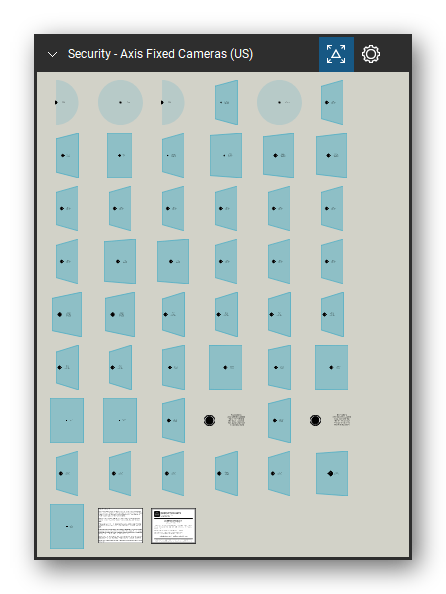

Axis fixed cameras (Metric and US units)

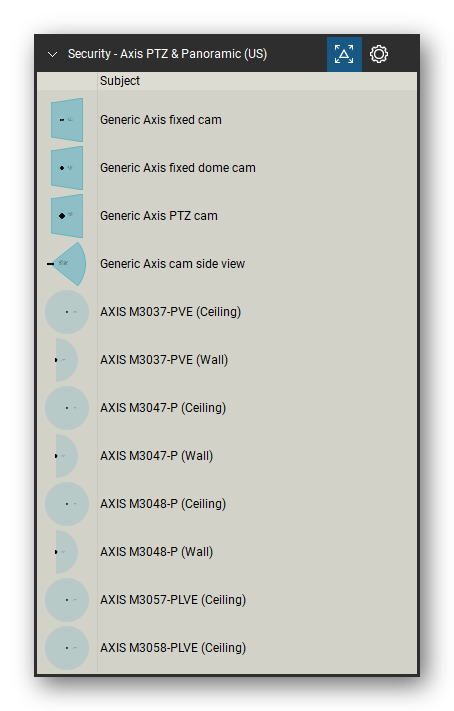

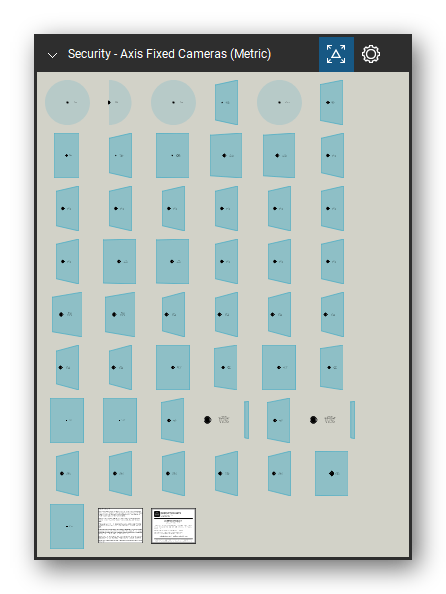

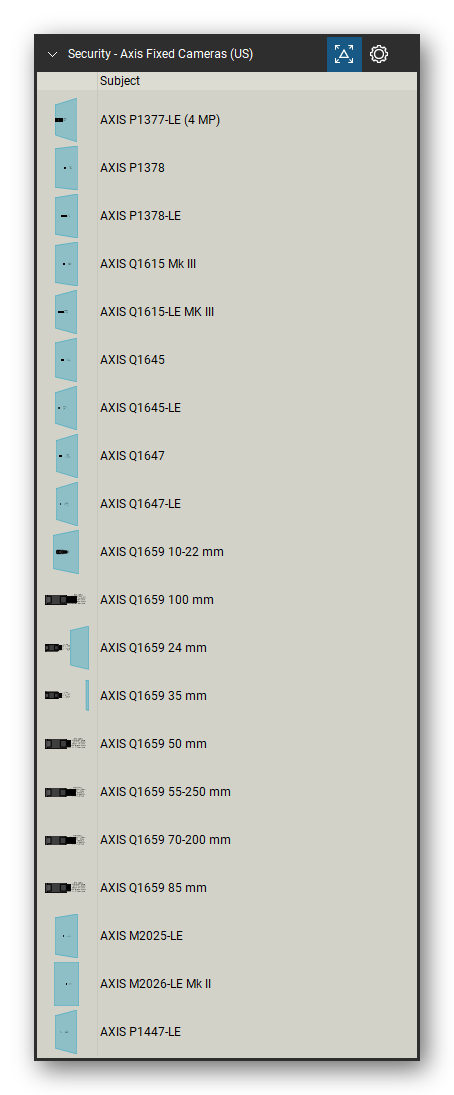

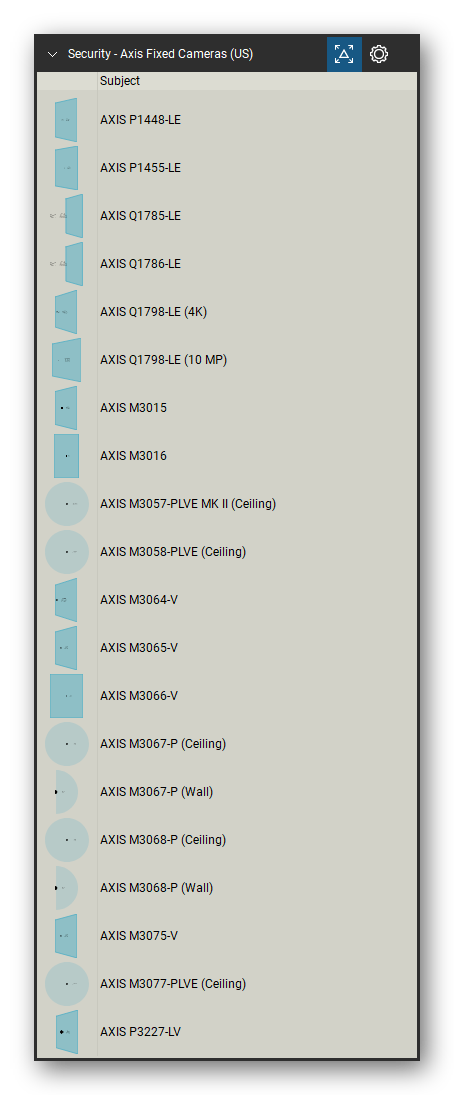

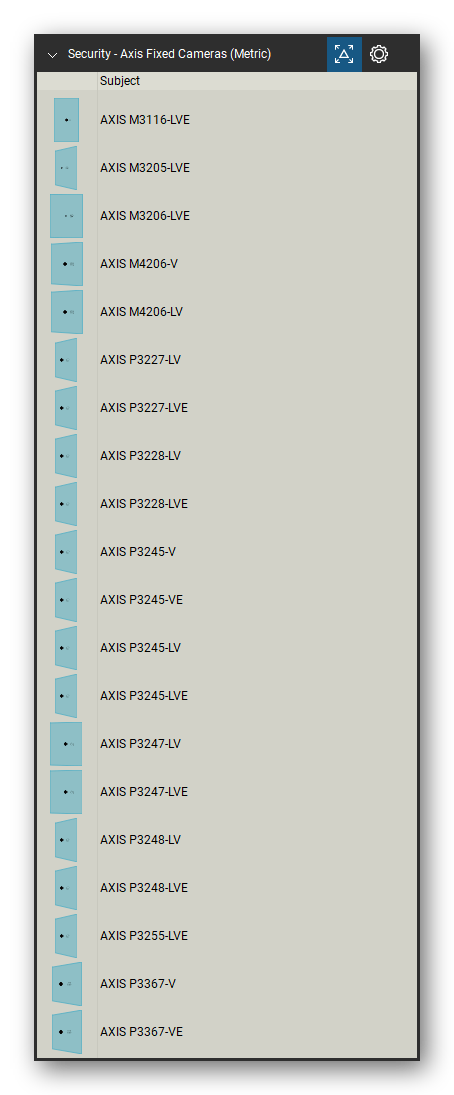

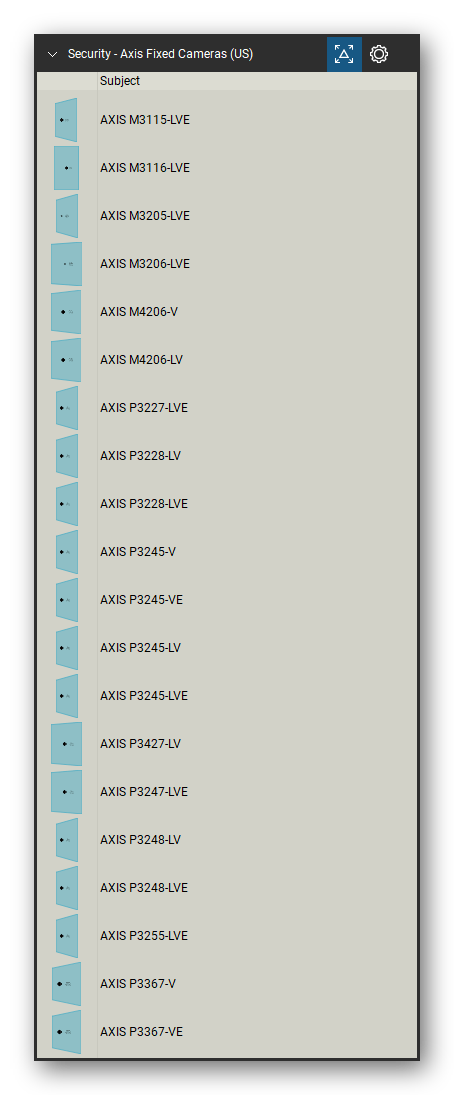

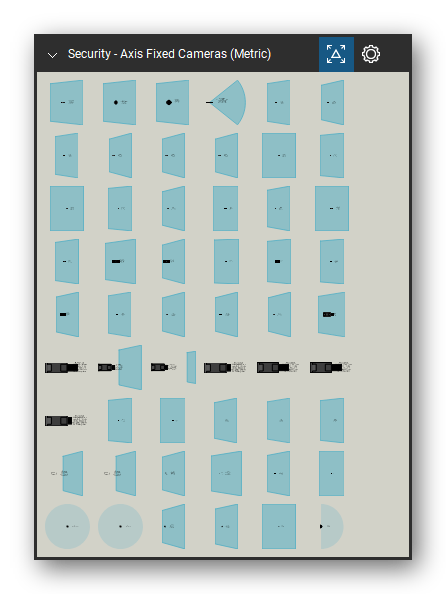

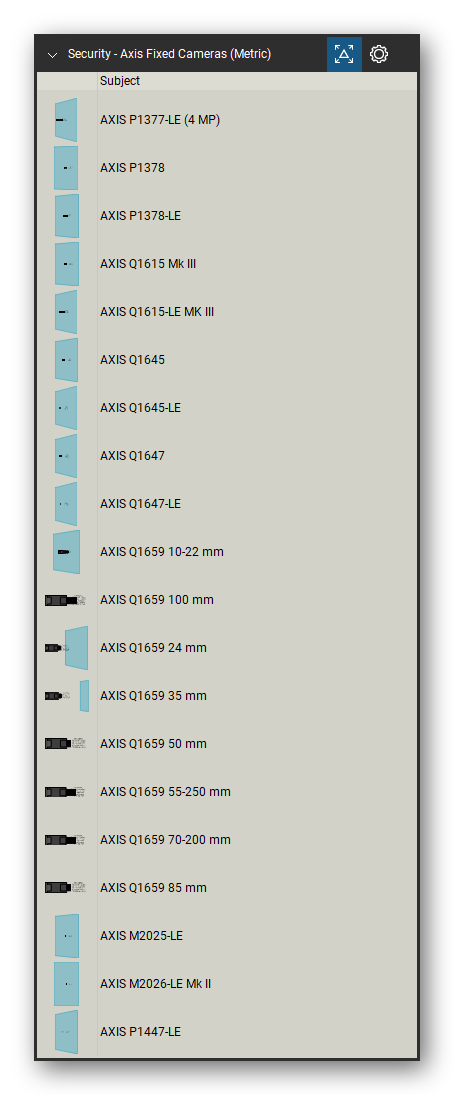

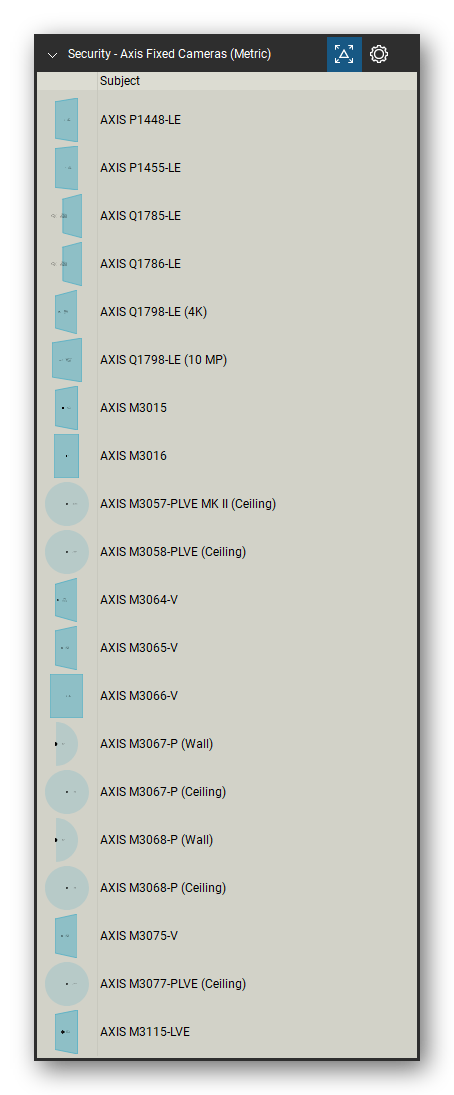

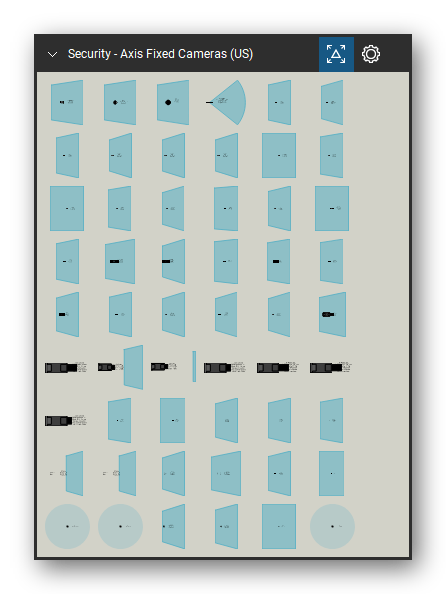

- M10, M11, M20, M30, M31, M32, M42 and P13, P14, P32, P33 and P39 series box, bullet and dome cameras, Q16, Q17 and Q1659 with 24 to 250 mm lenses, in ceiling and wall mounts
- Generic fixed, dome, PTZ and side-view cameras
-

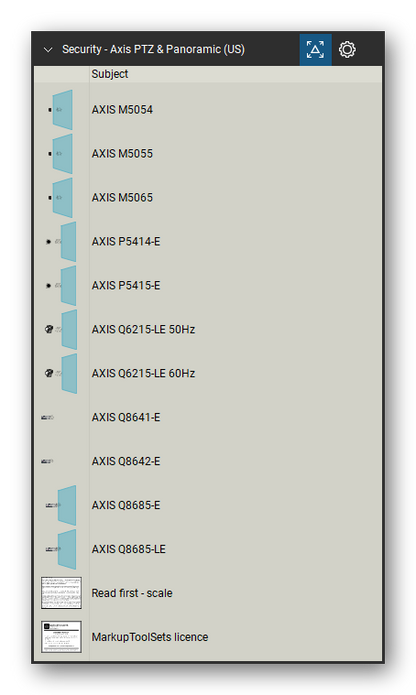

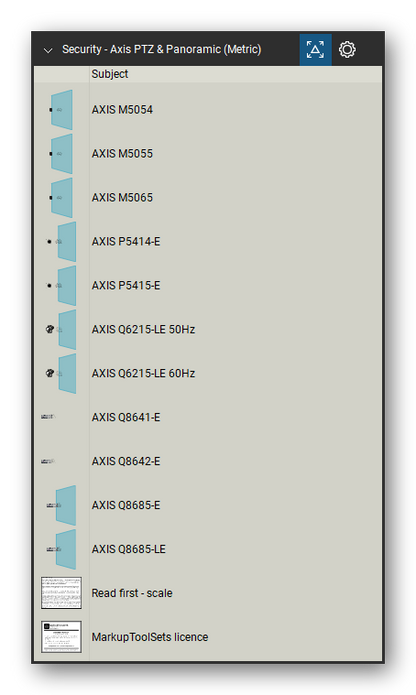

Axis PTZ and panoramic cameras (Metric and US units)

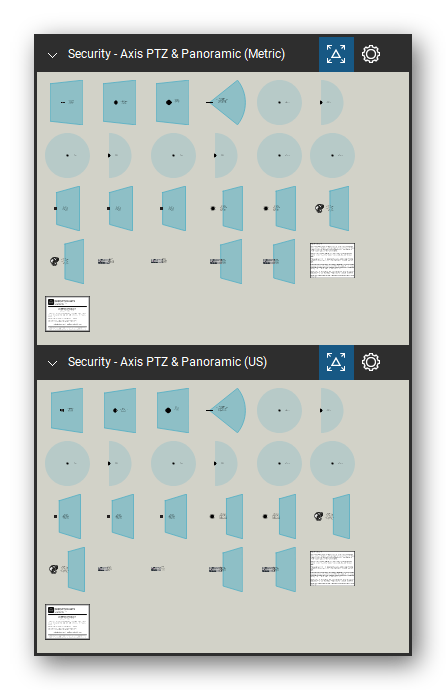

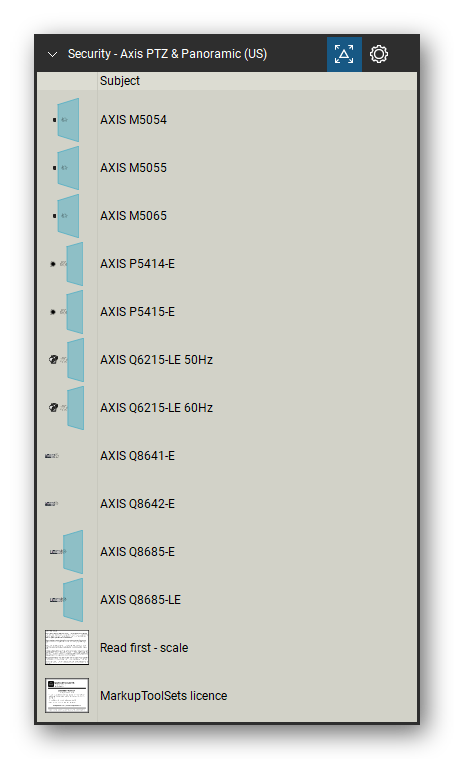

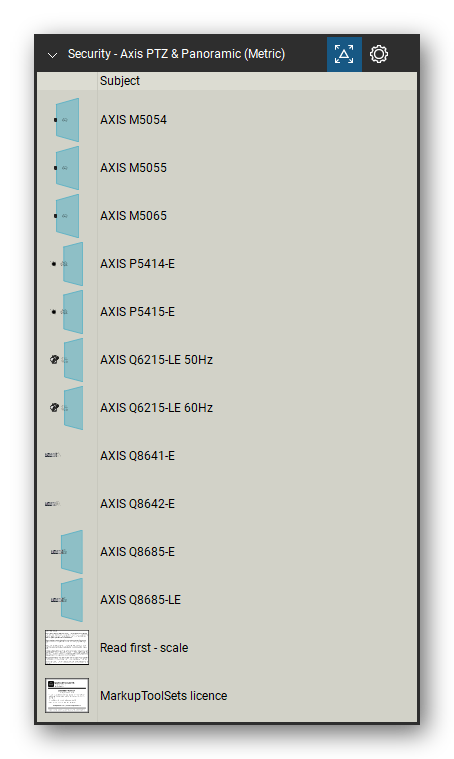

- M30 and M50 series panoramic and PTZ domes, P54, Q62 and Q86 series PTZ cameras, in ceiling and wall mounts
-
Axis thermal and special cameras (Metric and US units)

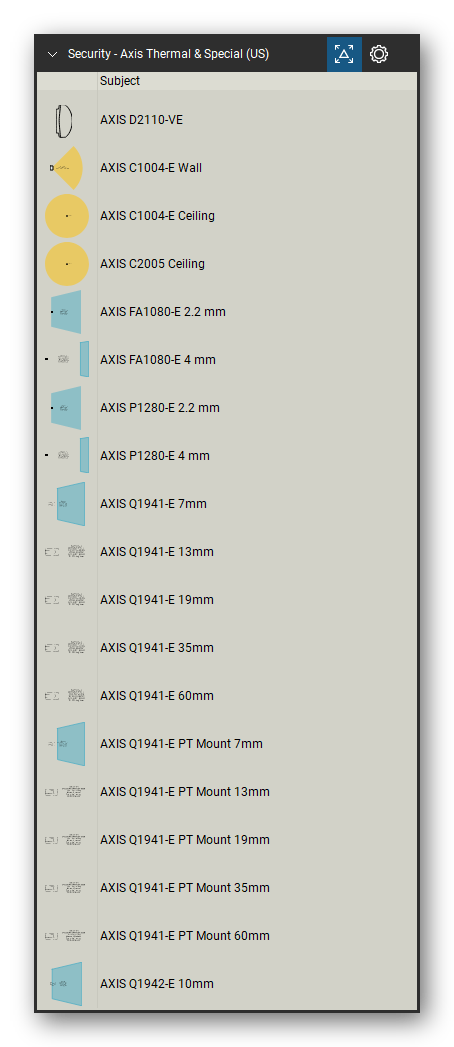

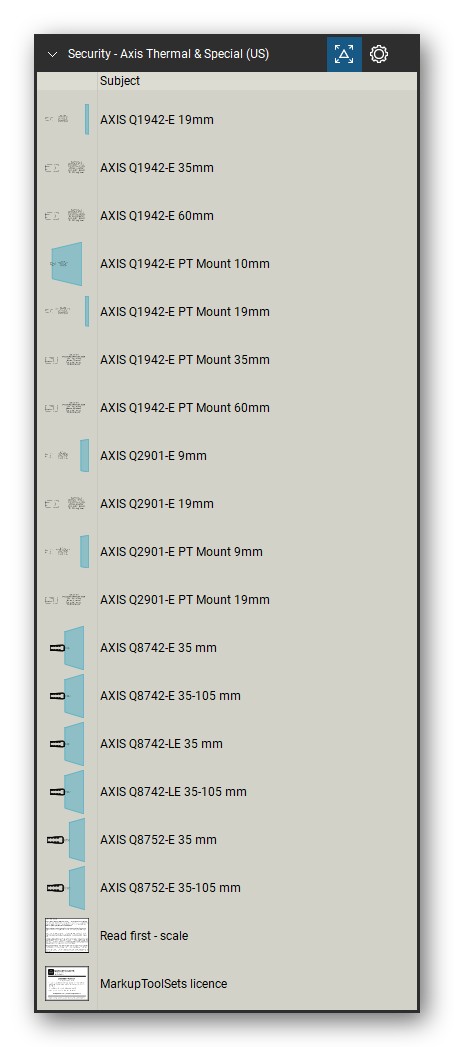

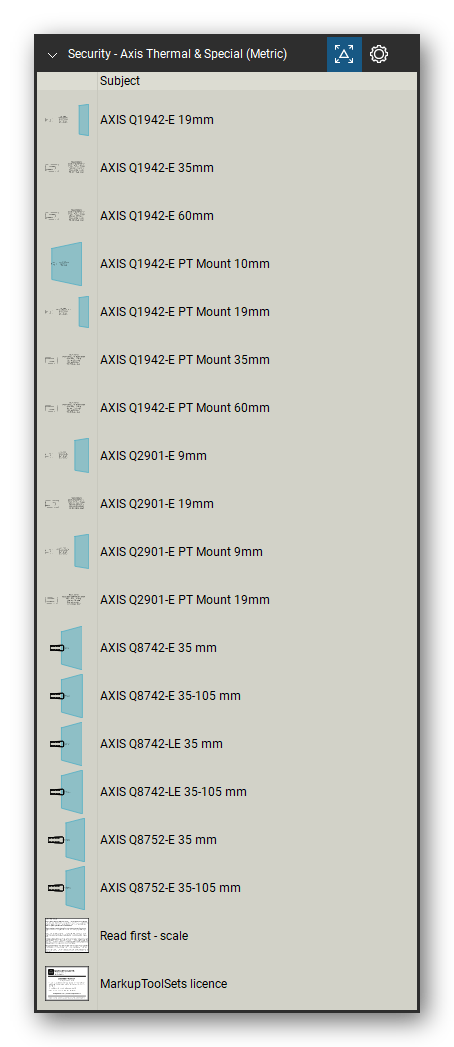

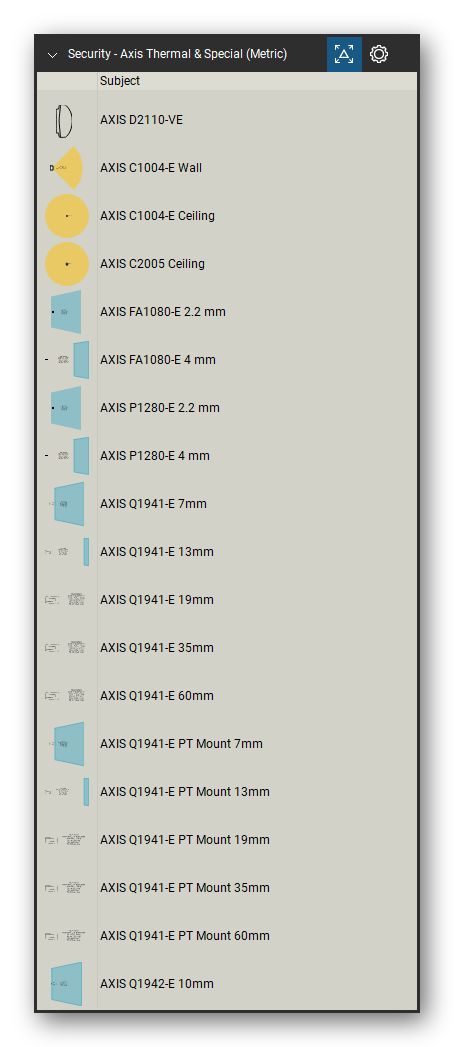

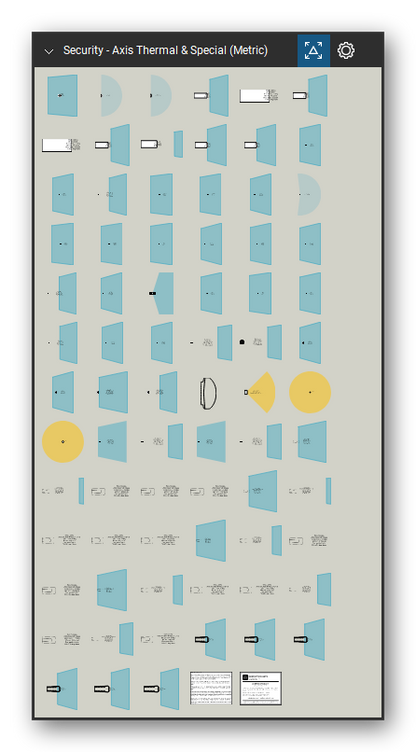

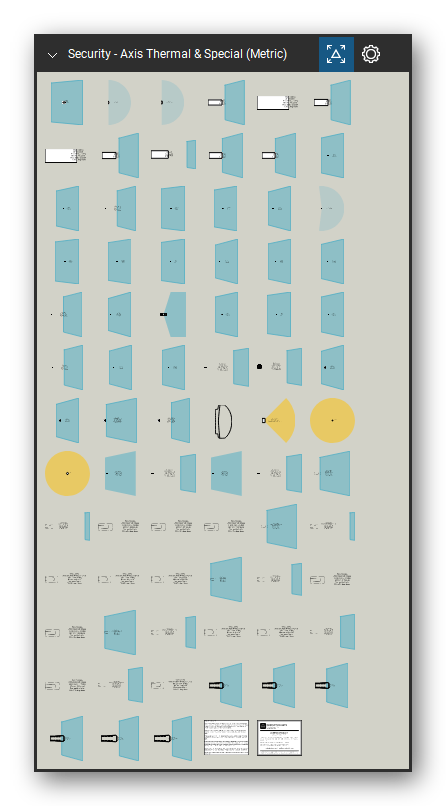

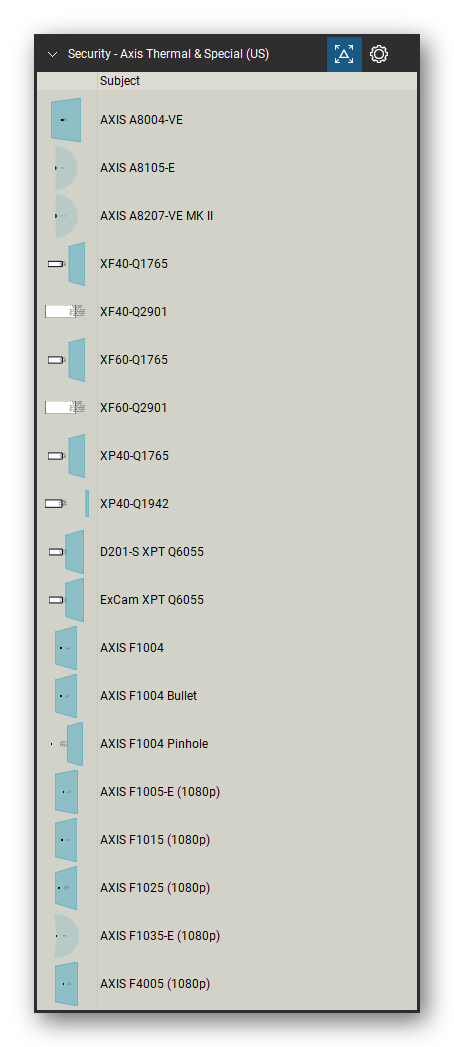

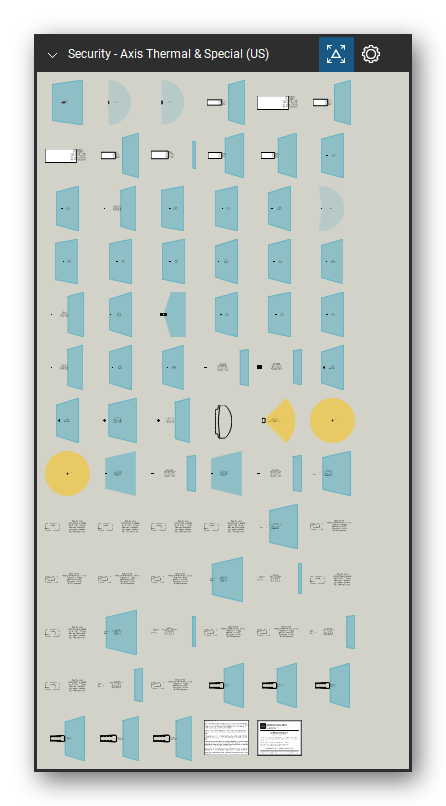

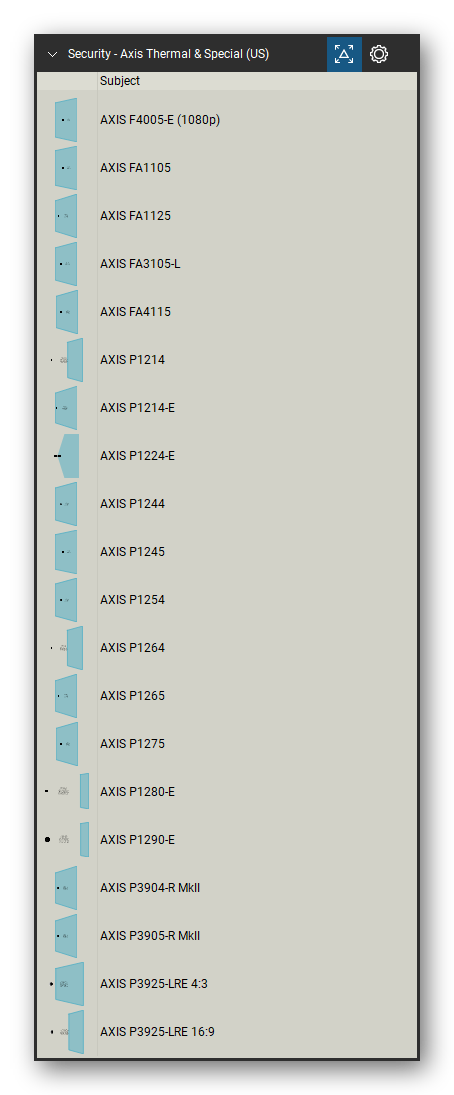

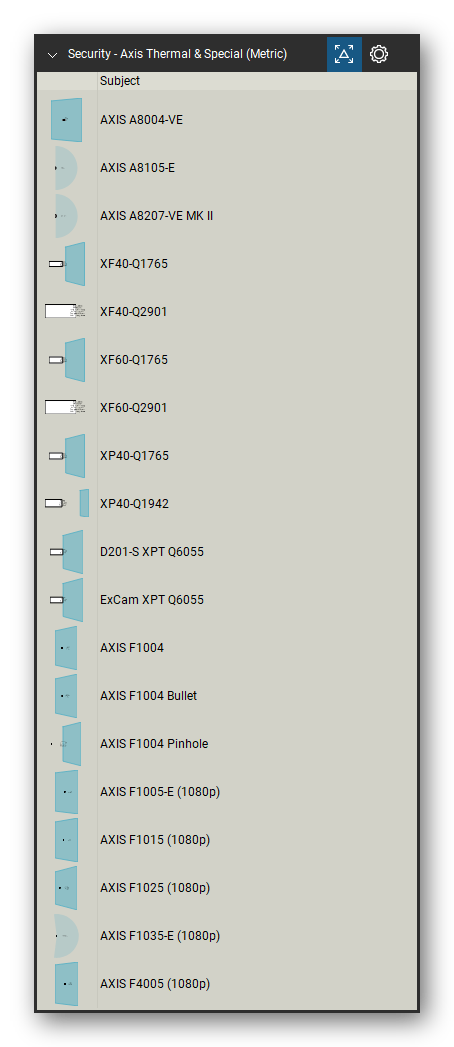

- Q19, Q29 and Q87 thermal cameras with 7 to 105 mm lenses and PT mounts, P12 and P39 discreet and onboard cameras, F and FA modular cameras, A80 door stations, C10 and C20 speakers, D20 radar, XF, XP and ExCam explosion- protected cameras
-

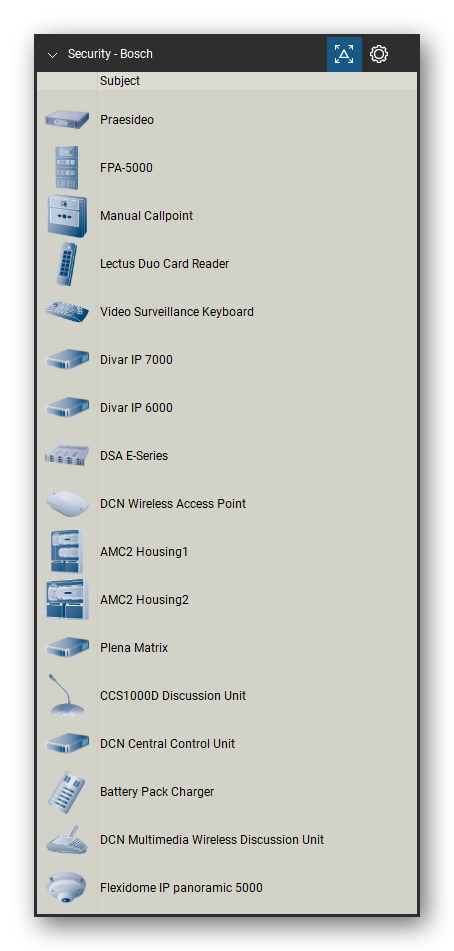

Bosch

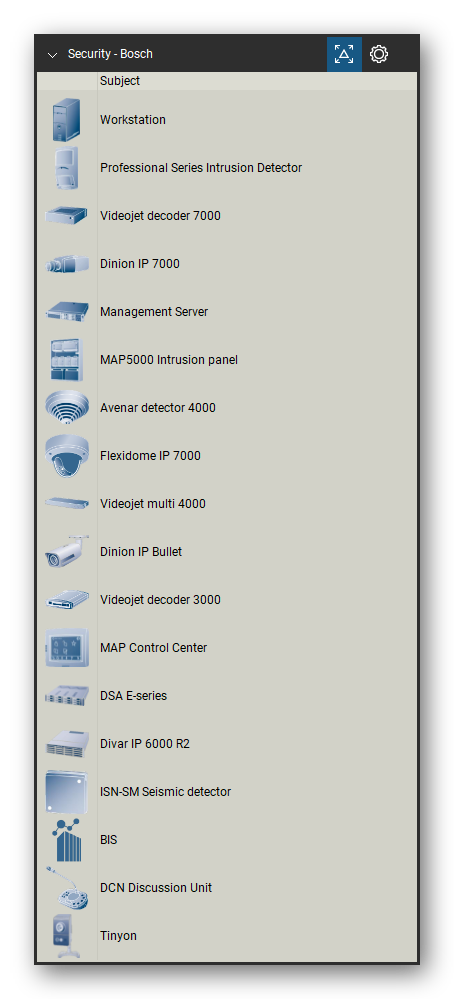

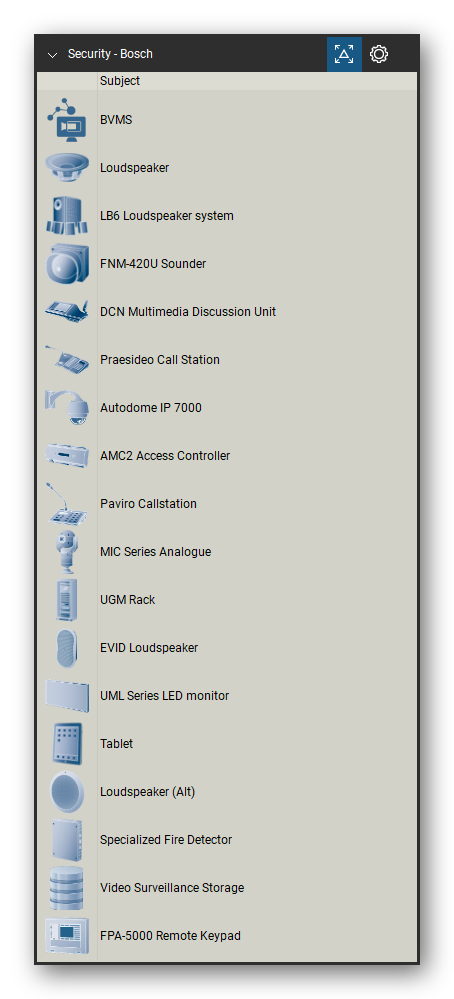

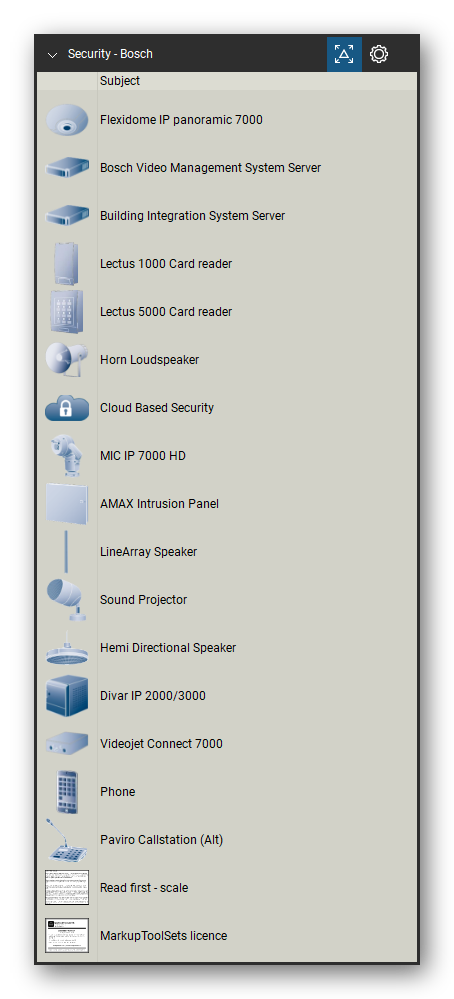

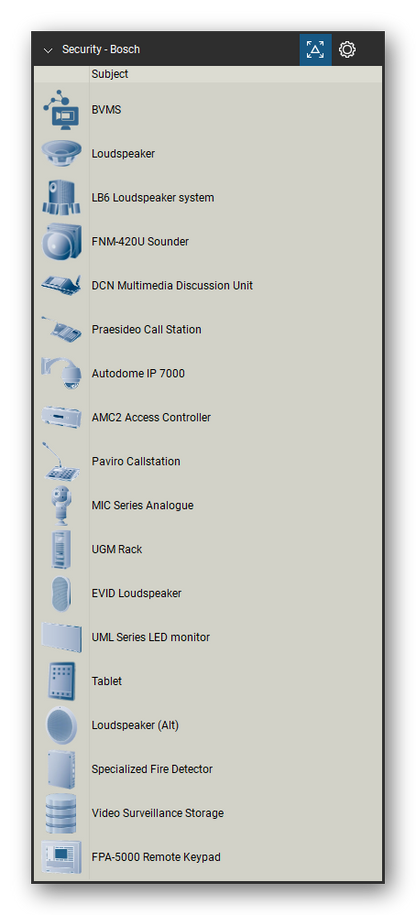

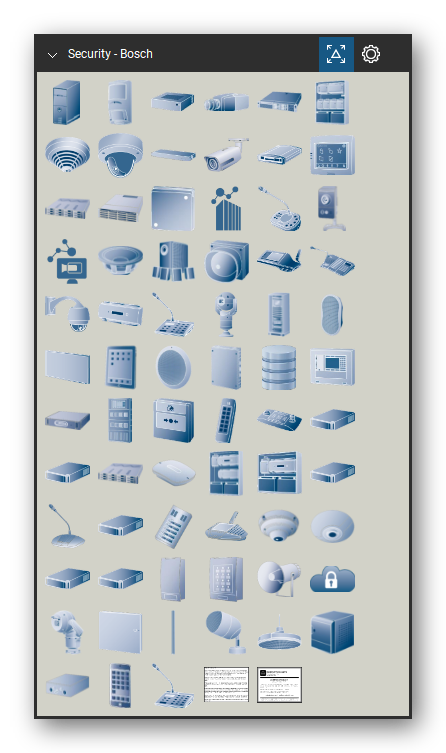

- Dinion, Flexidome, Autodome, MIC and Tinyon cameras, Videojet decoders, Divar IP recorders, DSA storage, BVMS and BIS servers, workstations
- MAP 5000 and AMC2 intrusion and access controllers, detectors, Lectus card readers, FPA-5000 fire panel, call points and sounders
- Praesideo, Paviro and Plena public address, DCN and CCS 1000 D conference units, loudspeakers, LED monitors
-

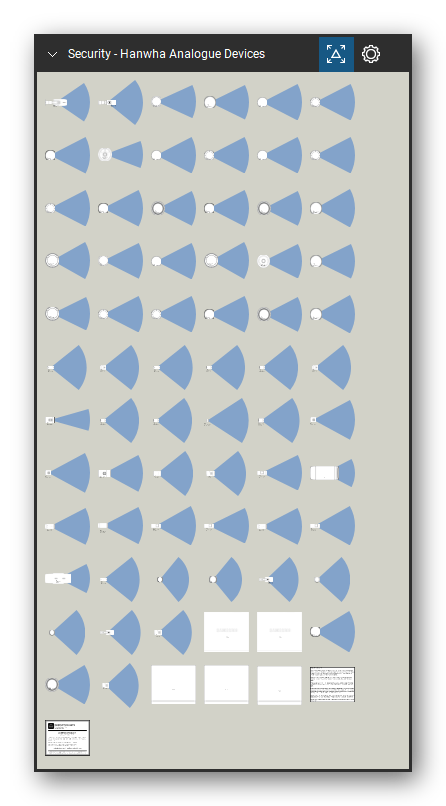

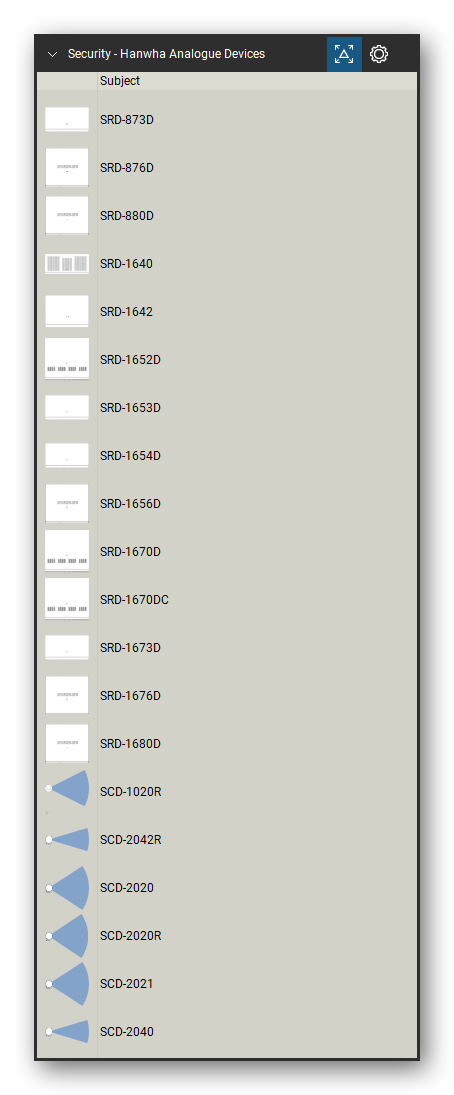

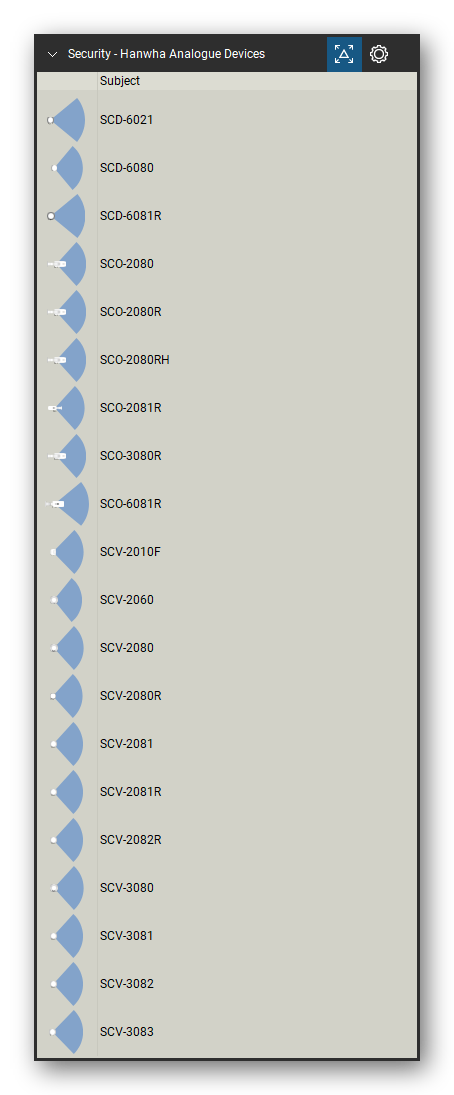

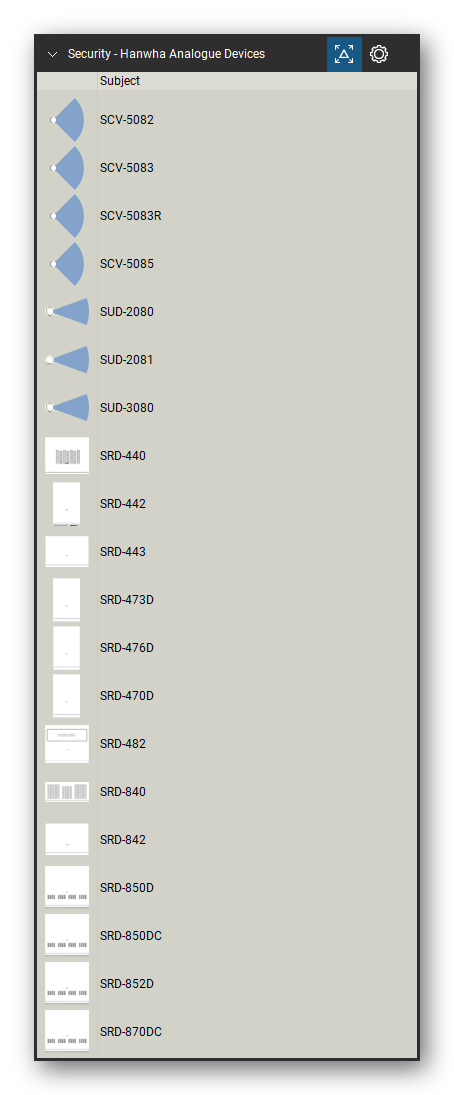

Hanwha analogue devices

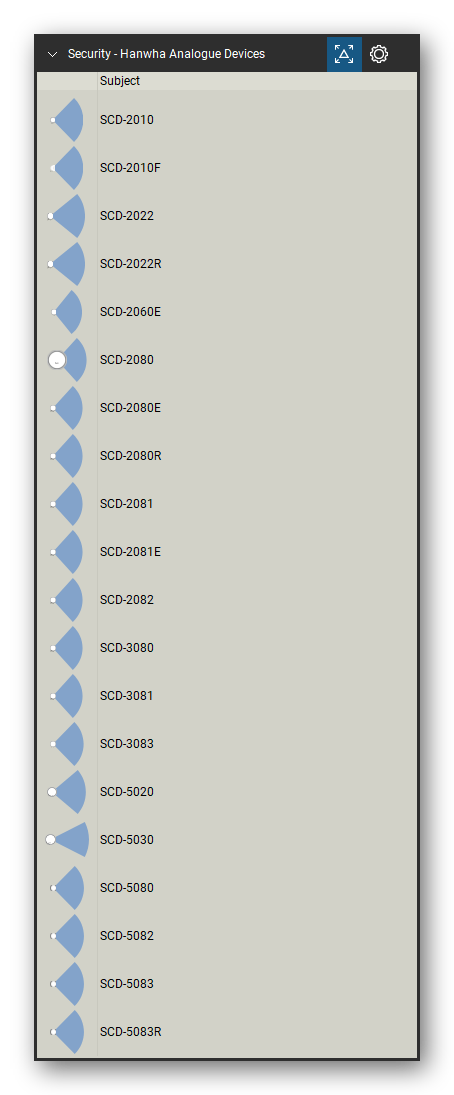

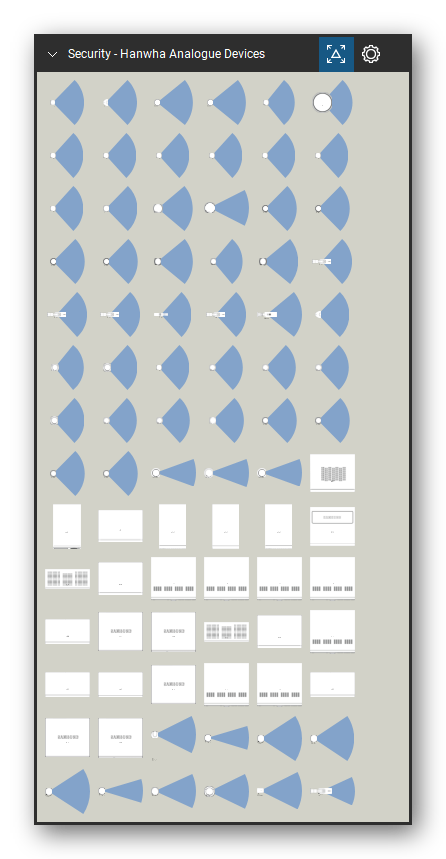

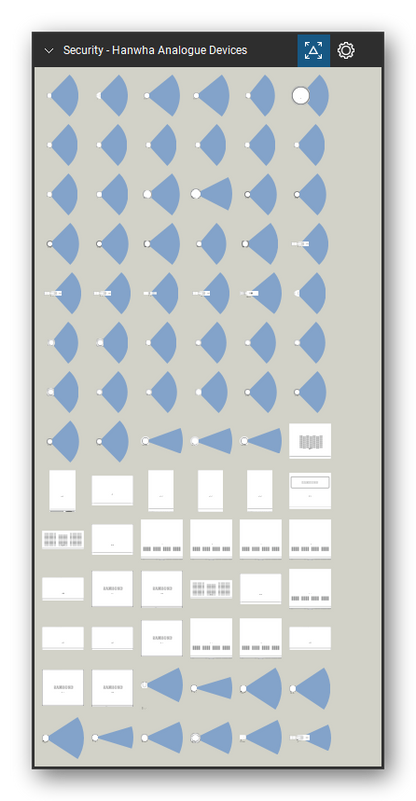

- SCB, SCD, SCO, SCV, SCZ and SCU analog cameras, HCB and HCP cameras, SRD and HRD recorders
-

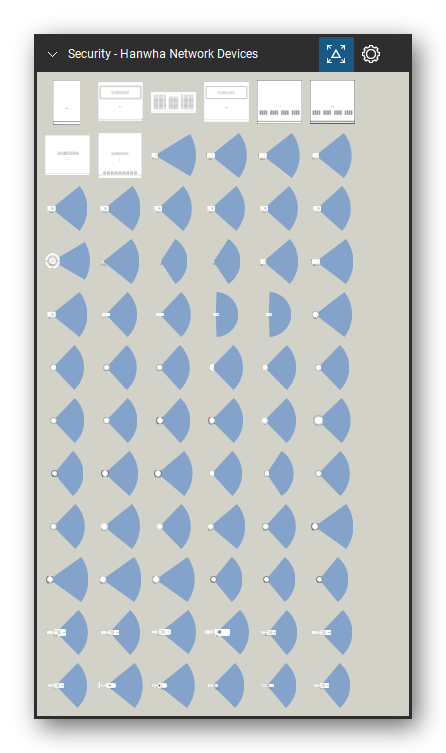

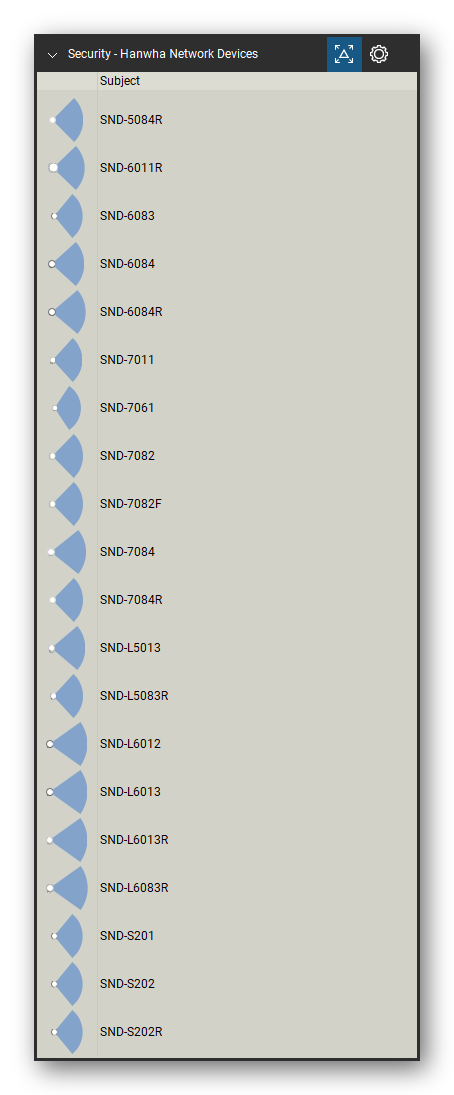

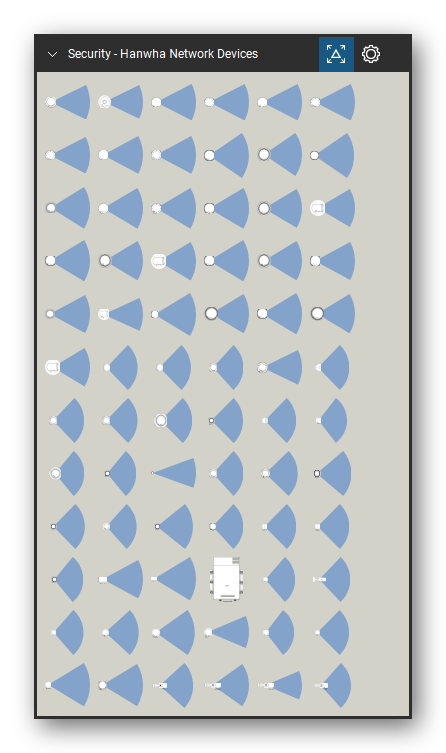

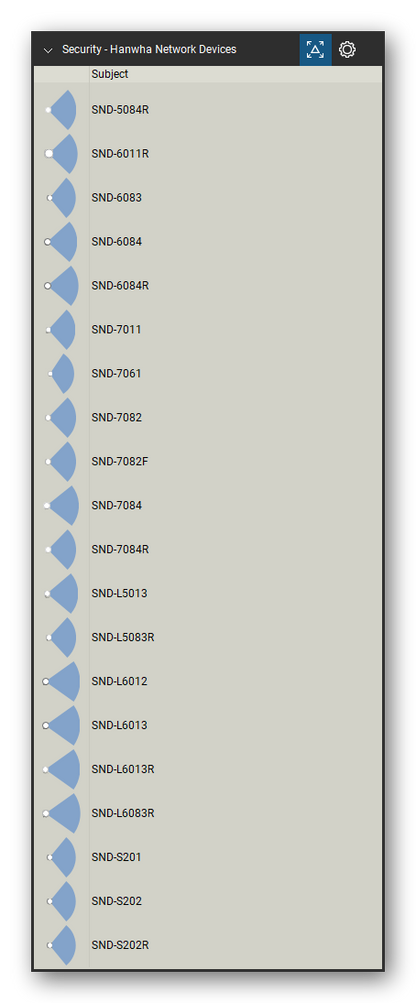

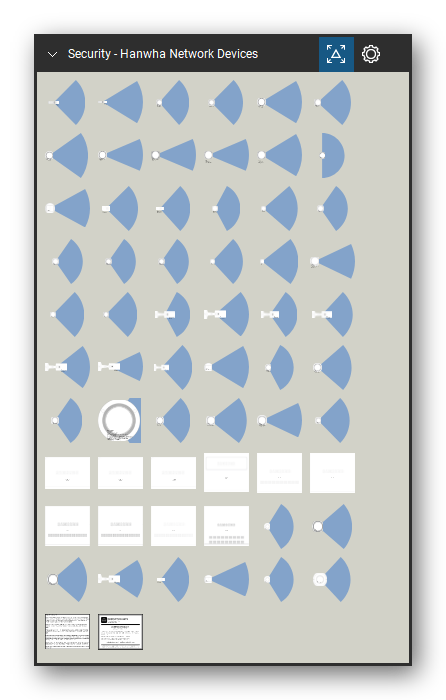

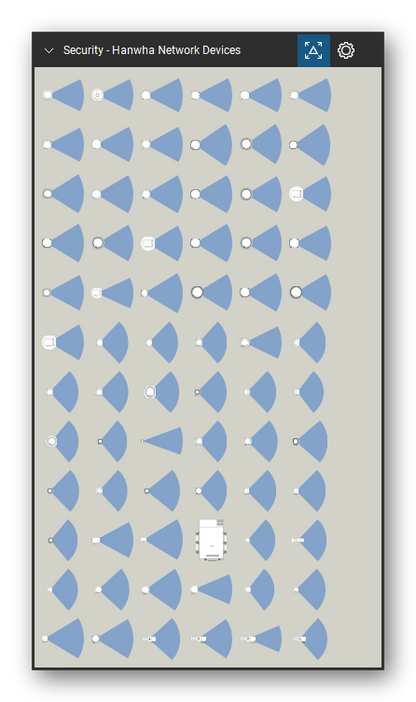

Hanwha network devices

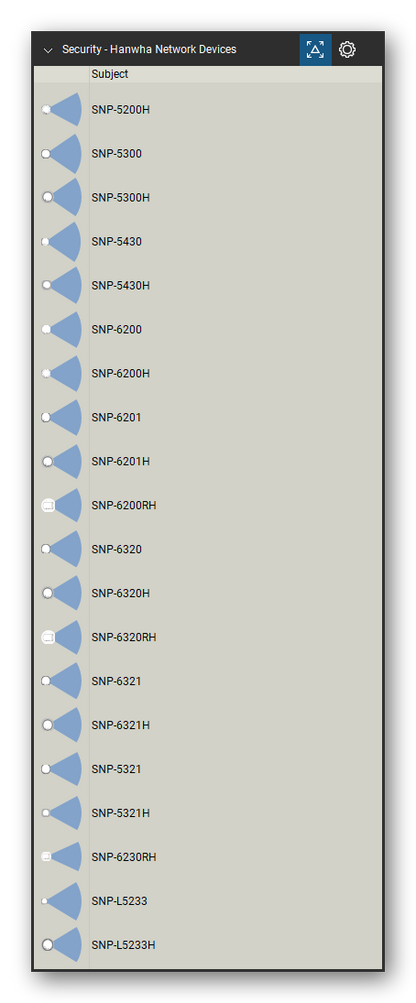

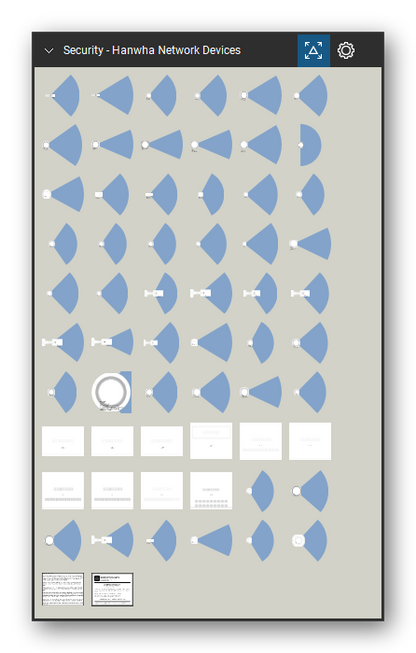

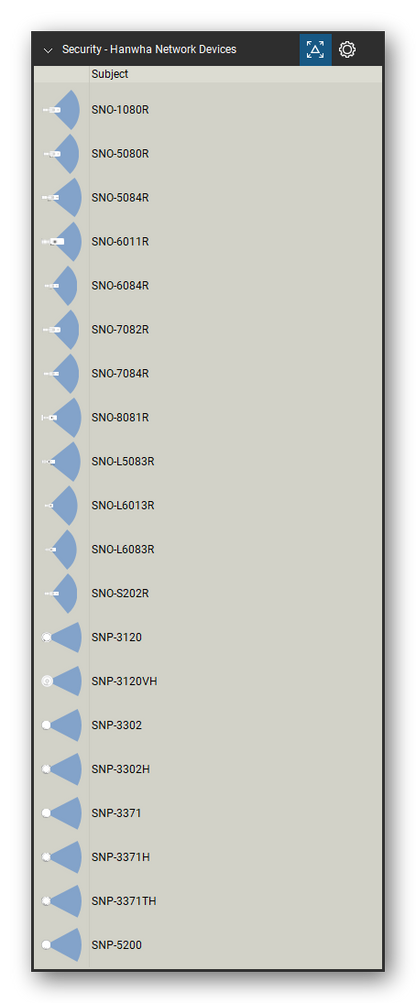

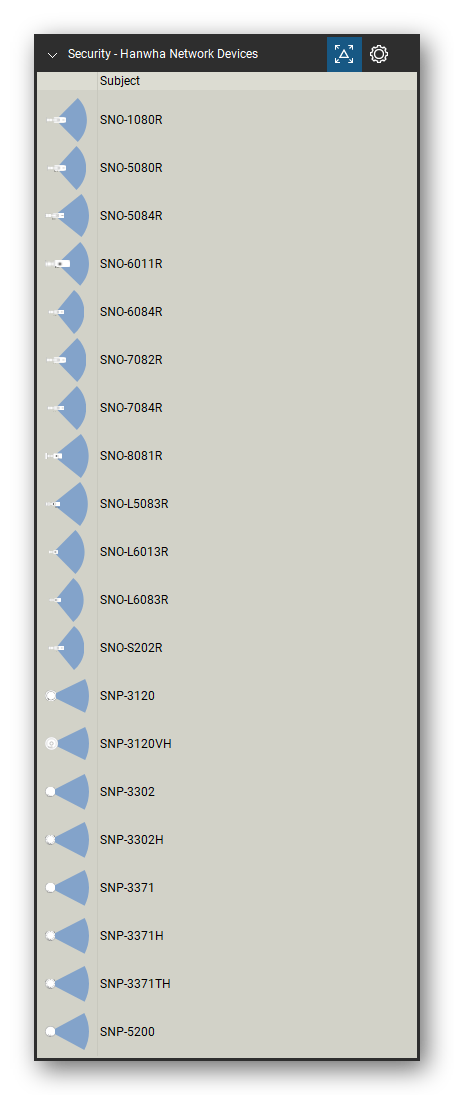

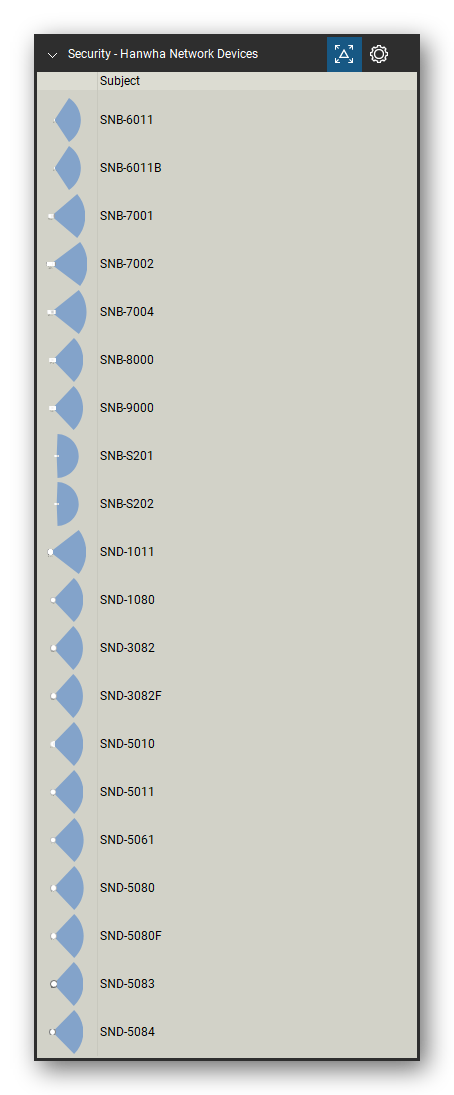

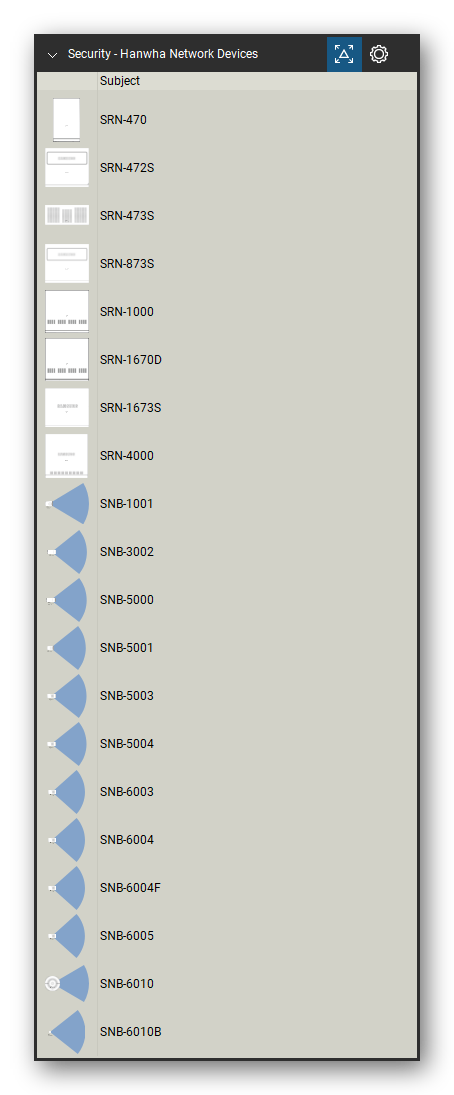

- SNB, SND, SNO, SNP and SNV network cameras, XNB, XND, XNO, XNP and XNV cameras, SRN and XRN recorders, encoders and decoders
-

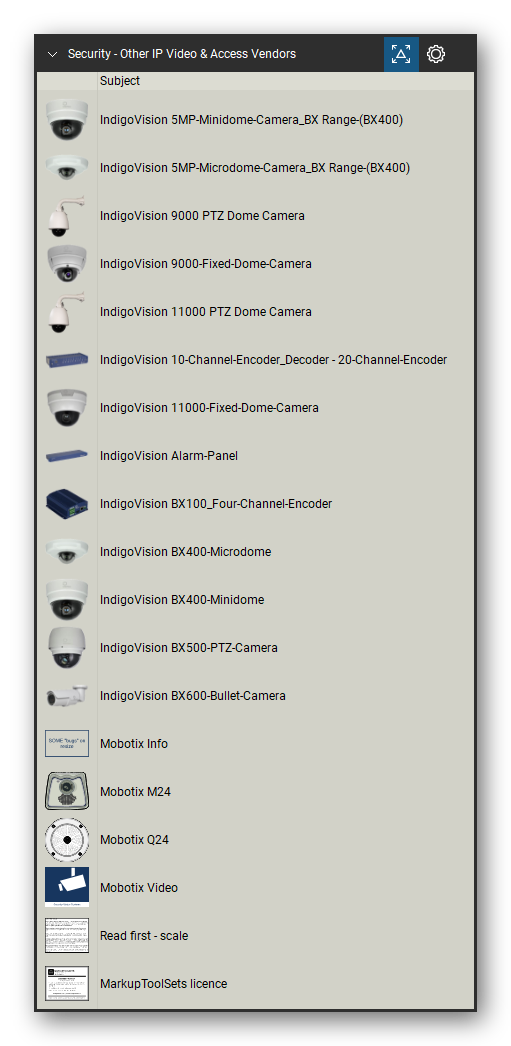

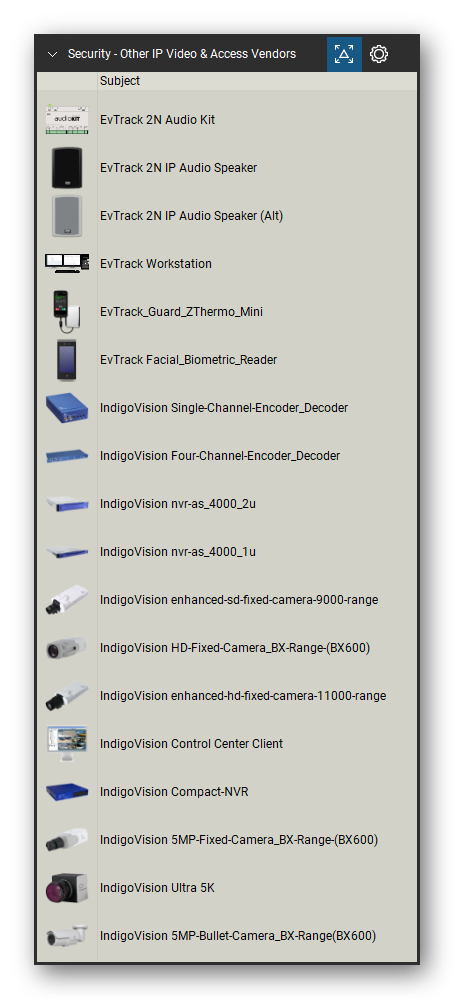

Other IP video and access vendors

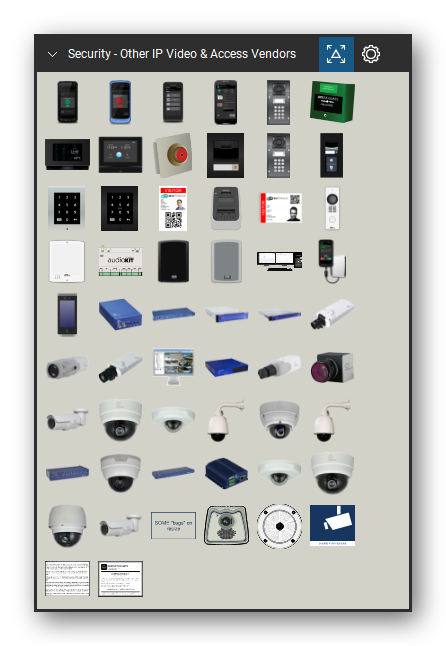

- IndigoVision BX range, 9000 and 11000 cameras, PTZ domes, encoders, NVRs, Control Center and alarm panel
- Mobotix M24 and Q24 cameras

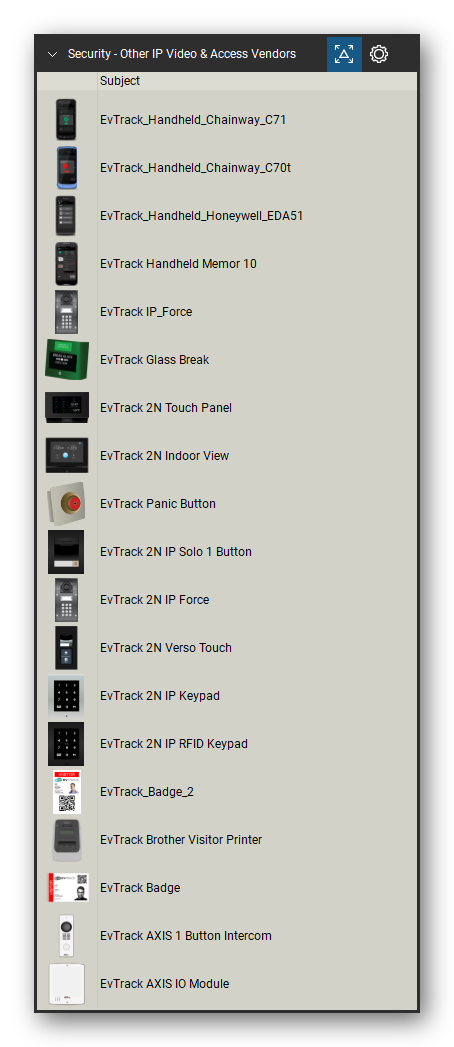

- EvTrack access control: readers, handhelds, badges and guard devices
Delivered as a Bluebeam Revu profile that loads all 12 tool sets in one import, plus the individual tool set files.
Axis, Bosch, Hanwha Techwin, IndigoVision, Mobotix, EvTrack and i-PRO are trademarks of their owners and are used only to identify the equipment the symbols show. MarkupToolSets is not affiliated with or endorsed by any of them.
