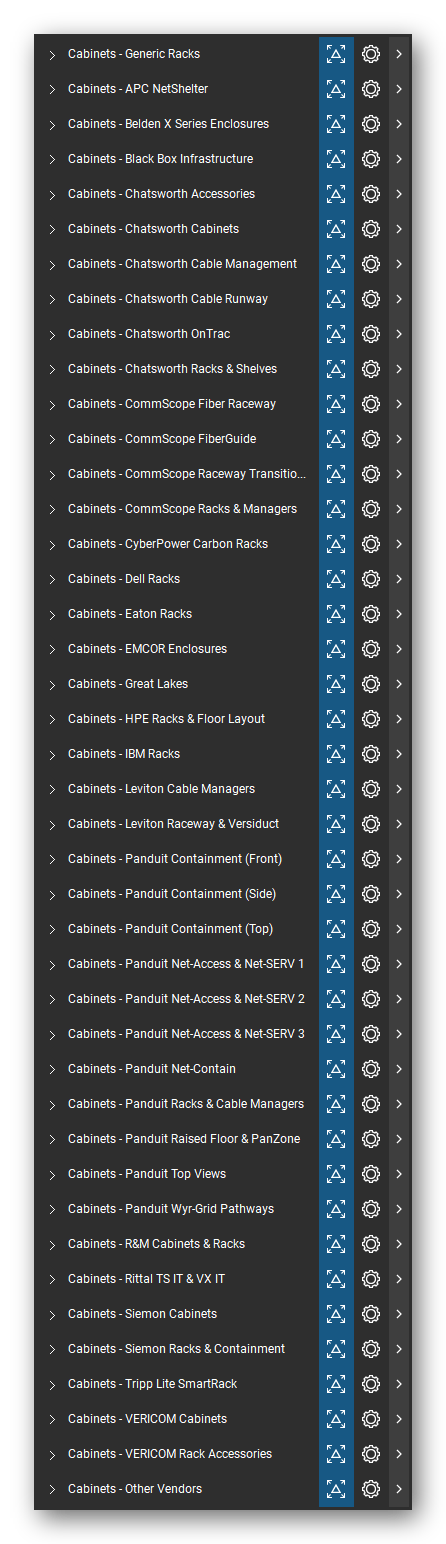

  • The Bluebeam Revu Tool Chest with the 42 tool sets of the Racks, Cabinets & Cable Pathways tool set loaded, closed to the set titles.
  • Racks, Cabinets & Cable Pathways tool set for Bluebeam Revu, Generic Racks set - 39 views of 38 devices, front and rear: Pelican Rack case Variable U, 42U Rack, 42U Wide Rack, 45U Rack, 45U Wide Rack, 47U Rack, 47U Wide Rack, 48U+12U Rack, 45U Relay Rack, Simple Variable height rack and 28 more. Tool Chest in Symbol view.

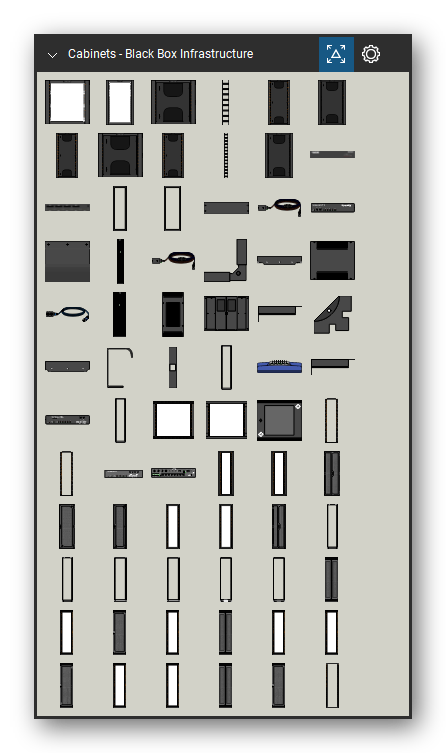

  • Racks, Cabinets & Cable Pathways tool set for Bluebeam Revu, Black Box Infrastructure set (tools 1-72 of 126) - 72 views of 48 devices, front and rear: EWM12U242424-R2, EWM20U362424-R2, EWM12U242430-R2, RM650, EWM26U482424-R2, EWM20U362430-R2, EWM26U482430-R2, EWM12U242418-R2, EWM26U482418-R2, RM651 and 38 more. Tool Chest in Symbol view.
  • Racks, Cabinets & Cable Pathways tool set for Bluebeam Revu, Chatsworth Cabinets set (tools 1-72 of 120) - 72 views of 71 devices, front and top: C1062-102, C1262-102, C1162-102, 23Inch Sliding Shelf, 19Inch Caster Set, 19Inch Sliding Shelf, Chatsworth 12495-123, 19Inch Monitor / Keyboard Shelf, 23Inch Fixed Shelf, 19Inch Fixed Shelf and 61 more. Tool Chest in Symbol view.
  • Racks, Cabinets & Cable Pathways tool set for Bluebeam Revu, Chatsworth OnTrac set (tools 1-72 of 87) - 72 tools: 34735-X20, 34735-XXX, 34748-X01, 34735-X20.8, 34736-X89, 34734-XXX, 34729-X20, 34730-X16, 34730-X12, 34729-X12 and 62 more. Tool Chest in Symbol view.

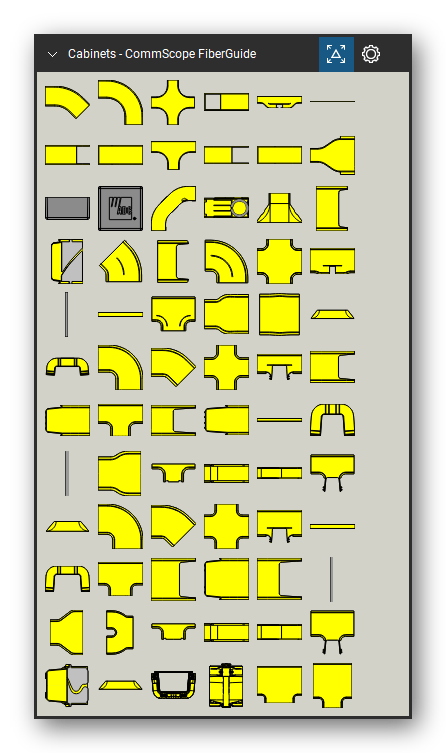

  • Racks, Cabinets & Cable Pathways tool set for Bluebeam Revu, CommScope FiberGuide set (tools 1-72 of 139) - 72 views of 70 devices, front, side and top: FGS-MH4A-C, FGS-MH9A-C, FGS-MHXP-C, FGS-MDSP-C, FGS-MSDS-C, FGS-MSHA-C, FGS-MD4A-C, FGS-MU4A-C, FGS-MHTA-C, FGS-MD9A-C and 60 more. Tool Chest in Symbol view.
  • Racks, Cabinets & Cable Pathways tool set for Bluebeam Revu, CyberPower Carbon Racks set - 68 views of 42 devices, front, rear, side and top: Adj Area Rack Label, CR25U40001, CR45U40001, Person Outline, CRA11001, CRA11002, CRA11003, CRA12001, CRA12002, CRA12003 and 32 more. Tool Chest in Symbol view.
  • Racks, Cabinets & Cable Pathways tool set for Bluebeam Revu, Eaton Racks set (tools 1-72 of 98) - 72 tools: 42U Std 42D Rack, 42U Std 48D Rack, 42U Std Front Door, 42U Std Rear Door, 42U E Std 42D Rack, 42U E Std Front Door, 42U E Std Rear Door, 42U Wide 42D Rack, 42U Wide 48D Rack, 42U Wide Front Door and 62 more. Tool Chest in Symbol view.
  • Racks, Cabinets & Cable Pathways tool set for Bluebeam Revu, HPE Racks & Floor Layout set (tools 1-72 of 250) - 72 views of 70 devices, side: 3PAR P10000 rack, 3PAR p10000 Front Door, 3PAR p10000 Back Door, Single Door, Dual Doors, AF025A MCS G2, AF025A MCS G2+Exp, Aisle Bridge CableTray, CableTray for 10000s, CableTray for 10842 and 60 more. Tool Chest in Symbol view.

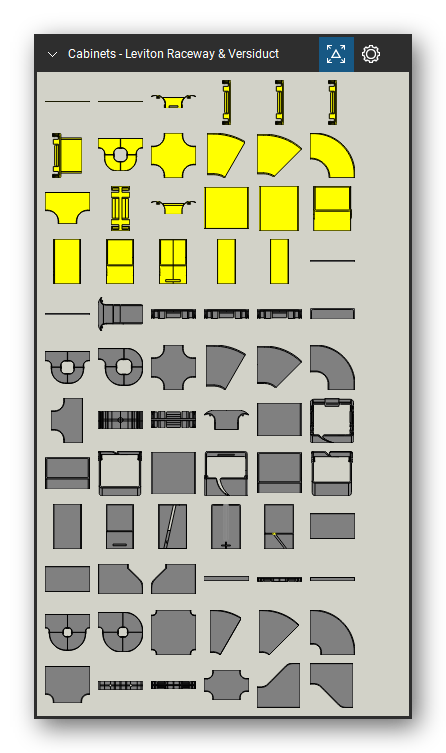

  • Racks, Cabinets & Cable Pathways tool set for Bluebeam Revu, Leviton Raceway & Versiduct set (tools 1-72 of 131) - 72 tools: S2DCT-DSL, S2DCT-SDT, S2DRP-DCT, S2END-20D, S2END-38D, S2END-38H, S2END-OUT, S2FSL-INL, S2HCR-HCR, S2HEL-3DC and 62 more. Tool Chest in Symbol view.
  • Racks, Cabinets & Cable Pathways tool set for Bluebeam Revu, Panduit Containment (Top) set (tools 1-72 of 121) - 72 tools: C2HAC06I1626B1, C2HAC06I1626W1, C2HAC06I2638B1, C2HAC06I2638W1, C2HAC06I3866B1, C2HAC06I3866W1, C2HAC07I1626B1, C2HAC07I1626W1, C2HAC07I2638B1, C2HAC07I2638W1 and 62 more. Tool Chest in Symbol view.
  • Racks, Cabinets & Cable Pathways tool set for Bluebeam Revu, Panduit Net-Access & Net-SERV 2 set (tools 1-72 of 172) - 72 views of 61 devices, front, rear, side and top: CC18DD, CC18RPN8, CC18RPS6, CC18RPS7, CDE1, CDE2, CN Cabinet, CN12NU Front No Door, CN12NU Front with Door, CN22NU Front No Door and 51 more. Tool Chest in Symbol view.
  • Racks, Cabinets & Cable Pathways tool set for Bluebeam Revu, Panduit Racks & Cable Managers set (tools 1-72 of 243) - 72 tools: CMPH1, CMPH123, CMPH1C, CMPH1W, CMPH2, CMPH223, CMPH2C, CMPH2W, CMPHF1, CMPHF123 and 62 more. Tool Chest in Symbol view.
  • Racks, Cabinets & Cable Pathways tool set for Bluebeam Revu, Panduit Wyr-Grid Pathways set (tools 1-72 of 182) - 72 tools: Overhead & Underfloor Routing Wyr-Grid Front, Wyr-Grid EZ, Wyr-Grid, Overhead & Underfloor Routing Wyr-Grid Right and 68 more. Tool Chest in Symbol view.
  • Racks, Cabinets & Cable Pathways tool set for Bluebeam Revu, Siemon Cabinets set (tools 1-72 of 149) - 72 views of 65 devices, front, rear, side and top: VP-GRD, V-TRAY-1-150-42, V6(X)A 42 Open, V6(X)A 42U Closed, V6(X)A-42U Closed R, V6(X)A 45U Open, V6(X)A 45U Closed, V6(X)A 48U Open, V6(X)A 48U Closed, V61A and 55 more. Tool Chest in Symbol view.
  • Racks, Cabinets & Cable Pathways tool set for Bluebeam Revu, Tripp Lite SmartRack set (tools 1-72 of 230) - 72 views of 29 devices, front, rear, side and top: SRCOOL18K, SRCOOL24K, SRCOOL2KWM, Rack Cooling - SRCOOL33K, SRCOOL33K, SRCOOL60KCW, SRCOOL7KRM, SRXCOOL12KB, 4POSTRAILSM, SR1UPANEL and 19 more. Tool Chest in Symbol view.
  • Racks, Cabinets & Cable Pathways tool set for Bluebeam Revu, Other Vendors set - 43 views of 39 devices, front and rear: CABLExpress CBX-CM-SDS2, CABLExpress CBX-FE-F06MPK, CABLExpress CBX-FE-FBLANK, CABLExpress CBX-FE-M12LCAZ, CABLExpress CBX-FE-M24LCAZ, CABLExpress CBX-LR-OH08, CABLExpress CBX-LR-OH16, CABLExpress CBX-LR-OHCM, CABLExpress CBX-RK-45U-1, CABLExpress CBX-RK-CM45U-1 and 29 more. Tool Chest in Symbol view.
  • Racks, Cabinets & Cable Pathways tool set for Bluebeam Revu, Generic Racks set (tools 1-20 of 39) - 20 views of 19 devices, front and rear: Pelican Rack case Variable U, 42U Rack, 42U Wide Rack, 45U Rack, 45U Wide Rack, 47U Rack, 47U Wide Rack, 48U+12U Rack, 45U Relay Rack, Simple Variable height rack and 9 more. Tool Chest in Detail view, one row per tool with its name.
  • Racks, Cabinets & Cable Pathways tool set for Bluebeam Revu, APC NetShelter set (tools 1-20 of 133) - 20 views of 11 devices, front, rear, side and top: AR203A, AR3100, AR3100 - Side View w/ Side Panels, AR3100 - Frame Only, No Doors, AR3100 - Side View w/o Side Panels, AR3104, AR3104 - Side View w/ Side Panels, AR3104 - Frame Only, No Doors, AR3104 - Side View w/o Side Panels, AR3105 and 1 more. Tool Chest in Detail view, one row per tool with its name.
  • Racks, Cabinets & Cable Pathways tool set for Bluebeam Revu, Belden X Series Enclosures set (tools 1-20 of 126) - 20 views of 7 devices, front, rear, side, top and bottom: XH1M42, XH1M42 - RU - PLACEMENT, XH1M45, XH1M45 - RU - PLACEMENT, XH1M48, XH1M48 - RU - PLACEMENT and XH2M42. Tool Chest in Detail view, one row per tool with its name.
  • Racks, Cabinets & Cable Pathways tool set for Bluebeam Revu, Black Box Infrastructure set (tools 1-20 of 126) - 20 views of 19 devices, front and rear: EWM12U242424-R2, EWM20U362424-R2, EWM12U242430-R2, RM650, EWM26U482424-R2, EWM20U362430-R2, EWM26U482430-R2, EWM12U242418-R2, EWM26U482418-R2, RM651 and 9 more. Tool Chest in Detail view, one row per tool with its name.

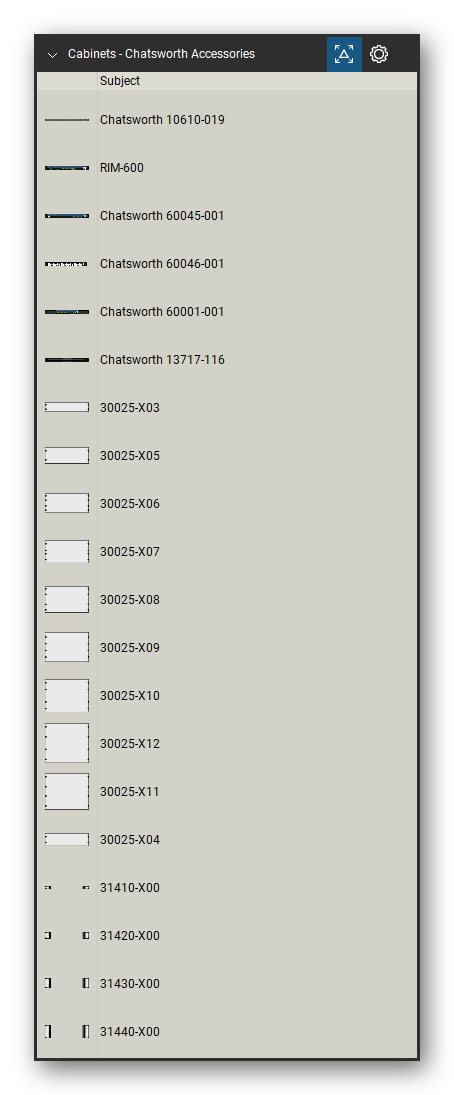

  • Racks, Cabinets & Cable Pathways tool set for Bluebeam Revu, Chatsworth Accessories set (tools 1-20 of 61) - 20 tools: Chatsworth 10610-019, RIM-600, Chatsworth 60045-001, Chatsworth 60046-001, Chatsworth 60001-001, Chatsworth 13717-116, 30025-X03, 30025-X05, 30025-X06, 30025-X07 and 10 more. Tool Chest in Detail view, one row per tool with its name.

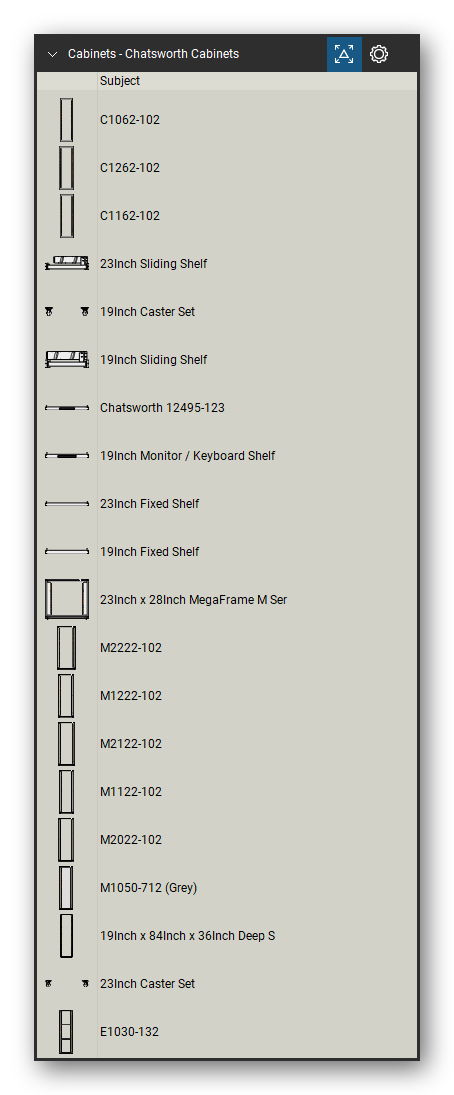

  • Racks, Cabinets & Cable Pathways tool set for Bluebeam Revu, Chatsworth Cabinets set (tools 1-20 of 120) - 20 tools: C1062-102, C1262-102, C1162-102, 23Inch Sliding Shelf, 19Inch Caster Set, 19Inch Sliding Shelf, Chatsworth 12495-123, 19Inch Monitor / Keyboard Shelf, 23Inch Fixed Shelf, 19Inch Fixed Shelf and 10 more. Tool Chest in Detail view, one row per tool with its name.
  • Racks, Cabinets & Cable Pathways tool set for Bluebeam Revu, Chatsworth Cable Management set (tools 1-20 of 53) - 20 tools: Chatsworth 30093, Chatsworth 30093-503, Chatsworth 30092-503, Chatsworth 30091-503, 11374-X03, 11730-X03, Chatsworth 30096, Chatsworth 30095, Chatsworth 30094, Chatsworth 12096 and 10 more. Tool Chest in Detail view, one row per tool with its name.
  • Racks, Cabinets & Cable Pathways tool set for Bluebeam Revu, Chatsworth Cable Runway set (tools 1-20 of 57) - 20 tools: 12408-X24, 12362-X24, 12121-X12, 12121-X18, 12362-X12, 12362-X15, 12362-X18, 12100-X09, 12100-X12, 12100-X18 and 10 more. Tool Chest in Detail view, one row per tool with its name.

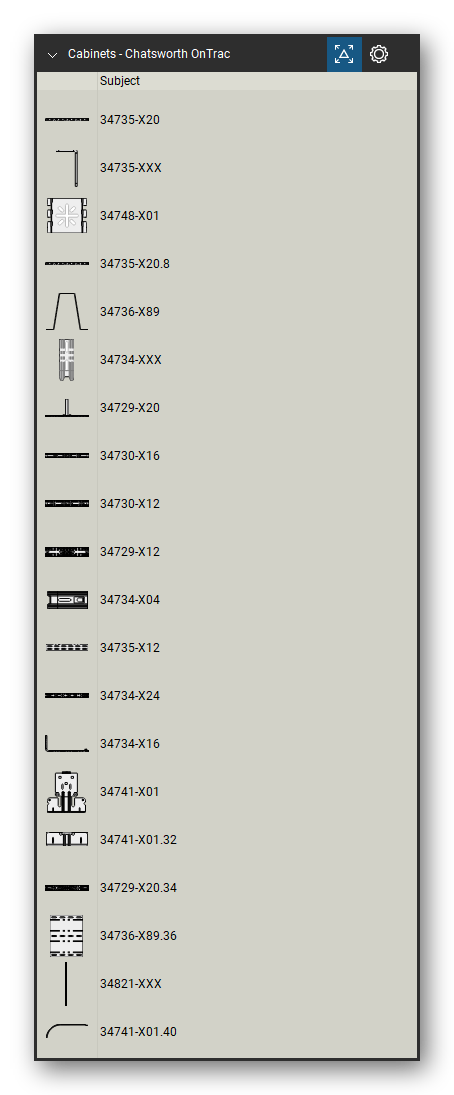

  • Racks, Cabinets & Cable Pathways tool set for Bluebeam Revu, Chatsworth OnTrac set (tools 1-20 of 87) - 20 tools: 34735-X20, 34735-XXX, 34748-X01, 34735-X20.8, 34736-X89, 34734-XXX, 34729-X20, 34730-X16, 34730-X12, 34729-X12 and 10 more. Tool Chest in Detail view, one row per tool with its name.

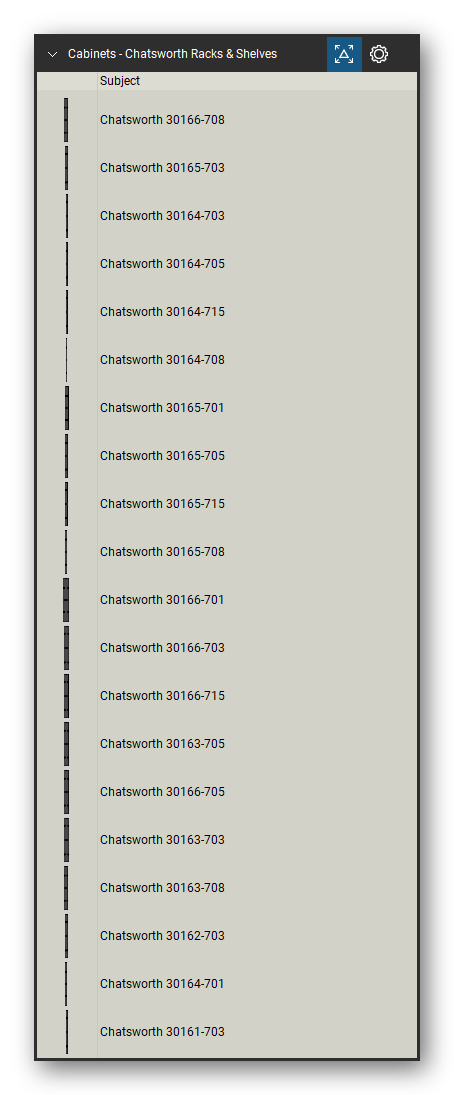

  • Racks, Cabinets & Cable Pathways tool set for Bluebeam Revu, Chatsworth Racks & Shelves set (tools 1-20 of 139) - 20 tools: Chatsworth 30166-708, Chatsworth 30165-703, Chatsworth 30164-703, Chatsworth 30164-705, Chatsworth 30164-715, Chatsworth 30164-708, Chatsworth 30165-701, Chatsworth 30165-705, Chatsworth 30165-715, Chatsworth 30165-708 and 10 more. Tool Chest in Detail view, one row per tool with its name.
  • Racks, Cabinets & Cable Pathways tool set for Bluebeam Revu, CommScope Fiber Raceway set (tools 1-20 of 72) - 20 tools: TUBE-U-RD-50-KIT-YL, BREAKOUT-220-XX, TRUMPET-SP-220-XX, SIDE-DROP-KIT-SP-50-XX, TUBE-RD-75-1M-XX, BREAKOUT-100-XX, TUBE-RD-75-2M-XX, BREAKOUT-KT-100-XX, TUBE-RD-88-1M-XX, SIDE-DROP-KIT-SP-100L-XX and 10 more. Tool Chest in Detail view, one row per tool with its name.
  • Racks, Cabinets & Cable Pathways tool set for Bluebeam Revu, CommScope FiberGuide set (tools 1-20 of 139) - 20 views of 19 devices, front and top: FGS-MH4A-C, FGS-MH9A-C, FGS-MHXP-C, FGS-MDSP-C, FGS-MSDS-C, FGS-MSHA-C, FGS-MD4A-C, FGS-MU4A-C, FGS-MHTA-C, FGS-MD9A-C and 9 more. Tool Chest in Detail view, one row per tool with its name.
  • Racks, Cabinets & Cable Pathways tool set for Bluebeam Revu, CommScope Raceway Transitions set (tools 1-20 of 207) - 20 tools: SRS-ADKT-G6LH-XX-B, SRS-ADKT-G6RH-XX-B, SRS-ADKT-G6RH-XX-A, SRS-ADKT-G6LH-XX-A, SRS-ADKT-R6LH-XX-B, SRS-ADKT-R6RH-XX-B, SRS-ECST-20NU-XX-C, SRS-ECST-38NU-XX-C, SRS-ECST-44NU-XX-C, SRS-ECST-32NU-XX-A and 10 more. Tool Chest in Detail view, one row per tool with its name.
  • Racks, Cabinets & Cable Pathways tool set for Bluebeam Revu, CommScope Racks & Managers set (tools 1-20 of 60) - 20 tools: HCM-19-SS-2U-XXX-EMEA, HCM-19-SS-1U-XXX-EMEA, HTK-19-SS-1U, HTK-19-SS-2U, HTK-19-SS-3U, HTK-19-SS-1U-XXX, HTK-19-SS-2U-XXX, HTK-19-SS-3U-XXX, HTK-19-DS-1U, HTK-19-DS-2U and 10 more. Tool Chest in Detail view, one row per tool with its name.

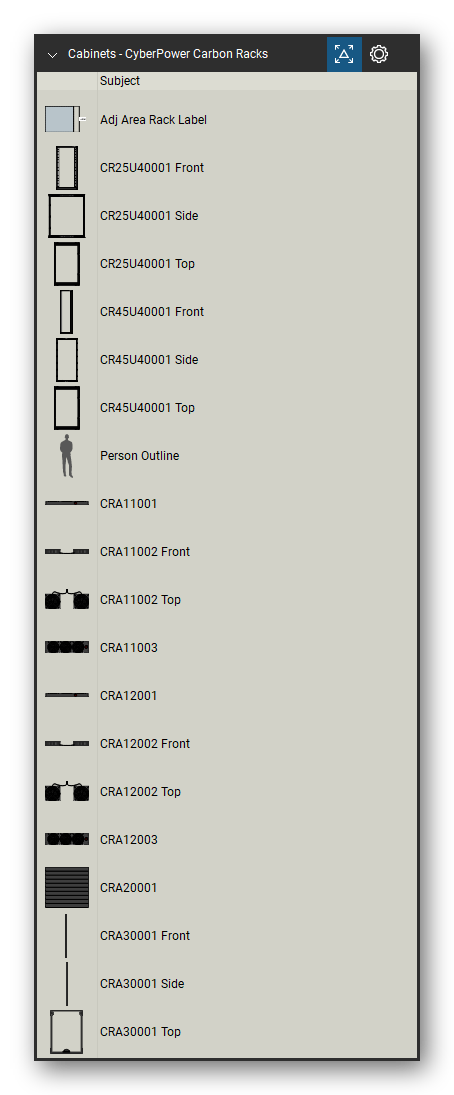

  • Racks, Cabinets & Cable Pathways tool set for Bluebeam Revu, CyberPower Carbon Racks set (tools 1-20 of 68) - 20 views of 12 devices, front, side and top: Adj Area Rack Label, CR25U40001, CR45U40001, Person Outline, CRA11001, CRA11002, CRA11003, CRA12001, CRA12002, CRA12003 and 2 more. Tool Chest in Detail view, one row per tool with its name.
  • Racks, Cabinets & Cable Pathways tool set for Bluebeam Revu, Dell Racks set (tools 1-20 of 42) - 20 tools: 2420 Rack Frame, 2420 Front Door, 2420 Rear Door, 4020S Rack Front Frame, 4020S Rack Rear Frame, 4020S Front Door, 4020S Rear Door, 4220 Rack Frame, 4220D Rack Frame, 4220 Front Door and 10 more. Tool Chest in Detail view, one row per tool with its name.

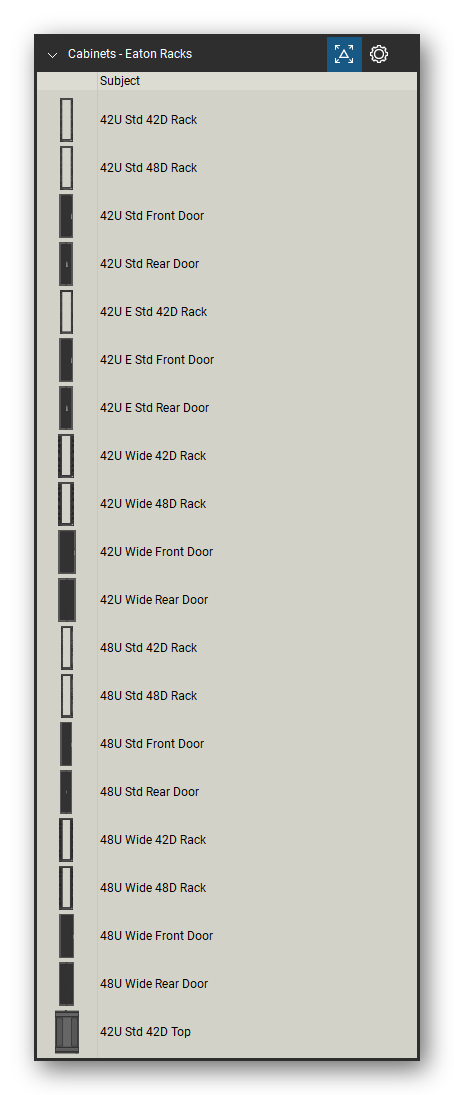

  • Racks, Cabinets & Cable Pathways tool set for Bluebeam Revu, Eaton Racks set (tools 1-20 of 98) - 20 tools: 42U Std 42D Rack, 42U Std 48D Rack, 42U Std Front Door, 42U Std Rear Door, 42U E Std 42D Rack, 42U E Std Front Door, 42U E Std Rear Door, 42U Wide 42D Rack, 42U Wide 48D Rack, 42U Wide Front Door and 10 more. Tool Chest in Detail view, one row per tool with its name.

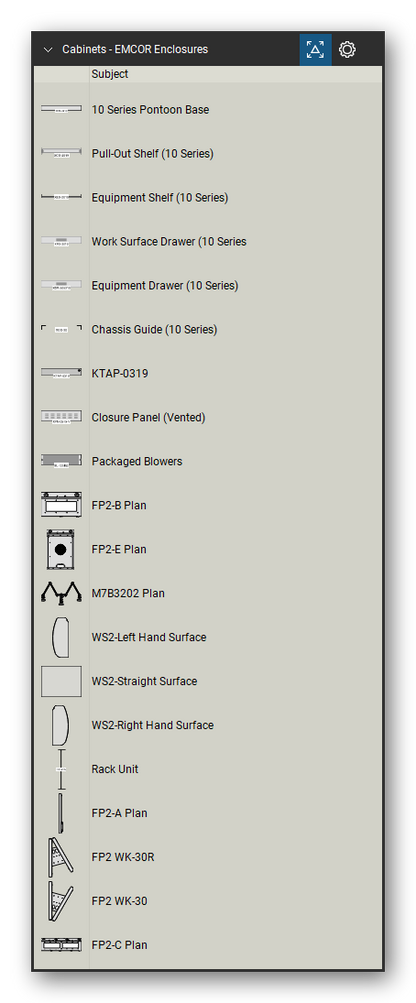

  • Racks, Cabinets & Cable Pathways tool set for Bluebeam Revu, EMCOR Enclosures set (tools 1-20 of 127) - 20 tools: 10 Series Pontoon Base, Pull-Out Shelf (10 Series), Equipment Shelf (10 Series), Work Surface Drawer (10 Series, Equipment Drawer (10 Series), Chassis Guide (10 Series), KTAP-0319, Closure Panel (Vented), Packaged Blowers, FP2-B Plan and 10 more. Tool Chest in Detail view, one row per tool with its name.

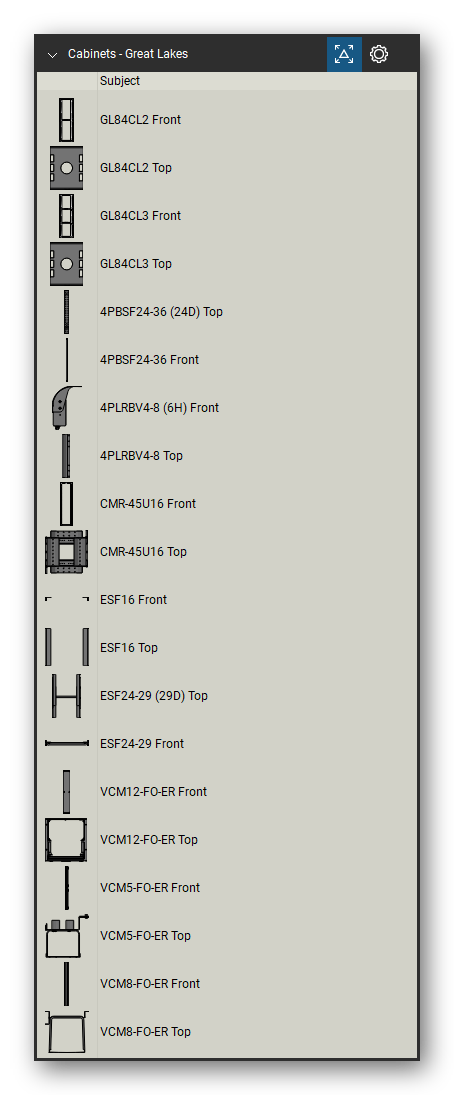

  • Racks, Cabinets & Cable Pathways tool set for Bluebeam Revu, Great Lakes set (tools 1-20 of 62) - 20 views of 13 devices, front and top: GL84CL2, GL84CL3, 4PBSF24-36 (24D), 4PBSF24-36, 4PLRBV4-8 (6H), 4PLRBV4-8, CMR-45U16, ESF16, ESF24-29 (29D), ESF24-29 and 3 more. Tool Chest in Detail view, one row per tool with its name.

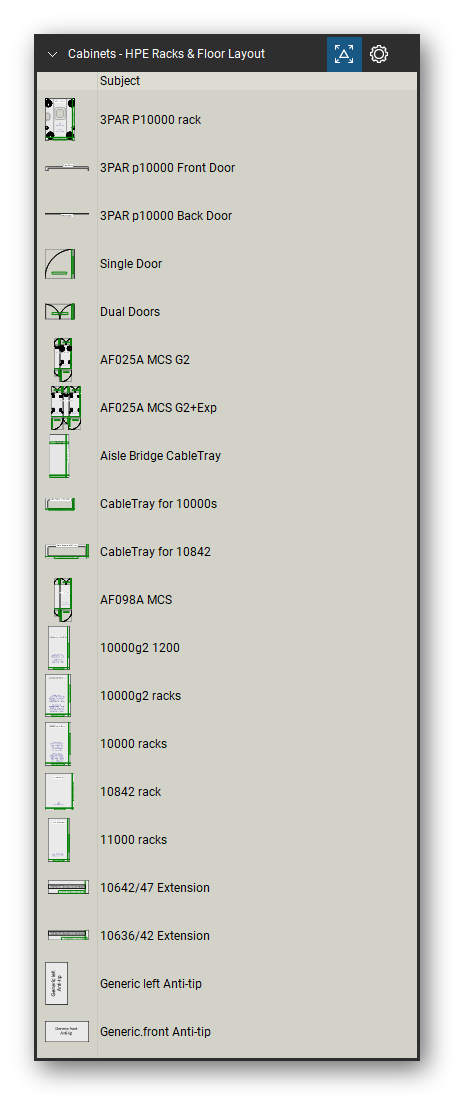

  • Racks, Cabinets & Cable Pathways tool set for Bluebeam Revu, HPE Racks & Floor Layout set (tools 1-20 of 250) - 20 tools: 3PAR P10000 rack, 3PAR p10000 Front Door, 3PAR p10000 Back Door, Single Door, Dual Doors, AF025A MCS G2, AF025A MCS G2+Exp, Aisle Bridge CableTray, CableTray for 10000s, CableTray for 10842 and 10 more. Tool Chest in Detail view, one row per tool with its name.

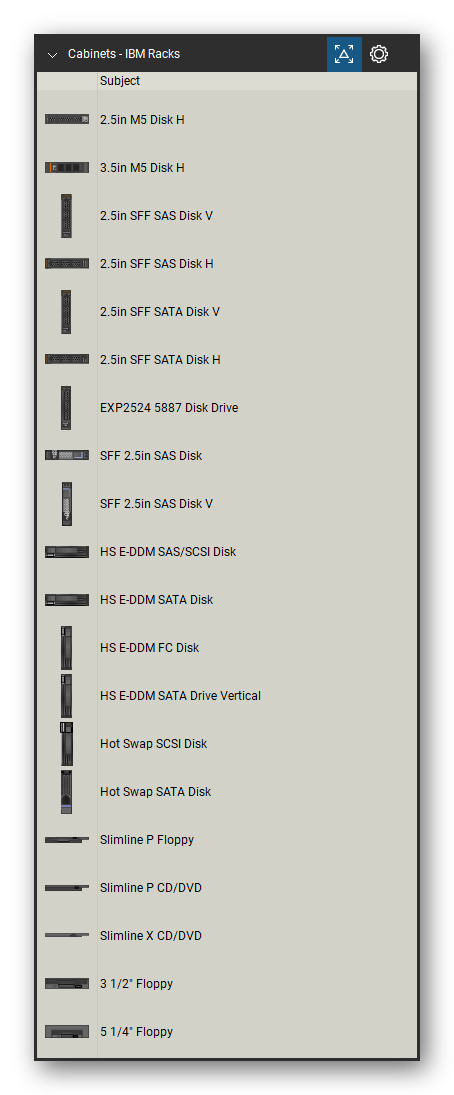

  • Racks, Cabinets & Cable Pathways tool set for Bluebeam Revu, IBM Racks set (tools 1-20 of 127) - 20 tools: 2.5in M5 Disk H, 3.5in M5 Disk H, 2.5in SFF SAS Disk V, 2.5in SFF SAS Disk H, 2.5in SFF SATA Disk V, 2.5in SFF SATA Disk H, EXP2524 5887 Disk Drive, SFF 2.5in SAS Disk, SFF 2.5in SAS Disk V, HS E-DDM SAS/SCSI Disk and 10 more. Tool Chest in Detail view, one row per tool with its name.

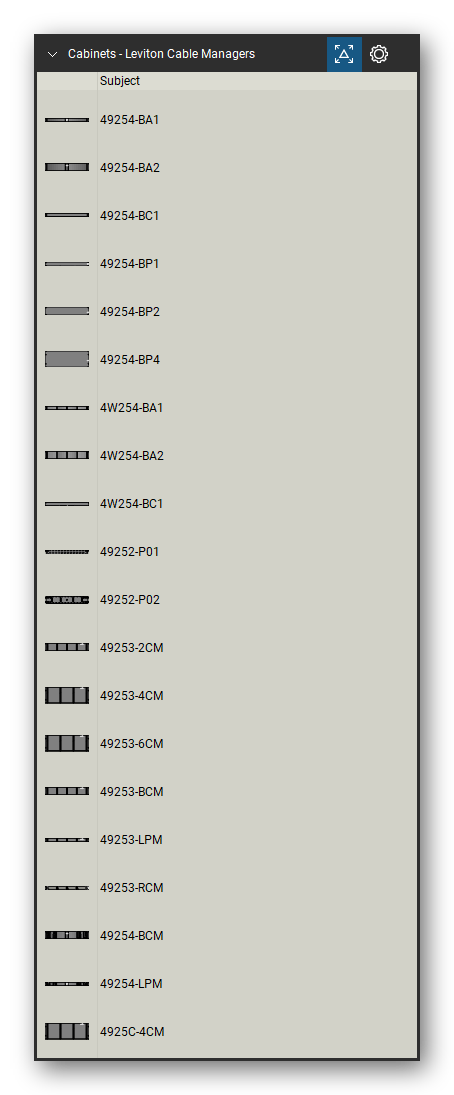

  • Racks, Cabinets & Cable Pathways tool set for Bluebeam Revu, Leviton Cable Managers set (tools 1-20 of 36) - 20 tools: 49254-BA1, 49254-BA2, 49254-BC1, 49254-BP1, 49254-BP2, 49254-BP4, 4W254-BA1, 4W254-BA2, 4W254-BC1, 49252-P01 and 10 more. Tool Chest in Detail view, one row per tool with its name.

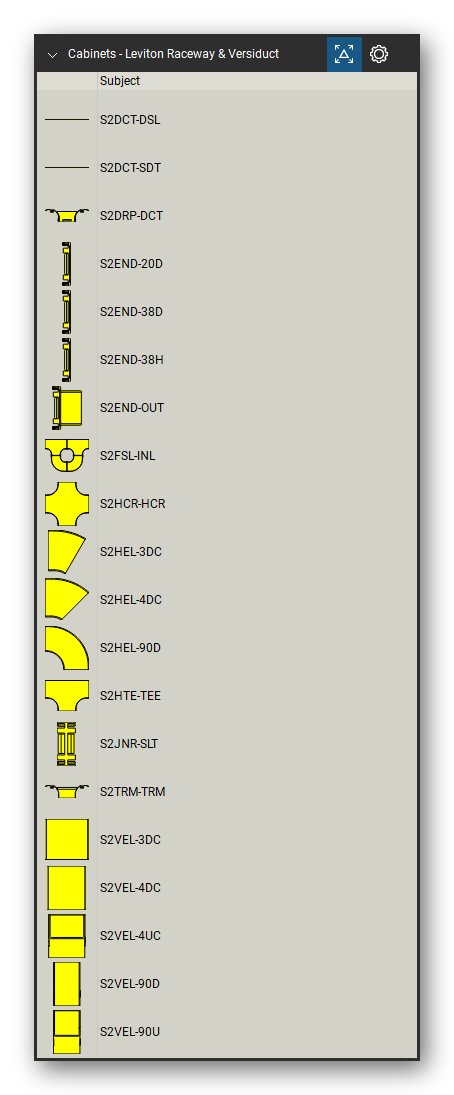

  • Racks, Cabinets & Cable Pathways tool set for Bluebeam Revu, Leviton Raceway & Versiduct set (tools 1-20 of 131) - 20 tools: S2DCT-DSL, S2DCT-SDT, S2DRP-DCT, S2END-20D, S2END-38D, S2END-38H, S2END-OUT, S2FSL-INL, S2HCR-HCR, S2HEL-3DC and 10 more. Tool Chest in Detail view, one row per tool with its name.
  • Racks, Cabinets & Cable Pathways tool set for Bluebeam Revu, Panduit Containment (Front) set (tools 1-20 of 121) - 20 tools: C2HAC06I1626B1, C2HAC06I1626W1, C2HAC06I2638B1, C2HAC06I2638W1, C2HAC06I3866B1, C2HAC06I3866W1, C2HAC07I1626B1, C2HAC07I1626W1, C2HAC07I2638B1, C2HAC07I2638W1 and 10 more. Tool Chest in Detail view, one row per tool with its name.

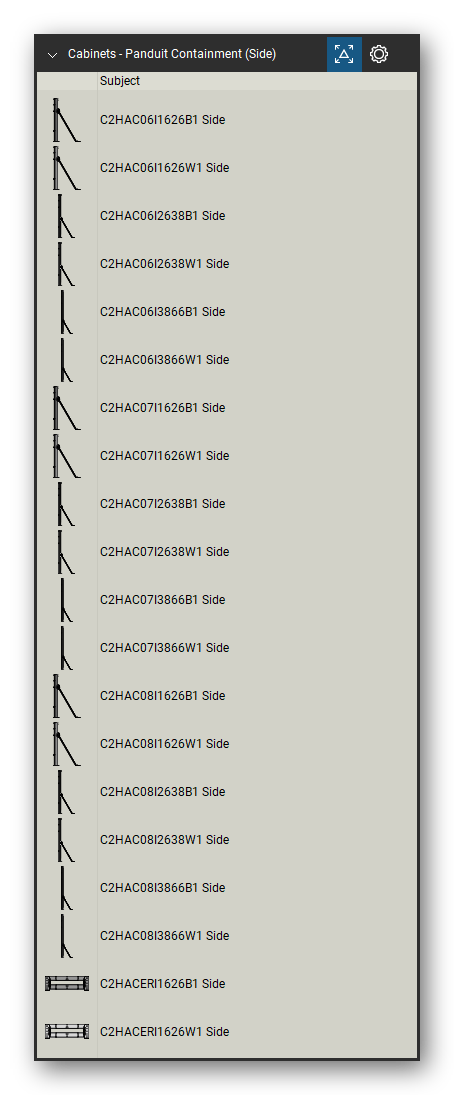

  • Racks, Cabinets & Cable Pathways tool set for Bluebeam Revu, Panduit Containment (Side) set (tools 1-20 of 115) - 20 tools: C2HAC06I1626B1, C2HAC06I1626W1, C2HAC06I2638B1, C2HAC06I2638W1, C2HAC06I3866B1, C2HAC06I3866W1, C2HAC07I1626B1, C2HAC07I1626W1, C2HAC07I2638B1, C2HAC07I2638W1 and 10 more. Tool Chest in Detail view, one row per tool with its name.
  • Racks, Cabinets & Cable Pathways tool set for Bluebeam Revu, Panduit Containment (Top) set (tools 1-20 of 121) - 20 tools: C2HAC06I1626B1, C2HAC06I1626W1, C2HAC06I2638B1, C2HAC06I2638W1, C2HAC06I3866B1, C2HAC06I3866W1, C2HAC07I1626B1, C2HAC07I1626W1, C2HAC07I2638B1, C2HAC07I2638W1 and 10 more. Tool Chest in Detail view, one row per tool with its name.
  • Racks, Cabinets & Cable Pathways tool set for Bluebeam Revu, Panduit Net-Access & Net-SERV 1 set (tools 1-20 of 184) - 20 views of 15 devices, front and top: CWMPH1, CWMPHF1, CWMPV2440, CWMPV2418, CWMPV2340, CWMPV2318, CWMPV3440, CWMPV3418, CWMPV3340, CWMPV3318 and 5 more. Tool Chest in Detail view, one row per tool with its name.

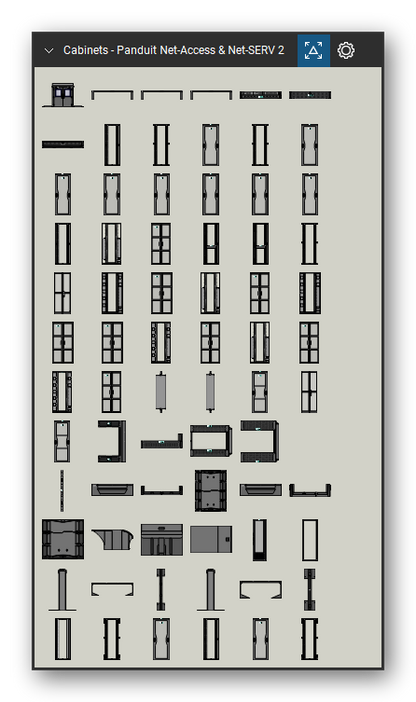

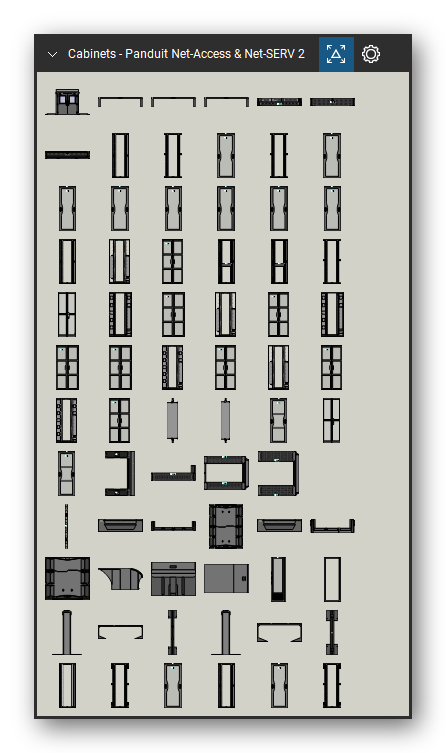

  • Racks, Cabinets & Cable Pathways tool set for Bluebeam Revu, Panduit Net-Access & Net-SERV 2 set (tools 1-20 of 172) - 20 views of 19 devices, front and rear: CC18DD, CC18RPN8, CC18RPS6, CC18RPS7, CDE1, CDE2, CN Cabinet, CN12NU Front No Door, CN12NU Front with Door, CN22NU Front No Door and 9 more. Tool Chest in Detail view, one row per tool with its name.

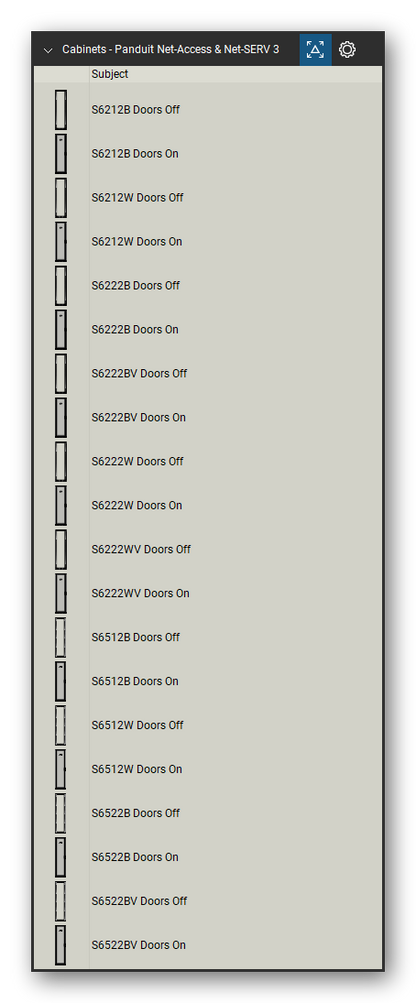

  • Racks, Cabinets & Cable Pathways tool set for Bluebeam Revu, Panduit Net-Access & Net-SERV 3 set (tools 1-20 of 202) - 20 tools: S6212B Doors Off, S6212B Doors On, S6212W Doors Off, S6212W Doors On, S6222B Doors Off, S6222B Doors On, S6222BV Doors Off, S6222BV Doors On, S6222W Doors Off, S6222W Doors On and 10 more. Tool Chest in Detail view, one row per tool with its name.
  • Racks, Cabinets & Cable Pathways tool set for Bluebeam Revu, Panduit Net-Contain set (tools 1-20 of 85) - 20 tools: C2CAC03ABWPAB1, C2CAC03ABWPAW1, C2CAC04ABWPAB1, C2CAC04ABWPAW1, C2CAC06ABWPAB1, C2CAC06ABWPAW1, C2CAC06F04IRB1, C2CAC06F04IRW1, C2CAC06F06IRB1, C2CAC06F06IRW1 and 10 more. Tool Chest in Detail view, one row per tool with its name.
  • Racks, Cabinets & Cable Pathways tool set for Bluebeam Revu, Panduit Racks & Cable Managers set (tools 1-20 of 243) - 20 tools: CMPH1, CMPH123, CMPH1C, CMPH1W, CMPH2, CMPH223, CMPH2C, CMPH2W, CMPHF1, CMPHF123 and 10 more. Tool Chest in Detail view, one row per tool with its name.
  • Racks, Cabinets & Cable Pathways tool set for Bluebeam Revu, Panduit Raised Floor & PanZone set (tools 1-20 of 140) - 20 tools: Perf 24in (centered), Solid 24in (centered), Perf 24in, Solid 24in, Perf 600mm (centered), Solid 600mm (centered), Perf 600mm, Solid 600mm, Perforated Raised, Raised and 10 more. Tool Chest in Detail view, one row per tool with its name.
  • Racks, Cabinets & Cable Pathways tool set for Bluebeam Revu, Panduit Top Views set (tools 1-20 of 132) - 20 tools: 12in Ladder, 18in Ladder, 24in Ladder, 36in Ladder, 9in Ladder, CC18DD, CC18RPN8, CC18RPS6, CC18RPS7, CMR19X84 and 10 more. Tool Chest in Detail view, one row per tool with its name.

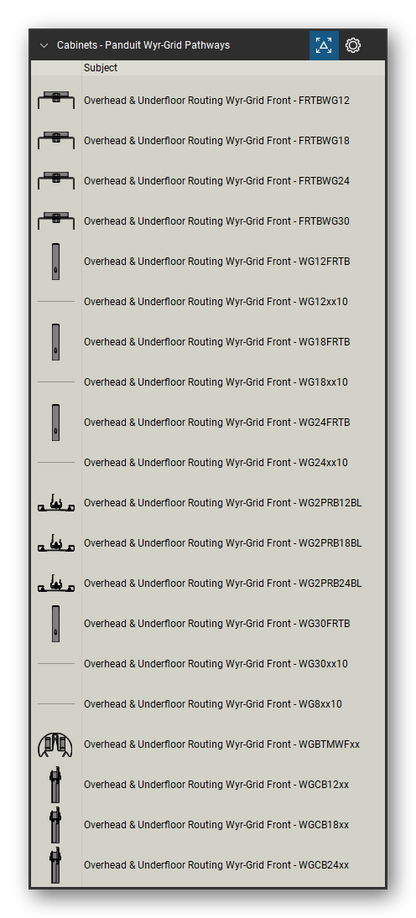

  • Racks, Cabinets & Cable Pathways tool set for Bluebeam Revu, Panduit Wyr-Grid Pathways set (tools 1-20 of 182) - 20 tools: Overhead & Underfloor Routing Wyr-Grid Front and 19 more. Tool Chest in Detail view, one row per tool with its name.
  • Racks, Cabinets & Cable Pathways tool set for Bluebeam Revu, R&M Cabinets & Racks set (tools 1-20 of 31) - 20 tools: Cabinet 12U, Cabinet 25U, Cabinet 34U, Cabinet 37U, Cabinet 38U, Cabinet 39U, Cabinet 41U, Cabinet 42U, Cabinet 43U, Cabinet 45U and 10 more. Tool Chest in Detail view, one row per tool with its name.

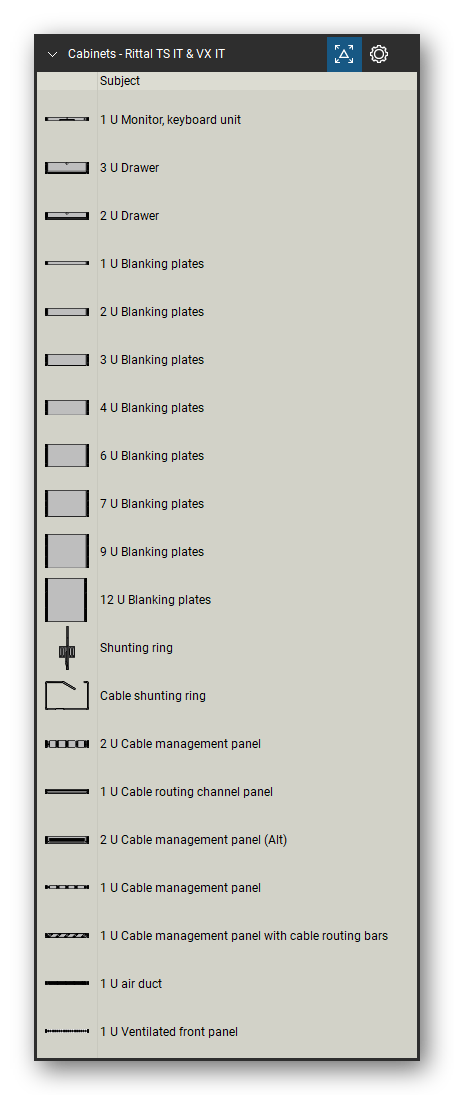

  • Racks, Cabinets & Cable Pathways tool set for Bluebeam Revu, Rittal TS IT & VX IT set (tools 1-20 of 227) - 20 tools: 1 U Monitor, keyboard unit, 3 U Drawer, 2 U Drawer, 1 U Blanking plates, 2 U Blanking plates, 3 U Blanking plates, 4 U Blanking plates, 6 U Blanking plates, 7 U Blanking plates, 9 U Blanking plates and 9 more. Tool Chest in Detail view, one row per tool with its name.

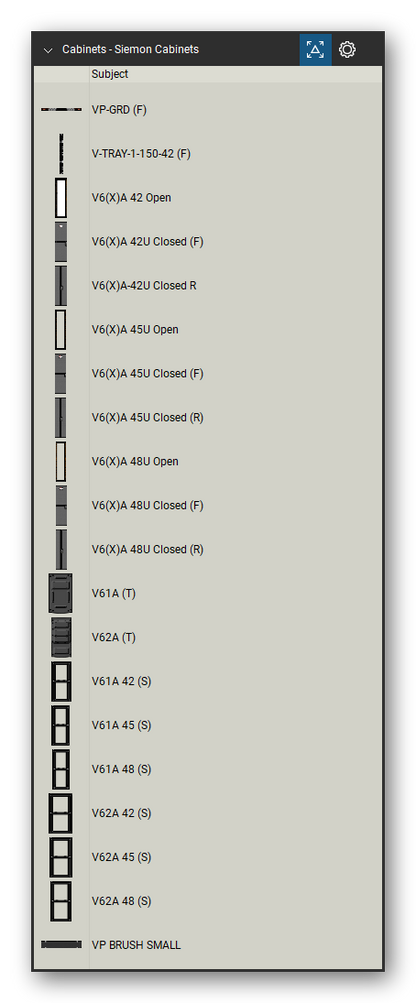

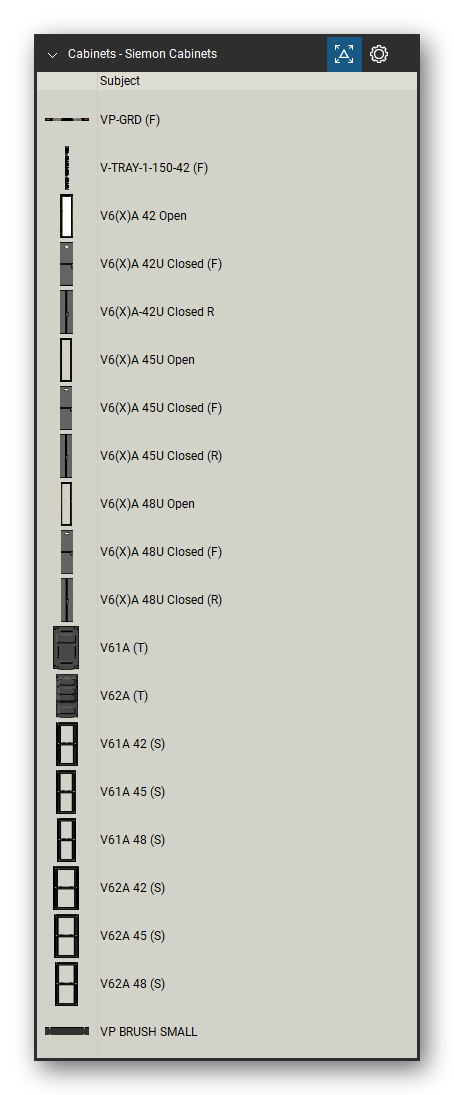

  • Racks, Cabinets & Cable Pathways tool set for Bluebeam Revu, Siemon Cabinets set (tools 1-20 of 149) - 20 views of 18 devices, front, rear, side and top: VP-GRD, V-TRAY-1-150-42, V6(X)A 42 Open, V6(X)A 42U Closed, V6(X)A-42U Closed R, V6(X)A 45U Open, V6(X)A 45U Closed, V6(X)A 48U Open, V6(X)A 48U Closed, V61A and 8 more. Tool Chest in Detail view, one row per tool with its name.

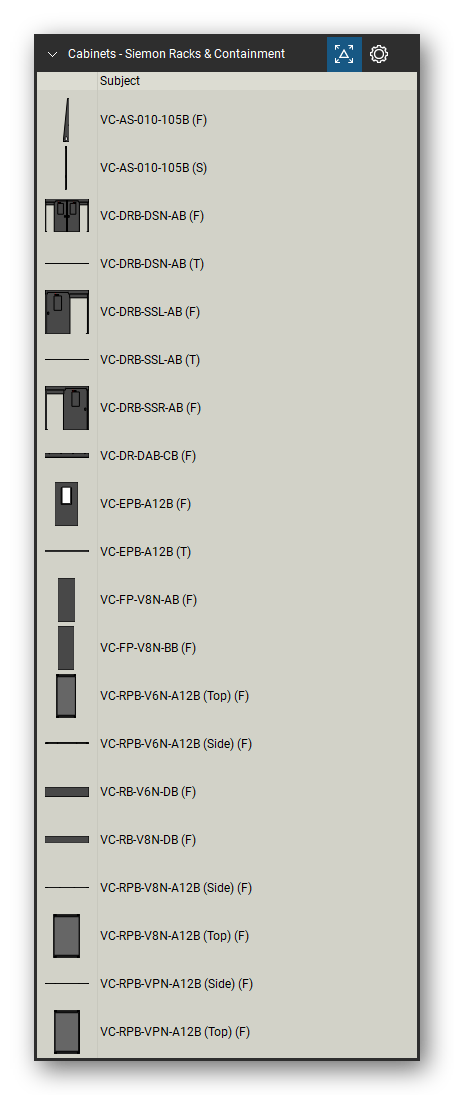

  • Racks, Cabinets & Cable Pathways tool set for Bluebeam Revu, Siemon Racks & Containment set (tools 1-20 of 105) - 20 views of 16 devices, front, side and top: VC-AS-010-105B, VC-DRB-DSN-AB, VC-DRB-SSL-AB, VC-DRB-SSR-AB, VC-DR-DAB-CB, VC-EPB-A12B, VC-FP-V8N-AB, VC-FP-V8N-BB, VC-RPB-V6N-A12B (Top), VC-RPB-V6N-A12B (Side) and 6 more. Tool Chest in Detail view, one row per tool with its name.
  • Racks, Cabinets & Cable Pathways tool set for Bluebeam Revu, Tripp Lite SmartRack set (tools 1-20 of 230) - 20 views of 8 devices, front, rear, side and top: SRCOOL18K, SRCOOL24K, SRCOOL2KWM, Rack Cooling - SRCOOL33K, SRCOOL33K, SRCOOL60KCW, SRCOOL7KRM and SRXCOOL12KB. Tool Chest in Detail view, one row per tool with its name.

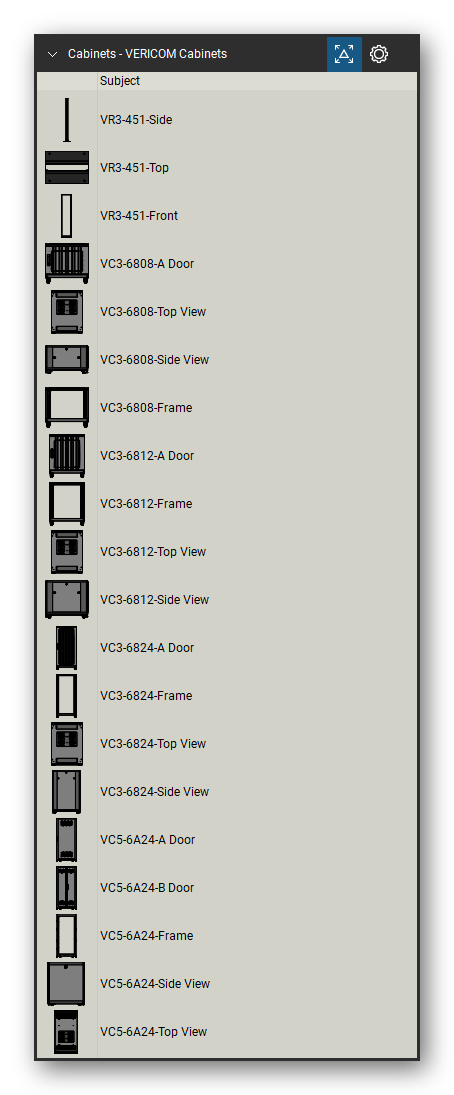

  • Racks, Cabinets & Cable Pathways tool set for Bluebeam Revu, VERICOM Cabinets set (tools 1-20 of 162) - 20 views of 14 devices, front, side and top: VR3-451, VC3-6808-A Door, VC3-6808, VC3-6808-Frame, VC3-6812-A Door, VC3-6812-Frame, VC3-6812, VC3-6824-A Door, VC3-6824-Frame, VC3-6824 and 4 more. Tool Chest in Detail view, one row per tool with its name.
  • Racks, Cabinets & Cable Pathways tool set for Bluebeam Revu, VERICOM Rack Accessories set (tools 1-20 of 93) - 20 views of 7 devices, front, side and top: RABPSS1, RABPSS2, RABPSS3, RABPSS4, RABPSS6, RABPST1 and RABPST2. Tool Chest in Detail view, one row per tool with its name.

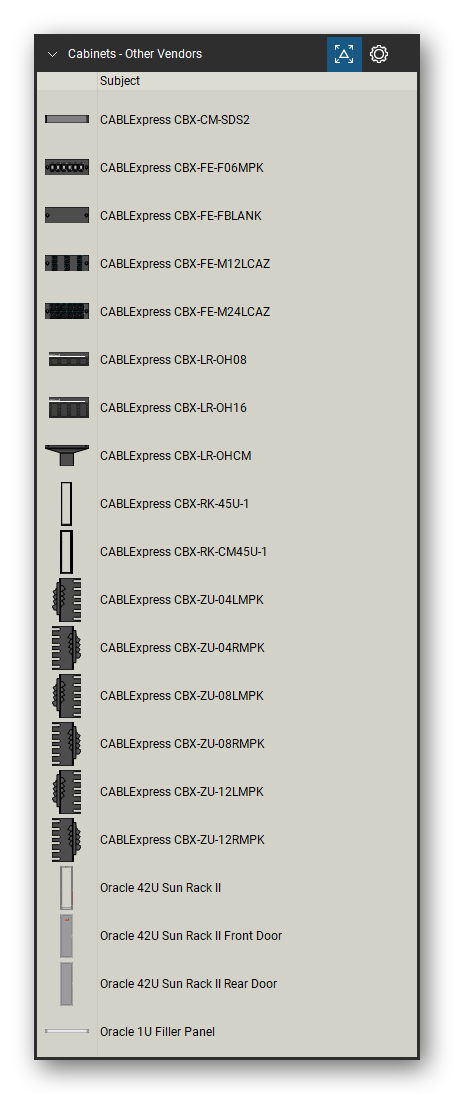

  • Racks, Cabinets & Cable Pathways tool set for Bluebeam Revu, Other Vendors set (tools 1-20 of 43) - 20 tools: CABLExpress CBX-CM-SDS2, CABLExpress CBX-FE-F06MPK, CABLExpress CBX-FE-FBLANK, CABLExpress CBX-FE-M12LCAZ, CABLExpress CBX-FE-M24LCAZ, CABLExpress CBX-LR-OH08, CABLExpress CBX-LR-OH16, CABLExpress CBX-LR-OHCM, CABLExpress CBX-RK-45U-1, CABLExpress CBX-RK-CM45U-1 and 10 more. Tool Chest in Detail view, one row per tool with its name.
1 60

Racks, Cabinets & Cable Pathways Bluebeam Tool Set

Racks, Cabinets & Cable Pathways Bluebeam Tool Set

$199.99 USD
$264.99 USD $199.99 USD
Sale Sold out
Delivered immediately after checkout.

Tool set of racks, cabinets, aisle containment, cable managers, and cable pathways for telecom room and data center layouts, rack elevations, and pathway plans. This tool set covers 42 categories with 5,097 symbols. Each device is a vector snapshot in the colors of its maker's artwork that places as a single markup, and is named with its model, so the tools list by name in the Tool Chest and placed equipment lists by name in the Markups List. Lettering that stands on a symbol is editable text.

Examples of symbols included:

  • Generic Racks

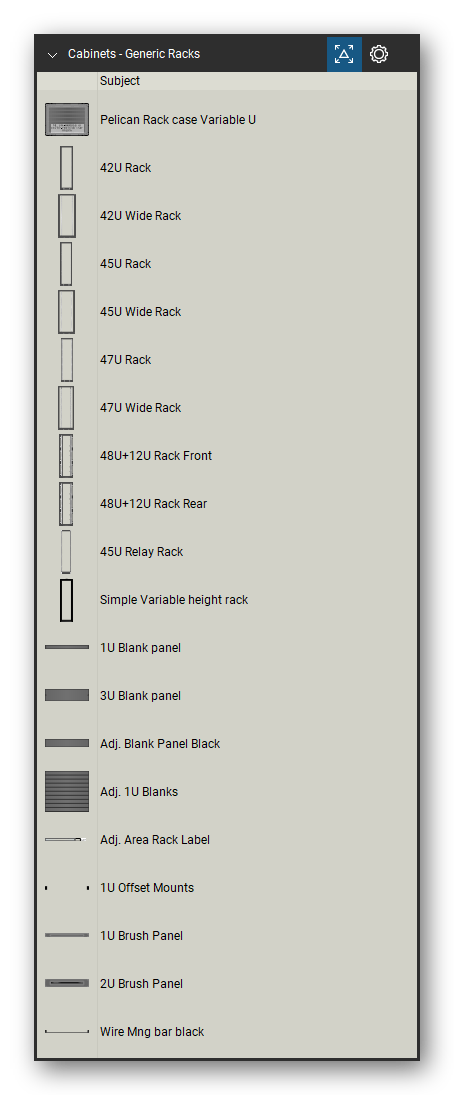

    • 42U, 45U and 47U racks and wide racks, 48U+12U rack, 45U relay rack, Pelican rack case
    • Blank and brush panels, 24 and 48 port patch panels, 9 port PDUs, wire managers
  • APC NetShelter

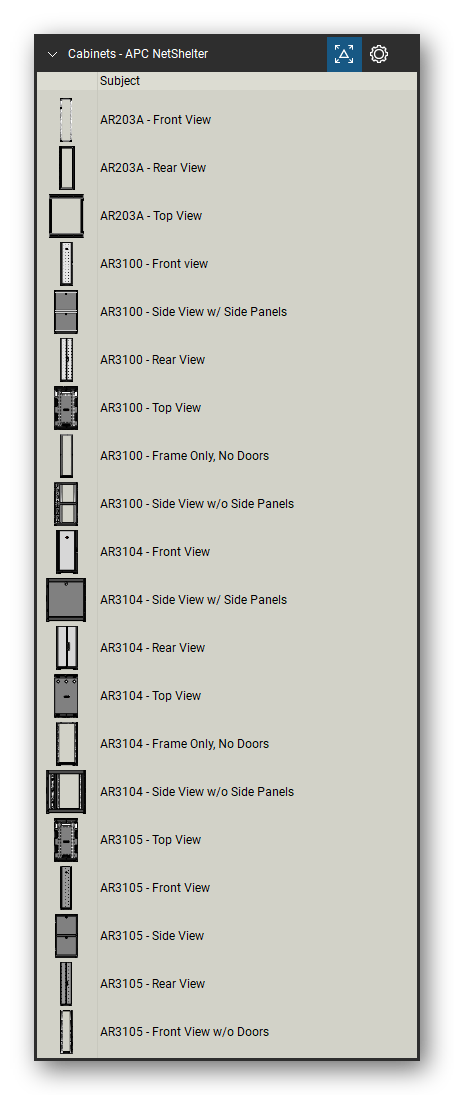

    • NetShelter SX AR3100 to AR3357 and NetShelter CX, AR203A, AR3814, front, rear, side (with and without side panels) and top
  • Belden X Series Enclosures
    • XH1M42 to XH8M48, front, rear, side, top and bottom
  • Black Box Infrastructure
    • RM2412A, RM2413A, RM940A, RM155A-R3, RM156A-R3 and RM2640A, EC45U2442SMDSMK, EWM12U242424-R2 and EWM20U362424-R2, ECAD30, Coldrow adapters
  • Chatsworth

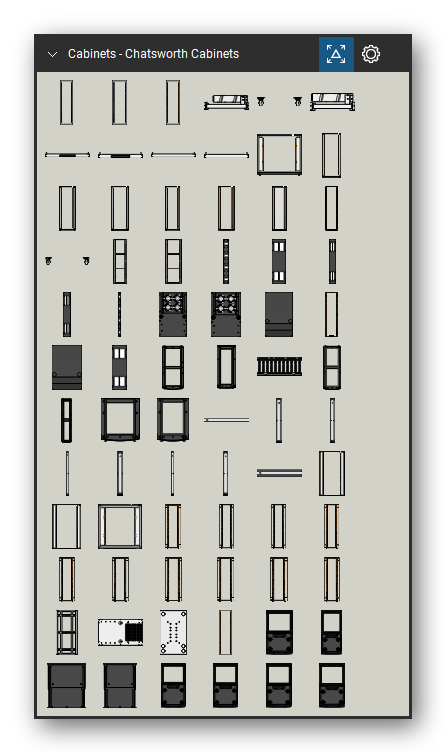

    • TeraFrame 600W and 700W cabinets with exhaust ducts, NCAB-50U, 19" and 23" fixed and sliding shelves, monitor and keyboard shelf

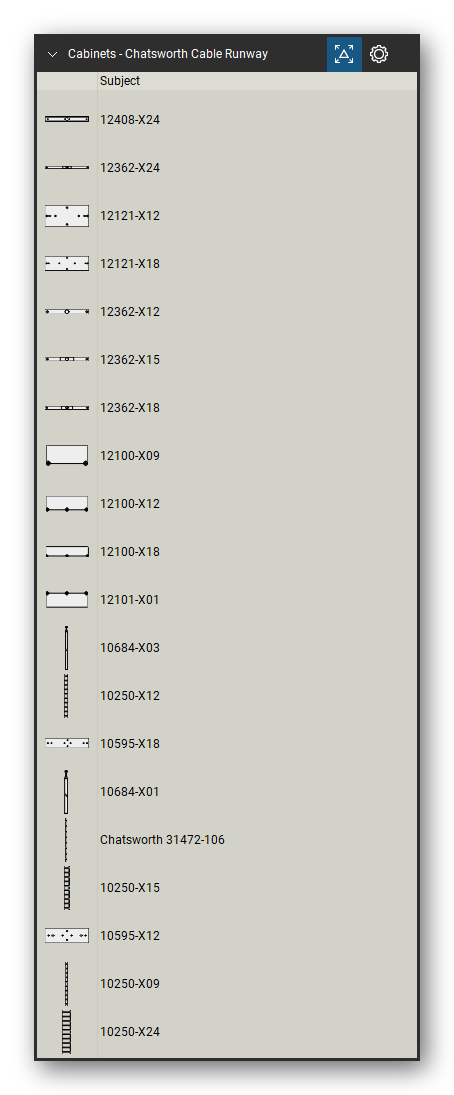

    • Cable runway 19" and 23" wide, SlimFrame, OnTrac (34729 to 34737), cable management 30091 to 30096
    • Racks and shelves 30163 to 30166, accessories by Chatsworth part number
  • CommScope
    • FiberGuide FGS parts, fiber raceway tubes, trumpets and side-drop kits
    • SRS raceway transitions ELKT, ELMN, TEKT, CRKT, ADKT and JOAP, from 30 to 90 degree
    • RK3-17A and RKX-58A racks, VCM-XS and HCM managers, 42U and 47U 600mm and 800mm server cabinets, top views
  • CyberPower Carbon Racks
    • CR24U11001, CR42U11001, CR25U40001 and CR45U40001 racks, CRA11002 to CRA60002 accessories, person outline
  • Dell Racks
    • 2420, 4020S, 4220, 4220D, 4220W, 4620S and 4820 racks with front and rear doors, close out panels, floor tiles
  • Eaton Racks
    • RS and RP racks 42U to 52U, standard and wide, 600 and 800, 2-post and 4-post, cable managers, side panels, rack U ruler
  • EMCOR Enclosures
    • 10 Series pontoon base, work surfaces from 30 to 90 degree, equipment and pull-out shelves, equipment drawer, closure panels, packaged blowers, FP2 plans
  • Great Lakes
    • GL780ES, GL7901ES and GL840ES cabinets, GL84CL2 and GL84CL3, CMR-45U16, VCM8-FO-ER and VCM12-FO-ER, ESF16 and ESF24-29, 4PBSF24-36, 4PLRBV4-8
  • HPE Racks & Floor Layout
    • HPE 22U, 36U, 42U and 48U racks, HP 642, 647, 842 and 11648 racks, front and back doors, floor tiles
    • IP KVM and IP Con-G2 consoles, TFT7600, 3PAR P10000 rack, XP12000 DKC, ESL-E and EML tape libraries
  • IBM Racks
    • 9307, 9362, 9363, 7014 and 7965 racks and doors, 7310-CR2 and 7042-CR5 HMC, GCM16, LTO3 and SDLT600 tape drives, 2.5in and hot swap disks
  • Leviton
    • 49253 and 49254 cable managers, 5R1UX-CMT and 5R2UX-CMT, 49260-MR3 and 49260-MR6, 4940L and 4980L
    • Versiduct raceway parts (end caps, tees, adapters), OIPFR, 49265-BKT, 491RU-HFO, steel channel, 19in rack
  • Panduit
    • Net-Access (CN, N82 to N88) and Net-SERV (CS, S62 to S88) cabinets, doors on and off, side panels

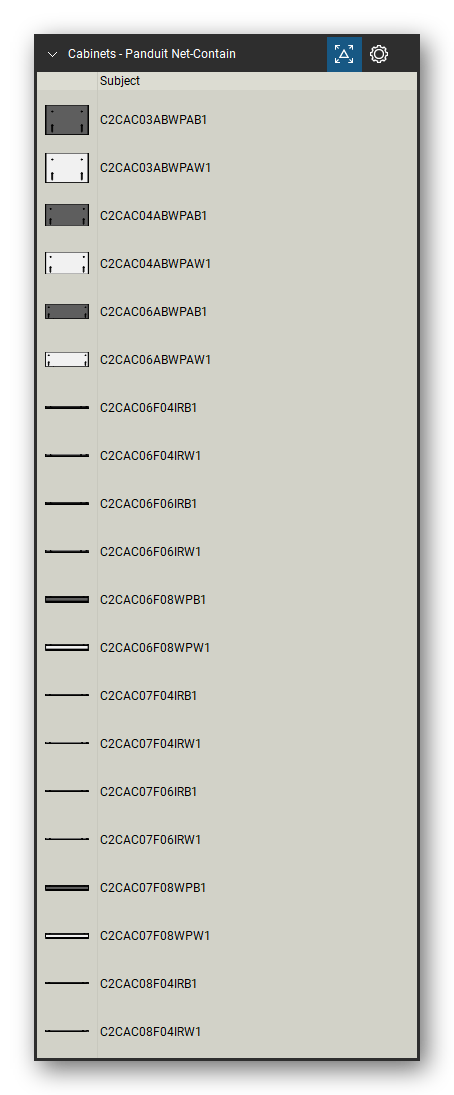

    • Net-Contain C2CAC and C2HAC containment in front, side and top views, R4P, PR2V, NRV and PRV racks and managers, 9in to 36in ladders, hot and cold aisle
    • Raised floor (RFG), PanZone zone cabling (PZ), Wyr-Grid overhead and underfloor routing (WG, FRTBWG)
  • R&M Cabinets & Racks

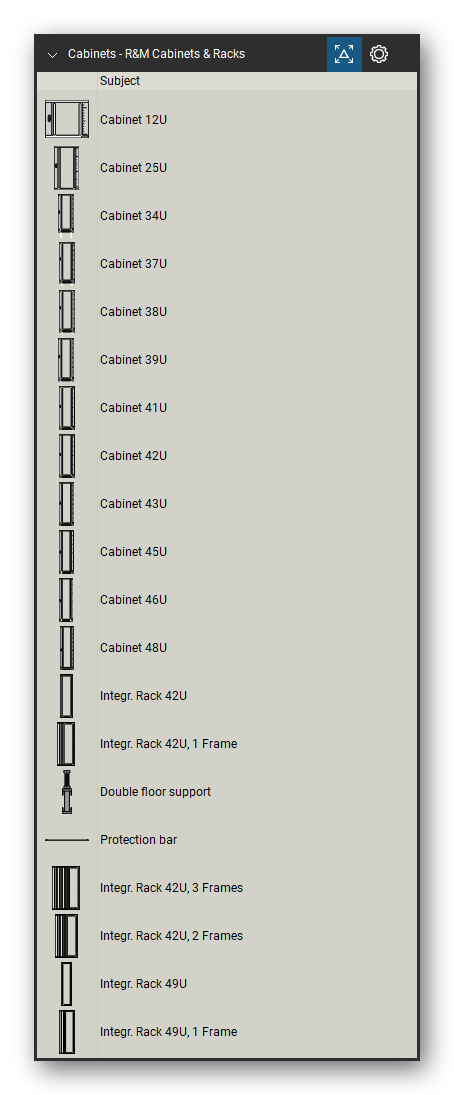

    • Cabinets 12U to 48U, Integr. Rack 42U and 49U, UniRack, double floor support, protection bar
  • Rittal TS IT & VX IT
    • 1 U to 47 U, CMC III, plinth W: 600 and 800, 1 U monitor and keyboard unit, 2 U patch panel, 7030 and 7320 parts
  • Siemon

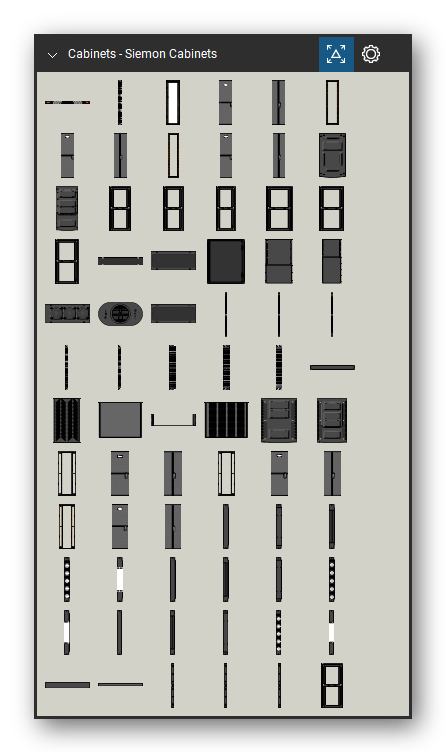

    • V6, V8 and VP cabinets 42U to 48U, VPA PDUs, VP FGR6 and VP2A, brush panels
    • VC containment parts, ZU-MX-24P, 4 post racks, HCM and VCM managers, RS-07, S143
  • Tripp Lite SmartRack
    • SR12UB to SR48UB, SR42UBWD, SR45UBMD, SRQ18U, SRQ24U and SRQP42UB, SRW12US
    • SRCOOL18K and SRCOOL33K, SREXHAUST, SRCABLEDUCT1UHD, SRLCDMOUNT, SRWF3UDG
  • VERICOM
    • VC3 and VC5 cabinets (VC3-6808 to VC5-8252), VR3-451, VW4-6151 and VW4-8121
    • RABPSS, RAMP5D1, RASA231, RASC162 and RASF281 rack accessories
  • CABLExpress, Oracle, Penguin and Premium-Line
    • CABLExpress CBX-RK-45U-1, CBX-CM, CBX-FE, CBX-LR and CBX-ZU, Oracle 42U Sun Rack II and filler panels, Penguin 42U and 48U racks, Premium-Line 1U and 2U duct

Delivered as 3 Bluebeam Revu profiles (Generic to Eaton; EMCOR to Panduit; Panduit to Other Vendors) that together load all 42 tool sets, plus the individual tool set files.

APC, Belden, Black Box, CABLExpress, Chatsworth, CommScope, CyberPower, Dell, Eaton, EMCOR, Great Lakes, HPE, IBM, Leviton, Oracle, Panduit, Penguin, Premium-Line, R&M, Rittal, Siemon, Tripp Lite and VERICOM are trademarks of their owners and are used only to identify the equipment the symbols show. MarkupToolSets is not affiliated with or endorsed by any of them.

View full details
