Process Engineering (P&ID) Symbols Bluebeam Tool Set

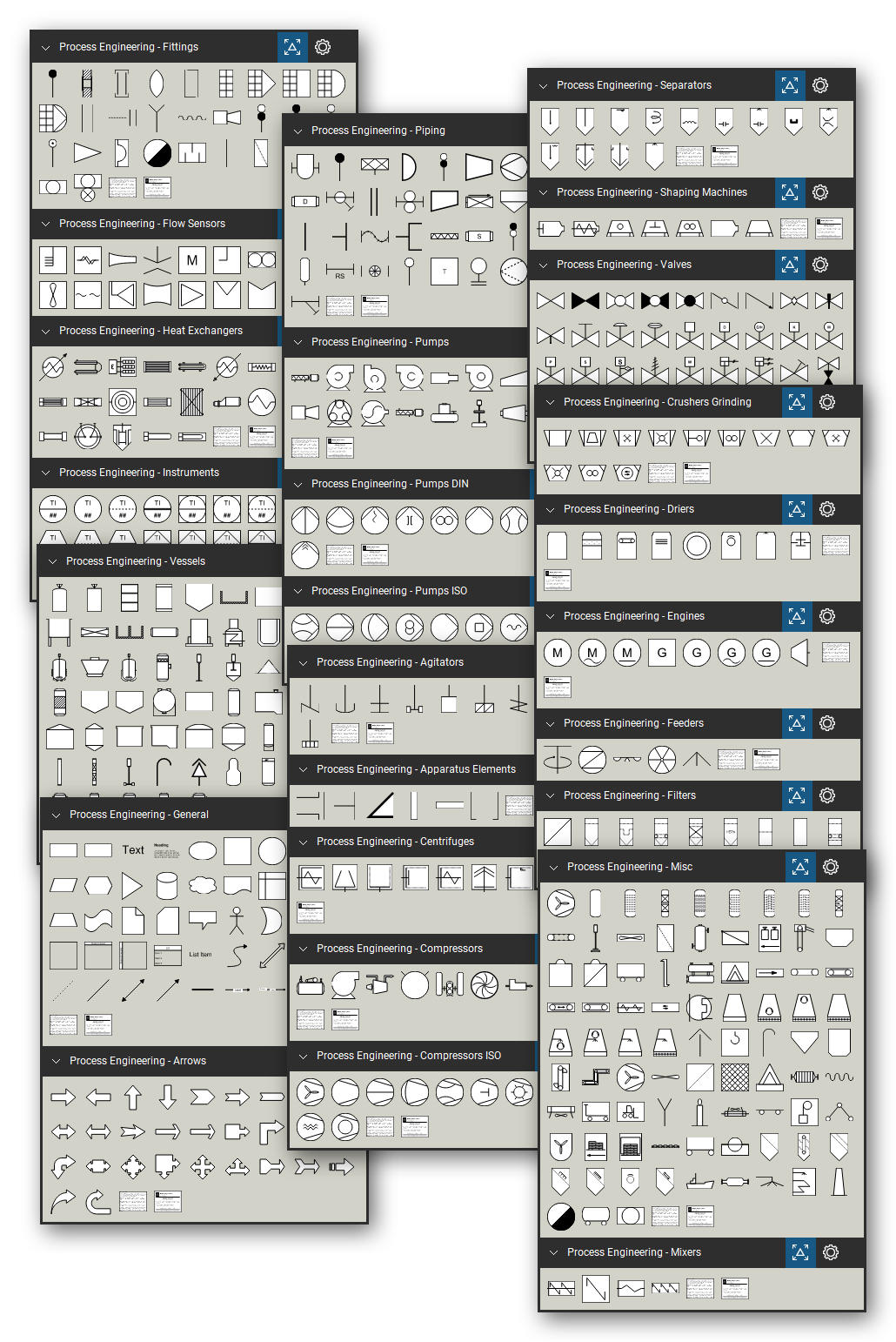

Tool set of process and instrumentation symbols for P&IDs, process flow diagrams, and mechanical drawings. This tool set covers 26 categories with 539 symbols, available in both black and redline versions. Every symbol is drawn at a constant 1/4" = 1'-0" scale and every tool set stores that scale, so Bluebeam sizes the symbols to the scale of a calibrated sheet. Each symbol is a vector snapshot that places as a single markup — it can be moved, resized, rotated, and recolored directly in Bluebeam — and is named, so placed symbols list by name in the Markups List. Instrument bubbles carry their tag as editable text, arrows are native Polygon markups, and lines and connectors are native Line markups.

Examples of symbols included:

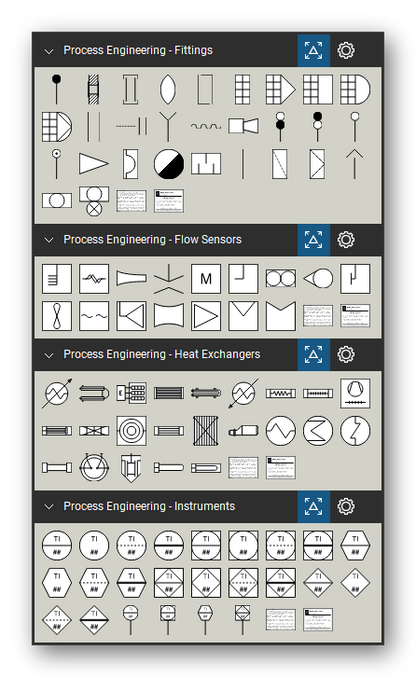

• Instruments
  • Discrete instrument, shared control/display, computer function, programmable logic control, and logic bubbles for field, control room, local panel, and inaccessible locations
  • Editable function letters and loop number in every bubble

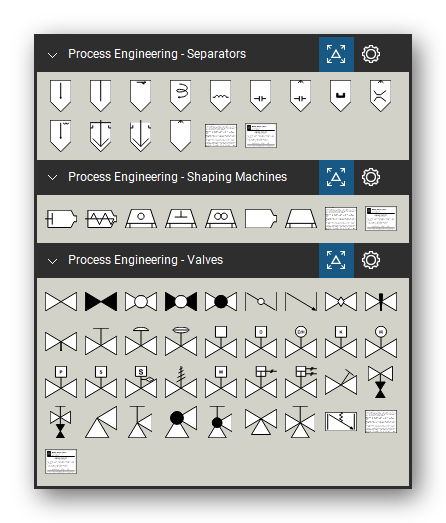

• Valves
  • Gate, ball, globe, butterfly, check, plug, needle, angle, and 3-way valves
  • Gate valves with manual, diaphragm, motor, solenoid, pilot, spring, weight, and cylinder actuators
  • Block and bleed, blowdown, and auto recirculation valves

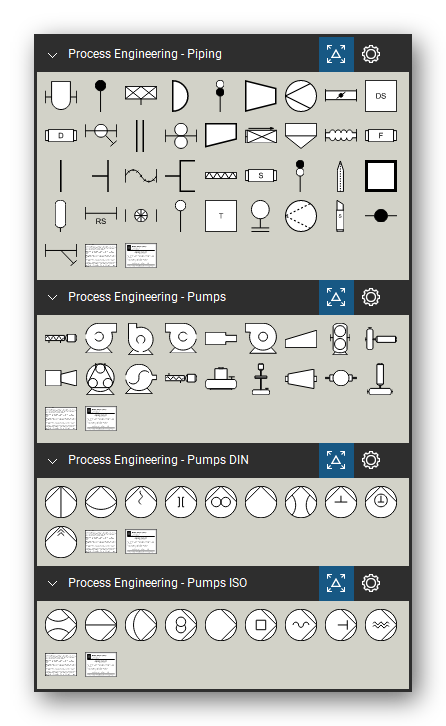

• Pumps
  • Centrifugal, gear, screw, cavity, peristaltic, submersible, sump, and vacuum pumps
  • Separate DIN and ISO style pump sets

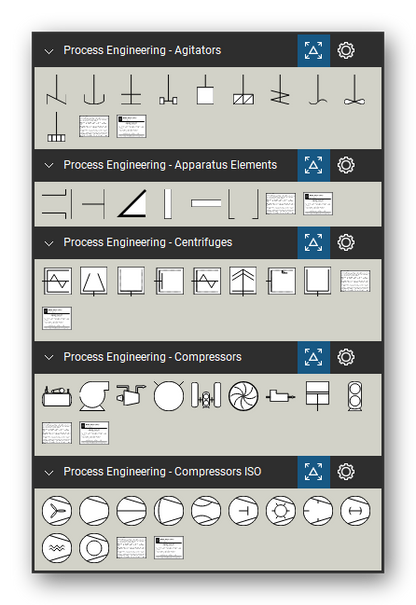

• Compressors
  • Centrifugal, reciprocating, rotary, liquid ring, and turbine-driven compressors
  • ISO style set with blower, vacuum pump, piston, screw, and turbo compressors

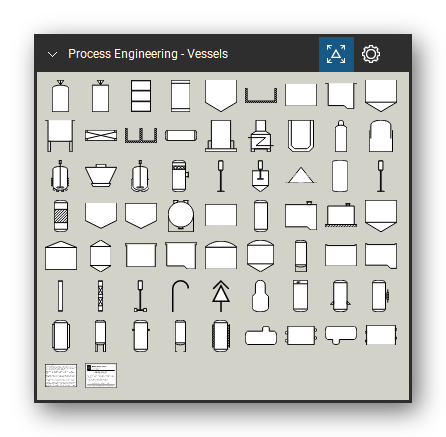

• Vessels
  • Tanks with conical, dished, and floating roofs
  • Vessels with dished ends, jackets, coils, legs, and skirts
  • Reactors, mixing vessels, towers, furnaces, gas holder, and storage sphere
• Heat exchangers
  • Shell and tube, U-tube, plate, spiral, finned tube, floating head, and double pipe exchangers
  • Condenser, reboiler, heaters, and thin-film evaporator
• Filters, separators, and centrifuges
  • Gas and liquid filters: bag, cartridge, belt, fixed bed, HEPA, ion exchanger, rotary drum, and press filters
  • Cyclone, electrostatic precipitator, magnetic separators, and scrubbers
  • Decanter, pusher, skimmer, and separator disc centrifuges

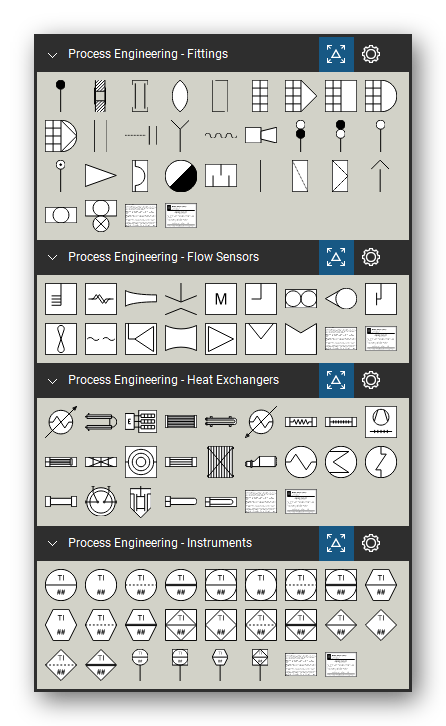

• Piping and fittings
  • Strainers, reducers, flanges, figure 8 blinds, expansion joint, and flexible hose
  • Orifice plate, rupture disc, flame arrestors, steam trap, silencers, and viewing glasses
• Flow sensors
  • Pitot tube, coriolis, magnetic, rotameter, turbine, ultrasonic, venturi, vortex, flume, and weir

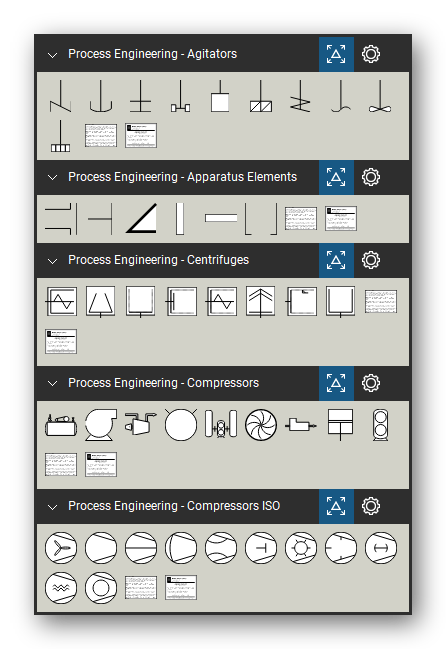

• Agitators and mixers
  • Anchor, paddle, helical, impeller, propeller, and turbine agitators
  • In-line rotary and static mixers and kneader

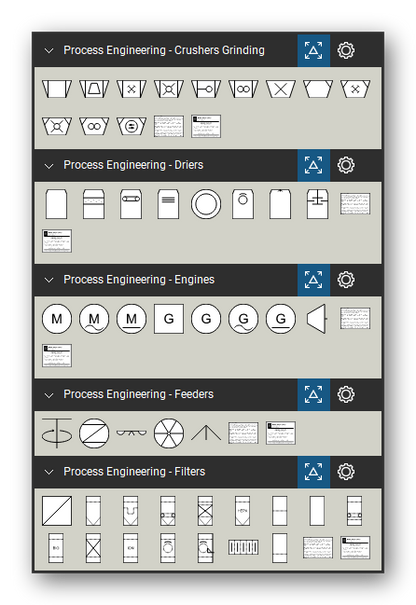

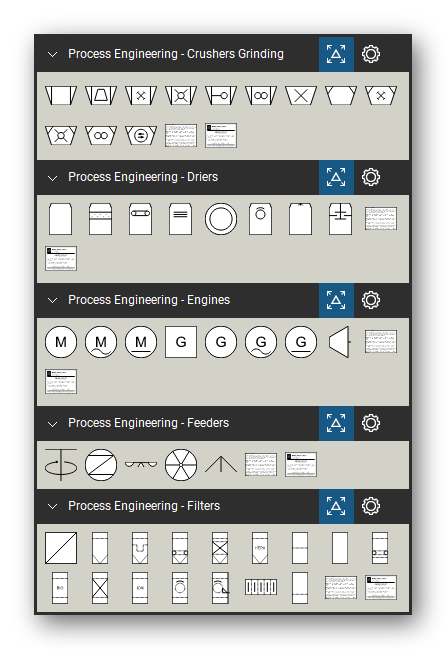

• Crushers, driers, feeders, and shaping machines
  • Cone, hammer, impact, jaw, and roller crushers and mills
  • Fluidized bed, rotary drum, spray, and turbo driers
  • Proportional feeders, extruders, presses, and pelletizing disc
• Engines and apparatus elements
  • AC and DC electric motors and generators, gear, and turbine
  • Manhole, connection nozzle, and support bracket, leg, ring, and skirt

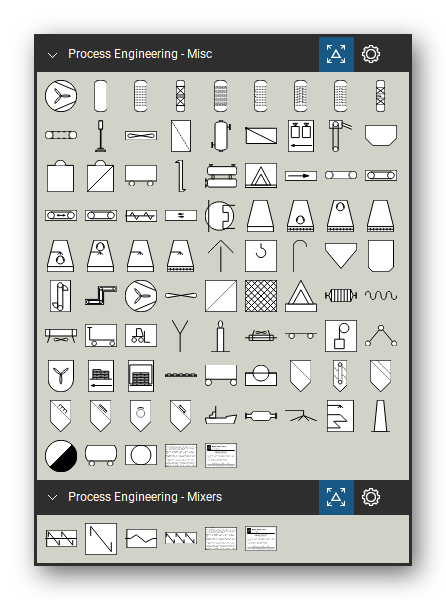

• Miscellaneous equipment
  • Columns with trays and beds, cooling towers, boilers, and air coolers
  • Conveyors, bucket elevators, screening devices, cyclone, gas flare, and stack
  • Trucks, forklifts, tank car, and ship

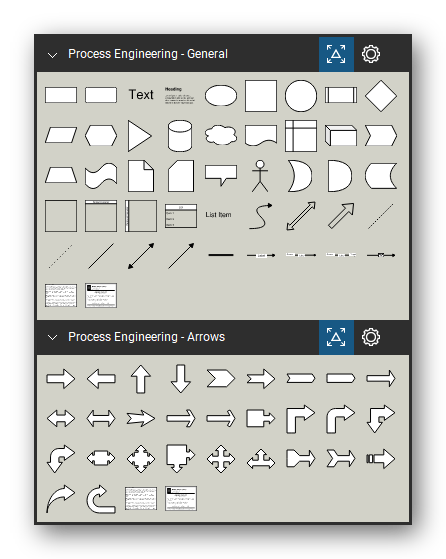

• General shapes and arrows
  • Editable text, basic shapes, containers, and connectors with labels
  • 29 block arrows: straight, two-way, bent, U-turn, notched, and callout arrows

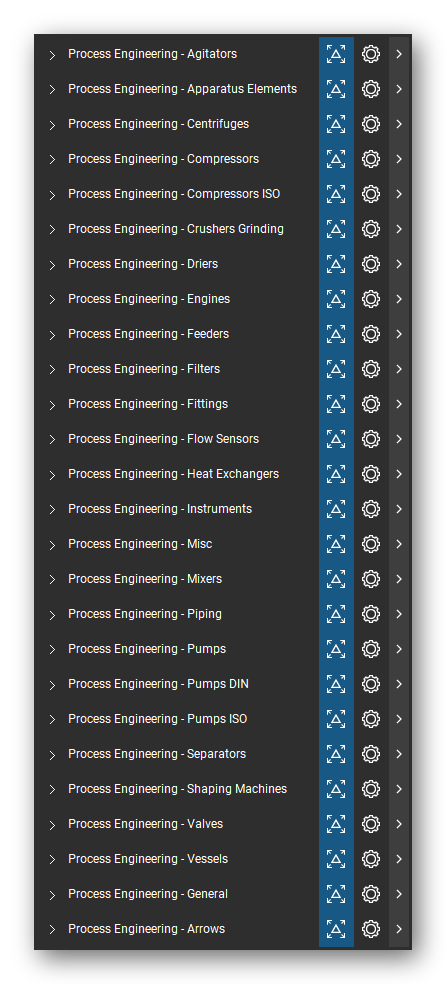

Delivered as a Bluebeam Revu profile that loads all 26 tool sets in one import, plus the individual tool set files, in black and redline.
