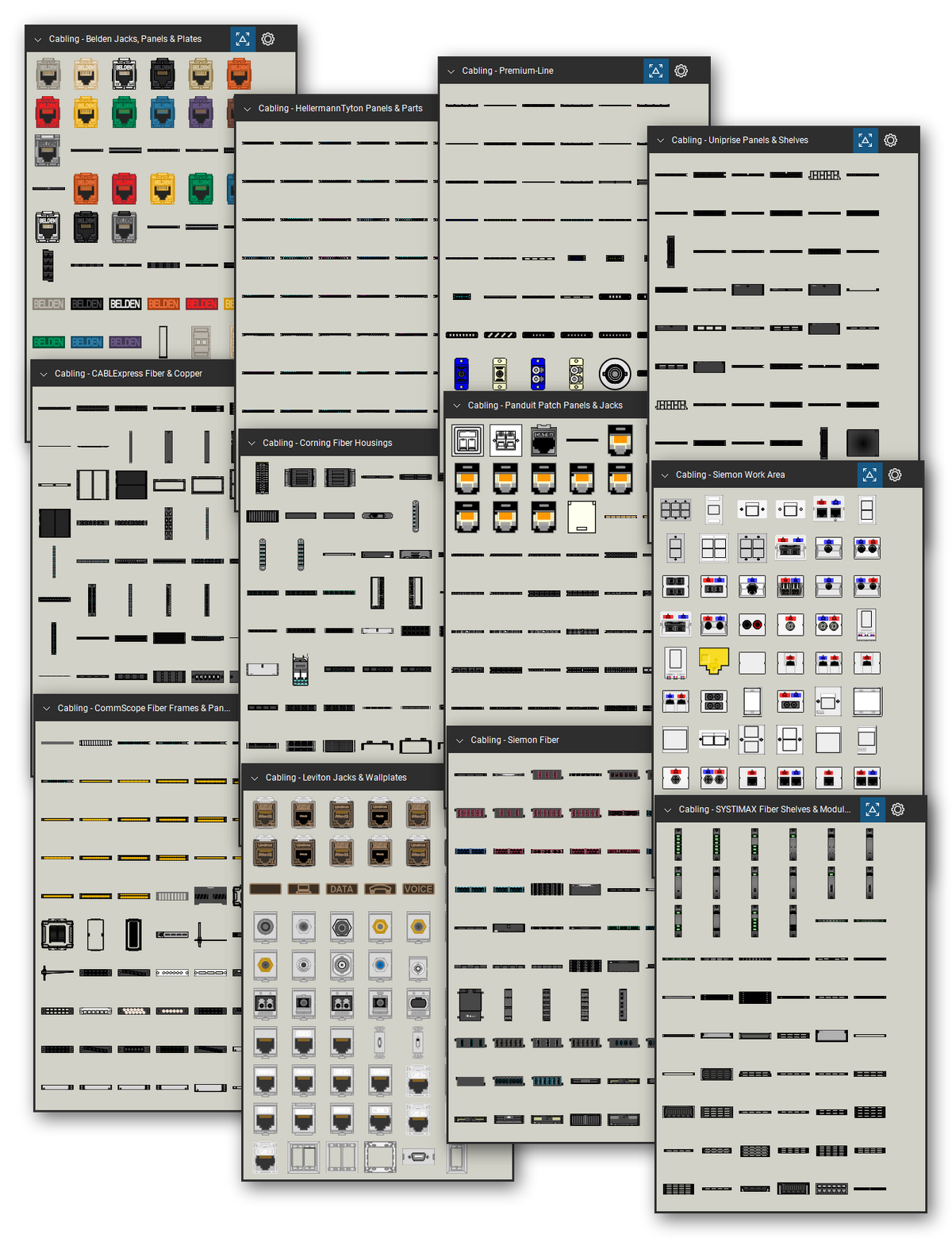

• Structured cabling components library for Bluebeam Revu: 2,908 tools in 24 tool sets - copper patch panels, fiber enclosures and cassettes, distribution frames, punch-down blocks, jacks, and faceplates. Collage of Tool Chest cards in Symbol view.

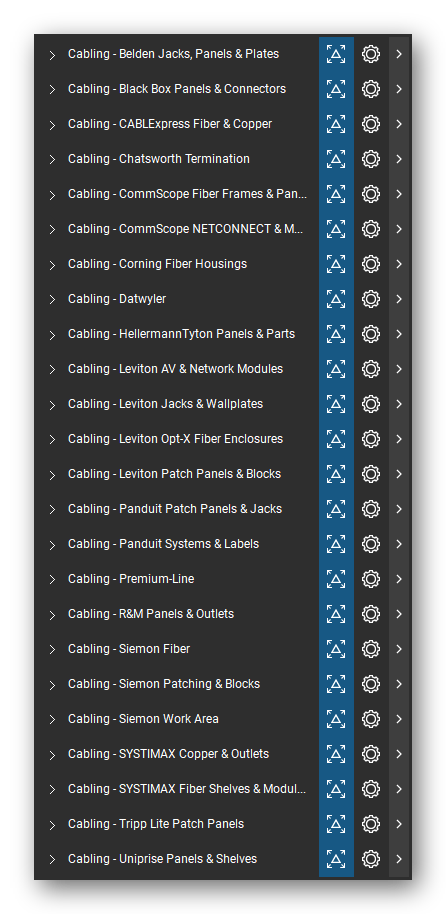

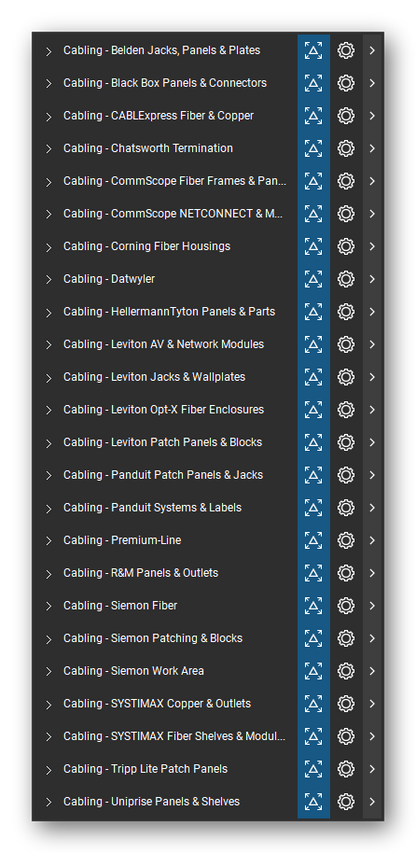

  • The Bluebeam Revu Tool Chest with the 24 tool sets of the Patch Panels, Fiber & Outlets tool set loaded, closed to the set titles.

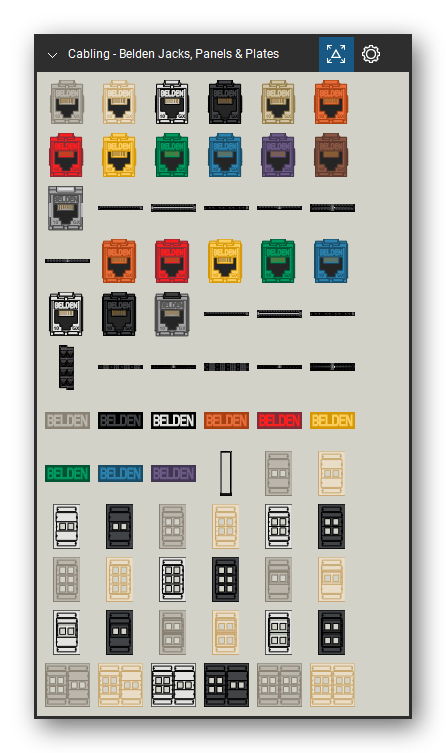

  • Patch Panels, Fiber & Outlets tool set for Bluebeam Revu, Belden Jacks, Panels & Plates set (tools 1-72 of 106) - 72 tools: AX102280, AX102281, AX102282, AX102283, AX103073, AX104152, AX104153, AX104154, AX104155, AX104156 and 62 more. Tool Chest in Symbol view.

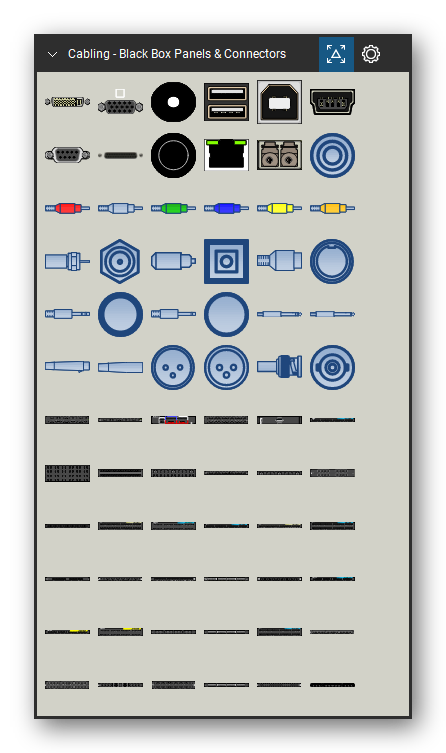

  • Patch Panels, Fiber & Outlets tool set for Bluebeam Revu, Black Box Panels & Connectors set (tools 1-72 of 138) - 72 views of 71 devices, front and rear: DVI, VGA, 2.5mm Barrel, USB Type A (2-port), USB Type B, USB Mini, DB9, DB25, 3.5mm Audio, RJ45 Receptacle and 61 more. Tool Chest in Symbol view.

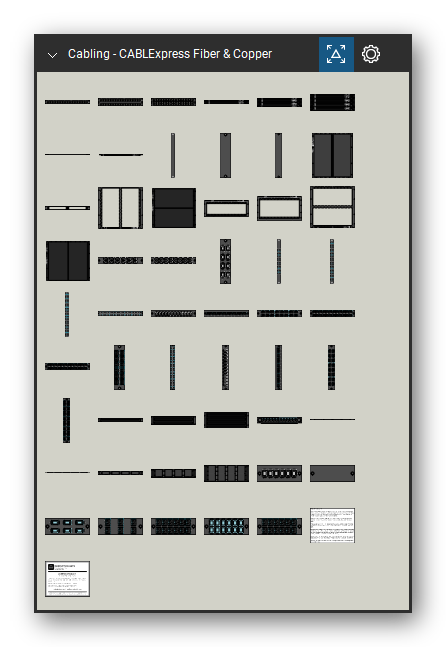

  • Patch Panels, Fiber & Outlets tool set for Bluebeam Revu, CABLExpress Fiber & Copper set - 53 tools: 1UCOPPER24FP, 2UCOPPER48FP, 2UCOPPER72FP, CBX-HP-1U3, CBX-HP-2U6, CBX-HP-4U12, CBX-HP-Blank, CBX-HP-M48LCxx, CBX-HB-BRCD, CBX-HB-VH04 and 43 more. Tool Chest in Symbol view.
  • Patch Panels, Fiber & Outlets tool set for Bluebeam Revu, Chatsworth Termination set - 37 tools: 11771-X23, 11177-X91, 13412-X01, 11177-X01, 11424-X01, 11188-X91, 11188-X01, 13430-X91, 13430-X01, 11453-X30 and 27 more. Tool Chest in Symbol view.

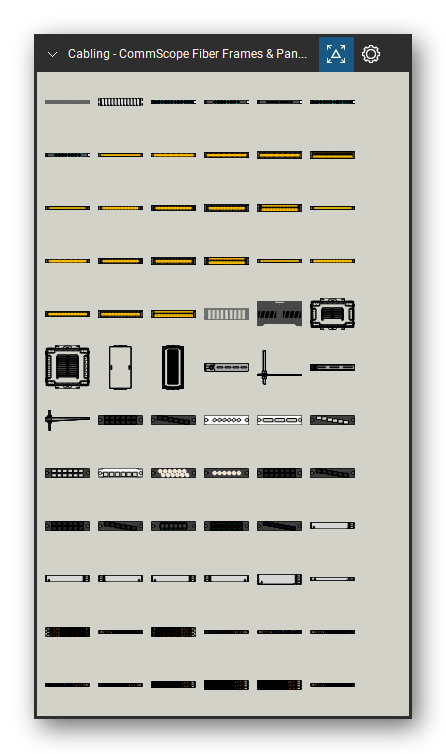

  • Patch Panels, Fiber & Outlets tool set for Bluebeam Revu, CommScope Fiber Frames & Panels set (tools 1-72 of 242) - 72 views of 70 devices, front and top: CommScope 1206138-8, CommScope 1553530-1, CommScope 1553533-1, CommScope 1553533-2, CommScope 1553533-3, CommScope 1553657-1, CommScope 1553657-2, 32Circuits 1Row 1RU, 32Circuits 2Rows 1RU, 32Circuits 2Rows 1.5RU and 60 more. Tool Chest in Symbol view.

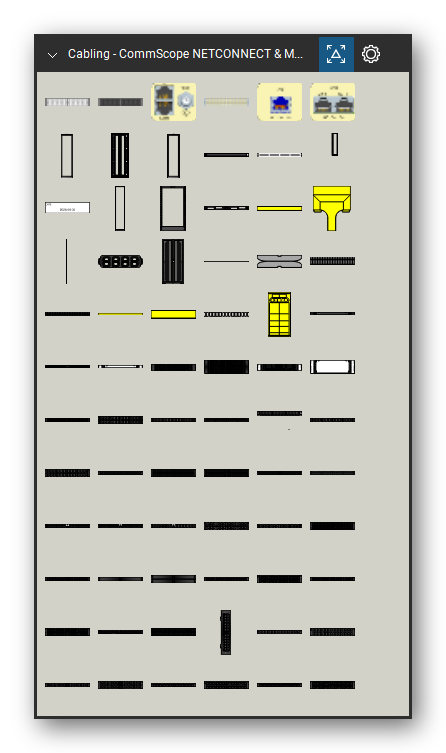

  • Patch Panels, Fiber & Outlets tool set for Bluebeam Revu, CommScope NETCONNECT & MPO set (tools 1-72 of 245) - 72 tools: CommScope 0-0406641-1, CommScope 0-0406641-2, CommScope 0-1711336-1, CommScope 0-1711686-1, CommScope 0-1711796-1, CommScope 0-1711801-1, Rack, SC 42U 8X10 SVF DVR WS, Cabinet, 360G2-1U-MOD-FX SHELF and 62 more. Tool Chest in Symbol view.

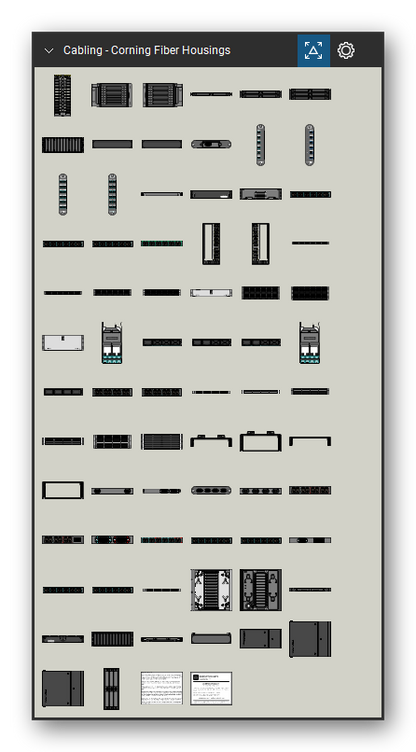

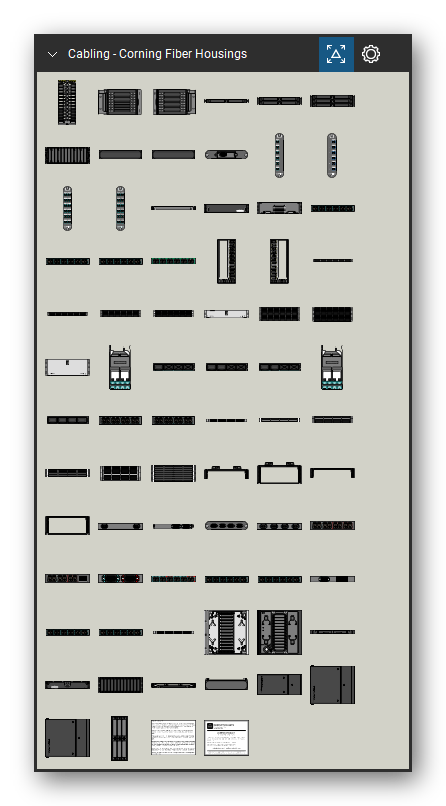

  • Patch Panels, Fiber & Outlets tool set for Bluebeam Revu, Corning Fiber Housings set - 74 views of 73 devices, front and top: CCF-BAY-7, CCF-CML-96EDGE, CCF-CMR-96EDGE, CCH-01U, CCH-02U, CCH-03U, CCH-04U, CCH-CS, CCH-CF, CCH-UM1-6CD6CE1232 (MFS) and 63 more. Tool Chest in Symbol view.
  • Patch Panels, Fiber & Outlets tool set for Bluebeam Revu, Datwyler set - 29 tools: 6x 400 102 - Module PS-GG45 7A (shielded), 6x 418 060 - RJ45-Module KS-T 6A (shielded), 6x 418 061 - RJ45-Module KS-T Plus, 8x 418 070 - RJ45-Module KU-T white, 8x 418 071 - RJ45-Module KU-T black, 6x 418 054 - RJ45-Module KS-TS (shielded), 6x 418 055 - RJ45-Module KS-T 5 (shielded), 8x 418 072 - RJ45-Module KU-T 5e white, 8x 418 073 - RJ45-Module KU-T 5e black and more. Tool Chest in Symbol view.

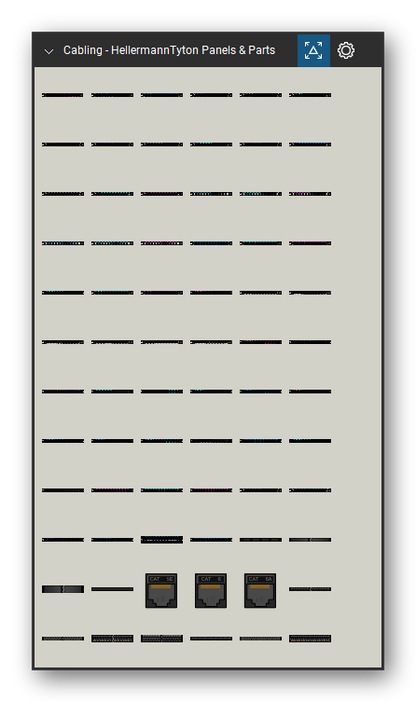

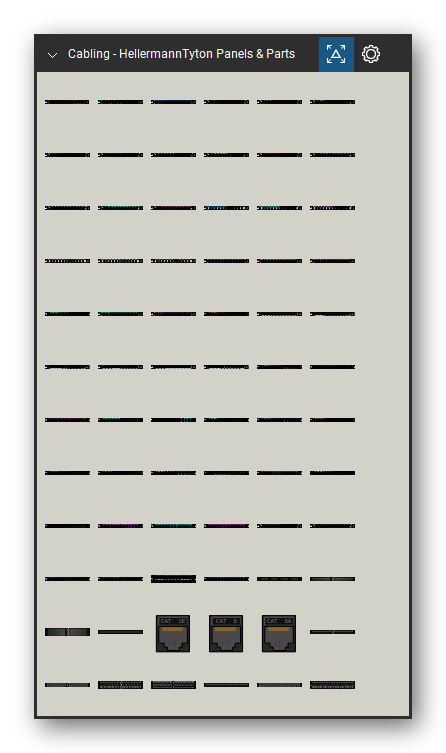

  • Patch Panels, Fiber & Outlets tool set for Bluebeam Revu, HellermannTyton Panels & Parts set (tools 1-72 of 148) - 72 tools: HellermannTyton 415402, HellermannTyton 415403, 41527500ZY - OV-SV1U G24LCQ BL4 KP 96FPOS2, 41521000ZY - OV-SO1U G 6LCD BL4 KP 12FPOS2, 41521100ZY - OV-SO1U G 6LCD BG4 KP 12FPOM2, 41521200ZY_ OV-SO1U G 6LCD, TK4 KP , 12FPOM3, 41521300ZY - OV-SO1U G 6LCD VI4 KP 12FPOM4, 41521400ZY - OV-SO1U G12LCD BL4 KP 24FPOS2 and more. Tool Chest in Symbol view.
  • Patch Panels, Fiber & Outlets tool set for Bluebeam Revu, Leviton AV & Network Modules set (tools 1-72 of 100) - 72 views of 69 devices, front, side and top: 47600-12B, 47605-14E, 47605-21E, 47605-28W, 47605-42N, 47605-M28, 47612-1SB, 47612-28B, 47612-42B, 47612-6SB and 59 more. Tool Chest in Symbol view.
  • Patch Panels, Fiber & Outlets tool set for Bluebeam Revu, Leviton Jacks & Wallplates set (tools 1-72 of 151) - 72 tools: 5ESJK-Rx5, 5ESJK-Sx5, 5EUJK-Rx5, 5EUJK-Sx5, 61SJK-Rx6, 61SJK-Sx6, 61UJK-Rx6, 61UJK-Sx6, 6ASJK-Rx6, 6ASJK-Sx6 and 62 more. Tool Chest in Symbol view.

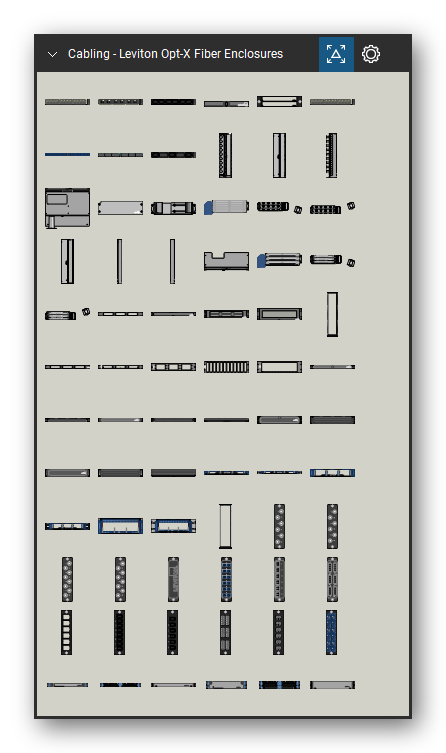

  • Patch Panels, Fiber & Outlets tool set for Bluebeam Revu, Leviton Opt-X Fiber Enclosures set (tools 1-72 of 102) - 72 views of 67 devices, front, rear, side and top: 5FUHD-2xL, 5FUHD-6xC, 5FUHD-6xx, HDX Cassettes and Adapter Plates - 5FUHD-BLK, HDXAD-ACC, x1LM1-xxN, x1SM1-xxN, x2LMx-BxN, x2MMx-BxN, F3168-22F and 57 more. Tool Chest in Symbol view.

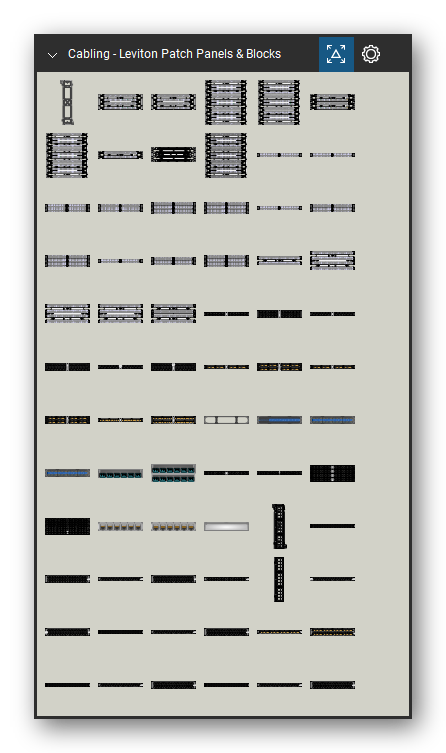

  • Patch Panels, Fiber & Outlets tool set for Bluebeam Revu, Leviton Patch Panels & Blocks set (tools 1-72 of 142) - 72 tools: 40089-00B, 41AB2-1F4, 41AB2-1F5, 41AB2-3F4, 41AB2-3F5, 41AB6-1F4, 41AB6-3F4, 41AW1-050, 41AW2-100, 41AW2-300 and 62 more. Tool Chest in Symbol view.

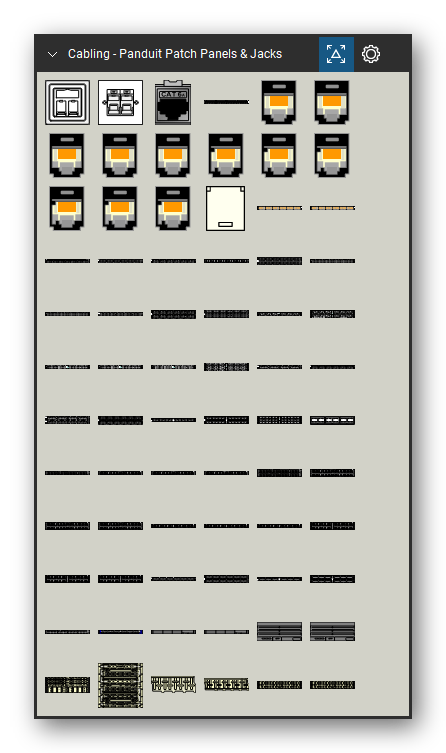

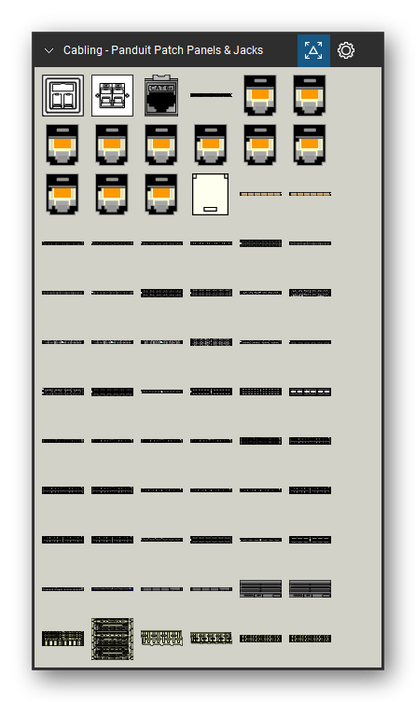

  • Patch Panels, Fiber & Outlets tool set for Bluebeam Revu, Panduit Patch Panels & Jacks set (tools 1-72 of 116) - 72 tools: KFPL80S2SWH, KFPL86S2SWH, KJS6X88TC, KP24WSBL, CJ5E88TBL, CJ5E88TGBL, CJ688TGBL, CJ688TPBL, CJ6X88TGBL, CJK5E88TGBL and 62 more. Tool Chest in Symbol view.

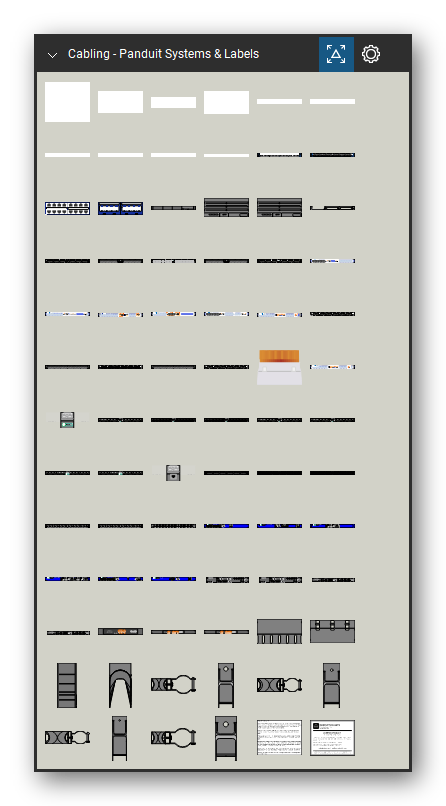

  • Patch Panels, Fiber & Outlets tool set for Bluebeam Revu, Panduit Systems & Labels set - 76 views of 74 devices, front and top: C050X044YJJ, C061X030FJJ, C125X030FJJ, C200X100FJJ, C252X030FJJ, C261X030FJJ, C379X030FJJ, C390X030FJJ, UILJ4, UILJ6 and 64 more. Tool Chest in Symbol view.

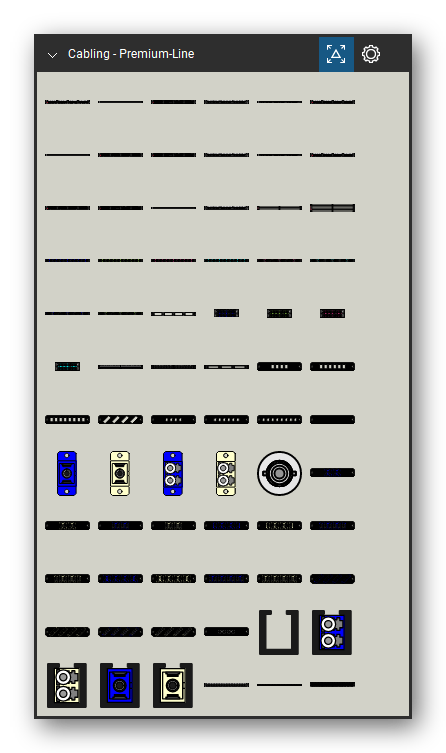

  • Patch Panels, Fiber & Outlets tool set for Bluebeam Revu, Premium-Line set (tools 1-72 of 105) - 72 tools: 1U Cat.6A Unshielded, 0.5U Cat.6A Unshielded, 1U Cat.6A 48port Unshielded, 1U Cat.6A Shielded, 0.5U Cat.6A Shielded, 1U Cat.6 Unshielded, 0.5U Cat.6 Unshielded, 1U Cat.6 W/Labeling Unshielded, 1U Cat.6 48port Unshielded, 1U Cat.6 Shielded and 62 more. Tool Chest in Symbol view.

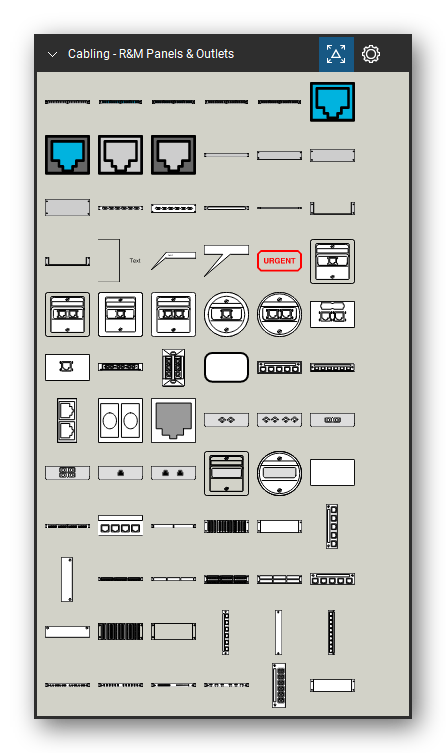

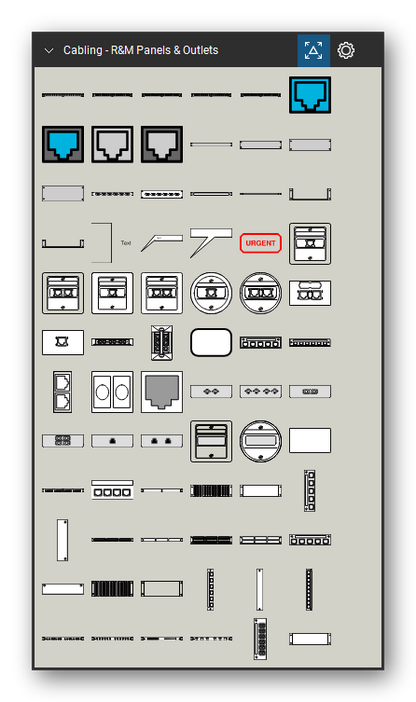

  • Patch Panels, Fiber & Outlets tool set for Bluebeam Revu, R&M Panels & Outlets set (tools 1-72 of 198) - 72 tools: 1U Panel 16xRJ45,empty, 1U Panel 16xRJ45,Cat.6/u, 1U Panel 16xTJ45,Cat.6/s, 1U Panel 16xRJ45,Cat.5/u, 1U Panel 16xRJ45,Cat.5/s, Module Cat.6/u, Module Cat.6/s, Module Cat.5/u, Module Cat.5/s, Blind Plate 1U and 62 more. Tool Chest in Symbol view.

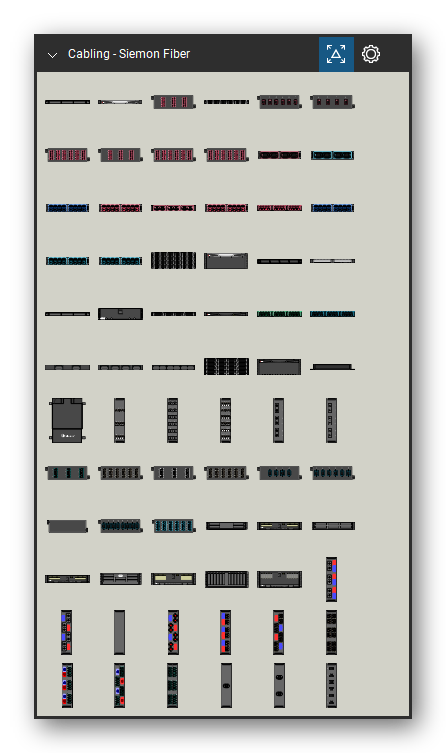

  • Patch Panels, Fiber & Outlets tool set for Bluebeam Revu, Siemon Fiber set (tools 1-72 of 86) - 72 views of 70 devices, front and top: FCP3-DWR, LS8-1U-01 - Closed, PPM-12-LCEV-01(X) (MFS), LS8-1U-01 - Open, PPM-F-MP72-01-E (MFS), PPM-F-MP48-01-E (MFS), PPM-F-LCE24-01 (MFS), PPM-F-LCE12-01 (MFS), PPM-24-LCEV-01(X) (MFS), PEM(X)24-LC(X)E-(XX)A (MFS) and 60 more. Tool Chest in Symbol view.

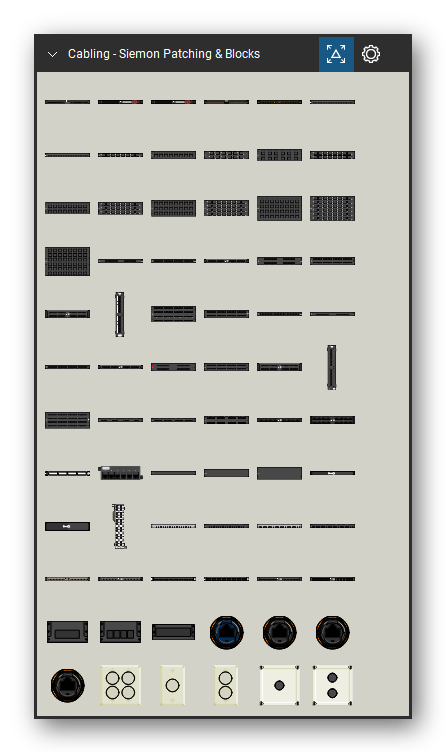

  • Patch Panels, Fiber & Outlets tool set for Bluebeam Revu, Siemon Patching & Blocks set (tools 1-72 of 138) - 72 tools: M-SPPA-K24E(XX), M-DCP, M-MCP, M-SFE-LC48-01, M-SPP-K24E, Cat 5e Inline Coupler Panel, Cat 6 Inline Coupler Panel, CT-PNL-16, CT-PNL-16-ID, CT-PNL-24 and 62 more. Tool Chest in Symbol view.

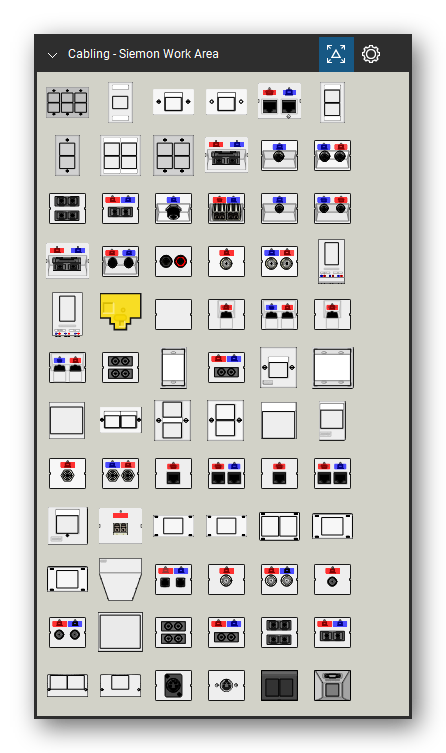

  • Patch Panels, Fiber & Outlets tool set for Bluebeam Revu, Siemon Work Area set (tools 1-72 of 164) - 72 tools: CT12-FP-SS, CT2-FP-(XX), CT2-HFP-(XX), CT2-HFPA-(XX), CT-3F5-(XX)-(XX)-(XX), CT4-FP-(XX), CT4-FP-SS, CT8-FP-(XX), CT8-FP-SS, CT-A-AC-AC-02 and 62 more. Tool Chest in Symbol view.
  • Patch Panels, Fiber & Outlets tool set for Bluebeam Revu, SYSTIMAX Copper & Outlets set - 30 tools: CAT 3 50 Port Panel, MIR-RJ45 INDUSTRIAL, IR12SP, IR24SP, IR22SP, MGS-600-XXX, MGS-400-XXX, MPS100E-XXX, M1BH-H-XXX, M1AH-XXX and 20 more. Tool Chest in Symbol view.

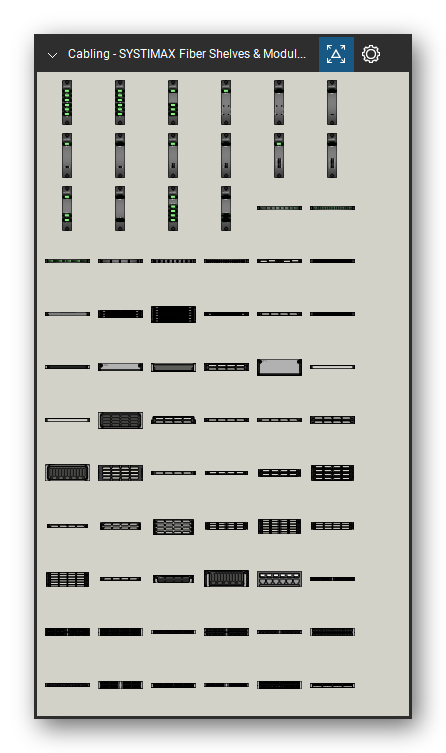

  • Patch Panels, Fiber & Outlets tool set for Bluebeam Revu, SYSTIMAX Fiber Shelves & Modules set (tools 1-72 of 293) - 72 tools: CommScope BOS-WD-00202-2, CommScope BOS-WD-00201-2, CommScope BOS-WD-00303-1, CommScope BOS-SP-11032, CommScope BOS-SP-12032, CommScope BOS-SP-12002, CommScope BOS-SP-11004, CommScope BOS-SP-12004, CommScope BOS-SP-11008, CommScope BOS-SP-12008 and 62 more. Tool Chest in Symbol view.

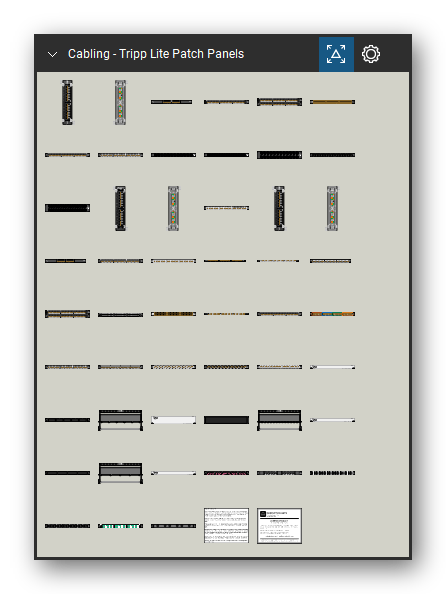

  • Patch Panels, Fiber & Outlets tool set for Bluebeam Revu, Tripp Lite Patch Panels set - 51 views of 40 devices, front, rear and top: N050-P12, N052-012, N052-024, N052-048, N052-048-1U, N052-P24, N054-024, N062-012-KJ, N062-016-KJ, N062-024-KJ and 30 more. Tool Chest in Symbol view.

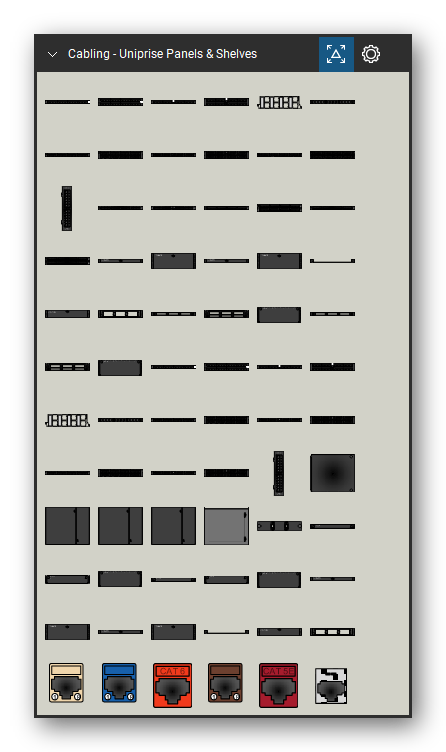

  • Patch Panels, Fiber & Outlets tool set for Bluebeam Revu, Uniprise Panels & Shelves set (tools 1-72 of 84) - 72 tools: CommScope HFTP-HD6B-1U-24, CommScope HFTP-HD6B-2U-48, CommScope HFTPA-HD6B-1U-24, CommScope HFTPA-HD6B-2U-48, CommScope Bezel Kit, CommScope M3000-24, CommScope UNP-XX-DM-1U-24, CommScope UNP-XX-DM-2U-48, CommScope UNPA-U-XXX-1U-24, CommScope UNPA-U-XXX-2U-48.12 and 62 more. Tool Chest in Symbol view.

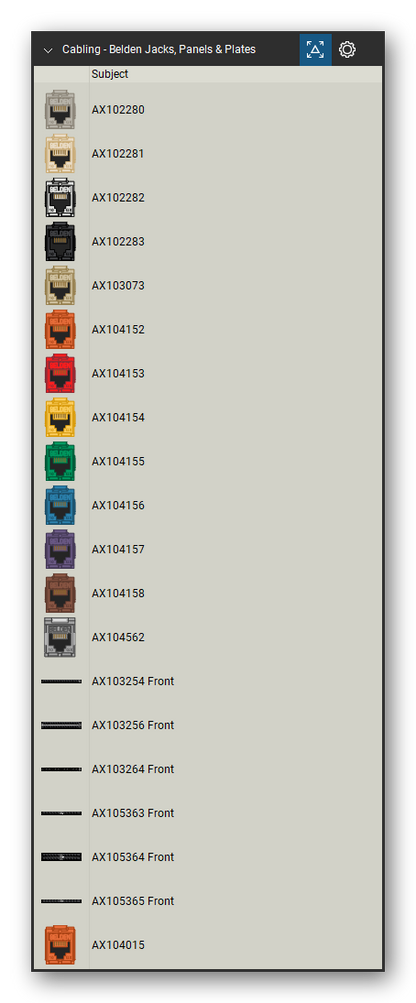

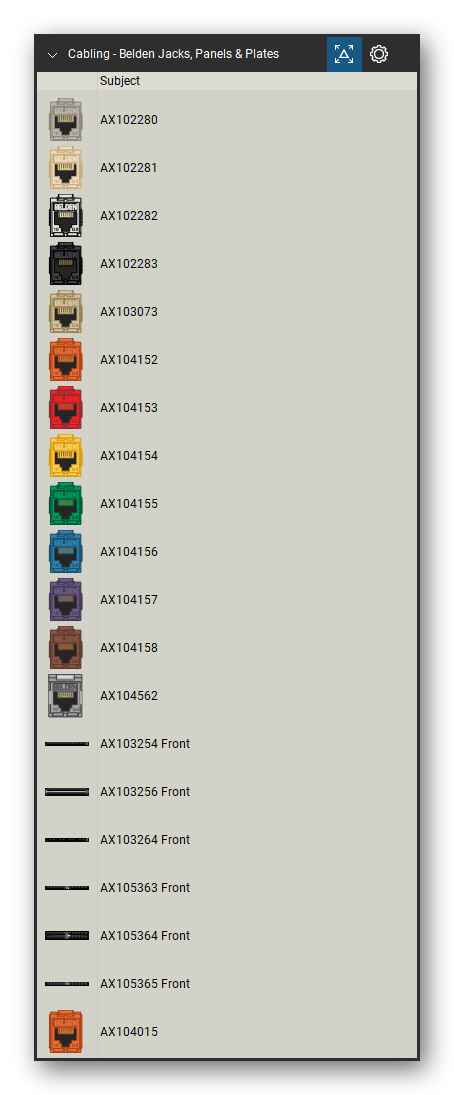

  • Patch Panels, Fiber & Outlets tool set for Bluebeam Revu, Belden Jacks, Panels & Plates set (tools 1-20 of 106) - 20 tools: AX102280, AX102281, AX102282, AX102283, AX103073, AX104152, AX104153, AX104154, AX104155, AX104156 and 10 more. Tool Chest in Detail view, one row per tool with its name.

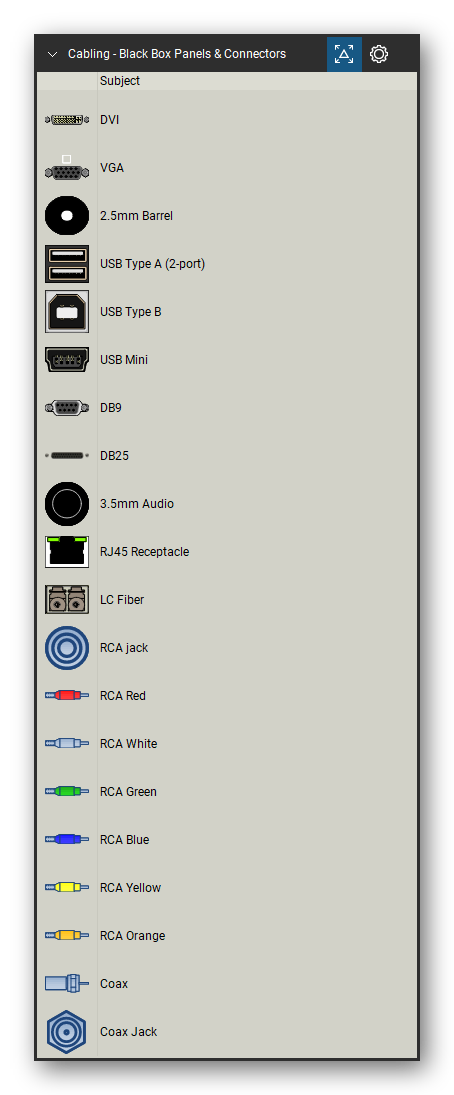

  • Patch Panels, Fiber & Outlets tool set for Bluebeam Revu, Black Box Panels & Connectors set (tools 1-20 of 138) - 20 tools: DVI, VGA, 2.5mm Barrel, USB Type A (2-port), USB Type B, USB Mini, DB9, DB25, 3.5mm Audio, RJ45 Receptacle and 10 more. Tool Chest in Detail view, one row per tool with its name.

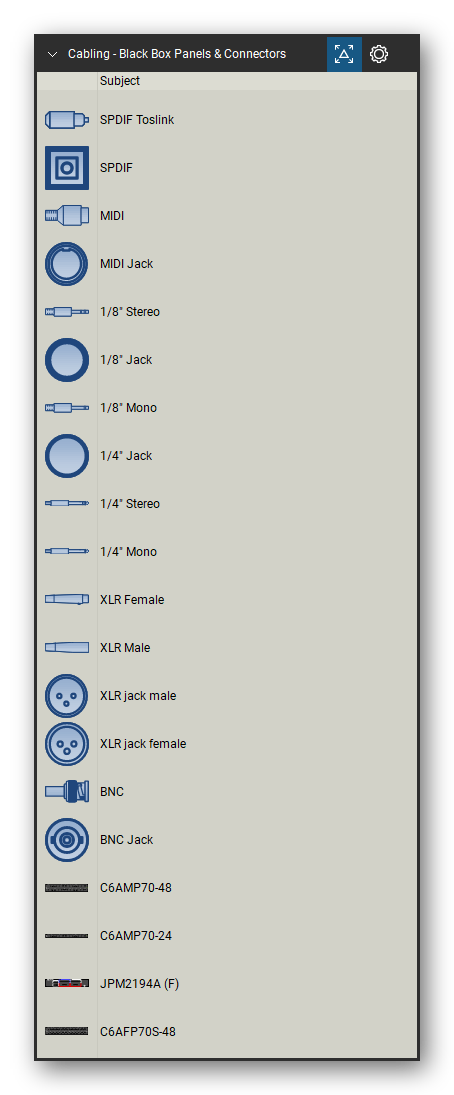

  • Patch Panels, Fiber & Outlets tool set for Bluebeam Revu, Black Box Panels & Connectors set (tools 21-40 of 138) - 20 tools: SPDIF Toslink, SPDIF, MIDI, MIDI Jack, 1/8" Stereo, 1/8" Jack, 1/8" Mono, 1/4" Jack, 1/4" Stereo, 1/4" Mono and 10 more. Tool Chest in Detail view, one row per tool with its name.

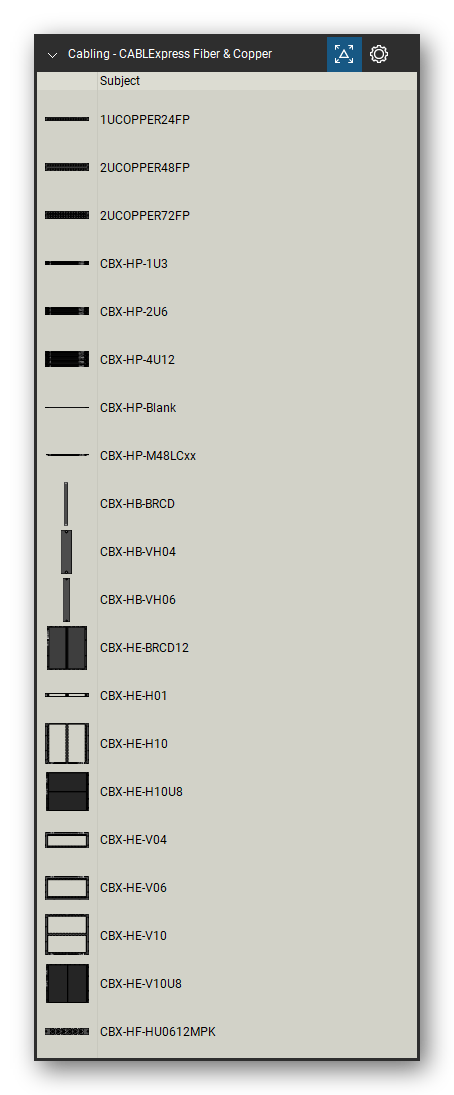

  • Patch Panels, Fiber & Outlets tool set for Bluebeam Revu, CABLExpress Fiber & Copper set (tools 1-20 of 53) - 20 tools: 1UCOPPER24FP, 2UCOPPER48FP, 2UCOPPER72FP, CBX-HP-1U3, CBX-HP-2U6, CBX-HP-4U12, CBX-HP-Blank, CBX-HP-M48LCxx, CBX-HB-BRCD, CBX-HB-VH04 and 10 more. Tool Chest in Detail view, one row per tool with its name.

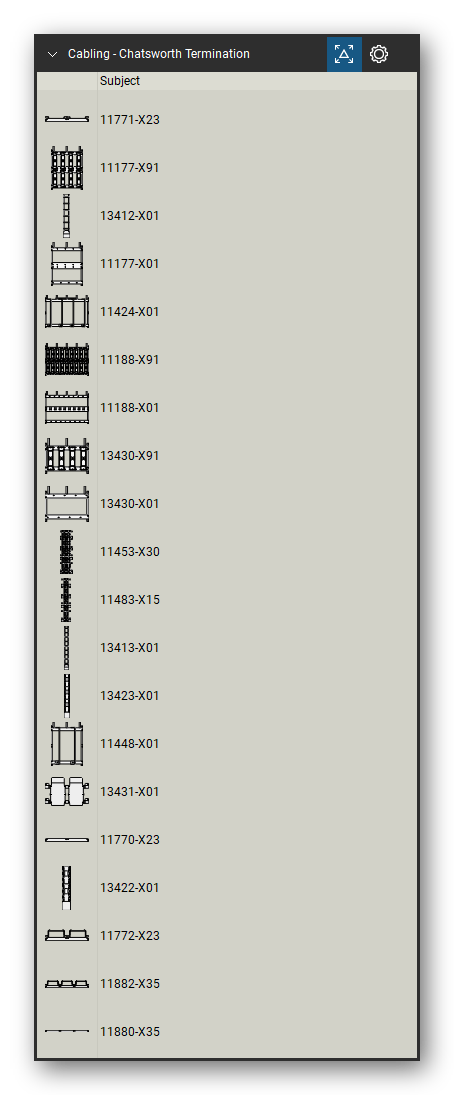

  • Patch Panels, Fiber & Outlets tool set for Bluebeam Revu, Chatsworth Termination set (tools 1-20 of 37) - 20 tools: 11771-X23, 11177-X91, 13412-X01, 11177-X01, 11424-X01, 11188-X91, 11188-X01, 13430-X91, 13430-X01, 11453-X30 and 10 more. Tool Chest in Detail view, one row per tool with its name.

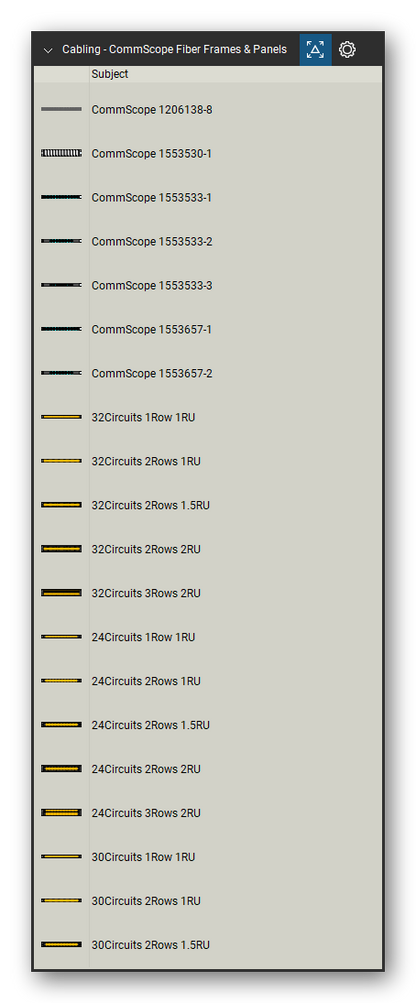

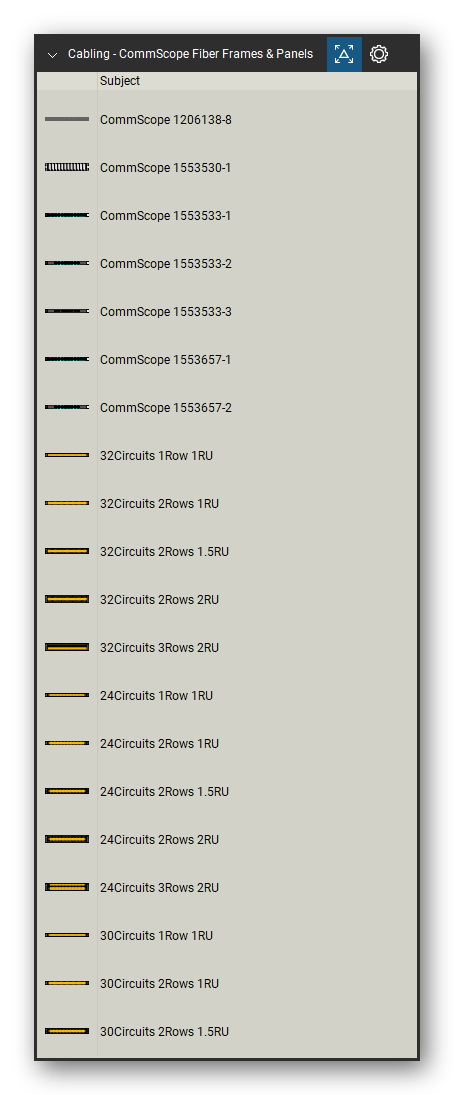

  • Patch Panels, Fiber & Outlets tool set for Bluebeam Revu, CommScope Fiber Frames & Panels set (tools 1-20 of 242) - 20 tools: CommScope 1206138-8, CommScope 1553530-1, CommScope 1553533-1, CommScope 1553533-2, CommScope 1553533-3, CommScope 1553657-1, CommScope 1553657-2, 32Circuits 1Row 1RU, 32Circuits 2Rows 1RU, 32Circuits 2Rows 1.5RU and 10 more. Tool Chest in Detail view, one row per tool with its name.

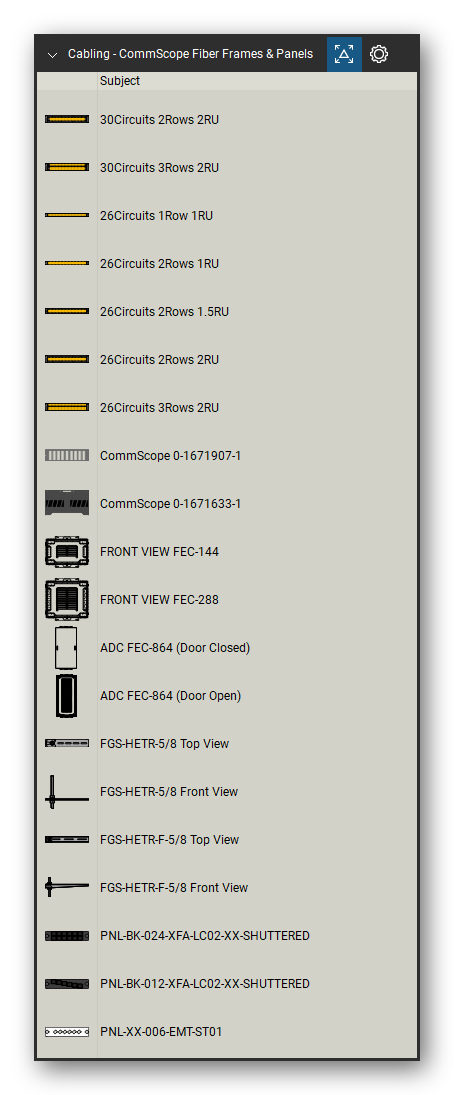

  • Patch Panels, Fiber & Outlets tool set for Bluebeam Revu, CommScope Fiber Frames & Panels set (tools 21-40 of 242) - 20 views of 18 devices, front and top: 30Circuits 2Rows 2RU, 30Circuits 3Rows 2RU, 26Circuits 1Row 1RU, 26Circuits 2Rows 1RU, 26Circuits 2Rows 1.5RU, 26Circuits 2Rows 2RU, 26Circuits 3Rows 2RU, CommScope 0-1671907-1, CommScope 0-1671633-1, FRONT VIEW FEC-144 and 8 more. Tool Chest in Detail view, one row per tool with its name.

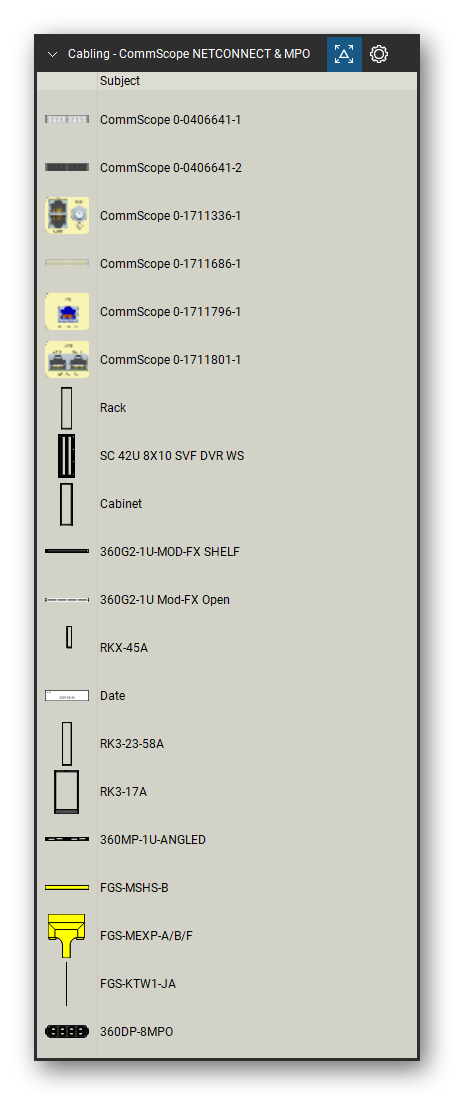

  • Patch Panels, Fiber & Outlets tool set for Bluebeam Revu, CommScope NETCONNECT & MPO set (tools 1-20 of 245) - 20 tools: CommScope 0-0406641-1, CommScope 0-0406641-2, CommScope 0-1711336-1, CommScope 0-1711686-1, CommScope 0-1711796-1, CommScope 0-1711801-1, Rack, SC 42U 8X10 SVF DVR WS, Cabinet, 360G2-1U-MOD-FX SHELF and 10 more. Tool Chest in Detail view, one row per tool with its name.

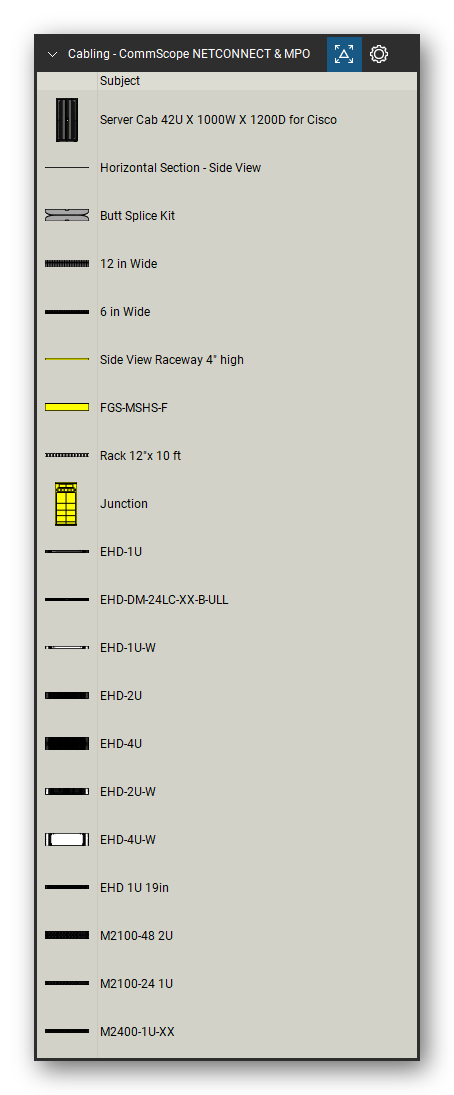

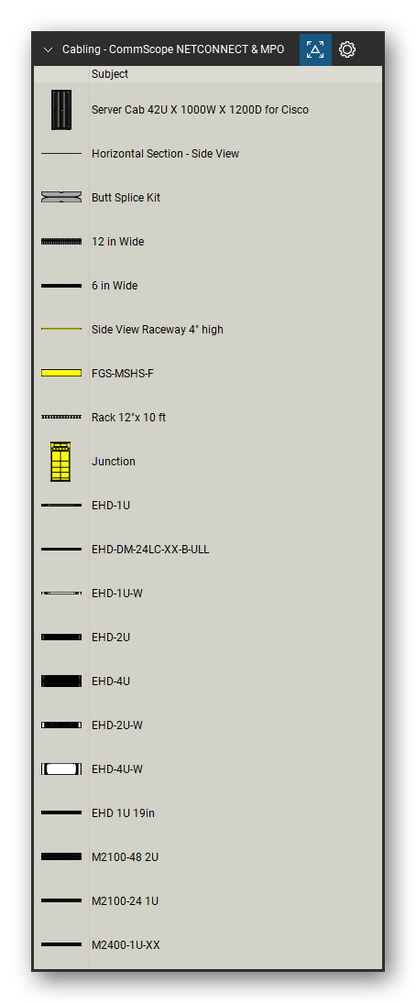

  • Patch Panels, Fiber & Outlets tool set for Bluebeam Revu, CommScope NETCONNECT & MPO set (tools 21-40 of 245) - 20 tools: Server Cab 42U X 1000W X 1200D for Cisco, Horizontal Section, Butt Splice Kit, 12 in Wide, 6 in Wide, Side View Raceway 4" high, FGS-MSHS-F, Rack 12"x 10 ft, Junction, EHD-1U and 10 more. Tool Chest in Detail view, one row per tool with its name.

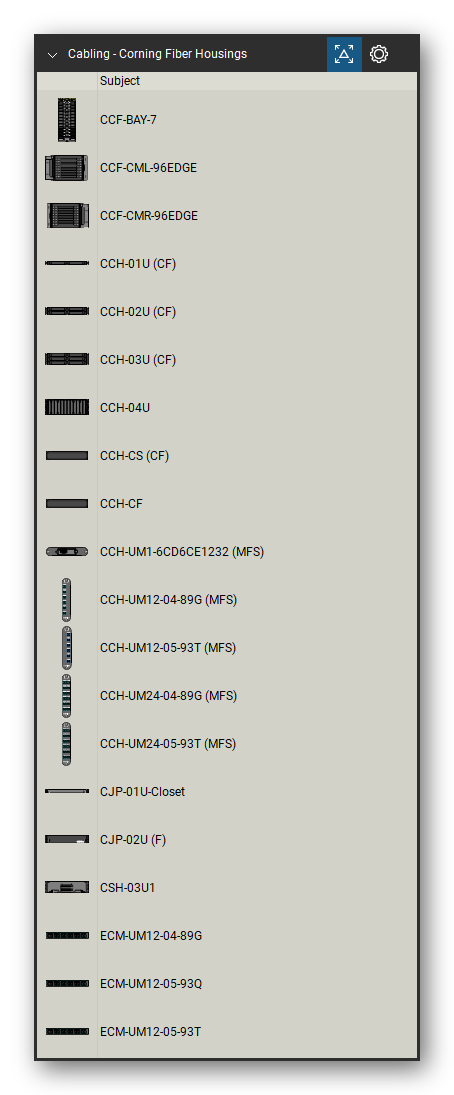

  • Patch Panels, Fiber & Outlets tool set for Bluebeam Revu, Corning Fiber Housings set (tools 1-20 of 74) - 20 tools: CCF-BAY-7, CCF-CML-96EDGE, CCF-CMR-96EDGE, CCH-01U, CCH-02U, CCH-03U, CCH-04U, CCH-CS, CCH-CF, CCH-UM1-6CD6CE1232 (MFS) and 10 more. Tool Chest in Detail view, one row per tool with its name.
  • Patch Panels, Fiber & Outlets tool set for Bluebeam Revu, Datwyler set (tools 1-20 of 29) - 20 tools: 6x 400 102 - Module PS-GG45 7A (shielded), 6x 418 060 - RJ45-Module KS-T 6A (shielded), 6x 418 061 - RJ45-Module KS-T Plus, 8x 418 070 - RJ45-Module KU-T white, 8x 418 071 - RJ45-Module KU-T black, 6x 418 054 - RJ45-Module KS-TS (shielded), 6x 418 055 - RJ45-Module KS-T 5 (shielded), 8x 418 072 - RJ45-Module KU-T 5e white and more. Tool Chest in Detail view, one row per tool with its name.

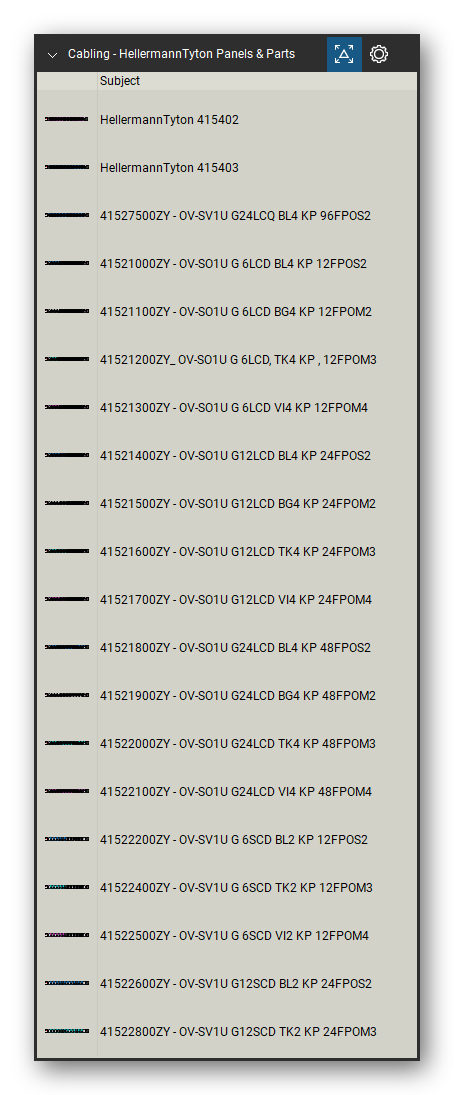

  • Patch Panels, Fiber & Outlets tool set for Bluebeam Revu, HellermannTyton Panels & Parts set (tools 1-20 of 148) - 20 tools: HellermannTyton 415402, HellermannTyton 415403, 41527500ZY - OV-SV1U G24LCQ BL4 KP 96FPOS2, 41521000ZY - OV-SO1U G 6LCD BL4 KP 12FPOS2, 41521100ZY - OV-SO1U G 6LCD BG4 KP 12FPOM2, 41521200ZY_ OV-SO1U G 6LCD, TK4 KP , 12FPOM3, 41521300ZY - OV-SO1U G 6LCD VI4 KP 12FPOM4, 41521400ZY - OV-SO1U G12LCD BL4 KP 24FPOS2 and more. Tool Chest in Detail view, one row per tool with its name.

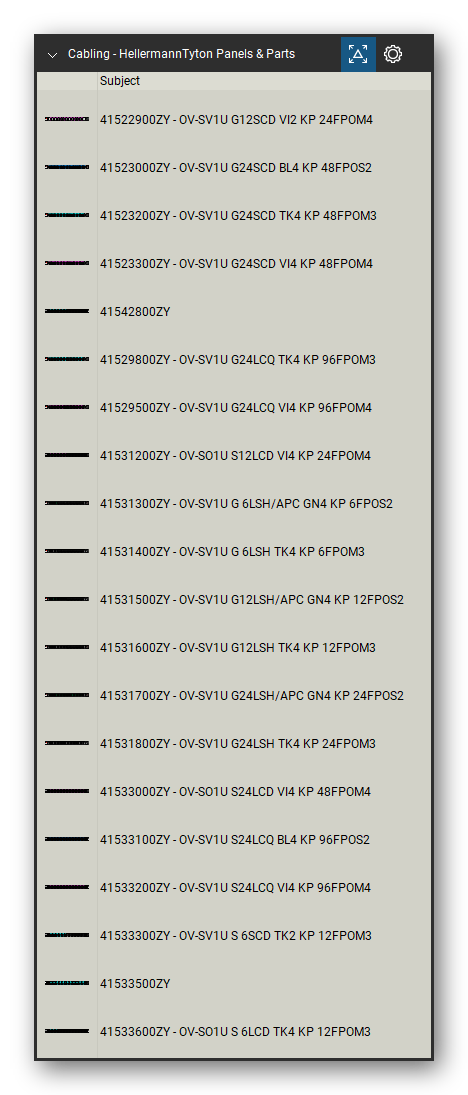

  • Patch Panels, Fiber & Outlets tool set for Bluebeam Revu, HellermannTyton Panels & Parts set (tools 21-40 of 148) - 20 tools: 41522900ZY - OV-SV1U G12SCD VI2 KP 24FPOM4, 41523000ZY - OV-SV1U G24SCD BL4 KP 48FPOS2, 41523200ZY - OV-SV1U G24SCD TK4 KP 48FPOM3, 41523300ZY - OV-SV1U G24SCD VI4 KP 48FPOM4, 41542800ZY, 41529800ZY - OV-SV1U G24LCQ TK4 KP 96FPOM3, 41529500ZY - OV-SV1U G24LCQ VI4 KP 96FPOM4 and more. Tool Chest in Detail view, one row per tool with its name.

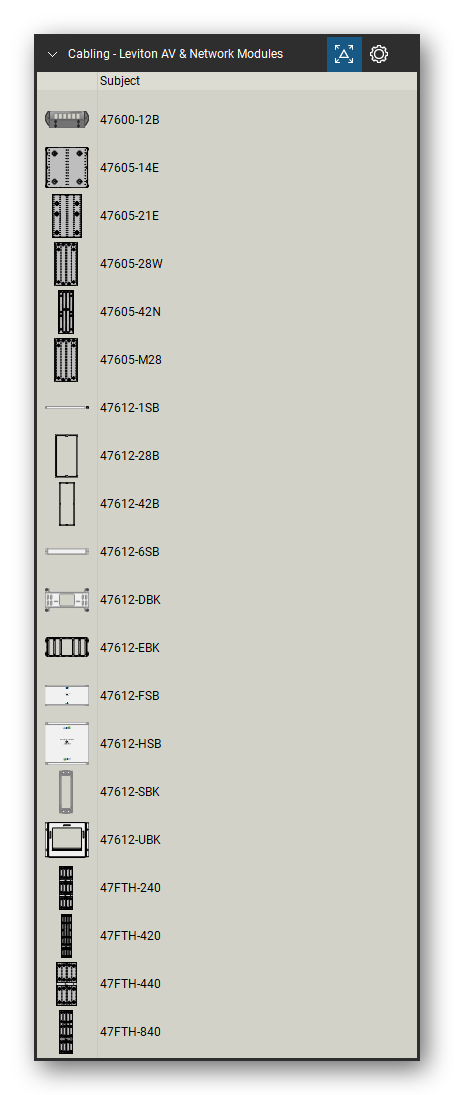

  • Patch Panels, Fiber & Outlets tool set for Bluebeam Revu, Leviton AV & Network Modules set (tools 1-20 of 100) - 20 tools: 47600-12B, 47605-14E, 47605-21E, 47605-28W, 47605-42N, 47605-M28, 47612-1SB, 47612-28B, 47612-42B, 47612-6SB and 10 more. Tool Chest in Detail view, one row per tool with its name.

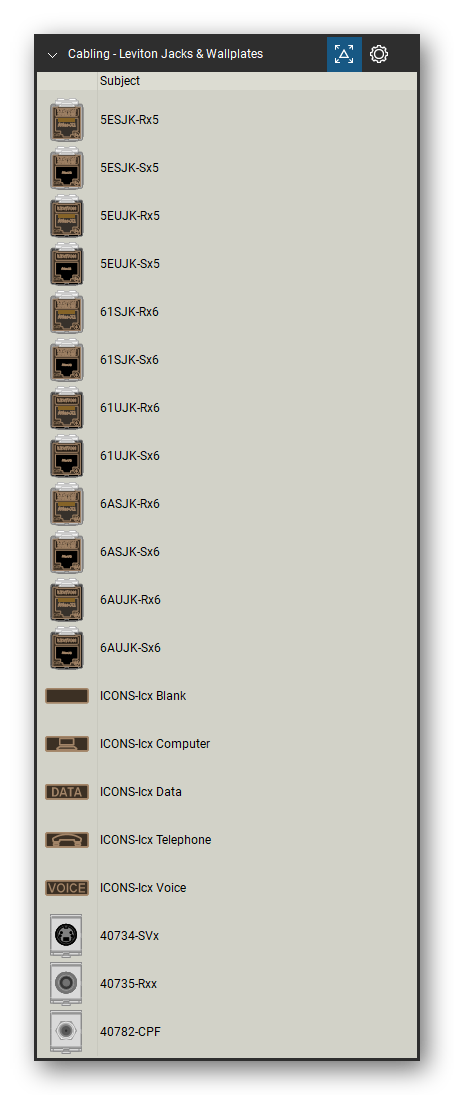

  • Patch Panels, Fiber & Outlets tool set for Bluebeam Revu, Leviton Jacks & Wallplates set (tools 1-20 of 151) - 20 tools: 5ESJK-Rx5, 5ESJK-Sx5, 5EUJK-Rx5, 5EUJK-Sx5, 61SJK-Rx6, 61SJK-Sx6, 61UJK-Rx6, 61UJK-Sx6, 6ASJK-Rx6, 6ASJK-Sx6 and 10 more. Tool Chest in Detail view, one row per tool with its name.

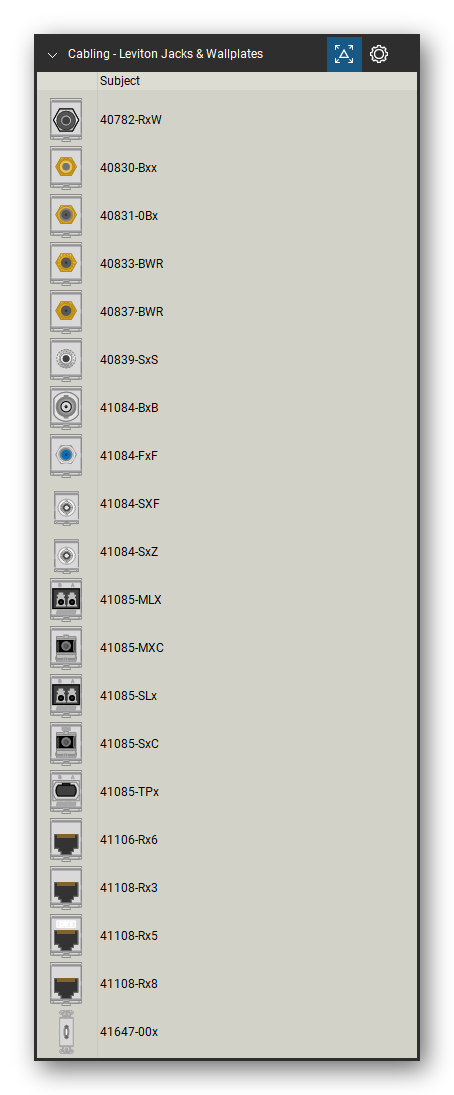

  • Patch Panels, Fiber & Outlets tool set for Bluebeam Revu, Leviton Jacks & Wallplates set (tools 21-40 of 151) - 20 tools: 40782-RxW, 40830-Bxx, 40831-0Bx, 40833-BWR, 40837-BWR, 40839-SxS, 41084-BxB, 41084-FxF, 41084-SXF, 41084-SxZ and 10 more. Tool Chest in Detail view, one row per tool with its name.

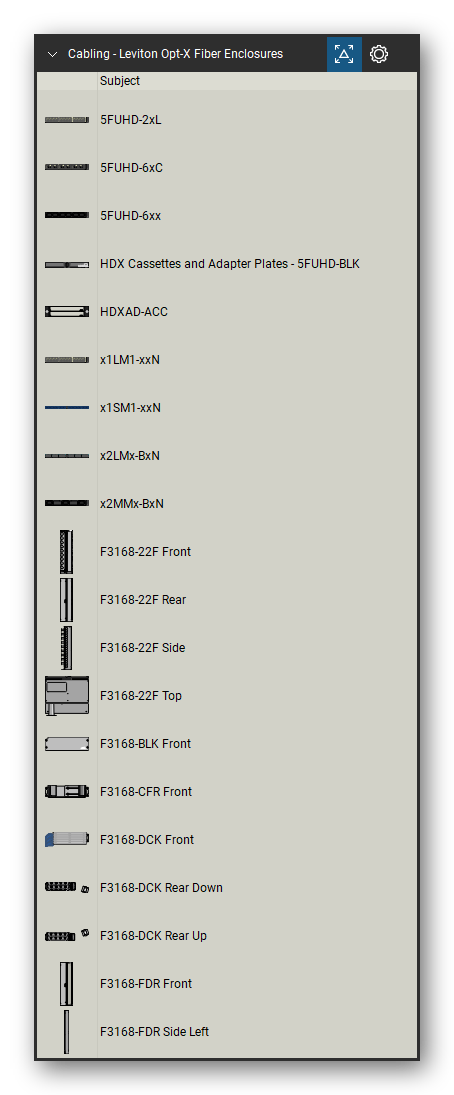

  • Patch Panels, Fiber & Outlets tool set for Bluebeam Revu, Leviton Opt-X Fiber Enclosures set (tools 1-20 of 102) - 20 views of 17 devices, front, rear, side and top: 5FUHD-2xL, 5FUHD-6xC, 5FUHD-6xx, HDX Cassettes and Adapter Plates - 5FUHD-BLK, HDXAD-ACC, x1LM1-xxN, x1SM1-xxN, x2LMx-BxN, x2MMx-BxN, F3168-22F and 7 more. Tool Chest in Detail view, one row per tool with its name.

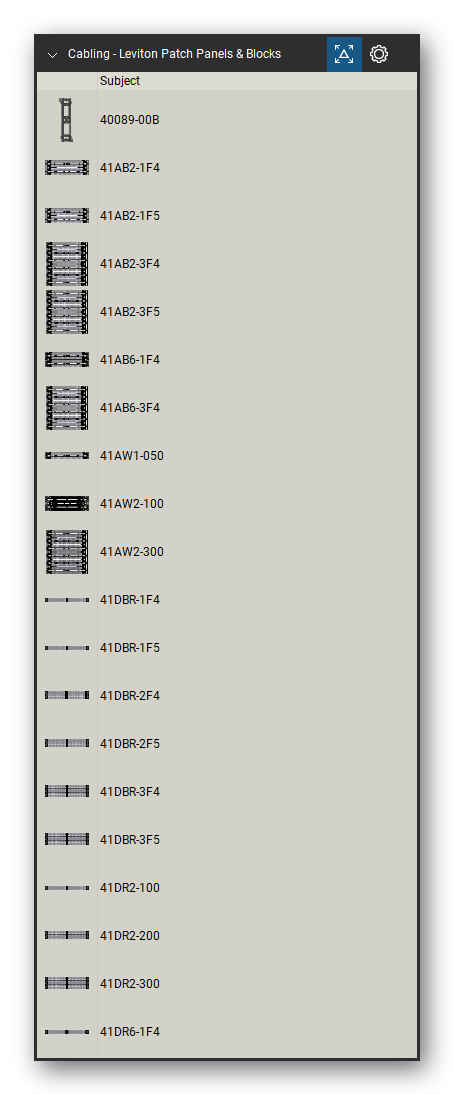

  • Patch Panels, Fiber & Outlets tool set for Bluebeam Revu, Leviton Patch Panels & Blocks set (tools 1-20 of 142) - 20 tools: 40089-00B, 41AB2-1F4, 41AB2-1F5, 41AB2-3F4, 41AB2-3F5, 41AB6-1F4, 41AB6-3F4, 41AW1-050, 41AW2-100, 41AW2-300 and 10 more. Tool Chest in Detail view, one row per tool with its name.

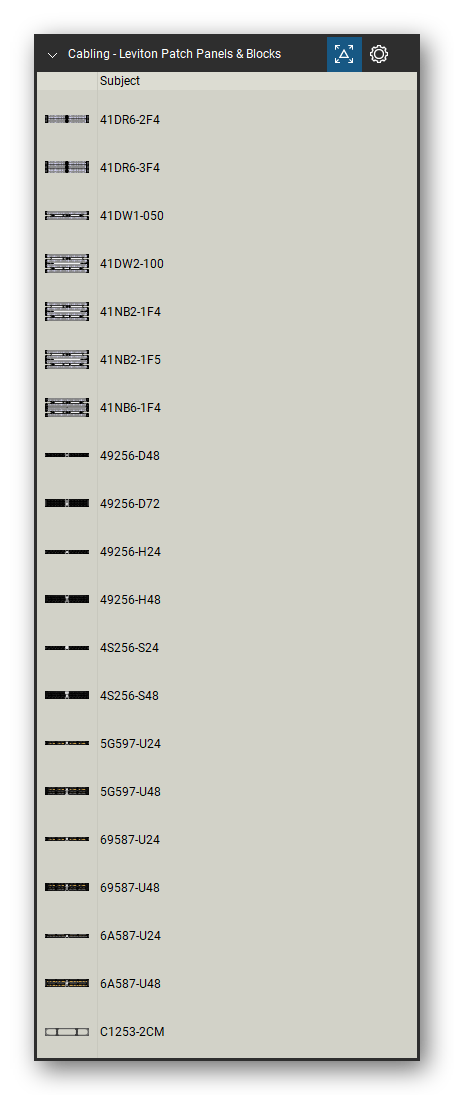

  • Patch Panels, Fiber & Outlets tool set for Bluebeam Revu, Leviton Patch Panels & Blocks set (tools 21-40 of 142) - 20 tools: 41DR6-2F4, 41DR6-3F4, 41DW1-050, 41DW2-100, 41NB2-1F4, 41NB2-1F5, 41NB6-1F4, 49256-D48, 49256-D72, 49256-H24 and 10 more. Tool Chest in Detail view, one row per tool with its name.

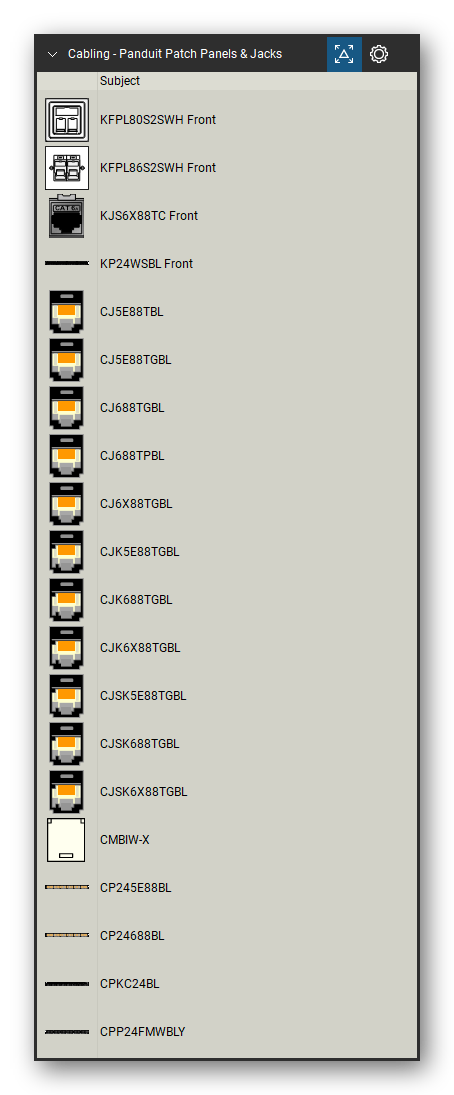

  • Patch Panels, Fiber & Outlets tool set for Bluebeam Revu, Panduit Patch Panels & Jacks set (tools 1-20 of 116) - 20 tools: KFPL80S2SWH, KFPL86S2SWH, KJS6X88TC, KP24WSBL, CJ5E88TBL, CJ5E88TGBL, CJ688TGBL, CJ688TPBL, CJ6X88TGBL, CJK5E88TGBL and 10 more. Tool Chest in Detail view, one row per tool with its name.

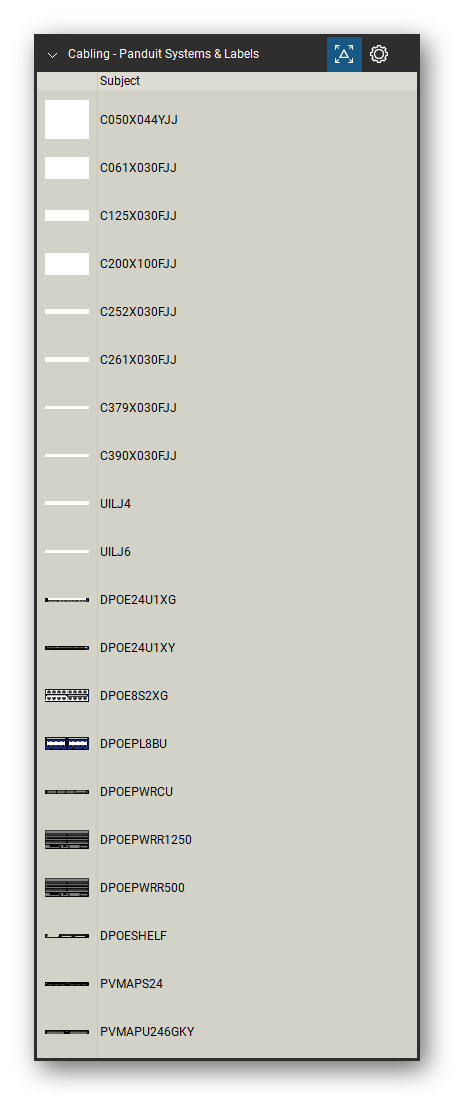

  • Patch Panels, Fiber & Outlets tool set for Bluebeam Revu, Panduit Systems & Labels set (tools 1-20 of 76) - 20 tools: C050X044YJJ, C061X030FJJ, C125X030FJJ, C200X100FJJ, C252X030FJJ, C261X030FJJ, C379X030FJJ, C390X030FJJ, UILJ4, UILJ6 and 10 more. Tool Chest in Detail view, one row per tool with its name.

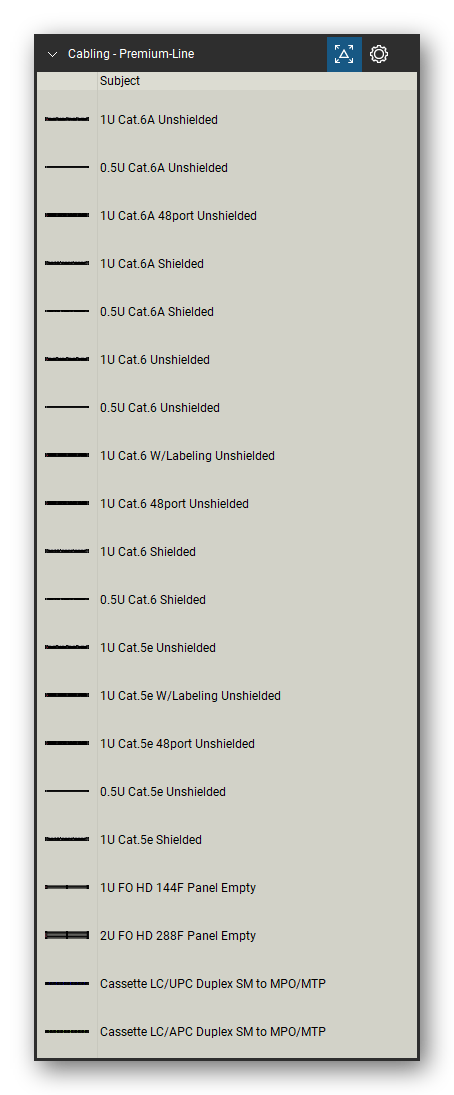

  • Patch Panels, Fiber & Outlets tool set for Bluebeam Revu, Premium-Line set (tools 1-20 of 105) - 20 tools: 1U Cat.6A Unshielded, 0.5U Cat.6A Unshielded, 1U Cat.6A 48port Unshielded, 1U Cat.6A Shielded, 0.5U Cat.6A Shielded, 1U Cat.6 Unshielded, 0.5U Cat.6 Unshielded, 1U Cat.6 W/Labeling Unshielded, 1U Cat.6 48port Unshielded, 1U Cat.6 Shielded and 10 more. Tool Chest in Detail view, one row per tool with its name.

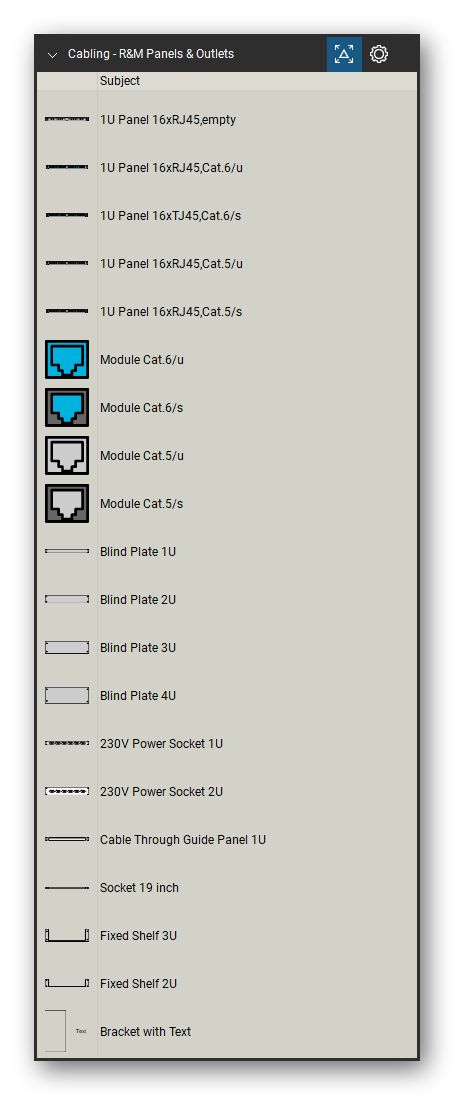

  • Patch Panels, Fiber & Outlets tool set for Bluebeam Revu, R&M Panels & Outlets set (tools 1-20 of 198) - 20 tools: 1U Panel 16xRJ45,empty, 1U Panel 16xRJ45,Cat.6/u, 1U Panel 16xTJ45,Cat.6/s, 1U Panel 16xRJ45,Cat.5/u, 1U Panel 16xRJ45,Cat.5/s, Module Cat.6/u, Module Cat.6/s, Module Cat.5/u, Module Cat.5/s, Blind Plate 1U and 10 more. Tool Chest in Detail view, one row per tool with its name.

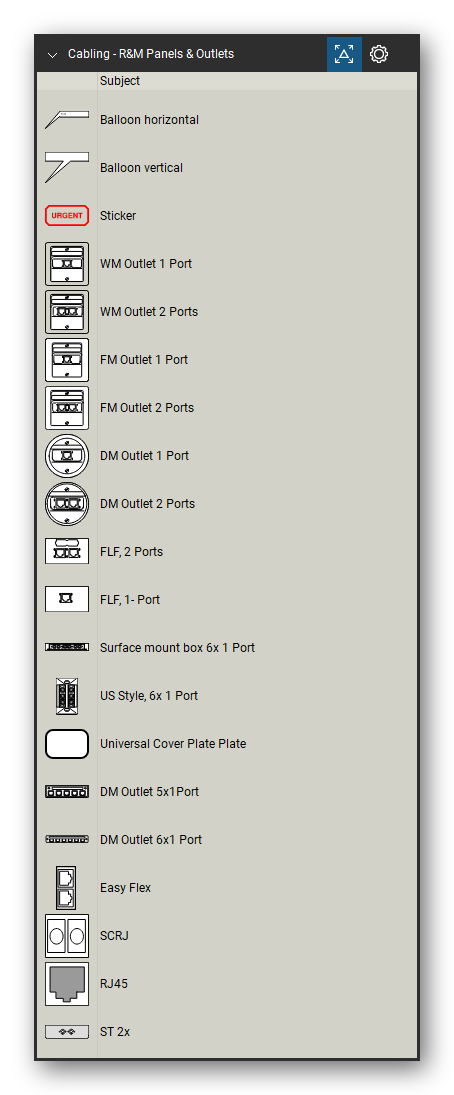

  • Patch Panels, Fiber & Outlets tool set for Bluebeam Revu, R&M Panels & Outlets set (tools 21-40 of 198) - 20 tools: Balloon horizontal, Balloon vertical, Sticker, WM Outlet 1 Port, WM Outlet 2 Ports, FM Outlet 1 Port, FM Outlet 2 Ports, DM Outlet 1 Port, DM Outlet 2 Ports, FLF, 2 Ports and 10 more. Tool Chest in Detail view, one row per tool with its name.

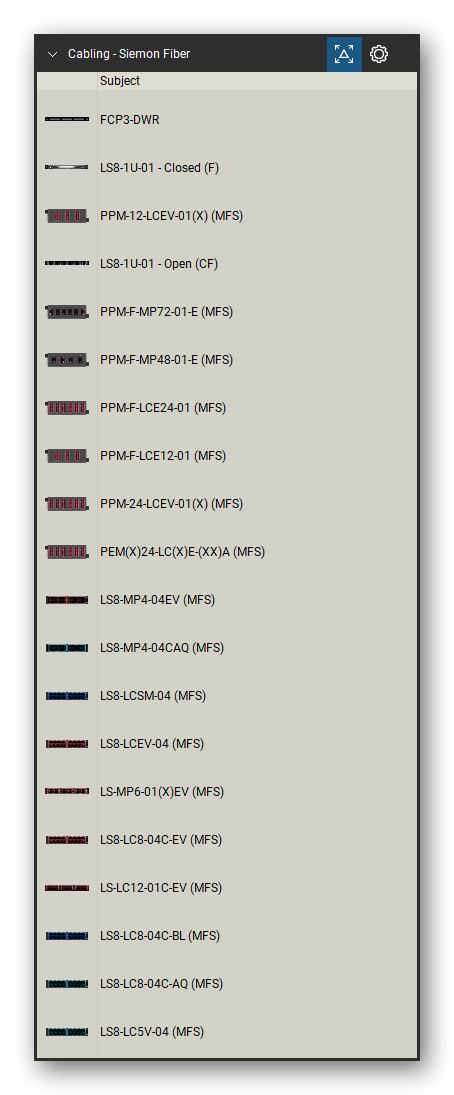

  • Patch Panels, Fiber & Outlets tool set for Bluebeam Revu, Siemon Fiber set (tools 1-20 of 86) - 20 tools: FCP3-DWR, LS8-1U-01 - Closed, PPM-12-LCEV-01(X) (MFS), LS8-1U-01 - Open, PPM-F-MP72-01-E (MFS), PPM-F-MP48-01-E (MFS), PPM-F-LCE24-01 (MFS), PPM-F-LCE12-01 (MFS), PPM-24-LCEV-01(X) (MFS), PEM(X)24-LC(X)E-(XX)A (MFS) and 10 more. Tool Chest in Detail view, one row per tool with its name.

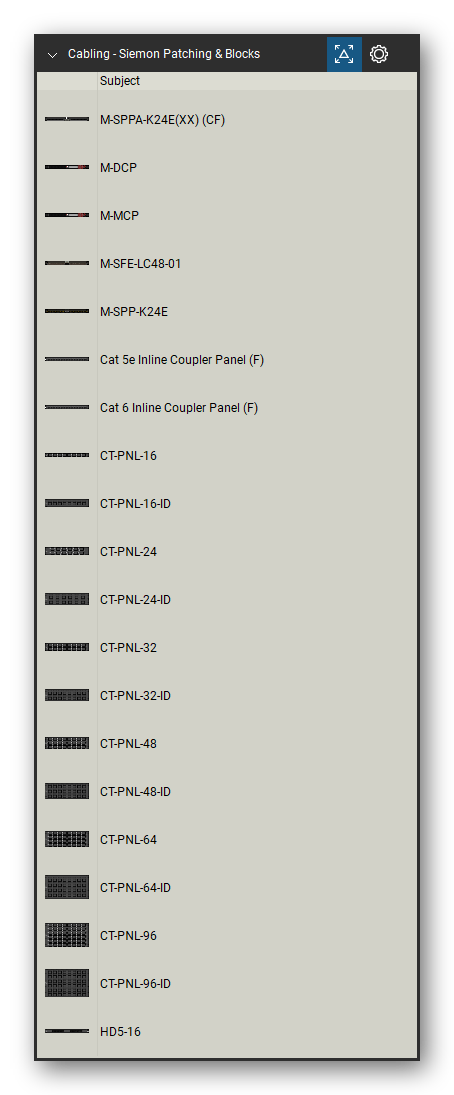

  • Patch Panels, Fiber & Outlets tool set for Bluebeam Revu, Siemon Patching & Blocks set (tools 1-20 of 138) - 20 tools: M-SPPA-K24E(XX), M-DCP, M-MCP, M-SFE-LC48-01, M-SPP-K24E, Cat 5e Inline Coupler Panel, Cat 6 Inline Coupler Panel, CT-PNL-16, CT-PNL-16-ID, CT-PNL-24 and 10 more. Tool Chest in Detail view, one row per tool with its name.

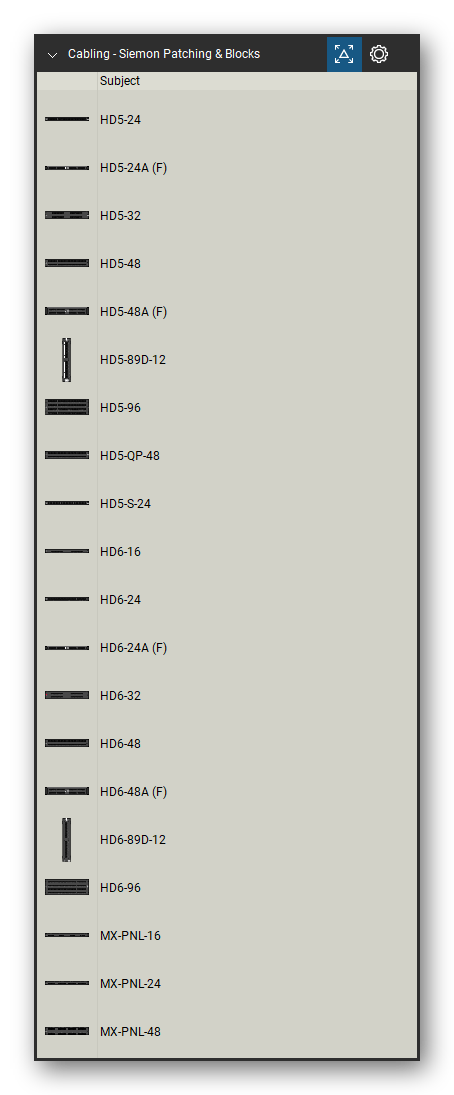

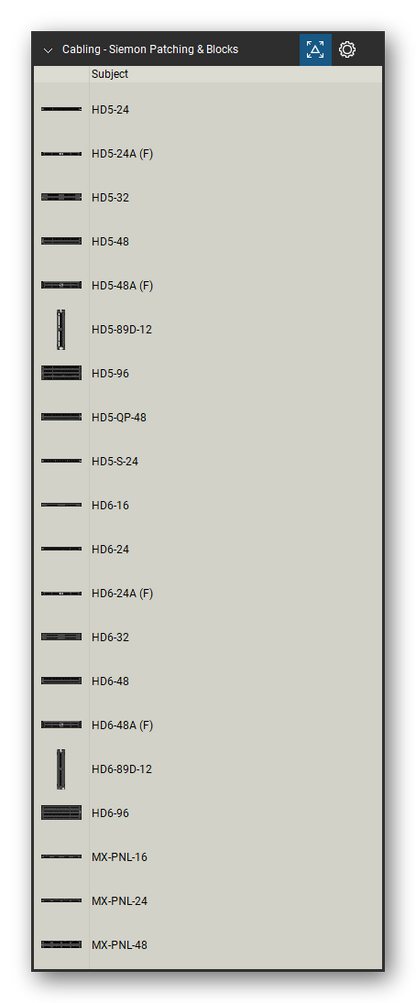

  • Patch Panels, Fiber & Outlets tool set for Bluebeam Revu, Siemon Patching & Blocks set (tools 21-40 of 138) - 20 tools: HD5-24, HD5-24A, HD5-32, HD5-48, HD5-48A, HD5-89D-12, HD5-96, HD5-QP-48, HD5-S-24, HD6-16 and 10 more. Tool Chest in Detail view, one row per tool with its name.

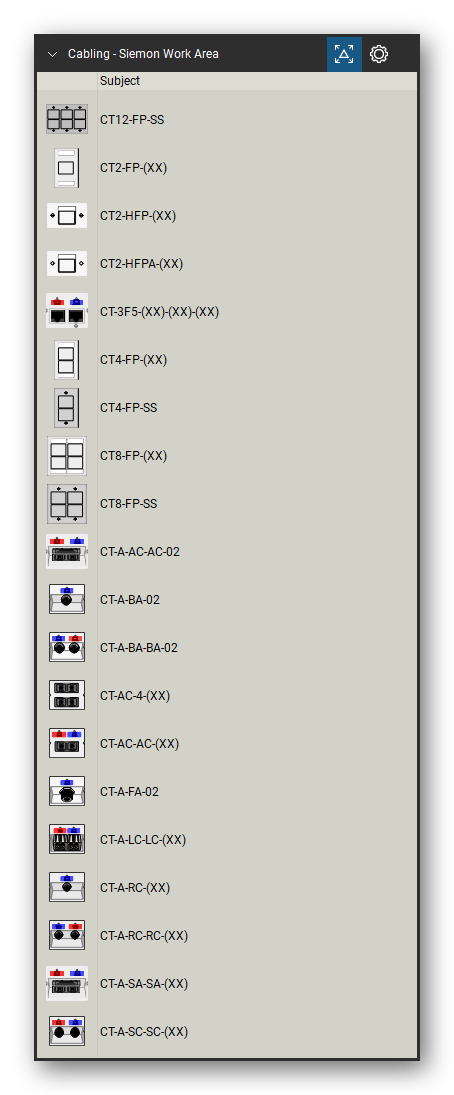

  • Patch Panels, Fiber & Outlets tool set for Bluebeam Revu, Siemon Work Area set (tools 1-20 of 164) - 20 tools: CT12-FP-SS, CT2-FP-(XX), CT2-HFP-(XX), CT2-HFPA-(XX), CT-3F5-(XX)-(XX)-(XX), CT4-FP-(XX), CT4-FP-SS, CT8-FP-(XX), CT8-FP-SS, CT-A-AC-AC-02 and 10 more. Tool Chest in Detail view, one row per tool with its name.

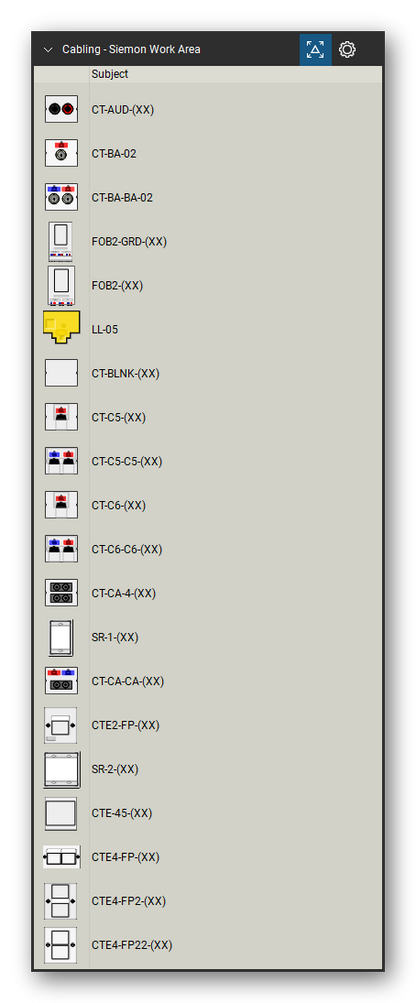

  • Patch Panels, Fiber & Outlets tool set for Bluebeam Revu, Siemon Work Area set (tools 21-40 of 164) - 20 tools: CT-AUD-(XX), CT-BA-02, CT-BA-BA-02, FOB2-GRD-(XX), FOB2-(XX), LL-05, CT-BLNK-(XX), CT-C5-(XX), CT-C5-C5-(XX), CT-C6-(XX) and 10 more. Tool Chest in Detail view, one row per tool with its name.

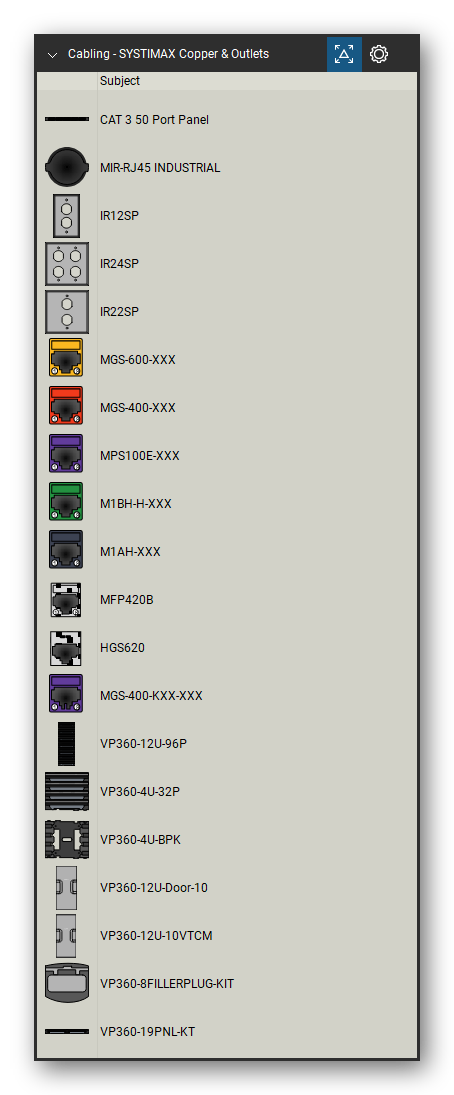

  • Patch Panels, Fiber & Outlets tool set for Bluebeam Revu, SYSTIMAX Copper & Outlets set (tools 1-20 of 30) - 20 tools: CAT 3 50 Port Panel, MIR-RJ45 INDUSTRIAL, IR12SP, IR24SP, IR22SP, MGS-600-XXX, MGS-400-XXX, MPS100E-XXX, M1BH-H-XXX, M1AH-XXX and 10 more. Tool Chest in Detail view, one row per tool with its name.

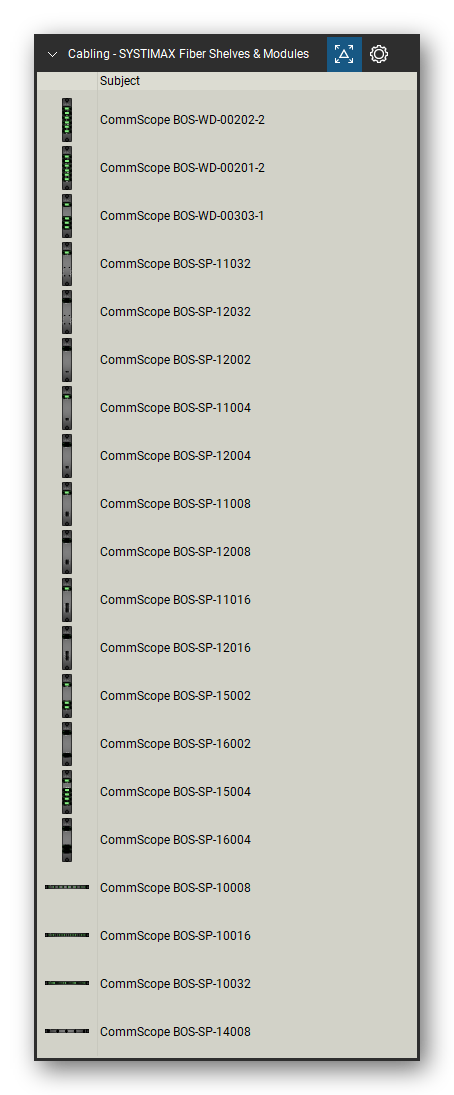

  • Patch Panels, Fiber & Outlets tool set for Bluebeam Revu, SYSTIMAX Fiber Shelves & Modules set (tools 1-20 of 293) - 20 tools: CommScope BOS-WD-00202-2, CommScope BOS-WD-00201-2, CommScope BOS-WD-00303-1, CommScope BOS-SP-11032, CommScope BOS-SP-12032, CommScope BOS-SP-12002, CommScope BOS-SP-11004, CommScope BOS-SP-12004, CommScope BOS-SP-11008, CommScope BOS-SP-12008 and 10 more. Tool Chest in Detail view, one row per tool with its name.

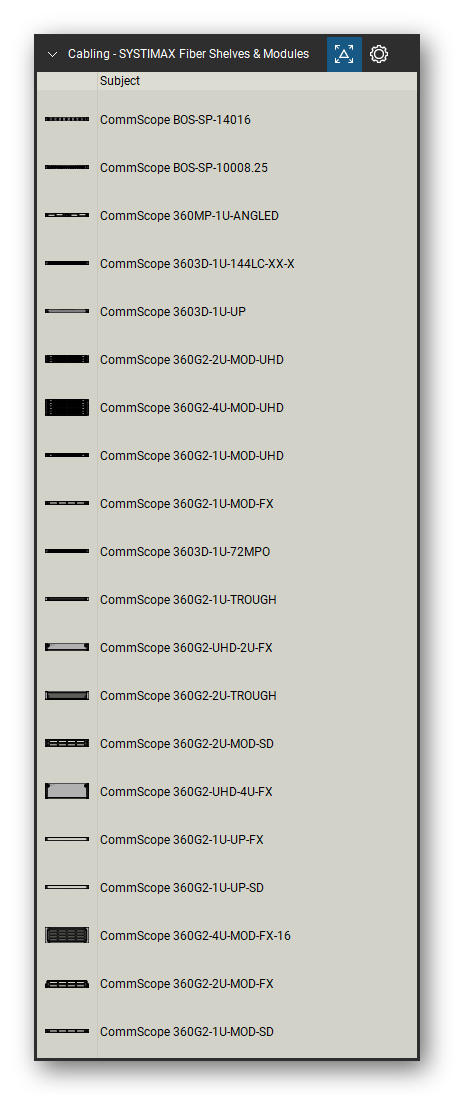

  • Patch Panels, Fiber & Outlets tool set for Bluebeam Revu, SYSTIMAX Fiber Shelves & Modules set (tools 21-40 of 293) - 20 tools: CommScope BOS-SP-14016, CommScope BOS-SP-10008.25, CommScope 360MP-1U-ANGLED, CommScope 3603D-1U-144LC-XX-X, CommScope 3603D-1U-UP, CommScope 360G2-2U-MOD-UHD, CommScope 360G2-4U-MOD-UHD, CommScope 360G2-1U-MOD-UHD, CommScope 360G2-1U-MOD-FX, CommScope 3603D-1U-72MPO and 10 more. Tool Chest in Detail view, one row per tool with its name.

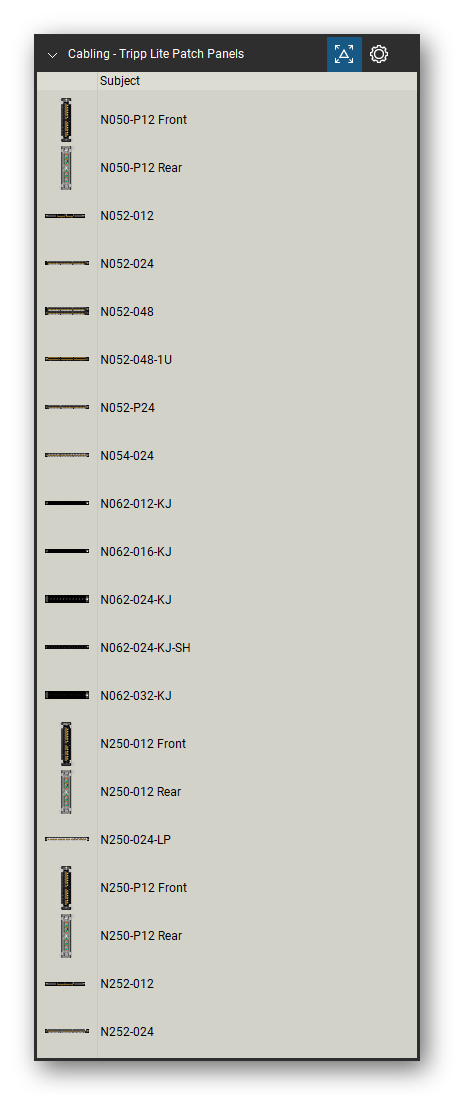

  • Patch Panels, Fiber & Outlets tool set for Bluebeam Revu, Tripp Lite Patch Panels set (tools 1-20 of 51) - 20 views of 17 devices, front and rear: N050-P12, N052-012, N052-024, N052-048, N052-048-1U, N052-P24, N054-024, N062-012-KJ, N062-016-KJ, N062-024-KJ and 7 more. Tool Chest in Detail view, one row per tool with its name.

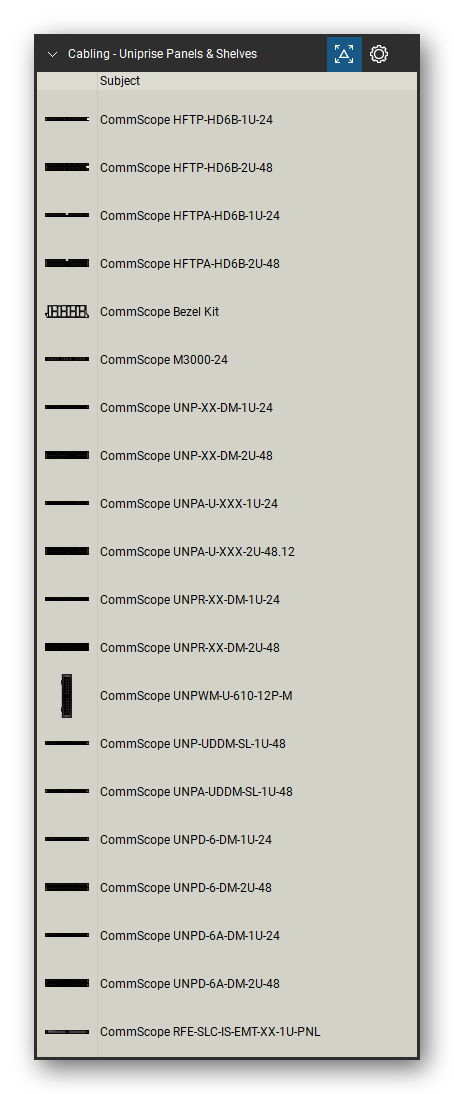

  • Patch Panels, Fiber & Outlets tool set for Bluebeam Revu, Uniprise Panels & Shelves set (tools 1-20 of 84) - 20 tools: CommScope HFTP-HD6B-1U-24, CommScope HFTP-HD6B-2U-48, CommScope HFTPA-HD6B-1U-24, CommScope HFTPA-HD6B-2U-48, CommScope Bezel Kit, CommScope M3000-24, CommScope UNP-XX-DM-1U-24, CommScope UNP-XX-DM-2U-48, CommScope UNPA-U-XXX-1U-24, CommScope UNPA-U-XXX-2U-48.12 and 10 more. Tool Chest in Detail view, one row per tool with its name.
1 60

Patch Panels, Fiber & Outlets Bluebeam Tool Set

Patch Panels, Fiber & Outlets Bluebeam Tool Set

$159.99 USD
$214.99 USD $159.99 USD
Sale Sold out
Delivered immediately after checkout.

Tool set of copper and fiber patch panels, fiber enclosures and cassettes, frames, blocks, jacks, faceplates and outlets for rack elevations, telecom room layouts, and cabling details. This tool set covers 24 categories with 2,908 symbols. Each device is a vector snapshot in the colors of its maker's artwork that places as a single markup, and is named with its model, so the tools list by name in the Tool Chest and placed equipment lists by name in the Markups List. Lettering that stands on a symbol is editable text.

Examples of symbols included:

  • Belden Jacks, Panels & Plates
    • Jacks, panels and plates by Belden part number, AX102280 to AX106659, front views, generic 19" 42U rack
  • Black Box Panels & Connectors
    • JPM, JPMT, JSM and JPS60A patch panels, C6AMP70 and C6AFP70S panels
    • Connector faces: RJ45, LC fiber, DVI, VGA, USB, DB9 and DB25, RCA, coax, BNC, XLR, 1/4" and 1/8" jacks, 3.5mm audio, MIDI, SPDIF Toslink, power barrel
  • CABLExpress Fiber & Copper
    • CBX-HP and CBX-HPP 1U to 4U fiber units with CBX-HB, CBX-HE, CBX-HF and CBX-HM parts, slide tray
    • Copper patch panels 1UCOPPER24FP, 2UCOPPER48FP and 2UCOPPER72FP

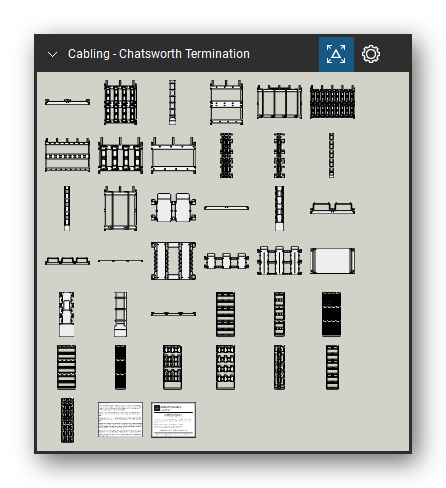

  • Chatsworth Termination
    • Termination parts by Chatsworth part number, 11177-X01 to 13434-X36
  • CommScope
    • NG4 and NGF fiber frames with FTB blocks, ADC FEC-144 to FEC-864, FGS-HETR, IMP150, OMX-GR3 and VAM
    • PNL panels for LC, SC and ST, MFPS, 360DP, 360G2, 360MP and 600G2, EHD-1U, M2000A, M2100 and 1100A, CPPA and NPPR, panels of 24 to 32 circuits
    • NETCONNECT and MPO parts by CommScope part number, SAM MPO line card kits, 42U rack and cabinet
  • Corning Fiber Housings
    • CCH, CJP, EDGE, EDGE8 and PCH housings from 01U to 04U
    • CP08 to CP48 panels, ECM and ETM modules, CCF-BAY-7

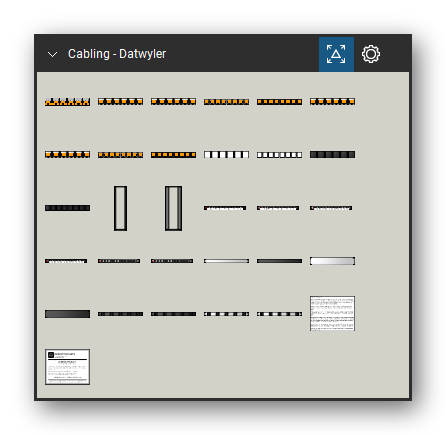

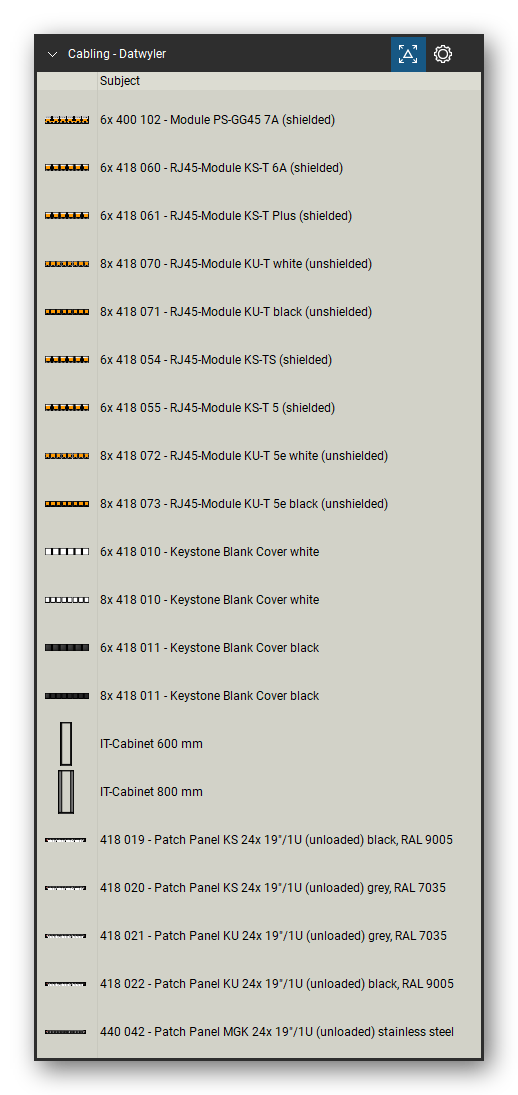

  • Datwyler
    • RJ45 modules KS-T, KU-T and PS-GG45, keystone blank covers
    • Patch panels KS, KU and MGK 24x 19"/1U, blank plates, management panel, IT cabinet 800 mm

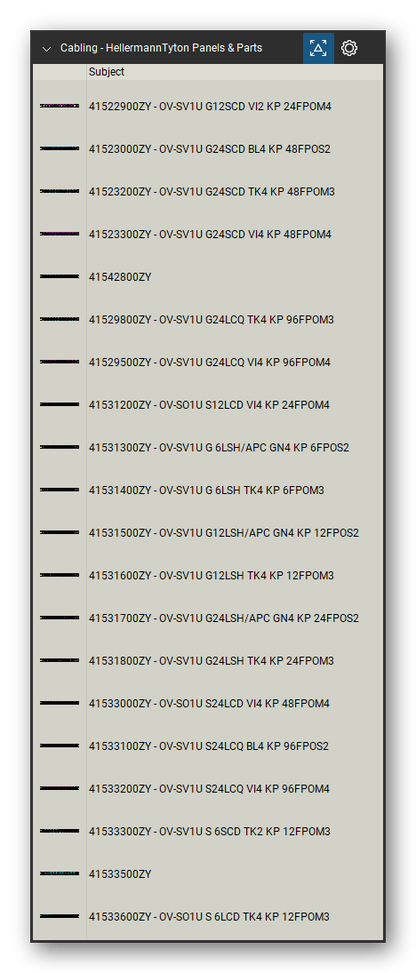

  • HellermannTyton Panels & Parts
    • OV-SO1U and OV-SV1U fiber panels from 12FP to 96FP
    • GSTPP-1U24 and GSTPP-2U48 patch panels, 2408ID and 4808ID panels, APP110C and PP110C panels, GST short body cassette
  • Leviton

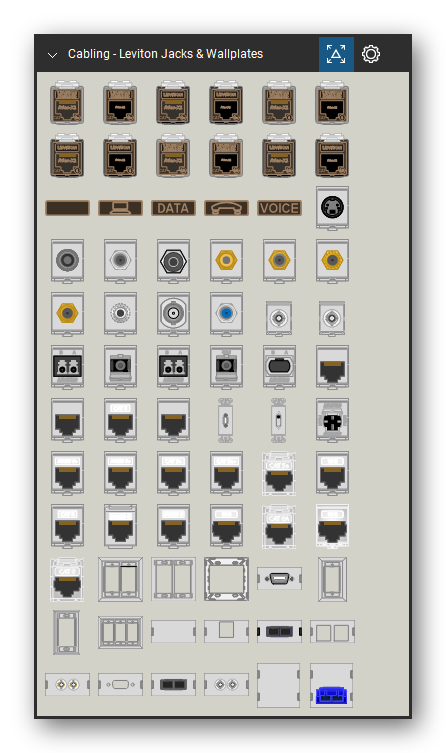

    • 5ESJK, 5EUJK, 61SJK, 61UJK, 6ASJK and 6AUJK jacks, 41080, 41089, 42080 and 43080 wallplates, 41290 to 41297
    • Opt-X 5R1U to 5R4U enclosures, 5F100 adapter plates, HDX cassettes, F3168

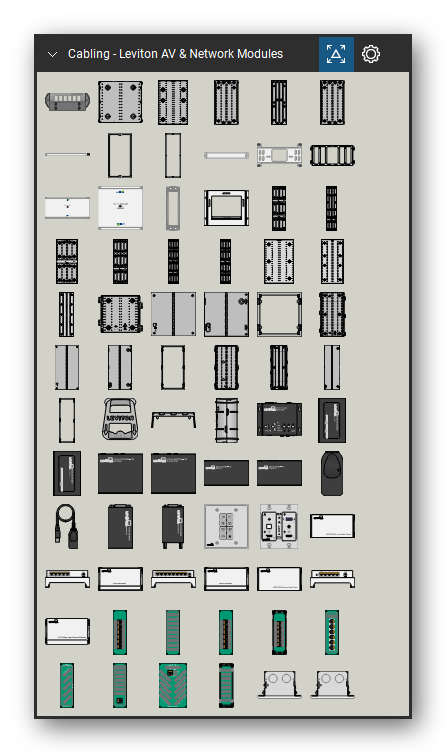

    • Patch panels and blocks (49255, 49256, 49280, 69586, 6910G, 5G596, 41AB, 41DB and 41DR) and AV and network modules (47603, 47605, 47611, 47612, 47690, 49605, 41910 TX and RX, W1000)
  • Panduit
    • CJ5E88, CJ688 and CJ6X88 jacks with CJK and CJSK versions, KJS6X88TC, KFPL80S2SWH and KFPL86S2SWH
    • CP16WS to CP48WS, CPP48HD, CPPA48HD and CPPLA72 patch panels, DP48688TGY, P110B and P110KB, UICMPP24
    • Physical Infrastructure Systems: Panview (PV) parts, DPOE24U and DPOEPWRR units, C050X044YJJ to C390X030FJJ labels
  • Premium-Line
    • 0.5U and 1U Cat.5e, Cat.6 and Cat.6A patch panels, shielded and unshielded, Cat.6 and Cat.6A KJ jacks
    • LC and SC cassettes and modules to MPO/MTP, LC, SC and ST adapter panels of 4 to 8 ports, 48 SC/APC SM ODF 2U
  • R&M Panels & Outlets
    • 1U to 4U panels, VS Standard and VS83 panels, voice panels and modules, 19" panel for NT
    • DM and WM outlets, surface mount box, mini case, mount frames, frame adapters, mounting rails, protection bars, blind plates and covers, jumper rings, 230V power socket
  • Siemon
    • Fiber: LS and LS8 1U to 4U, FCP3-DWR, RIC3 and RIC-F, PPM, PEM and LSE
    • Patching and blocks: HD5 and HD6 panels, Z6A panels, M-SPPA, CT-PNL, TM-PNLZ and DIN-PNL, Cat 5e and Cat 6 inline coupler panels, S66M and S110 blocks

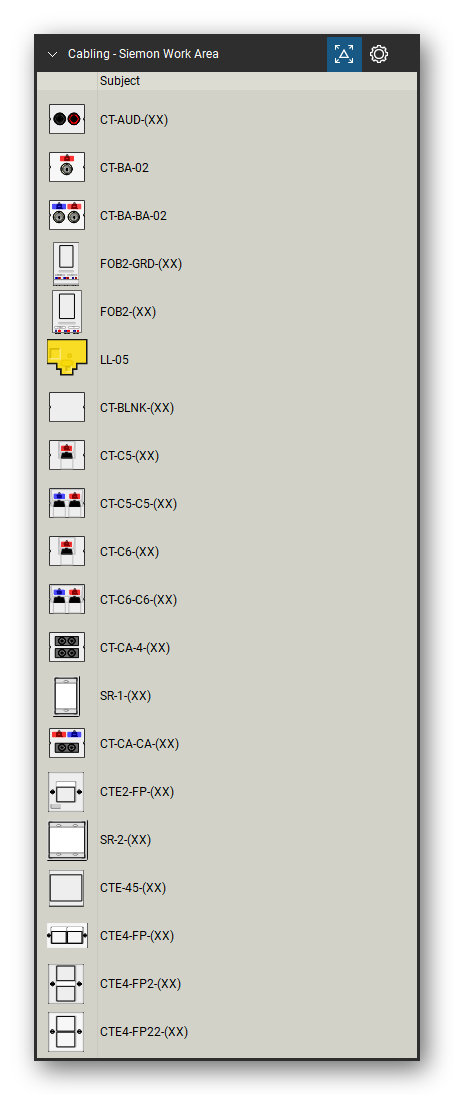

    • Work area: CT and MX parts, 10GMX, Z6A outlets (angled and flat), T7F, SR-1, DRE

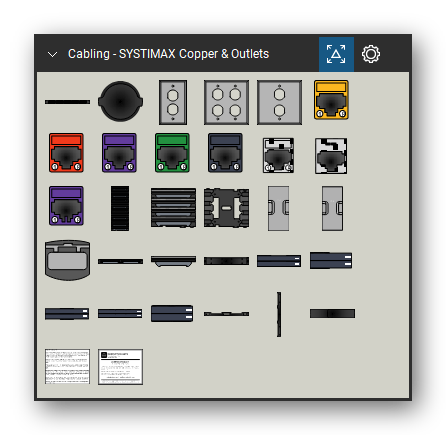

  • SYSTIMAX
    • MGS-400, MGS-600 and HGS620, MPS100E, M1AH and M1BH, MFP420B, IR12SP to IR24SP, MIR-RJ45 industrial, VP360, CAT 3 50 port panel
    • 360G2, 360-iP and 360-IPR, 3603D, HD-2U and HD-SP, 360MP, 1100A and 1100-E, RFE, XFA and IPQ-IPR shelves, panels and modules
  • Tripp Lite Patch Panels
    • N050, N052, N054, N062, N250, N252 and N254 patch panels, N062 KJ models
    • N482-01U, N482-02U and N484-01U, N48K and N492, front and rear
  • Uniprise Panels & Shelves
    • Uniprise and CommScope UNPR, UNPD and UNPA panels, HFTP and HFTPA, M3000-24, KJ500, WBE and RFE panels, SD-2U and SD-4U shelves

Delivered as 2 Bluebeam Revu profiles (Belden to HellermannTyton; Leviton to Uniprise) that together load all 24 tool sets, plus the individual tool set files.

Belden, Black Box, CABLExpress, Chatsworth, Cisco, CommScope, Corning, Datwyler, HellermannTyton, Leviton, Panduit, Premium-Line, R&M, Siemon, SYSTIMAX, Tripp Lite and Uniprise are trademarks of their owners and are used only to identify the equipment the symbols show. MarkupToolSets is not affiliated with or endorsed by any of them.
