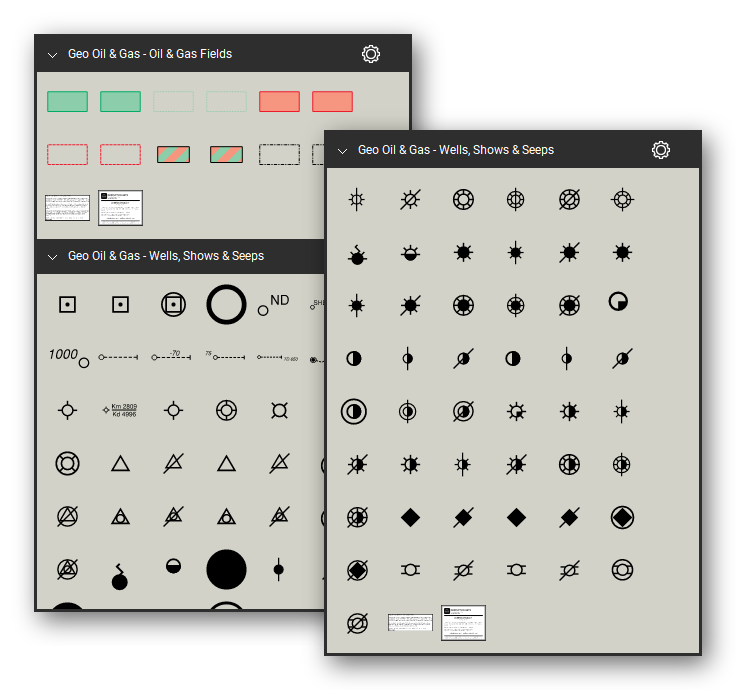

• Oil and gas map symbols for Bluebeam Revu: 109 tools in 2 tool sets following the FGDC Digital Cartographic Standard for Geologic Map Symbolization (FGDC-STD-013-2006) - oil and gas fields, wells, shows, seeps and dry holes. Collage of Tool Chest cards in Symbol view.

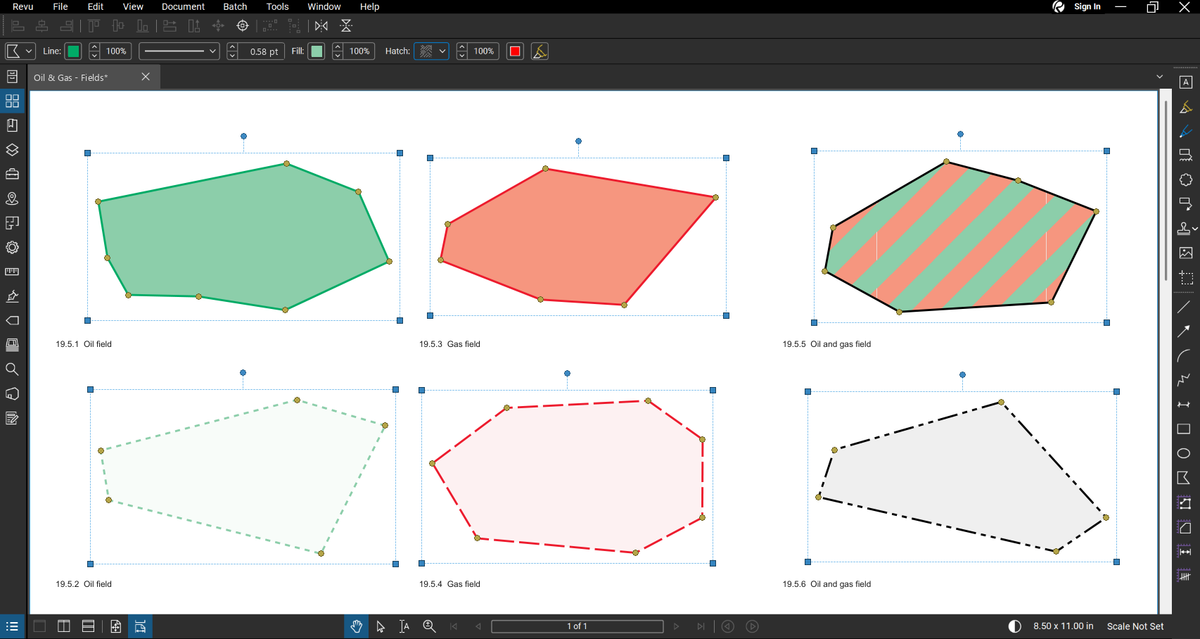

  • The six oil and gas field tools of the Oil & Gas Bluebeam tool set drawn as freeform polygons in Bluebeam Revu: oil field, gas field, and oil and gas field, each with extent defined and extent not yet defined

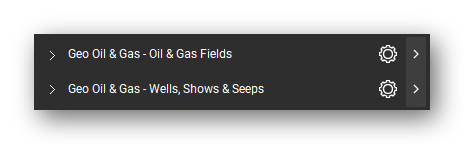

  • The Bluebeam Revu Tool Chest with the 2 tool sets of the Oil & Gas tool set loaded, closed to the set titles: Oil & Gas Fields and Wells, Shows & Seeps.

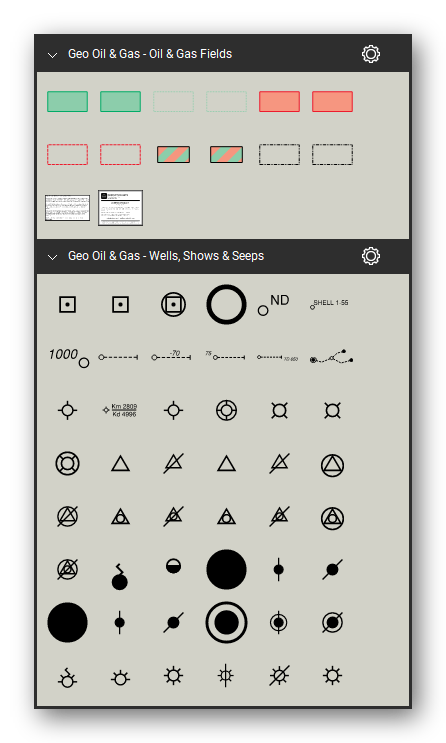

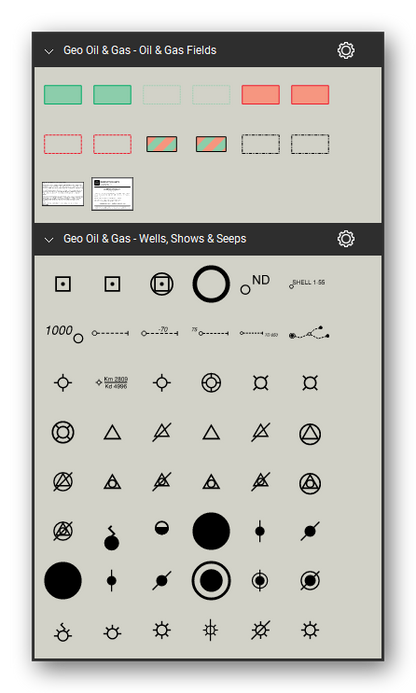

  • Oil & Gas tool set for Bluebeam Revu: Oil & Gas Fields set, all 12 tools (19.5.1 to 19.5.6) - Oil field, Gas field and Oil and gas field; Wells, Shows & Seeps set, tools 1-48 of 97 (19.5.7 to 19.5.54) - Core (nonspecific depth), Shallow core, Deep core, Drilling well or well location for hydrocarbon exploration or exploitation, Drill hole for hydrocarbon exploration or exploitation and 38 more. Tool Chest in Symbol view.

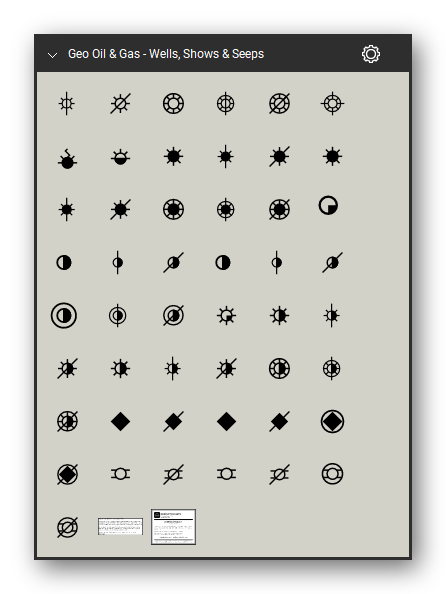

  • Oil & Gas tool set for Bluebeam Revu: Wells, Shows & Seeps set, tools 49-97 of 97 (19.5.55 to 19.5.103) - Suspended shallow gas well, Plugged and abandoned shallow gas well, Deep gas well, Suspended deep gas well, Plugged and abandoned deep gas well, Deep gas well, plugged back and producing shallow gas, Oil and gas seep, Oil and gas show, Oil and gas well (nonspecific depth) and 40 more. Tool Chest in Symbol view.

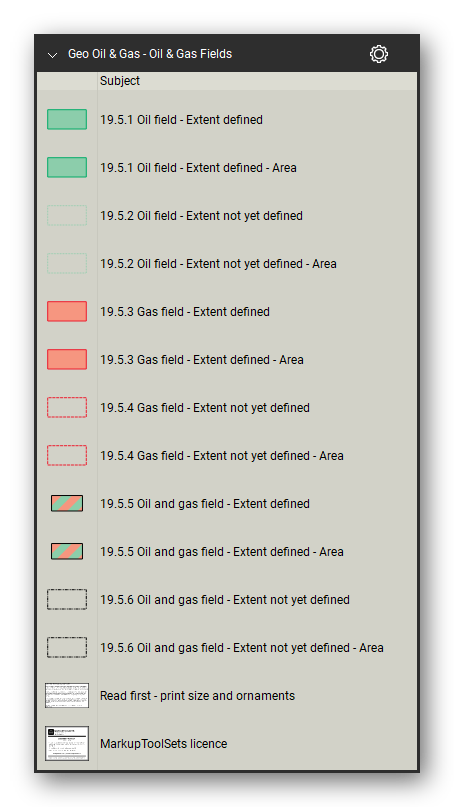

  • Oil & Gas tool set for Bluebeam Revu: Oil & Gas Fields set, all 12 tools (19.5.1 to 19.5.6) - oil, gas and oil-and-gas fields, extent defined or not yet defined, each as a Polygon tool and an Area measurement tool. Tool Chest in Detail view, one row per tool with its FGDC reference number and name.

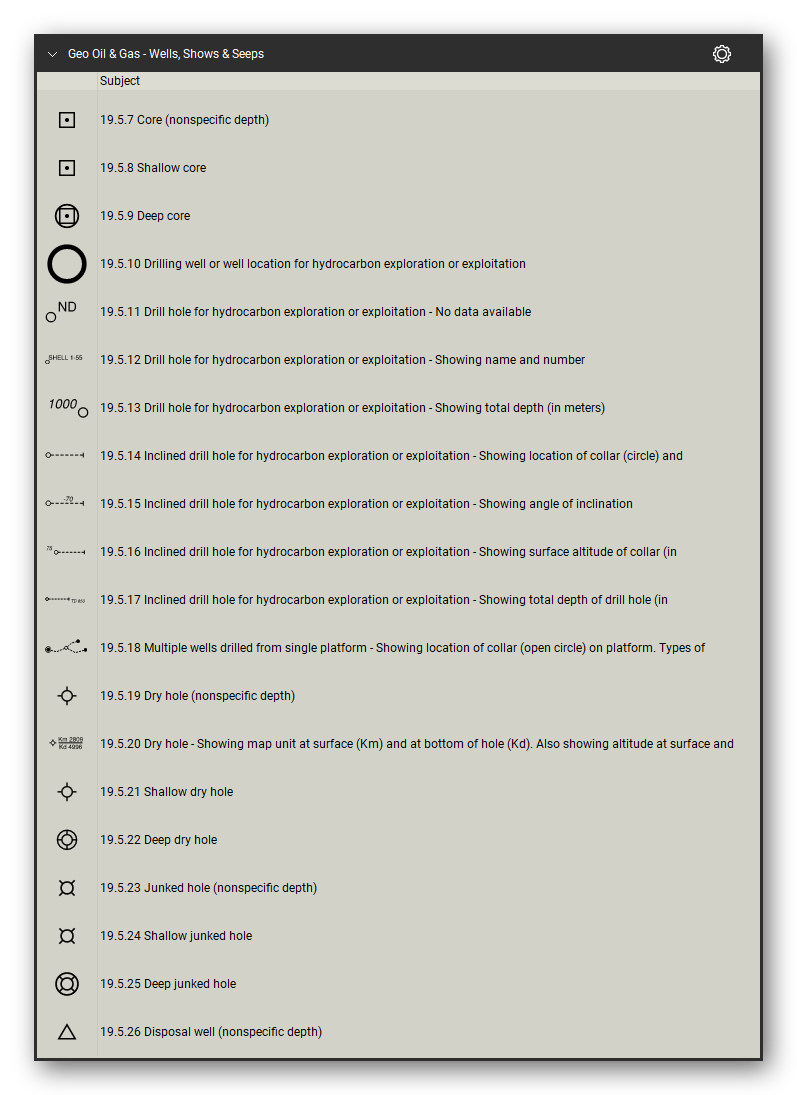

  • Oil & Gas tool set for Bluebeam Revu: Wells, Shows & Seeps set, tools 1-20 of 97 (19.5.7 to 19.5.26) - Core (nonspecific depth), Shallow core, Deep core, Drilling well or well location for hydrocarbon exploration or exploitation, Drill hole for hydrocarbon exploration or exploitation, Inclined drill hole for hydrocarbon exploration or exploitation, Multiple wells drilled from single platform and 8 more. Tool Chest in Detail view, one row per tool with its FGDC reference number and name.

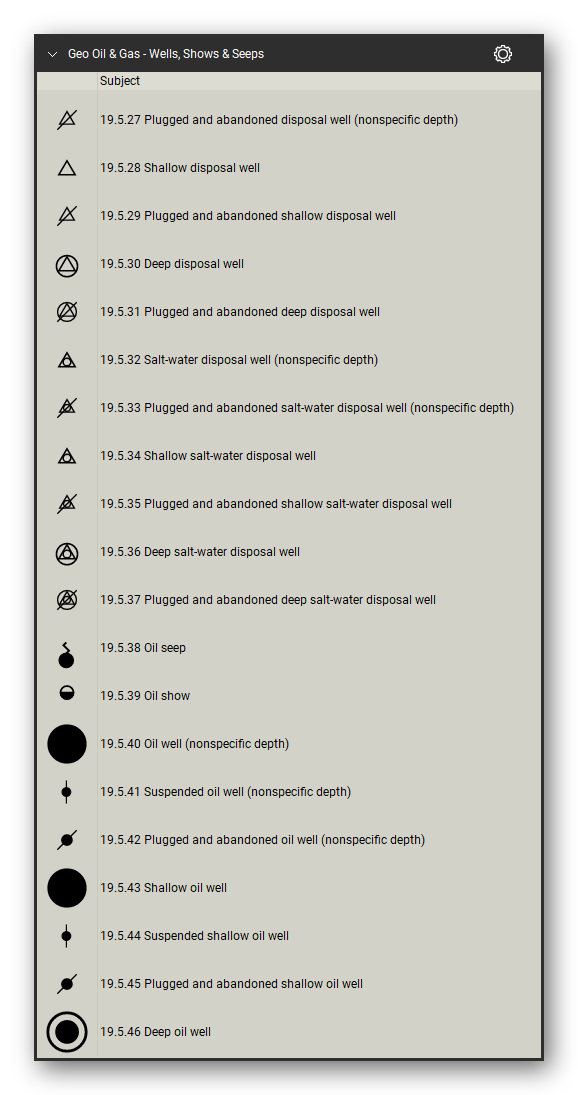

  • Oil & Gas tool set for Bluebeam Revu: Wells, Shows & Seeps set, tools 21-40 of 97 (19.5.27 to 19.5.46) - Plugged and abandoned disposal well (nonspecific depth), Shallow disposal well, Plugged and abandoned shallow disposal well, Deep disposal well, Plugged and abandoned deep disposal well and 15 more. Tool Chest in Detail view, one row per tool with its FGDC reference number and name.

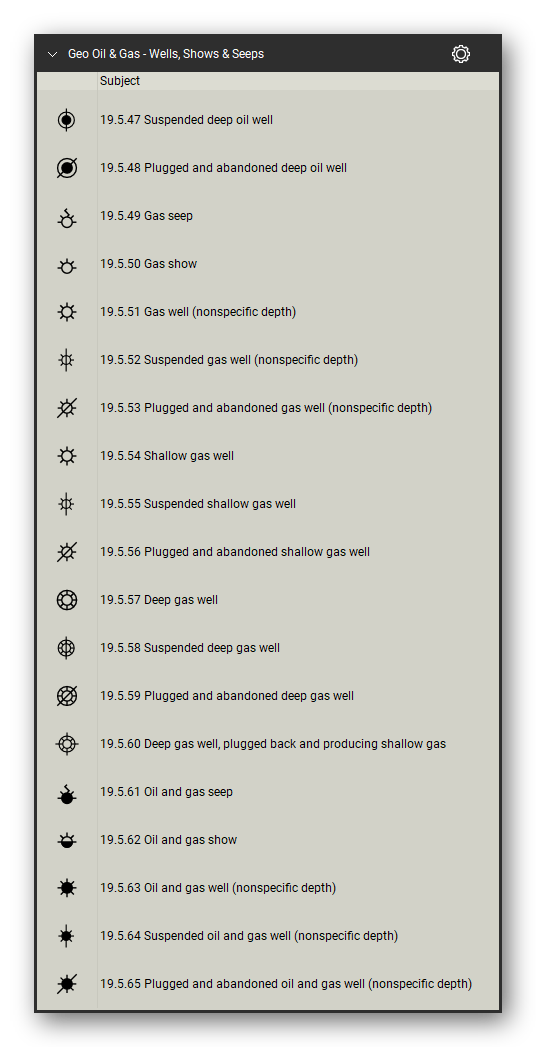

  • Oil & Gas tool set for Bluebeam Revu: Wells, Shows & Seeps set, tools 41-59 of 97 (19.5.47 to 19.5.65) - Suspended deep oil well, Plugged and abandoned deep oil well, Gas seep, Gas show, Gas well (nonspecific depth), Suspended gas well (nonspecific depth), Plugged and abandoned gas well (nonspecific depth), Shallow gas well, Suspended shallow gas well and 10 more. Tool Chest in Detail view, one row per tool with its FGDC reference number and name.

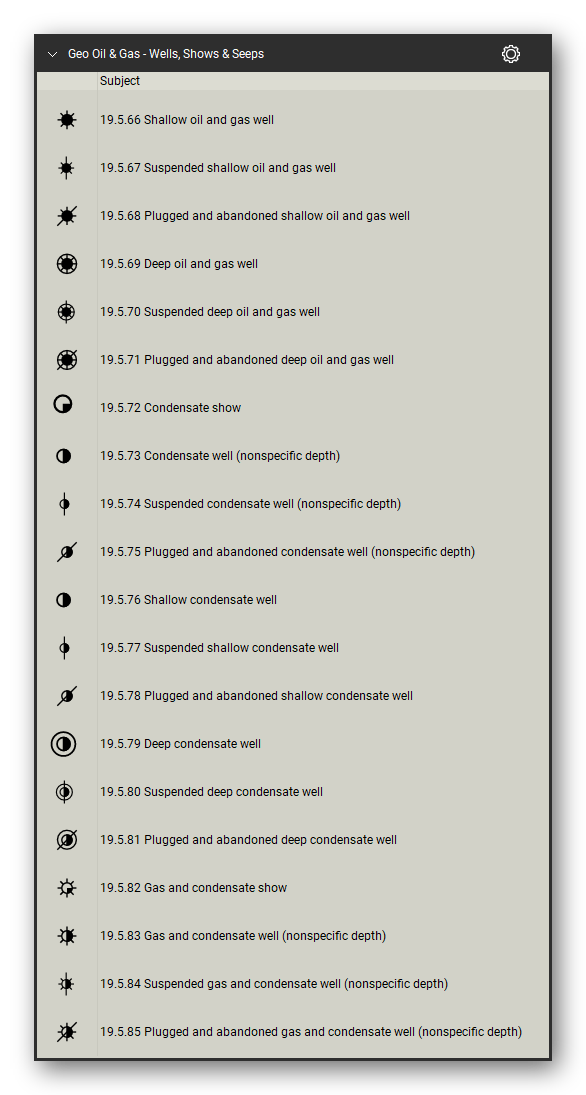

  • Oil & Gas tool set for Bluebeam Revu: Wells, Shows & Seeps set, tools 60-79 of 97 (19.5.66 to 19.5.85) - Shallow oil and gas well, Suspended shallow oil and gas well, Plugged and abandoned shallow oil and gas well, Deep oil and gas well, Suspended deep oil and gas well, Plugged and abandoned deep oil and gas well, Condensate show and 13 more. Tool Chest in Detail view, one row per tool with its FGDC reference number and name.

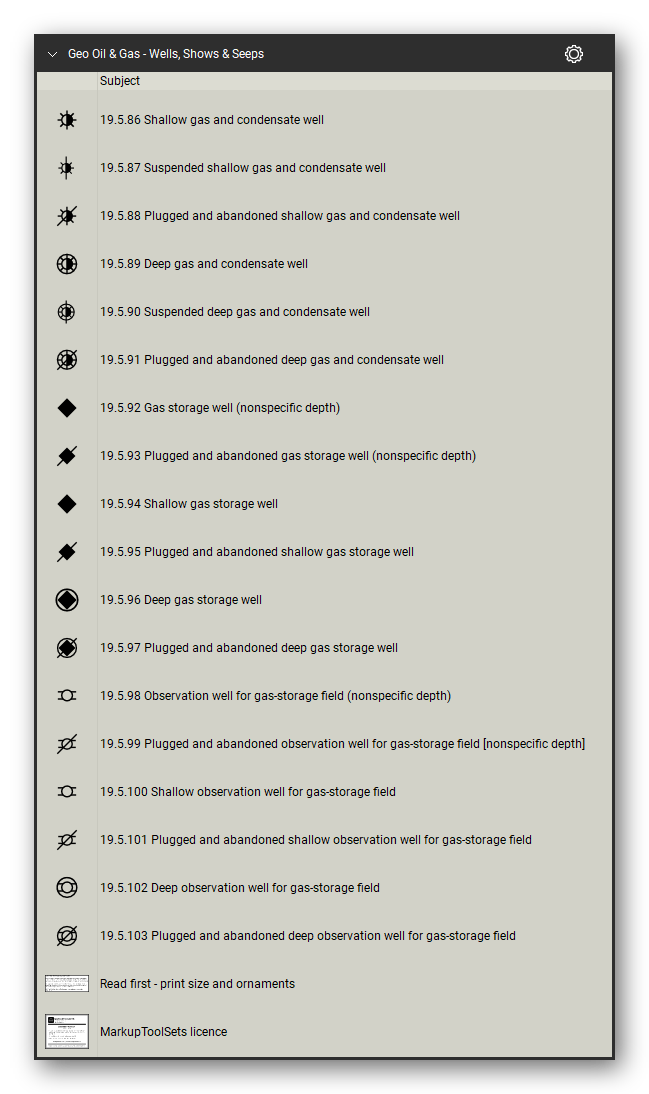

  • Oil & Gas tool set for Bluebeam Revu: Wells, Shows & Seeps set, tools 80-97 of 97 (19.5.86 to 19.5.103) - Shallow gas and condensate well, Suspended shallow gas and condensate well, Plugged and abandoned shallow gas and condensate well, Deep gas and condensate well, Suspended deep gas and condensate well, Plugged and abandoned deep gas and condensate well, Gas storage well (nonspecific depth) and 11 more. Tool Chest in Detail view, one row per tool with its FGDC reference number and name.

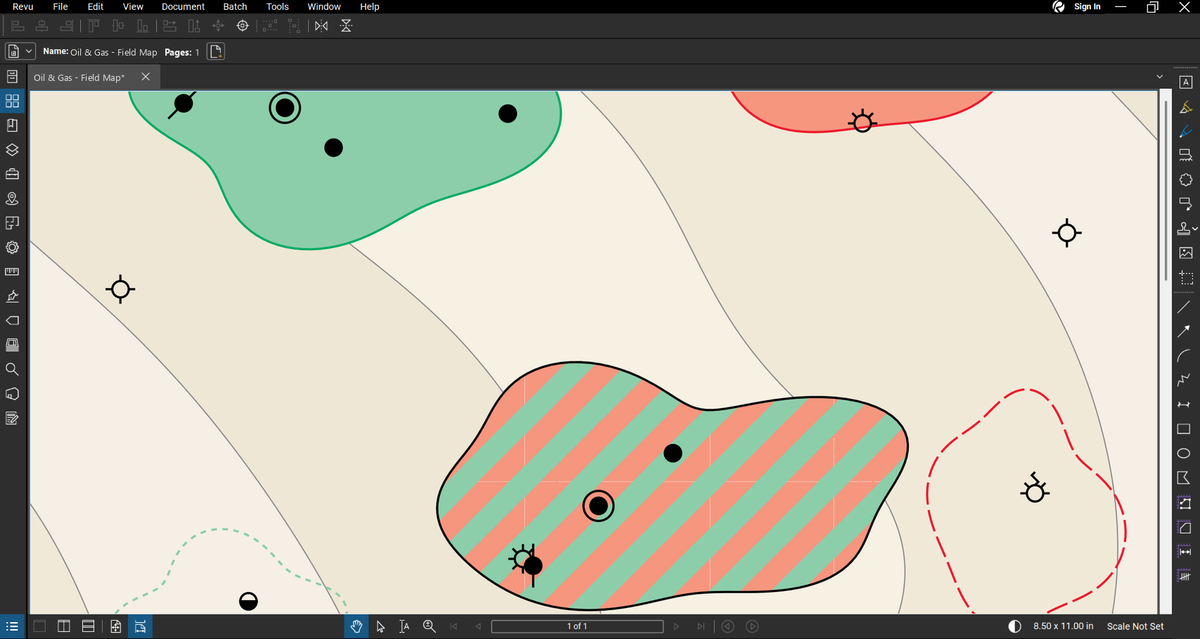

  • Oil and gas field map drawn in Bluebeam Revu with the Oil & Gas Bluebeam tool set: oil, gas, and oil and gas fields with defined and not yet defined extents, oil and gas wells, shows, seeps and dry holes
1 12

Oil & Gas Bluebeam Tool Set

Oil & Gas Bluebeam Tool Set

$49.99 USD
$64.99 USD $49.99 USD
Sale Sold out
Delivered immediately after checkout.

Tool set of oil and gas well and field symbols for marking up well maps, field maps, and geologic maps, following the FGDC Digital Cartographic Standard for Geologic Map Symbolization (FGDC-STD-013-2006). This tool set covers 2 categories with 109 tools, available in a standard colors version (the standard's green and red fields, black wells) and a redline version. The 97 well and show symbols are groups of native Bluebeam markups with editable well names, depths, angles, and map-unit labels. The 6 field symbols come as 12 tools: a Polygon markup and an Area measurement markup that reports the field's area, each with the standard's dashed outline and tint. Every tool is named after its FGDC reference number, so placed markups list and count by name in the Markups List.

Examples of tools included:

  • Oil and gas fields
    • Oil fields, gas fields, and oil and gas fields, extent defined or not yet defined
    • Each field as a Polygon tool and an Area tool
  • Wells, shows, and seeps
    • Oil wells, gas wells, oil and gas wells, condensate wells, and gas and condensate wells: nonspecific depth, shallow, deep, suspended, and plugged and abandoned
    • Dry holes and junked holes, shallow, deep, and of nonspecific depth, and a dry hole showing the map units and altitudes at the surface and the bottom of the hole
    • Disposal and salt-water disposal wells, gas storage wells, and observation wells for gas-storage fields
    • Cores, drilling wells, drill holes with name, number, and total depth, inclined drill holes, and multiple wells drilled from a single platform
    • Oil, gas, oil and gas, condensate, and gas and condensate shows, and oil, gas, and oil and gas seeps
    • The field pattern is also included as a hatch pattern set for any other markup

Delivered as a Bluebeam Revu profile that loads both tool sets and the hatch pattern set in one import, plus the individual tool set files, in standard colors and redline.

How to use

  • Import the profile (Revu > Profiles > Manage Profiles > Import, or double-click the .bpx file), or import single tool sets from the Tool Chest (Manage Tool Sets > Import).
  • Well symbols: click a tool, then click the sheet; type over a well name, depth, or angle to change it.
  • Field tools: click a tool, click around the field, and double-click to finish.
