Landscape Irrigation Symbols Bluebeam Tool Set

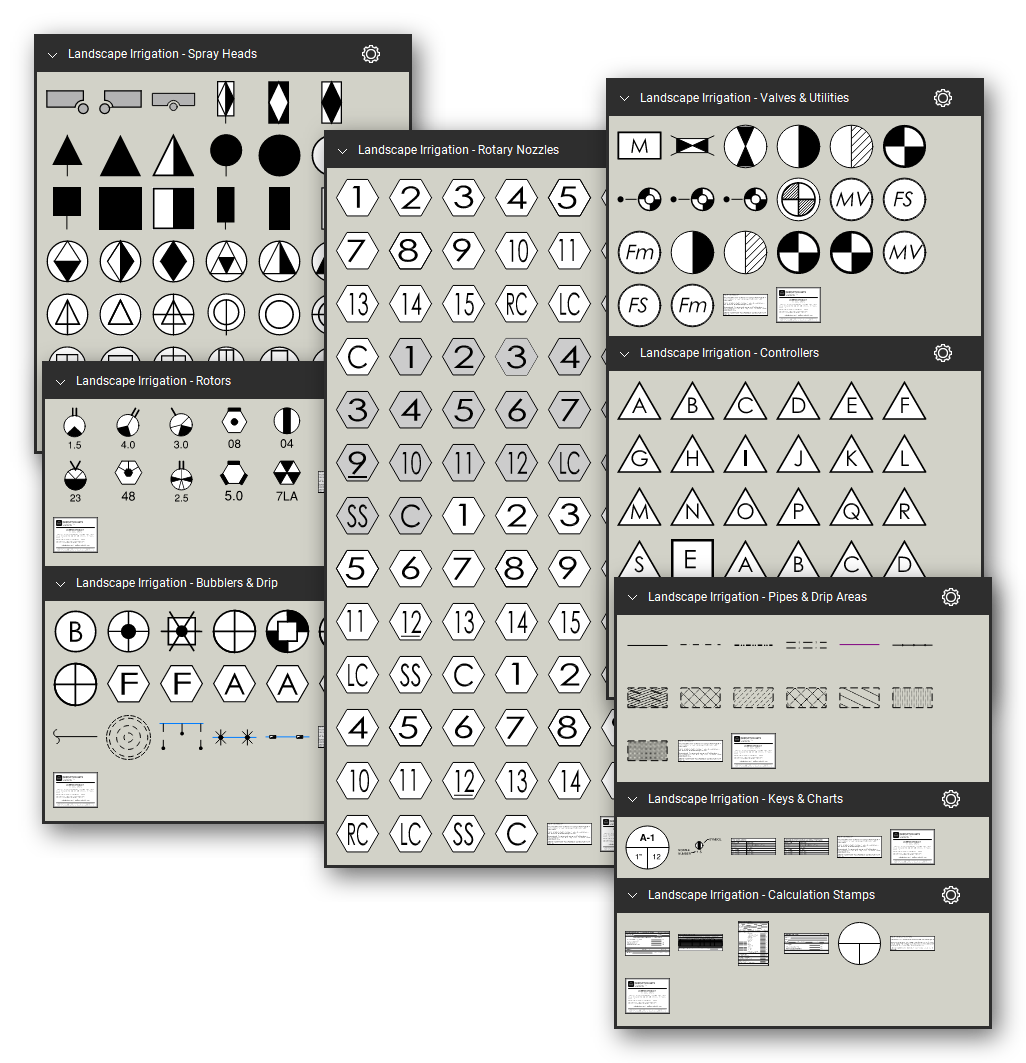

Tool set of irrigation legend symbols for landscape irrigation plans. This tool set covers 9 categories with 212 tools, available in both black and redline versions. Each symbol is a vector snapshot that places as a single markup — it can be moved, resized, rotated, and recolored directly in Bluebeam — and is named after its legend row, so placed symbols list and count by name in the Markups List. Every symbol is white inside, so it masks the pipe it is placed on. Rotor nozzle numbers, the valve callout, and the pipe sizing charts are editable text; pipe lines are native Polyline markups with their own line styles, and dripline areas are native Polygon markups with hatch patterns.

Examples of symbols included:

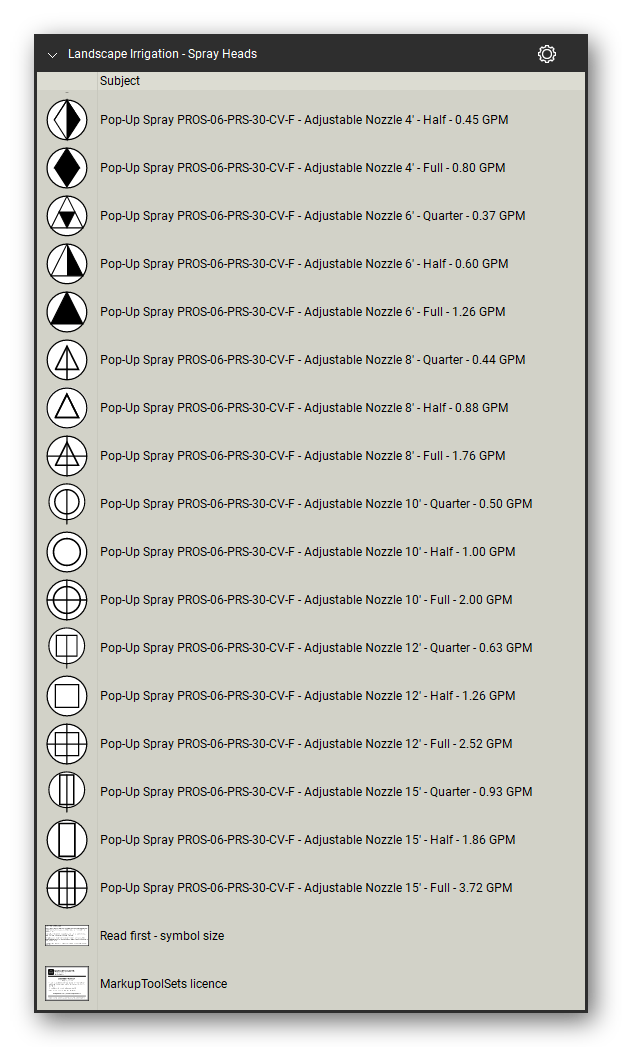

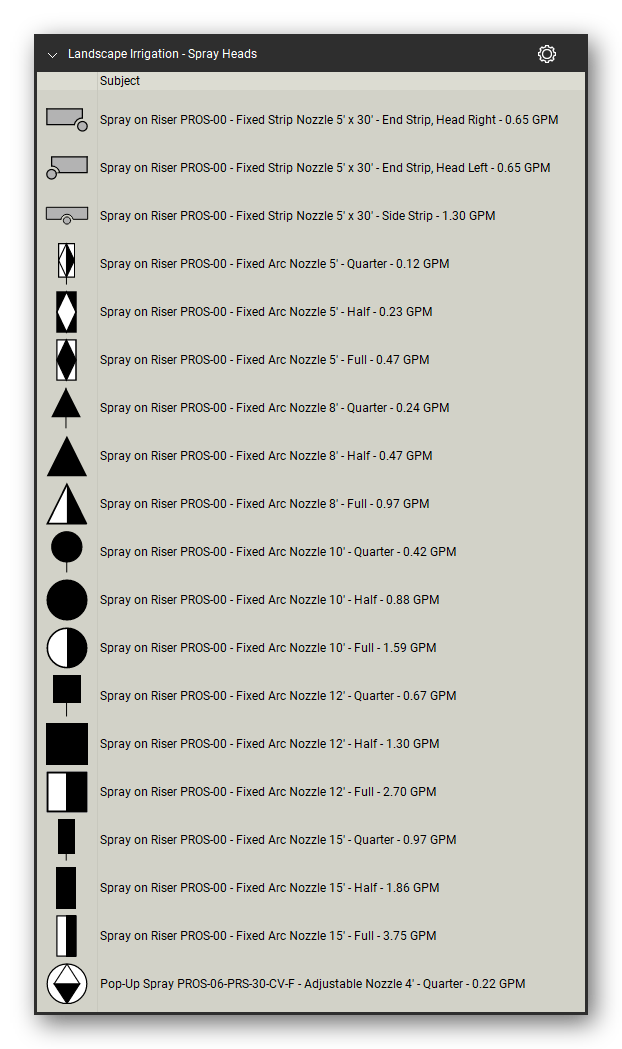

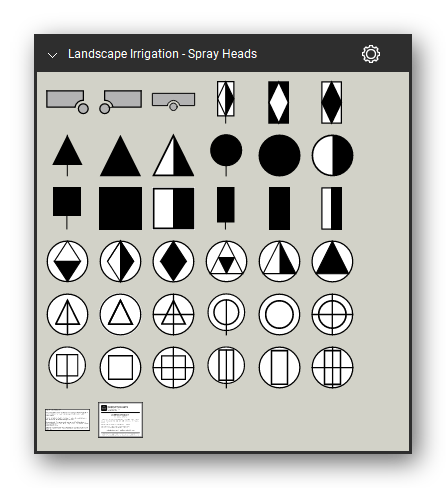

• Spray heads
  • Spray on riser with fixed arc nozzles from 5' to 15' radius — quarter, half, and full — and fixed strip nozzles

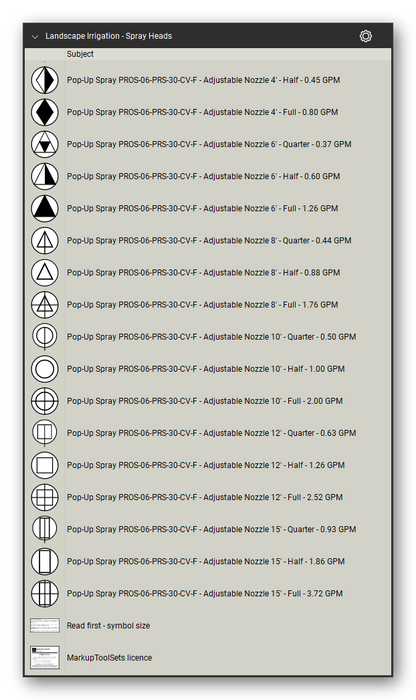

  • Pop-up spray with adjustable nozzles from 4' to 15' radius
  • Every head named with its radius, arc, and flow in GPM

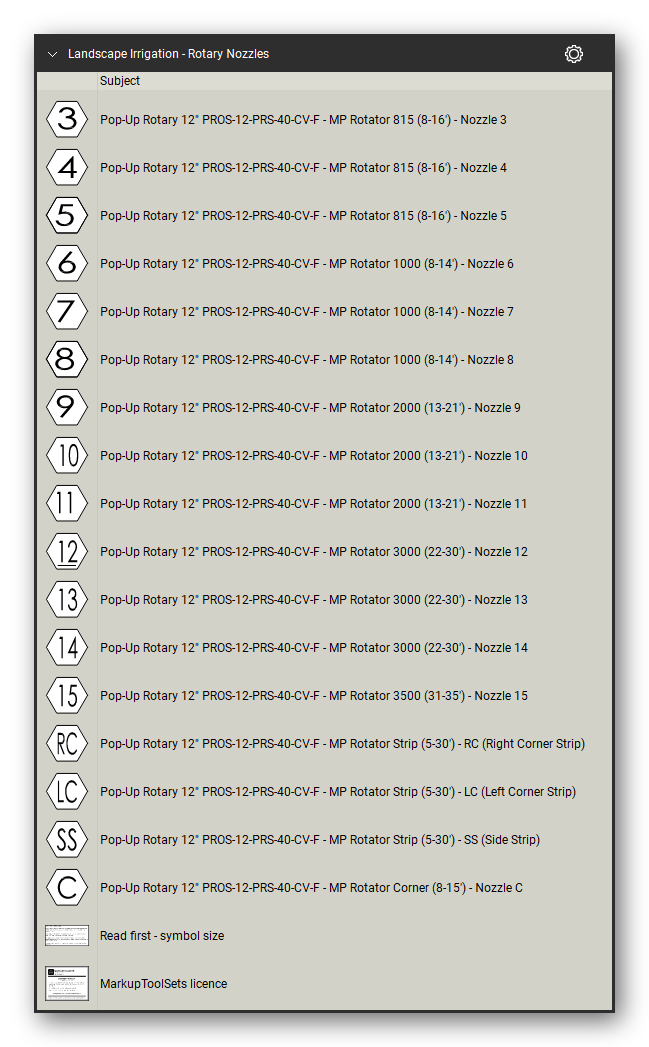

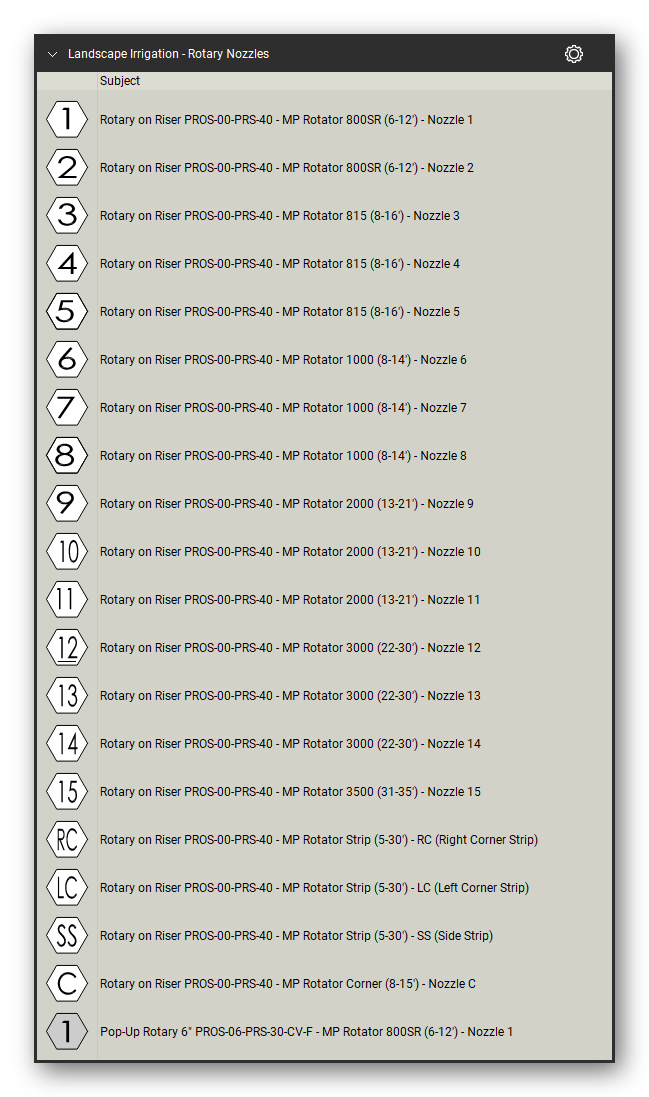

• Rotary nozzles

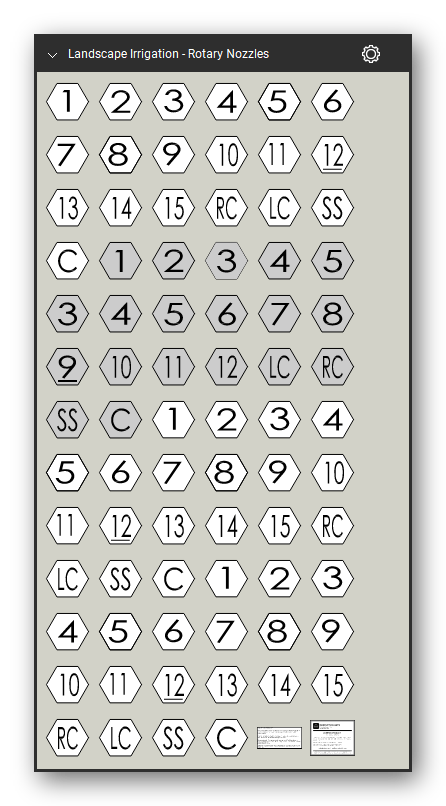

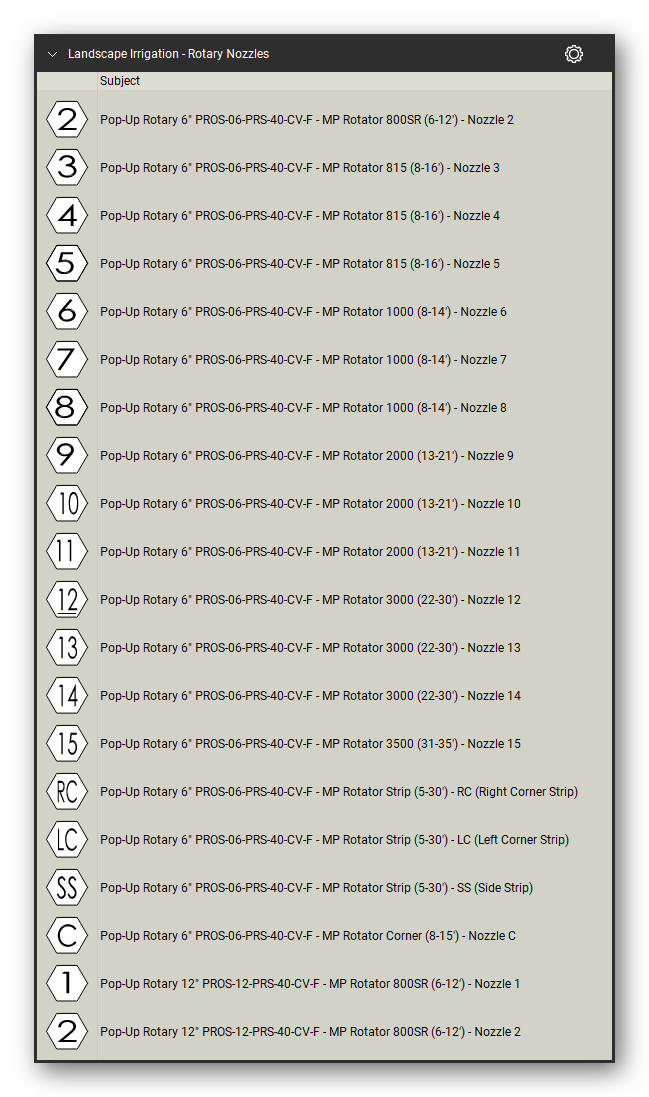

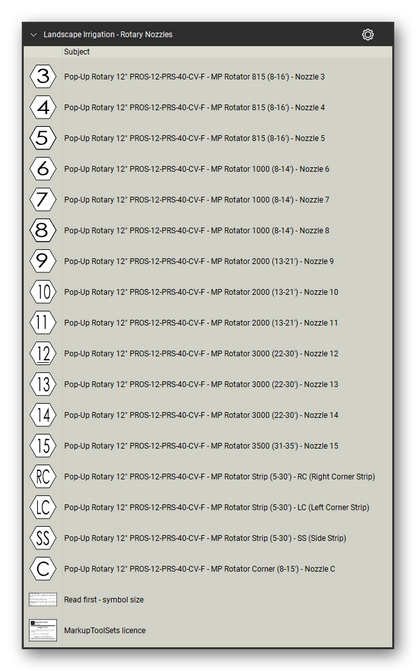

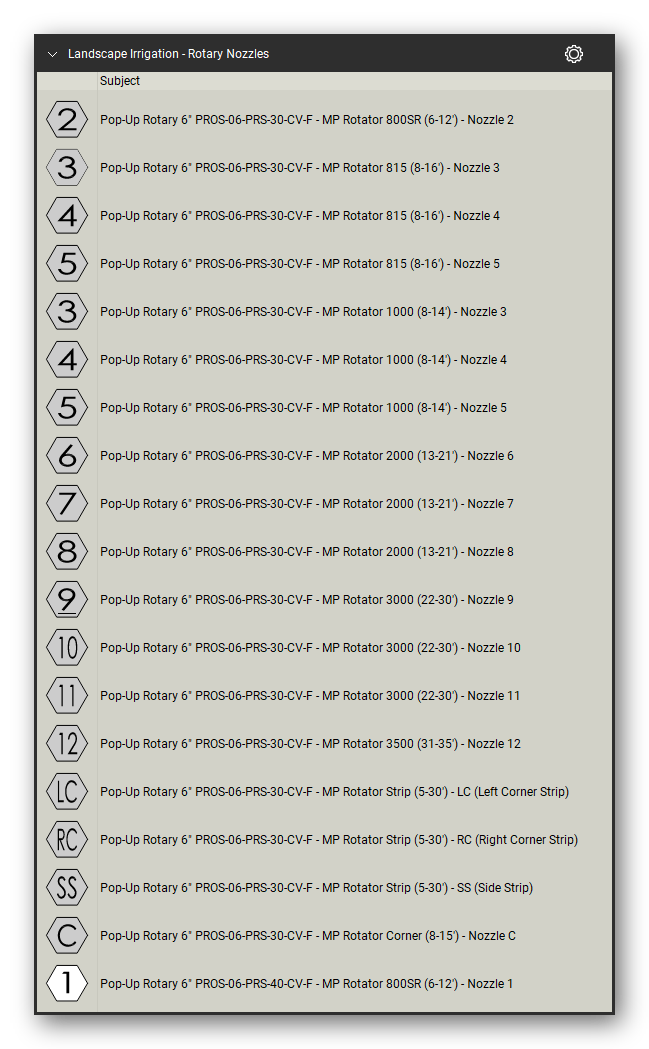

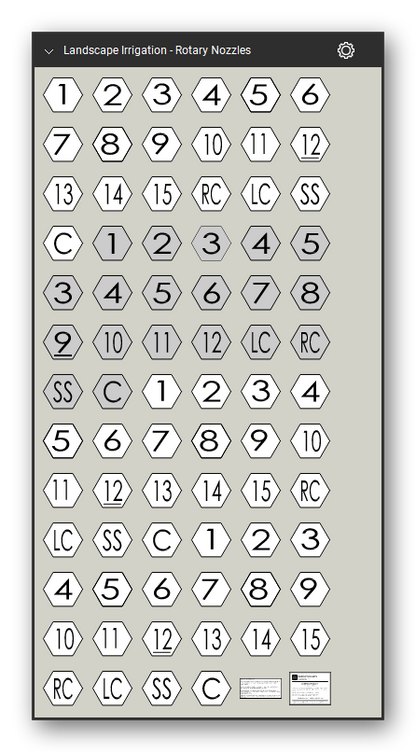

  • Numbered hexagon tags 1 to 15, corner nozzle, and right corner, left corner, and side strip nozzles
  • Rotary on riser and 6" and 12" pop-up bodies, 30 and 40 PSI

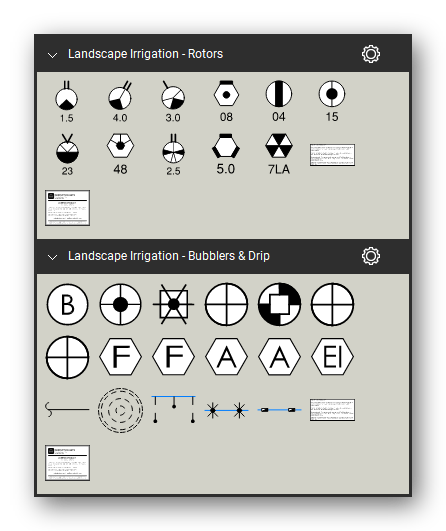

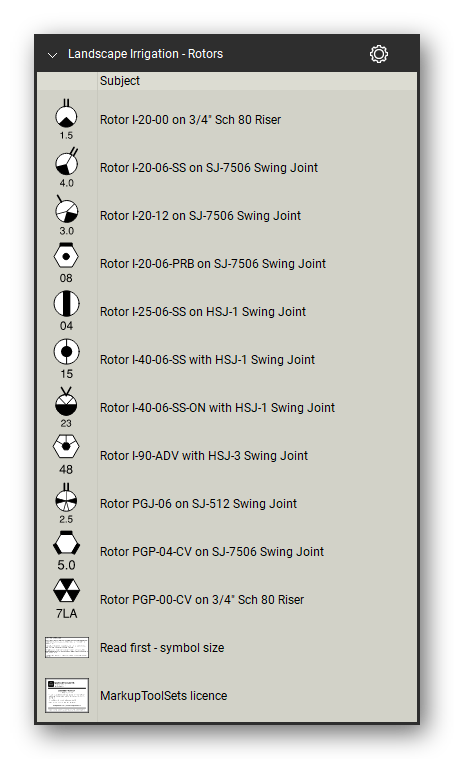

• Rotors
  • 11 rotors on risers and swing joints, each with an editable nozzle number

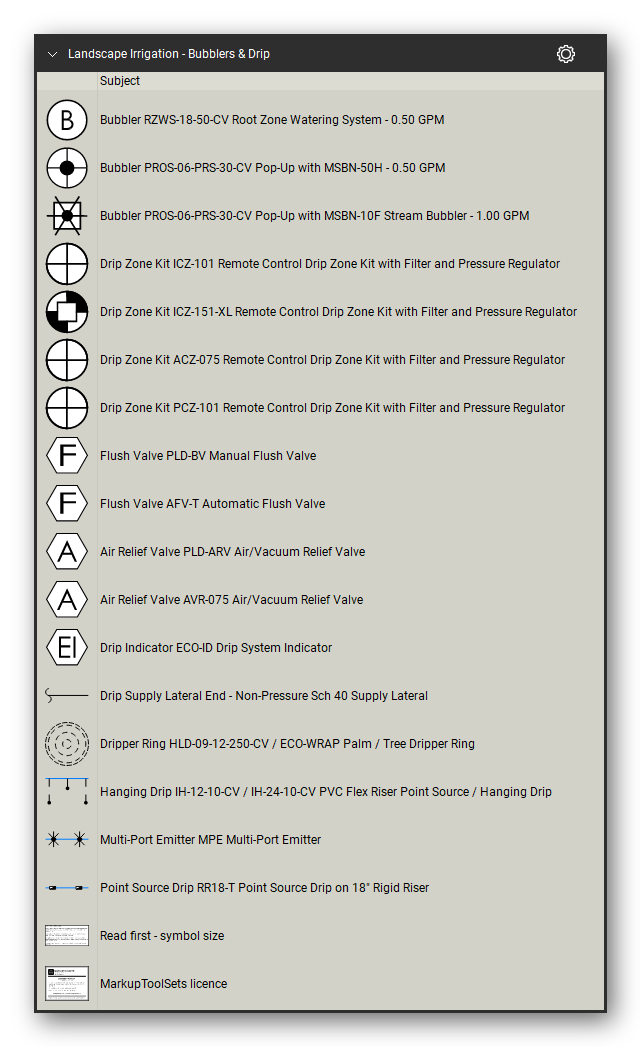

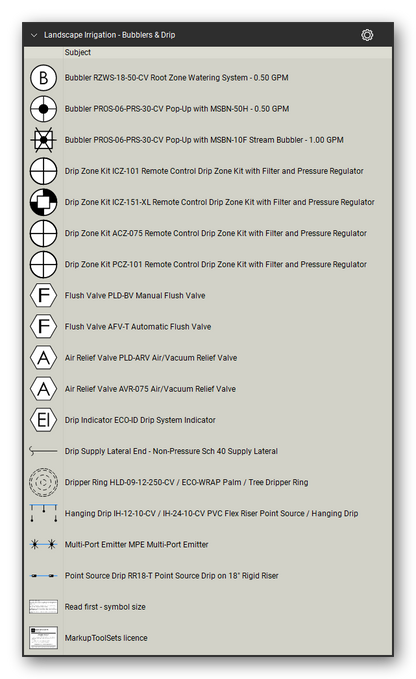

• Bubblers and drip
  • Root zone watering system, pop-up bubbler, and stream bubbler
  • Drip zone kits with filter and pressure regulator
  • Manual and automatic flush valves, air/vacuum relief valves, and drip system indicator
  • Dripper ring, hanging drip, multi-port emitter, point source drip, and supply lateral end

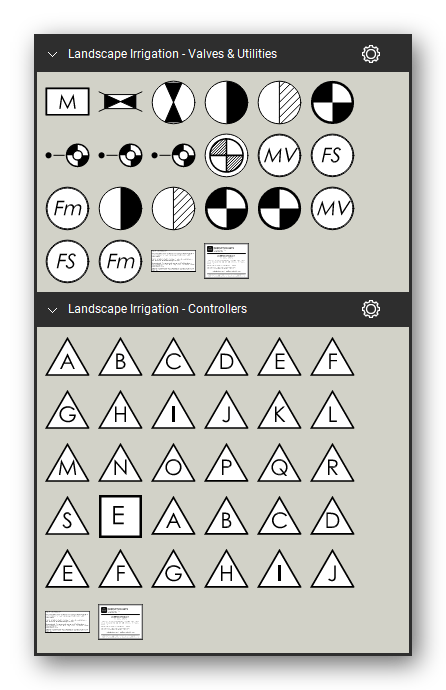

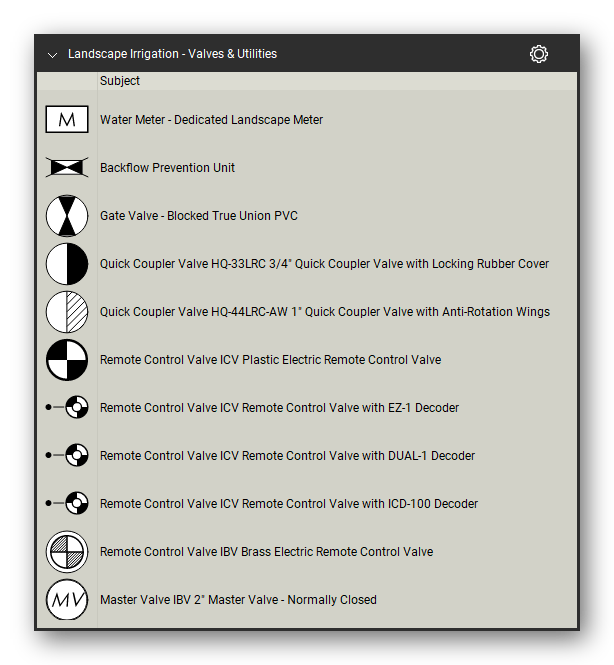

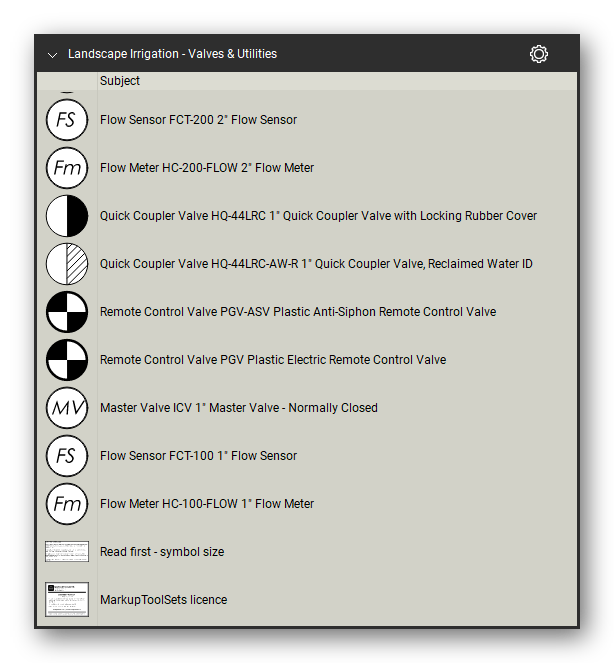

• Valves and utilities
  • Water meter, backflow prevention unit, and gate valve
  • Plastic and brass remote control valves, valves with decoders, and normally closed master valves
  • Quick coupler valves, including reclaimed water
  • Flow sensors and flow meters

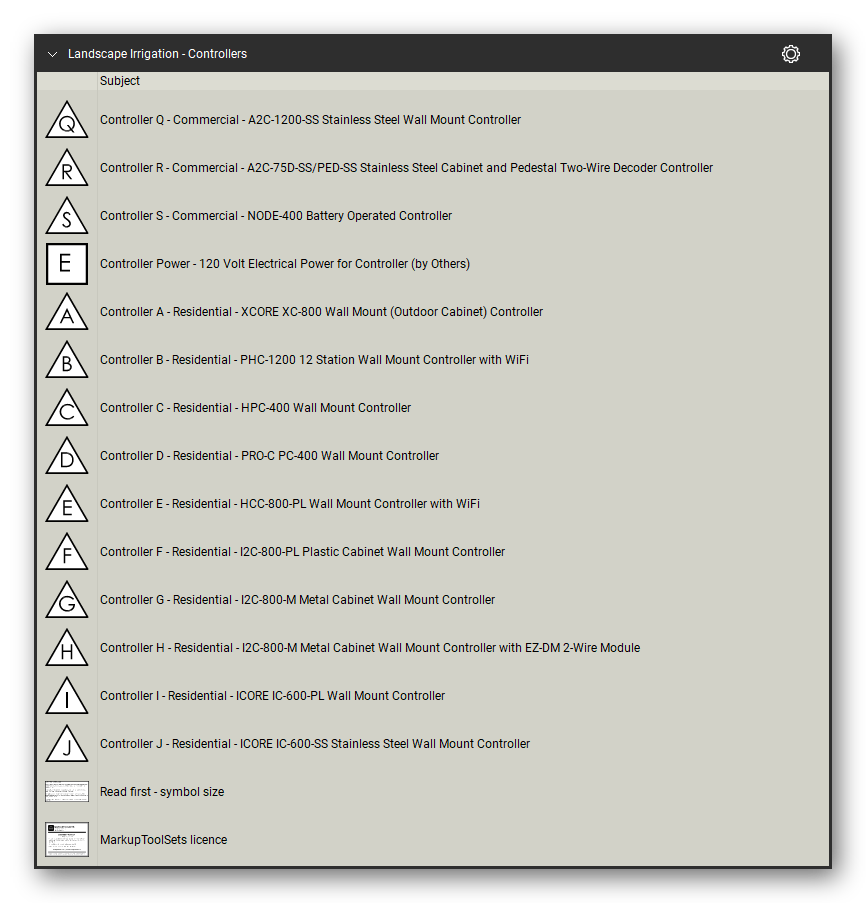

• Controllers

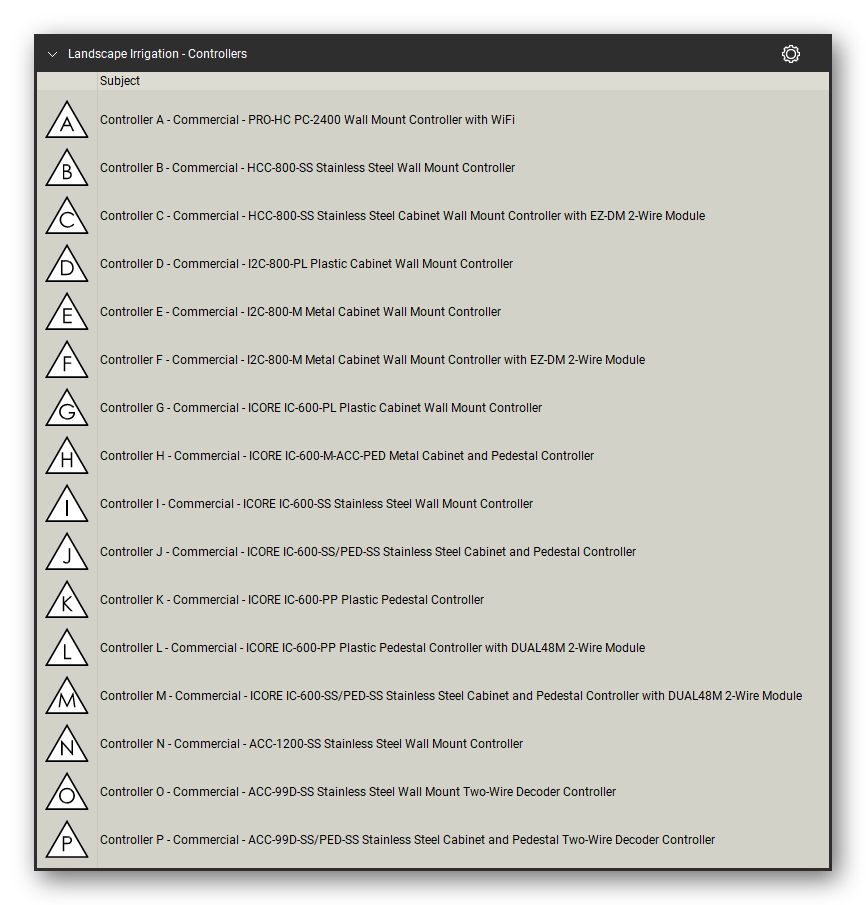

  • 30 lettered controller tags: commercial A to S and residential A to J
  • Wall mount, cabinet, pedestal, two-wire decoder, and battery operated controllers, and a 120 V power tag

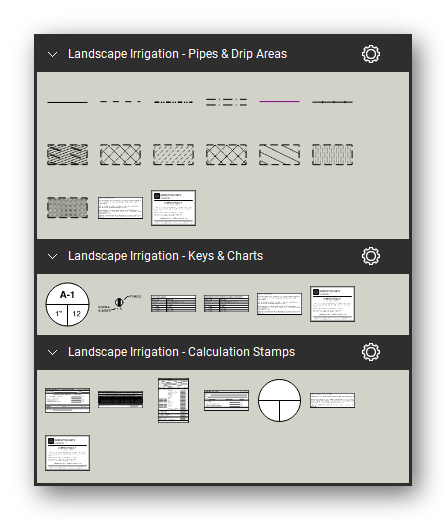

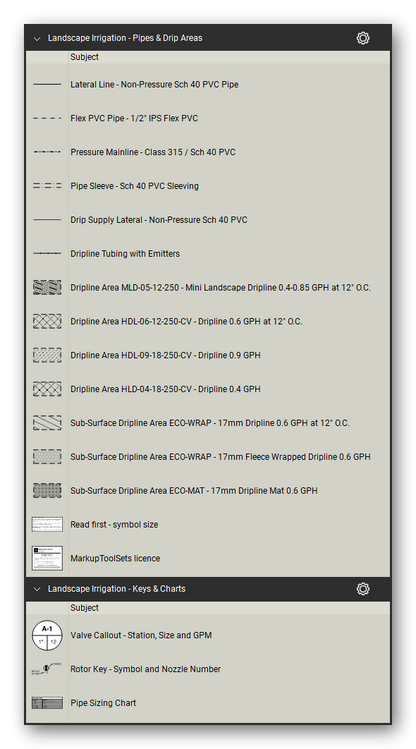

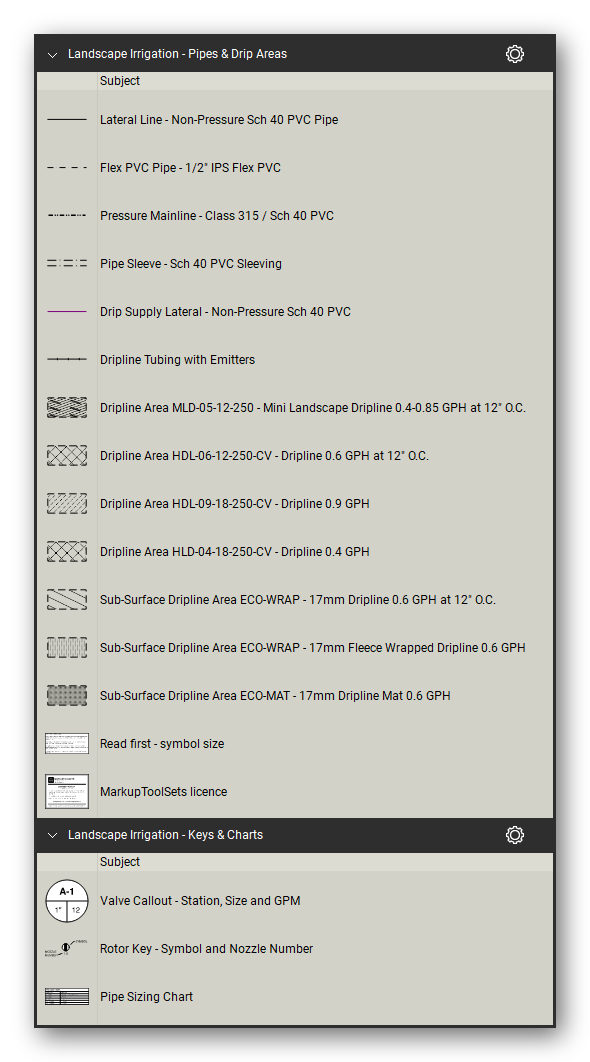

• Pipes and dripline areas
  • Lateral line, flex PVC pipe, pressure mainline, pipe sleeve, drip supply lateral, and dripline tubing with emitters — drawn point to point as Polyline markups with their legend line styles
  • 7 dripline and sub-surface dripline areas — drawn as Polygon markups with the hatch pattern of their legend row
  • The 4 line styles and 7 hatch patterns are also included as a line style set and a hatch pattern set for any other markup

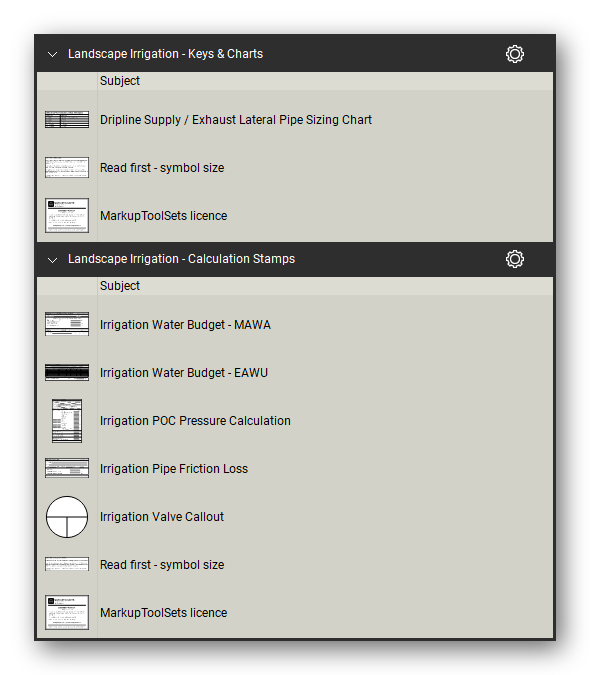

• Keys and charts
  • Valve callout with editable station number, valve size, and GPM
  • Rotor key with editable nozzle number
  • Pipe sizing chart and dripline supply / exhaust lateral pipe sizing chart with editable text
• Calculation stamps
  • Interactive stamps that ask for the figures when they are placed and print the results: maximum applied water allowance (MAWA), estimated applied water use (EAWU), point of connection pressure calculation, and pipe friction loss
  • Valve callout stamp

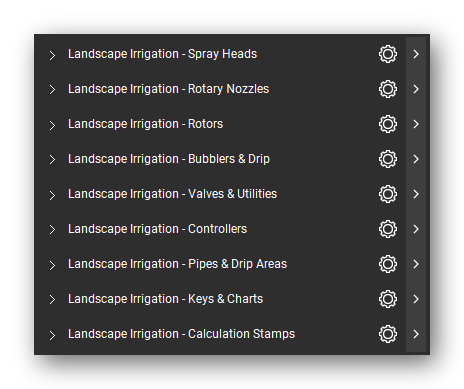

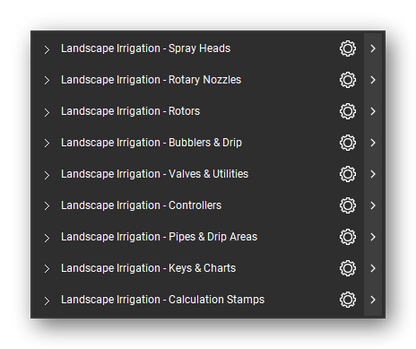

Delivered as a Bluebeam Revu profile that loads all 9 tool sets, the line style set, and the hatch pattern set in one import, plus the individual tool set files and the 5 stamp files, in black and redline.
