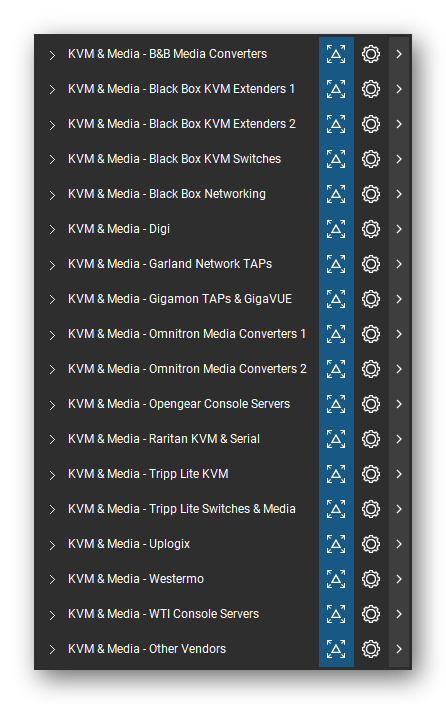

  • The Bluebeam Revu Tool Chest with the 18 tool sets of the KVM, Console Servers & Media Converters tool set loaded, closed to the set titles.
  • KVM, Console Servers & Media Converters tool set for Bluebeam Revu, B&B Media Converters set (tools 1-72 of 164) - 72 tools: 42U Network Rack, 3x RackMount, Blank Bracket, iMcV-SNMP, iMediaChassis/20, iMediaChassis/6, iMediaChassis/3, IE-PowerTray/18, IE-MediaChassis/1-DC, MediaChassis/1-DC and 62 more. Tool Chest in Symbol view.

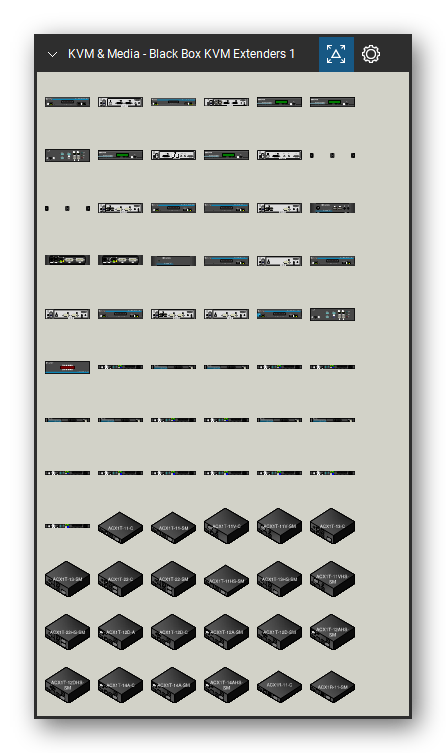

  • KVM, Console Servers & Media Converters tool set for Bluebeam Revu, Black Box KVM Extenders 1 set (tools 1-72 of 383) - 72 views of 43 devices, front and rear: ACR1002A-T, ACR1002A-R, ACR1000A, ACR1000A-CTL, ACR1000A-R, ACR1000A-T, RMK2004-2, ACR1000A-R-R2, DTX1002-R, DTX1002-T and 33 more. Tool Chest in Symbol view.
  • KVM, Console Servers & Media Converters tool set for Bluebeam Revu, Black Box KVM Extenders 2 set (tools 1-72 of 86) - 72 views of 57 devices, front and rear: LCD Monitor 1, LCD Monitor 2, LCD Monitor 3, LCD Monitor 4, LCD Monitor Generic, USB Keyboard, USB Mouse, Speakers, USB 2.0 Device, Desktop Computer Tower and 47 more. Tool Chest in Symbol view.
  • KVM, Console Servers & Media Converters tool set for Bluebeam Revu, Black Box KVM Switches set (tools 1-72 of 154) - 72 views of 44 devices, front and rear: EMS10G12, EMS1G24F, EMS0G12, EMS1G48, EMX1-48, EMS10G28, EMX10-28, EMS100G32, EMX100-32, Boxilla and 34 more. Tool Chest in Symbol view.

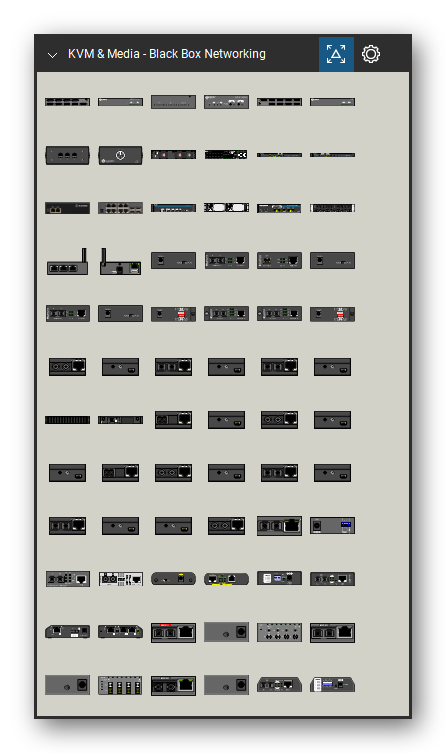

  • KVM, Console Servers & Media Converters tool set for Bluebeam Revu, Black Box Networking set (tools 1-72 of 213) - 72 views of 41 devices, front and rear: TL160A, TL601A-R2, TL158A-R4, SWJ-100A, EMS10G12, ET0100A, ET1000A, LES1608A, LES1608A (B), ET10000A and 31 more. Tool Chest in Symbol view.

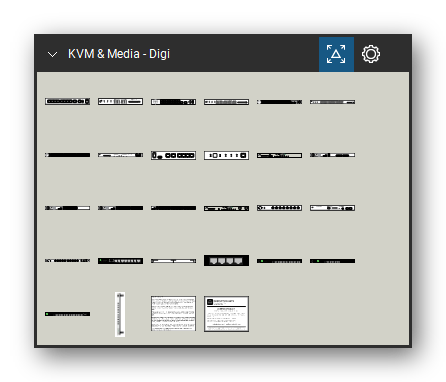

  • KVM, Console Servers & Media Converters tool set for Bluebeam Revu, Digi set - 26 views of 20 devices, front and rear: Digi CM 8, Digi CM 16, Digi CM 32, Digi CM 48, Digi Passport 4, Digi Passport 8 16 32, Digi Passport 8, Digi Passport 16, Digi Passport 32, Digi Passport 48 and 10 more. Tool Chest in Symbol view.

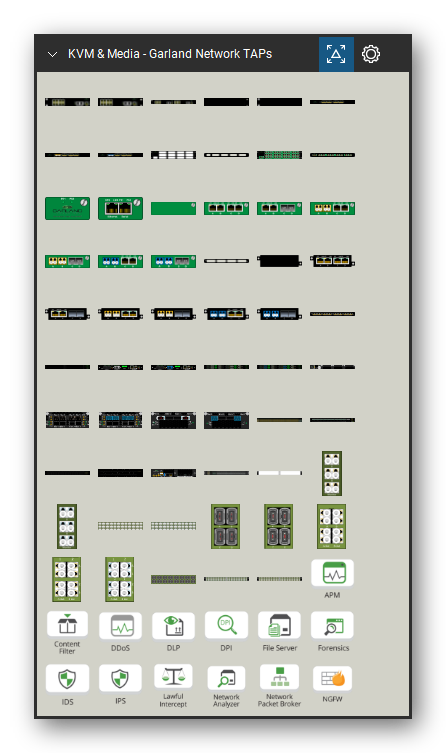

  • KVM, Console Servers & Media Converters tool set for Bluebeam Revu, Garland Network TAPs set (tools 1-72 of 103) - 72 views of 71 devices, side: INT1G10CSA, INT1G10CSA Two in Rack, Mounting Arm R, Mounting Arm L, INT1G8CCBP (RJ45), INT1G8MCBP (MMF), INT1G8SCBP (SMF), M1G2ACE (empty), M1G1ACE (empty), M1G2ACE (Full) and 61 more. Tool Chest in Symbol view.
  • KVM, Console Servers & Media Converters tool set for Bluebeam Revu, Gigamon TAPs & GigaVUE set (tools 1-72 of 108) - 72 views of 62 devices, front and rear: G-TAP A-SF, G-TAP-ATx Case, GTAP-ATX-1, GTAP-ATX-2, GTP-ASF21, GTP-ATX21, PNL-M341, PNL-M341T, PNL-M343, PNL-M343T and 52 more. Tool Chest in Symbol view.
  • KVM, Console Servers & Media Converters tool set for Bluebeam Revu, Omnitron Media Converters 1 set (tools 1-72 of 311) - 72 tools: FlexPoint 14-module Chassis, FlexPoint 10AUI/T Chassis, FlexPoint 10T/2 Chassis, FlexPoint 10FL/T ST Chassis, FlexPoint 10FL/T SC Chassis, FlexPoint 10FL/2 ST Chassis, FlexPoint 10/100 SFP Chassis, FlexPoint 10/100 ST Chassis, FlexPoint 10/100 SC Chassis, FlexPoint 100Fx/Tx ST Chassis and 62 more. Tool Chest in Symbol view.

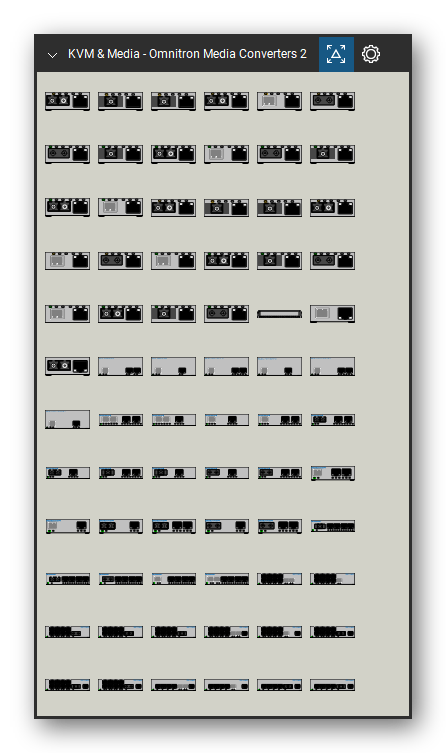

  • KVM, Console Servers & Media Converters tool set for Bluebeam Revu, Omnitron Media Converters 2 set (tools 1-72 of 161) - 72 tools: miConverter 10/100 SC/DF, miConverter 10/100 SC/SF, miConverter Gx SC/SF, miConverter Gx SC/DF, miConverter GX/T SFP, miConverter GX/T ST/DF, miConverter 10/100 PoE/D ST/DF, miConverter 10/100 PoE/D SC/SF, miConverter 10/100 PoE/D SC/DF, miConverter 10/100 PoE/D SFP and 61 more. Tool Chest in Symbol view.
  • KVM, Console Servers & Media Converters tool set for Bluebeam Revu, Opengear Console Servers set (tools 1-72 of 117) - 72 views of 46 devices, front and rear: CM8116, CM8132, CM8148, OM1204, OM1204-4E, OM1204-4E-L, OM1204-L, OM1208, OM1208-8E, OM1208-8E-DP and 36 more. Tool Chest in Symbol view.

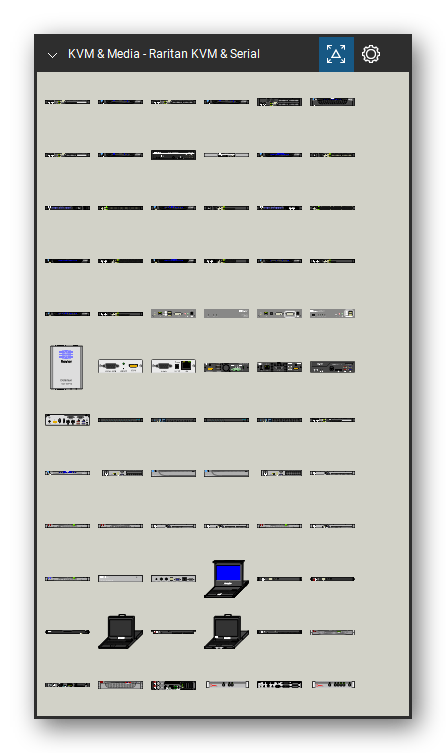

  • KVM, Console Servers & Media Converters tool set for Bluebeam Revu, Raritan KVM & Serial set (tools 1-72 of 152) - 72 views of 37 devices, front, rear, top and isometric: Legrand DKX3-108/DKX3-808, Legrand DKX3-132/DKX3-232/DKX3-432/DKX3-832, Legrand DKX3-464/DKX3-864, Legrand DKX3-116/DKX3-216/DKX3-416, Legrand DKX3-UST, Legrand DKX3-UST Rackmount, Legrand DSX2-32M DC, Legrand DSX2-48M DC, Legrand DSX2-8M DC, Legrand DSX2-48M and 27 more. Tool Chest in Symbol view.
  • KVM, Console Servers & Media Converters tool set for Bluebeam Revu, Tripp Lite KVM set (tools 1-72 of 105) - 72 views of 32 devices, front, rear and isometric: B004-2DUA2-K, B004-2DUA4-K, B004-DUA2-HR-K, B004-DUA4-HR-K, B006-VUA4-K-R, B006-VUA4-K-R (Rackmount) (3FR, B006-VUA4-K-R (Rackmount), B020-U08-19-IP, B020-U08-19-K, B020-U08-19-KTAA and 22 more. Tool Chest in Symbol view.

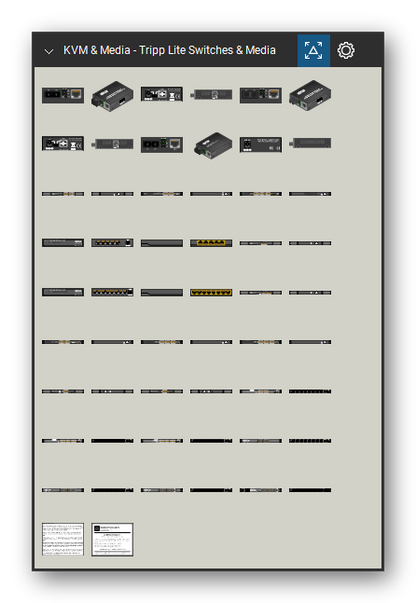

  • KVM, Console Servers & Media Converters tool set for Bluebeam Revu, Tripp Lite Switches & Media set - 54 views of 24 devices, front, rear, side and isometric: N784-001-SC, N784-001-ST, N785-001-SC, NG16, NG16POE, NG24, NG5, NG5P, NG5POE, NG8 and 14 more. Tool Chest in Symbol view.
  • KVM, Console Servers & Media Converters tool set for Bluebeam Revu, Uplogix set - 56 views of 54 devices, front, rear and isometric: Components - 2901/K9, 2901/K9, 2911/K9, SM-SRE-900-K9, HWIC-4ESW, HWIC-2SHDSL, HWIC-ADSLI-B/ST, HWIC-4T1/E1, HWIC-8A/S-232, NME-WAE-502-K9 and 44 more. Tool Chest in Symbol view.

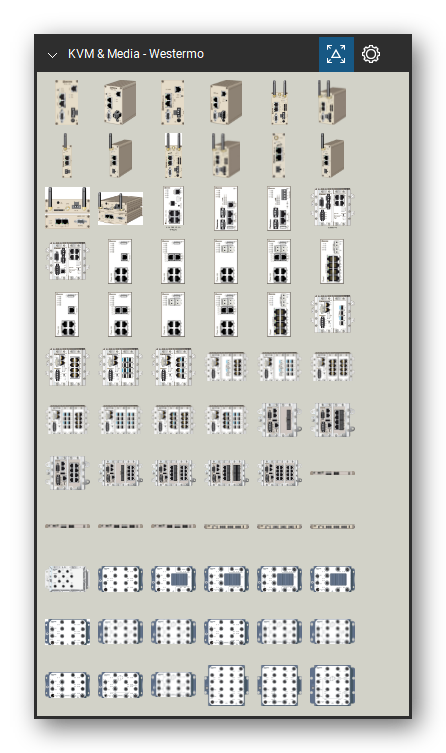

  • KVM, Console Servers & Media Converters tool set for Bluebeam Revu, Westermo set (tools 1-72 of 85) - 72 tools: ADSL-350, ADSL-350_ISO, BRD-355, BRD-355_ISO, MRD-355, MRD-355_ISO, MRD-305, MRD-305_ISO, MRD-455, MRD-455_ISO and 61 more. Tool Chest in Symbol view.
  • KVM, Console Servers & Media Converters tool set for Bluebeam Revu, WTI Console Servers set (tools 1-72 of 133) - 72 tools: WTI AFS-16-1, WTI CPM-800-1-ECAM, WTI CPM-800-1, WTI CPM-800-A, WTI CPM-800-1-AM, WTI CPM-800-1-C, WTI CPM-800-1-CA, WTI CPM-800-1-CAM, WTI CPM-800-1-CM, WTI CPM-800-1-E and 61 more. Tool Chest in Symbol view.

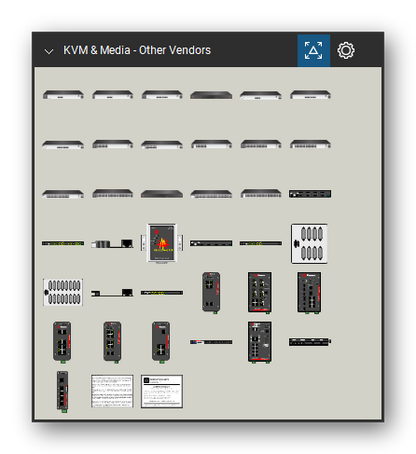

  • KVM, Console Servers & Media Converters tool set for Bluebeam Revu, Other Vendors set - 37 tools: Avocent ACS6004MDAC_b, Avocent ACS6004MSAC_b, Avocent ACS6008MDAC_b, Avocent ACS6008MDAC_f, Avocent ACS6004MSDC_b, Avocent ACS6008MSAC_b, Avocent ACS6008MSDC_b, Avocent ACS6016DAC_b, Avocent ACS6016MDDC_b, Avocent ACS6016MSAC_b and 27 more. Tool Chest in Symbol view.

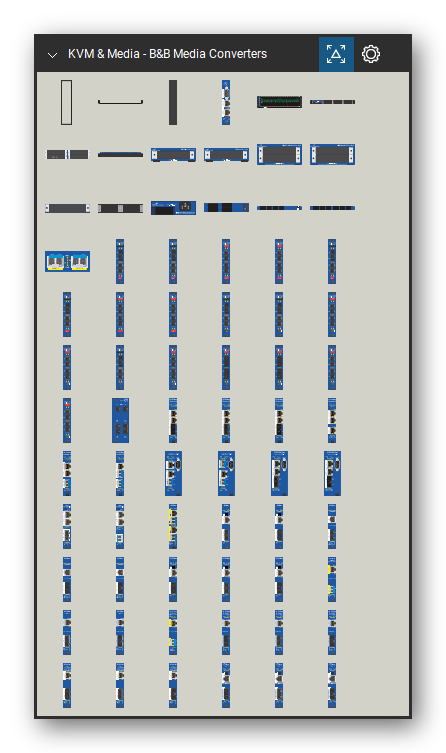

  • KVM, Console Servers & Media Converters tool set for Bluebeam Revu, B&B Media Converters set (tools 1-20 of 164) - 20 tools: 42U Network Rack, 3x RackMount, Blank Bracket, iMcV-SNMP, iMediaChassis/20, iMediaChassis/6, iMediaChassis/3, IE-PowerTray/18, IE-MediaChassis/1-DC, MediaChassis/1-DC and 10 more. Tool Chest in Detail view, one row per tool with its name.

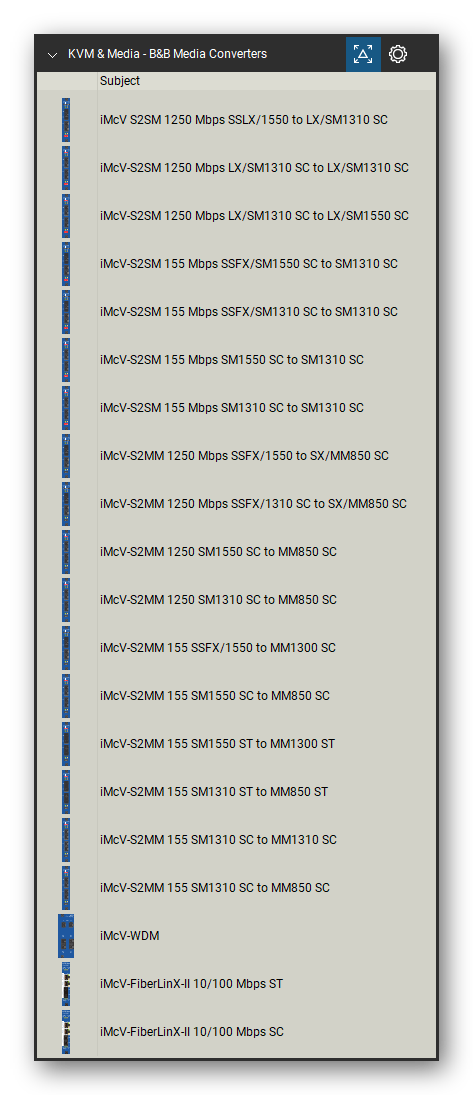

  • KVM, Console Servers & Media Converters tool set for Bluebeam Revu, B&B Media Converters set (tools 21-40 of 164) - 20 tools: iMcV S2SM 1250 Mbps SSLX/1550 to LX/SM1310, iMcV-S2SM 1250 Mbps LX/SM1310 SC, iMcV-S2SM 155 Mbps SSFX/SM1550 SC to SM1310, iMcV-S2SM 155 Mbps SSFX/SM1310 SC to SM1310, iMcV-S2SM 155 Mbps SM1550 SC to SM1310 SC, iMcV-S2SM 155 Mbps SM1310 SC to SM1310 SC, iMcV-S2MM 1250 Mbps SSFX/1550 to SX/MM850 SC and more. Tool Chest in Detail view, one row per tool with its name.
  • KVM, Console Servers & Media Converters tool set for Bluebeam Revu, B&B Media Converters set (tools 41-60 of 164) - 20 tools: iMcV-FiberLinX-II 10/100 Mbps SSFX, iMcV-FiberLinX-II 10/100 Mbps TX/2TX, iMcV-FiberLinX-II 10/100 Mbps SFP, iMcV-FiberLinX-II 10/100 Mbps SFP/SFP, iMcV-Giga-FiberLinX-II 10/100/1000 Mbps, iMcV-Giga-FiberLinX-II 10/100/1000 TX/FX SC, iMcV-Giga-FiberLinX-III 10/100/1000 Mbps, IE-iMcV-2xLIM 100 Mbps and more. Tool Chest in Detail view, one row per tool with its name.
  • KVM, Console Servers & Media Converters tool set for Bluebeam Revu, Black Box KVM Extenders 1 set (tools 1-20 of 383) - 20 views of 10 devices, front and rear: ACR1002A-T, ACR1002A-R, ACR1000A, ACR1000A-CTL, ACR1000A-R, ACR1000A-T, RMK2004-2, ACR1000A-R-R2, DTX1002-R and DTX1002-T. Tool Chest in Detail view, one row per tool with its name.

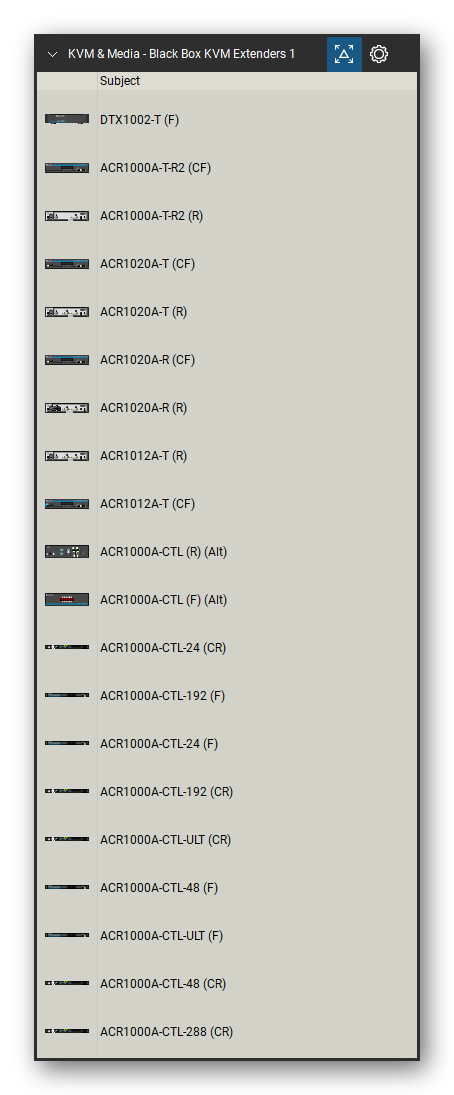

  • KVM, Console Servers & Media Converters tool set for Bluebeam Revu, Black Box KVM Extenders 1 set (tools 21-40 of 383) - 20 views of 11 devices, front and rear: DTX1002-T, ACR1000A-T-R2, ACR1020A-T, ACR1020A-R, ACR1012A-T, ACR1000A-CTL, ACR1000A-CTL-24, ACR1000A-CTL-192, ACR1000A-CTL-ULT, ACR1000A-CTL-48 and 1 more. Tool Chest in Detail view, one row per tool with its name.
  • KVM, Console Servers & Media Converters tool set for Bluebeam Revu, Black Box KVM Extenders 1 set (tools 41-60 of 383) - 20 views of 17 devices, front and rear: ACR1000A-CTL-96, ACR1000A-CTL-288, ACR1000A-CTL-192, ACR1000A-CTL-48, ACR1000A-CTL-ULT, ACR1000A-CTL-24, ACX1T-11-C, ACX1T-11-SM, ACX1T-11V-C, ACX1T-11V-SM and 7 more. Tool Chest in Detail view, one row per tool with its name.
  • KVM, Console Servers & Media Converters tool set for Bluebeam Revu, Black Box KVM Extenders 2 set (tools 1-20 of 86) - 20 tools: LCD Monitor 1, LCD Monitor 2, LCD Monitor 3, LCD Monitor 4, LCD Monitor Generic, USB Keyboard, USB Mouse, Speakers, USB 2.0 Device, Desktop Computer Tower and 10 more. Tool Chest in Detail view, one row per tool with its name.
  • KVM, Console Servers & Media Converters tool set for Bluebeam Revu, Black Box KVM Extenders 2 set (tools 21-40 of 86) - 20 views of 13 devices, front and rear: PS3 Standing, XBOX360 Console, XBOX360 Controller, RS232 Device, RS422 Device, RS485 Device, ACX0808, ACX0816, ACX0832, ACX1616 and 3 more. Tool Chest in Detail view, one row per tool with its name.

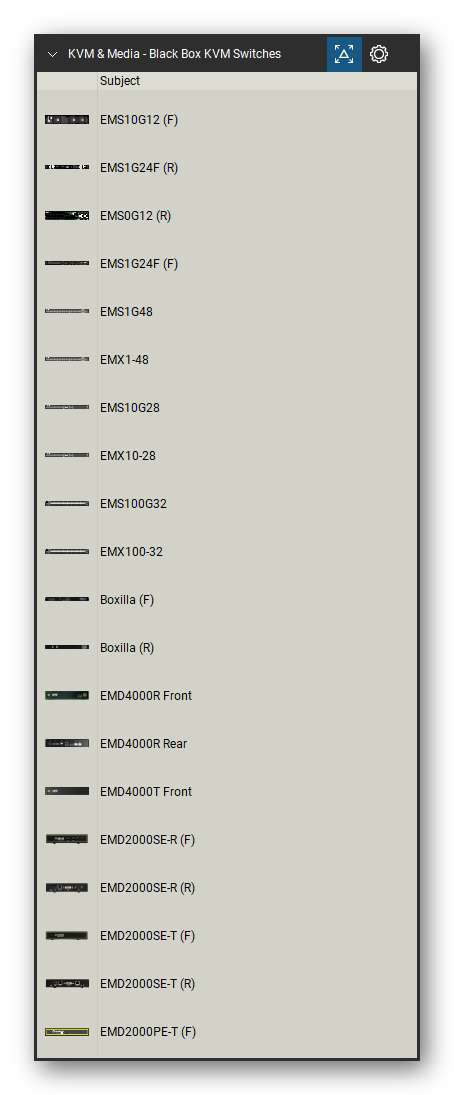

  • KVM, Console Servers & Media Converters tool set for Bluebeam Revu, Black Box KVM Switches set (tools 1-20 of 154) - 20 views of 15 devices, front and rear: EMS10G12, EMS1G24F, EMS0G12, EMS1G48, EMX1-48, EMS10G28, EMX10-28, EMS100G32, EMX100-32, Boxilla and 5 more. Tool Chest in Detail view, one row per tool with its name.

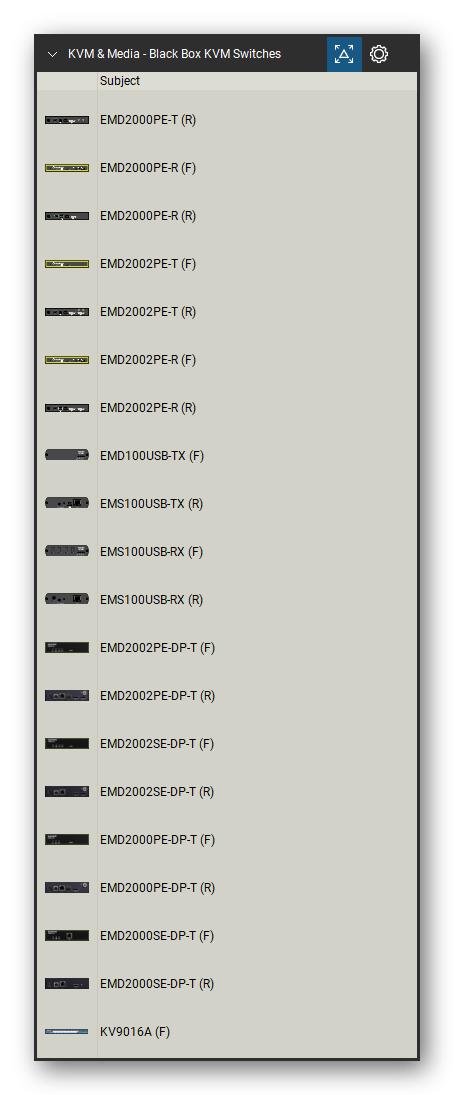

  • KVM, Console Servers & Media Converters tool set for Bluebeam Revu, Black Box KVM Switches set (tools 21-40 of 154) - 20 views of 12 devices, front and rear: EMD2000PE-T, EMD2000PE-R, EMD2002PE-T, EMD2002PE-R, EMD100USB-TX, EMS100USB-TX, EMS100USB-RX, EMD2002PE-DP-T, EMD2002SE-DP-T, EMD2000PE-DP-T and 2 more. Tool Chest in Detail view, one row per tool with its name.

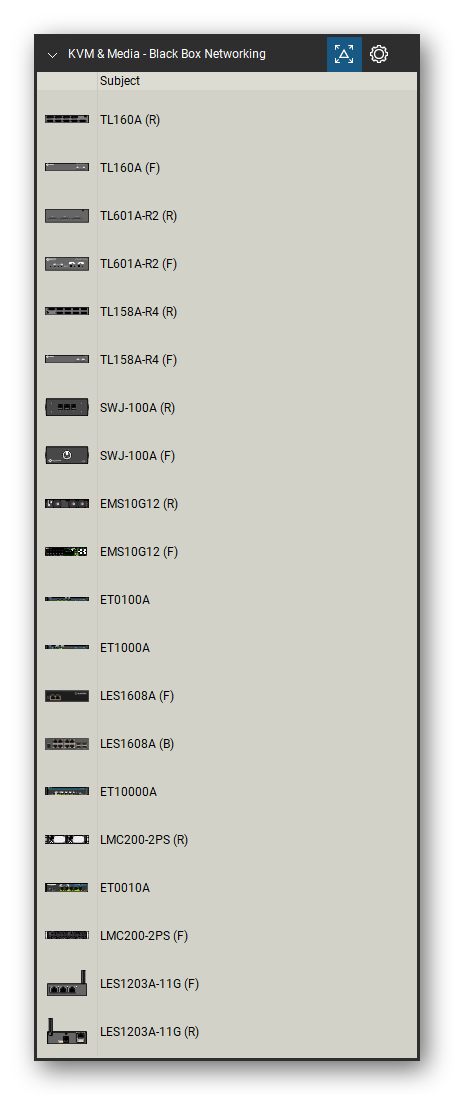

  • KVM, Console Servers & Media Converters tool set for Bluebeam Revu, Black Box Networking set (tools 1-20 of 213) - 20 views of 13 devices, front and rear: TL160A, TL601A-R2, TL158A-R4, SWJ-100A, EMS10G12, ET0100A, ET1000A, LES1608A, LES1608A (B), ET10000A and 3 more. Tool Chest in Detail view, one row per tool with its name.

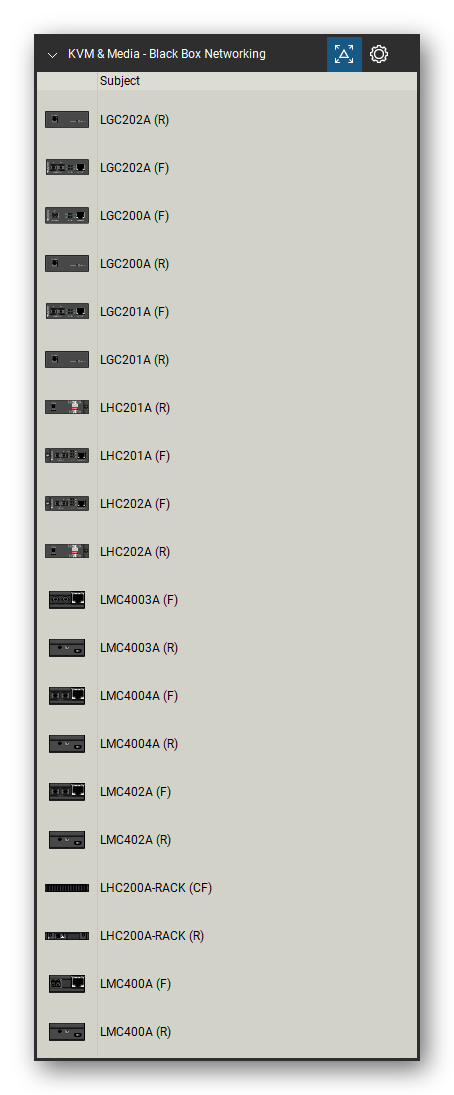

  • KVM, Console Servers & Media Converters tool set for Bluebeam Revu, Black Box Networking set (tools 21-40 of 213) - 20 views of 10 devices, front and rear: LGC202A, LGC200A, LGC201A, LHC201A, LHC202A, LMC4003A, LMC4004A, LMC402A, LHC200A-RACK and LMC400A. Tool Chest in Detail view, one row per tool with its name.

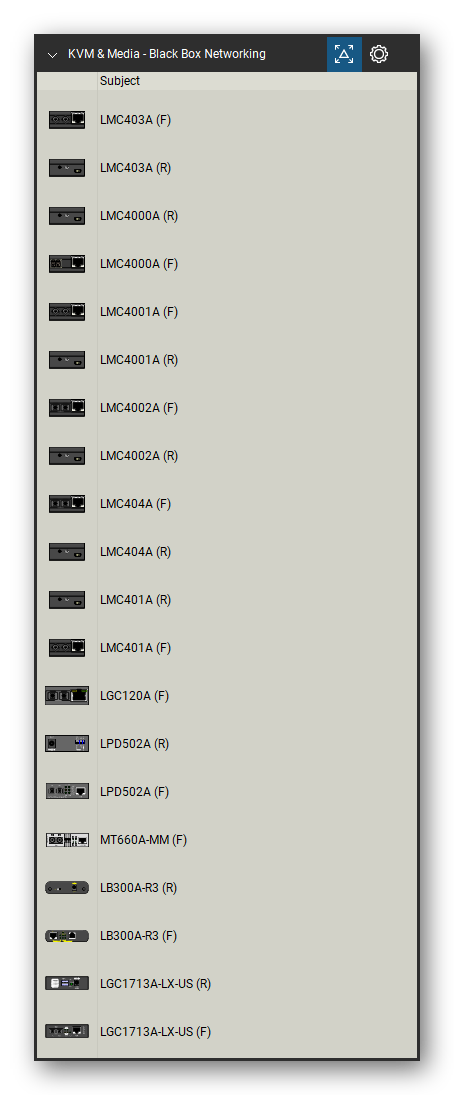

  • KVM, Console Servers & Media Converters tool set for Bluebeam Revu, Black Box Networking set (tools 41-60 of 213) - 20 views of 11 devices, front and rear: LMC403A, LMC4000A, LMC4001A, LMC4002A, LMC404A, LMC401A, LGC120A, LPD502A, MT660A-MM, LB300A-R3 and 1 more. Tool Chest in Detail view, one row per tool with its name.

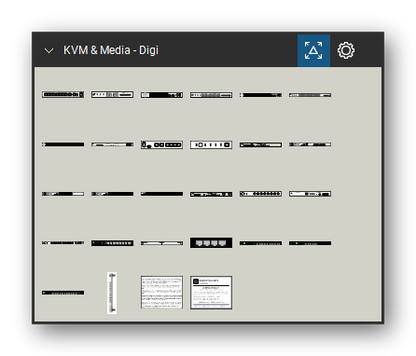

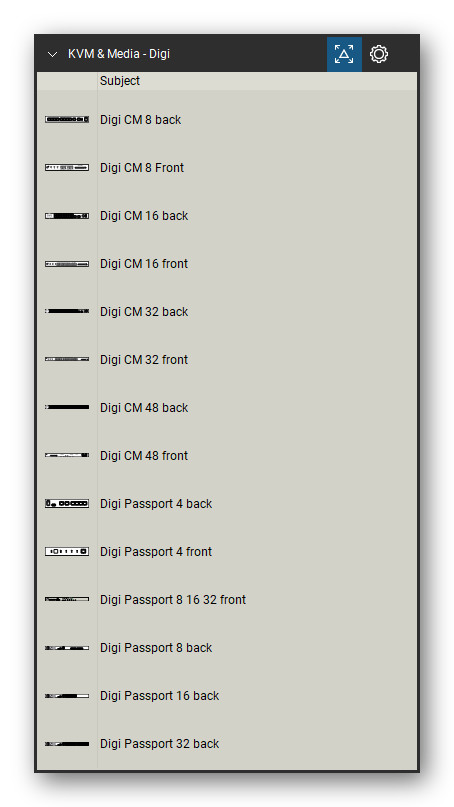

  • KVM, Console Servers & Media Converters tool set for Bluebeam Revu, Digi set (tools 1-14 of 26) - 14 views of 9 devices, front and rear: Digi CM 8, Digi CM 16, Digi CM 32, Digi CM 48, Digi Passport 4, Digi Passport 8 16 32, Digi Passport 8, Digi Passport 16 and Digi Passport 32. Tool Chest in Detail view, one row per tool with its name.

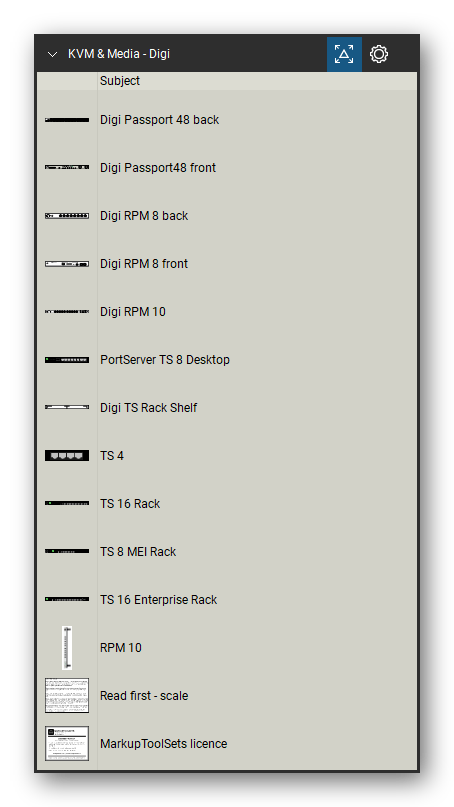

  • KVM, Console Servers & Media Converters tool set for Bluebeam Revu, Digi set (tools 15-26 of 26) - 12 views of 11 devices, front and rear: Digi Passport 48, Digi Passport48, Digi RPM 8, Digi RPM 10, PortServer TS 8 Desktop, Digi TS Rack Shelf, TS 4, TS 16 Rack, TS 8 MEI Rack, TS 16 Enterprise Rack and 1 more. Tool Chest in Detail view, one row per tool with its name.

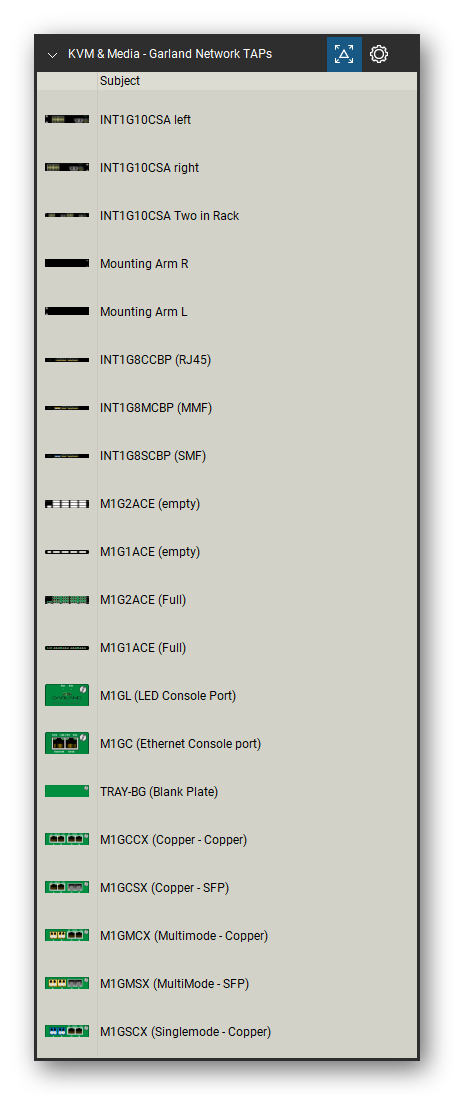

  • KVM, Console Servers & Media Converters tool set for Bluebeam Revu, Garland Network TAPs set (tools 1-20 of 103) - 20 views of 19 devices, side: INT1G10CSA, INT1G10CSA Two in Rack, Mounting Arm R, Mounting Arm L, INT1G8CCBP (RJ45), INT1G8MCBP (MMF), INT1G8SCBP (SMF), M1G2ACE (empty), M1G1ACE (empty), M1G2ACE (Full) and 9 more. Tool Chest in Detail view, one row per tool with its name.

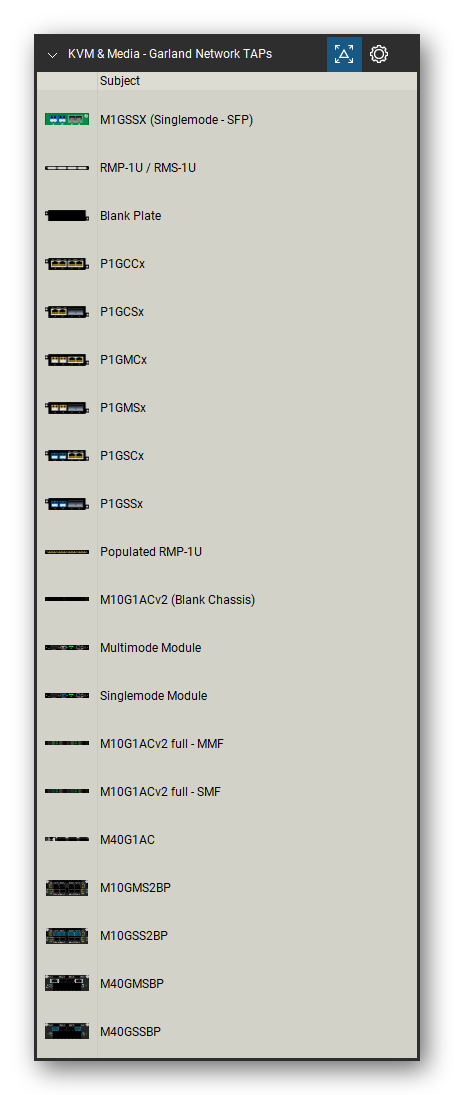

  • KVM, Console Servers & Media Converters tool set for Bluebeam Revu, Garland Network TAPs set (tools 21-40 of 103) - 20 tools: M1GSSX (Singlemode - SFP), RMP-1U / RMS-1U, Blank Plate, P1GCCx, P1GCSx, P1GMCx, P1GMSx, P1GSCx, P1GSSx, Populated RMP-1U and 10 more. Tool Chest in Detail view, one row per tool with its name.

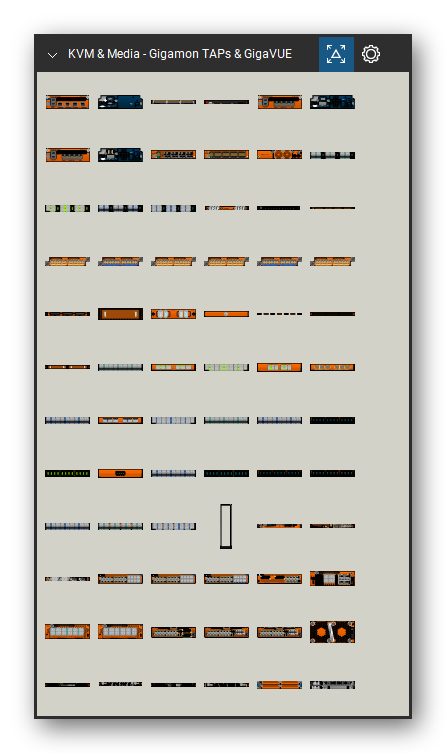

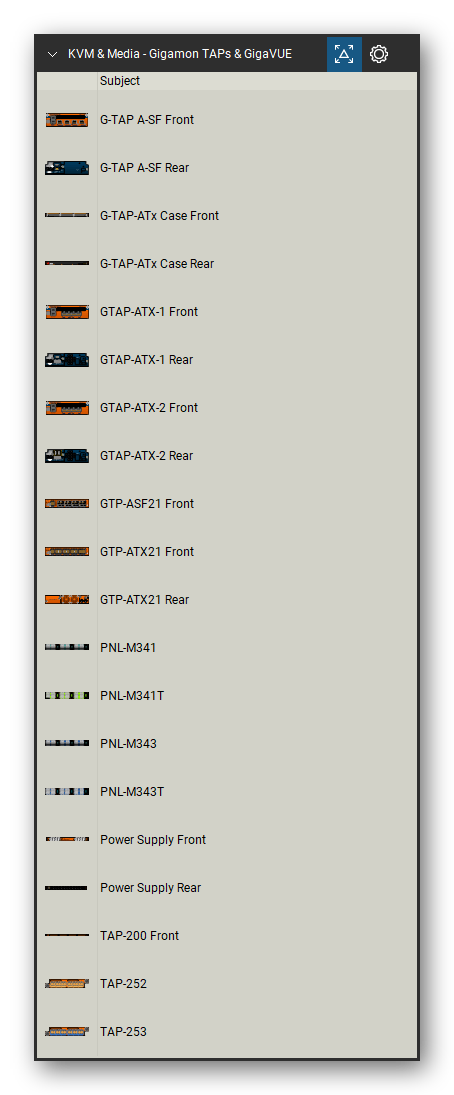

  • KVM, Console Servers & Media Converters tool set for Bluebeam Revu, Gigamon TAPs & GigaVUE set (tools 1-20 of 108) - 20 views of 14 devices, front and rear: G-TAP A-SF, G-TAP-ATx Case, GTAP-ATX-1, GTAP-ATX-2, GTP-ASF21, GTP-ATX21, PNL-M341, PNL-M341T, PNL-M343, PNL-M343T and 4 more. Tool Chest in Detail view, one row per tool with its name.
  • KVM, Console Servers & Media Converters tool set for Bluebeam Revu, Gigamon TAPs & GigaVUE set (tools 21-40 of 108) - 20 tools: TAP-255, TAP-272, TAP-273, TAP-275, TAP-500, TAP-500E, TAP-506, TAP-M Cover, TAP-M100T, TAP-M200 and 10 more. Tool Chest in Detail view, one row per tool with its name.

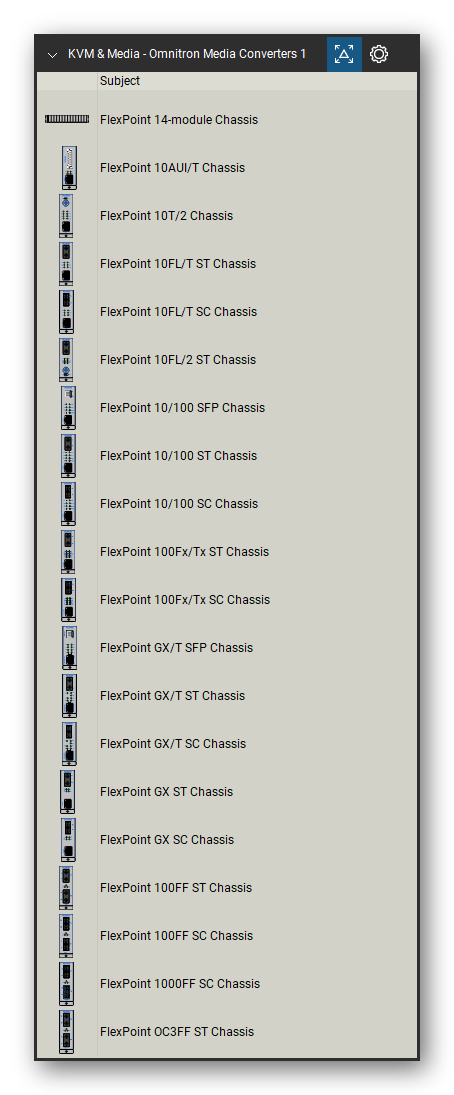

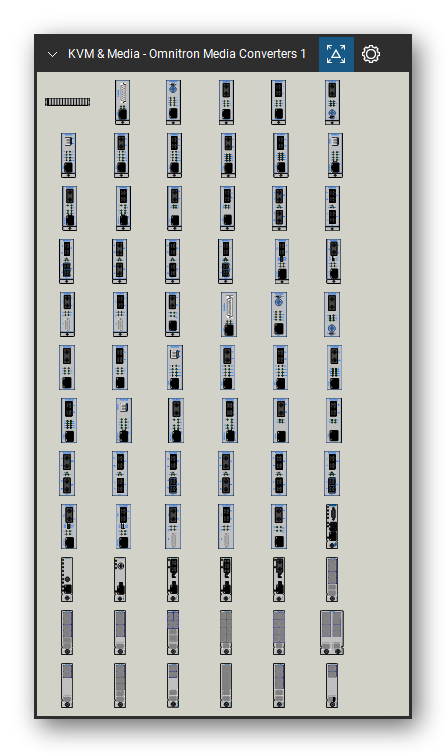

  • KVM, Console Servers & Media Converters tool set for Bluebeam Revu, Omnitron Media Converters 1 set (tools 1-20 of 311) - 20 tools: FlexPoint 14-module Chassis, FlexPoint 10AUI/T Chassis, FlexPoint 10T/2 Chassis, FlexPoint 10FL/T ST Chassis, FlexPoint 10FL/T SC Chassis, FlexPoint 10FL/2 ST Chassis, FlexPoint 10/100 SFP Chassis, FlexPoint 10/100 ST Chassis, FlexPoint 10/100 SC Chassis, FlexPoint 100Fx/Tx ST Chassis and 10 more. Tool Chest in Detail view, one row per tool with its name.
  • KVM, Console Servers & Media Converters tool set for Bluebeam Revu, Omnitron Media Converters 1 set (tools 21-40 of 311) - 20 tools: FlexPoint OC3FF SC Chassis, FlexPoint OC12FF SC Chassis, FlexPoint T1/E1 SC Chassis, FlexPoint T1/E1 ST Chassis, FlexPoint RS-232 ST Chassis, FlexPoint RS-232 SC Chassis, FlexPoint TR ST Chassis, FlexPoint 10AUI/T, FlexPoint 10T/2, FlexPoint 10FL/2 ST and 10 more. Tool Chest in Detail view, one row per tool with its name.
  • KVM, Console Servers & Media Converters tool set for Bluebeam Revu, Omnitron Media Converters 1 set (tools 41-60 of 311) - 20 tools: FlexPoint GX ST, FlexPoint GX SC, FlexPoint 100FF ST, FlexPoint 100FF SC, FlexPoint 1000FF SC, FlexPoint OC3FF ST, FlexPoint OC3FF SC, FlexPoint OC12FF SC, FlexPoint T1/E1 ST, FlexPoint T1/E1 SC and 10 more. Tool Chest in Detail view, one row per tool with its name.
  • KVM, Console Servers & Media Converters tool set for Bluebeam Revu, Omnitron Media Converters 2 set (tools 1-20 of 161) - 20 tools: miConverter 10/100 SC/DF, miConverter 10/100 SC/SF, miConverter Gx SC/SF, miConverter Gx SC/DF, miConverter GX/T SFP, miConverter GX/T ST/DF, miConverter 10/100 PoE/D ST/DF, miConverter 10/100 PoE/D SC/SF, miConverter 10/100 PoE/D SC/DF, miConverter 10/100 PoE/D SFP and 10 more. Tool Chest in Detail view, one row per tool with its name.
  • KVM, Console Servers & Media Converters tool set for Bluebeam Revu, Omnitron Media Converters 2 set (tools 21-40 of 161) - 20 tools: miConverter 10/100 PoE/D SFP Chassis, miConverter 10/100 PoE/D SC/DF Chassis, miConverter 10/100 PoE/D SC/SF Chassis, miConverter 10/100 PoE/D ST/DF Chassis, miConverter GX/T PoE/D SFP Chassis, miConverter GX/T PoE/D SC/DF Chassis, miConverter GX/T PoE/D SC/SF Chassis, miConverter GX/T PoE/D ST/DF Chassis and more. Tool Chest in Detail view, one row per tool with its name.

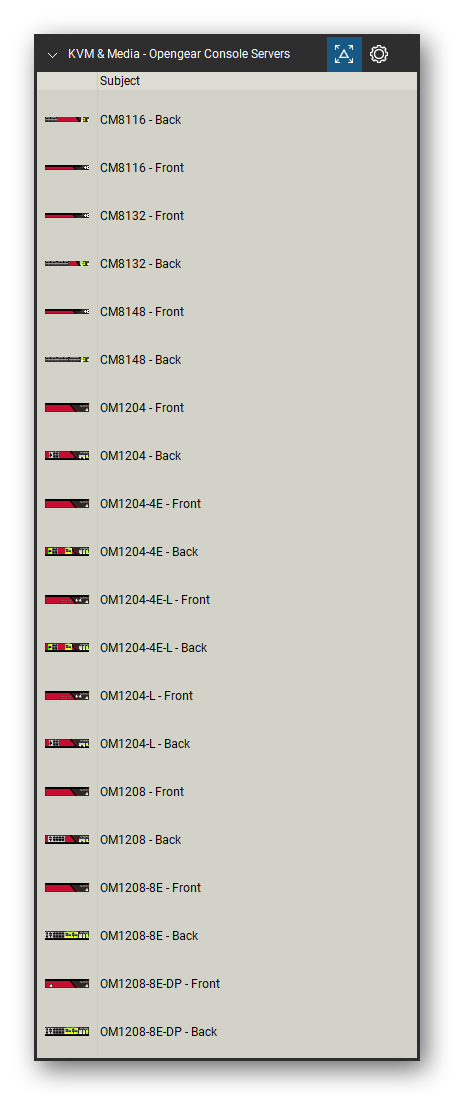

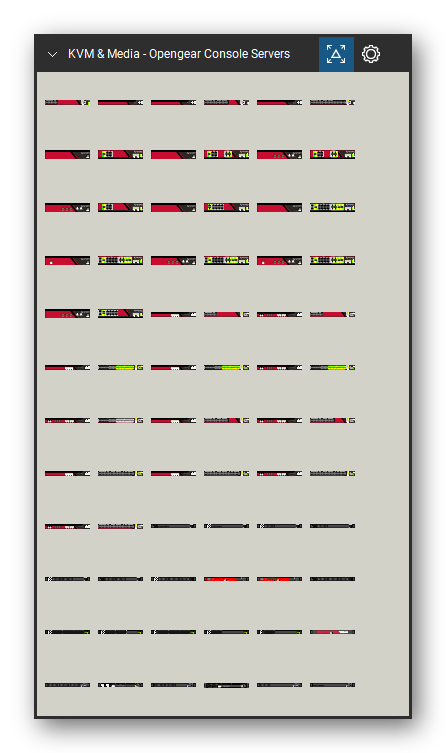

  • KVM, Console Servers & Media Converters tool set for Bluebeam Revu, Opengear Console Servers set (tools 1-20 of 117) - 20 views of 10 devices, front and rear: CM8116, CM8132, CM8148, OM1204, OM1204-4E, OM1204-4E-L, OM1204-L, OM1208, OM1208-8E and OM1208-8E-DP. Tool Chest in Detail view, one row per tool with its name.
  • KVM, Console Servers & Media Converters tool set for Bluebeam Revu, Opengear Console Servers set (tools 21-40 of 117) - 20 views of 10 devices, front and rear: OM1208-8E-L, OM1208-8E-L-DP, OM1208-L, OM2216, OM2216-L, OM2224-24E, OM2224-24E-10G, OM2224-24E-10G-L, OM2224-24E-L and OM2232. Tool Chest in Detail view, one row per tool with its name.

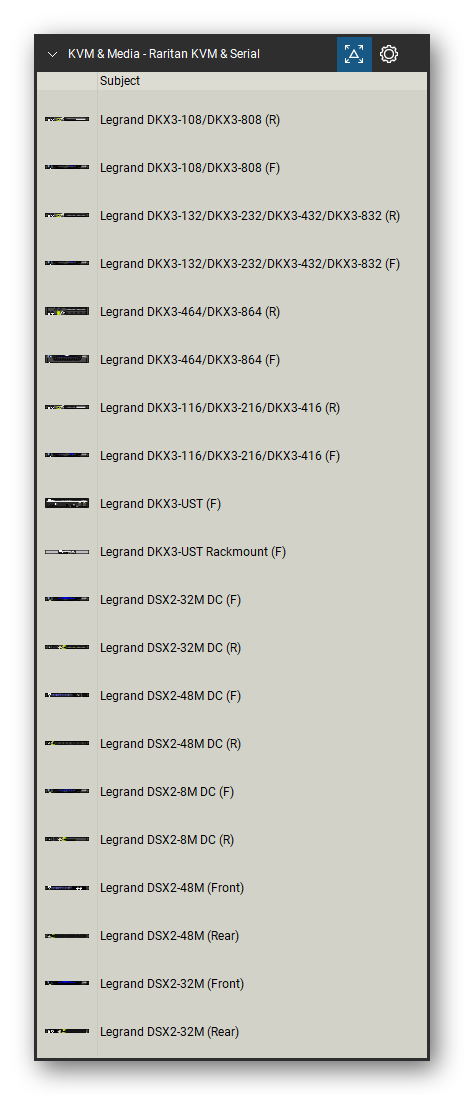

  • KVM, Console Servers & Media Converters tool set for Bluebeam Revu, Raritan KVM & Serial set (tools 1-20 of 152) - 20 views of 11 devices, front and rear: Legrand DKX3-108/DKX3-808, Legrand DKX3-132/DKX3-232/DKX3-432/DKX3-832, Legrand DKX3-464/DKX3-864, Legrand DKX3-116/DKX3-216/DKX3-416, Legrand DKX3-UST, Legrand DKX3-UST Rackmount, Legrand DSX2-32M DC, Legrand DSX2-48M DC, Legrand DSX2-8M DC, Legrand DSX2-48M and 1 more. Tool Chest in Detail view, one row per tool with its name.

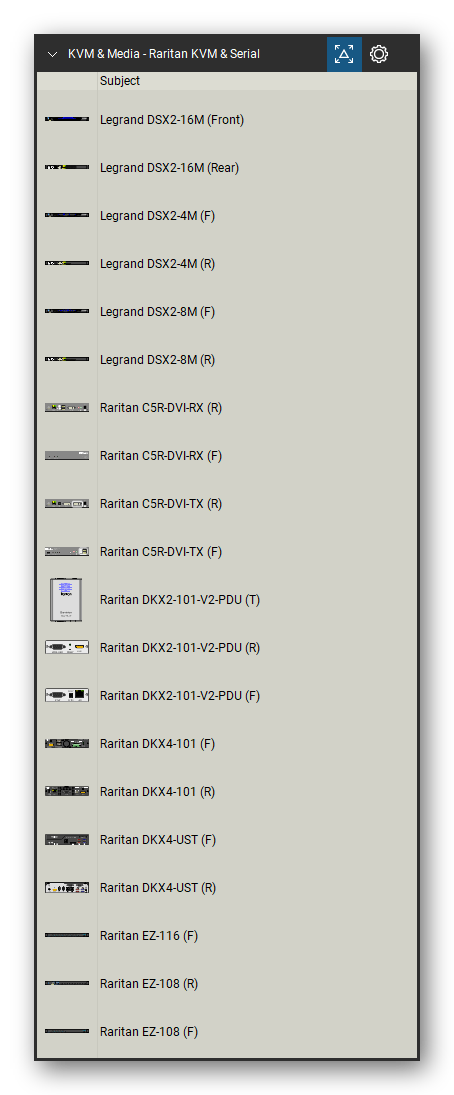

  • KVM, Console Servers & Media Converters tool set for Bluebeam Revu, Raritan KVM & Serial set (tools 21-40 of 152) - 20 views of 10 devices, front, rear and top: Legrand DSX2-16M, Legrand DSX2-4M, Legrand DSX2-8M, Raritan C5R-DVI-RX, Raritan C5R-DVI-TX, Raritan DKX2-101-V2-PDU, Raritan DKX4-101, Raritan DKX4-UST, Raritan EZ-116 and Raritan EZ-108. Tool Chest in Detail view, one row per tool with its name.

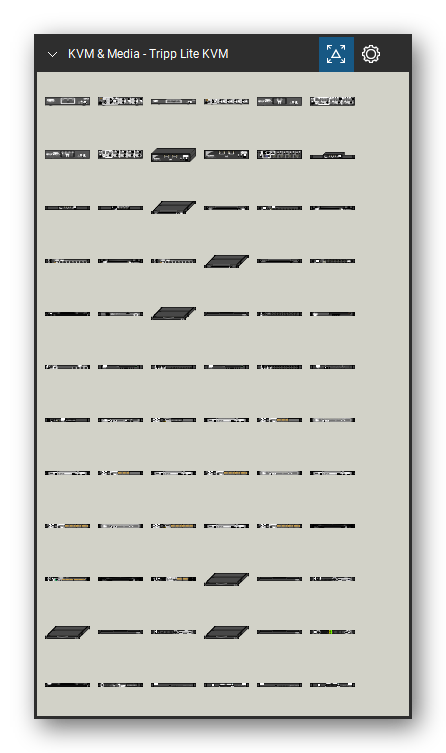

  • KVM, Console Servers & Media Converters tool set for Bluebeam Revu, Tripp Lite KVM set (tools 1-20 of 105) - 20 views of 10 devices, front, rear and isometric: B004-2DUA2-K, B004-2DUA4-K, B004-DUA2-HR-K, B004-DUA4-HR-K, B006-VUA4-K-R, B006-VUA4-K-R (Rackmount) (3FR, B006-VUA4-K-R (Rackmount), B020-U08-19-IP, B020-U08-19-K and B020-U08-19-KTAA. Tool Chest in Detail view, one row per tool with its name.

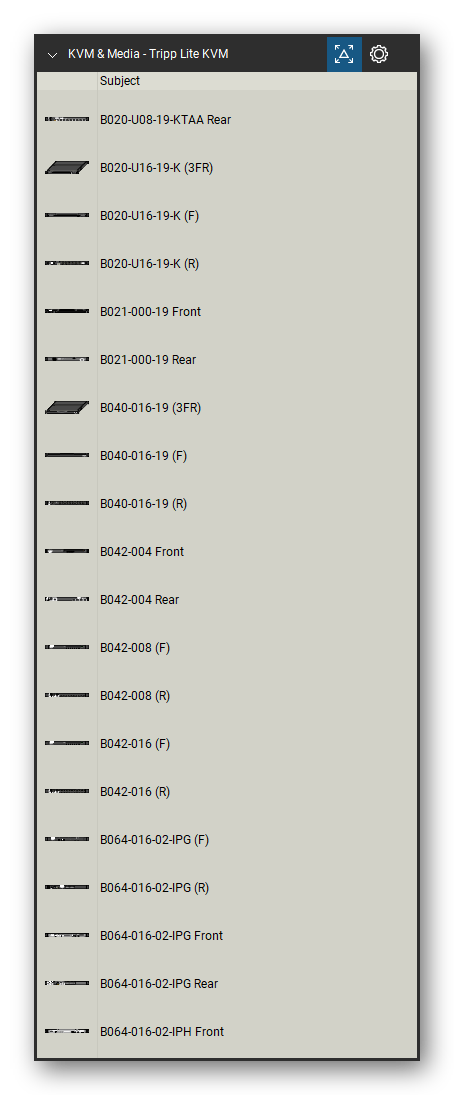

  • KVM, Console Servers & Media Converters tool set for Bluebeam Revu, Tripp Lite KVM set (tools 21-40 of 105) - 20 views of 9 devices, front, rear and isometric: B020-U08-19-KTAA, B020-U16-19-K, B021-000-19, B040-016-19, B042-004, B042-008, B042-016, B064-016-02-IPG and B064-016-02-IPH. Tool Chest in Detail view, one row per tool with its name.
  • KVM, Console Servers & Media Converters tool set for Bluebeam Revu, Tripp Lite Switches & Media set (tools 1-20 of 54) - 20 views of 7 devices, front, rear, side and isometric: N784-001-SC, N784-001-ST, N785-001-SC, NG16, NG16POE, NG24 and NG5. Tool Chest in Detail view, one row per tool with its name.

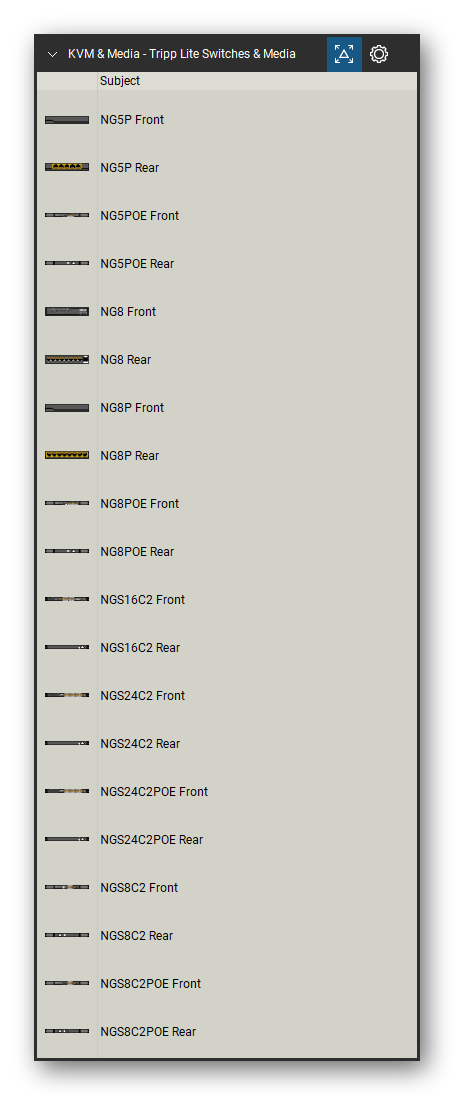

  • KVM, Console Servers & Media Converters tool set for Bluebeam Revu, Tripp Lite Switches & Media set (tools 21-40 of 54) - 20 views of 10 devices, front and rear: NG5P, NG5POE, NG8, NG8P, NG8POE, NGS16C2, NGS24C2, NGS24C2POE, NGS8C2 and NGS8C2POE. Tool Chest in Detail view, one row per tool with its name.
  • KVM, Console Servers & Media Converters tool set for Bluebeam Revu, Uplogix set (tools 1-20 of 56) - 20 views of 19 devices, front and rear: Components - 2901/K9, 2901/K9, 2911/K9, SM-SRE-900-K9, HWIC-4ESW, HWIC-2SHDSL, HWIC-ADSLI-B/ST, HWIC-4T1/E1, HWIC-8A/S-232, NME-WAE-502-K9 and 9 more. Tool Chest in Detail view, one row per tool with its name.

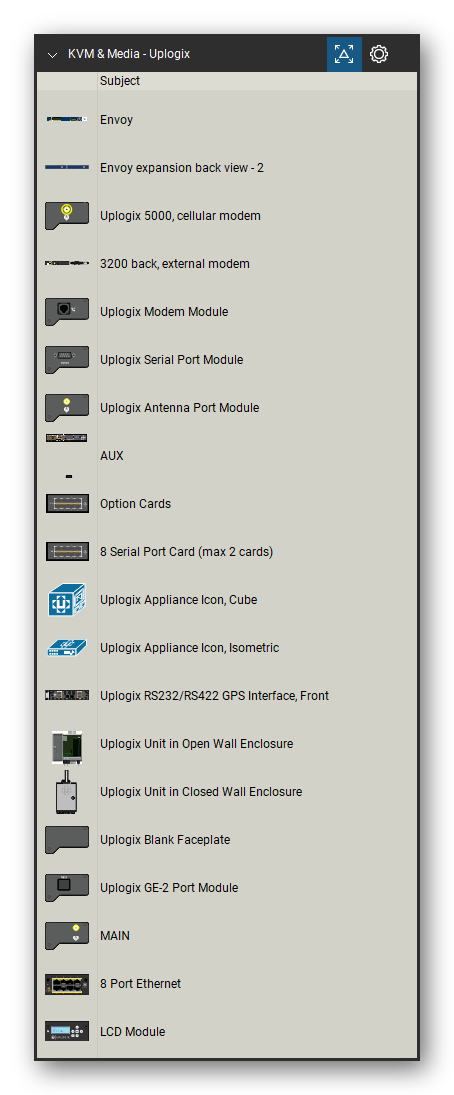

  • KVM, Console Servers & Media Converters tool set for Bluebeam Revu, Uplogix set (tools 21-40 of 56) - 20 tools: Envoy, Envoy expansion back view - 2, Uplogix 5000, cellular modem, 3200 back, external modem, Uplogix Modem Module, Uplogix Serial Port Module, Uplogix Antenna Port Module, AUX, Option Cards, 8 Serial Port Card (max 2 cards) and 10 more. Tool Chest in Detail view, one row per tool with its name.

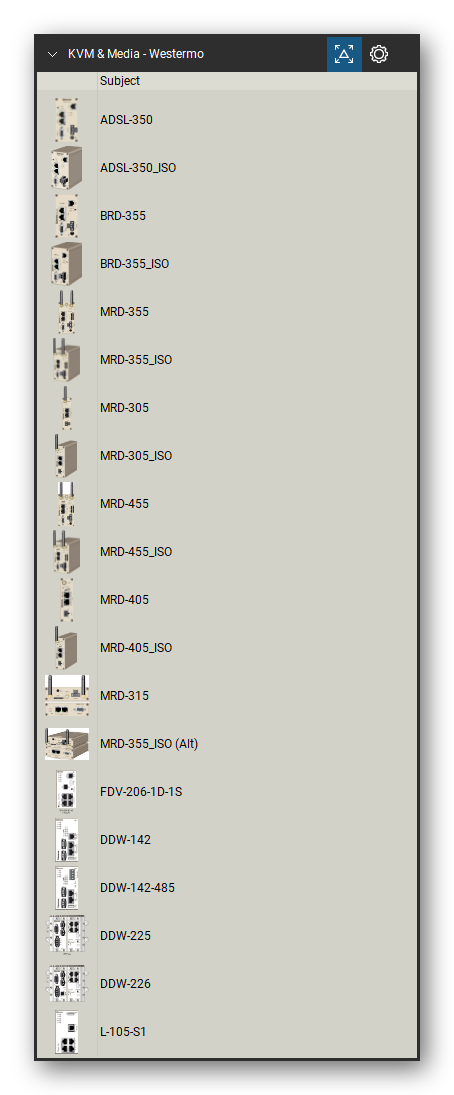

  • KVM, Console Servers & Media Converters tool set for Bluebeam Revu, Westermo set (tools 1-20 of 85) - 20 tools: ADSL-350, ADSL-350_ISO, BRD-355, BRD-355_ISO, MRD-355, MRD-355_ISO, MRD-305, MRD-305_ISO, MRD-455, MRD-455_ISO and 9 more. Tool Chest in Detail view, one row per tool with its name.

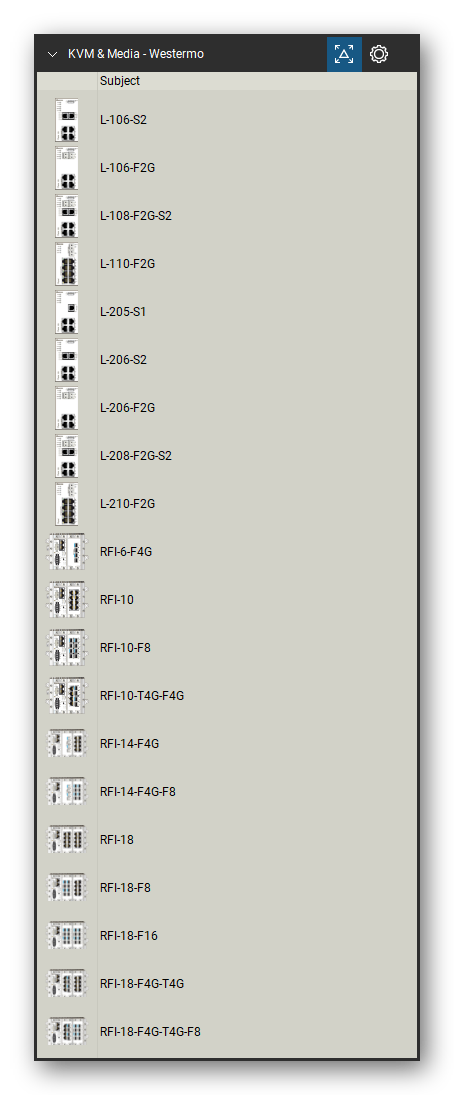

  • KVM, Console Servers & Media Converters tool set for Bluebeam Revu, Westermo set (tools 21-40 of 85) - 20 tools: L-106-S2, L-106-F2G, L-108-F2G-S2, L-110-F2G, L-205-S1, L-206-S2, L-206-F2G, L-208-F2G-S2, L-210-F2G, RFI-6-F4G and 10 more. Tool Chest in Detail view, one row per tool with its name.

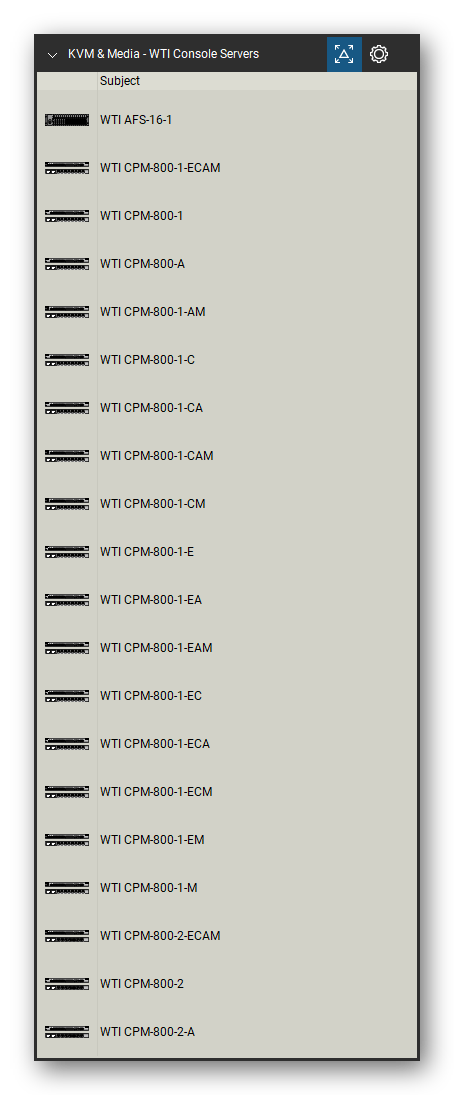

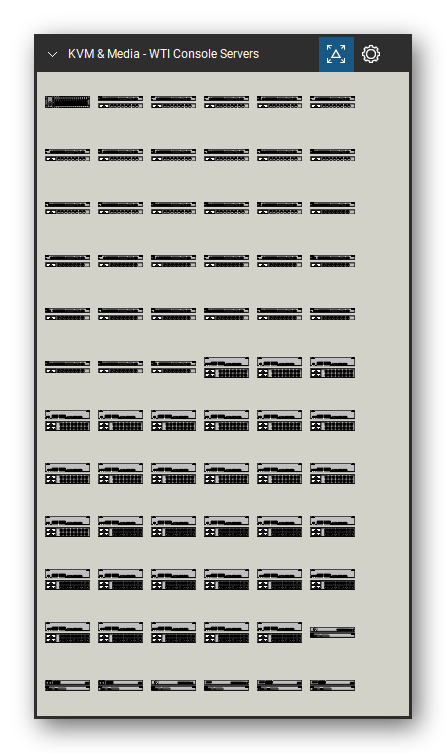

  • KVM, Console Servers & Media Converters tool set for Bluebeam Revu, WTI Console Servers set (tools 1-20 of 133) - 20 tools: WTI AFS-16-1, WTI CPM-800-1-ECAM, WTI CPM-800-1, WTI CPM-800-A, WTI CPM-800-1-AM, WTI CPM-800-1-C, WTI CPM-800-1-CA, WTI CPM-800-1-CAM, WTI CPM-800-1-CM, WTI CPM-800-1-E and 10 more. Tool Chest in Detail view, one row per tool with its name.
  • KVM, Console Servers & Media Converters tool set for Bluebeam Revu, WTI Console Servers set (tools 21-40 of 133) - 20 tools: WTI CPM-800-2-AM, WTI CPM-800-2-C, WTI CPM-800-2-CA, WTI CPM-800-2-CAM, WTI CPM-800-2-CM, WTI CPM-800-2-E, WTI CPM-800-2-EA, WTI CPM-800-2-EAM, WTI CPM-800-2-EC, WTI CPM-800-2-ECA and 10 more. Tool Chest in Detail view, one row per tool with its name.

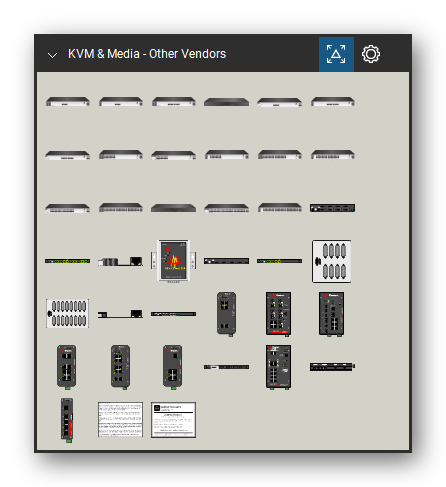

  • KVM, Console Servers & Media Converters tool set for Bluebeam Revu, Other Vendors set (tools 1-20 of 37) - 20 tools: Avocent ACS6004MDAC_b, Avocent ACS6004MSAC_b, Avocent ACS6008MDAC_b, Avocent ACS6008MDAC_f, Avocent ACS6004MSDC_b, Avocent ACS6008MSAC_b, Avocent ACS6008MSDC_b, Avocent ACS6016DAC_b, Avocent ACS6016MDDC_b, Avocent ACS6016MSAC_b and 10 more. Tool Chest in Detail view, one row per tool with its name.

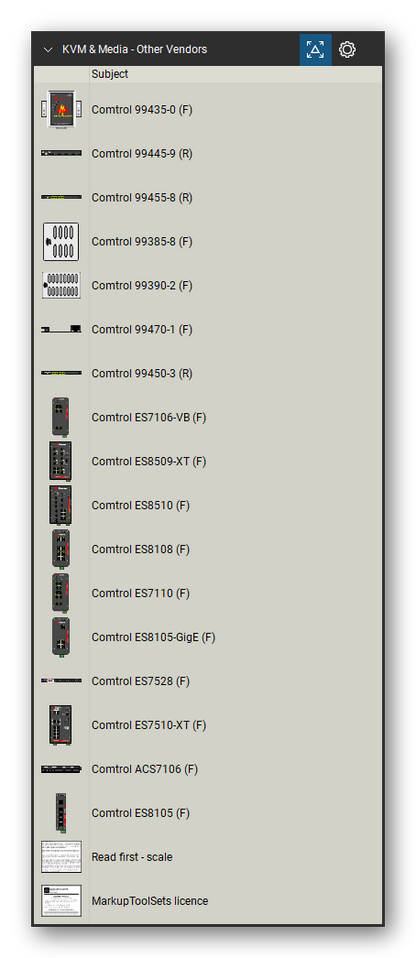

  • KVM, Console Servers & Media Converters tool set for Bluebeam Revu, Other Vendors set (tools 21-37 of 37) - 17 tools: Comtrol 99435-0, Comtrol 99445-9, Comtrol 99455-8, Comtrol 99385-8, Comtrol 99390-2, Comtrol 99470-1, Comtrol 99450-3, Comtrol ES7106-VB, Comtrol ES8509-XT, Comtrol ES8510 and 7 more. Tool Chest in Detail view, one row per tool with its name.
1 60

KVM, Console Servers & Media Converters Bluebeam Tool Set

KVM, Console Servers & Media Converters Bluebeam Tool Set

$159.99 USD
$214.99 USD $159.99 USD
Sale Sold out
Delivered immediately after checkout.

Tool set of KVM switches and extenders, console servers, media converters, network TAPs and switches for rack elevations and equipment layouts. This tool set covers 18 categories with 2,448 symbols. Each device is a vector snapshot in the colors of its maker's artwork that places as a single markup, and is named with its model, so the tools list by name in the Tool Chest and placed equipment lists by name in the Markups List. Lettering that stands on a symbol is editable text.

Examples of symbols included:

  • B&B Media Converters
    • iMcV modules: S2MM and S2SM, FiberLinX-II and Giga-FiberLinX-II, MediaLinX, LIM, Switch, ModeConverter, T1/E1/J1 and DS3/E3/STS LineTerm, in MediaChassis and iMediaChassis
    • MiniMc, Giga-MiniMc and IE-MiniMc, McBasic and PoE Giga-McBasic, McLIM, AccessEtherLinX, AccessConverter and PD-Switch, IE-MuxDemux and IE-PowerTray, 42U network rack
  • Black Box

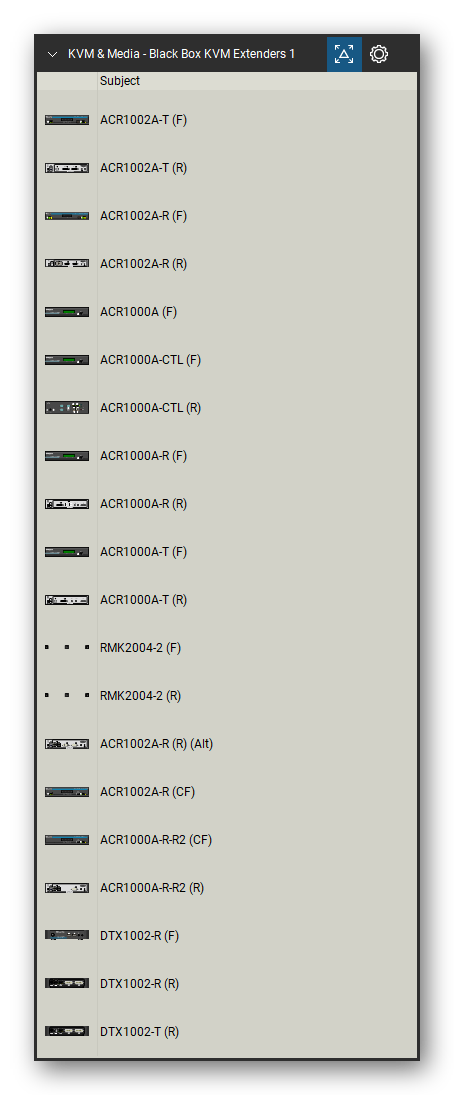

    • KVM extenders: DKM FX and Compact DKM (ACX1T, ACX1R), ACXMODH modules, ACX048 to ACX288, DCX3000, ACR1000A and ACR1002A, DTX1000A to DTX5002, ACU1006RA to ACU6222A local and remote units, with LCD monitors, TVs, computers, PS3 and XBOX360 for system diagrams
    • KVM switches: EMD2000 to EMD4000 and EMS, Boxilla, KV and KVP, KVT417A to KVT517A, SW722A to SW2009A, ACR101A and ACR201A
    • Networking: LES1116A to LES1608A, LMC400A to LMC4004A, LGC, LHC, LGB, LBS, LEH and LPB series, ET0010A to ET10000A, TL158A to TL601A
  • Digi
    • CM 8 to CM 48 and Passport 4 to Passport 48, front and back, RPM 10, PortServer TS and TS 4 to TS 16
  • Garland Network TAPs
    • INT1G10CSA and INT1G8 TAPs, M1G1ACE and M1G2ACE with M1G modules, P1G TAPs, M10G1ACv2 and M40G1AC, AA1G52AC to AA100G64AC and AF10G4AC
    • FMC-1U chassis with OM4X01 and OS2X01 modules, 40/100G 12f and 100G 24f MPO, BiDi and high-density fiber groups
    • Monitoring and security tool icons: APM, DDOS, DLP, DPI, IDS, IPS, NGFW, SIEM, WAF and NAC, with firewall, router, switch and server icons
  • Gigamon TAPs & GigaVUE
    • G-TAP, G-TAP A-SF and G-TAP-ATx, GTAP-ATX-1 and GTAP-ATX-2, GTP-ATX21 and GTP-ASF21, TAP-200 to TAP-500E and TAP-M series
    • GigaVUE-HB1, HC1, HC1-Plus, HC2, HC3, HCT, TA25 and TA400, front and rear, with PRT, SMT and BPS modules and power supply
  • Omnitron Media Converters
    • FlexPoint converters and chassis: 10/100, 100Fx/Tx, 100FF, 1000FF, GX/T, OC3FF and OC12FF, T1/E1 and RS-232, 14-module chassis
    • GM3, GM4, GX, XG and XM5, T1/E1 and T3/E3, 4xT1/E1 Mux, X21, STM-1, FlexSwitch 2X4GT, iConverter HybridNID
    • OmniConverter, RuggedNet and miConverter in G, GPoE+ and GHPoE models with SFP, SC and ST ports, S-Series
  • Opengear Console Servers

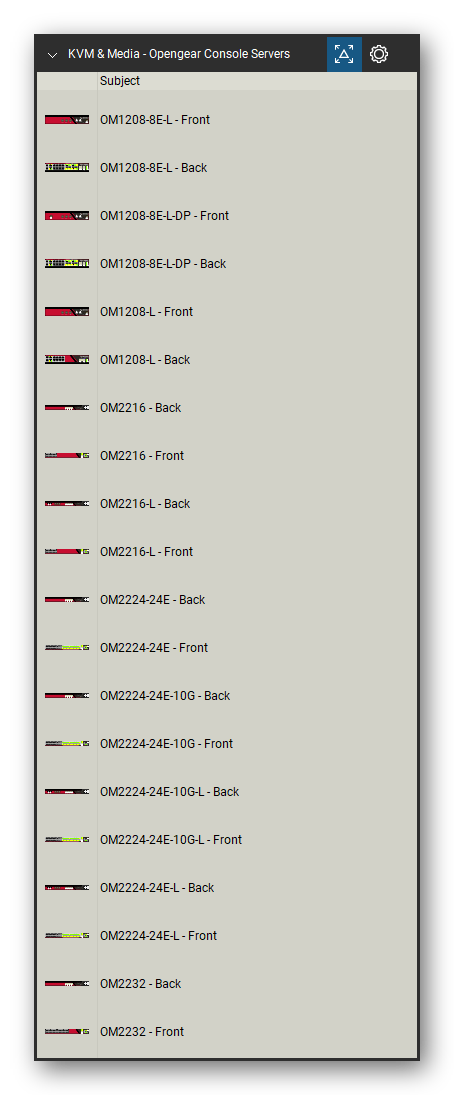

    • ACM5002 to ACM7008, IM4216 to IM7248, CM7116 to CM8148 and OM1204 to OM2248, front and rear
  • Raritan KVM & Serial
    • Raritan and Legrand DKX2, DKX3 and DKX4, DKSX2, DLX and DSX2-4M to DSX2-48M
    • MCCAT18 to MCCAT216, TMCAT1728 and TMCAT17216, T1700 and T1900, C5R-DVI TX and RX, CS4, P2-UMT442, P2-UST, P2CIM-SER and P2CIM-PS2
  • Tripp Lite
    • B004, B006, B042, B064 (IP) and B072 KVM switches, B020, B040 and B070 rack console KVM switches, B021-000-19 console, B093, B097 and B098

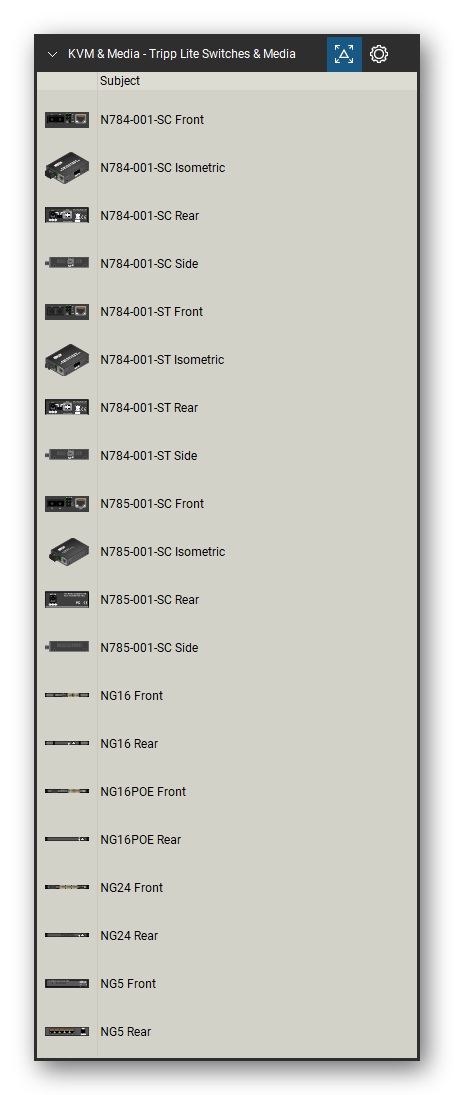

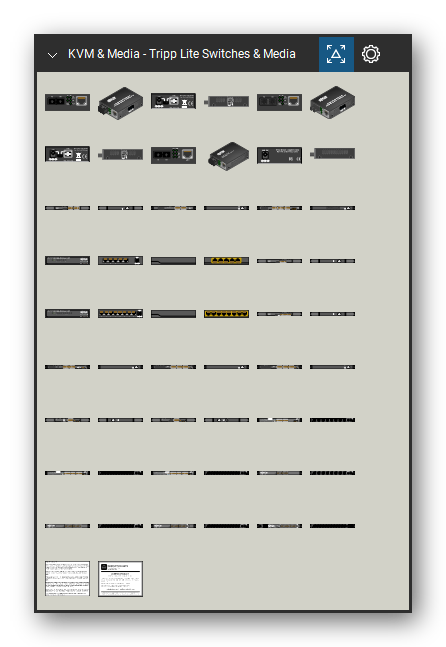

    • NG5 to NG24 and NGS8C2 to NGS24C2 switches with PoE models, N784-001 and N785-001 media converters, front, rear, side and isometric
  • Uplogix
    • Uplogix 430, 3200 and 5000 with serial and Ethernet cards and modems, LM 80, Envoy and Envoy expansion
    • 2901/K9 and 2911/K9 with HWIC and SM modules, ASR1000
  • Westermo
    • MRD-305 to MRD-455, BRD-355 and ADSL-350, DDW-142 and DDW-226, FDV-206, L-205, RFI and RFIR, Viper-008 to Viper-x20A, Ibex-RT-220 and Ibex-RT-280, some also in isometric (_ISO) views
  • WTI Console Servers

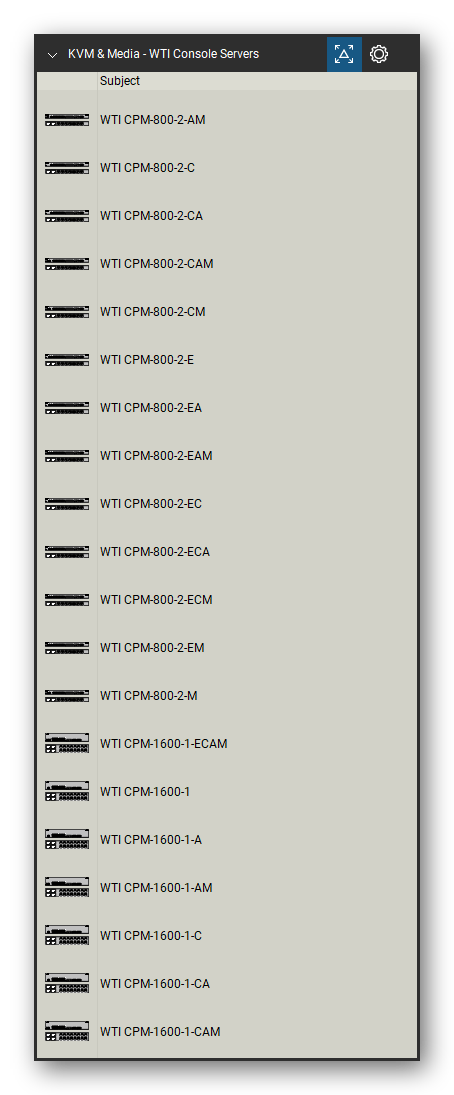

    • CPM-800 and CPM-1600, DSM-8 to DSM-40, PTS-8 and PTS-9, REM-0R4 and REM-4R4, AFS-16 and WTI-4R0
  • Avocent and Comtrol
    • Avocent ACS6004 to ACS6048, front and back
    • Comtrol 99385 to 99471 and ES7106, ES8105, ES8509 and ES8510

Delivered as 2 Bluebeam Revu profiles (B&B to Black; Digi to Other Vendors) that together load all 18 tool sets, plus the individual tool set files.

Avocent, B&B Electronics, Black Box, Comtrol, Digi, Garland, Gigamon, Legrand, Omnitron, Opengear, Raritan, Tripp Lite, Uplogix, Westermo and WTI are trademarks of their owners and are used only to identify the equipment the symbols show. MarkupToolSets is not affiliated with or endorsed by any of them.

View full details
