Incident & Emergency Management Bluebeam Tool Set

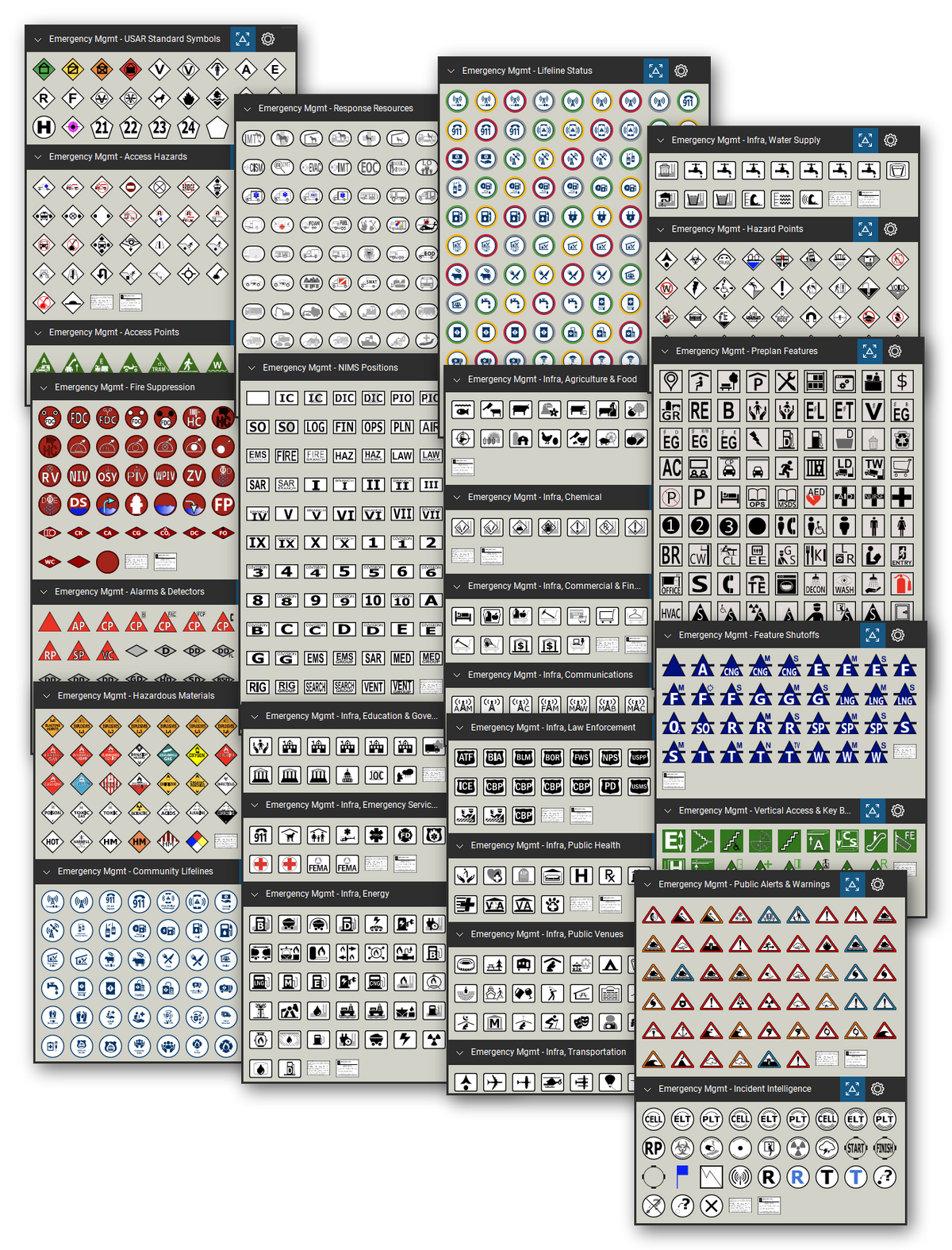

Tool set of incident and emergency management map symbols for pre-incident plans, incident maps, and evacuation and site safety plans. This tool set covers 31 categories with 1,210 symbols. Each symbol is a vector snapshot in its standard colors that places as a single markup — it can be moved, resized, and rotated directly in Bluebeam — and is named for what it stands for, so the tools list by name in the Tool Chest and placed symbols list by name in the Markups List, ready to count and filter.

Examples of symbols included:

• Search, rescue and access

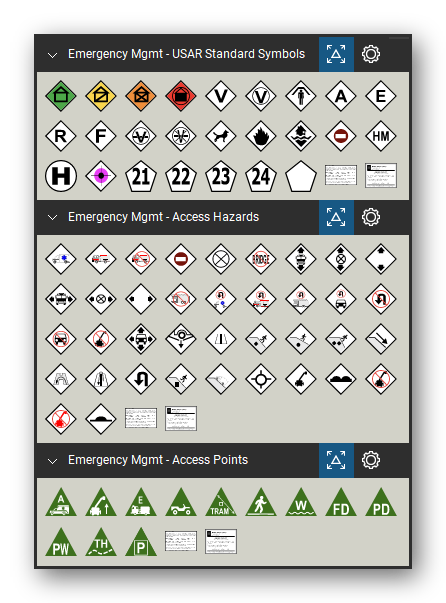

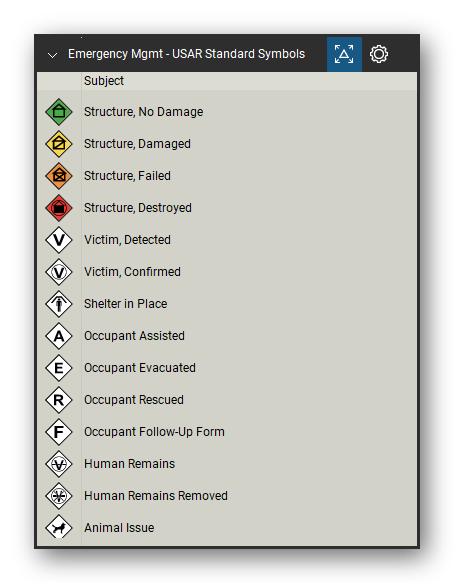

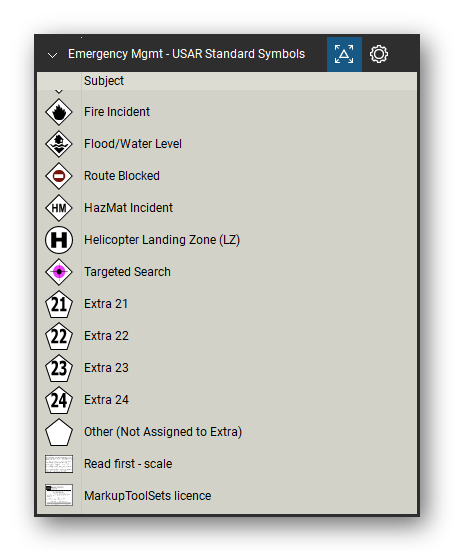

  • USAR structure and victim marking: structure no damage, damaged, failed, destroyed; victim detected and confirmed; occupant assisted, evacuated and rescued; human remains; route blocked

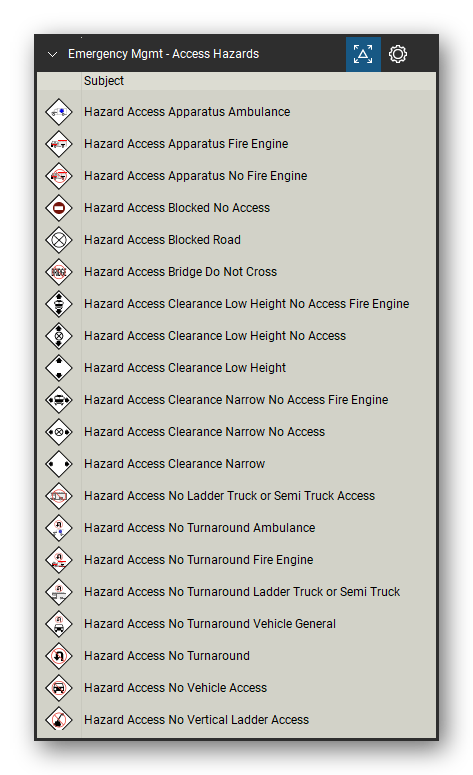

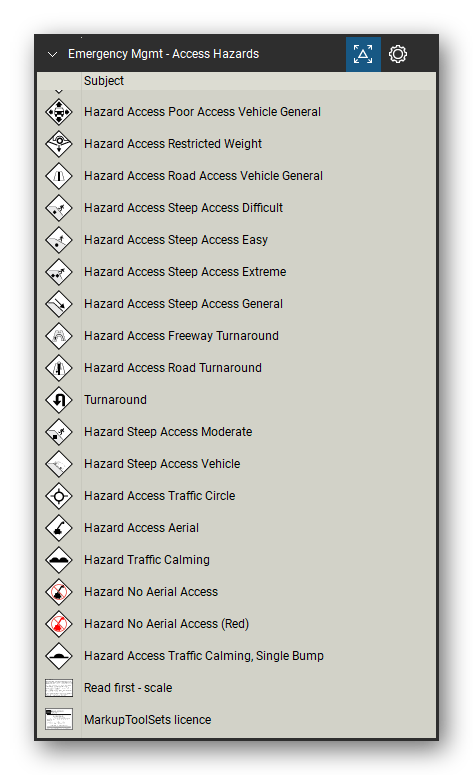

  • Access hazards: blocked roads, low and narrow clearances, weight limits, no turnaround, steep access, traffic calming, bridges not to cross

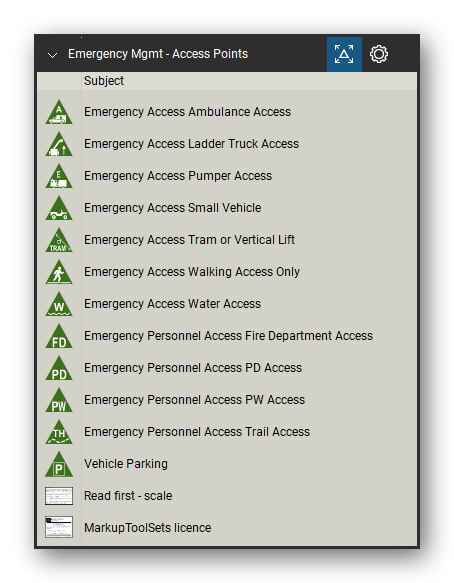

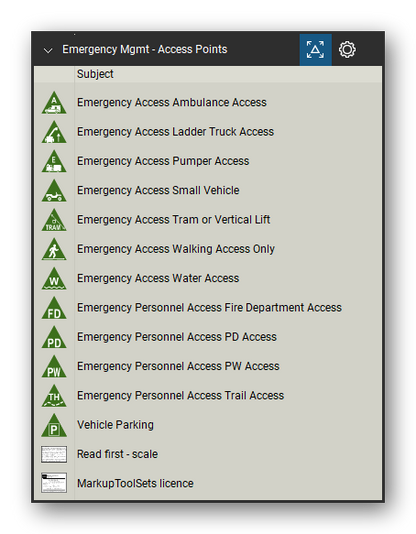

  • Access points for ambulance, ladder truck, pumper, small vehicle, walking, water and personnel
• Building pre-plan

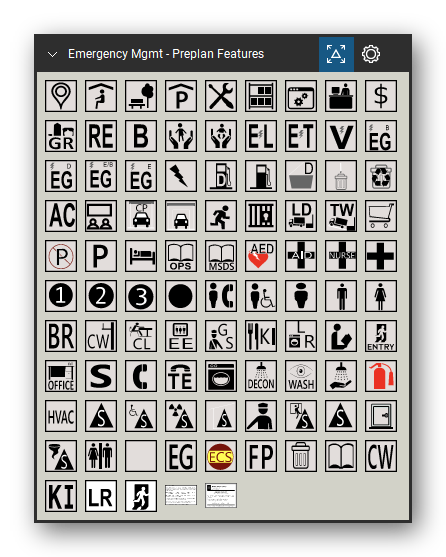

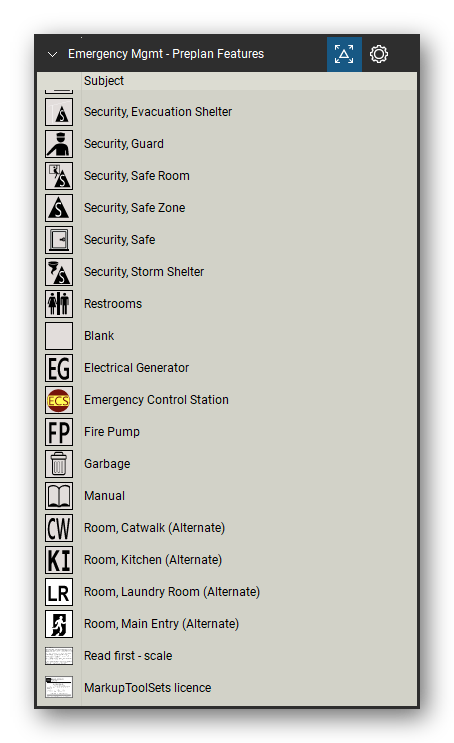

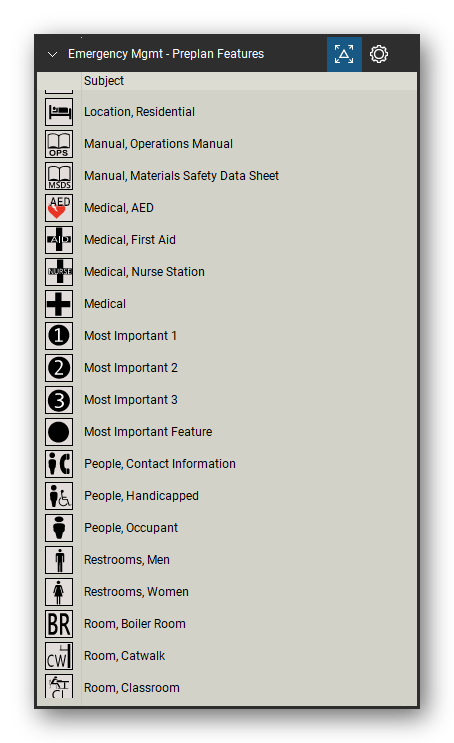

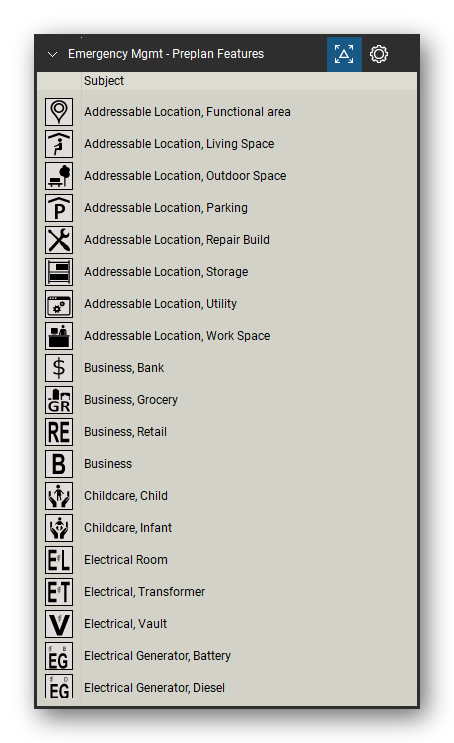

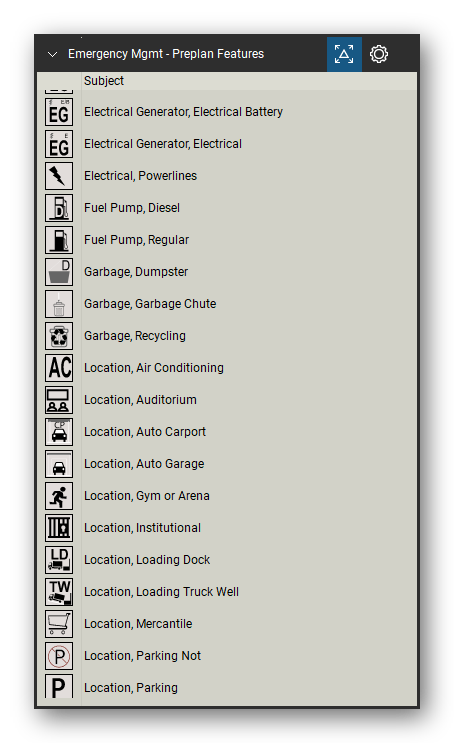

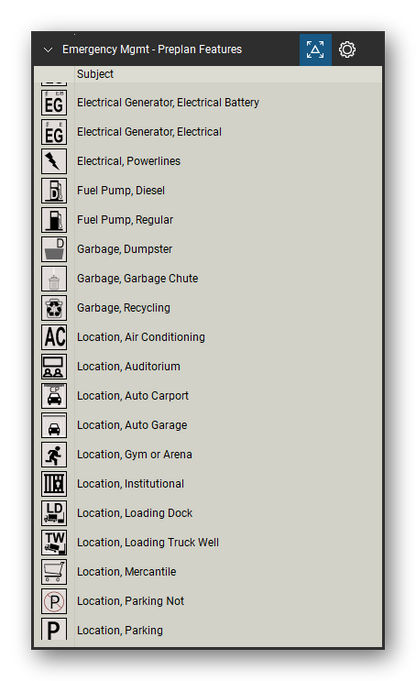

  • Pre-plan features: addressable locations, electrical rooms, generators, fuel pumps, medical and AED, restrooms, rooms, safety and security locations, areas of refuge and shelters

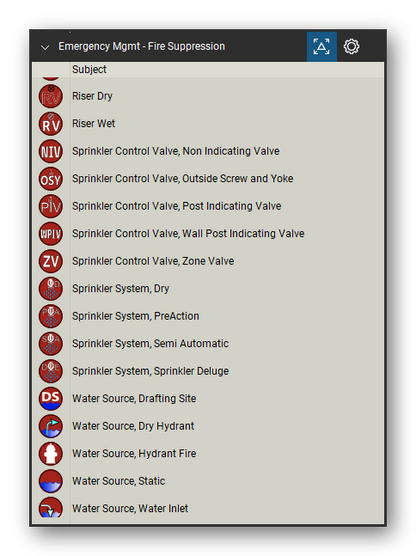

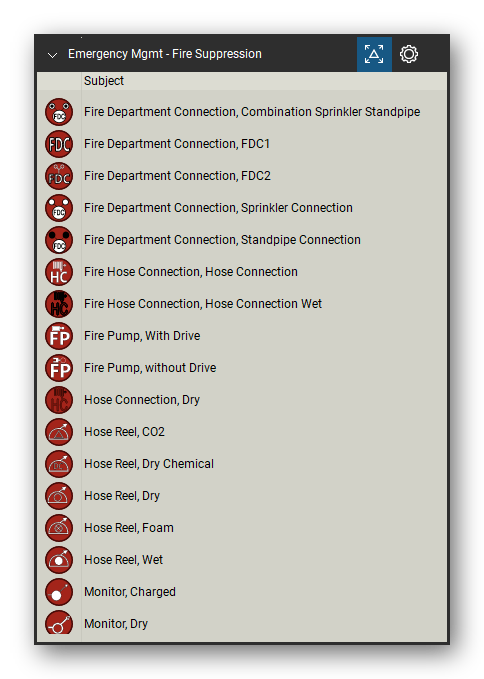

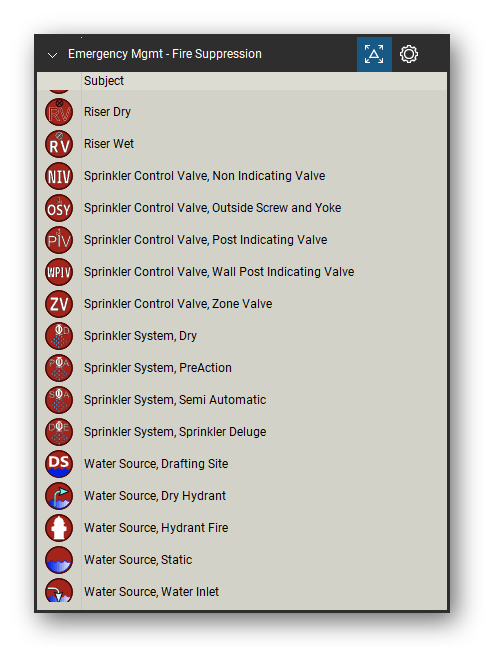

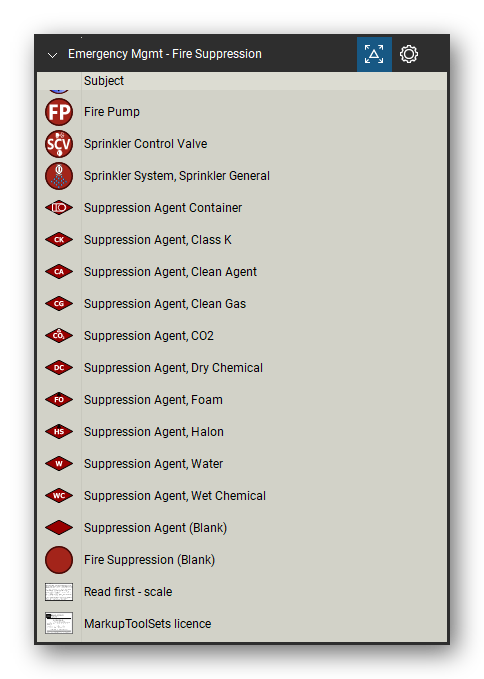

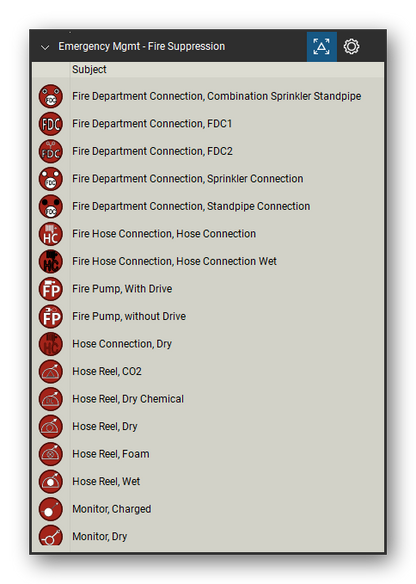

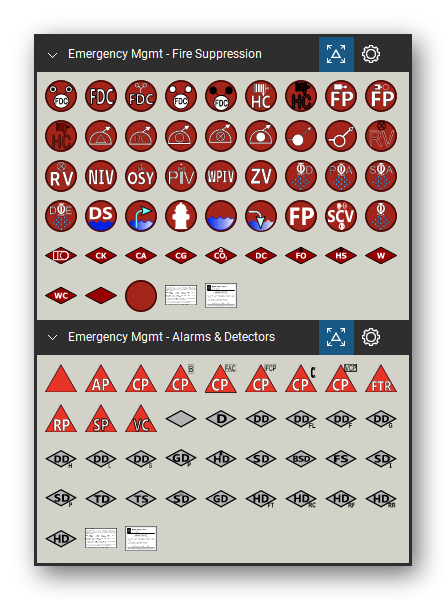

  • Fire suppression: fire department connections, hose connections and reels, risers, sprinkler control valves and systems, fire pumps, water sources, and suppression agent marks (Class K, clean agent, CO2, dry chemical, foam, Halon, water, wet chemical)

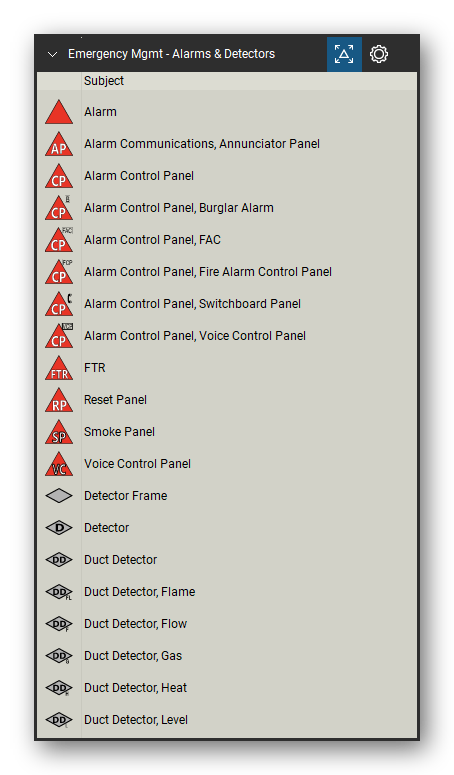

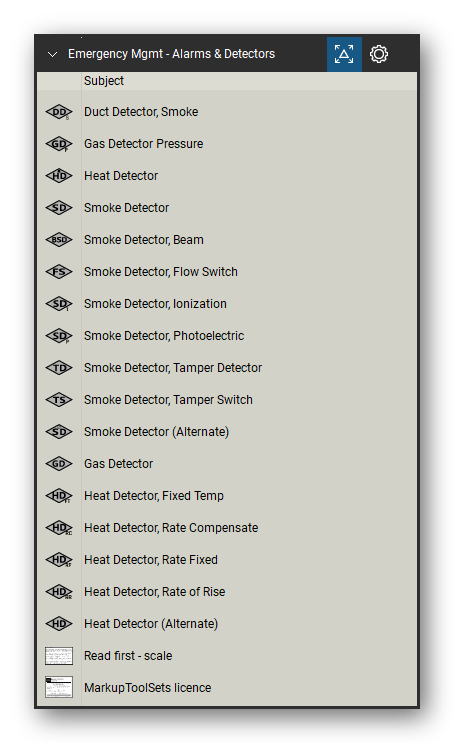

  • Alarm and control panels; smoke, heat, gas, flame and duct detectors

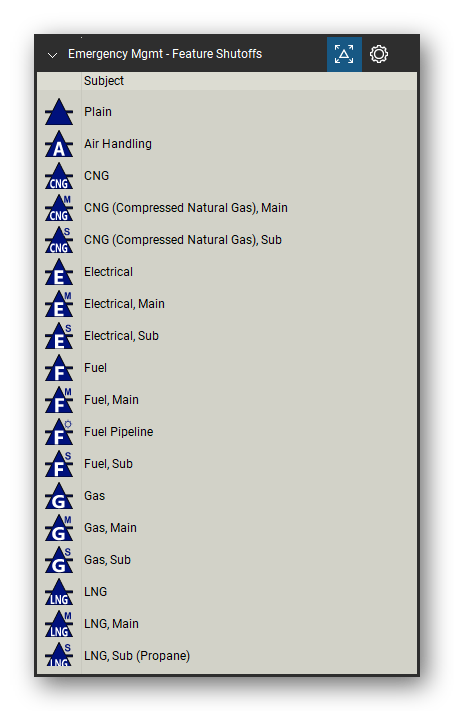

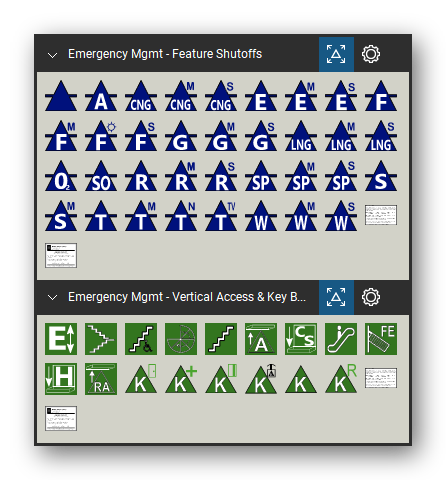

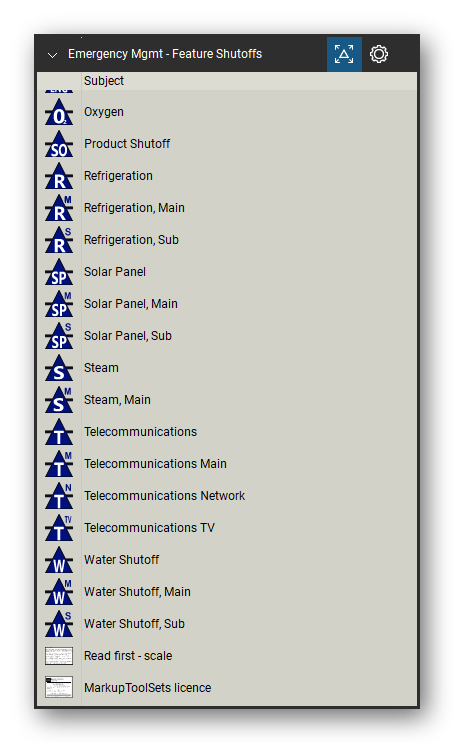

  • Shutoffs for gas, electrical, fuel, LNG, CNG, oxygen, steam, refrigeration, solar, telecommunications and water, with main and sub versions

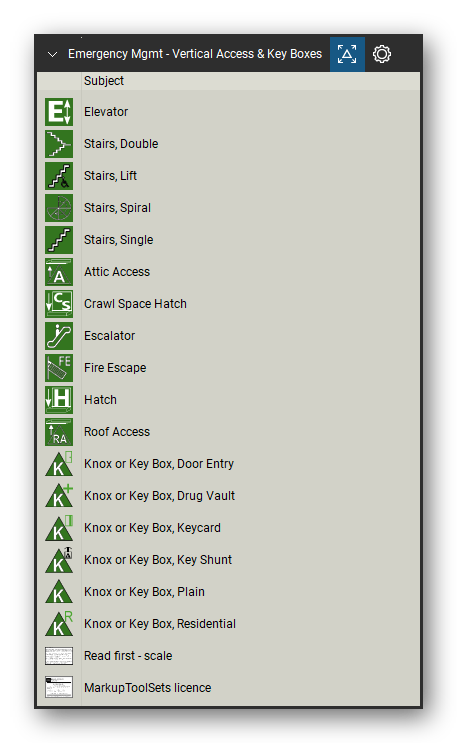

  • Elevators, stairs, escalators, fire escapes, hatches, attic and roof access, key boxes
• Incident command and resources

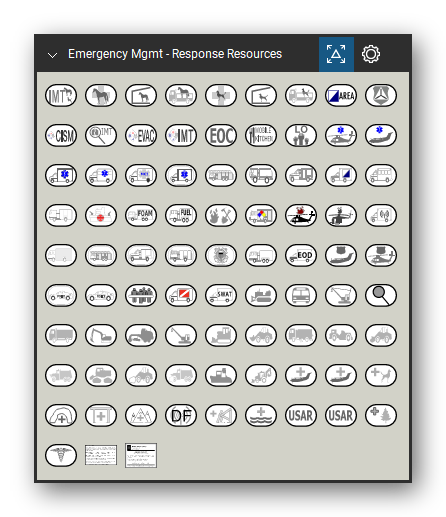

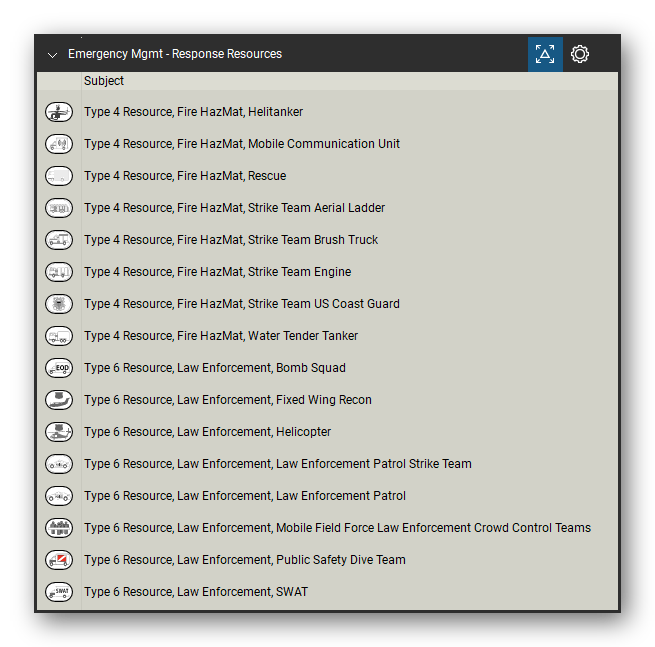

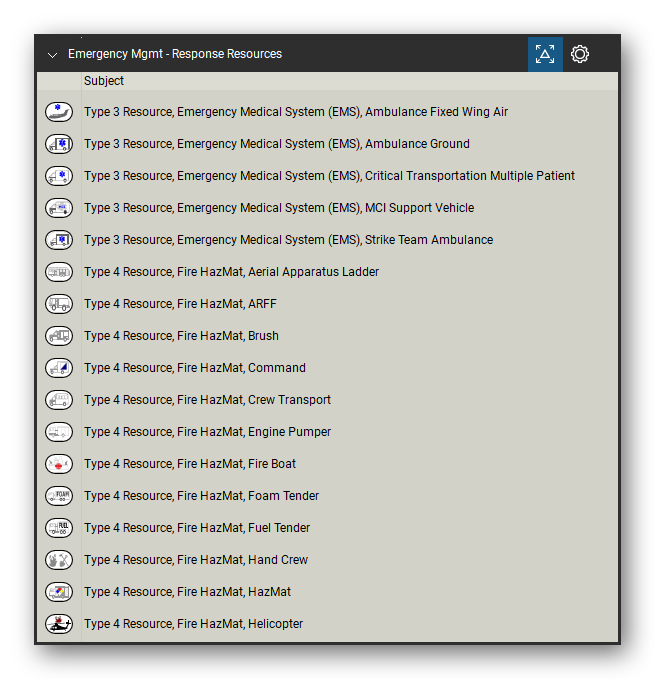

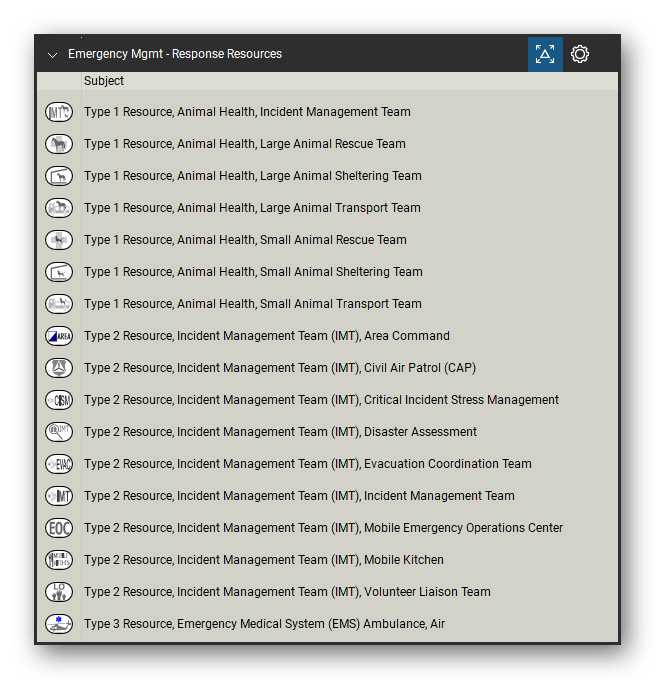

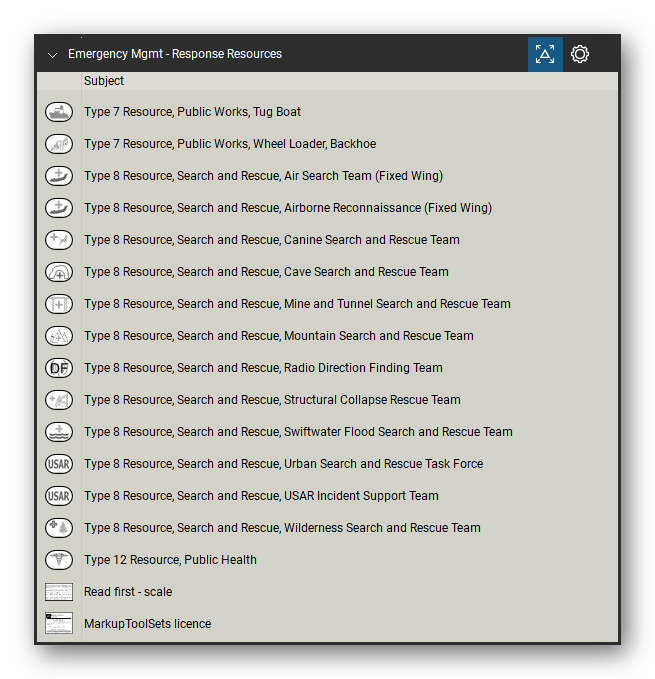

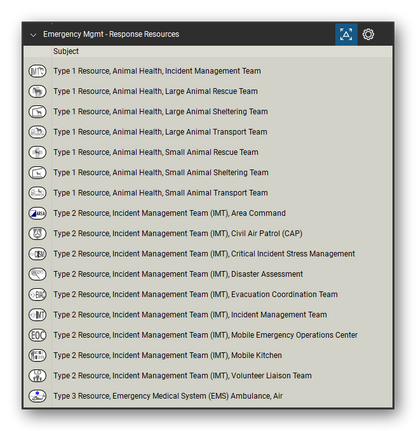

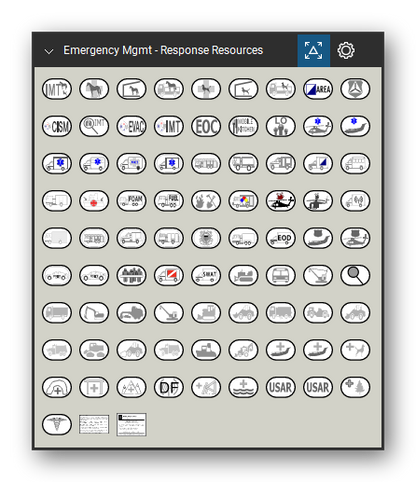

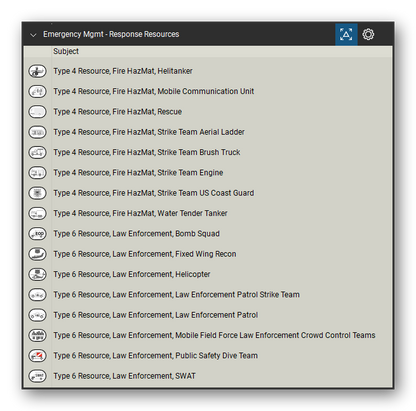

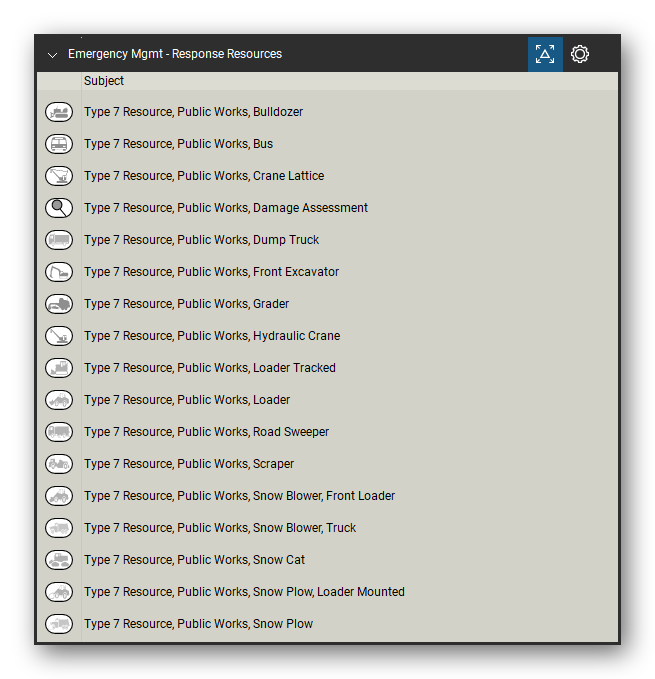

  • Typed response resources: animal health, incident management teams, EMS, fire and hazmat apparatus, law enforcement, public works equipment, search and rescue teams

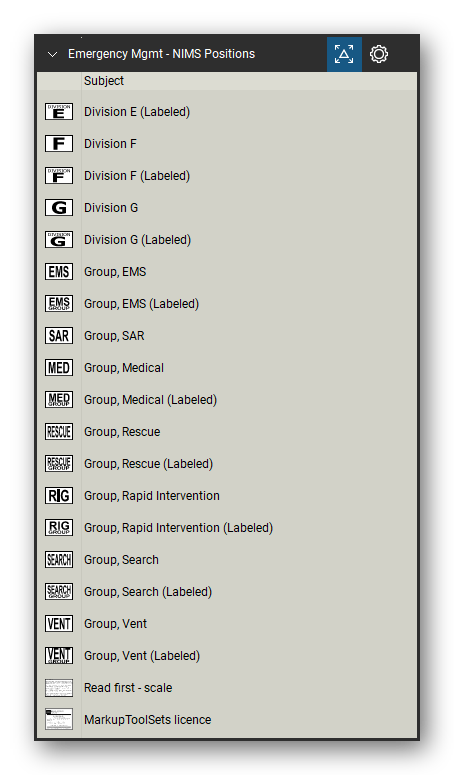

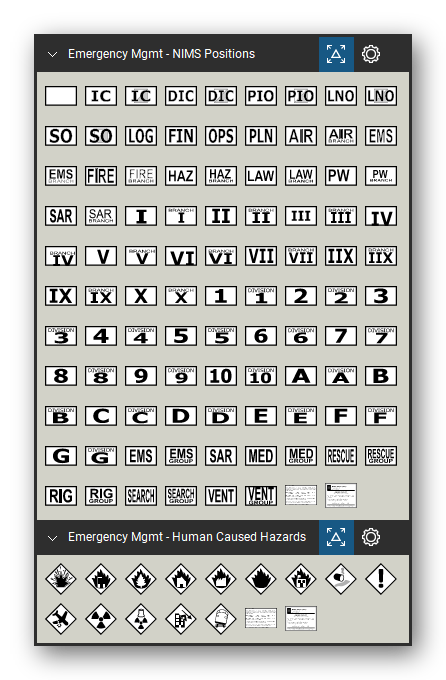

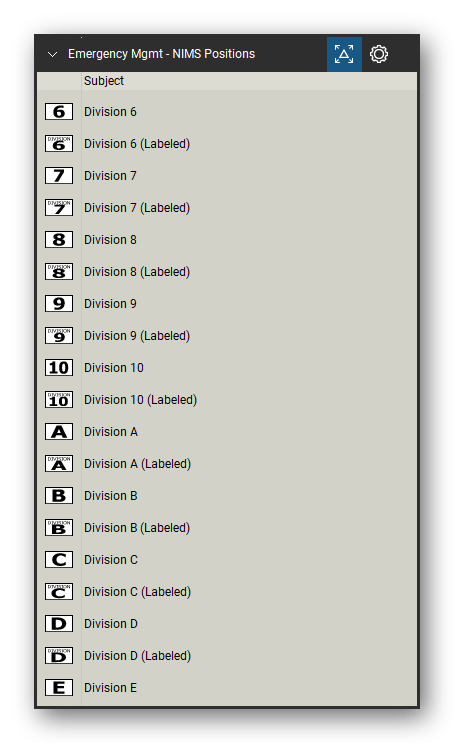

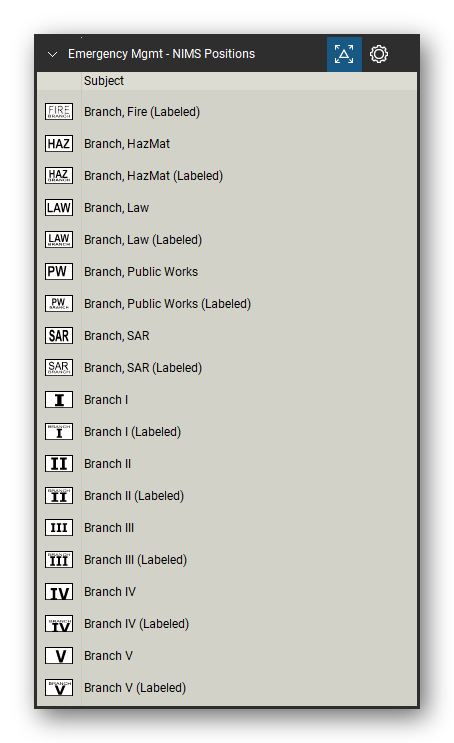

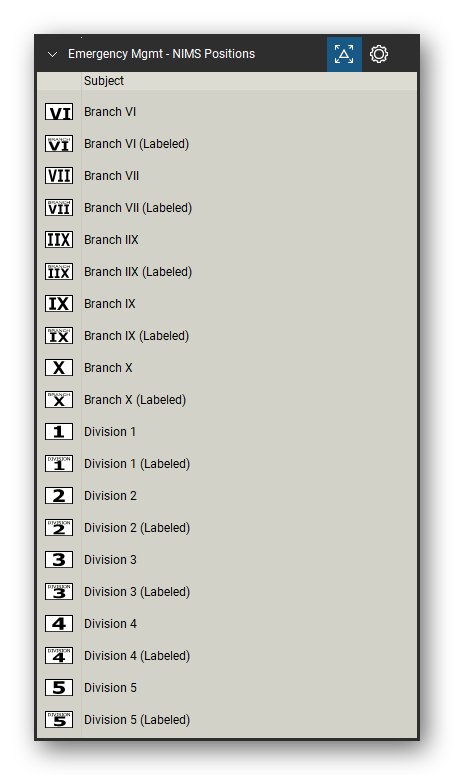

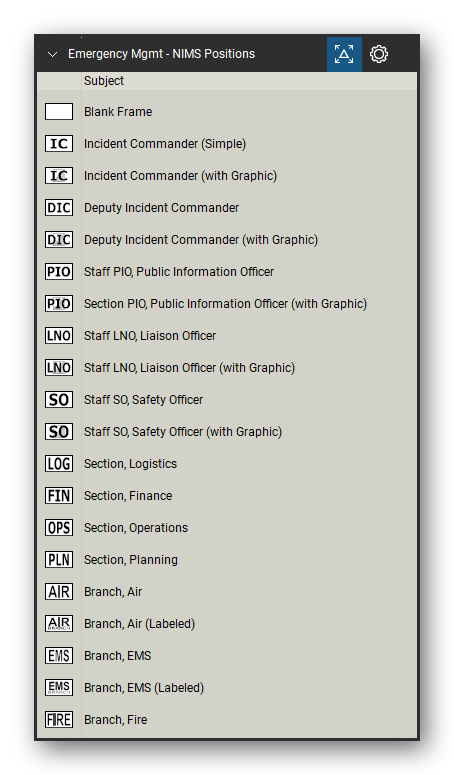

  • NIMS positions: command and general staff, sections, branches, divisions and groups

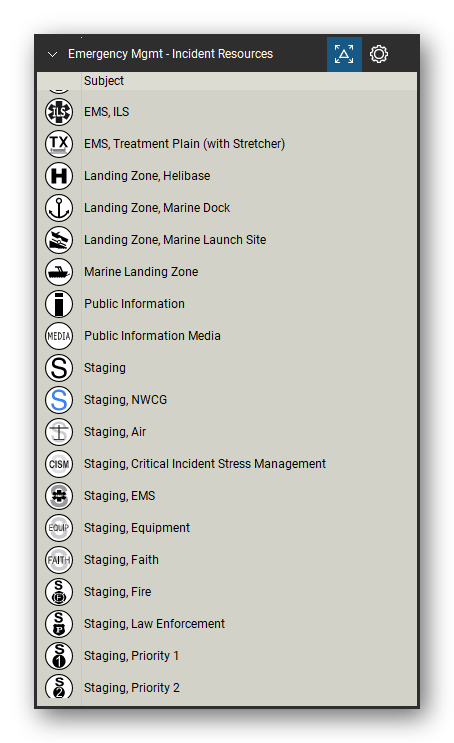

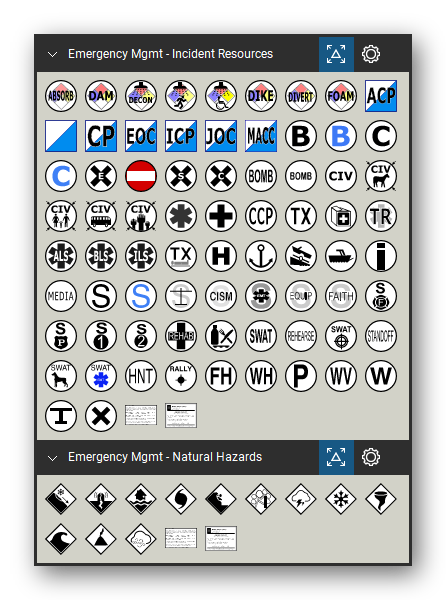

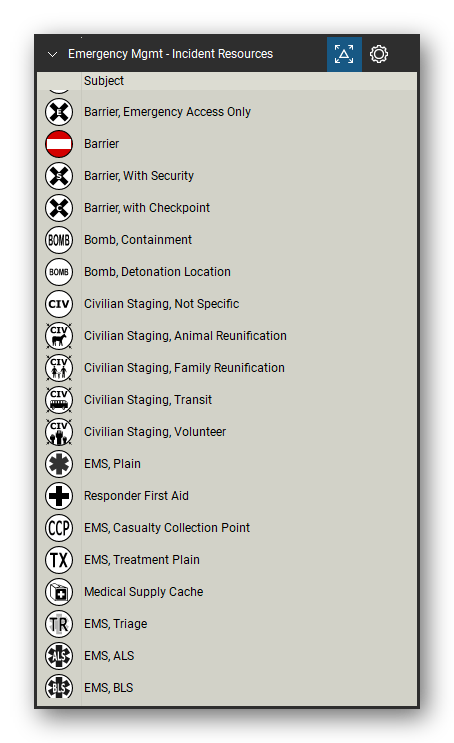

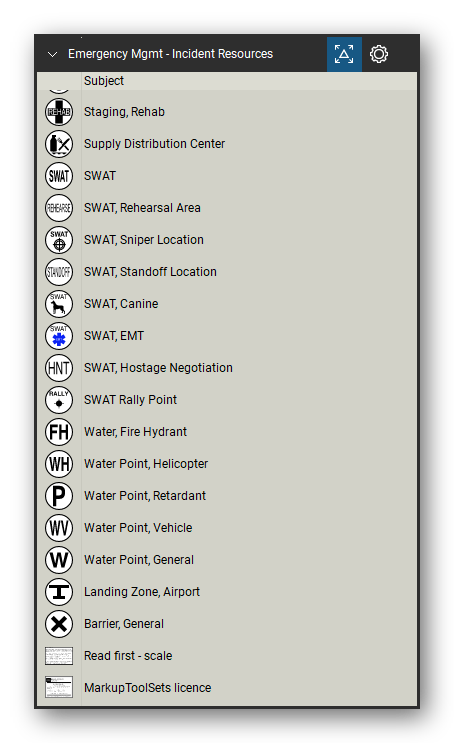

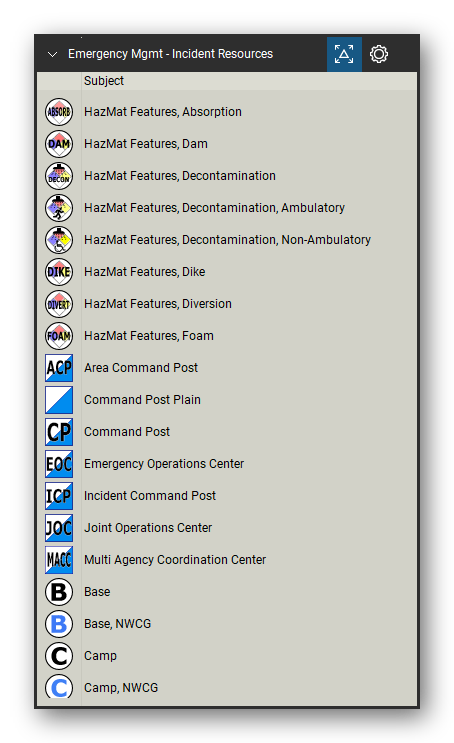

  • Incident resources: command posts, emergency operations centers, bases, camps, staging, barriers, EMS and triage, landing zones, SWAT, hazmat features, water points

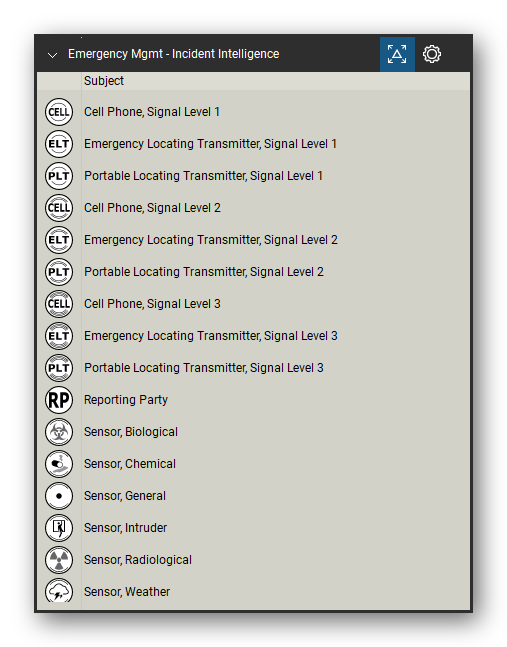

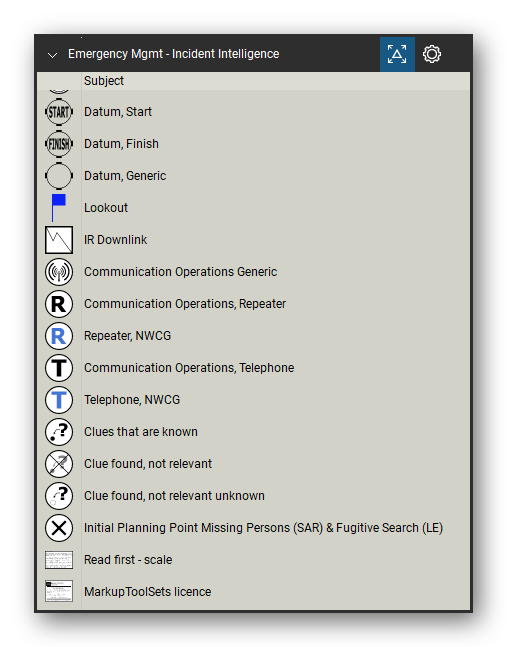

  • Incident intelligence: locating transmitters, sensors, datums, clues, communication operations
• Hazards, alerts and hazardous materials

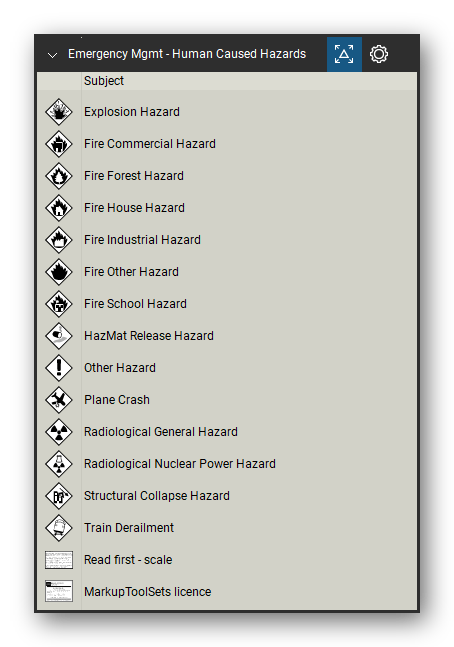

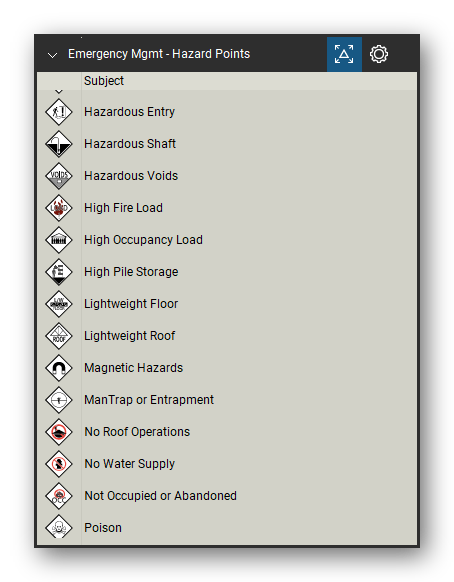

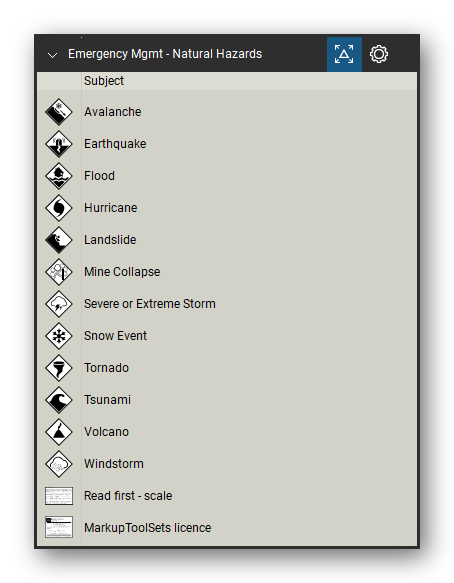

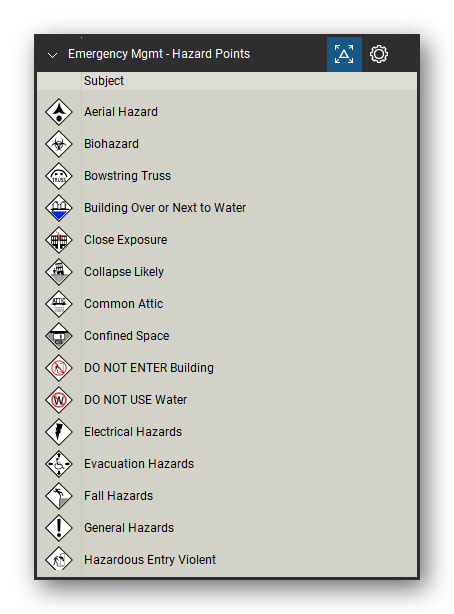

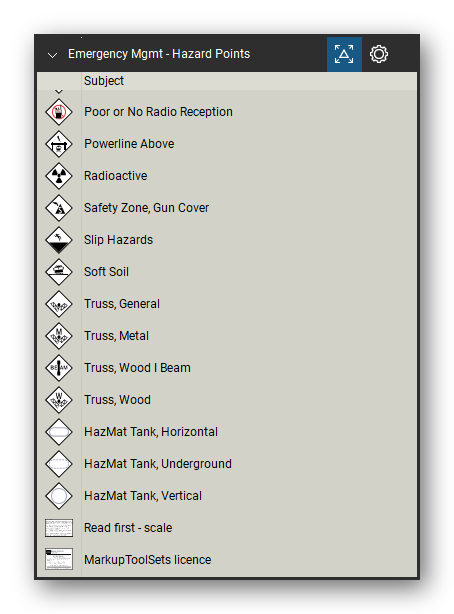

  • Natural hazards, human caused hazards, and building and scene hazard points for responders: trusses, collapse, confined space, electrical, fall, high fire load, tanks

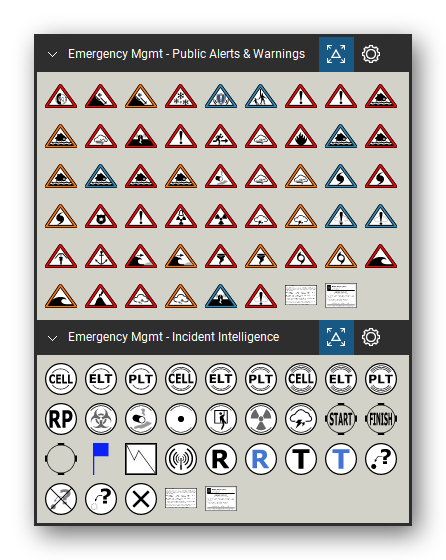

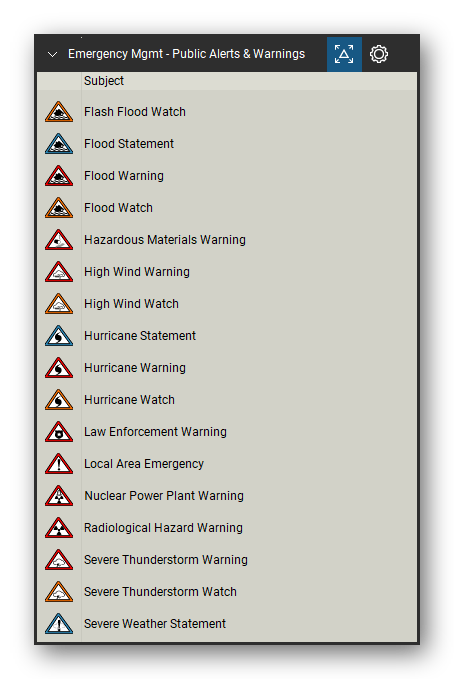

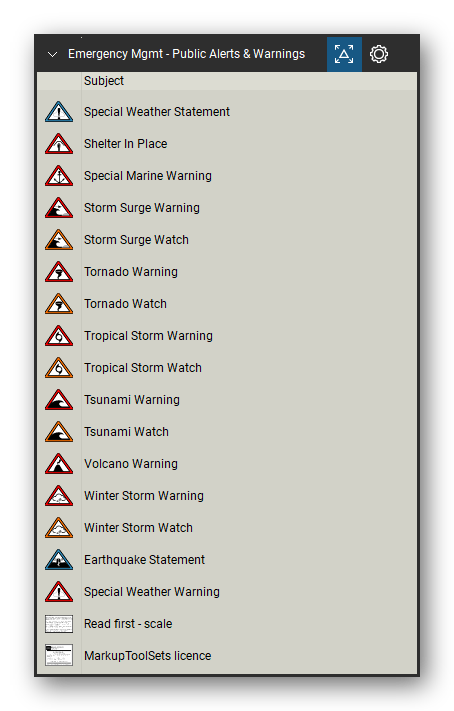

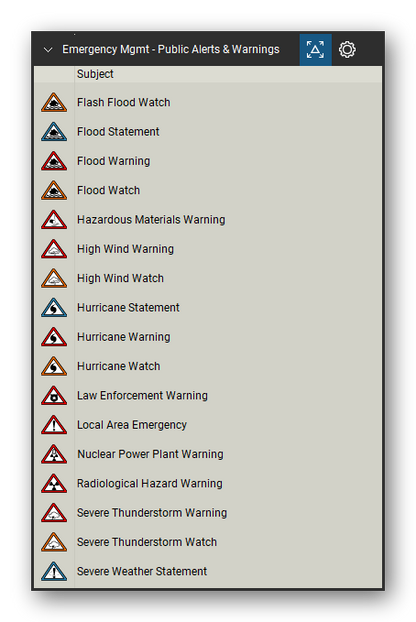

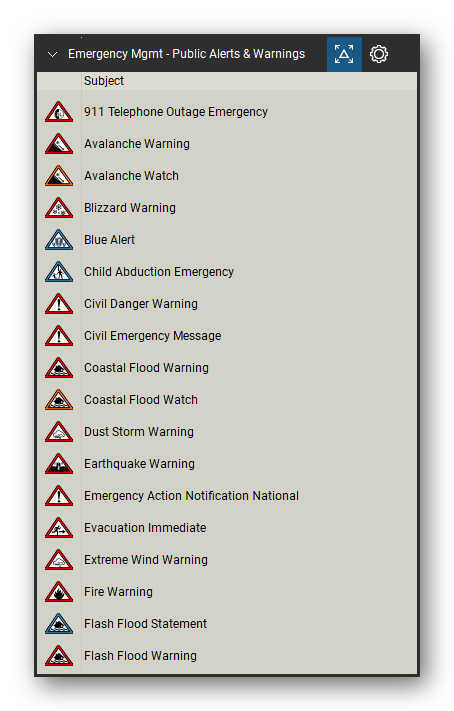

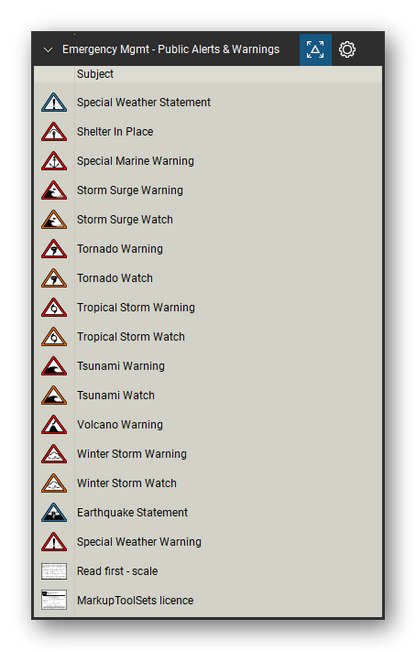

  • Public alerts and warnings: warnings, watches and statements for weather, flood, fire, civil and law enforcement events

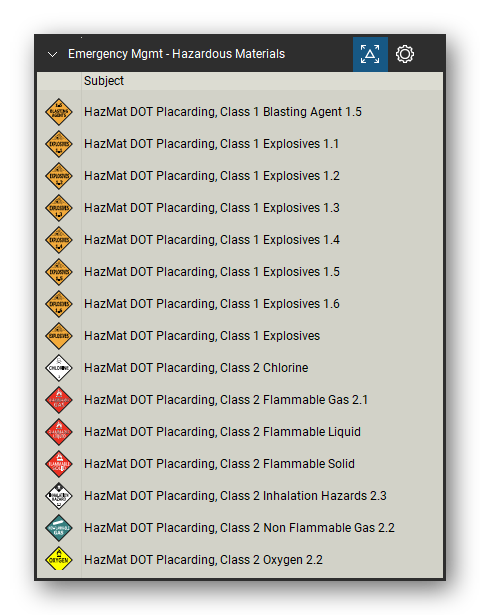

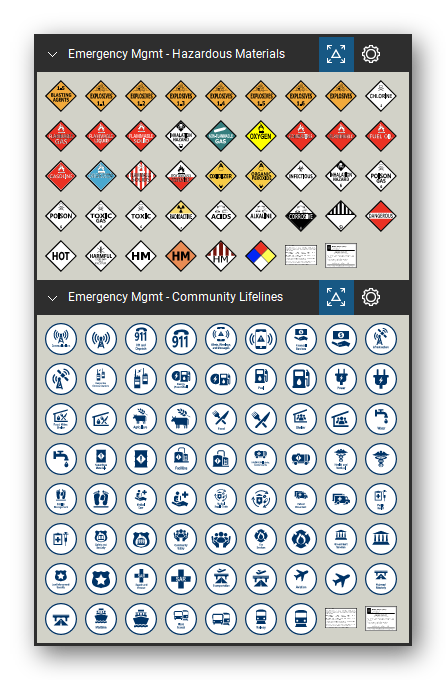

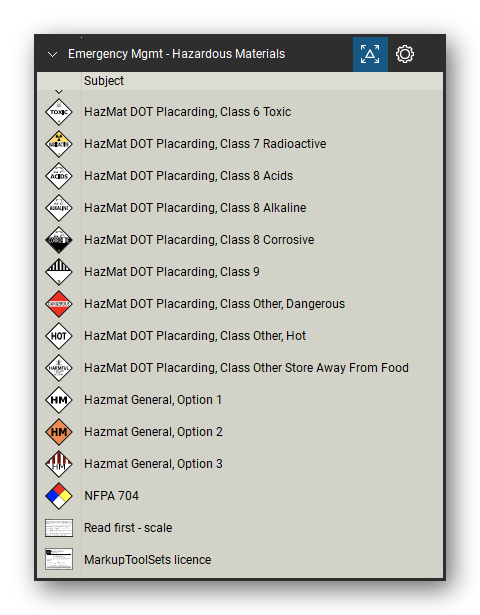

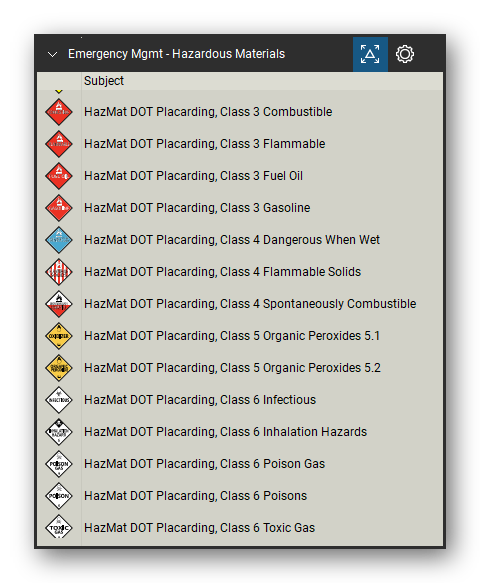

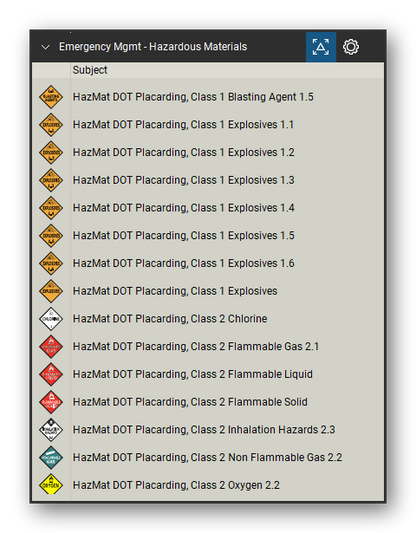

  • Hazmat transport placards by hazard class, general hazmat marks, and the NFPA 704 diamond
• Community lifelines

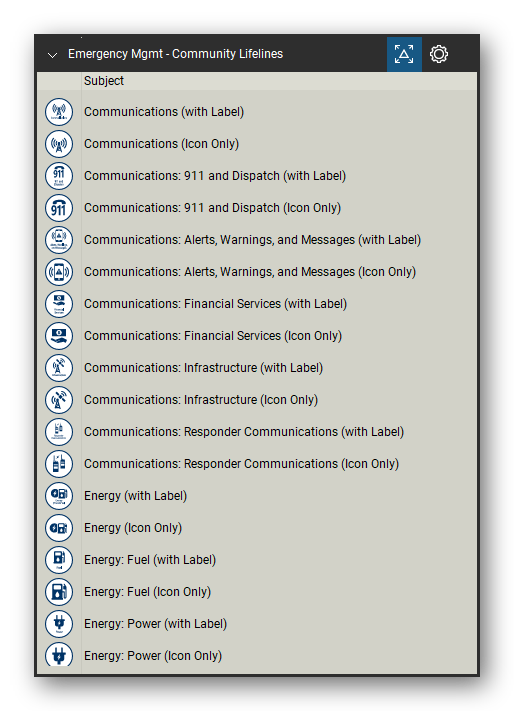

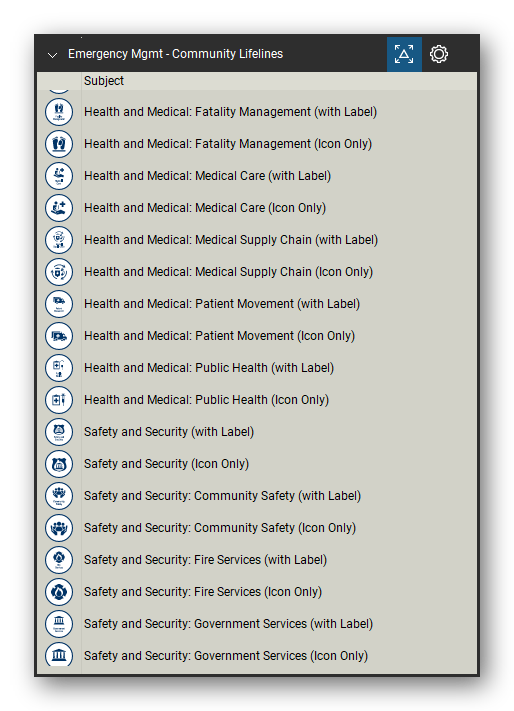

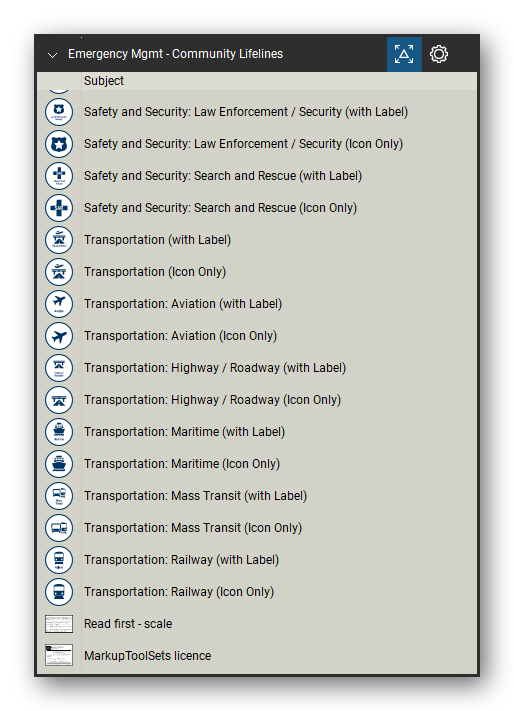

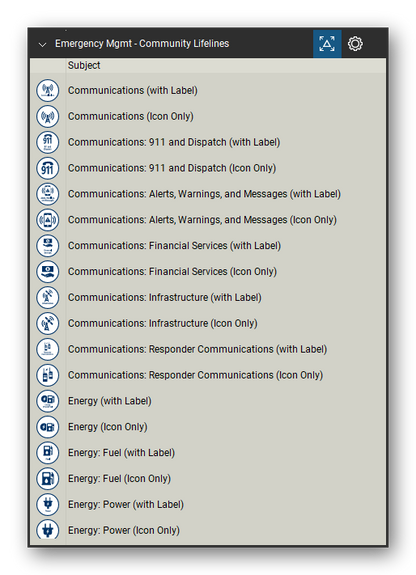

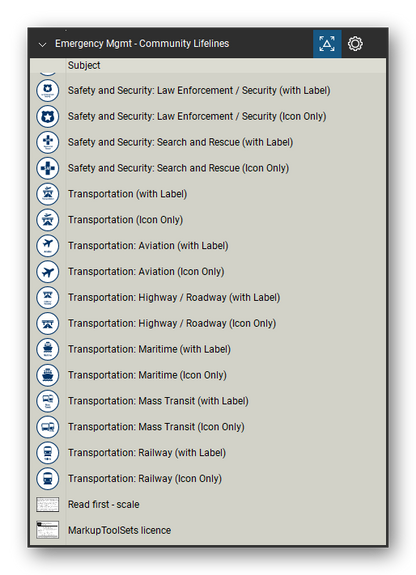

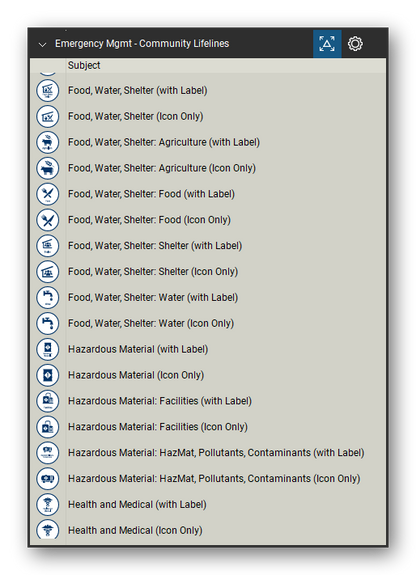

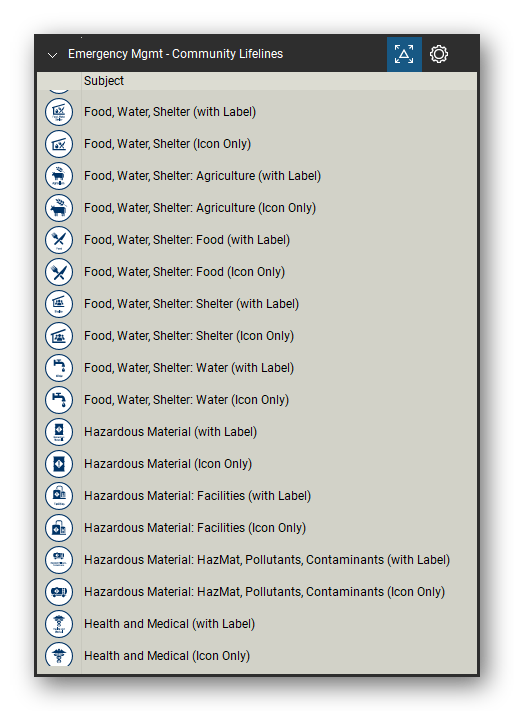

  • The seven community lifelines and their components, with and without label

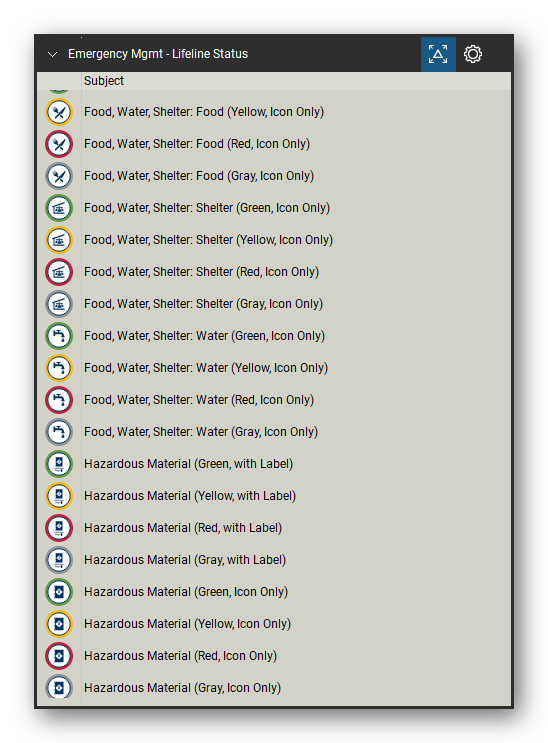

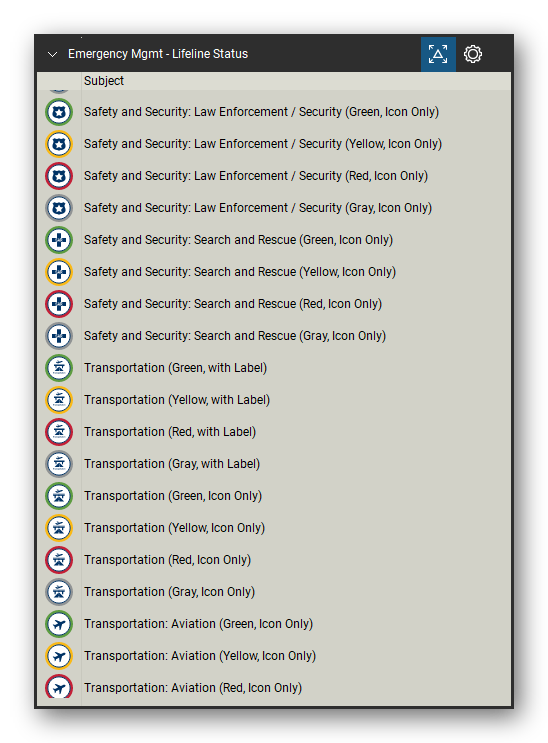

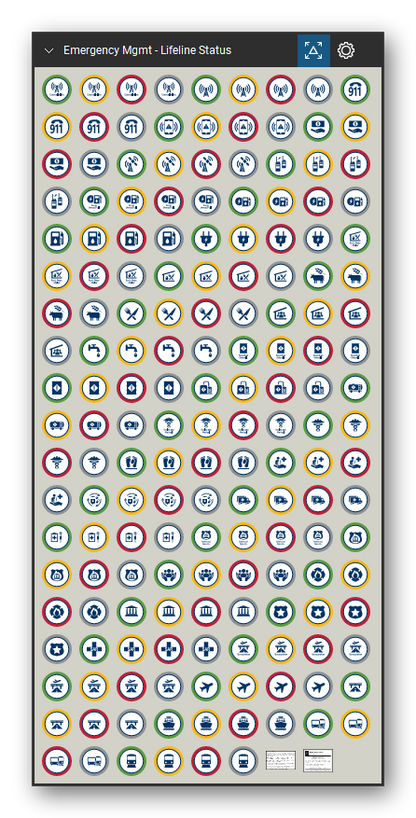

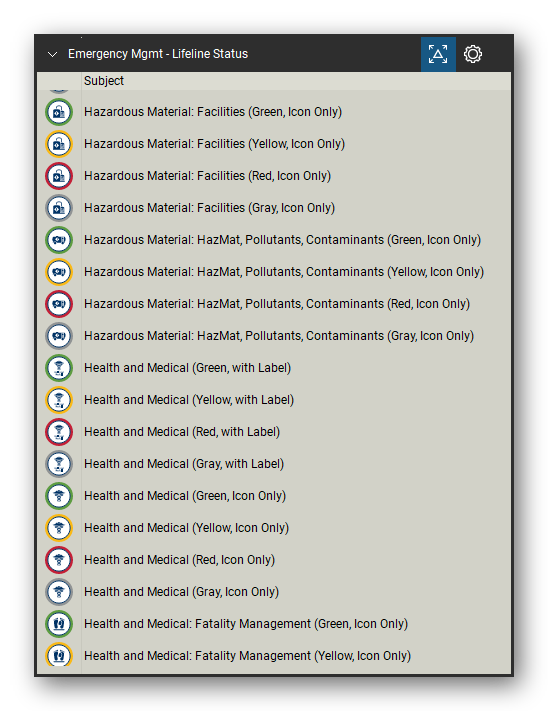

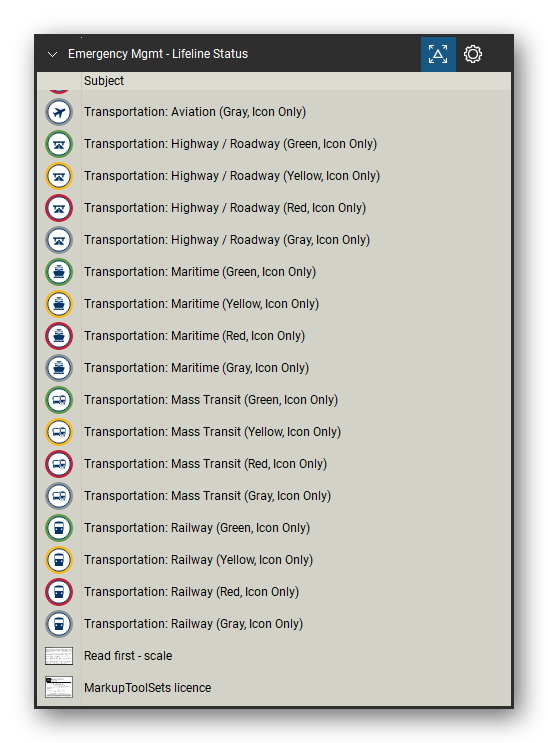

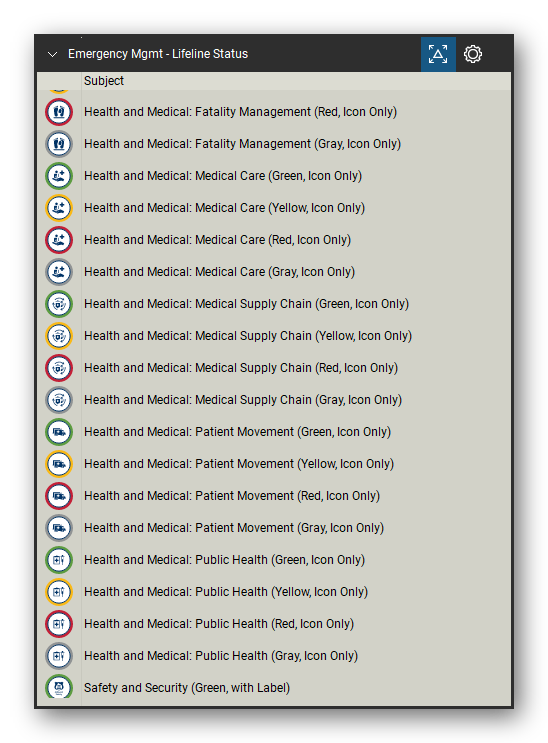

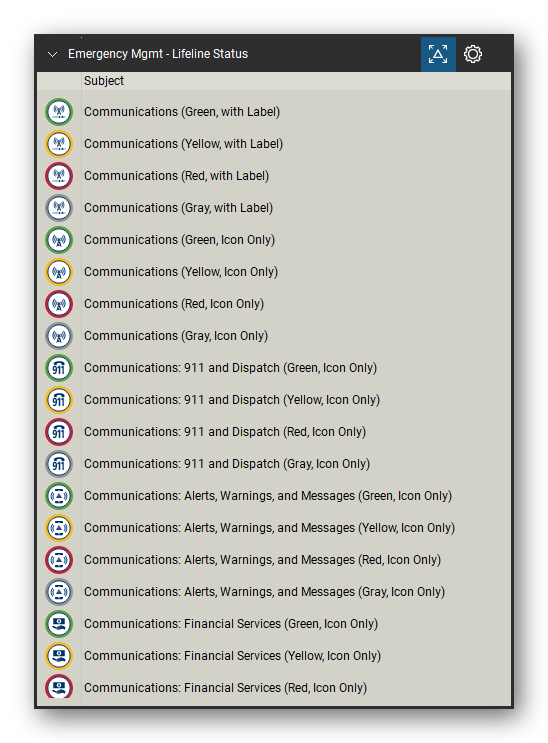

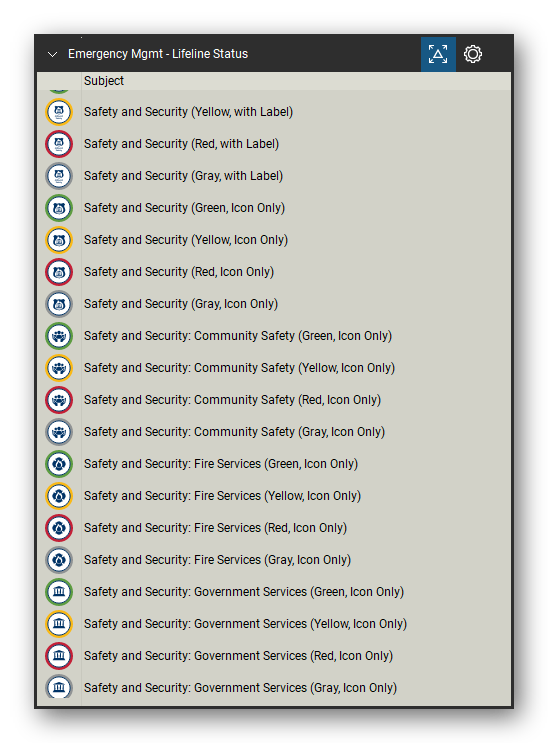

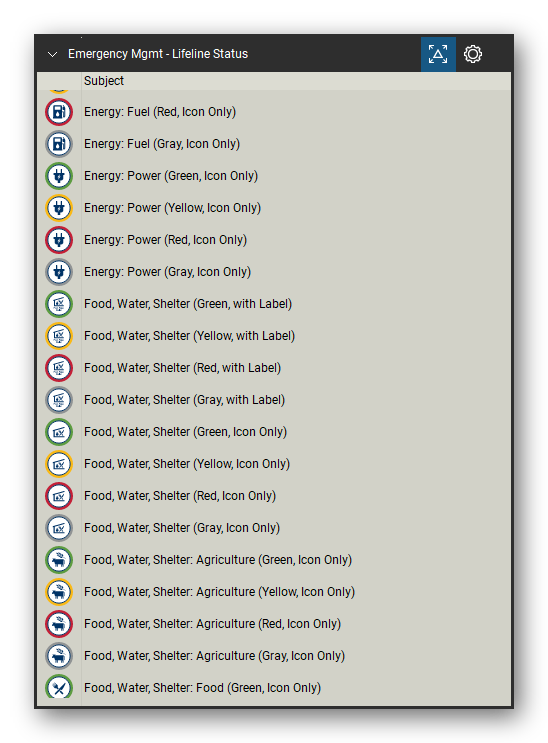

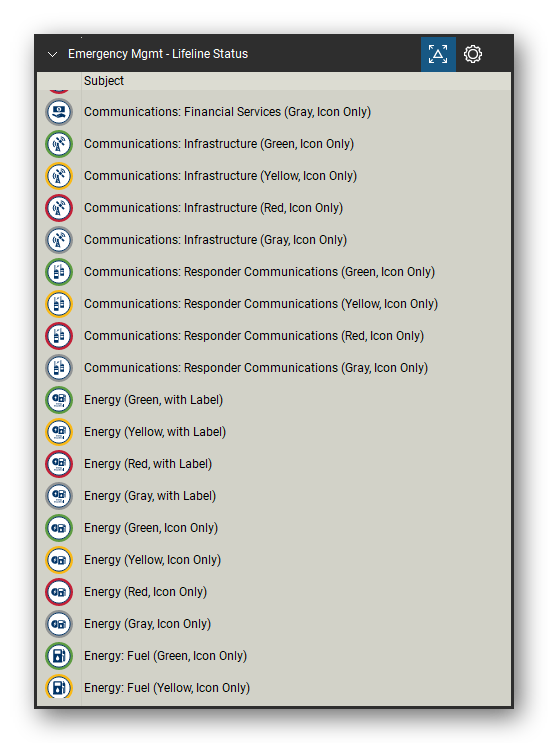

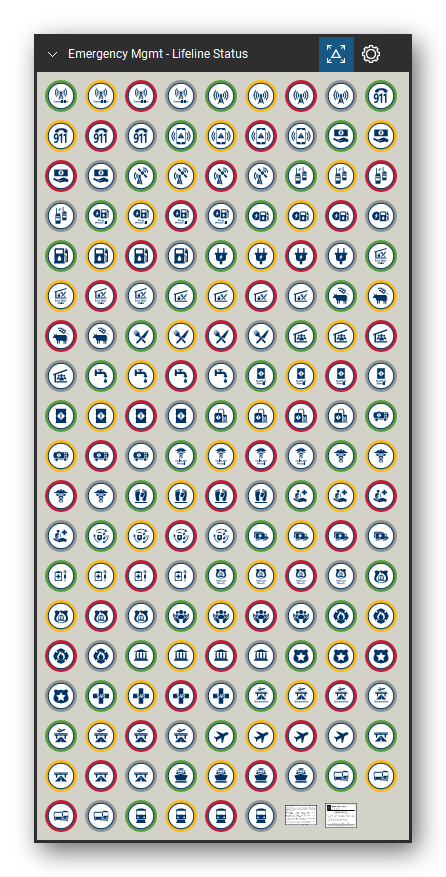

  • Lifeline status: every lifeline and component with a green, yellow, red, or gray status ring
• Critical infrastructure

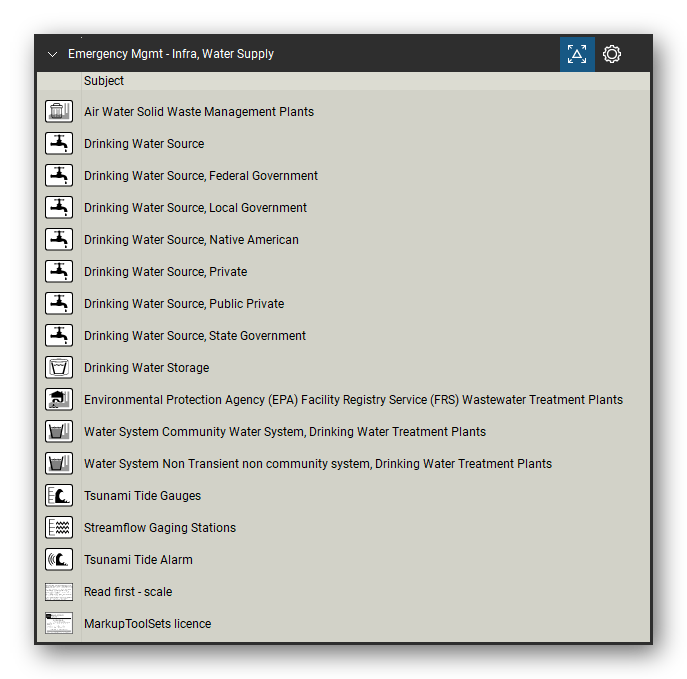

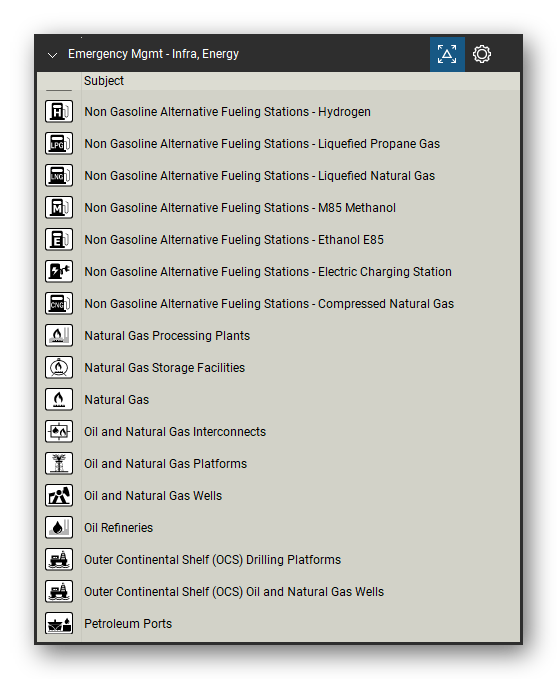

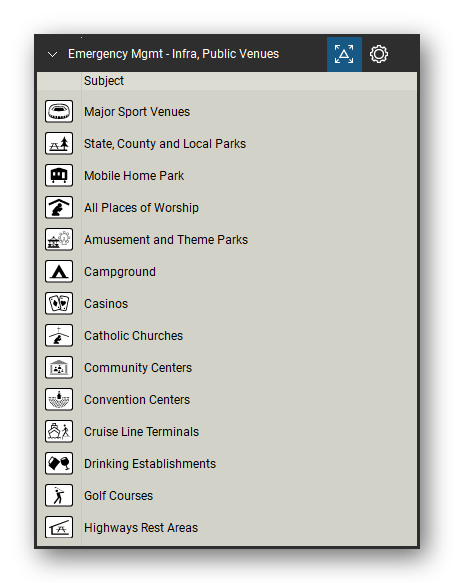

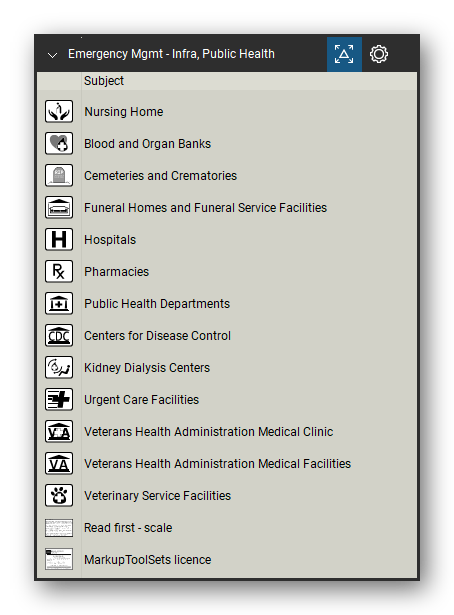

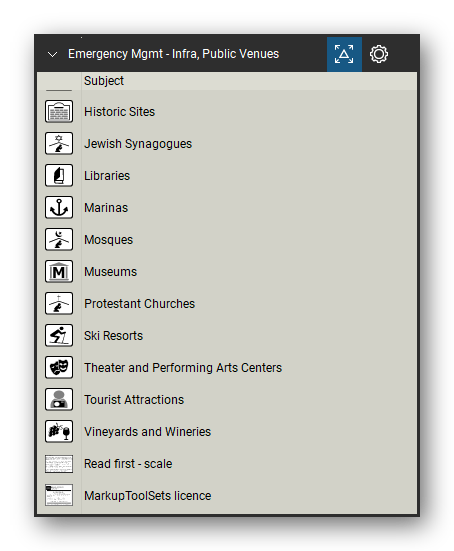

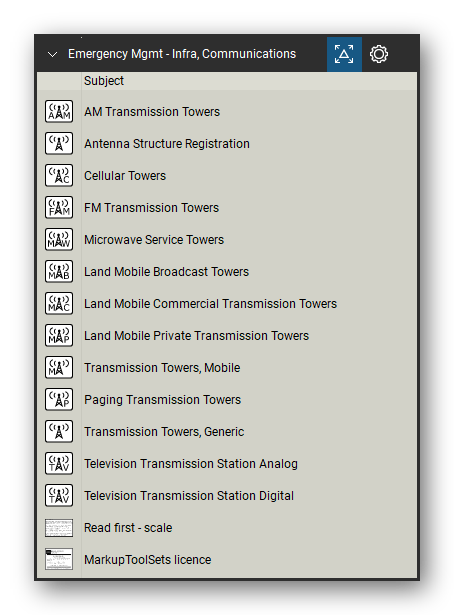

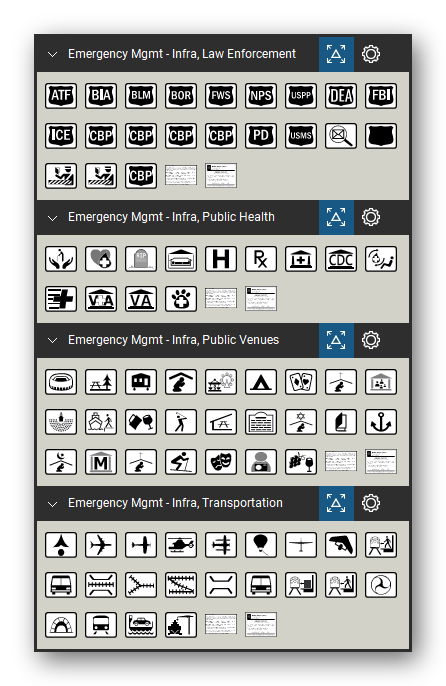

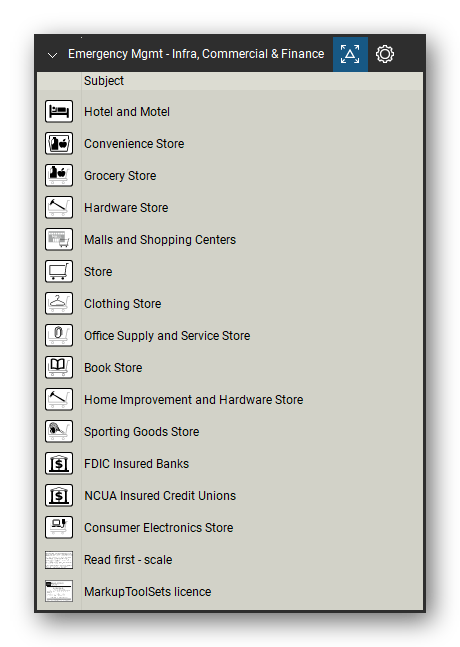

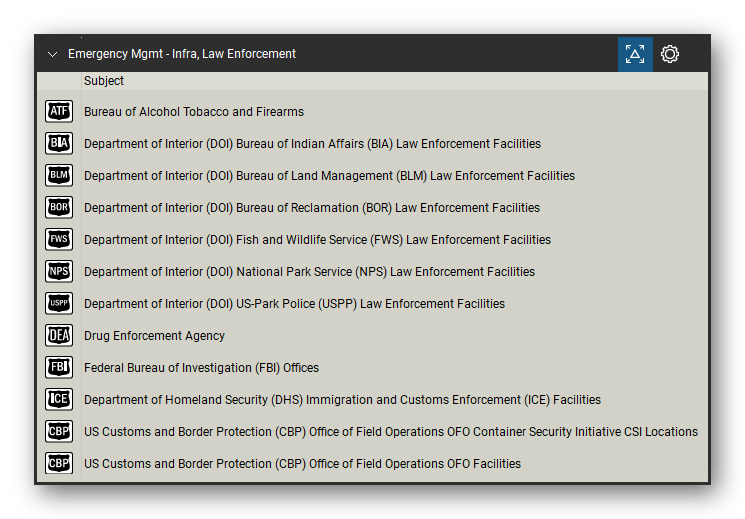

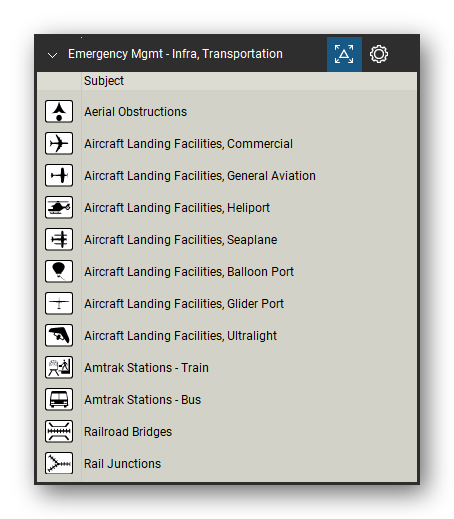

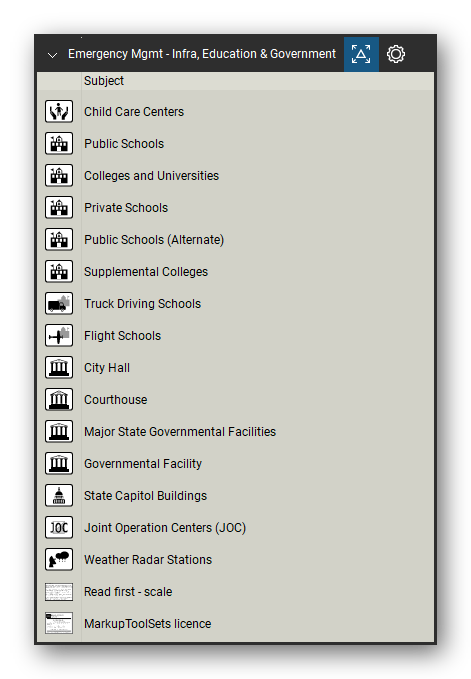

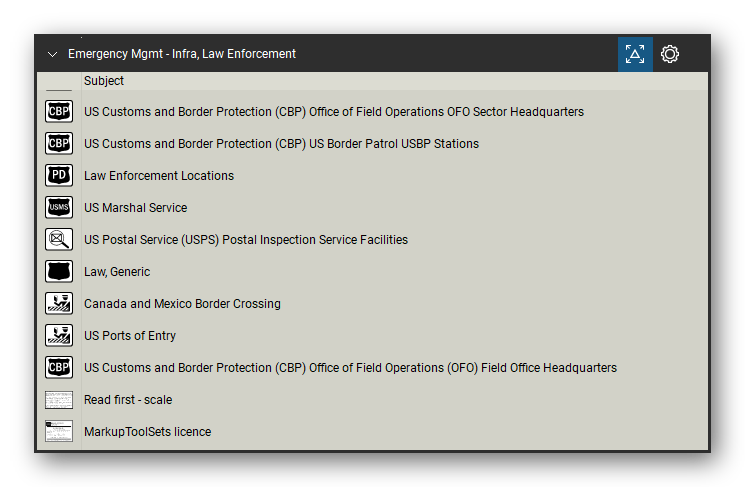

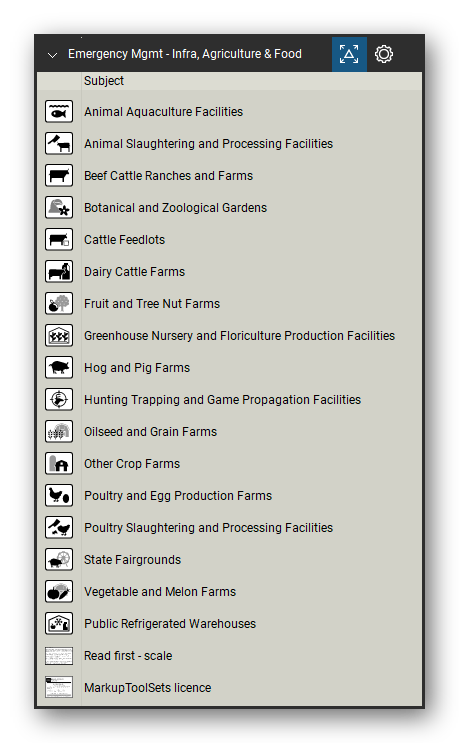

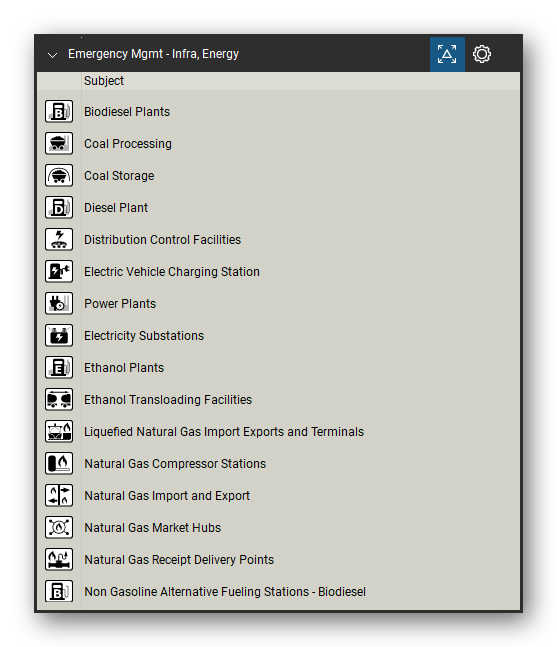

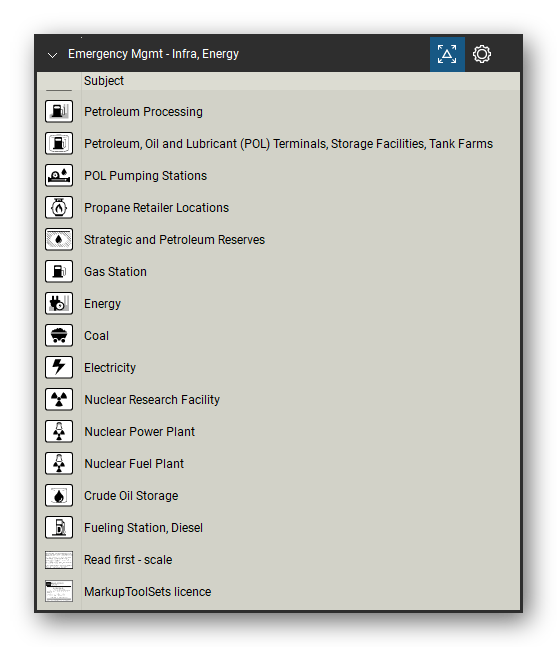

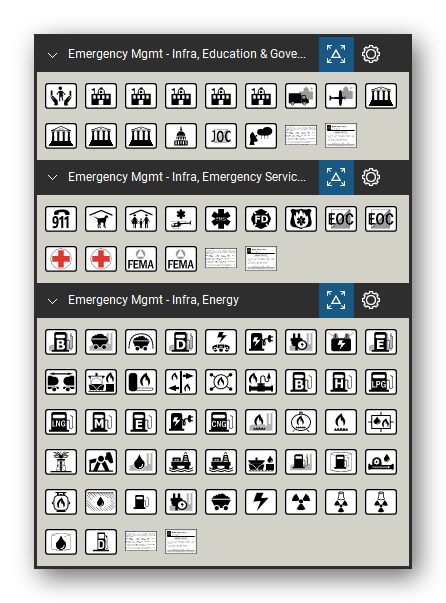

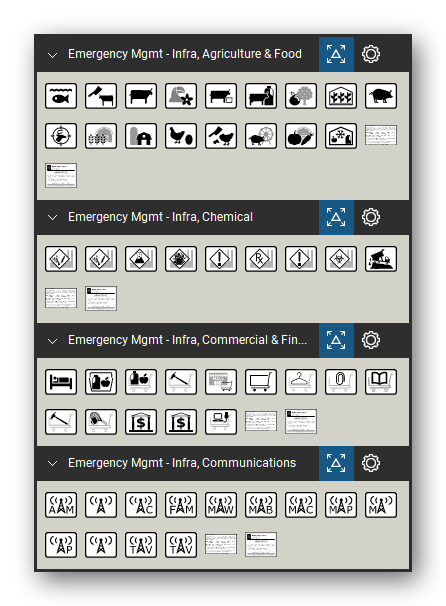

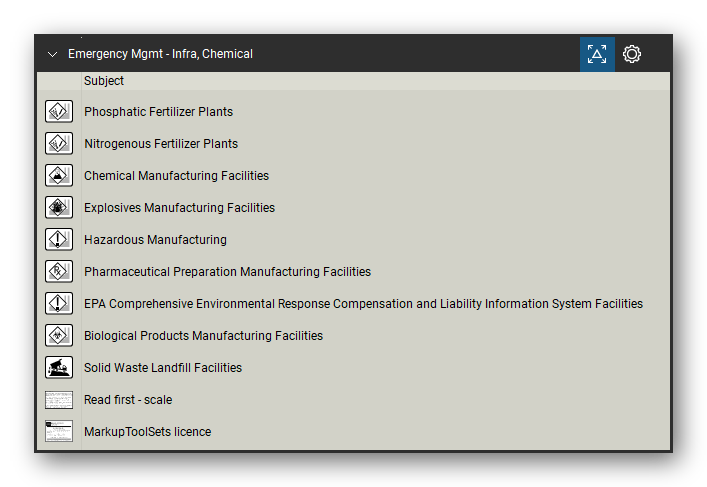

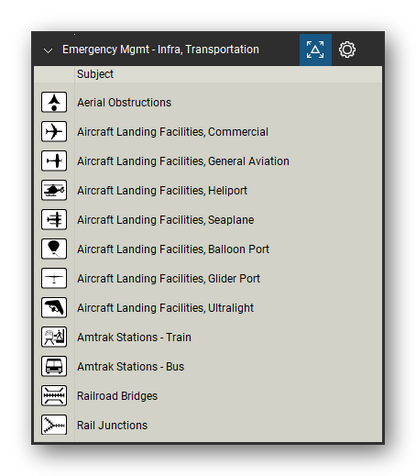

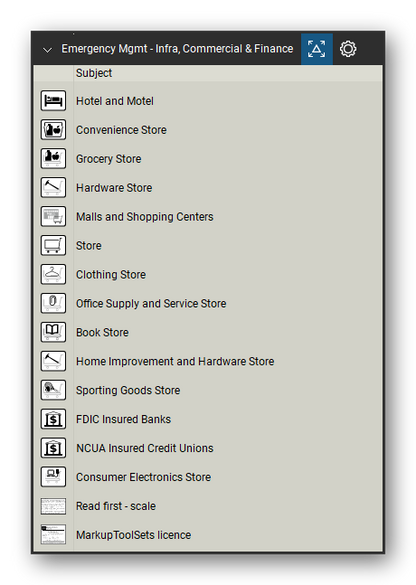

  • Agriculture and food, chemical, commercial and finance, communications, education and government, emergency services, energy, law enforcement and border, public health, public venues, transportation, and water supply facilities

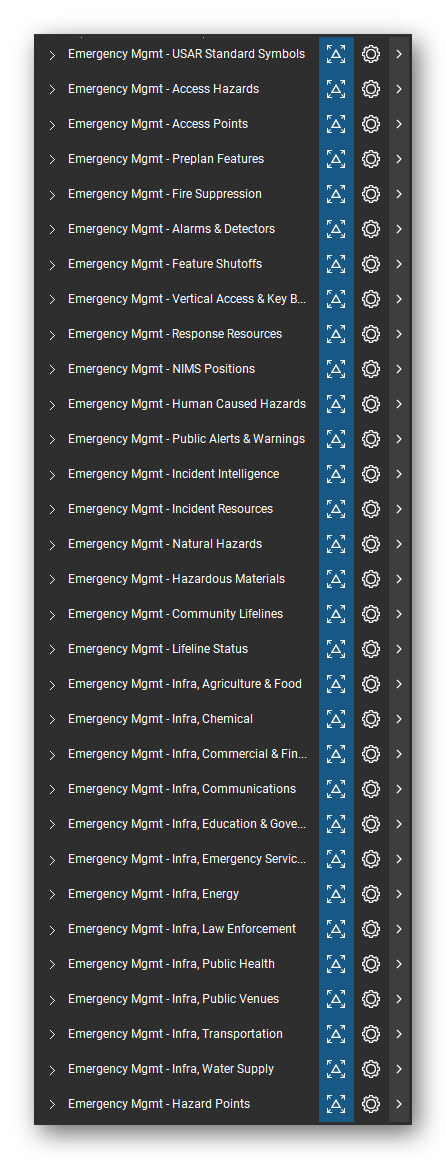

Delivered as a Bluebeam Revu profile that loads all 31 tool sets in one import, plus the individual tool set files.
