Hydronic Heating & Controls Bluebeam Tool Set

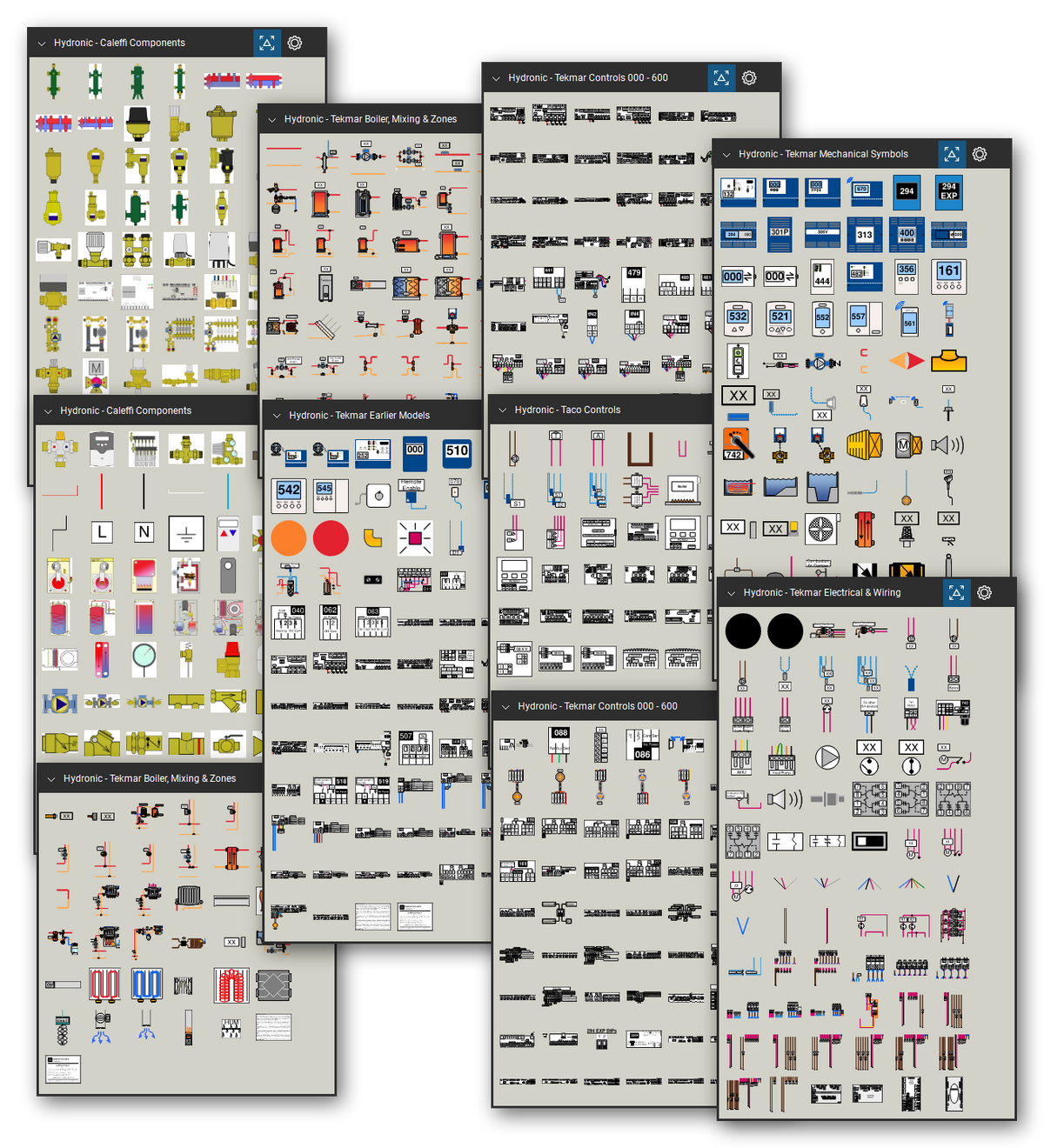

Tool set of hydronic heating symbols for piping schematics and control wiring diagrams. This tool set covers 7 categories with 556 symbols. Each symbol is a vector snapshot in the colors of its maker's artwork that places as a single markup — it can be moved, resized, and rotated directly in Bluebeam — and is named with its model, so the tools list by name in the Tool Chest and placed symbols list by name in the Markups List. Terminal labels, model numbers, and captions that stand on a symbol are editable text.

Examples of symbols included:

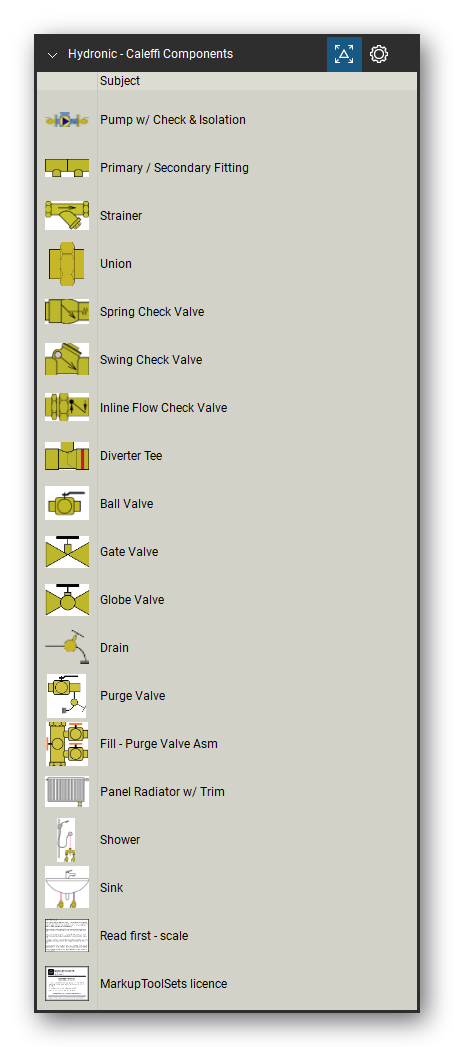

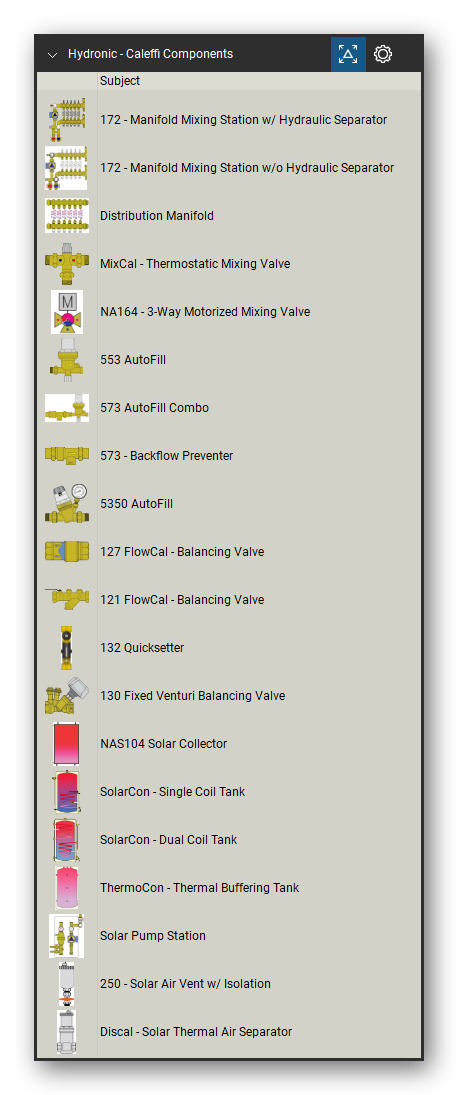

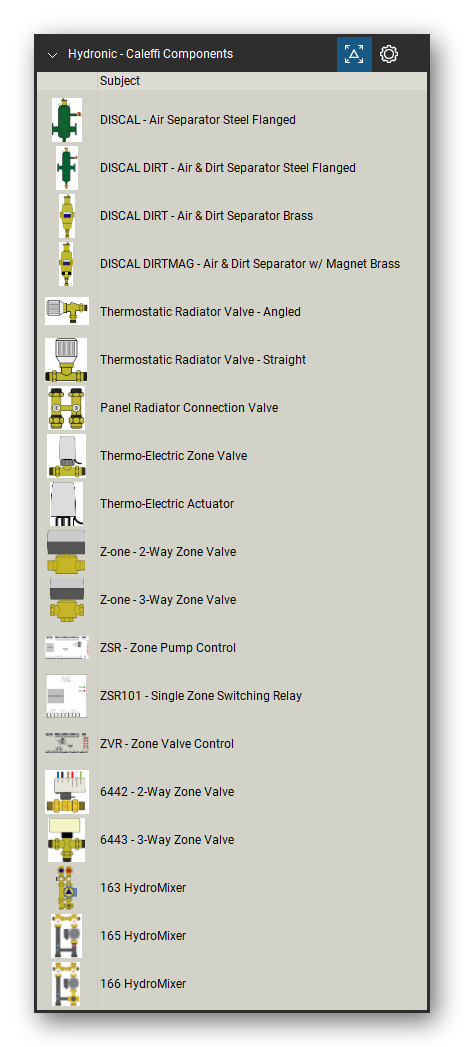

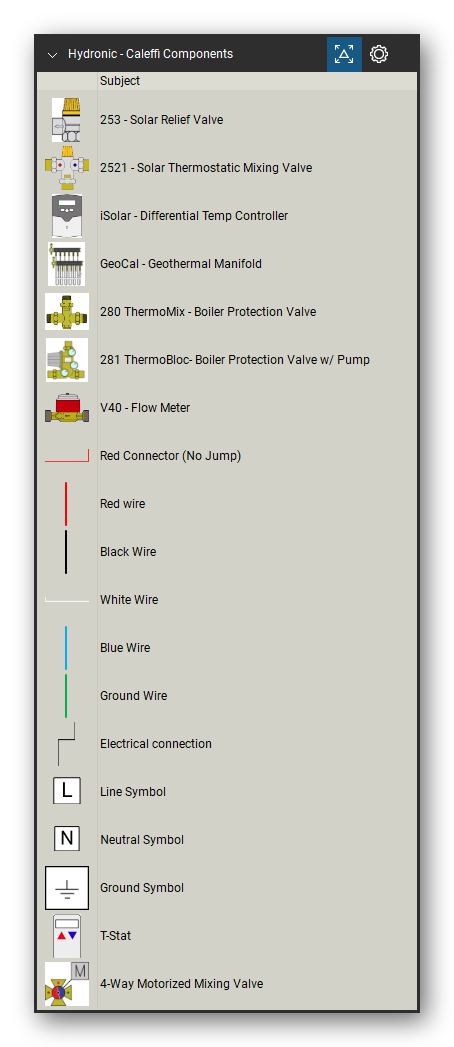

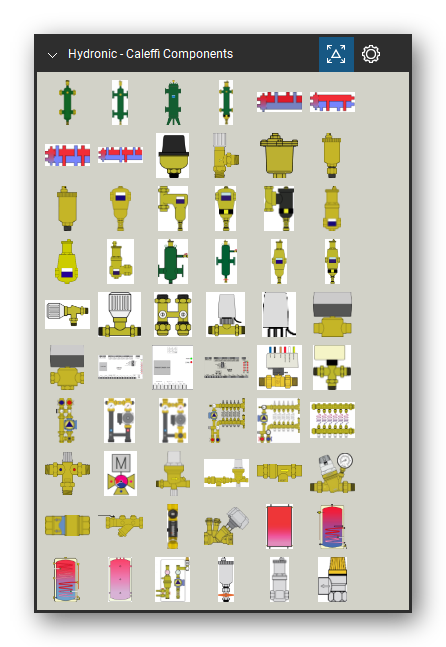

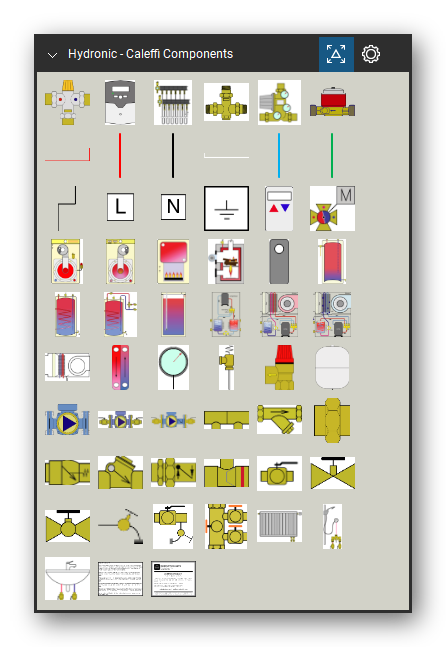

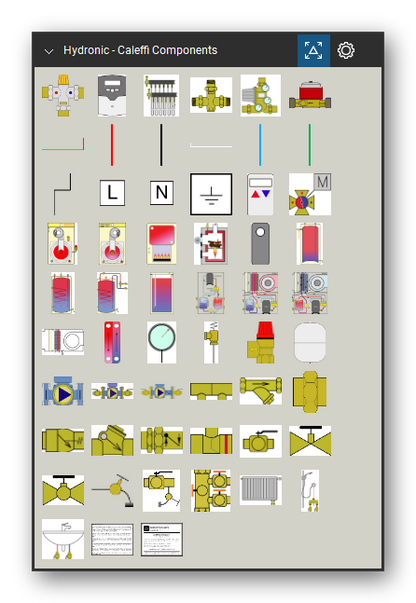

• Caleffi components

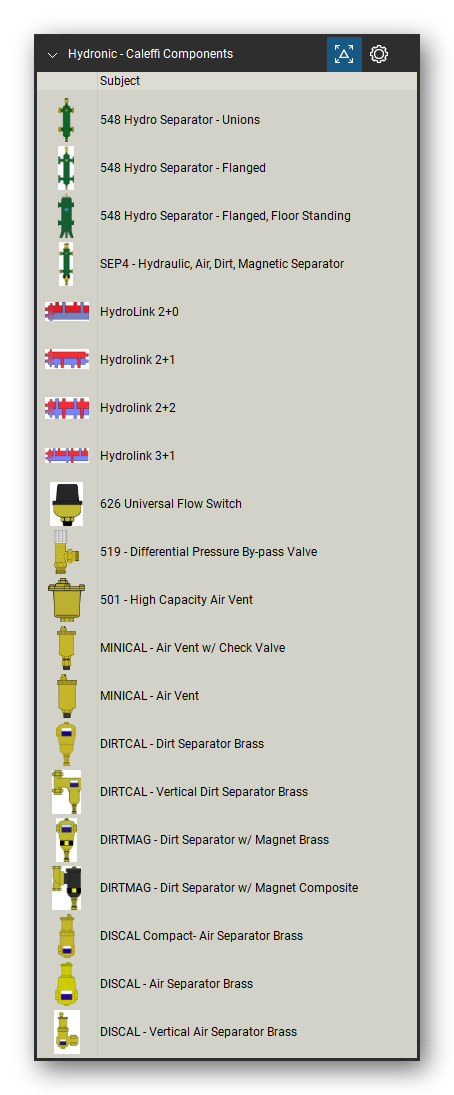

  • 548 and SEP4 hydraulic separators, HydroLink 2+0 to 3+1, DISCAL, DIRTCAL and DIRTMAG air and dirt separators, MINICAL and 501 air vents, 626 flow switch
  • Z-one 2-way and 3-way zone valves, 6442 and 6443 zone valves, ZSR and ZVR zone controls, thermostatic radiator valves, thermo-electric actuators
  • 163, 165 and 166 HydroMixer, 172 manifold mixing stations, MixCal and NA164 mixing valves, FlowCal and Quicksetter balancing valves, 553, 573 and 5350 AutoFill, backflow preventer

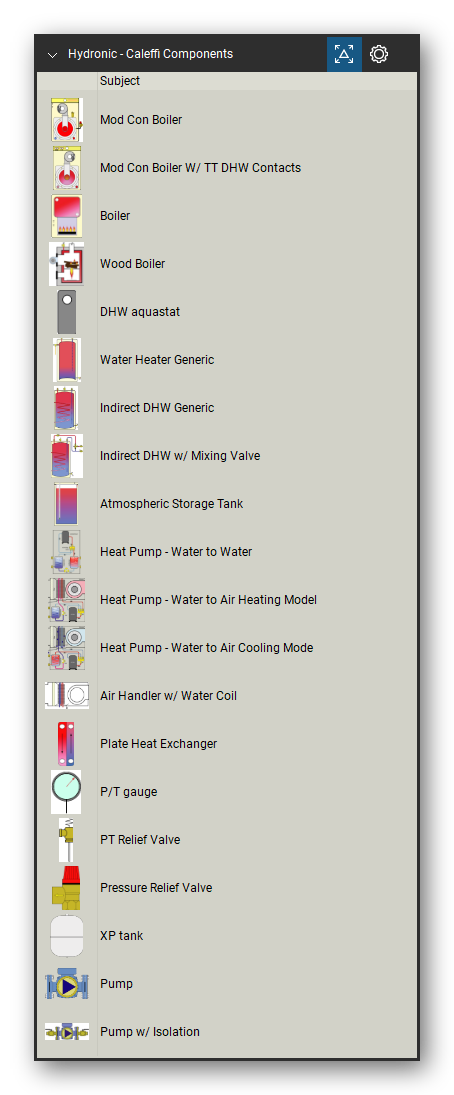

  • SolarCon and ThermoCon tanks, solar pump station and solar valves, GeoCal geothermal manifold, ThermoMix and ThermoBloc boiler protection, boilers, water heaters, heat pumps, pumps, check, ball, gate and globe valves

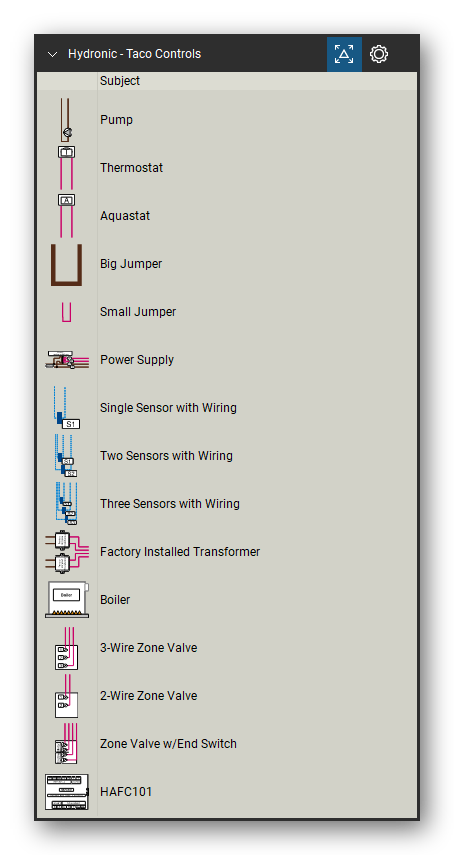

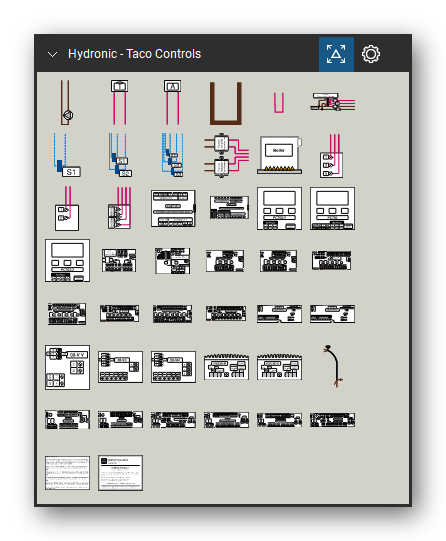

• Taco controls

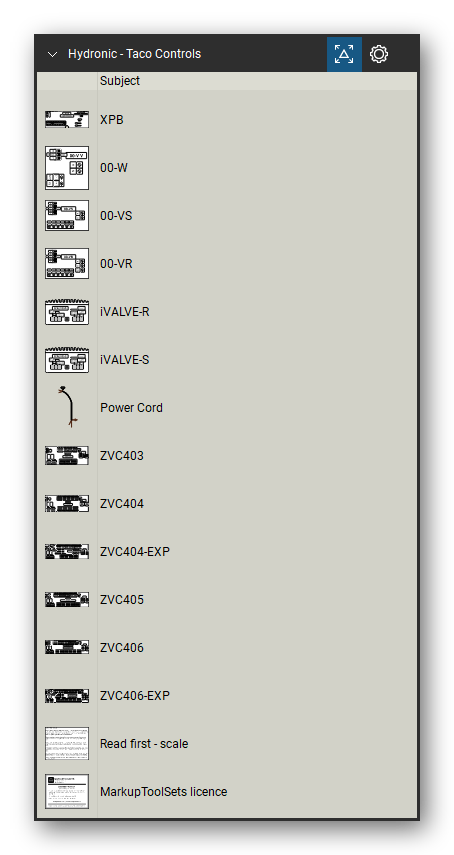

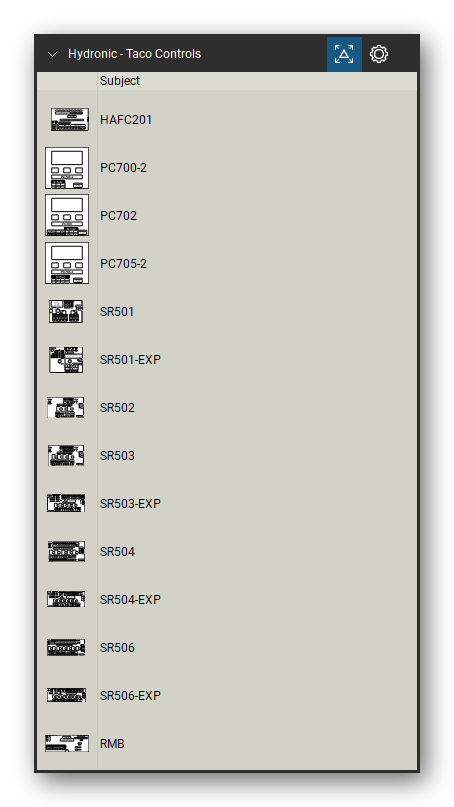

  • SR501 to SR506 pump controls, ZVC403 to ZVC406 zone valve controls, PC700, PC702 and PC705 controls, HAFC101 and HAFC201 fan controls

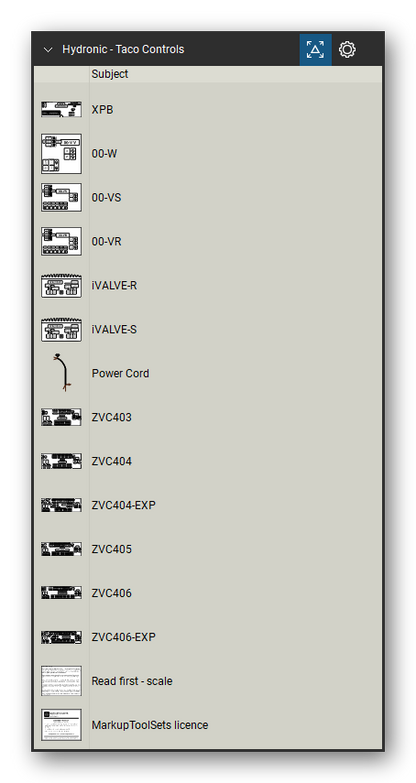

  • RMB, XPB, 00-W, 00-VS and 00-VR pumps, iVALVE-R and iVALVE-S

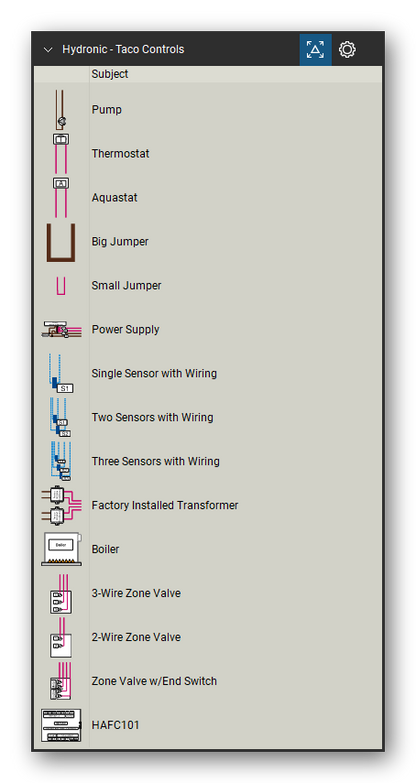

  • Wiring pieces: pump, thermostat, aquastat, jumpers, power supply, sensors, transformer, boiler, 2-wire and 3-wire zone valves, zone valve with end switch

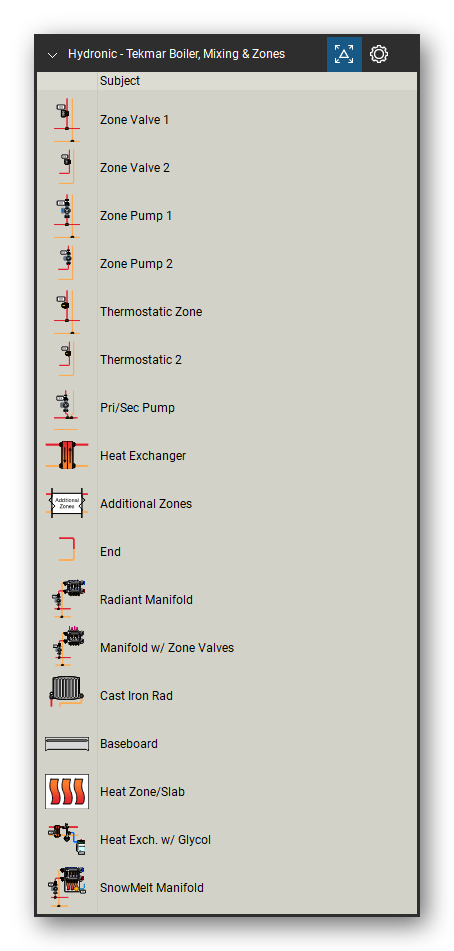

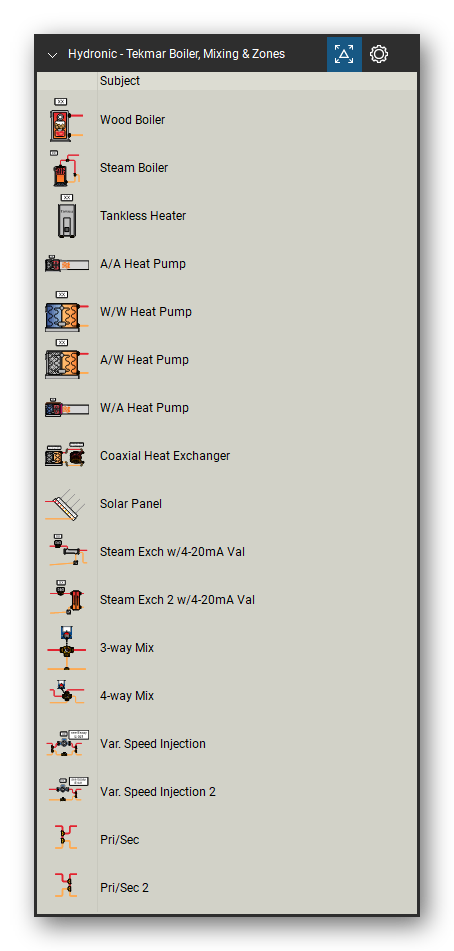

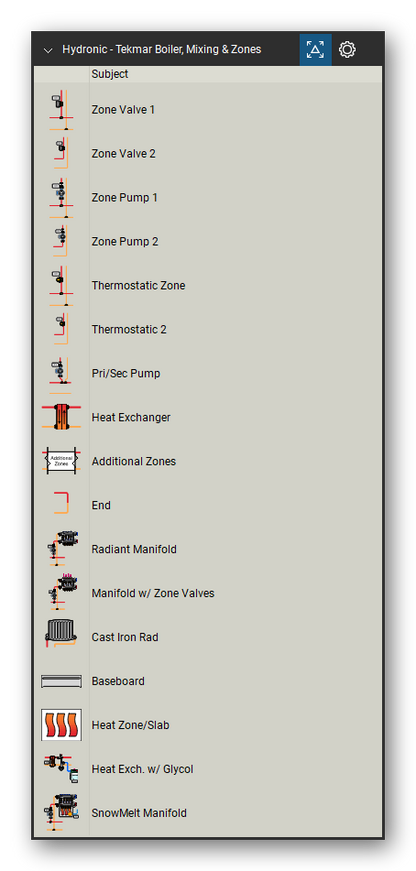

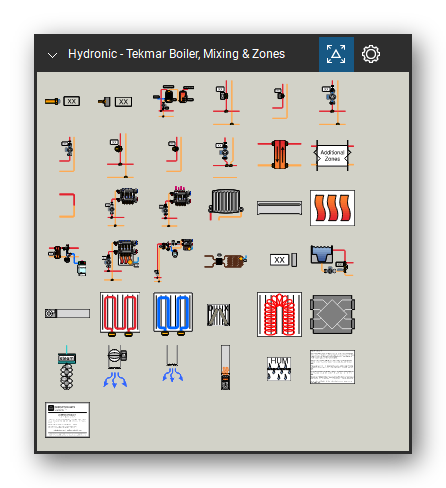

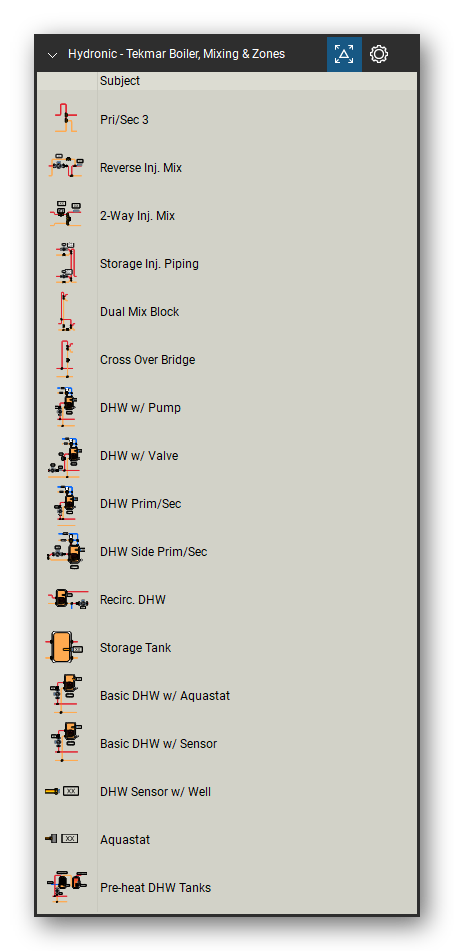

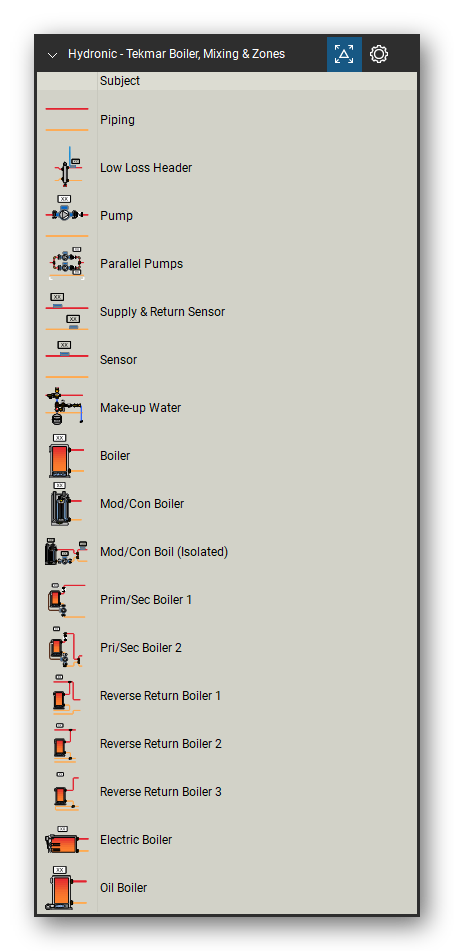

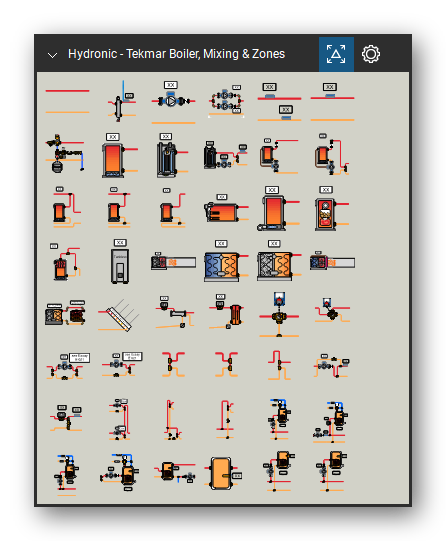

• tekmar boiler, mixing and zone piping
  • Boilers: mod/con, primary/secondary, reverse return, electric, oil, wood and steam boilers, tankless heater, low loss header, parallel pumps, make-up water
  • Heat pumps (air and water), coaxial heat exchanger, solar panel, steam exchangers with 4-20 mA valves
  • Mixing: 3-way and 4-way mix, variable speed and reverse injection, primary/secondary, dual mix block, crossover bridge
  • Domestic hot water: DHW tanks with pump, valve, primary/secondary and recirc, storage tank, pre-heat tanks, aquastats

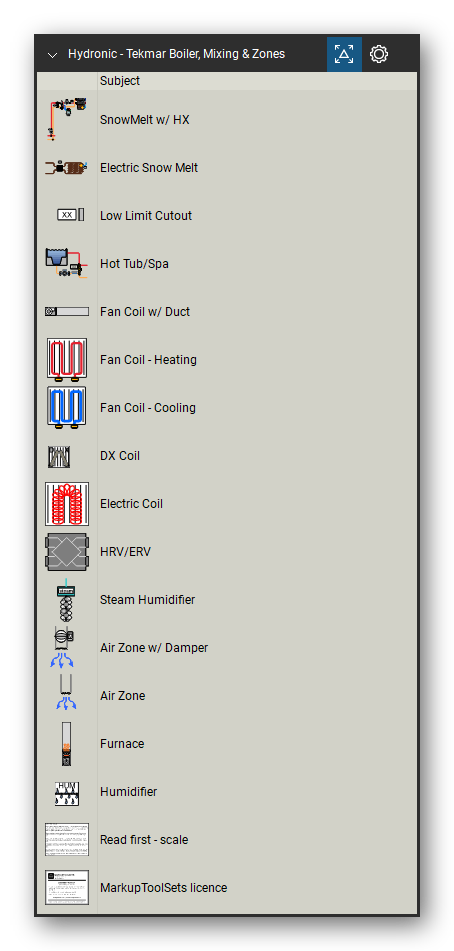

  • Zones: zone valves and pumps, thermostatic zones, radiant manifolds, cast iron rad, baseboard, slab, snow melt, fan coils, DX and electric coils, HRV/ERV, humidifiers, furnace, air zones with dampers

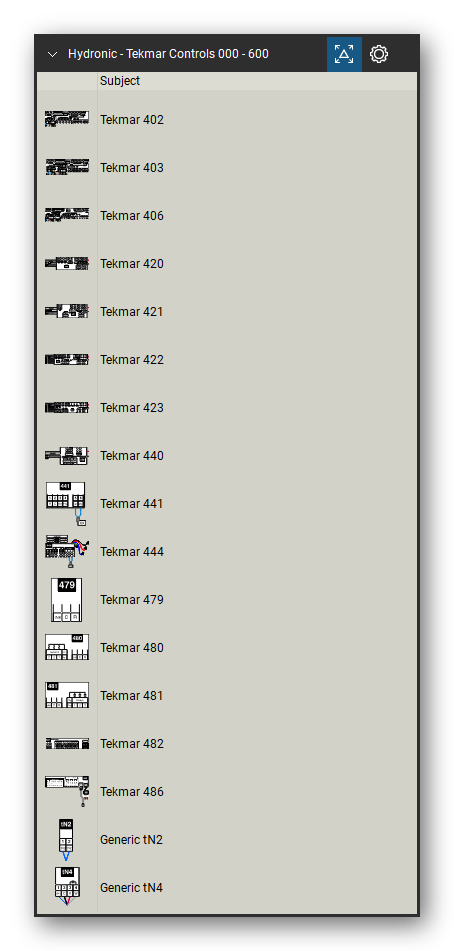

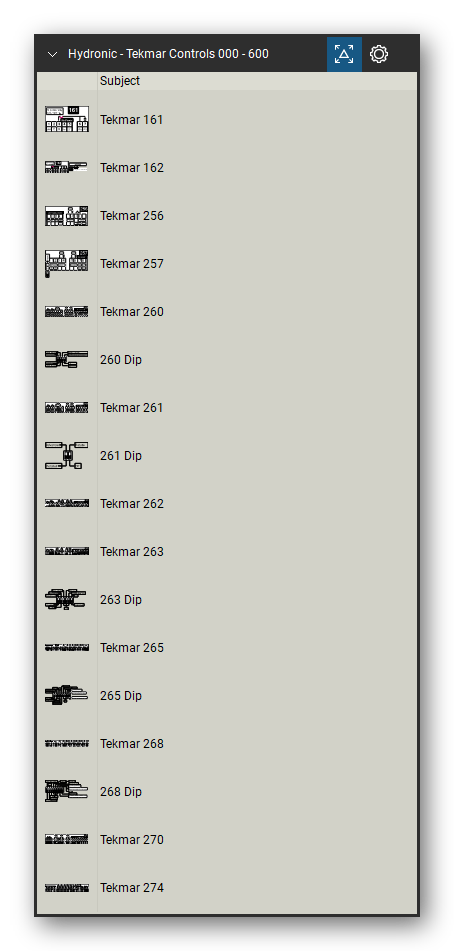

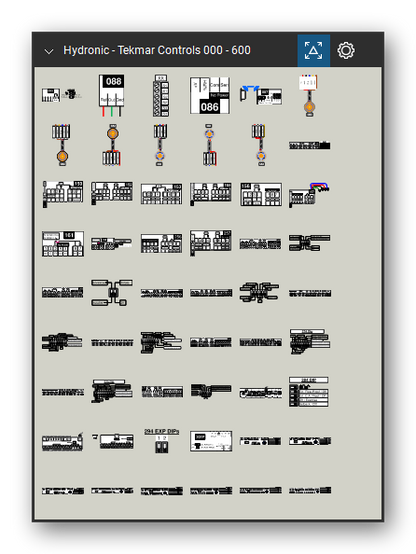

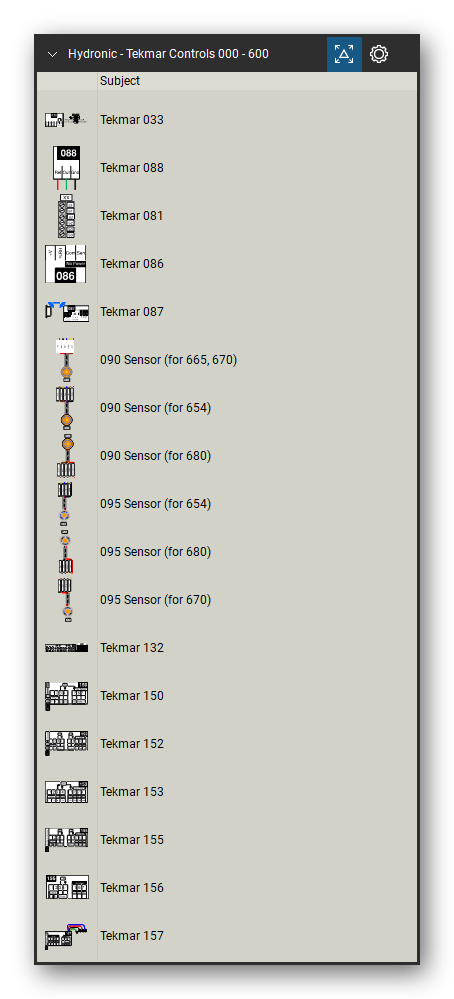

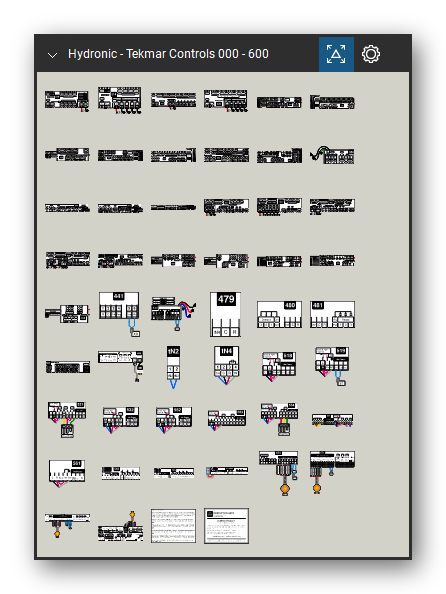

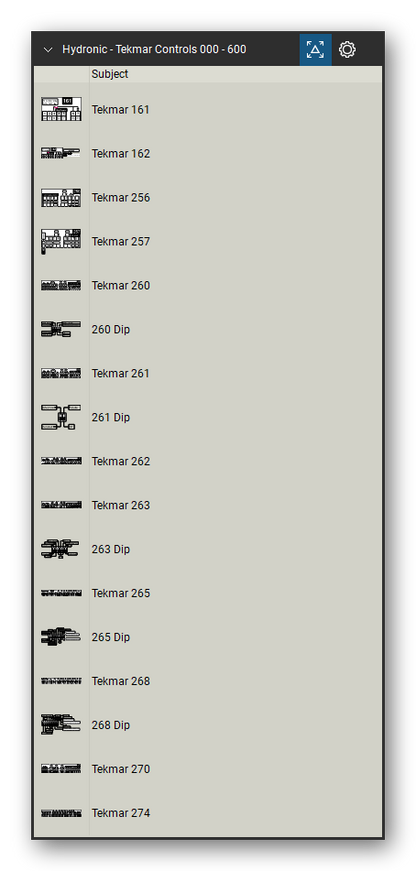

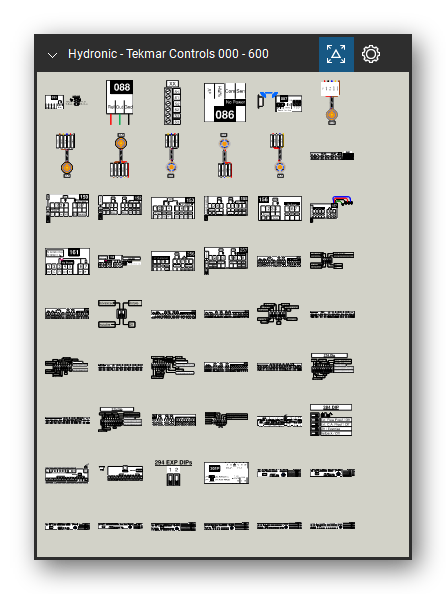

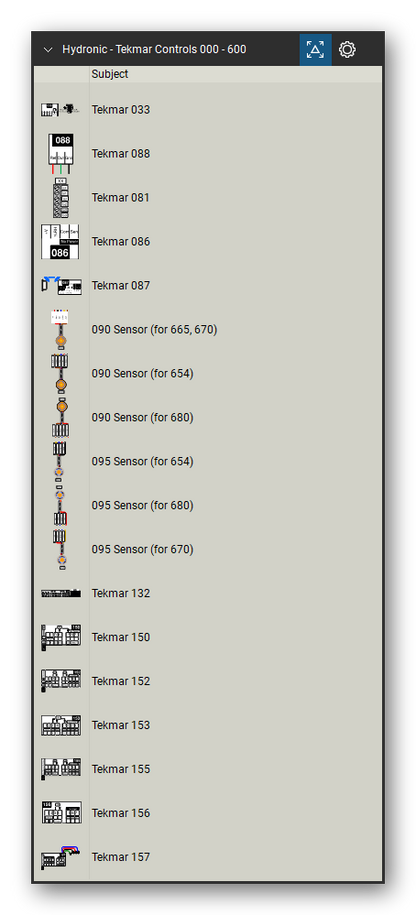

• tekmar controls 000 – 600

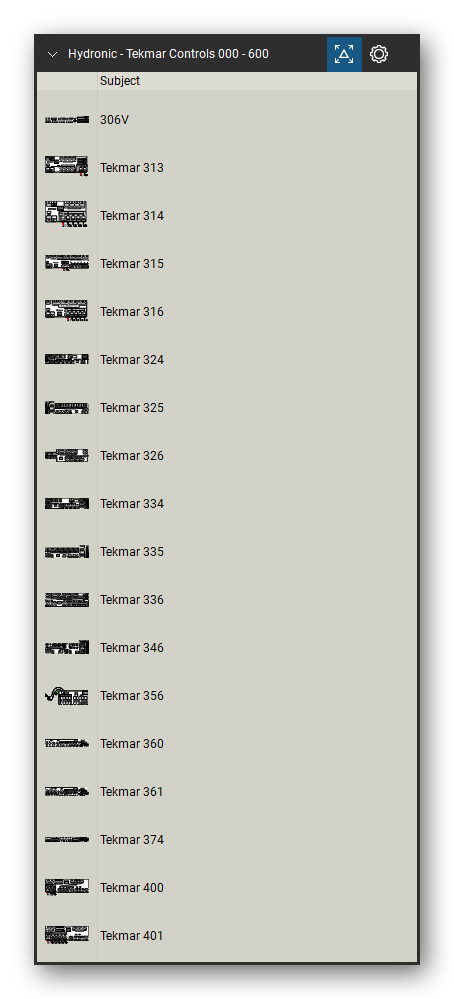

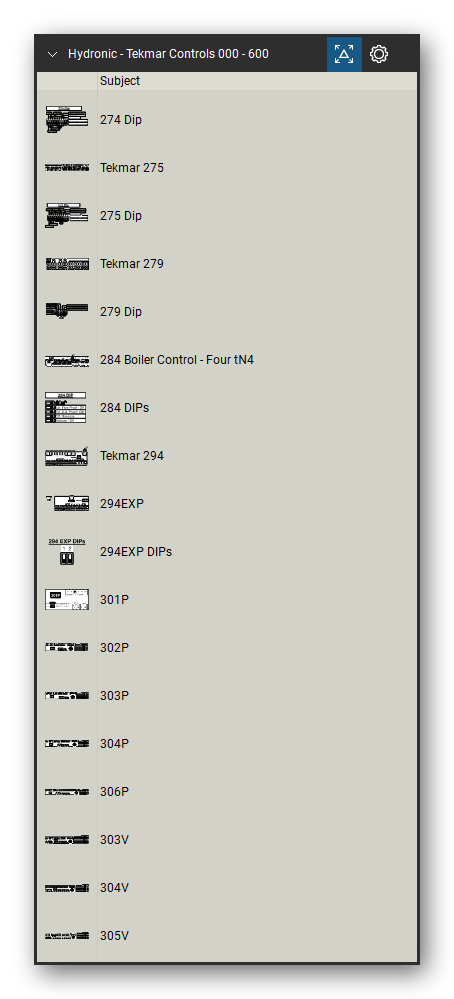

  • 090 and 095 sensors for the 654 to 680 controls, 033, 081, 086, 087 and 088 relays and sensor modules, 132, 150 to 162 setpoint controls
  • 256 to 279 boiler and mixing controls with their DIP switch blocks, 284 and 294 boiler controls, 301P to 306V zone controls

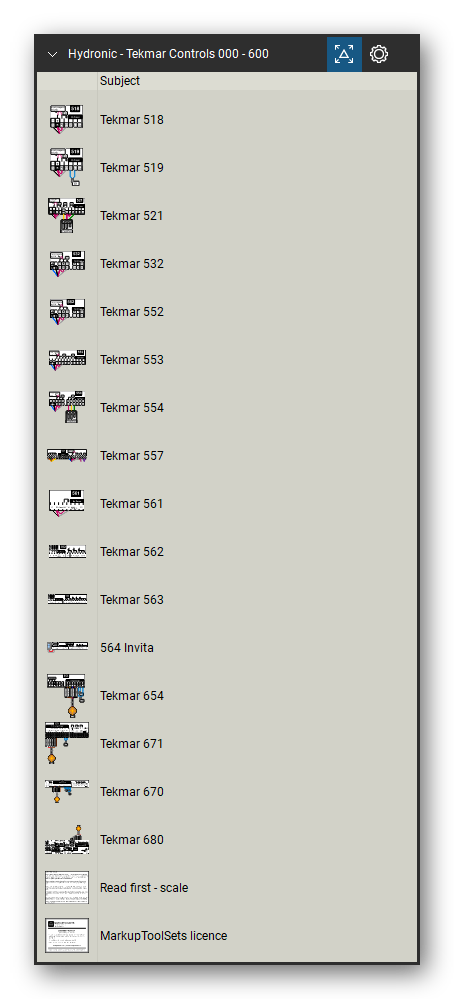

  • 313 to 374 mixing and reset controls, 400 to 486 house and zone controls, 518 to 564 thermostats and tN4 controls, 654 to 680 controls

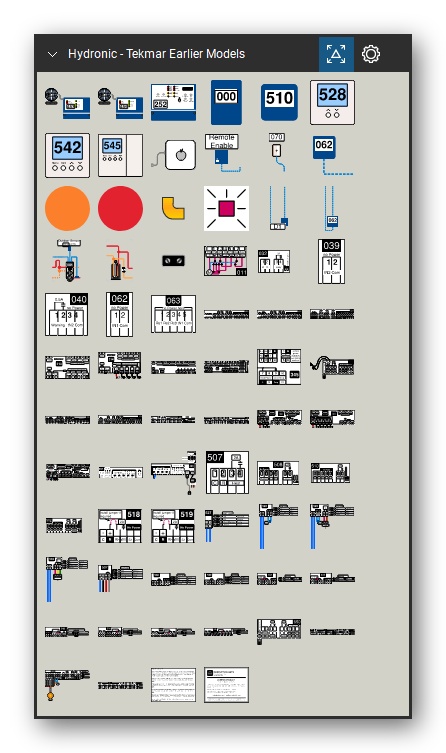

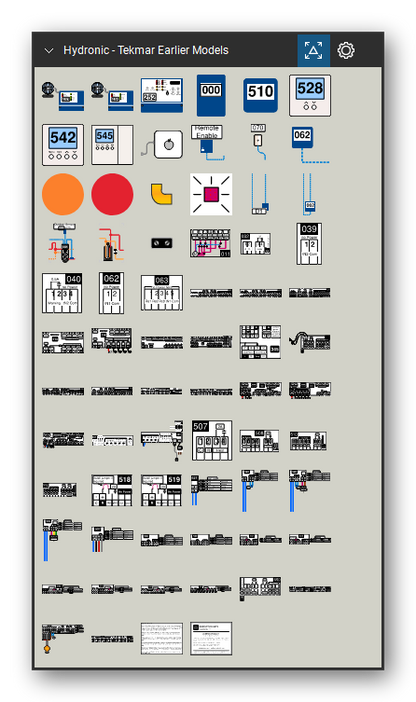

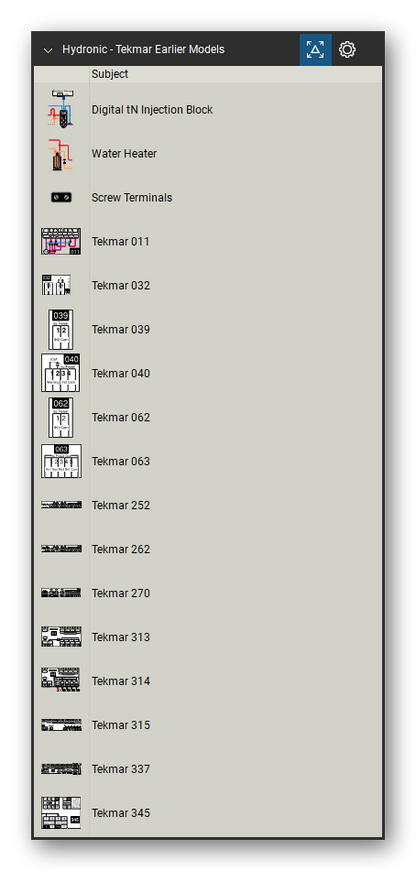

• tekmar earlier models

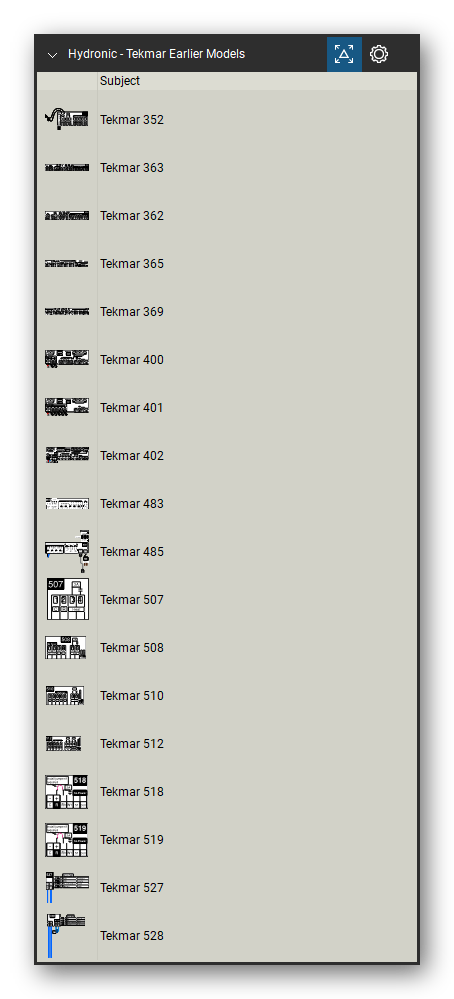

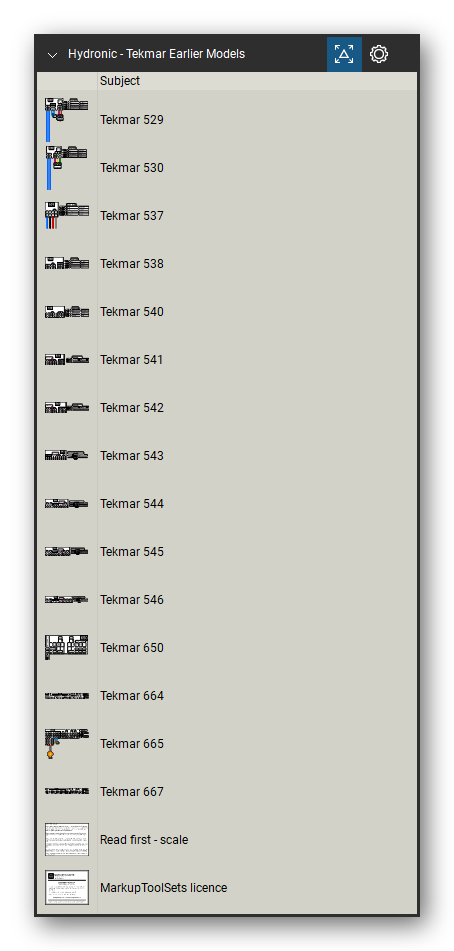

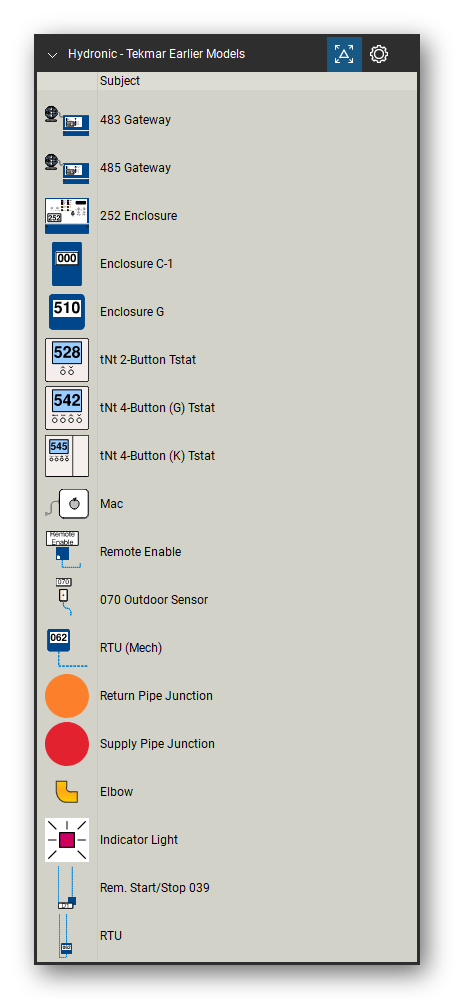

  • 011 to 063 relays and sensors, 252 to 270 and 313 to 369 controls, 400 to 402 house controls, 483 and 485 gateways, 507 to 546 thermostats, 650 to 667 controls
  • Enclosures, tNt thermostats, injection block, water heater, pipe junctions, screw terminals, indicator light

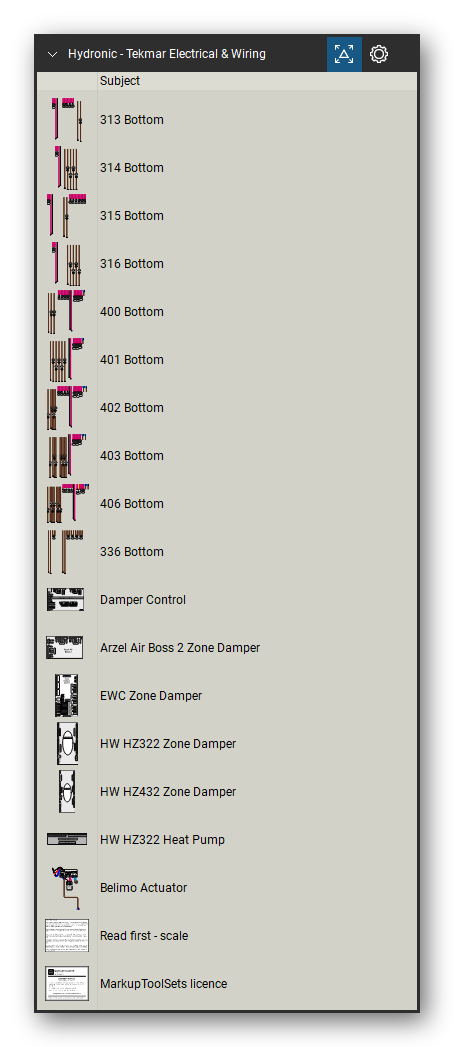

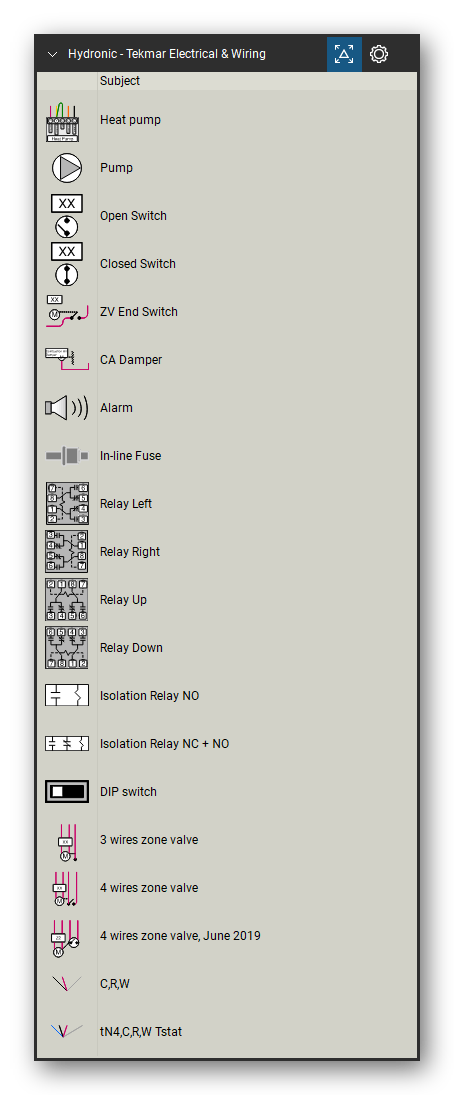

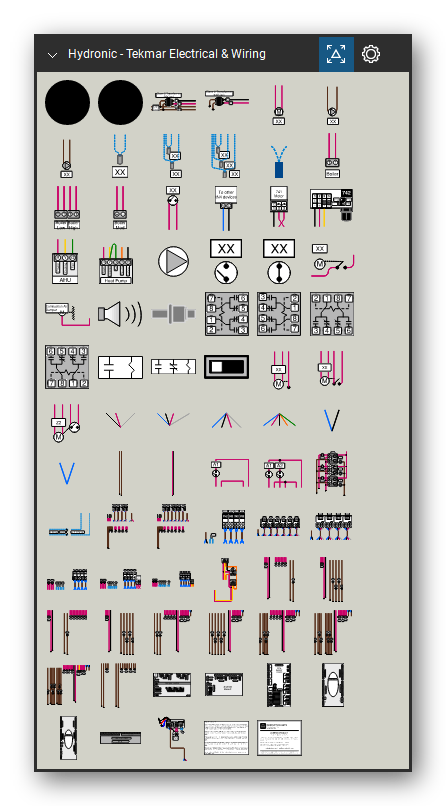

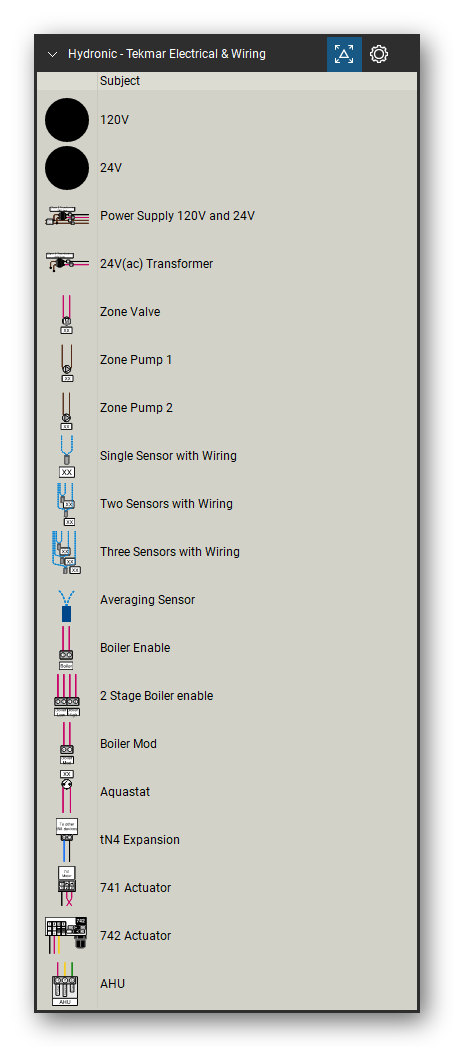

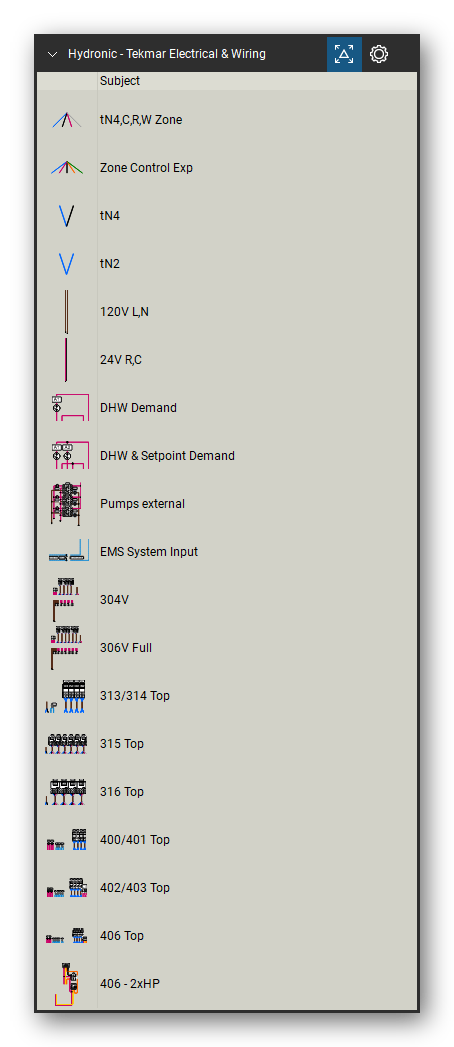

• tekmar electrical and wiring
  • 120 V and 24 V supplies, transformer, zone valves and pumps, sensors, boiler enable and boiler mod, aquastat, actuators, air handler, heat pump, switches, fuse, relays, DIP switch, 3-wire and 4-wire zone valves
  • Wiring blocks: tN4 and tN2 buses, C/R/W thermostat and zone wiring, 120 V and 24 V terminals, DHW and setpoint demand, external pumps, EMS input
  • Terminal rows of the 304V, 306V, 313 to 316, 336 and 400 to 406 controls, damper controls, Arzel, EWC and Honeywell zone dampers, Belimo actuator

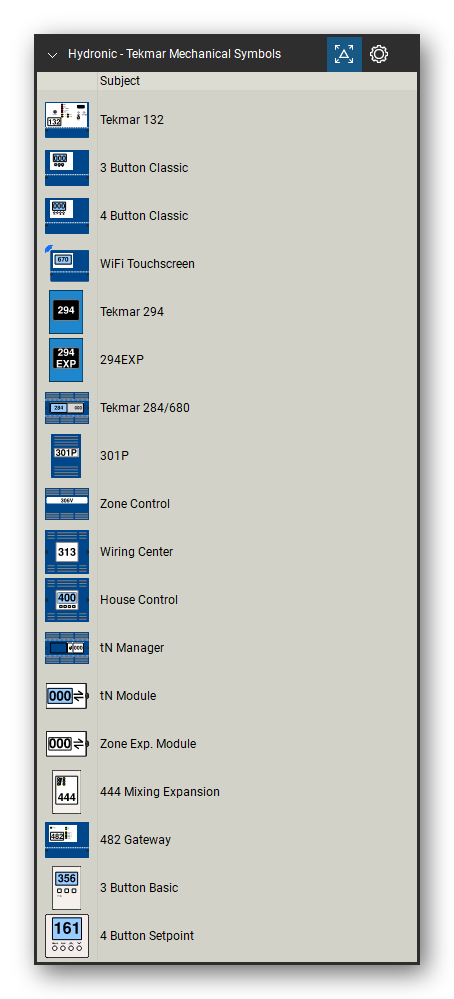

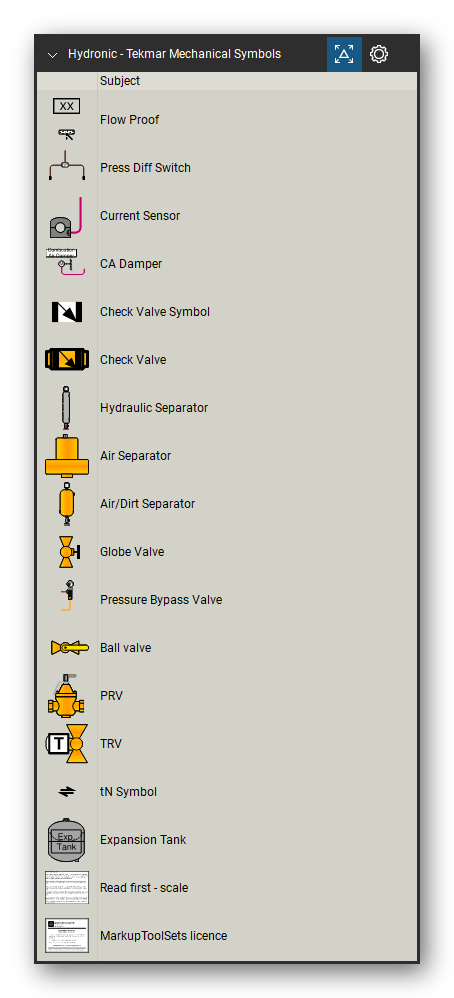

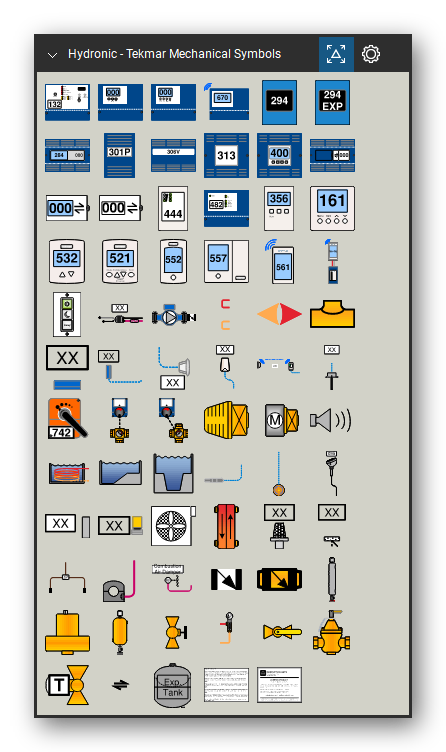

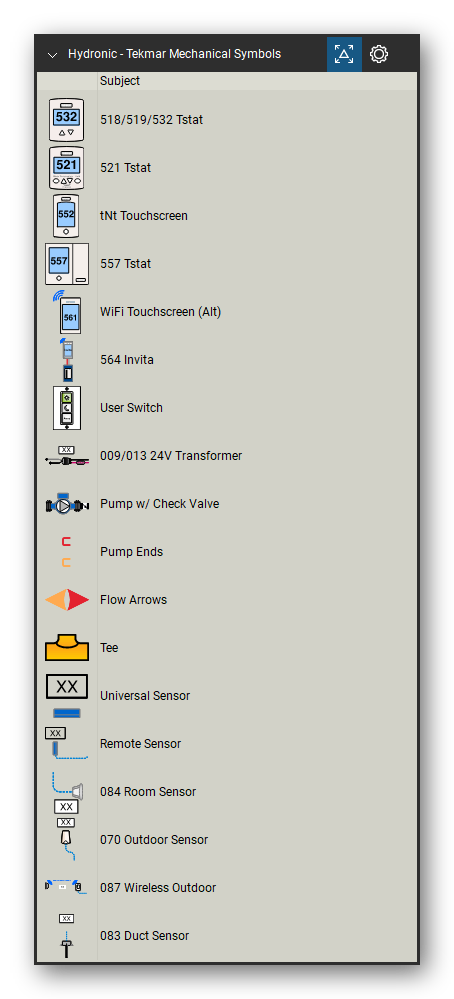

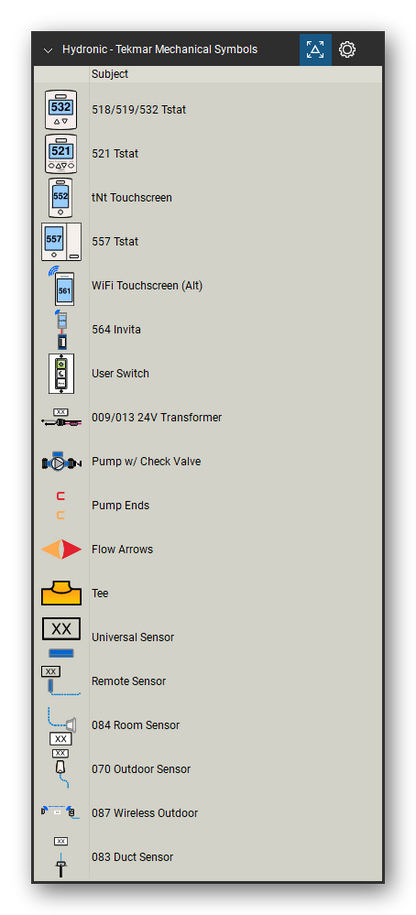

• tekmar mechanical symbols
  • Control faces: 132, 294, 294EXP, 284/680, 301P, zone and house controls, wiring center, tN manager and module, 444 mixing expansion, 482 gateway
  • Thermostats 518/519/532, 521, 557, touchscreens, 564 Invita, user switch

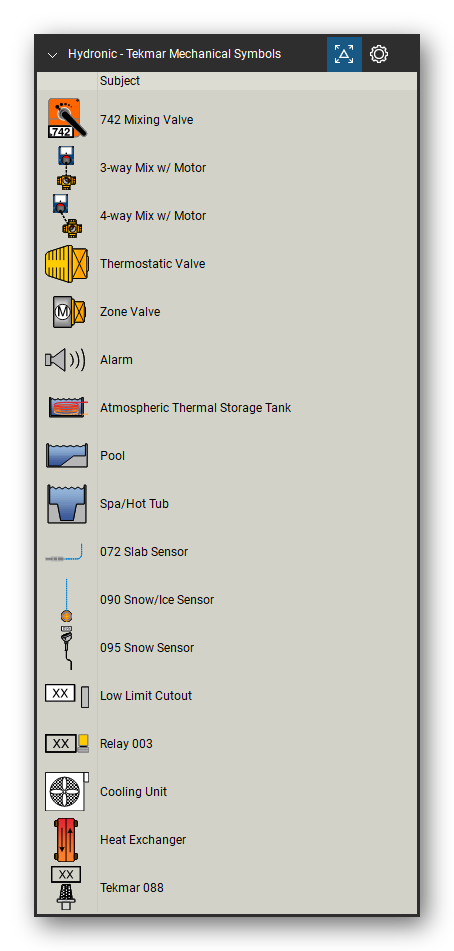

  • Sensors (universal, remote, room, outdoor, wireless, duct, slab, snow), 742 mixing valve, 3-way and 4-way mix with motor, thermostatic and zone valves, check, globe, ball and bypass valves, PRV, TRV, separators, expansion and storage tanks, pool, spa, heat exchanger, cooling unit, damper, alarm, relay

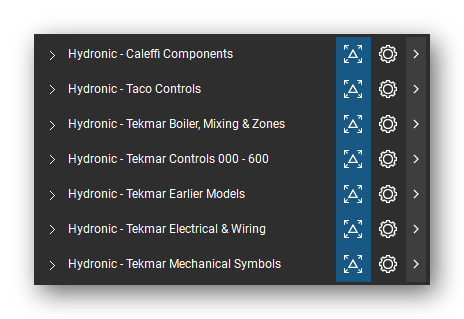

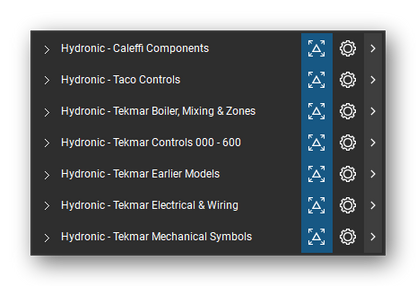

Delivered as a Bluebeam Revu profile that loads all 7 tool sets in one import, plus the individual tool set files.

Caleffi, Taco and tekmar are trademarks of their owners and are used only to identify the equipment the symbols show. MarkupToolSets is not affiliated with or endorsed by any of them.
