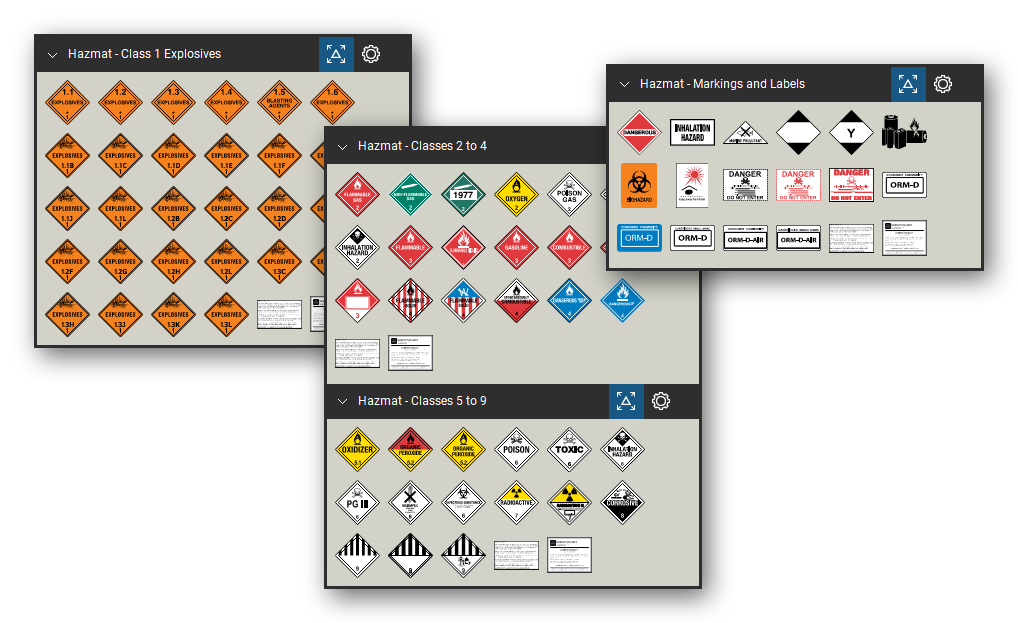

• Hazmat symbol library for Bluebeam Revu: 77 tools in 4 tool sets - the U.S. DOT hazardous materials placards and labels of hazard classes 1 to 9 and common hazmat markings, in their colours, each named by class or division and wording.

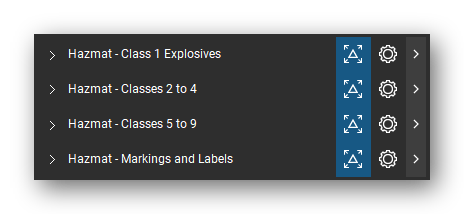

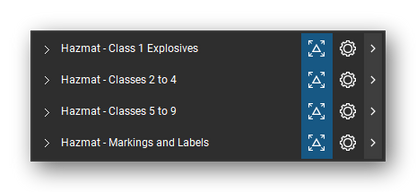

  • The Bluebeam Revu Tool Chest with the 4 tool sets of the Hazmat Symbols tool set loaded, closed to the set titles: class 1 explosives, classes 2 to 4, classes 5 to 9, and markings and labels.

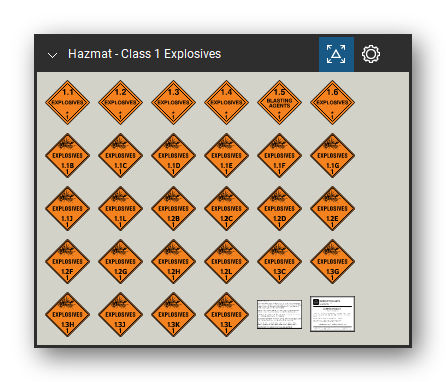

  • Hazmat Symbols tool set for Bluebeam Revu, Class 1 Explosives set - 28 orange class 1 placards: the division placards 1.1, 1.2, 1.3, 1.4 and 1.6 Explosives and 1.5 Blasting Agents, and the explosives placards with a compatibility group letter, 1.1B to 1.1L, 1.2B to 1.2L and 1.3C to 1.3L. Tool Chest in Symbol view.

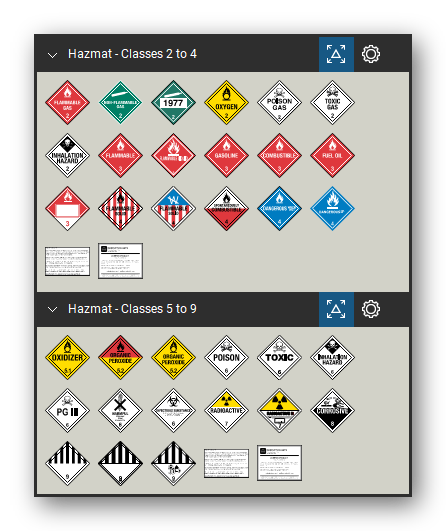

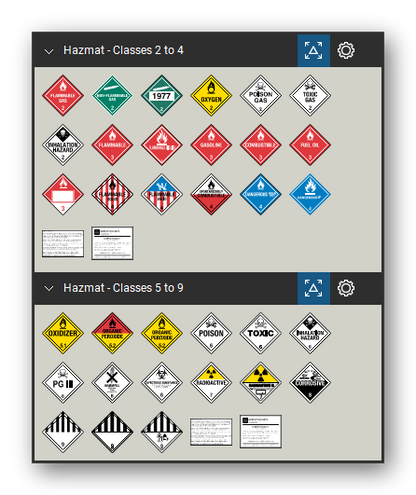

  • Hazmat Symbols tool set for Bluebeam Revu, the Classes 2 to 4 and Classes 5 to 9 sets in the Tool Chest - 18 gas, flammable liquid and flammable solid placards and 15 oxidizer, poison, radioactive, corrosive and class 9 placards. Tool Chest in Symbol view.

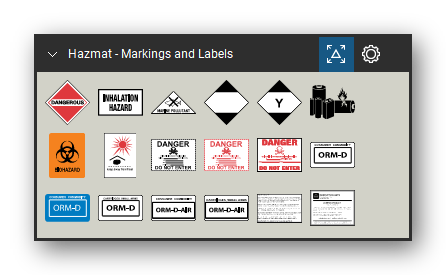

  • Hazmat Symbols tool set for Bluebeam Revu, Markings and Labels set - 16 hazmat markings and labels: the Dangerous placard, inhalation hazard, marine pollutant, limited quantity and limited quantity air, lithium batteries, biohazard, keep away from heat, fumigant markings in black and red, fumigation danger do not enter, and the ORM-D and ORM-D-AIR consumer commodity and cartridges, small arms markings. Tool Chest in Symbol view.

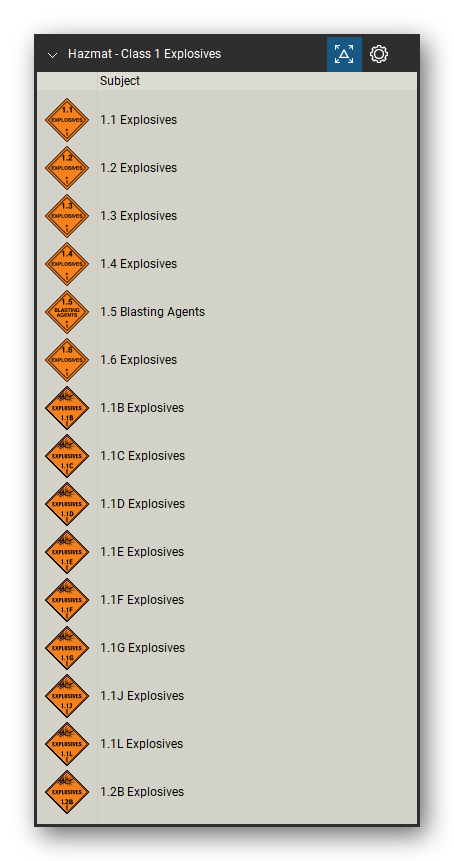

  • Hazmat Symbols tool set for Bluebeam Revu, Class 1 Explosives set (part 1 of 2) - 28 orange class 1 placards: the division placards 1.1, 1.2, 1.3, 1.4 and 1.6 Explosives and 1.5 Blasting Agents, and the explosives placards with a compatibility group letter, 1.1B to 1.1L, 1.2B to 1.2L and 1.3C to 1.3L. Tool Chest in Detail view, one row per symbol with its class and full name.

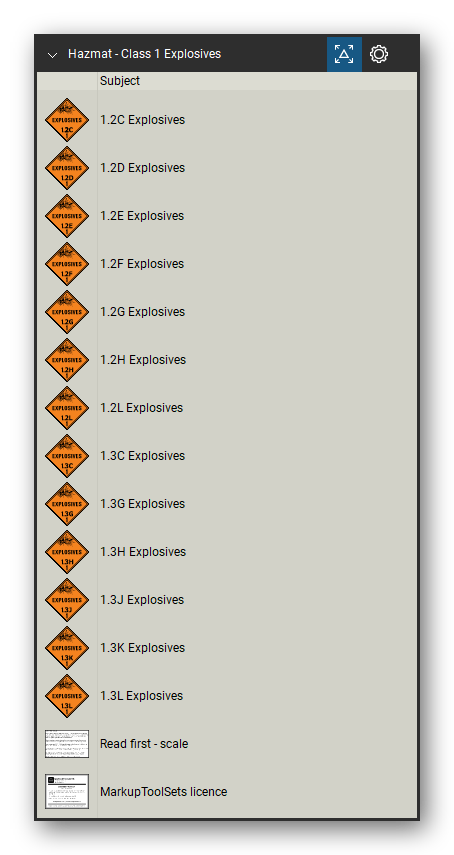

  • Hazmat Symbols tool set for Bluebeam Revu, Class 1 Explosives set (part 2 of 2) - 28 orange class 1 placards: the division placards 1.1, 1.2, 1.3, 1.4 and 1.6 Explosives and 1.5 Blasting Agents, and the explosives placards with a compatibility group letter, 1.1B to 1.1L, 1.2B to 1.2L and 1.3C to 1.3L. Tool Chest in Detail view, one row per symbol with its class and full name.

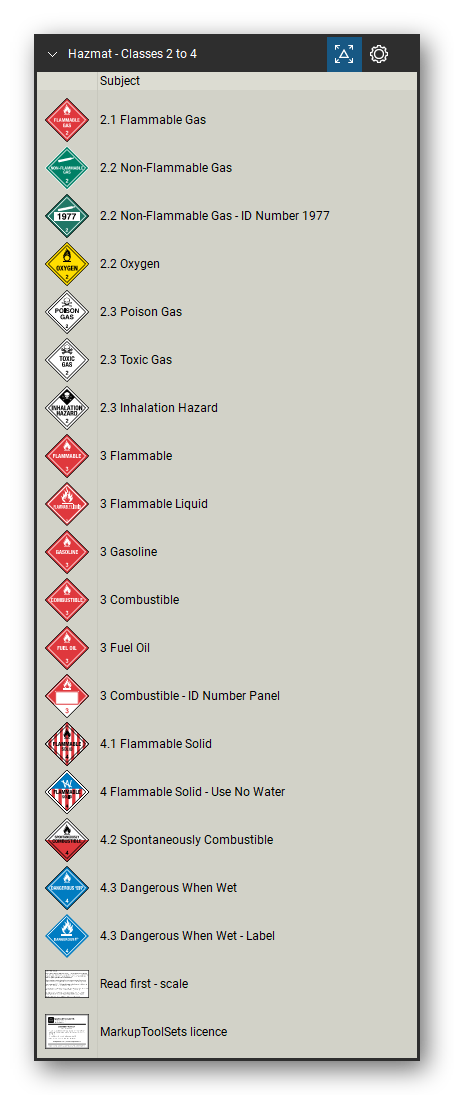

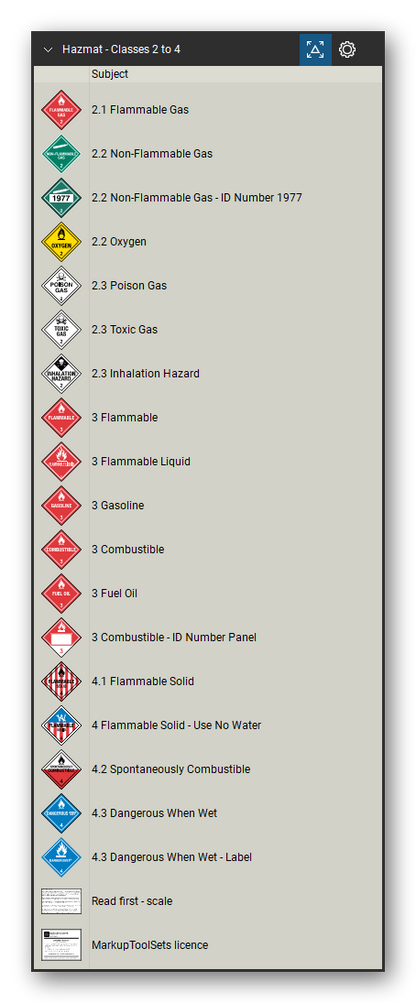

  • Hazmat Symbols tool set for Bluebeam Revu, Classes 2 to 4 set - 18 placards and labels of hazard classes 2 to 4: flammable gas, non-flammable gas (also with the ID number 1977), oxygen, poison gas, toxic gas and inhalation hazard; flammable, flammable liquid, gasoline, combustible, fuel oil and combustible with an ID number panel; flammable solid, flammable solid use no water, spontaneously combustible and dangerous when wet. Tool Chest in Detail view, one row per symbol with its class and full name.

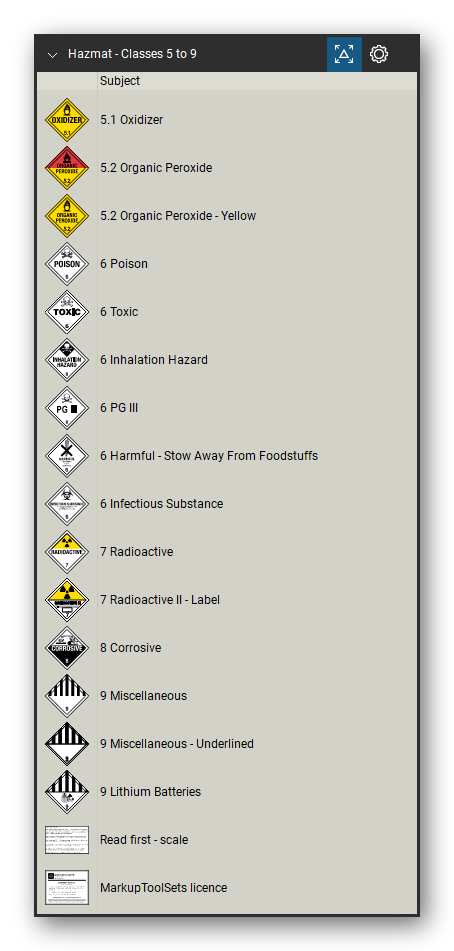

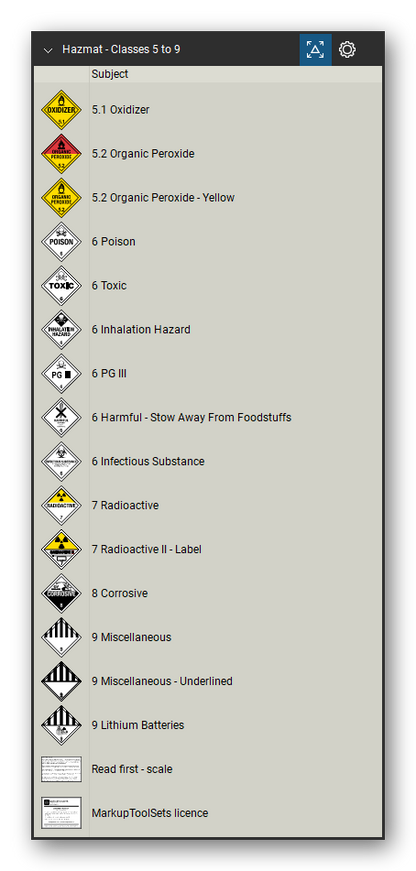

  • Hazmat Symbols tool set for Bluebeam Revu, Classes 5 to 9 set - 15 placards and labels of hazard classes 5 to 9: oxidizer, organic peroxide (current and yellow design), poison, toxic, inhalation hazard, PG III, harmful - stow away from foodstuffs, infectious substance, radioactive, radioactive II label, corrosive, class 9 miscellaneous (two designs) and class 9 lithium batteries. Tool Chest in Detail view, one row per symbol with its class and full name.

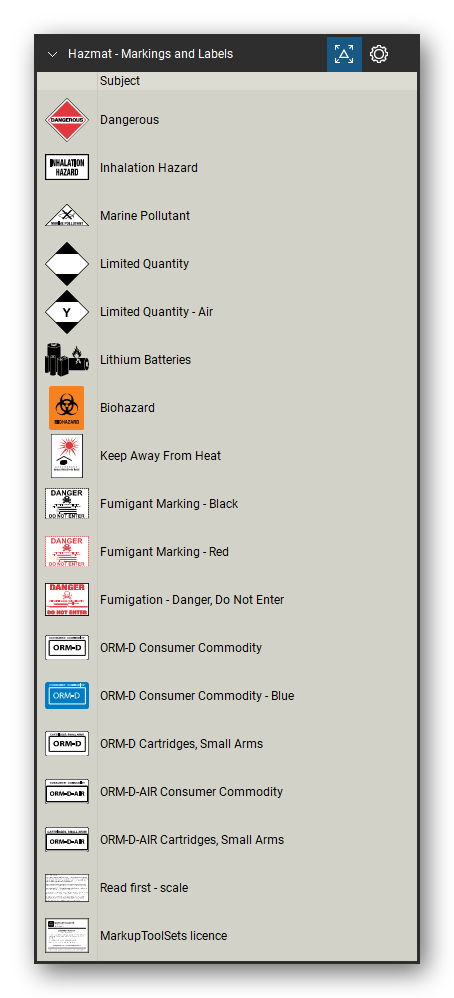

  • Hazmat Symbols tool set for Bluebeam Revu, Markings and Labels set - 16 hazmat markings and labels: the Dangerous placard, inhalation hazard, marine pollutant, limited quantity and limited quantity air, lithium batteries, biohazard, keep away from heat, fumigant markings in black and red, fumigation danger do not enter, and the ORM-D and ORM-D-AIR consumer commodity and cartridges, small arms markings. Tool Chest in Detail view, one row per symbol with its class and full name.
1 10

Hazmat Symbols Bluebeam Tool Set

Hazmat Symbols Bluebeam Tool Set

$44.99 USD
$59.99 USD $44.99 USD
Sale Sold out
Delivered immediately after checkout.

Tool set of the U.S. DOT hazardous materials placards, labels, and markings for hazmat storage plans, site logistics and yard layouts, loading dock plans, fire department pre-plans, and safety reviews. This tool set covers 4 categories with 77 tools: placards and labels of hazard classes 1 to 9 and the common hazmat markings. Each symbol is a vector snapshot that places as a single markup — it can be moved, resized, and rotated directly in Bluebeam — and is named by its hazard class or division and wording, so placed symbols list and count by name in the Markups List. The placards are in their DOT colours — orange explosives, red flammable, green non-flammable gas, yellow oxidizer, blue dangerous when wet, and white poison and radioactive placards.

Examples of symbols included:

  • Class 1 explosives
    • Division placards 1.1, 1.2, 1.3, 1.4, and 1.6 Explosives and 1.5 Blasting Agents
    • Explosives placards with the compatibility group letter: 1.1B to 1.1L, 1.2B to 1.2L, and 1.3C to 1.3L
  • Classes 2 to 4
    • Flammable gas, non-flammable gas, non-flammable gas with ID number 1977, and oxygen
    • Poison gas, toxic gas, and inhalation hazard
    • Flammable, flammable liquid, gasoline, combustible, fuel oil, and combustible with a blank ID number panel
    • Flammable solid, flammable solid use no water, spontaneously combustible, and dangerous when wet
  • Classes 5 to 9
    • Oxidizer and organic peroxide (current and yellow design)
    • Poison, toxic, inhalation hazard, PG III, harmful - stow away from foodstuffs, and infectious substance
    • Radioactive placard and radioactive II label
    • Corrosive
    • Class 9 miscellaneous (two designs) and class 9 lithium batteries
  • Markings and labels
    • Dangerous placard, inhalation hazard, and marine pollutant
    • Limited quantity and limited quantity air, lithium batteries, and biohazard
    • Keep away from heat, fumigant markings in black and red, and fumigation danger do not enter
    • ORM-D and ORM-D-AIR consumer commodity and cartridges, small arms

Delivered as a Bluebeam Revu profile that loads all 4 tool sets in one import, plus the individual tool set files.
