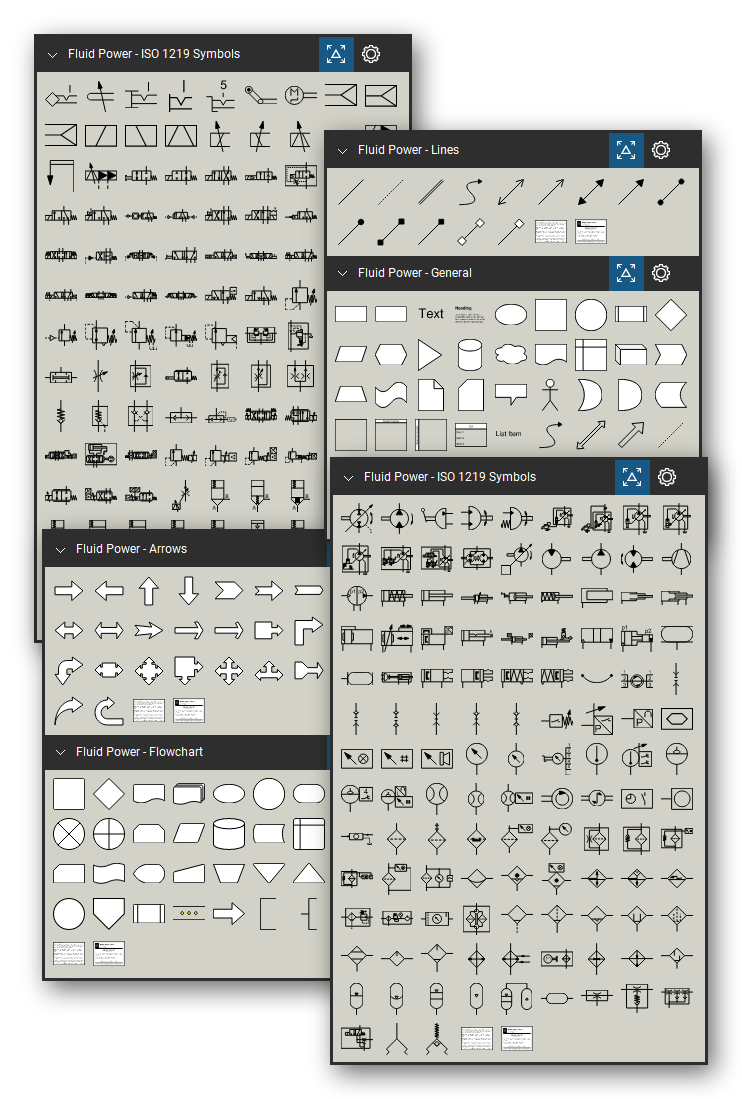

• Fluid power symbol library for Bluebeam Revu: 370 tools in 5 tool sets - 246 hydraulic and pneumatic symbols numbered after ISO 1219-1, circuit lines, flowchart symbols, diagram shapes and arrows - drawn at 1/4" = 1'-0" in black and redline.

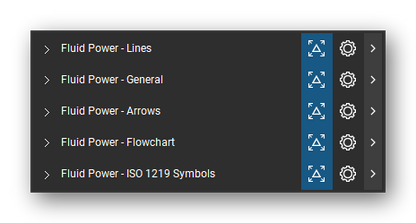

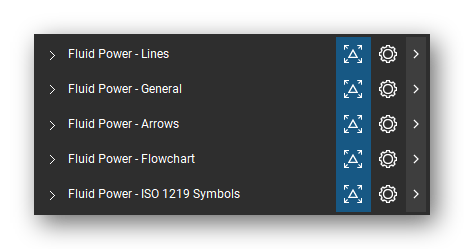

  • The Bluebeam Revu Tool Chest with the 5 tool sets of the Fluid Power tool set loaded, closed to the set titles.

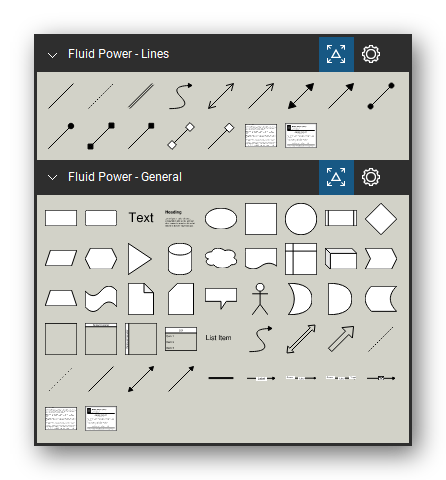

  • Fluid Power tool set for Bluebeam Revu, the Lines and General sets in the Tool Chest - 14 line tools (Revu Line markups) and 45 general diagram tools (text, shapes, connectors).

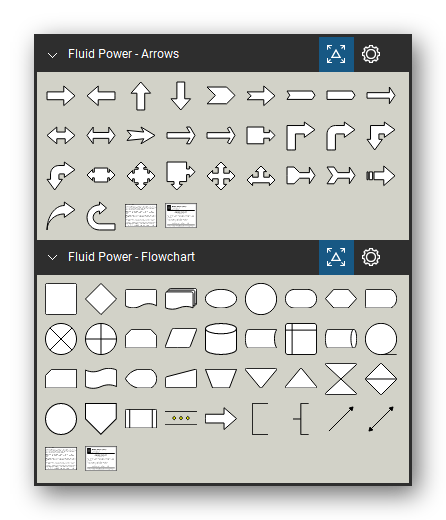

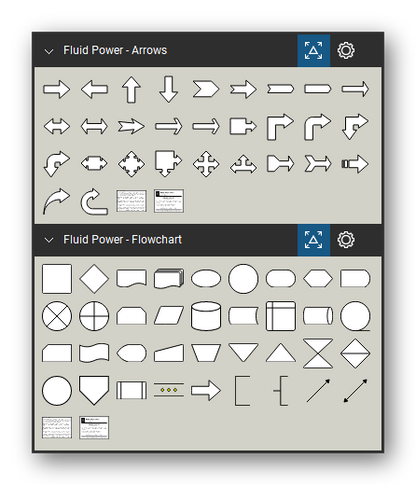

  • Fluid Power tool set for Bluebeam Revu, the Arrows and Flowchart sets in the Tool Chest - 29 block arrows and 36 flowchart symbols.

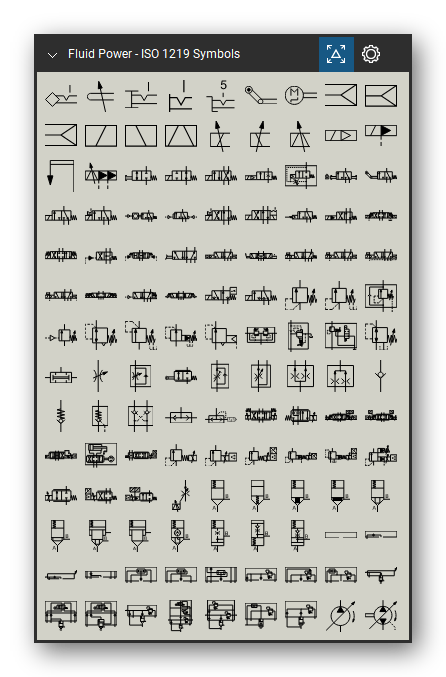

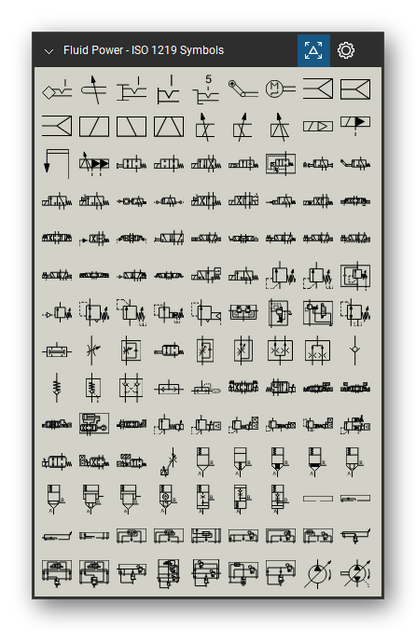

  • Fluid Power tool set for Bluebeam Revu, ISO 1219 Symbols set (part 1 of 2) - 246 hydraulic and pneumatic symbols numbered after ISO 1219-1 (X10010 to X12430): control mechanisms, directional control valves, pressure, flow and non-return valves, proportional and servo valves, cartridge valves, pumps and motors, cylinders, couplings, measuring instruments, filters, separators, air preparation units, coolers, accumulators and vacuum generators.

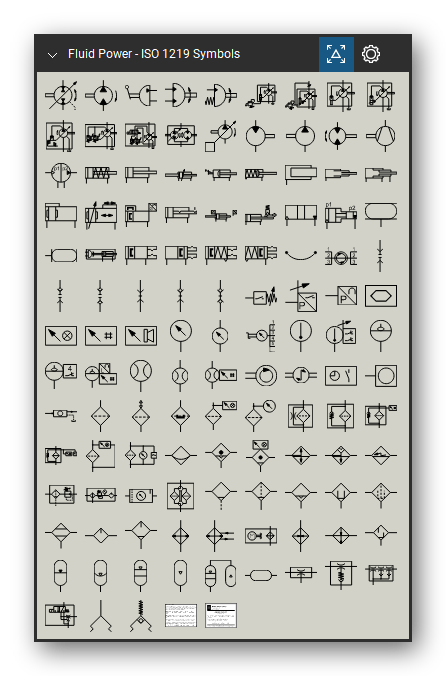

  • Fluid Power tool set for Bluebeam Revu, ISO 1219 Symbols set (part 2 of 2) - 246 hydraulic and pneumatic symbols numbered after ISO 1219-1 (X10010 to X12430): control mechanisms, directional control valves, pressure, flow and non-return valves, proportional and servo valves, cartridge valves, pumps and motors, cylinders, couplings, measuring instruments, filters, separators, air preparation units, coolers, accumulators and vacuum generators.
1 6

Fluid Power (Hydraulic & Pneumatic) Symbols Bluebeam Tool Set

Fluid Power (Hydraulic & Pneumatic) Symbols Bluebeam Tool Set

$112.99 USD
$112.99 USD
Sale Sold out
Delivered immediately after checkout.

Tool set of hydraulic and pneumatic symbols for circuit diagrams and mechanical drawings. This tool set covers five categories with 370 tools — 246 fluid power symbols numbered after ISO 1219-1, 14 circuit lines, 36 flowchart symbols, 45 general diagram tools, and 29 arrows — available in both black and redline versions. Every symbol is drawn at a constant 1/4" = 1'-0" scale and every tool set stores that scale, so Bluebeam sizes the symbols to the scale of a calibrated sheet. Each symbol is a vector snapshot that places as a single markup — it can be moved, resized, rotated, and recolored directly in Bluebeam — and is named with its registration number and description, so placed symbols list by name in the Markups List. Circuit lines are native Line markups and arrows are native Polygon markups.

Examples of symbols included:

  • Control mechanisms
    • Push/pull, roller lever, and plunger controls with detents and manual override
    • Solenoid coils, stepping motor, pneumatic springs, and pilot stages
  • Directional control valves
    • 2/2, 3/2, 4/2, 4/3, 5/2, and 5/3 valves with solenoid, pilot, lever, and spring-return operation
    • Soft-start, lockout, and poppet valves
  • Pressure, flow, and non-return valves
    • Pressure-relief, sequence, and pressure-reducing valves
    • Adjustable flow-control valves, flow dividers, and flow-combining valves
    • Non-return, shuttle, and quick-exhaust valves
  • Proportional, servo, and cartridge valves
    • Proportional directional, pressure-relief, and flow-control valves
    • Servo-valves with integrated electronics
    • Two-port cartridge valves and control covers
  • Pumps, motors, and cylinders
    • Fixed and variable-displacement pumps, pump/motor units, compressor, and vacuum pump
    • Single-acting, double-acting, telescopic, and rodless cylinders
    • Rotary actuators, pressure intensifiers, and grippers
  • Measuring instruments and couplings
    • Pressure gauges, pressure switches, thermometers, flow meters, and fluid-level indicators
    • Quick-action couplings, hose assembly, and rotary connection
  • Filters, air preparation, and accumulators
    • Filters with bypass valves and clogging indicators, separators, and coalescing filters
    • Filter-regulator-lubricator units, air dryer, and lubricators
    • Coolers, heater, gas-loaded accumulators, air reservoir, vacuum generators, and suction cups
  • Lines
    • Solid, dashed, and double lines
    • Lines with arrow, circle, square, and diamond ends
  • Flowchart, general shapes, and arrows
    • Process, decision, document, data, and reference symbols
    • Editable text, basic shapes, containers, and connectors with labels
    • 29 block arrows: straight, two-way, bent, U-turn, notched, and callout arrows

Delivered as a Bluebeam Revu profile that loads all five tool sets in one import, plus the individual tool set files, in black and redline.
