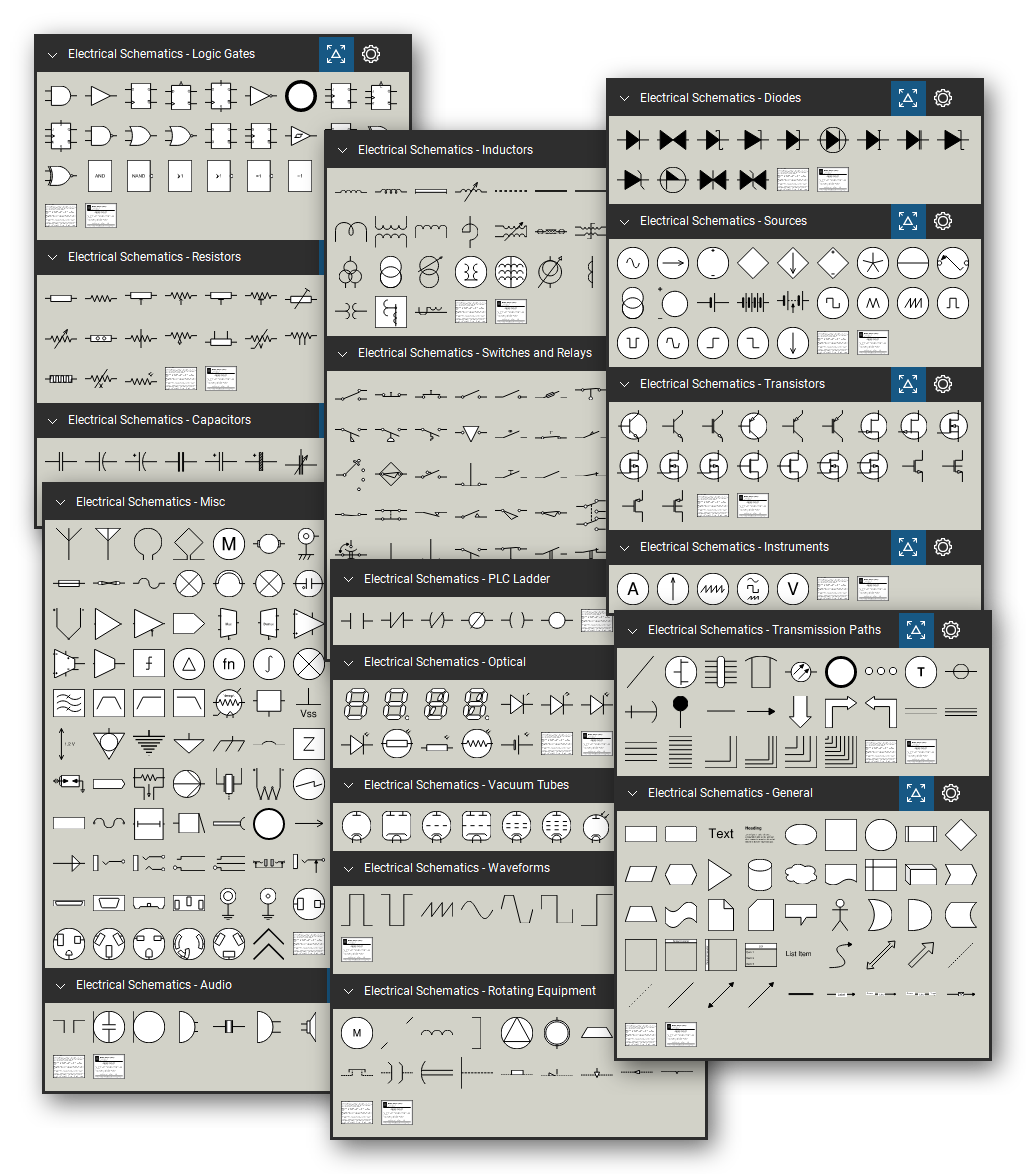

• Electrical schematic symbol library for Bluebeam Revu: 436 tools in 18 tool sets - logic gates, resistors, capacitors, inductors and transformers, switches and relays, diodes, sources, transistors, instruments, PLC ladder, optical and audio devices, rotating equipment and transmission paths - drawn at 1/4" = 1'-0" in black and redline.

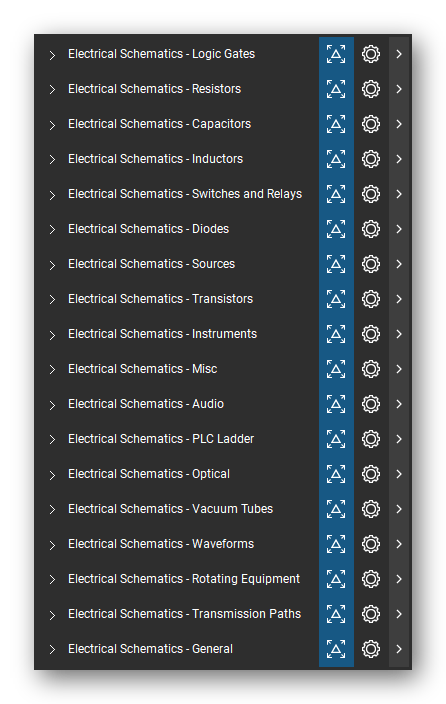

  • The Bluebeam Revu Tool Chest with the 18 tool sets of the Electrical Schematics tool set loaded, closed to the set titles.

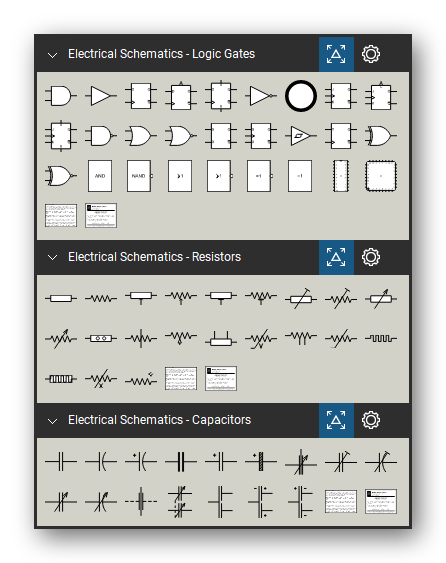

  • Electrical Schematics tool set for Bluebeam Revu, the Logic Gates, Resistors and Capacitors sets in the Tool Chest - 27 logic gates, flip-flops and ICs, 21 resistors and potentiometers and 16 capacitors.

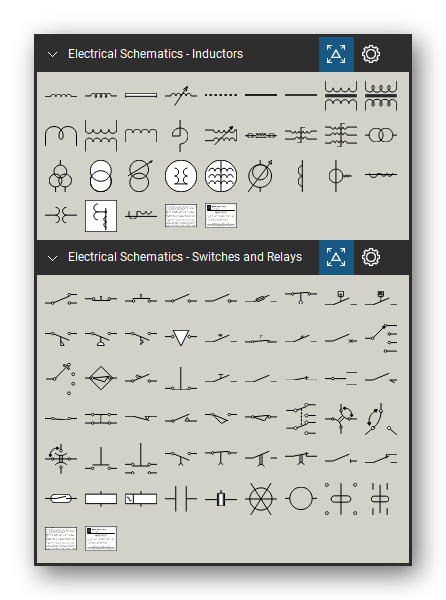

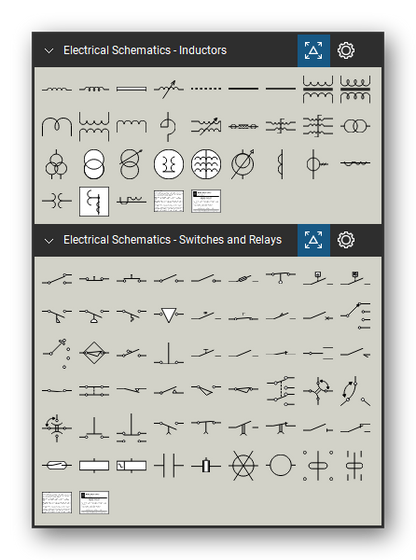

  • Electrical Schematics tool set for Bluebeam Revu, the Inductors & Transformers and Switches & Relays sets in the Tool Chest - 30 inductors and transformers and 54 switches and relays.

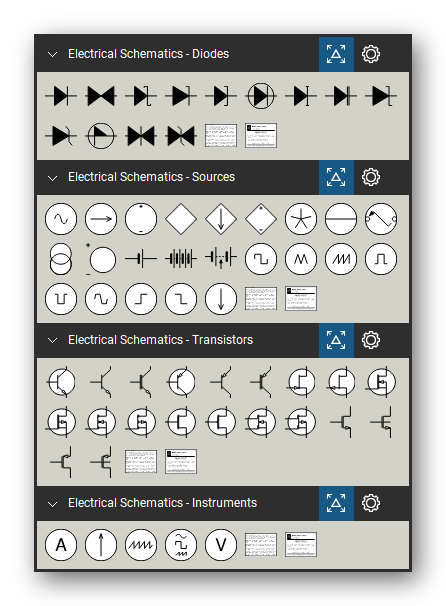

  • Electrical Schematics tool set for Bluebeam Revu, the Diodes, Sources, Transistors and Instruments sets in the Tool Chest - 13 diodes, 23 sources and batteries, 20 transistors and 5 instruments.

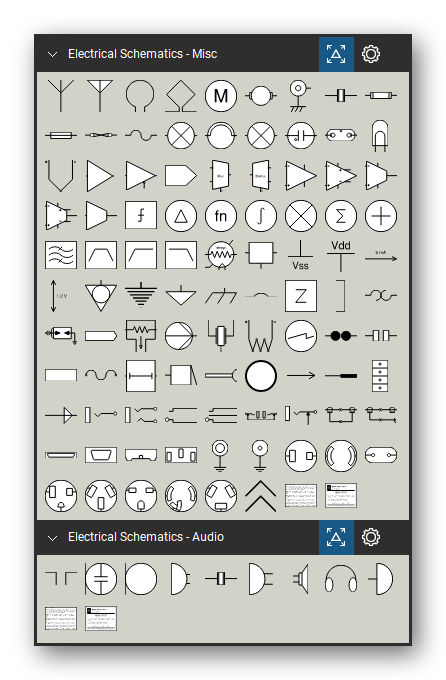

  • Electrical Schematics tool set for Bluebeam Revu, the Miscellaneous and Audio sets in the Tool Chest - 96 miscellaneous symbols (fuses, lamps, amplifiers, grounds, connectors) and 9 audio devices.

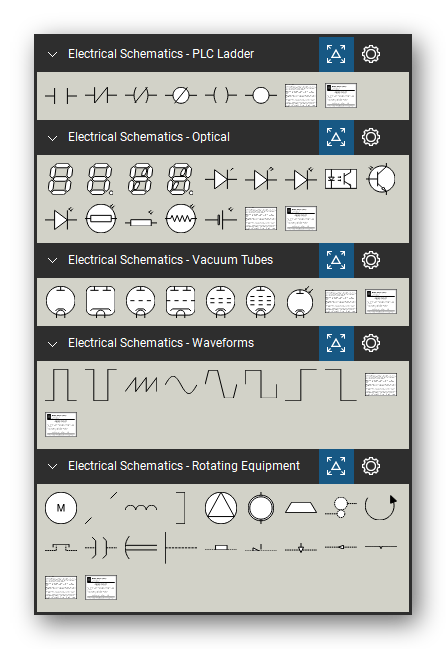

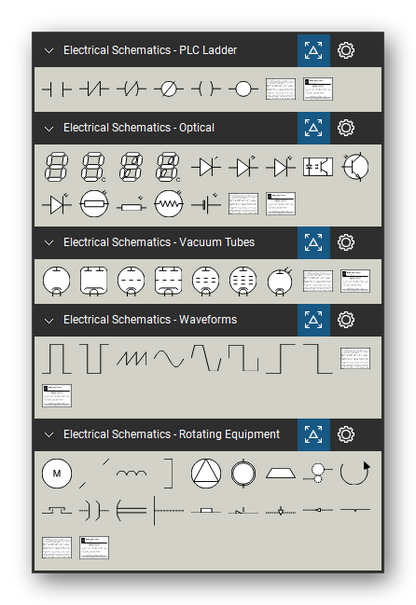

  • Electrical Schematics tool set for Bluebeam Revu, the PLC Ladder, Optical, Vacuum Tubes, Waveforms and Rotating Equipment sets in the Tool Chest - 6 PLC ladder symbols, 14 optical devices, 7 vacuum tubes, 8 waveforms and 18 rotating equipment and mechanical function symbols.

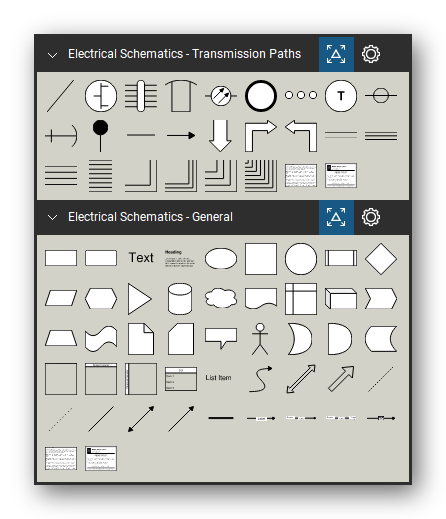

  • Electrical Schematics tool set for Bluebeam Revu, the Transmission Paths and General sets in the Tool Chest - 24 transmission path and bus symbols and 45 general diagram tools (text, shapes, connectors).
1 8

Electrical Schematic & Circuit Diagram Symbols Bluebeam Tool Set

Electrical Schematic & Circuit Diagram Symbols Bluebeam Tool Set

$112.99 USD
$112.99 USD
Sale Sold out
Delivered immediately after checkout.

Tool set of schematic symbols for circuit diagrams, control schematics, and one-line diagrams. This tool set covers 18 categories with 436 tools — 391 electrical and electronic symbols and 45 general diagram tools — available in both black and redline versions. Every symbol is drawn at a constant 1/4" = 1'-0" scale and every tool set stores that scale, so Bluebeam sizes the symbols to the scale of a calibrated sheet. Each symbol is a vector snapshot that places as a single markup — it can be moved, resized, rotated, and recolored directly in Bluebeam — and is named, so placed symbols list by name in the Markups List. The label of a symbol — the M of a motor, the A and V of the meters, IC, the value of a current or a voltage — is editable text, and the connectors are native Line markups.

Examples of symbols included:

  • Logic gates
    • AND, OR, NAND, NOR, XOR, and XNOR gates, buffer, inverter, and Schmitt trigger
    • D, T, JK, and RS flip-flops and latches
    • IEC gates and dual in-line and quad flat package ICs
  • Resistors, capacitors, and inductors
    • Resistors, potentiometers, trimmers, and variable resistors in box and zigzag style
    • Capacitors, electrolytic capacitors, and variable capacitors
    • Inductors, chokes, and iron core, potential, and current transformers
  • Switches and relays
    • SPDT, DPST, and DPDT switches, pushbuttons, and selector switches
    • Limit, proximity, pressure, temperature, flow, and level actuated switches
    • Time delay contacts, isolator, circuit breaker, reed switch, relay coils, and relay contacts
  • Diodes and transistors
    • PN, Schottky, Zener, tunnel, and Gunn diodes, varactor, and transorbs
    • NPN and PNP bipolar transistors, IGBTs, JFETs, and MOSFETs
  • Sources and instruments
    • AC, DC current, DC voltage, and dependent sources and batteries
    • Square, triangular, sawtooth, pulse, and step sources
    • Ammeter, voltmeter, galvanometer, oscilloscope, and signal generator
  • Miscellaneous
    • Fuses, lamps, antennas, motors, grounds, and chassis
    • Amplifiers, operational amplifiers, mux and demux, filters, and summing and function blocks
    • Jacks, plugs, D connectors, and terminal boards
  • PLC ladder, optical, and audio
    • PLC ladder contacts and outputs
    • LEDs, photodiode, photo resistors, opto-coupler, and 7 and 9 segment displays
    • Microphones, loudspeaker, headphones, buzzer, and bell
  • Vacuum tubes and waveforms
    • Diode, triode, tetrode, and pentode tubes and photocell
    • Pulse, sawtooth, sine, square, and step waveforms
  • Rotating equipment and transmission paths
    • Rotating machine, armature, field, synchro, brake, gearing, and clutches
    • Line and cable, terminals, cable group, optical fiber, and test point
    • Straight and elbow buses with 2, 3, 4, and 8 lines
  • General shapes
    • Editable text, basic shapes, containers, and connectors with labels

Delivered as a Bluebeam Revu profile that loads all 18 tool sets in one import, plus the individual tool set files, in black and redline.
