Automation & Electronics Bluebeam Tool Set

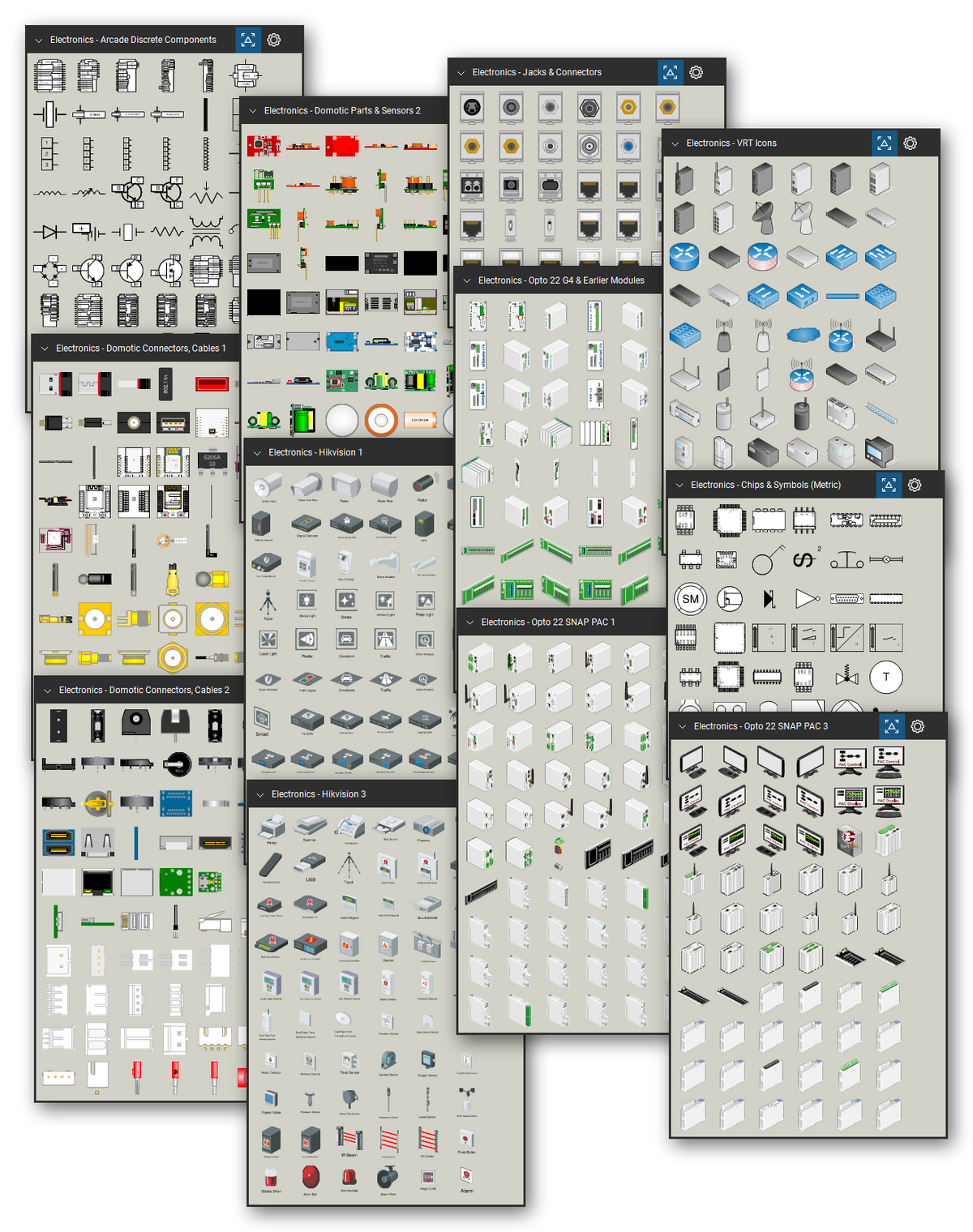

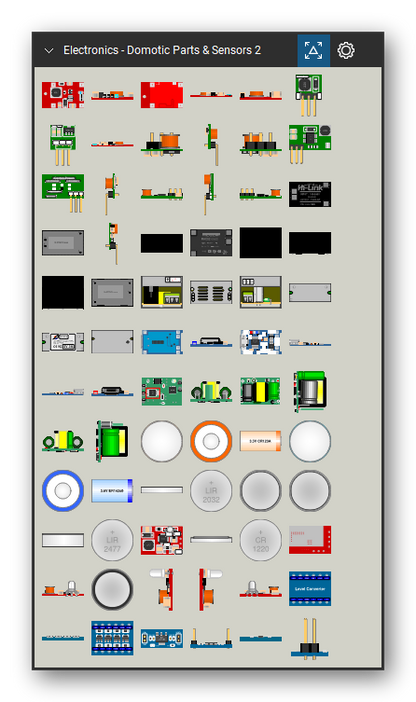

Tool set of Opto 22 controllers and I/O, Arduino, ESP and Raspberry Pi boards, sensors, connectors, logic chips and diagram icons for control panel layouts, wiring diagrams, and board-level drawings. This tool set covers 21 categories with 3,508 symbols. Each symbol is a vector snapshot that places as a single markup — it can be moved, resized, and rotated directly in Bluebeam — and is named, so placed symbols list by name in the Markups List. Lettering that stands on a symbol is editable text.

Examples of symbols included:

• Arcade

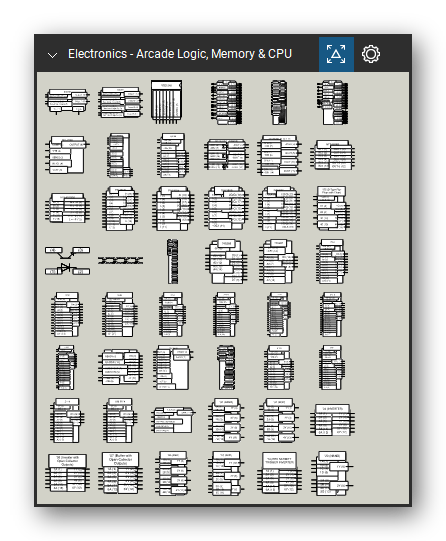

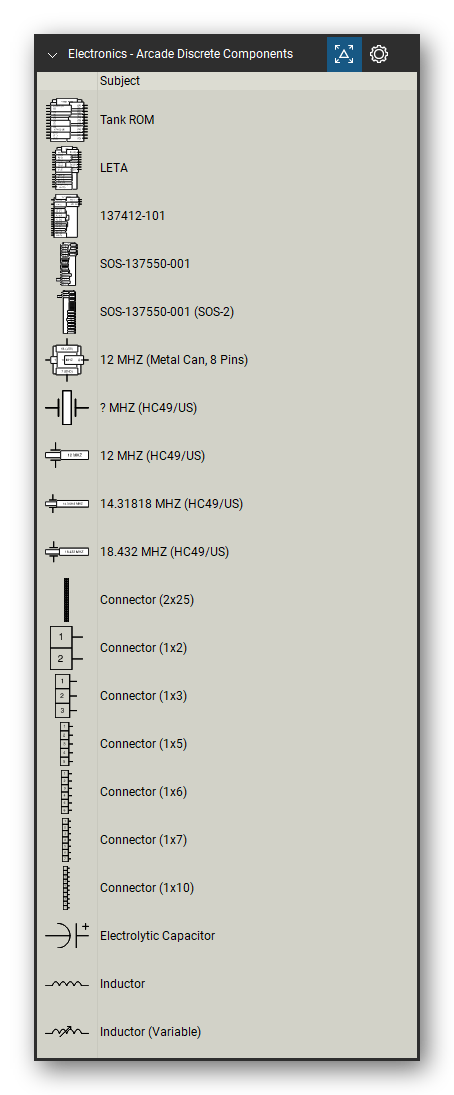

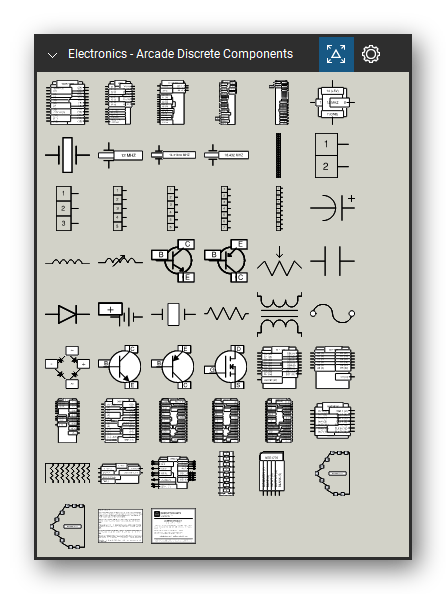

  • Resistors, NPN and PNP transistors, MOSFET, diode, full wave rectifier, inductors, electrolytic capacitor, potentiometer, MHZ crystals, connectors 1x3 to 1x7

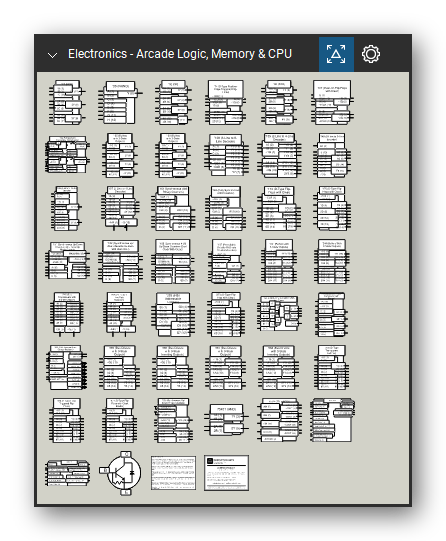

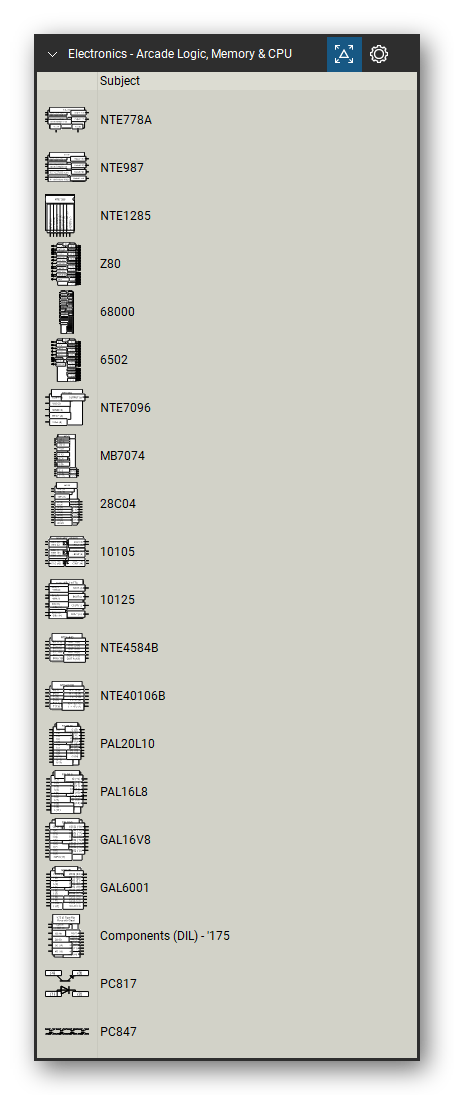

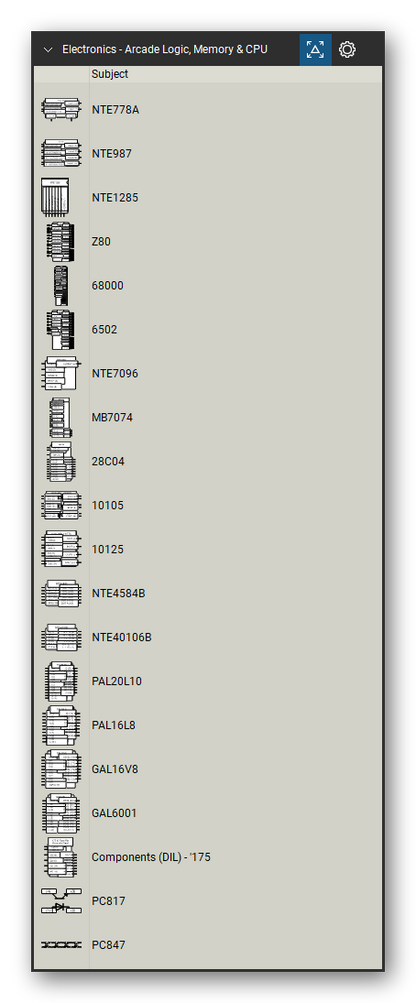

  • Z80, 68000 and 6502 CPUs, 2114, 2532, 27010 and 28C04 memory, PAL20L10, NTE parts, '06 to '299 logic, PC817

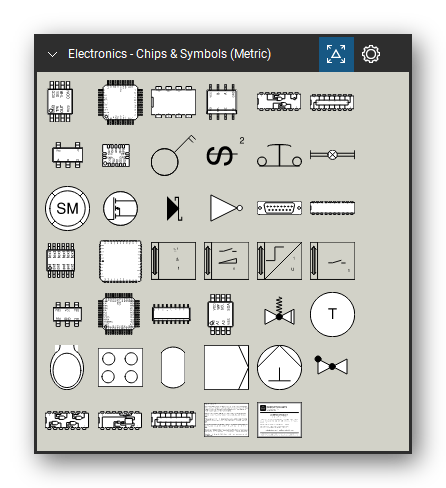

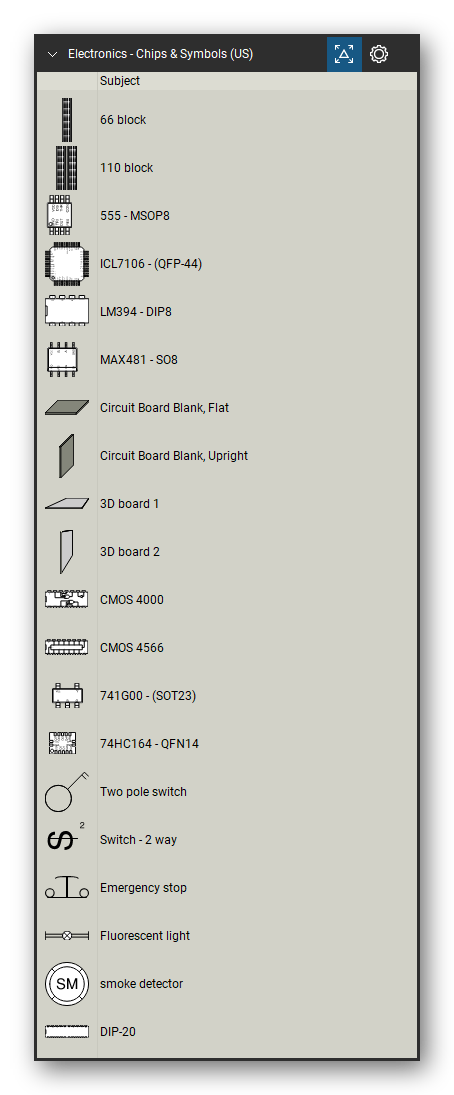

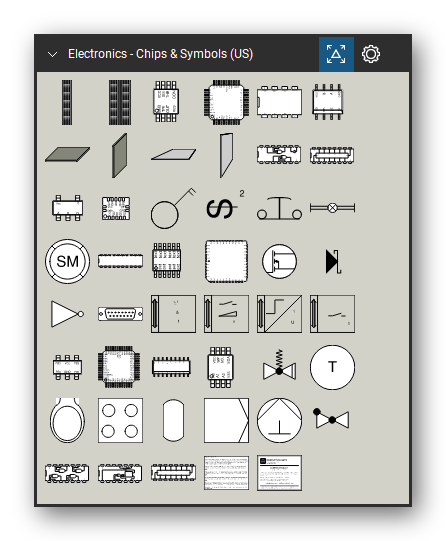

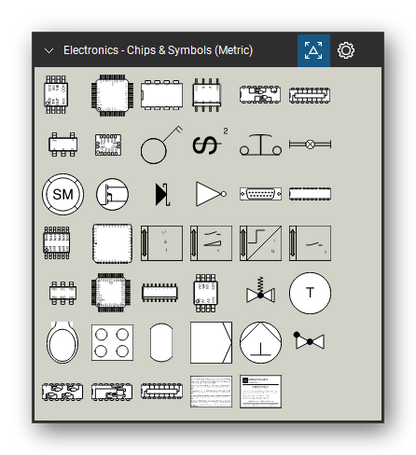

• Chips & Symbols (Metric and US)

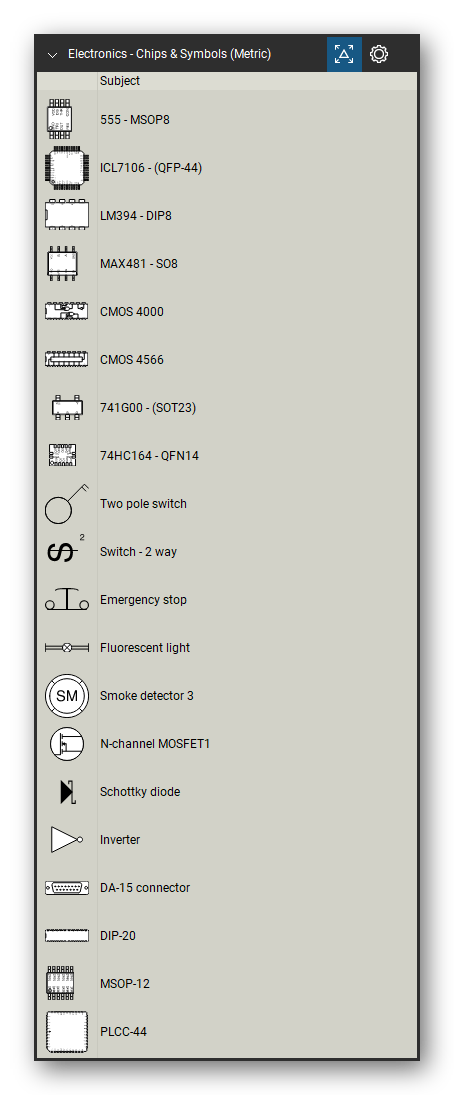

  • 555, MAX481, ICL7106, LM394, 741G00, 74HC164, PIC16x554, ATtiny9 and 68HC08GR in their packages, CMOS 4000 and 4566, TTL 7400, 74121 and 744020
  • Switches, emergency stop, Schottky diode, MOSFET, fluorescent light, smoke detector, thermostat, dimmer, binary inputs and outputs, valves, pressure vessel and piston pump; 66 and 110 blocks and circuit board blanks (US)
• Domotic

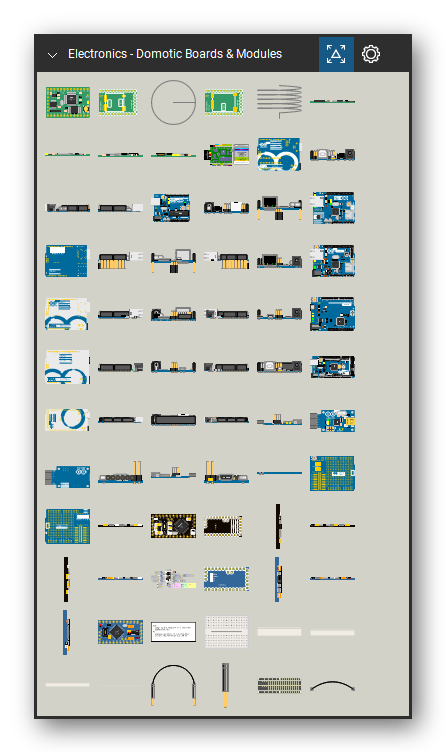

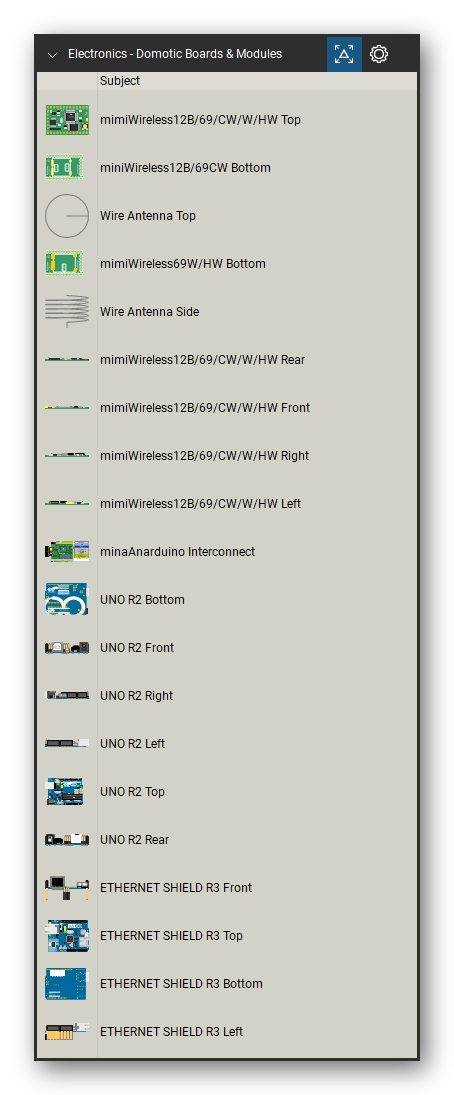

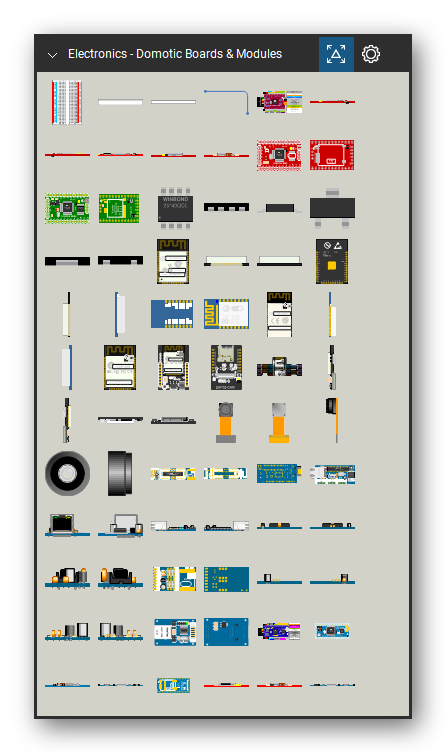

  • Boards: Arduino UNO, MEGA and LEONARDO, D1 mini, LOLIN and LOLIN32, ESP-32-CAM, Raspberry Pi, MOTEINO, Jeenode, CANIQUE, RFM12B and RFM69HCW, Ethernet and relay shields

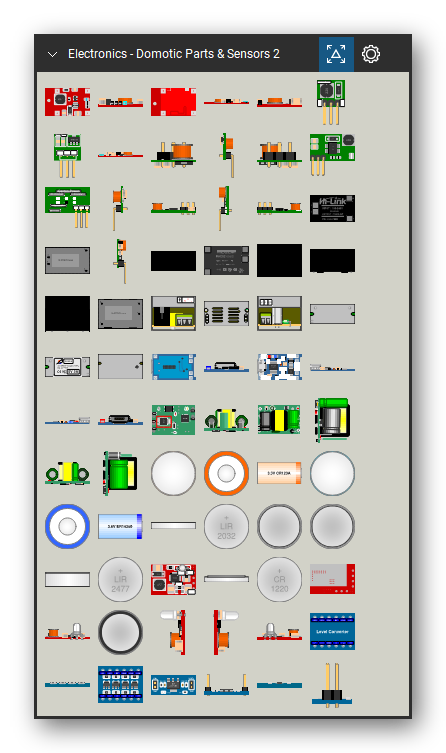

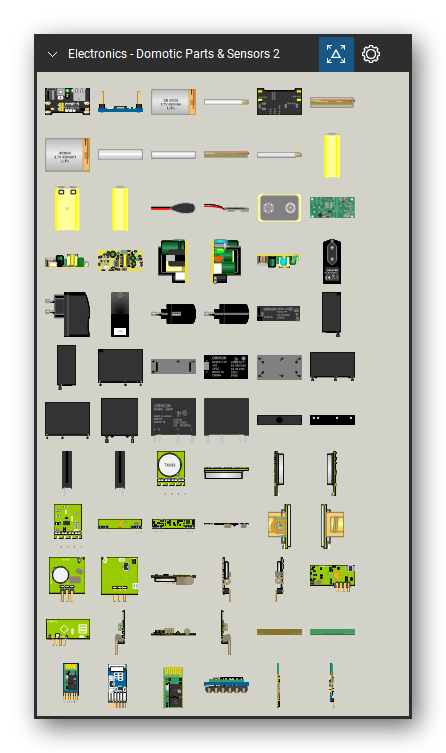

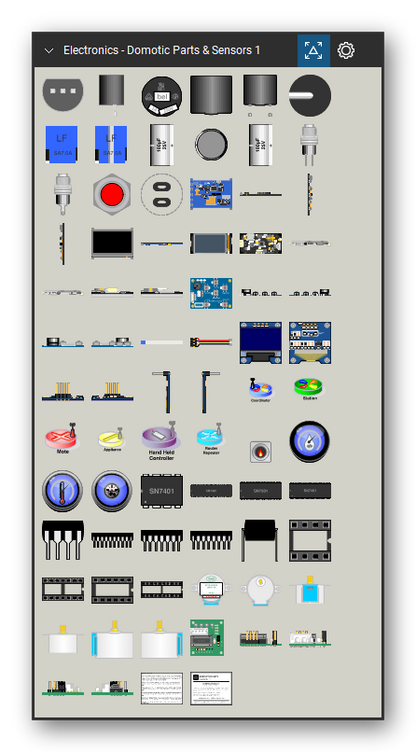

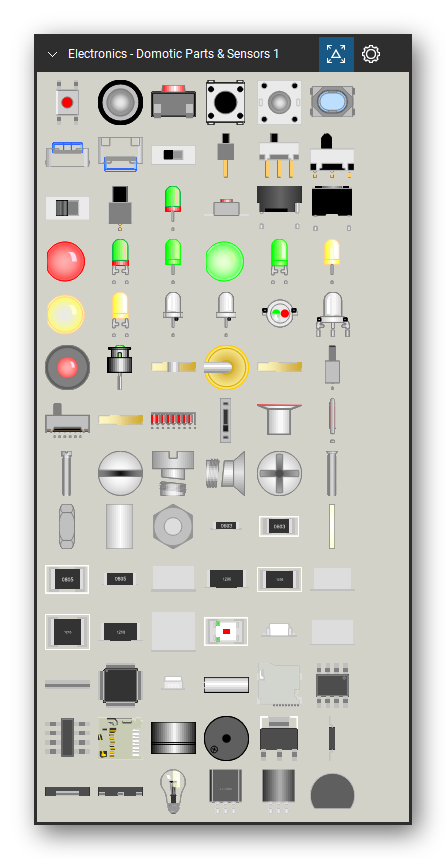

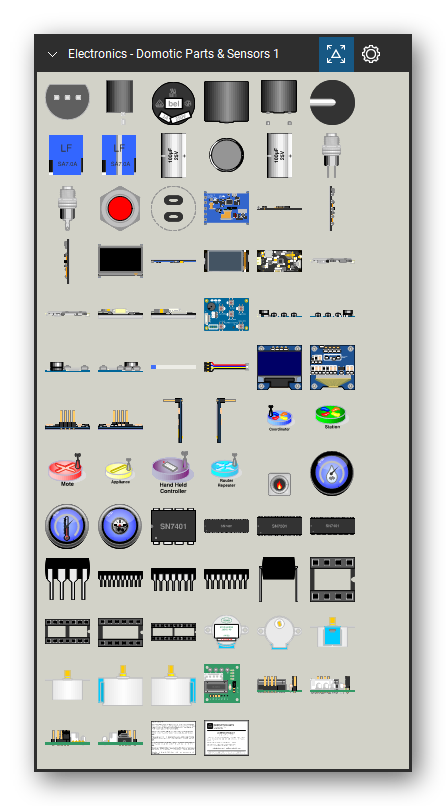

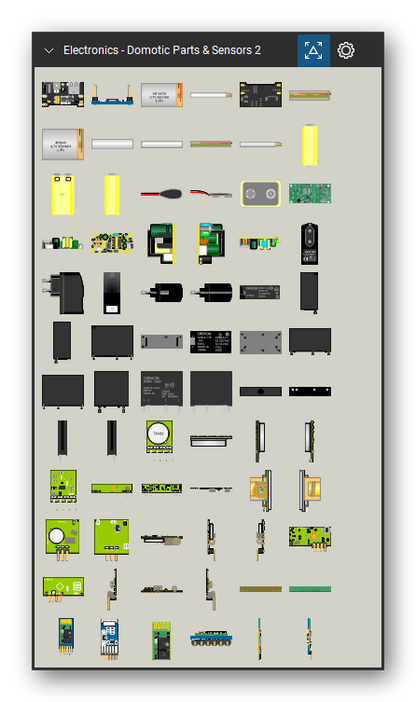

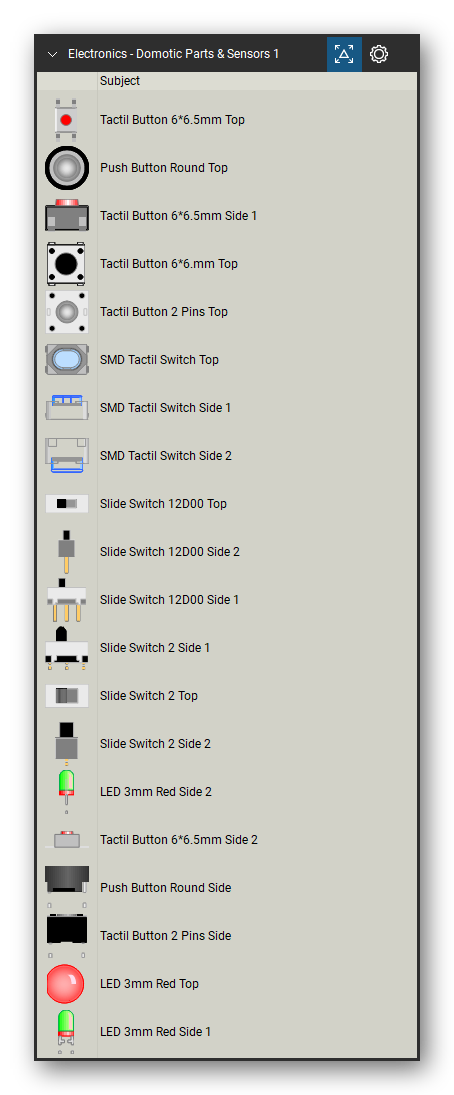

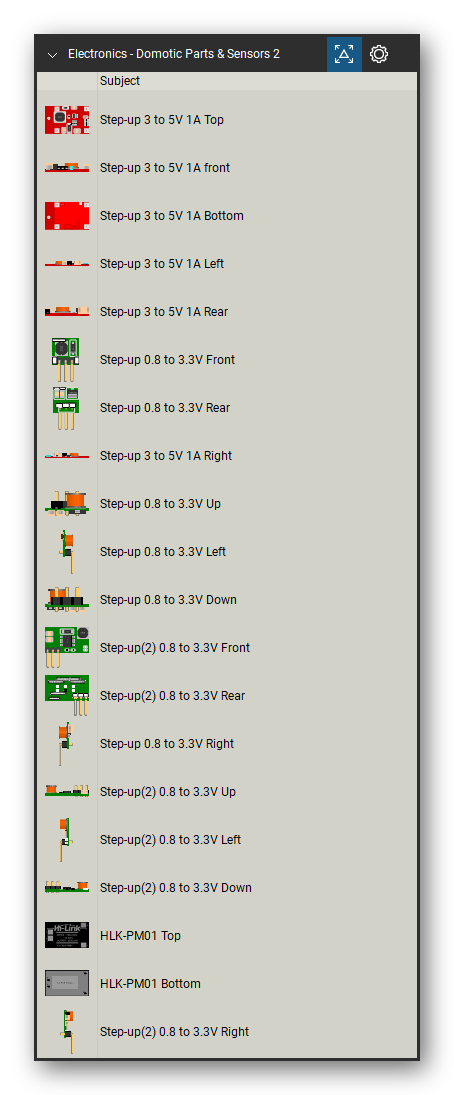

  • Components and sensors: SMD parts, LEDs, batteries, TP5000 charger, step-up converters, Nextion, OLED SSD1306 and WaveShare displays, HC-SR04, HC-SR501, RCWL-0516, DHT22, BMP280, DS3231, ACS712, MQ and LDR sensors, G5NB-1A, G3MB-202P, TX433 and RX433, HC-05

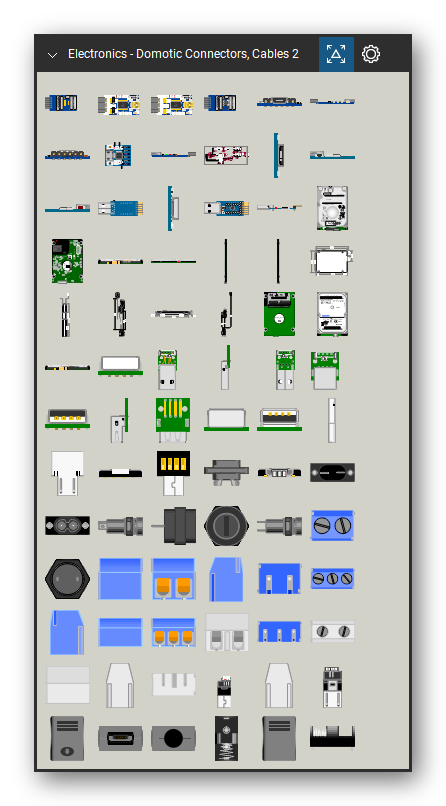

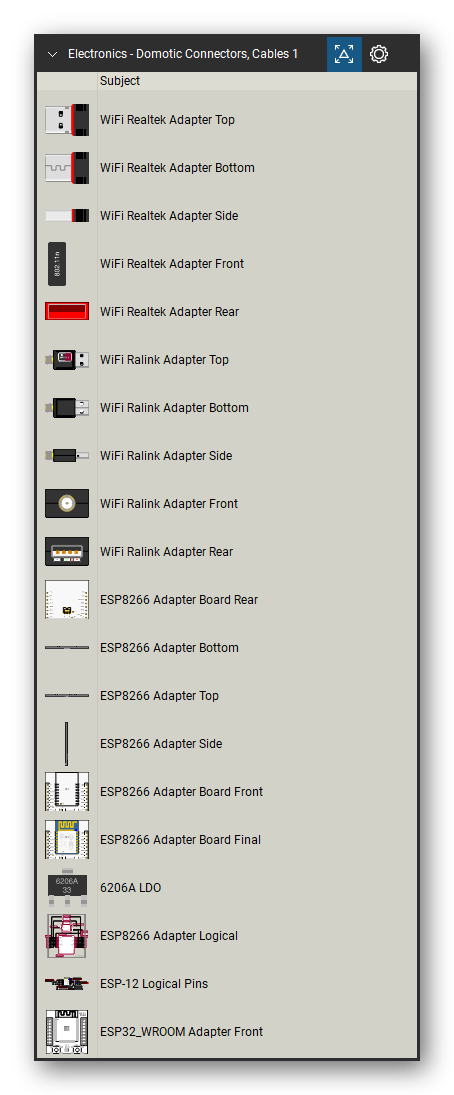

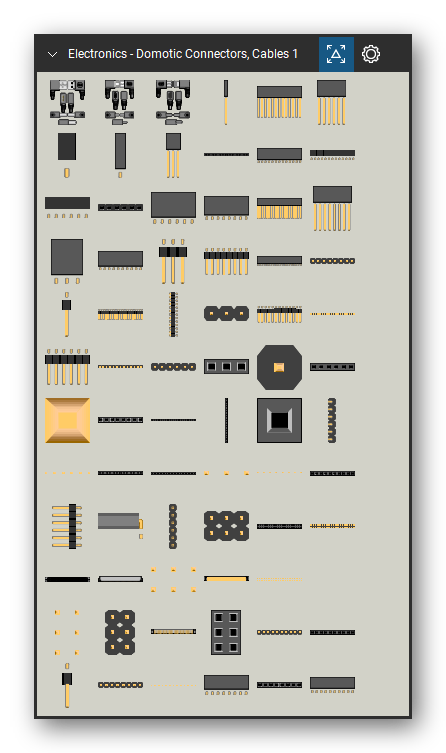

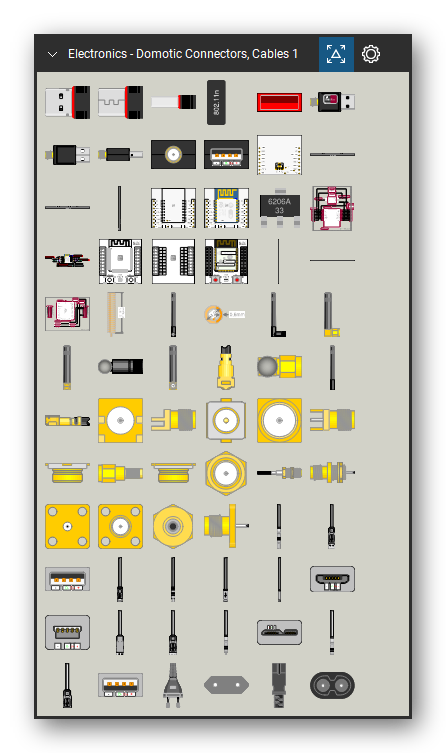

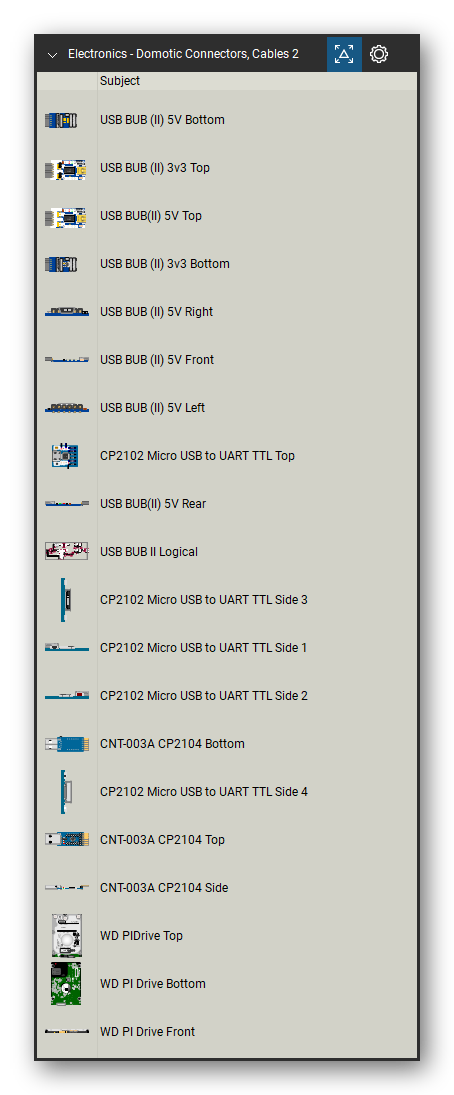

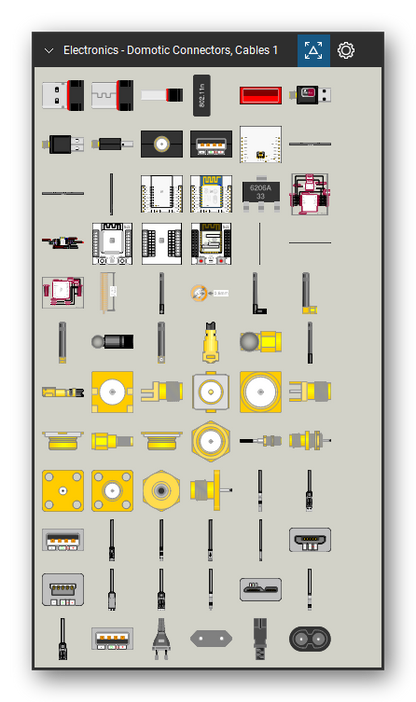

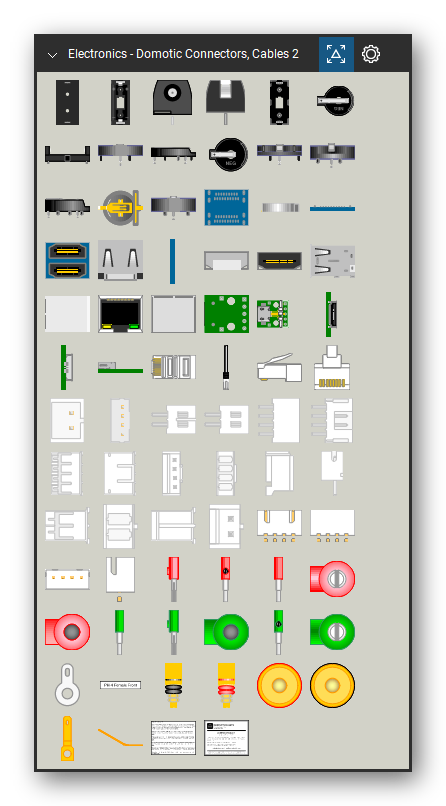

  • Connectors and cables: USB, SMA and uFL, pins 1*1 to 1*20, banana, PH and XH, terminal blocks, ESP8266 and ESP32_WROOM adapters, CP2102 USB to UART, battery and fuse holders

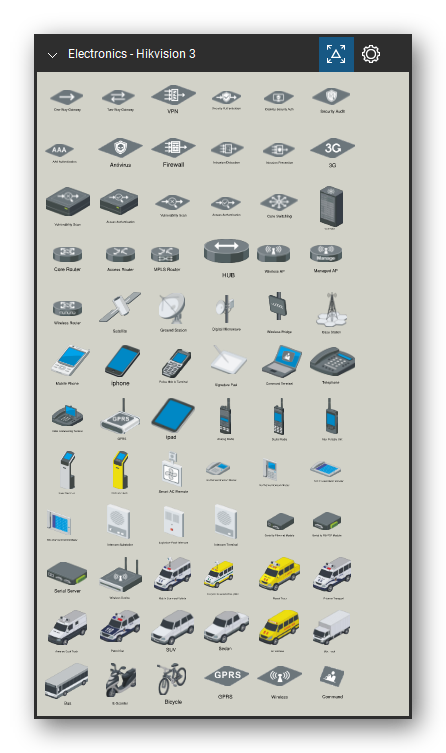

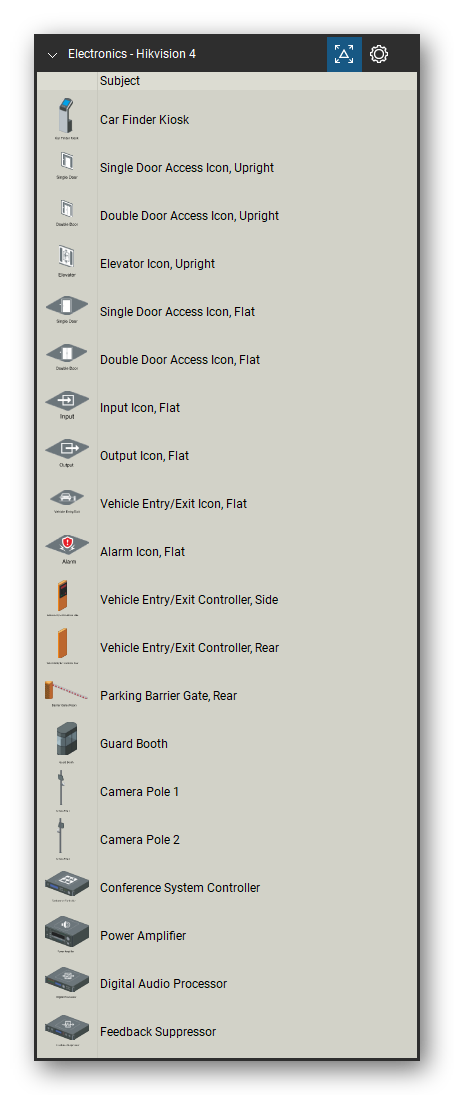

• Hikvision

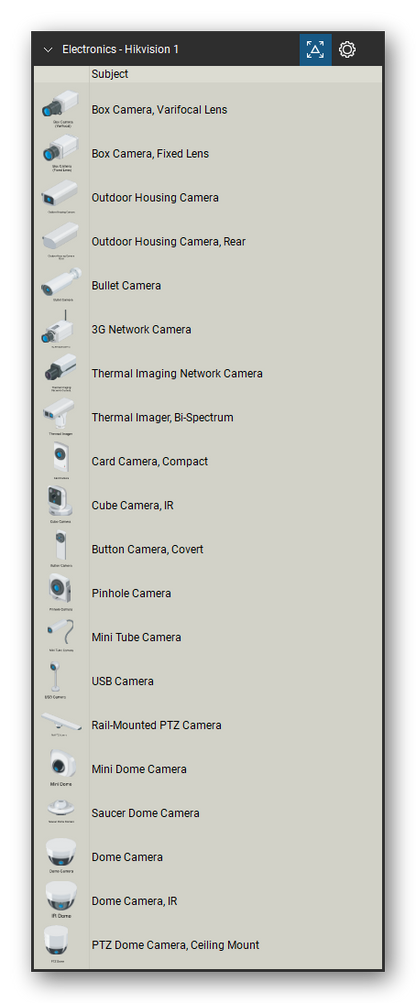

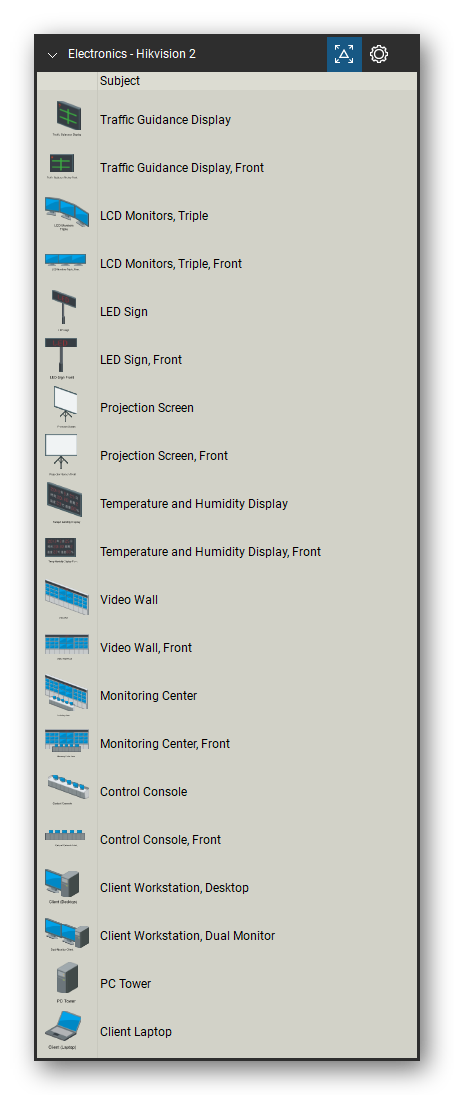

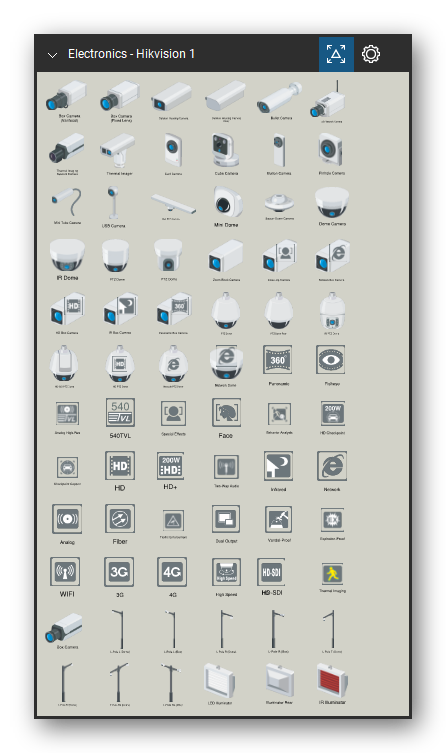

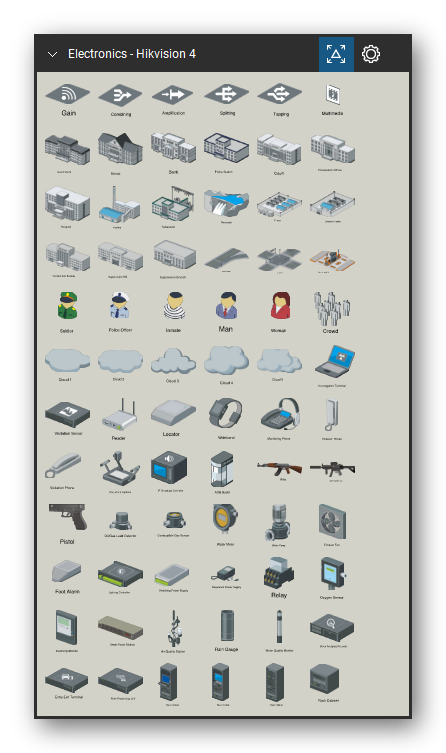

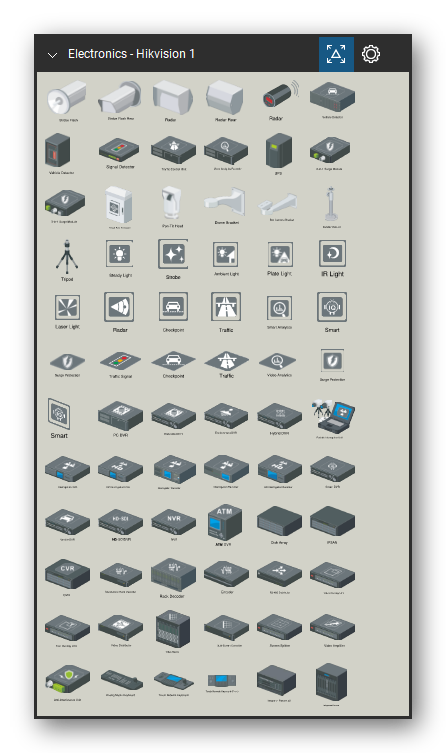

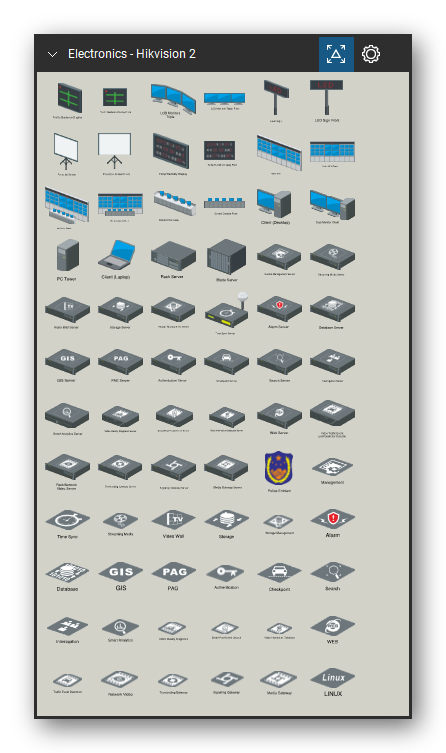

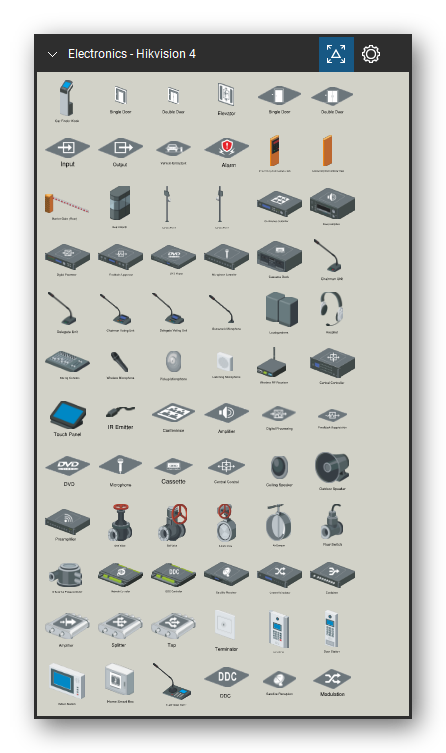

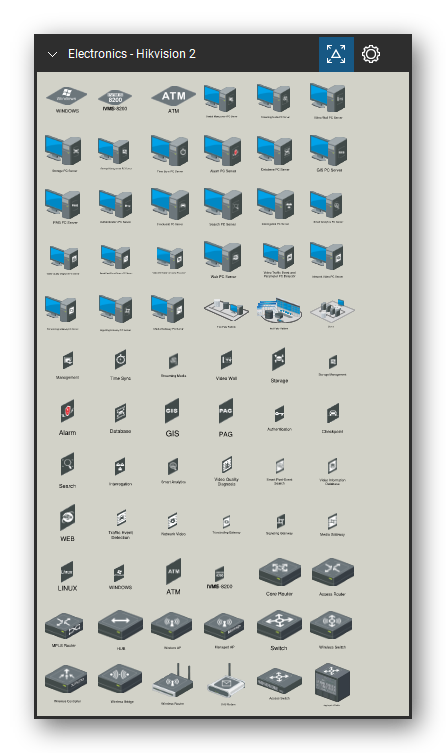

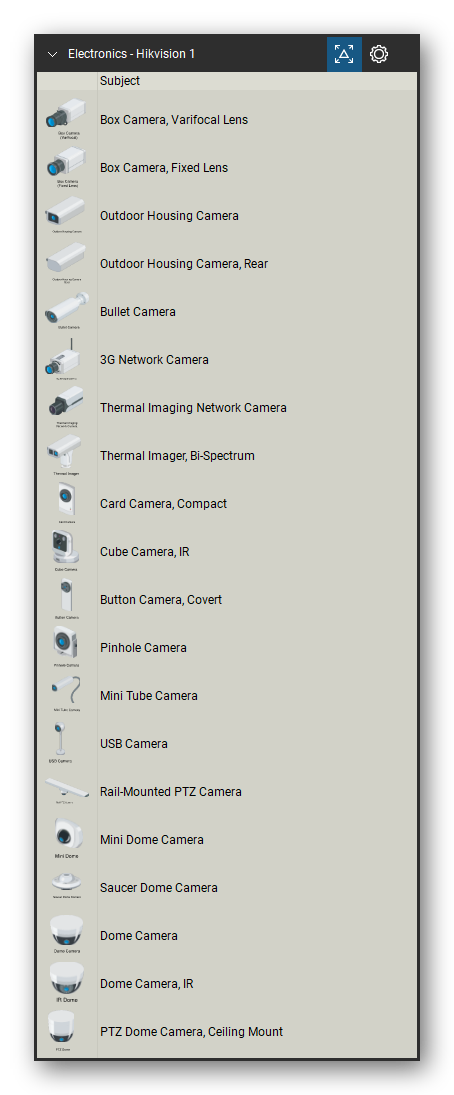

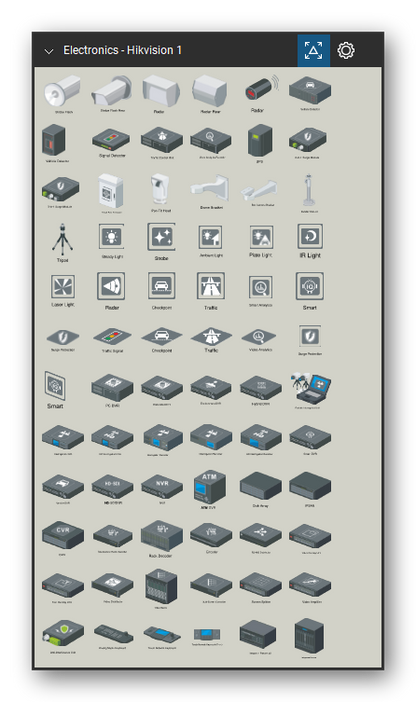

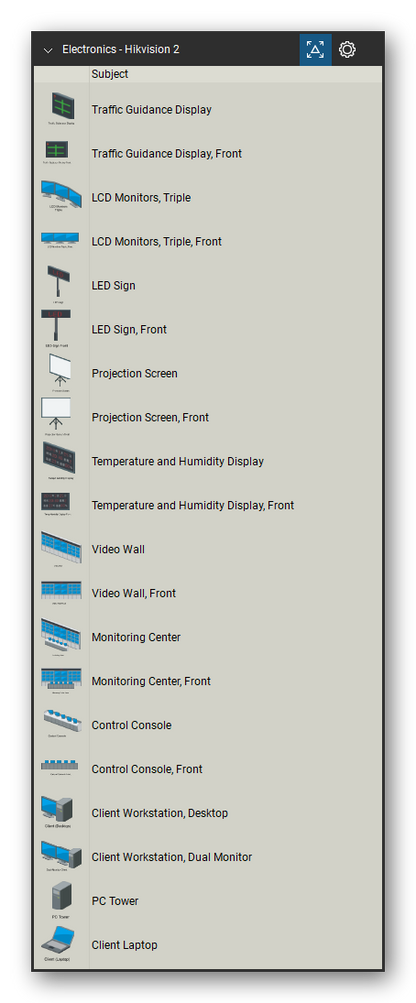

  • Cameras and video: box, bullet, dome, PTZ dome, thermal imaging, pinhole and covert cameras, camera poles and brackets, IR and LED illuminators, DVR and NVR, decoders, encoders, video matrix, monitors and video walls

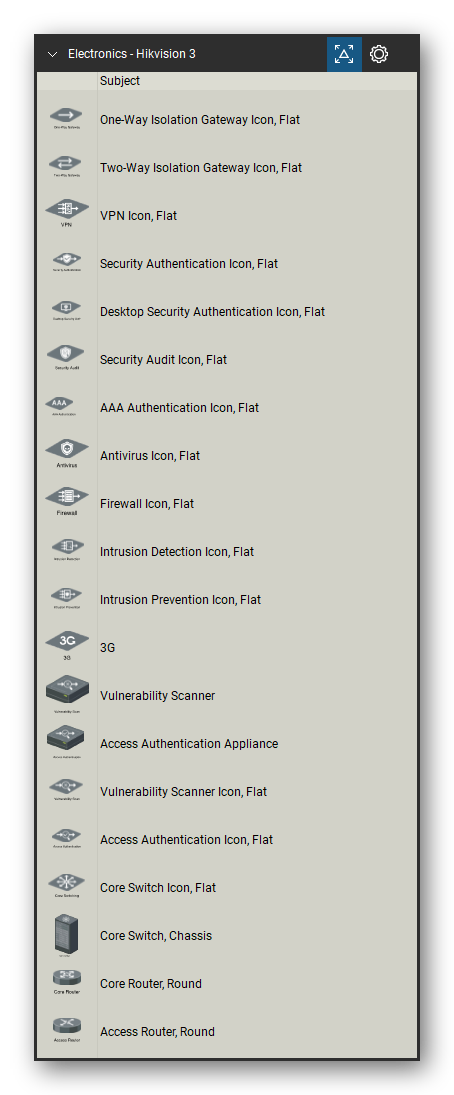

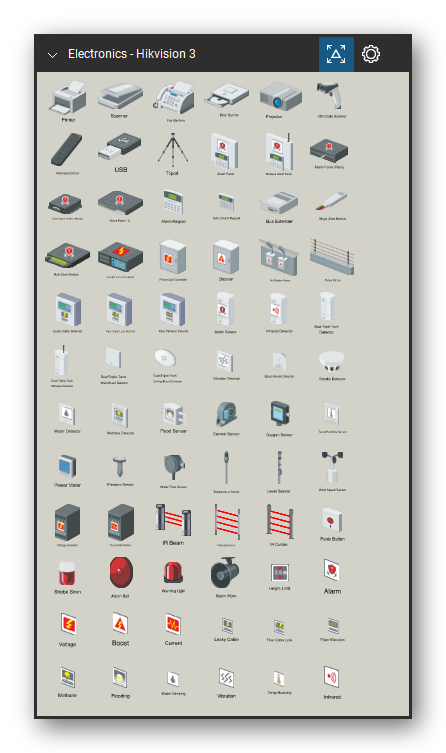

  • Servers, network and security: video management, storage and analytics servers, routers, switches, wireless access points, fiber transceivers, firewalls, intercom, two-way radios, alarm panels, detectors, sensors, card readers, turnstiles and parking barrier gates
  • Building systems: conference audio, valves, DDC controllers, CATV, video door stations, UPS, cabinets and generators, plus server and network icons
• Jacks & Connectors

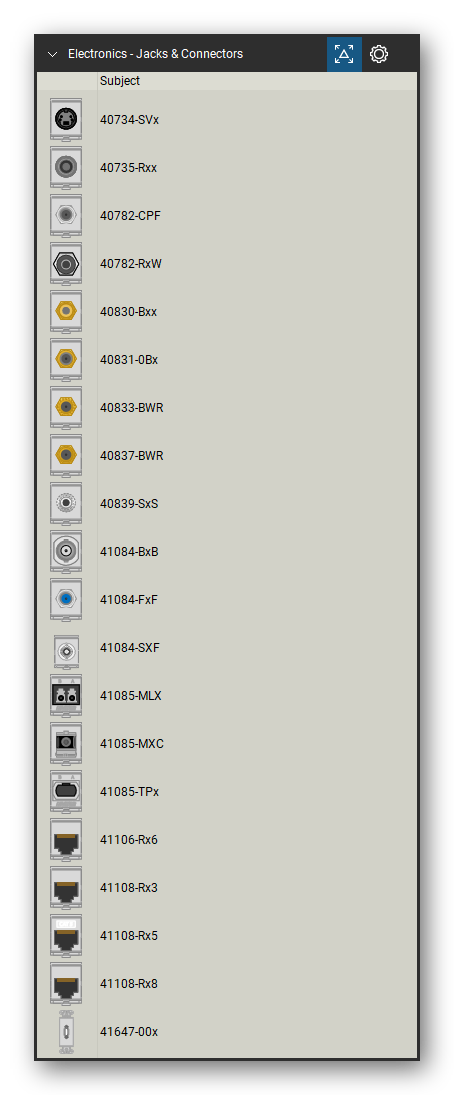

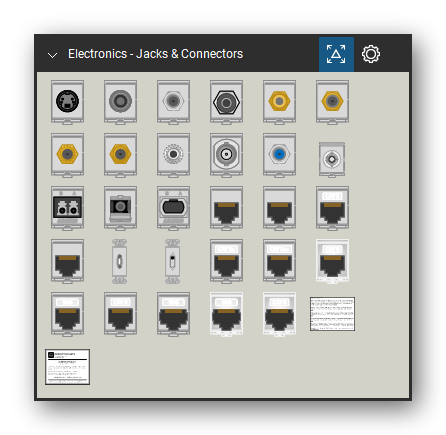

  • Jacks and connectors by part number: 40734 to 41648, 5G110, 6110G and 6A10G
• Logic & Controller Chips

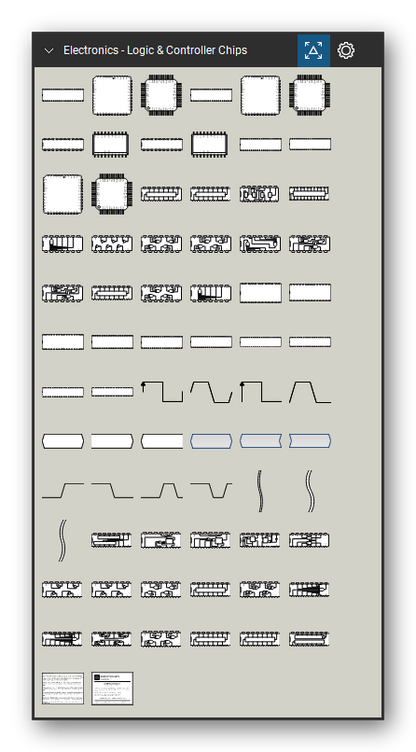

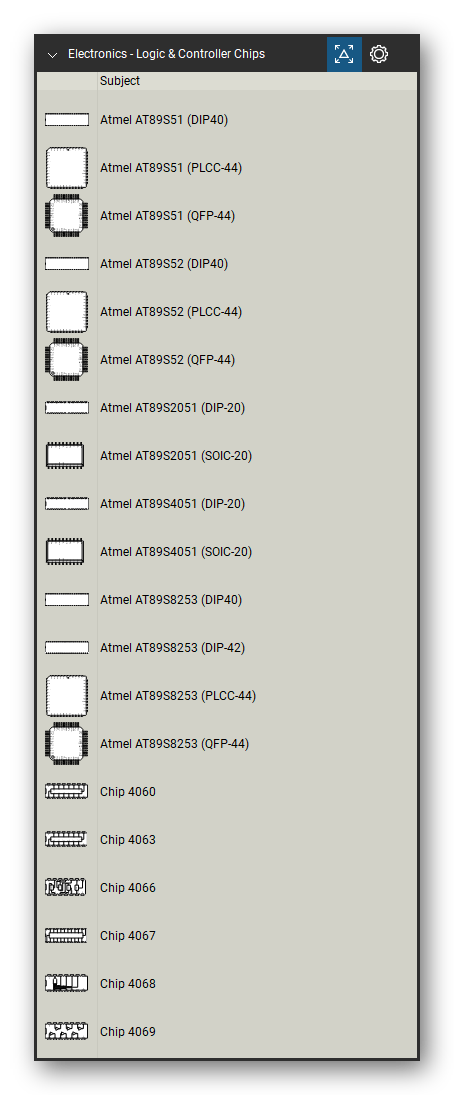

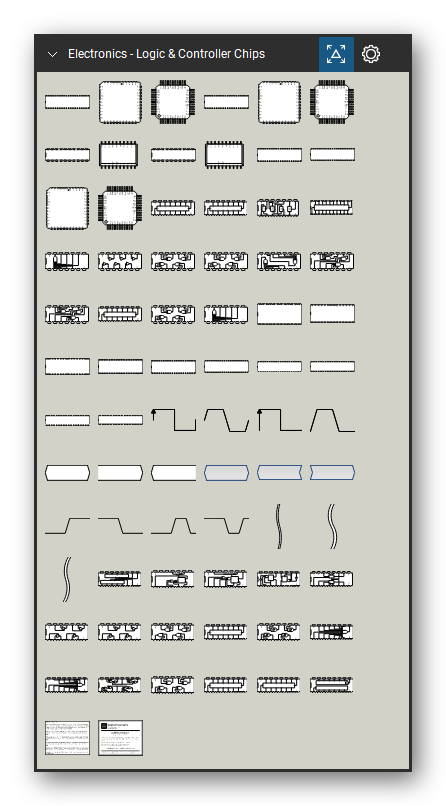

  • Atmel AT89S51, AT89S52 and AT89S8253, Chip 4060 to 4078, TTL 74120 to 74139, DIP600 DIP-24 to DIP-56
  • Timing diagram symbols: clock, wave, bus, rising, falling, high and low pulse, omit lines
• Opto 22

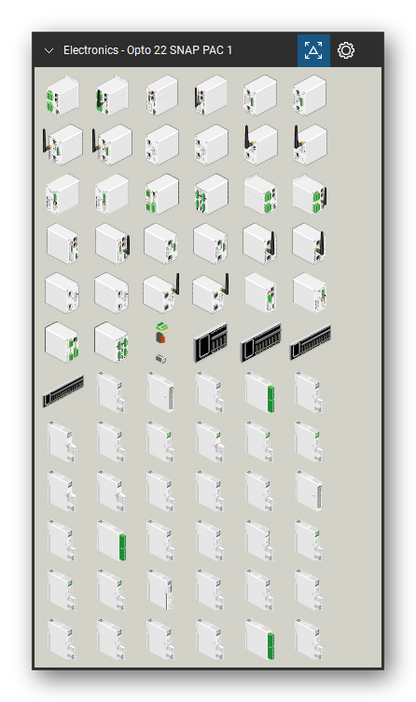

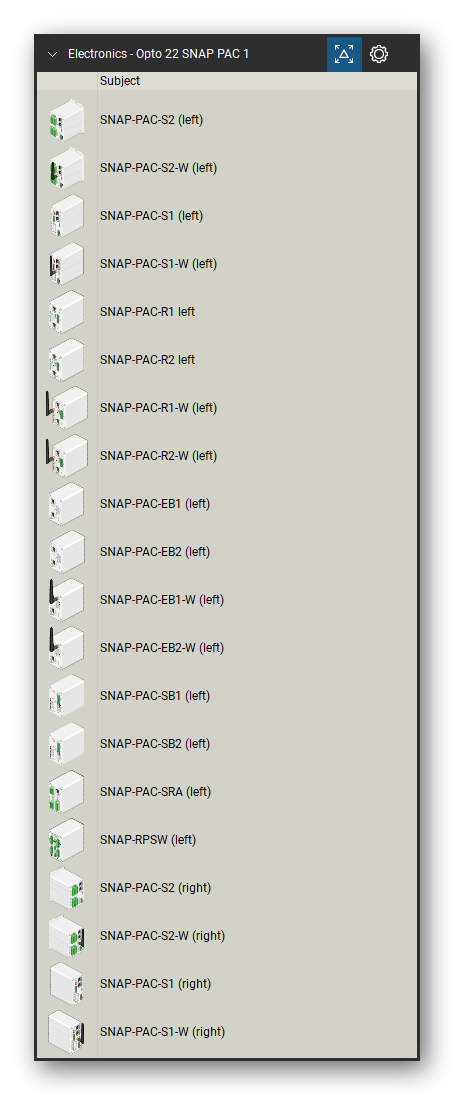

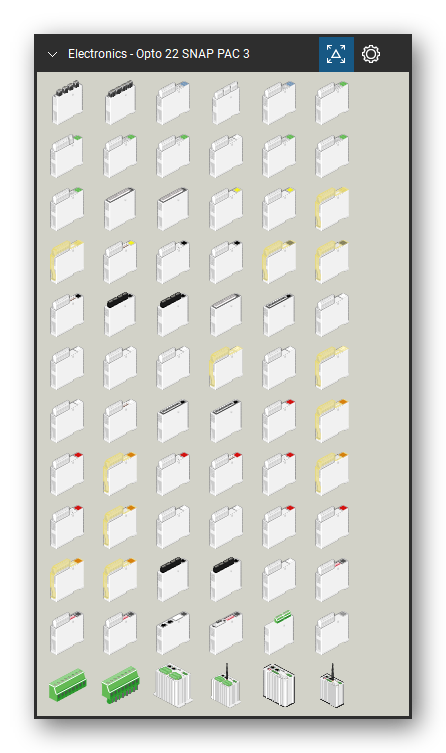

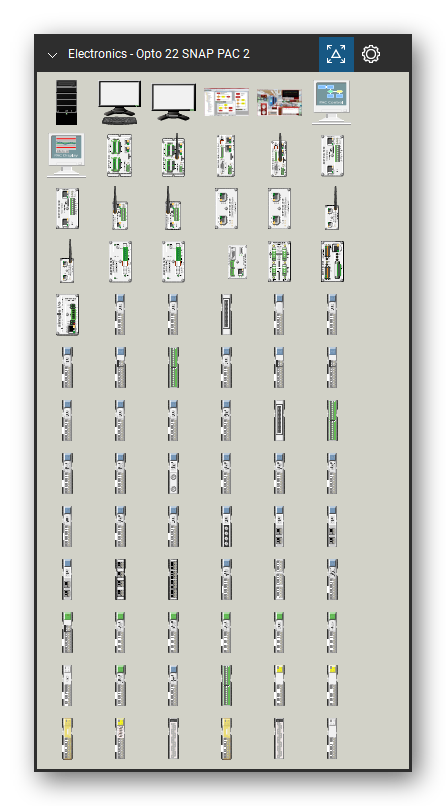

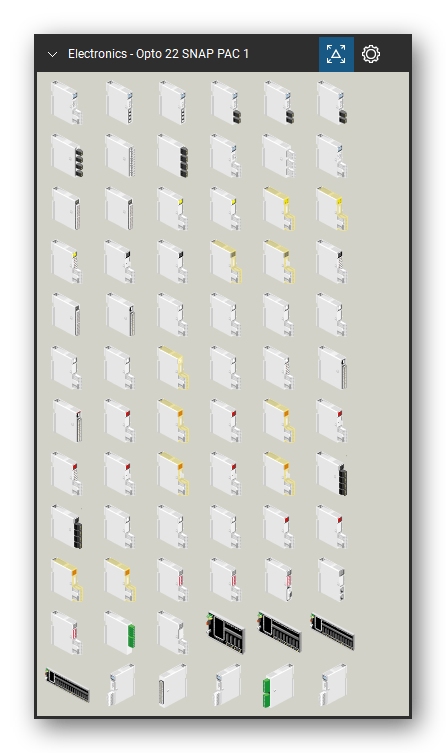

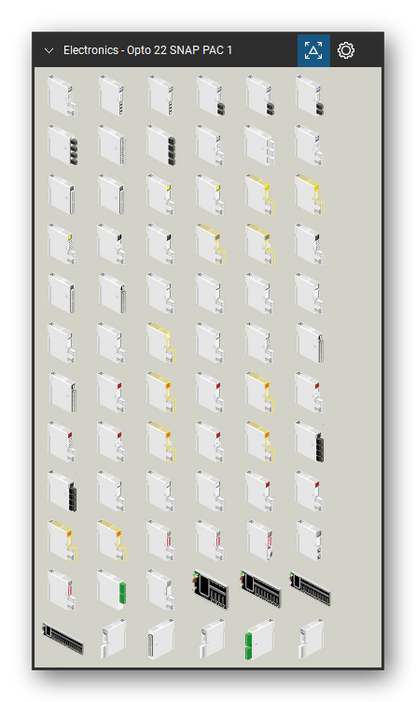

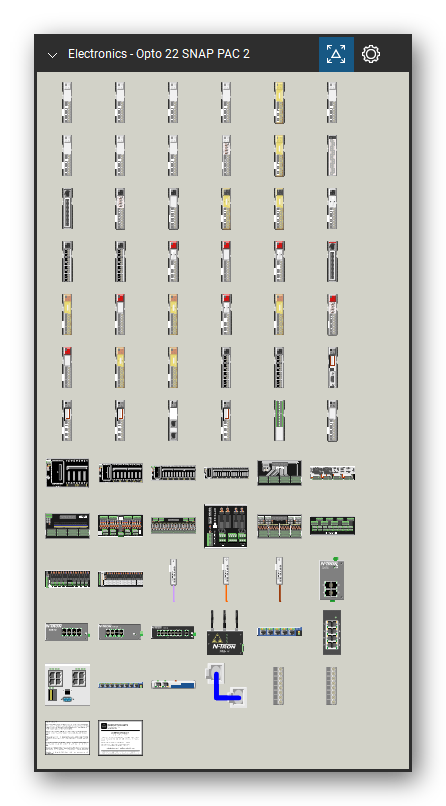

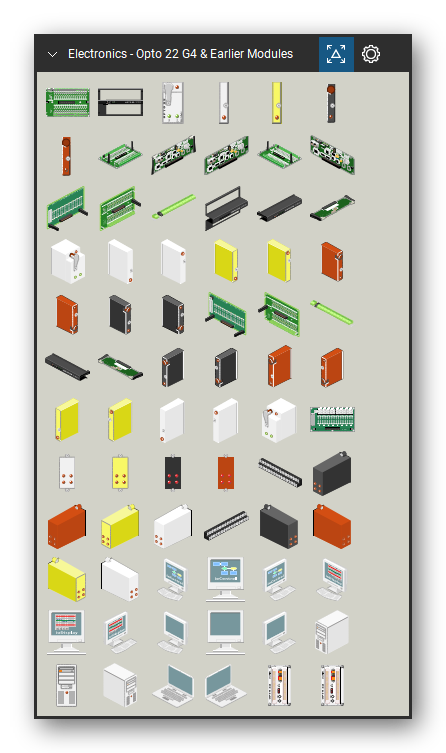

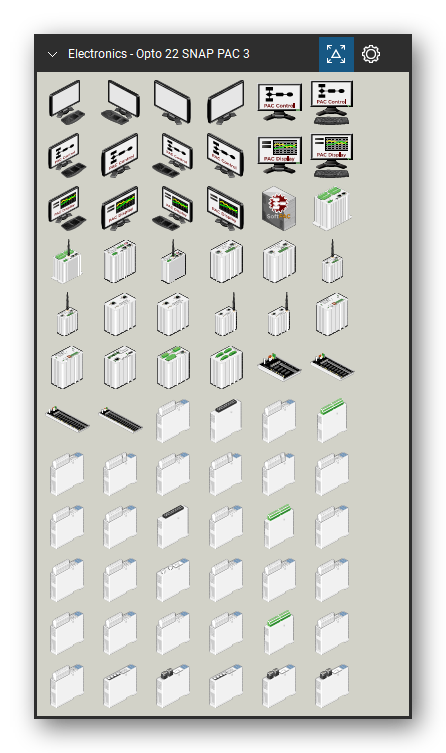

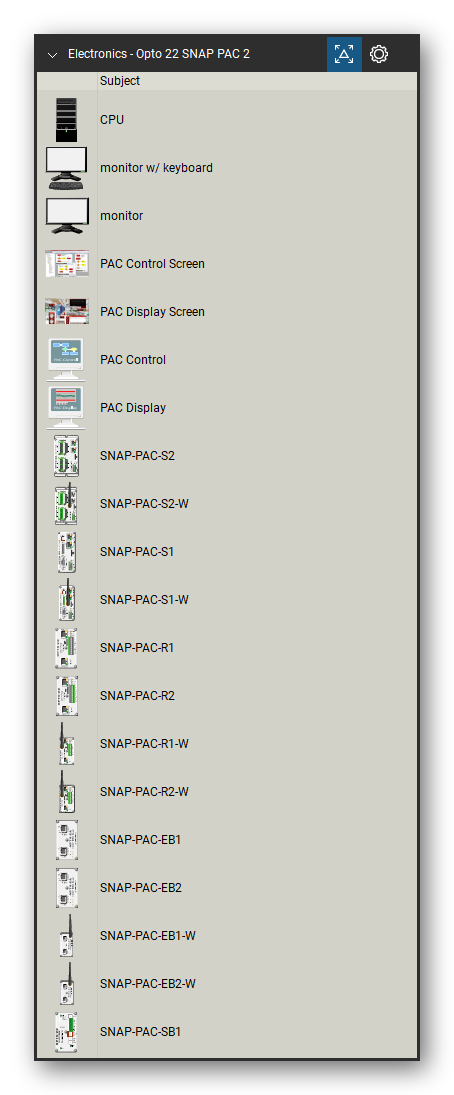

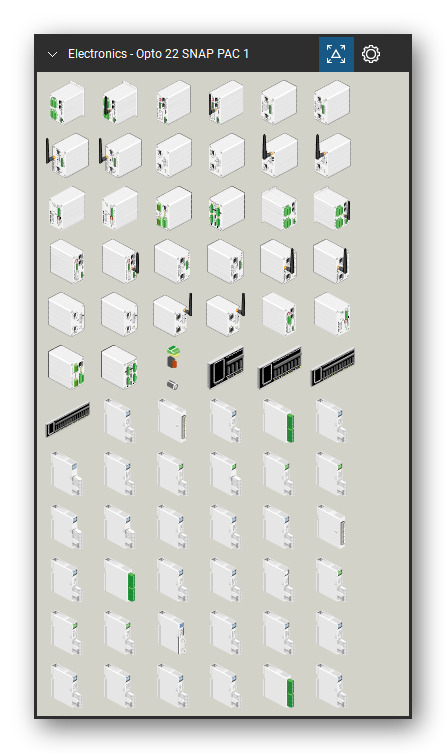

  • SNAP PAC S1, S2, R1, R2, EB1, EB2 and SB2 with wireless (-W) versions, SNAP-PAC-RCK16, N-Tron switches
  • SNAP-AIMA, AIRTD, AITM, AIV, AOA, IDC, IAC, ODC, OAC, OMR6 and SCM modules, SNAP-TEX and SNAP-HD parts

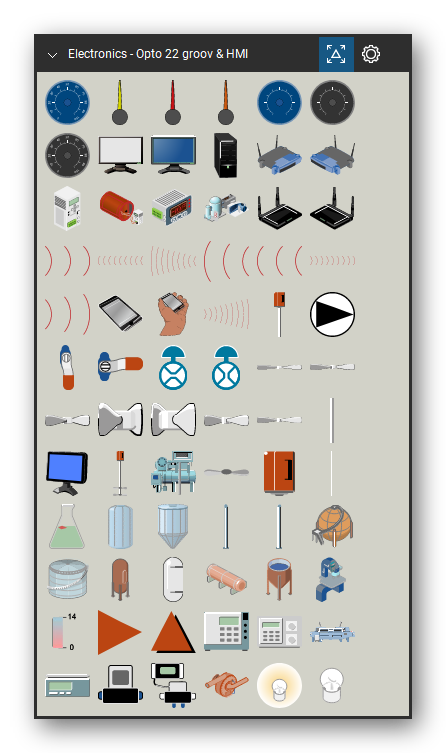

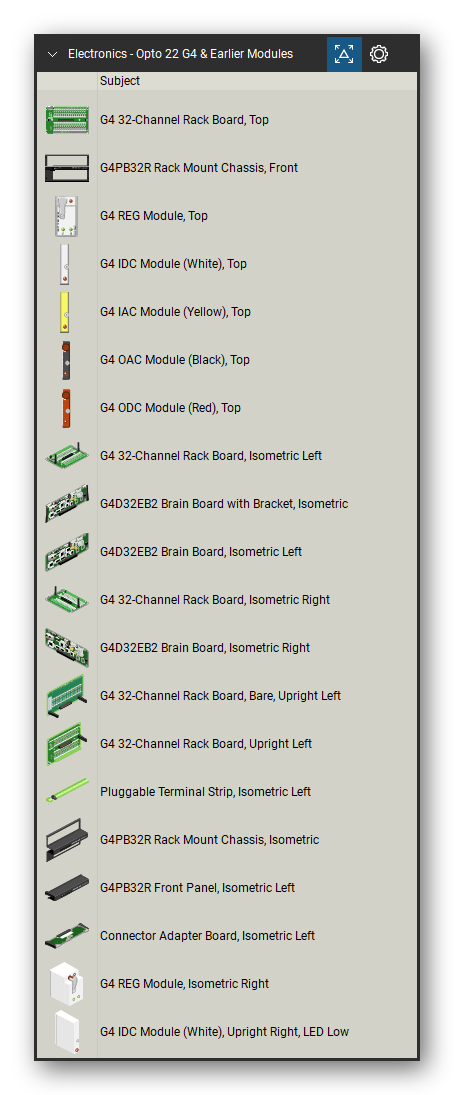

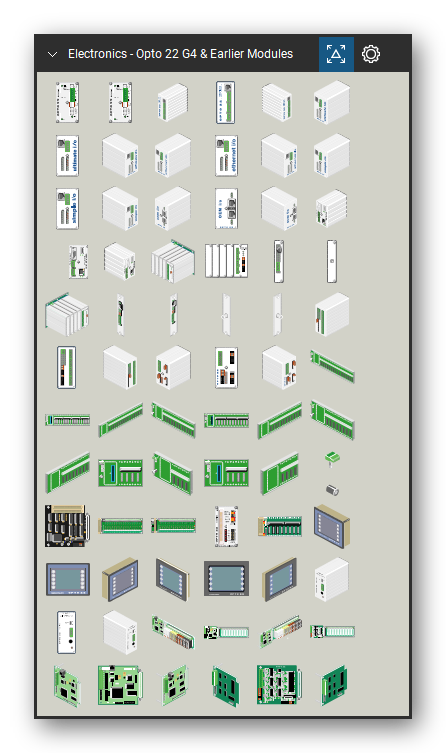

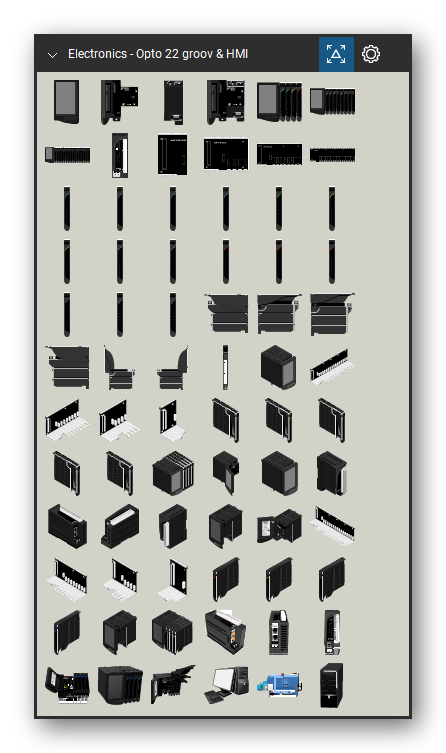

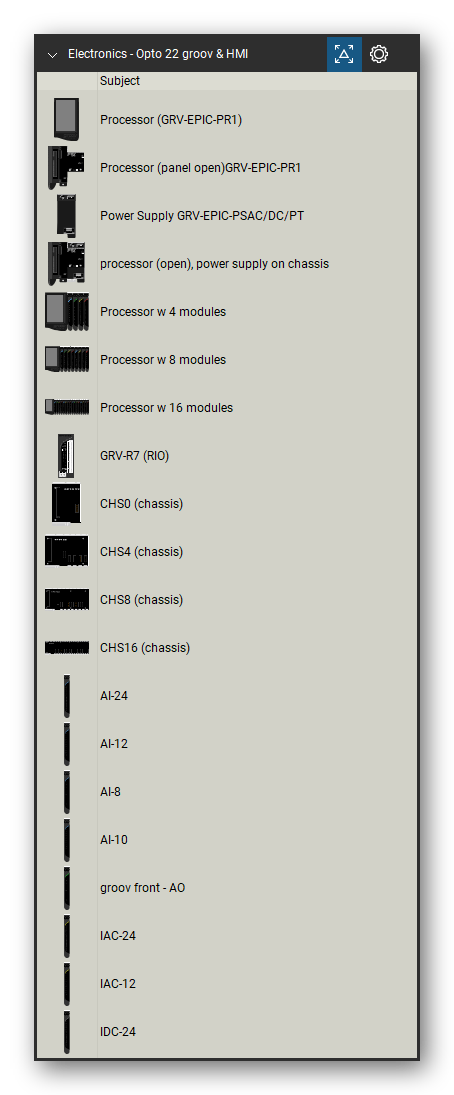

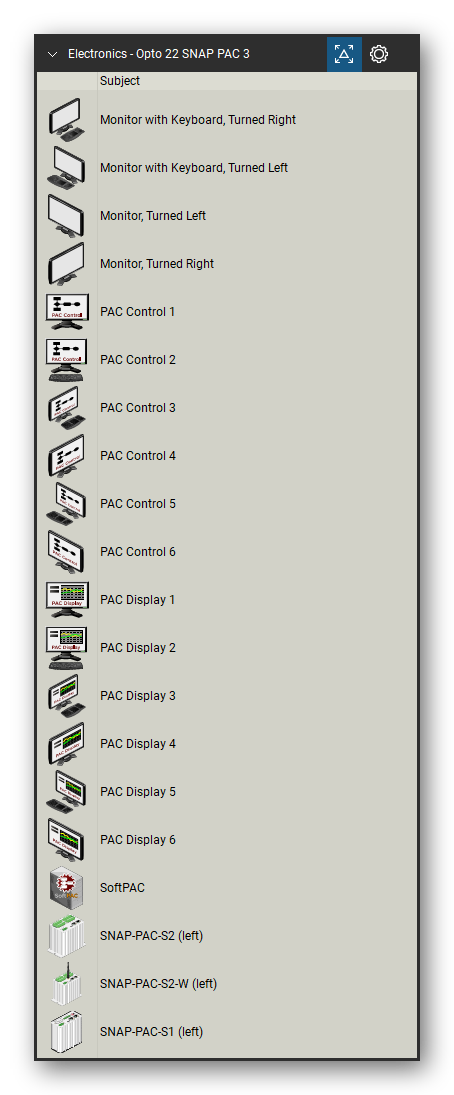

  • G4D32EB2 brain boards, G4PB32R racks with G4 IDC, IAC, ODC and OAC modules, E1/B1 and E2/B2, B3000, ioControl, ioDisplay and UIO brain; groov EPIC processor (GRV-EPIC-PR1), chassis and modules, HMI pumps, tanks, agitators and gauges
• VRT Icons
  • Desktop, laptop, tablet, smartphone and thin client, telephones, facsimile, inkjet and laser printers, web and authentication servers
  • Industrial barcode scanner and cellular modem, generic PLC DCS controller, three-phase multi-function meter, branch feeder monitor

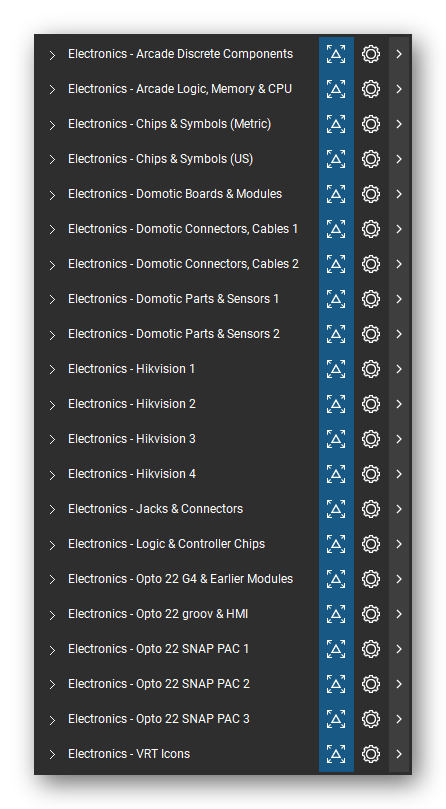

Delivered as 2 Bluebeam Revu profiles (Arcade to Domotic; Domotic to VRT) that together load all 21 tool sets, plus the individual tool set files.
